there's some areas the original bridge hid (that I drilled out myself when I was lightening the bass) that I'm going to use the original bridge to cover up, but It's not going to be easy
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
modding my T-40
- Thread starter tuBass
- Start date
Thanks. I've got this vision in my head of what I want it to look like when I'm done. If I can make it happen, I'll be thrilled

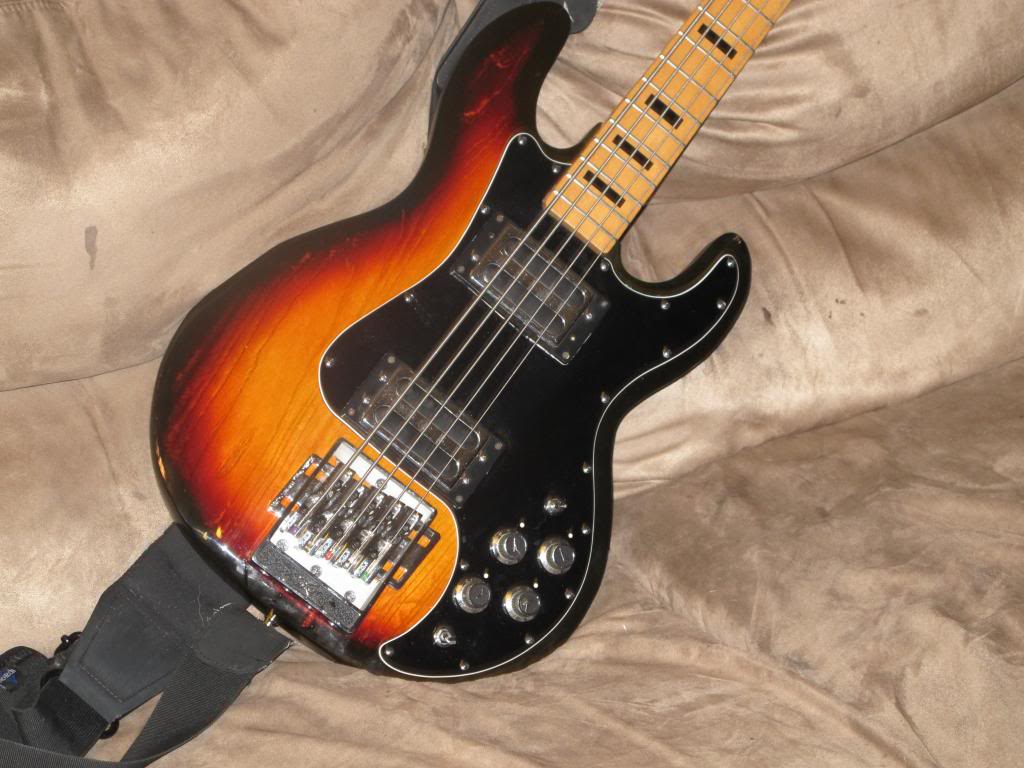

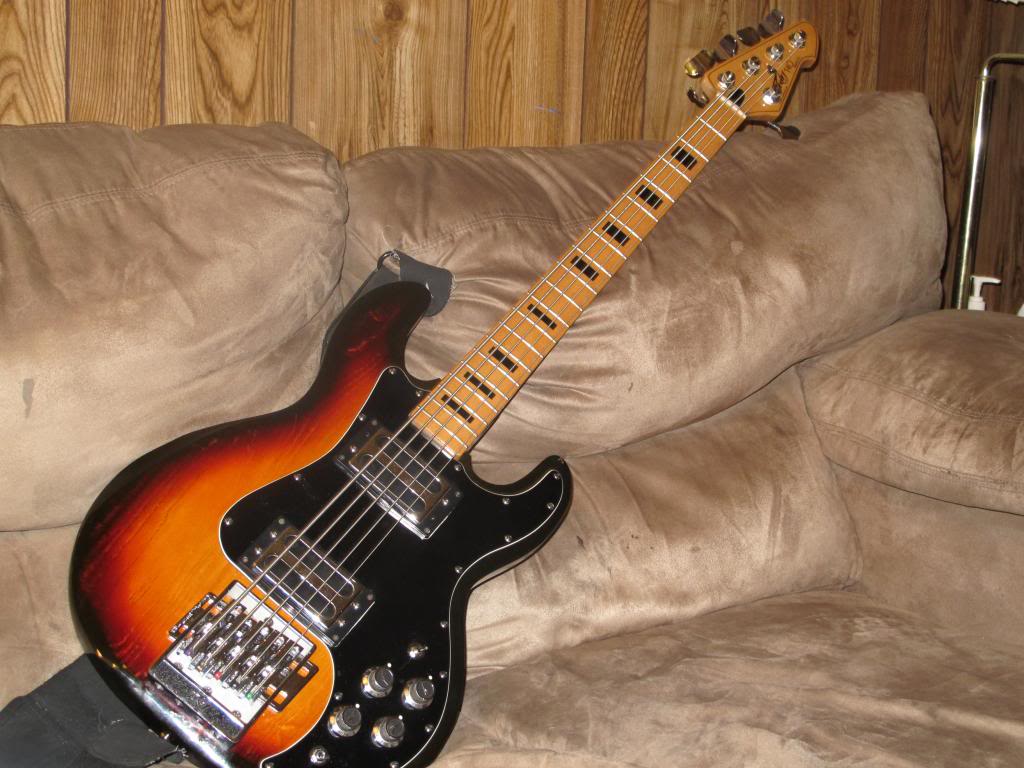

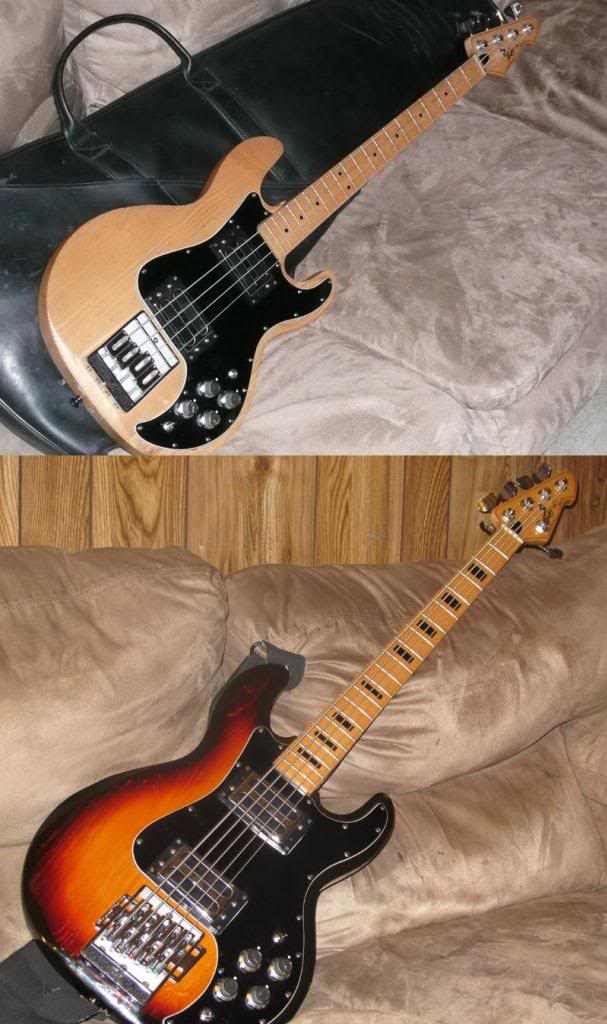

here it is! The bridge was a little harder to mod than I thought it would be, but in the end it looks like I was hoping it would.
this thing plays GREAT. I'm in love all over again!
this thing plays GREAT. I'm in love all over again!
Engine207
Losing faith in humanity...one call at a time.
I don't think it's ugly at all. The only thing I would explore is whether or not the bracket on which the individual saddles are mounted could be trimmed to fit under the Peavey bridge...

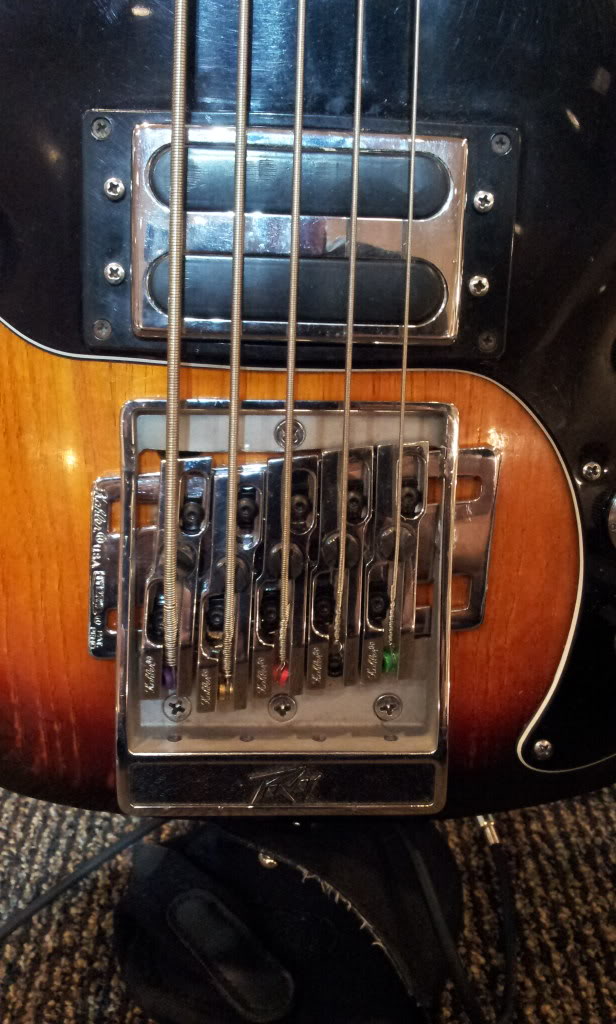

Close up of the bridge. Kind of proud of how it turned out, but if I ever do a second one I know I could do a better job.
Close up of the bridge. Kind of proud of how it turned out, but if I ever do a second one I know I could do a better job.
May I suggest taking off the metal overhang with a dremel or something, it would add to a cleaner look now that you{ve got the original bridge on there. Or would that affect the integrity of the bridge?

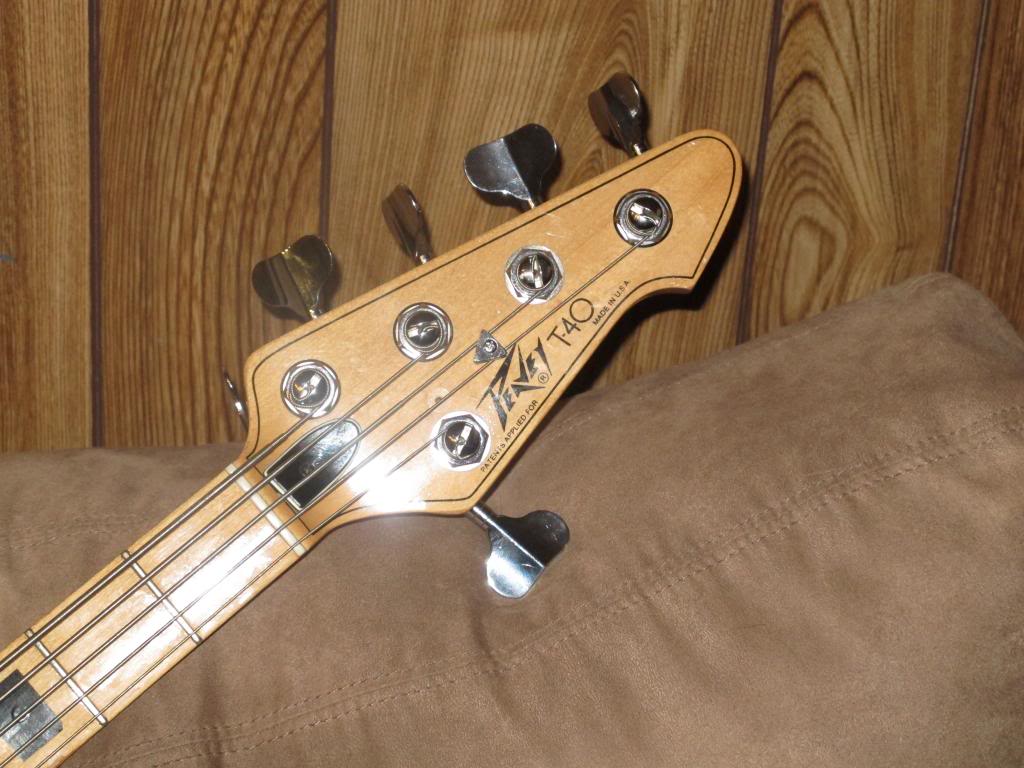

The guy who made the nut said a string tree isn't even needed. I added one from a t60 just because I like the way it looks.
I Wish I could, but the sides of the bridge are the only thing holding the top and bottom bars on.

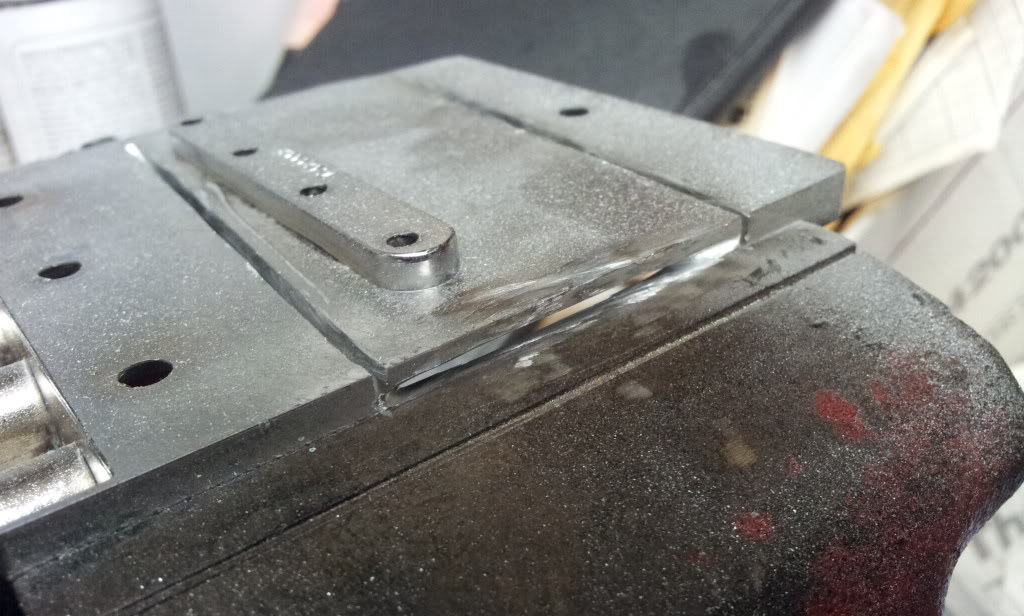

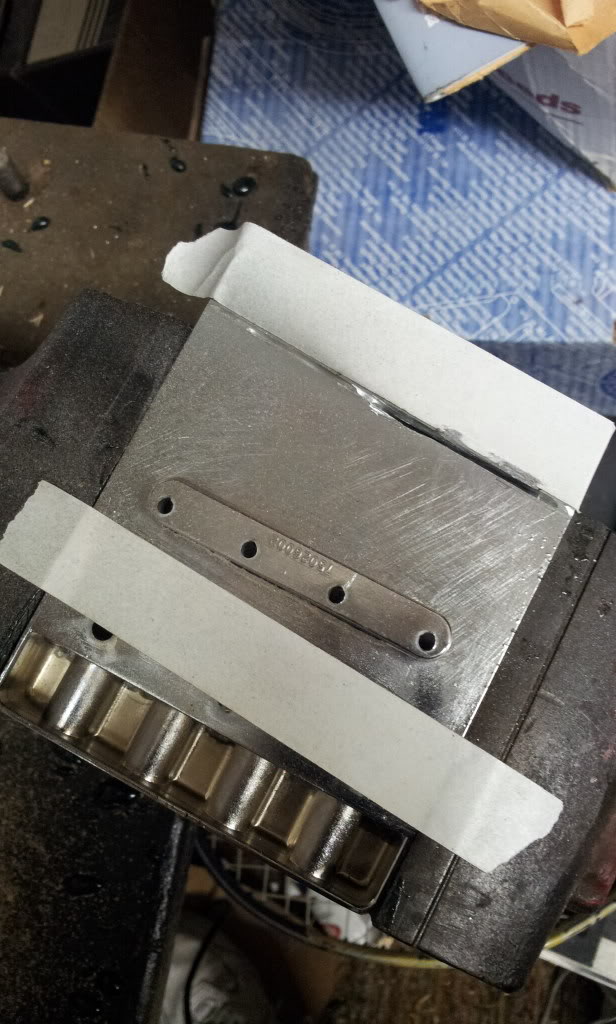

Butcher, this is for you. An upload of how I modded the bridge to get it to work with the 5 string bridge
I actually had to cut more away on the topside than I planned. If I ever do this again. I'll plan from the beginning to remove the inner bar that goes across the top side near the single screw hole.
I actually had to cut more away on the topside than I planned. If I ever do this again. I'll plan from the beginning to remove the inner bar that goes across the top side near the single screw hole.
Thanks! That is kinda how I imagined you would have to do it.
Good to know about the string spacing. I thought maybe you would have to nudge the B and G to the edges of the fretboard but if you managed to keep them stock spread then that Kahler must allow for some wicked tight spacing
16mm maybe?
.5625", or 14.28mm
Very tight, not for everybody... But I like it. After I played my Schecter for a while I couldn't go back to my yamaha, and now I probably won't go be able to go back to my Schecter.
Very tight, not for everybody... But I like it. After I played my Schecter for a while I couldn't go back to my yamaha, and now I probably won't go be able to go back to my Schecter.
yeah, it's tight. I find that I can't "dig in" on the strings as much as I used to, but that's probably a good thing, because honestly I did that too much and it would rip my fingers to shreads
I think you could go a bit wider on your spacing. I got one of these to use on a 5 string conversion using T-40 pups. Spacing is 16mm (64mm - 2.5" total).
Looks like it would fill that hole better.
http://www.ebay.com/itm/CHROME-5-ST...862?pt=Guitar_Accessories&hash=item4d119b18ae
Looks like it would fill that hole better.
http://www.ebay.com/itm/CHROME-5-ST...862?pt=Guitar_Accessories&hash=item4d119b18ae
As an eBay Associate, TalkBass may earn a commission from qualifying purchases.
I might experiment with the current bridge. Wouldn't spreading the bridge really throw off the intonation on the outer strings? or could that be compensated for by adjusting the saddles?
