My New Studio Build (perhaps overly detailed)

[J Posega]

So excellent to see this progress! I'm sure it still feels like it's taken forever, and that there's still forever to go, but the amount you manage to get done with every new post is impressive.

Have you decided on the interior design scheme?



[Microbass]

So excellent to see this progress! I'm sure it still feels like it's taken forever, and that there's still forever to go, but the amount you manage to get done with every new post is impressive.

Have you decided on the interior design scheme?

We went over this a few posts up... Hipster vibe... insulation on view to act like potarto sacks...



[theLimeyBrit]

Is there green glue between the 2 layers of the inner leaf?

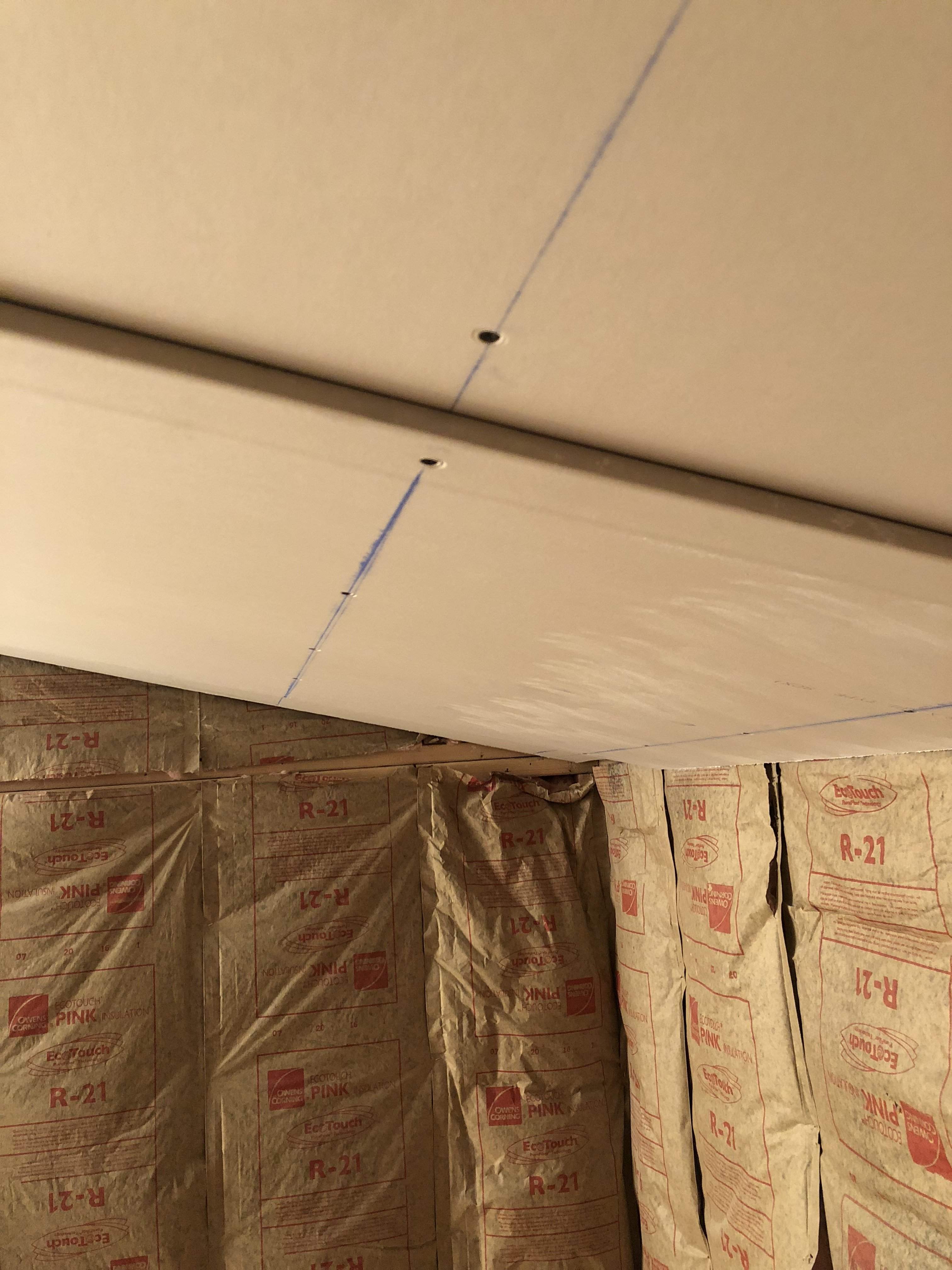

Flying the second layer of the inner leaf’s lid at the south end of the building. Getting this done will allow me to do the south wall next and minimize the amount of stockpile rearrangement necessary to keep rolling along.

View attachment 3002053 View attachment 3002054



[silky smoove]

Have you decided on the interior design scheme?

Only in so much as the floor will be a laminate wood product that's not too dark, the walls will be painted some color, the trim will be really big and white, the electrical fixtures will be oiled bronze, and the acoustic treatments will have a wood facing of some sort. Well... Either that or what @Microbass has suggested

We went over this a few posts up... Hipster vibe... insulation on view to act like potarto sacks...

Is there green glue between the 2 layers of the inner leaf?

Yep. Two tubes per 4x8 sheet, or in the case of my eave to ridge dimension, two tubes per 48x81 sheet.



[Microbass]

Not to harper on like a broken record or anything, but... [Invalid or Expired Link Removed]



[silky smoove]

I’ve got something similar in my sunroom. The lights in the studio are track lighting so I can customize the brightness and angle as needed. I still need to pick out the fixtures.



[Microbass]

I’ve got something similar in my sunroom. The lights in the studio are track lighting so I can customize the brightness and angle as needed. I still need to pick out the fixtures.

I’m just being a pest tbh..! When I’ve been in a studio I want a professional look and feel - no gimmicks. Puts everyone even after they’ve done their bit that they are there for a reason. I know you’ll put in what you think is right it’ll be an amazing place to go record in.

Makes think you’ll need to host a GTG for a a rainy BBQ and some beers!



[silky smoove]

If I can find LED Edison track lights in an oiled bronze finish they’ll be strong contenders for sure.



[silky smoove]

Tonight’s rehearsal got cancelled. Time to fly some more ceiling panels!



[beans-on-toast]

With any lighting, it’s important that the fixture be solid enough that it doesn’t vibrate or rattle.

I had six standard size (E26) LED bulbs that must have been susceptable to vibration. The bulbs were expensive and had a long life warranty. They only lasted about two months. Unfortunately, I didn’t keep the paperwork or receipt.



[silky smoove]

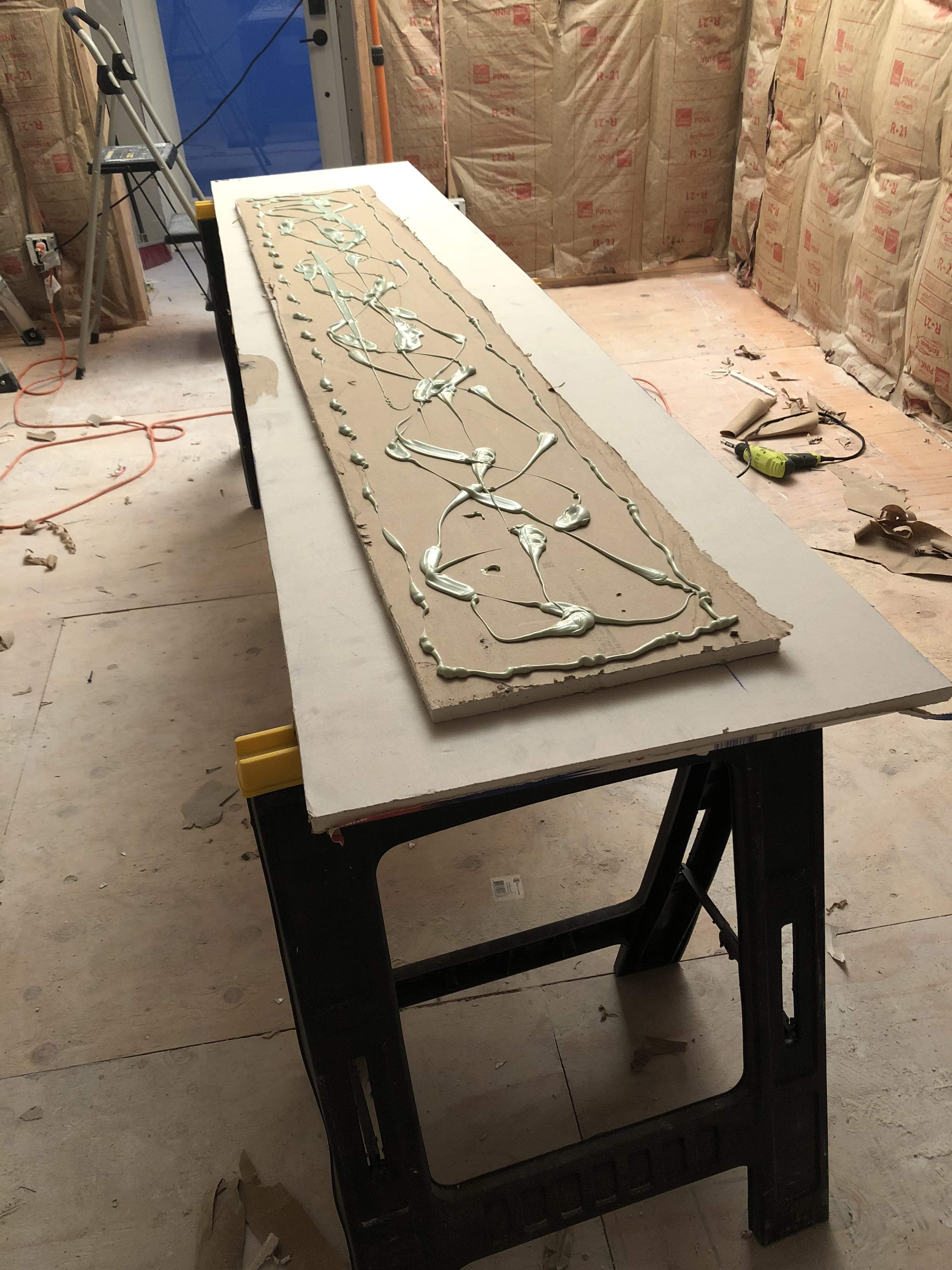

Green Gluin’



[silky smoove]

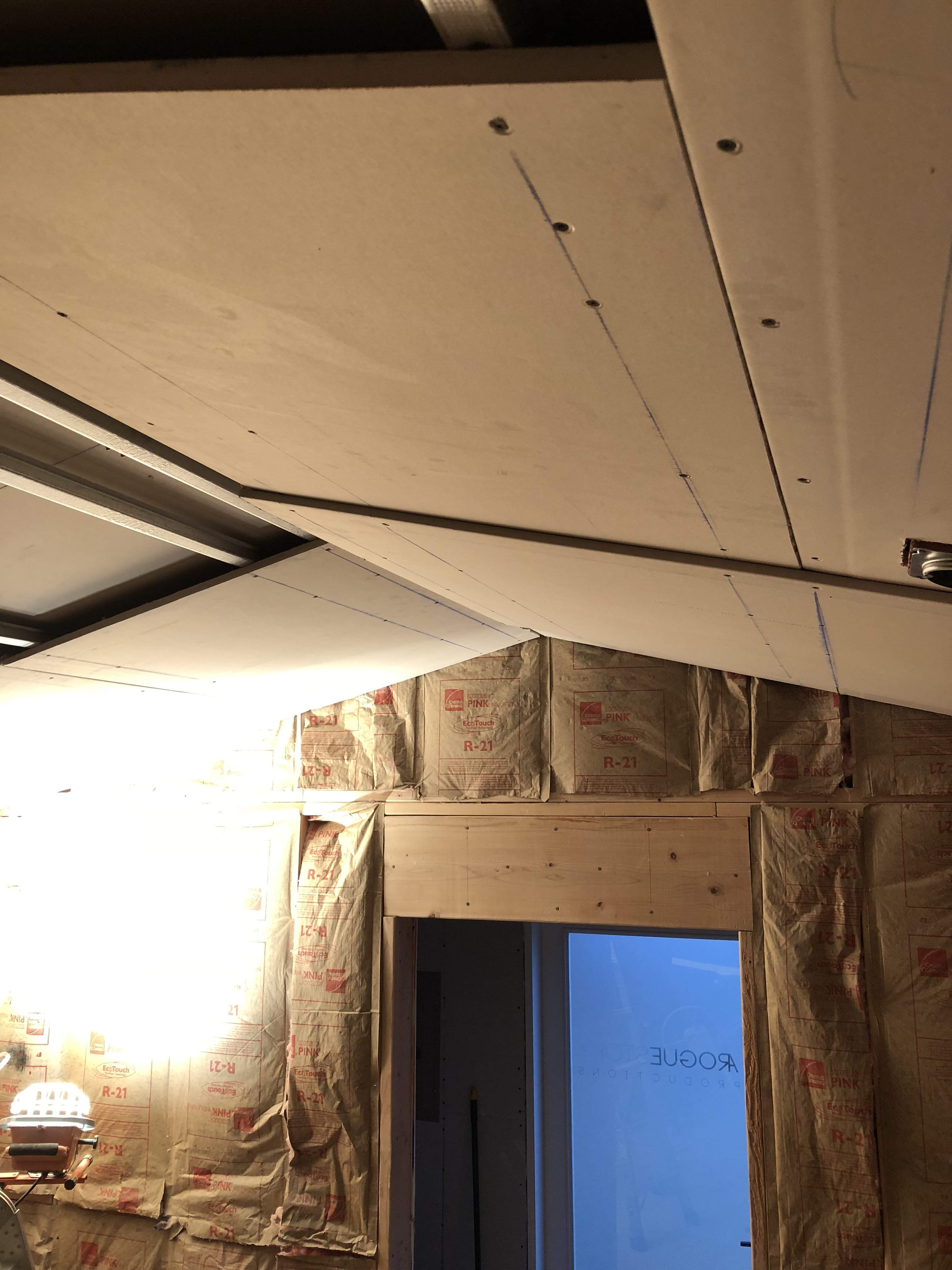

Southern edge of the lid is done. That means I can knock out the southern wall without needing to move my drywall stockpile. Going to knock that out this weekend.



[silky smoove]

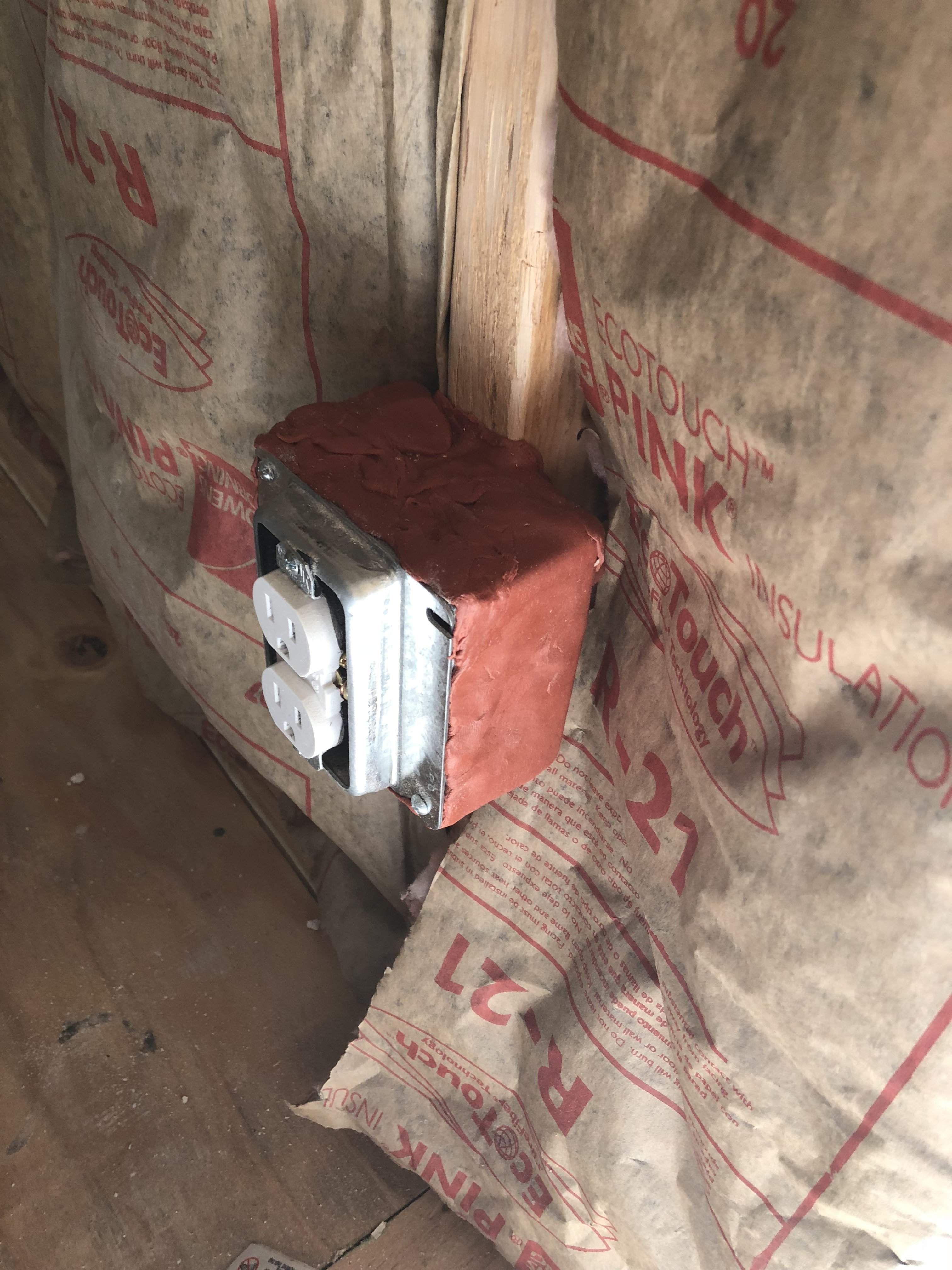

Prepping electrical boxes on the south wall.



[silky smoove]

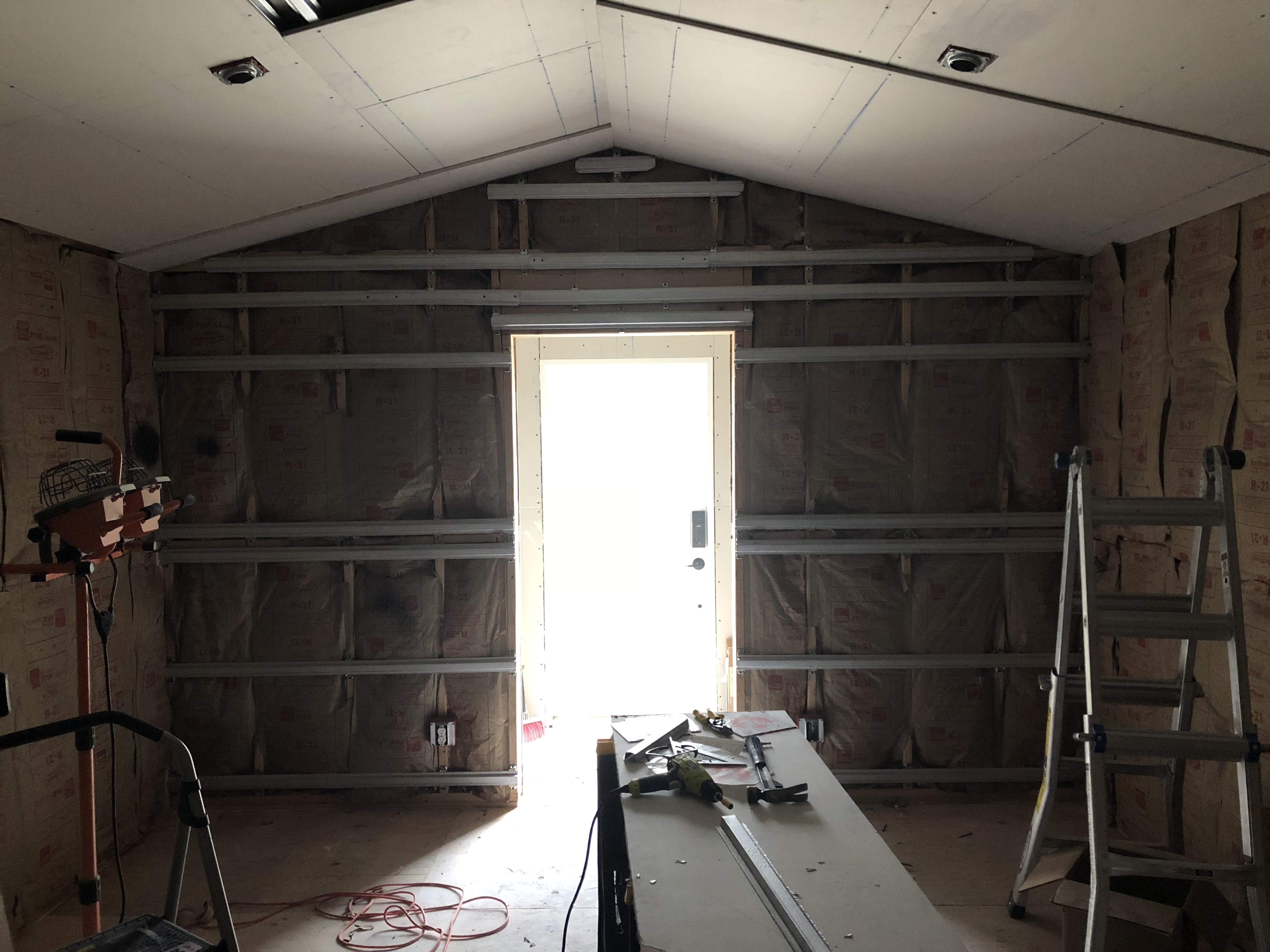

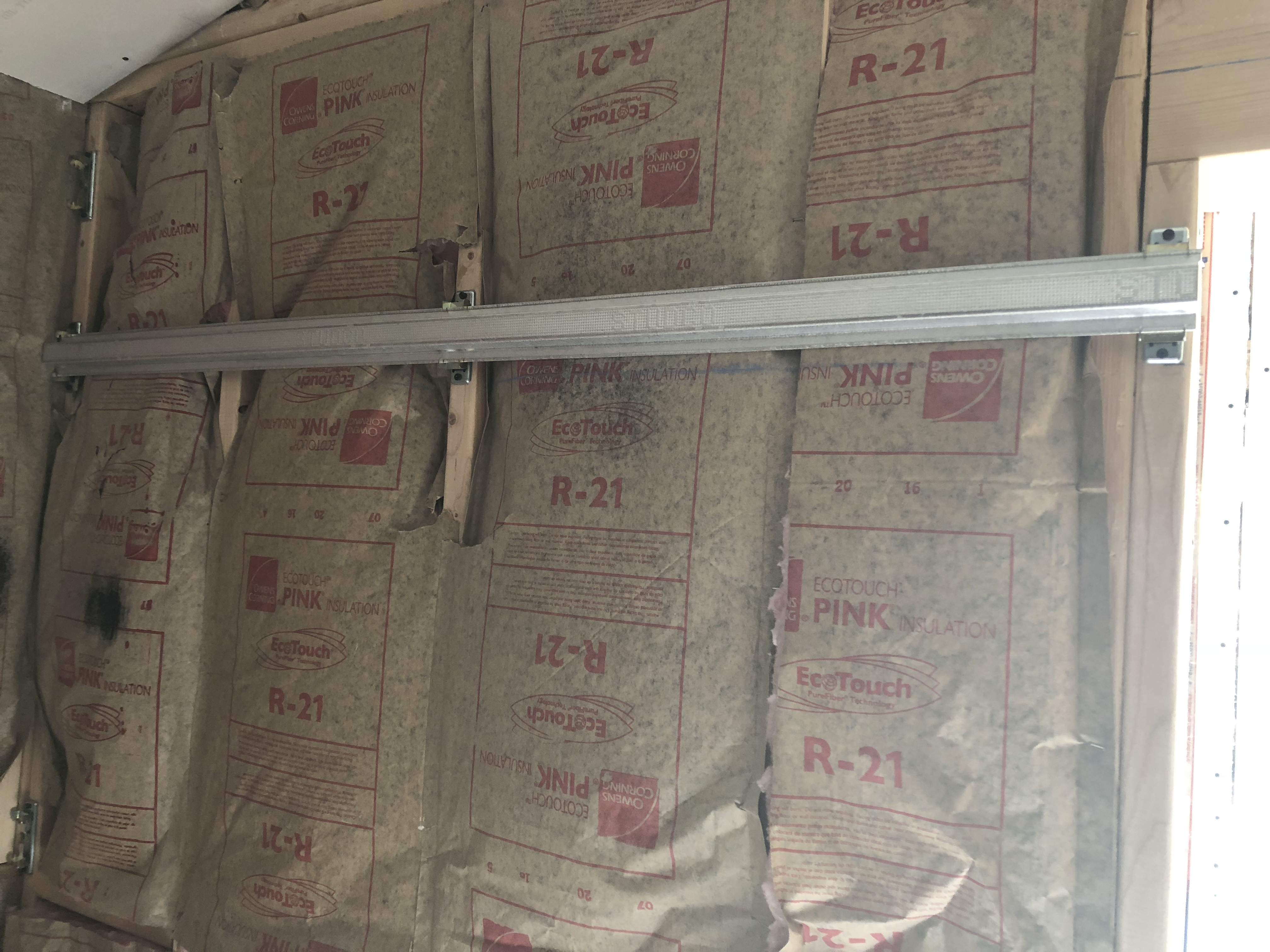

Putting up clips and hat channel on the south wall.



[silky smoove]

Making progress. I suspect I underestimated the amount of hat channel this project will need. The end walls (north and south) have a lot more cuts/waste than I’d expected, so I’m going through boxes at a scary rate. Some of the cuts will be used to join full pieces on the longer side walls (east and west), but still... might need some more. Better do a check of clips and putty pads too!



[silky smoove]

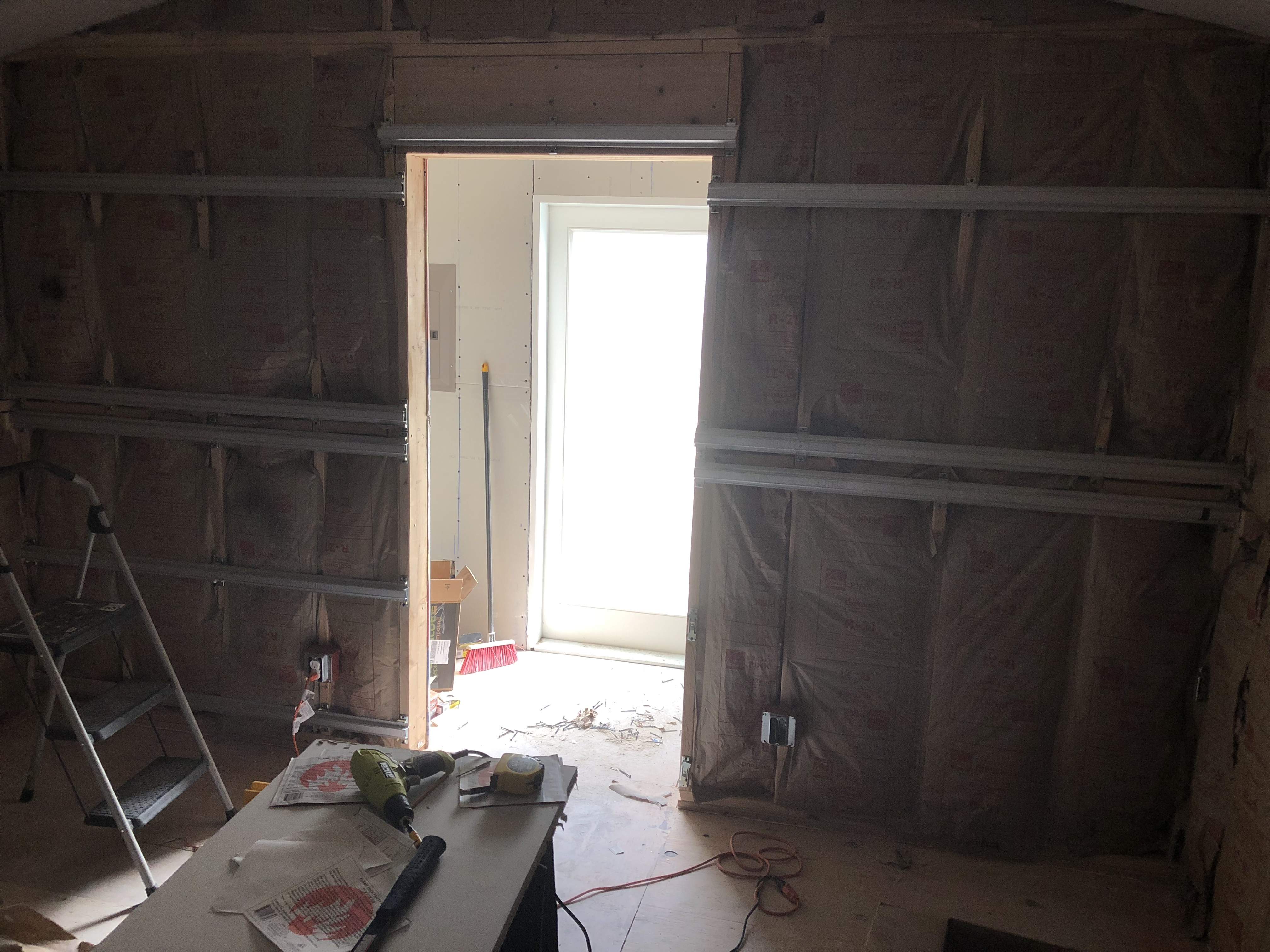

Clips and hat channel are done on the south wall. I think (fingers crossed) that I got all of the placements right for the butt seams to work out. I’ll know when I start putting up panels tomorrow.



[IconBasser]

It's coming together, Silky, great work!



[silky smoove]

It's coming together, Silky, great work!

Thanks! Still feels like a million miles left to go, but the progress is definitely starting to feel more and more apparent.



[marko138]

Silky, I don't comment often, but I read every update to this thread! Great work. Keep it up!



[silky smoove]

Silky, I don't comment often, but I read every update to this thread! Great work. Keep it up!

Appreciated!
