New Bergantino Cabinets!

#22
Alright! Here are the official specs. I'm cutting & pasting these straight from Jim B.'s email, so hopefully I"m not introducing any errors this time!! :rollno::D

HD112
• 1-12” Cast frame woofer w/ 80oz. magnet
• High intelligibility tweeter
• Power handling: 350 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 40hz-15khz
• Sensitivity: 97db @ 2.83v /1meter
• Impedance: 8 ohms
• Dimensions: 16 ¼”h x 18 ½”w x 15”d
• Weight: 44lbs.
• Optional padded cover available

HD210
• 2-10” woofers w/ 56oz. magnets
• High intelligibility tweeter
• Power handling: 400 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 44hz- 15khz
• Sensitivity: 98db @ 2.83v /1meter
• Impedance: 8 ohms
• Dimensions: 18” ½” h x 22 ¾” w x 12 ½”d
• Weight: 54lbs.
• Optional padded cover available

HD212
• 2-12” Cast frame woofers w/ 80oz. magnet
• High intelligibility tweeter
• Power handling – 700 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 40hz-15khz
• Sensitivity: 103db @ 2.83v /1meter
• Impedance: 4 ohms
• Dimensions: 31”h x 18 ½”w x 15”d
• Weight: 79lbs
• Optional padded cover available

HD410
• 4-10” woofers w/ 56oz. magnets
• High intelligibility tweeter
• Power handling – 800 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 44hz-15khz
• Sensitivity: 104db @ 2.83v /1meter
• Impedance: 4 ohms
• Dimensions: 26”h x 22 ¾ ”w x 15 ½ ”d
• Weight: 88lbs.
• Removable castors
• Optional padded cover available

#24
SactoBass said:
Thanks Greg for those specs!

When do you expect to get a batch of the HD112's in?
Click to expand...

I've got several of the 112's on order that should be availble for me to ship around the end of this month.

I'm accepting pre-orders now if you want to make sure one of these first ones becomes yours!

#26
RocketMusic said:
Alright! Here are the official specs. I'm cutting & pasting these straight from Jim B.'s email, so hopefully I"m not introducing any errors this time!! :rollno::D

HD112
• 1-12” Cast frame woofer w/ 80oz. magnet
• High intelligibility tweeter
• Power handling: 350 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 40hz-15khz
• Sensitivity: 97db @ 2.83v /1meter
• Impedance: 8 ohms
• Dimensions: 16 ¼”h x 18 ½”w x 15”d
• Weight: 44lbs.
• Optional padded cover available

HD210
• 2-10” woofers w/ 56oz. magnets
• High intelligibility tweeter
• Power handling: 400 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 44hz- 15khz
• Sensitivity: 98db @ 2.83v /1meter
• Impedance: 8 ohms
• Dimensions: 18” ½” h x 22 ¾” w x 12 ½”d
• Weight: 54lbs.
• Optional padded cover available

HD212
• 2-12” Cast frame woofers w/ 80oz. magnet
• High intelligibility tweeter
• Power handling – 700 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 40hz-15khz
• Sensitivity: 103db @ 2.83v /1meter
• Impedance: 4 ohms
• Dimensions: 31”h x 18 ½”w x 15”d
• Weight: 79lbs
• Optional padded cover available

HD410
• 4-10” woofers w/ 56oz. magnets
• High intelligibility tweeter
• Power handling – 800 watts
• Custom phase-coherent crossover w/ tweeter control
• Precision tuned, 100% Baltic birch enclosure
• Frequency response: 44hz-15khz
• Sensitivity: 104db @ 2.83v /1meter
• Impedance: 4 ohms
• Dimensions: 26”h x 22 ¾ ”w x 15 ½ ”d
• Weight: 88lbs.
• Removable castors
• Optional padded cover available
Click to expand...

I'd like to have two or three of each...






:bassist:

#28
VroomVroom said:
I keep having nasty thoughts...staring at my sorely unused Epifani 902C....and thinking about it driving two of those new 212's. I have no gigs on the horizon - and nor have I had one in the past four years - that call for such stage volume...but man it'd be fun to plug in and bang out some low notes.
Click to expand...

Pfft. When has "need" ever come into buying bigger gear? Once or twice in life?

DO IT!

You don't need a 700hp Camaro (speed limit is still 35 and 70 mph) but man ain't it fun to stand on it every now and then?

:hiding:

:D

God Bless, Ray

#30
RocketMusic said:
Jim Bergantino has officially announced his new product lineup, and the cabs will be shipping towards the end of this month!

I just wanted to give everyone a quick heads up about what cabinets will be available and how much they cost.

The two existing NV models continue to live:

NV-610: $1349 + $100 shipping
NV-412: $1349 + $100 shipping

The NEW cabinets belong to the new HD series. The common features are NV tolex covering, black corners and ceramic speakers. The new models/configurations are as follows:

HD112: $649 + $50 shipping
HD210: $769 + $50 shipping
HS212: $999 + $80 shipping
HD410: $1099 + $80 shipping

I'll pass along further technical details and pics as they become available. Jim B. tells me a pro photographer just left his shop this morning, so some official images should be available within a few days or so.

I'm placing my opening order for these new cabs today, so I am now opening up for pre-orders if anyone wants to reserve one of these first cabs that ship. A 20% deposit will let me place your name on any of them!

Yee-haw! I'm super excited at the prospect of having Bergs flowing again, I can't wait to hear these new cabinets!

:hyper::bassist::hyper::bassist::hyper::bassist:
Click to expand...

So...
an HD112 + HD210 = $1580
a pair of HD210 = $1638
three HD112 = $2097
HD112 (pair) + HD210 (pair) = $3160
...what's a guy to do?

I'd really like to compare the first two options there.

#34

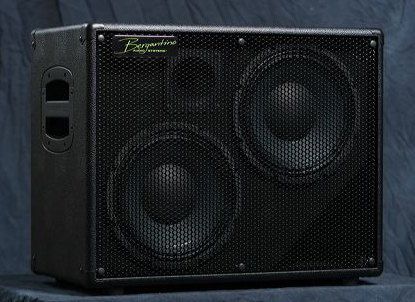

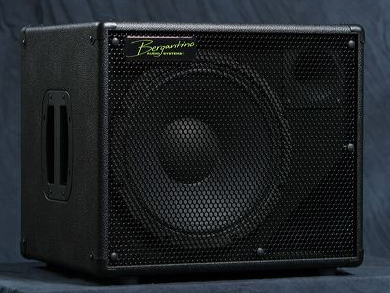

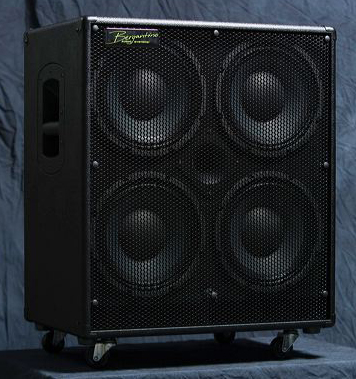

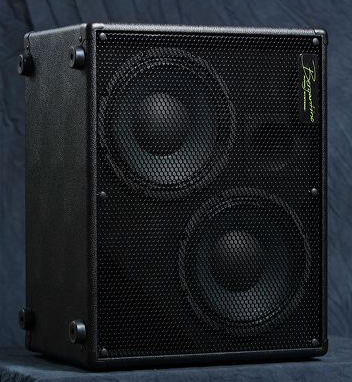

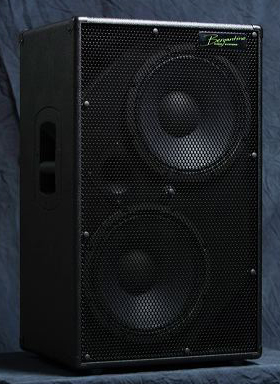

Here are the first official photos from Bergantino. Looks like the HD210 has two sets of rubber feet to let it go either vertical or horizontal.

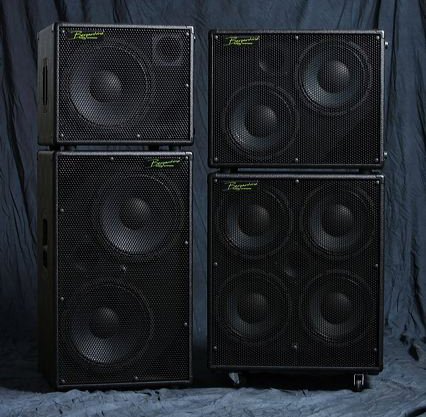

Here's a group shot, and I'll post individual cab photos as I process them this morning.
