overdrive/fuzz quest part 2

[johnk_10]

my newest one, an orginal Acoustic 360 germanium fuzz with some extra bells and whistles.

to make it, I used the original 360's germanium fuzz schematic, drew up a vero for the it, modified it to run on 9 volts, then i added a clean blend, a tilt tone control and finally a Jfet booster so the clean blend would have unity gain at 12:00 and a +4db boost fully clockwise. it's a pretty gnarly fuzz pedal for bass. other than running it on 24v, I used all original NOS transistors (2N3391's and a 2N1306) and the same value of resistors and caps in it so it's tone would be true to the original.

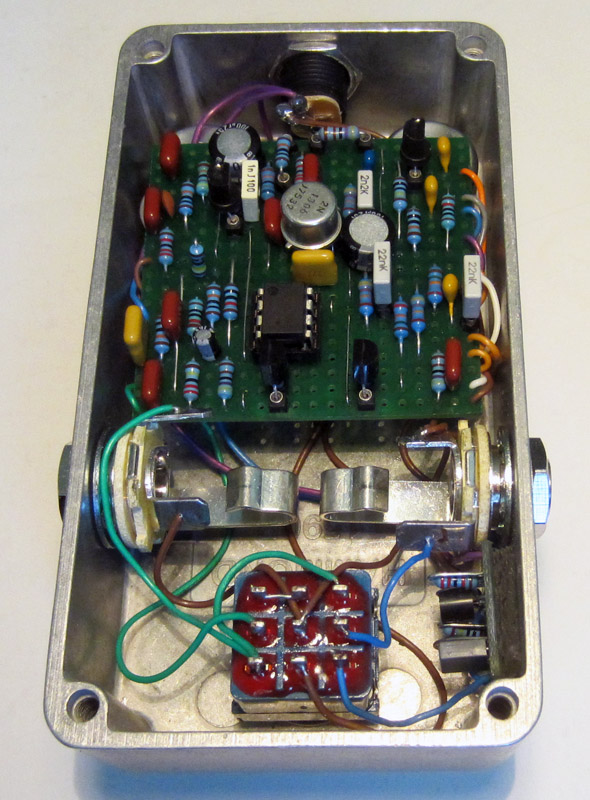

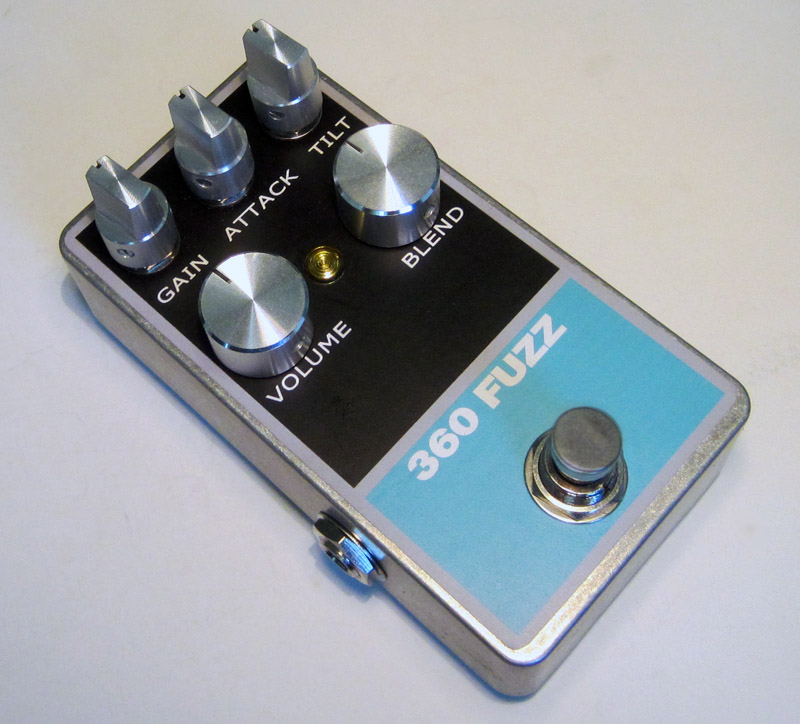

here's a couple of pics of the final result:



[gregmon79]

Hey john, not sure if I asked this before, so sorry if I did, but have you ever built a preamp that modeled and or copied the old acoustic preamp?



[johnk_10]

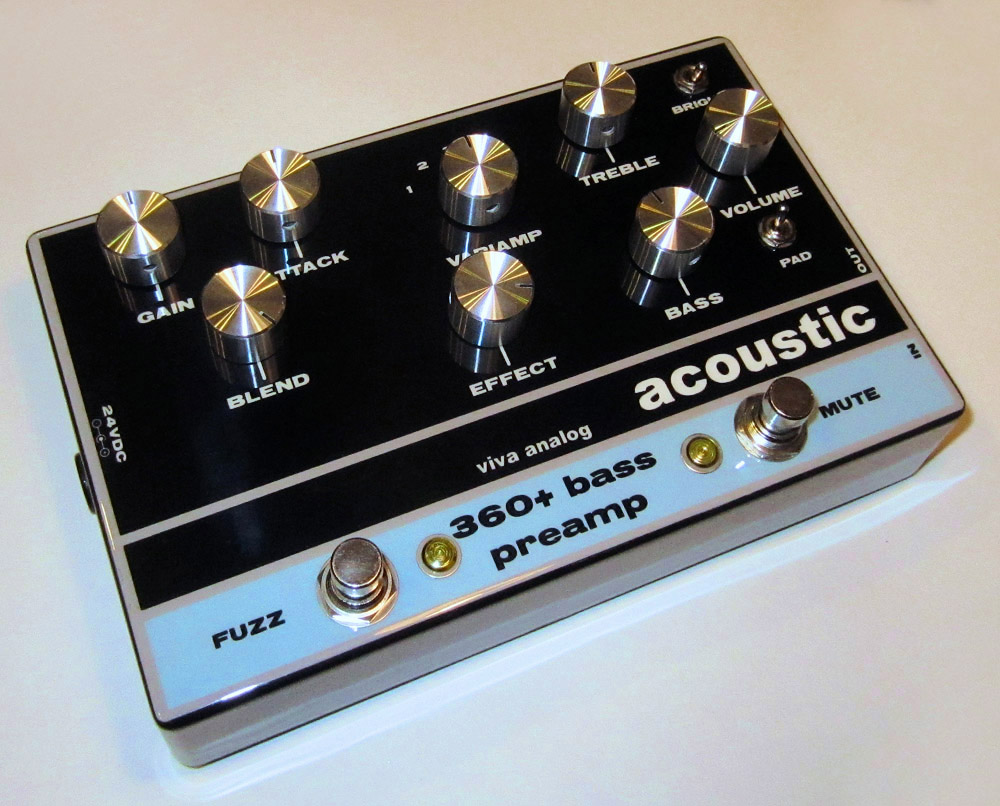

yes. I built the viva analog 360+ preamp a while ago. it's an exact clone of the original 360.



[Basshappi]

I SO want to hear that 360 Fuzz!

I can already feel my wallet shaking in fearful anticipation!



[skulletwhip]

yes. I built the viva analog 360+ preamp a while ago. it's an exact clone of the original 360.

This may be a little bit of a weird question. Where did you get those knobs? I'm making a fuzz for a friend and those knobs would really tie the room together.



[FretNoMore]

yes. I built the viva analog 360+ preamp a while ago. it's an exact clone of the original 360.

I'm sure it sounds good too, but I must say that's one great looking pedal.



[johnk_10]

This may be a little bit of a weird question. Where did you get those knobs? I'm making a fuzz for a friend and those knobs would really tie the room together.

Mammoth electronics



[gregmon79]

yes. I built the viva analog 360+ preamp a while ago. it's an exact clone of the original 360.

I thought I had seen that before. Thanks for showing it. Man that thing is awesome. If only!



[DirtyDuke]

I'm sure it sounds good too, but I must say that's one great looking pedal.

I have one as well, smoothest low midst ever!!!! Not a John k build, mine is a dicosmo, but I love it.....



[skulletwhip]

Mammoth electronics

Thanks!



[aetheriac]

I've got the board, now for the parts. I know my finished box will never look as good as JohnK's does though.

Might have to go with those knobs though. They ooze style.



[jumbodbassman]

my newest one, an orginal Acoustic 360 germanium fuzz with some extra bells and whistles.

to make it, I used the original 360's germanium fuzz schematic, drew up a vero for the it, modified it to run on 9 volts, then i added a clean blend, a tilt tone control and finally a Jfet booster so the clean blend would have unity gain at 12:00 and a +4db boost fully clockwise. it's a pretty gnarly fuzz pedal for bass. other than running it on 24v, I used all original NOS transistors (2N3391's and a 2N1306) and the same value of resistors and caps in it so it's tone would be true to the original.

here's a couple of pics of the final result:

this i have wanted for along time. excellent.



[jumbodbassman]

John is there anyway to get around the double preamp issue if i go with the 360+ otherwise it is really not a pedal but a preamp.....



[johnk_10]

John is there anyway to get around the double preamp issue if i go with the 360+ otherwise it is really not a pedal but a preamp.....

not that I know of since the 360+ is a completely integrated preamp just like the original.



[johnk_10]

here's a quick clip that I just made of the 360 Fuzz with various settings. it actually has ton of them that I can't show all in one clip.



[jumbodbassman]

not that I know of since the 360+ is a completely integrated preamp just like the original.

would you recommend using it as a effect pedal or by passing the the preamp of an amp and using this either thru the effect or preamp in..

there are songs i want a 360 but other times i like my ampeg sound...

any ideas???



[johnk_10]

the 360+preamp sounds excellent, so when I use mine, I patch into the power amp in or the the receive of the loop bypassing the amp's front end completely.



[DirtyDuke]

would you recommend using it as a effect pedal or by passing the the preamp of an amp and using this either thru the effect or preamp in..

there are songs i want a 360 but other times i like my ampeg sound...

any ideas???

I leave my preamp and my eq flat on my mesa, run the 360 as an effect. Since mine only has on/ mute, I have it in a loop master. Its bypassed 95% of the time but when I want it on I just step on the loop and there it is.

Still using both pre amps but what can U do?



[nshuman]

How about using a couple of AB/Y boxes? That way, you could have two paths:

1: Pedalboard > 360+ > Poweramp In (effects loop) (#1 ABY bypasses the preamp, second aby used to send directly in effects return)
2: Pedalboard > Instrument In (#1 ABY used to now go to the amp's preamp, ABY #2 acts as simply a sable in the effects loop of the amp, bypassing the 360+ entirely)


That way you can either use the preamp on the amp or the 360+ as the sole preamp.



[jumbodbassman]

How about using a couple of AB/Y boxes? That way, you could have two paths:

1: Pedalboard > 360+ > Poweramp In (effects loop) (#1 ABY bypasses the preamp, second aby used to send directly in effects return)
2: Pedalboard > Instrument In (#1 ABY used to now go to the amp's preamp, ABY #2 acts as simply a sable in the effects loop of the amp, bypassing the 360+ entirely)


That way you can either use the preamp on the amp or the 360+ as the sole preamp.

would this work? wouldn't having a plug in the power amp in even if turned off with AB still turn off the internal preamp??
