overdrive/fuzz quest
- Thread starter johnk_10
- Start date
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
I haven't mounted it in the enclosure yet (so it's a little noisey) but due to requests, here's a quick sound clip of the super bass:
Last edited by a moderator:
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
BTW, before I built the superbass, I built a JCM800 simulator pedal (since I really dig JCM800's), it used 6 JFETS and had 5 trimpots so you could bias 4 of them. although the circuit actually followed a real JCM800 (2204) preamp schematic, it not only didn't sound like one, but it's distortion was way too fizzy and unpredictable. in other words, it sucked big time. after that failure, I built up the Super Bass and I couldn't be happier with it.

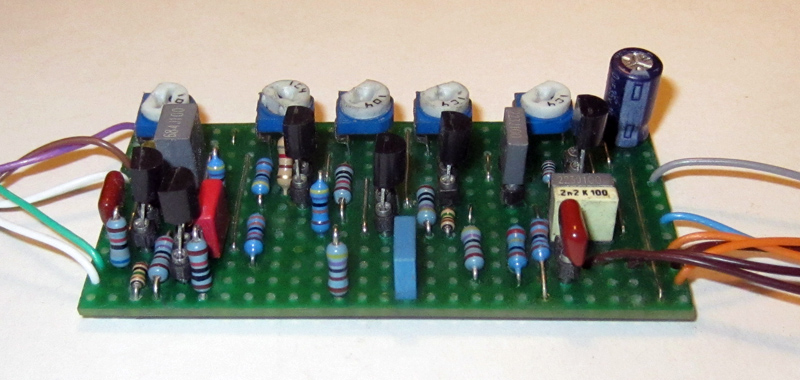

here's a pic of the JCM800 board (which is going into the 'fix/redesign it later' bin for now):
here's a pic of the JCM800 board (which is going into the 'fix/redesign it later' bin for now):
- May 20, 2000
- 3,200
- 1,917
- Disclosures
- Endorsing Artist: Aguilar Amplification, Spector, Dingwall, Tech 21 NYC, Darkglass
That sounds really good John. Something about where the Marshall distortion sound places the emphasis of the note sounds really good to my ears. I bet this can give much of the Guv'nor growl too.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
yeah, and I didn't even mess around with the treble, mids and bass controls in that clip. this circuit has a TON of low end if you want it to. not only NO low end loss, but is capable of boosting the low end ALOT.
- May 20, 2000
- 3,200
- 1,917
- Disclosures
- Endorsing Artist: Aguilar Amplification, Spector, Dingwall, Tech 21 NYC, Darkglass
I use it for a specific purpose so it isn't an issue for me, but I find the bass on the Guv'nor goes from not enough to too much and flubby with only a sliver in between.
the bass on this stay tighter than the Guv'nor?
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
the super bass's low end is a bit more 'controllable' (wider window of sweet spot), but it can get tubby if you don't watch it.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
that was a p bass thru my SVT7pro (all tone knobs at noon) eminence 3015 2x15 cab, just like all of the other clips that I've posted.
so far, I think the super bass is the most touch sensitive/responsive, amp-like pedal that I've built played thru to date, and that's ALOT of pedals!
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
it's pretty much a standard 4 JFET mu amp circuit for the gain stages (to simulate the preamp tubes) with a marshall tone control stack followed by a single JFET amplifier stage.
- May 20, 2000
- 3,200
- 1,917
- Disclosures
- Endorsing Artist: Aguilar Amplification, Spector, Dingwall, Tech 21 NYC, Darkglass
interesting, I wish I knew how to build one.
have you ever tried the Guv'nor II Plus, if you have, what are your thoughts on that pedal?
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
they're two different animals tonally. the SS2 has more of a voice of it's own. it super smooth, sustainy and has a lot of harmonics. the SB sounds more like a marshall amp being driven soft, medium or hard. both of them are awesome, just different.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
I'd like to hear your thoughts on it if you ever do.
it's quite possibly the ugliest pedal ever made, I don't know what they were thinking when they came up with the aesthetics.
I haven't played mine in a while but it's not bad at all and has more bottom end than the original Guv'nor I use to own, if memory serves.
cbread DLS MKII Super Bass spec?
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
for a little diversion from building so many OD's, Fuzz's, and distortions, I thought i'd build an 'all in one' delay/tremolo/chorus pedal. it's a DIY pedal called the Magnus Modulus. it's a decent pedal for what it is, (IMO, a jack of all trades/master of none) but you can get some pretty darn cool and unique sounds out of it. here's a few pics of the build:

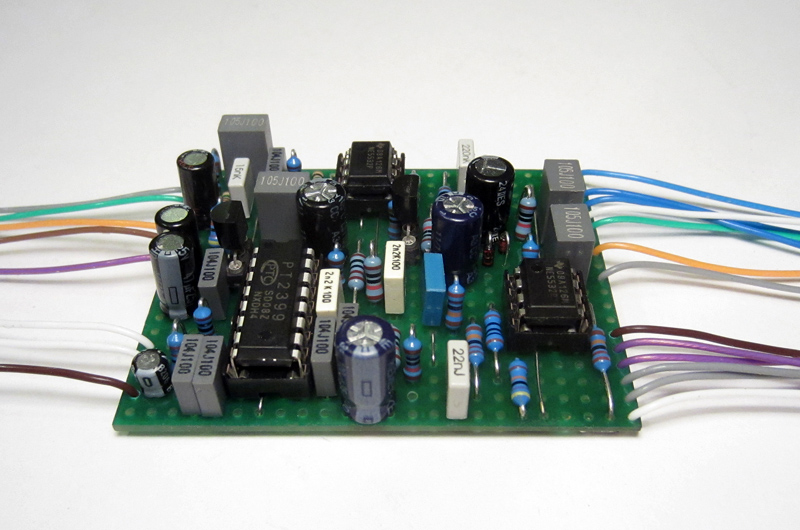

the built up veroboard circuit:
circuit with wiring harness:

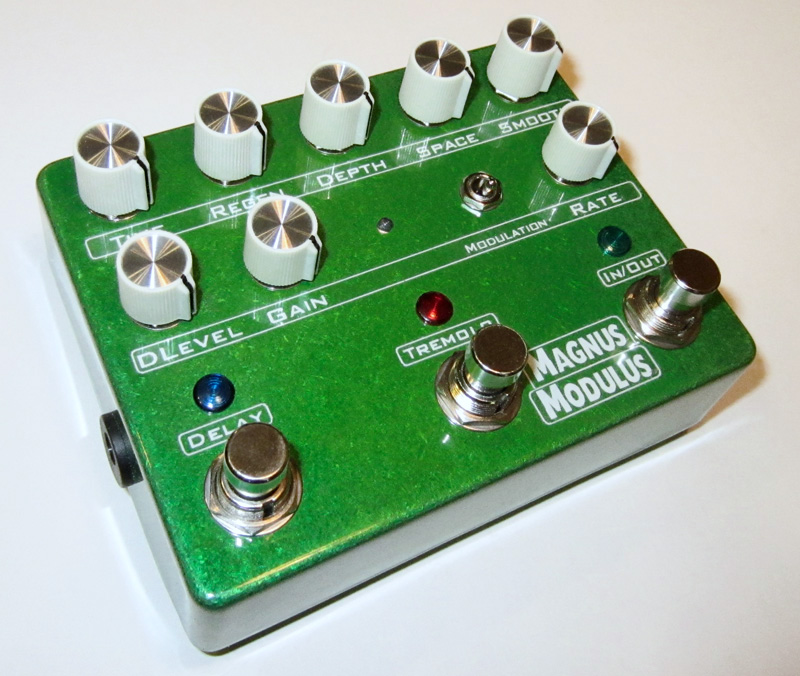

the completed pedal:
gut shot:
the built up veroboard circuit:
circuit with wiring harness:
the completed pedal:
gut shot:
