Post Your Pedalboard - Part I

[SlavaF]

Ibanks, that is an awesome setup you have!

I've always been curious though, what exactly does the Moog do? I've never been able to understand what it is!



[lbanks]

Its really strange, but I do remember a setting on a Minimoog that had a similar effect. It seems to split the signal in to 8 frequencies. Each frequency has a 'envelope shifter'. There are 12 different trigger patterns, a Q-type filter that controls the envelope and a drive pot that give it crunch. I've got some clips of it singlely on my computer. I'll hunt them up. But here's a clip recorded on a camcorder where you may be able to hear it. I run a lot of effects....
Link Removed



[J.T]

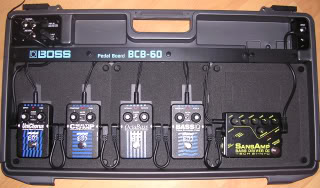

Here is my set-up. Also a question: With a preamp/power amp aet-up, do you run through the effects loop, or plug your bass into the board, then the board to the amp?

here it goes:

bass- 105qwah - dd3 - odb-3 - tu2 - ceb-3 - sabddi - amp

any thoughts?

Thanks



[Tedintheshed]

I'm setting up this, just gotta go get some short cords.

Heya lbanks- I was wondering how you liked the Furman pedalboard?

Ted



[lbanks]

Pretty slick! I haven't 'field tested' it yet, but, I think its gonna work out.



[Nick man]

Here is a shot of my unfinished pedal board.

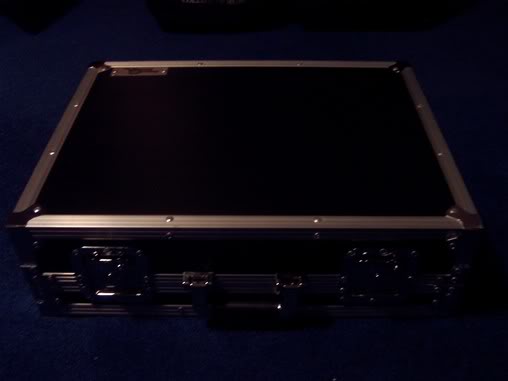

I finally picked up the case and some other pedals I needed from work today:

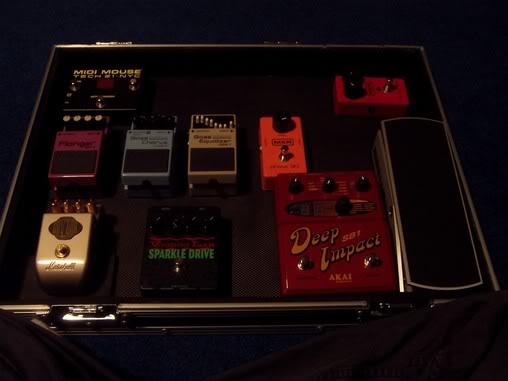

and inside you see...

Case- Roadready RRCFX16 Mackie CFX16 mixer case.
(from upper left to lower right)
1*- Tech 21 Midi mouse (to control my Sansamp PSA-1 which is on order- mostly for guitar use)
N/S*- Eden Navigator 4 button foot controller
N/S*- Morley foot switch for controlling Sansamp RBI (might be replaced with multi function homemade looper/control box)
2- MXR Dyna-comp (will be placed under riser and out of view in seperate switchable loop with the deep impact)
3- Boss BF-2 Flanger (will be grouped with other Boss Pedals in seperate true bypass loop)
4- Boss CEB-3 Bass Chorus (see above)
5- Boss GEB-7 Bass EQ (see above/ set for reggae sounds)
6- MXR Phase 90 (mostly for guitar use)
7- Marshall Guv'nor distortion (mostly for guitar use)
N/S- ProCo Rat (mostly bass use)
8- Voodoo labs Sparkle Drive distortion (mostly for guitar use)
9- Akai Deep Impact Synth (might be hooked up to homemade looper/control box for a program down function)
10- Ernie Ball Volume Pedal JR

I still have to build the actual removeable board with its multiple tiers and wire it all up as well as figure out how to build and wire the looper/control box. It should kick when its done.

*Pedals which will be placed on the top layer of the riser.



[subaudio]

Heres mine, I'm sure theres room for one more,did I mention I like EBS...



[AlembicPlayer]

updated pic of my FX shelf..now with added loooper pedal!

[Invalid or Expired Link Removed]



[Toasted]

Prunes and Custard are so good, arent they??!



[AlembicPlayer]

Prunes and Custard are so good, arent they??!

mmmmmm....creamy goodness

there's nothing like it!



[Toasted]

For a whole other world of sounds try running it before a pitch shifter like a Whammy or a Wah Wah



[AlembicPlayer]

For a whole other world of sounds try running it before a pitch shifter like a Whammy or a Wah Wah

well..as you can see in the pic, I run it first..then into the octabass..then the QTron. I tried it second and last in that chain..but it worked best first.

Thanks for that tip..I want to try a Whammy pedal, so I'll give that a go.

with those 3 pedals in unison..I can get pretty damn close to Bootsy territory



[The Reff]

How is that Strobostomp working for you ??



[AlembicPlayer]

How is that Strobostomp working for you ??

I have both the strobostomp and a VSII. The stomp is fantastic! I haven't used the DI as of yet...but I'll give that a go at our next gig. The readout is great..huge!
..and it's powering my other pedals. also, I have the bass temperament as my default.

I bought it for my wife, but after getting it here I had to have it for my rack. We're getting her another one



[The Reff]

What's the main difference between the VS-II and the Strobostomp - could you put the VS-II on your pedalboard ?

Do you use the VS-II as the tuner in your "setup shop" ?



[AlembicPlayer]

What's the main difference between the VS-II and the Strobostomp - could you put the VS-II on your pedalboard ?

Do you use the VS-II as the tuner in your "setup shop" ?

The VSII did start out on my pedal "shelf"....it works there, but it's really too big and bulky. The Stomp was made to be compact for a pedal board. It's made to power other pedals as well as a DI, both features not available on the VSII.
The VSII has features which the stomp does not...mostly more user presets, a built in mic for tuning acoustic instruments..and a few other things I can't recall at the moment.

The stomp is dedicated to my rack setup...the VSII is my portable tuner and for benchwork. I couldn't be more pleased with these tuners. I sold my Korg rack tuner when I got the VSII and understood the difference between strobe tuners and everything else. There's no comparison. I'm just glad to be alive in a time where strobe technology is available for a couple of hundred bucks.



[David Wilson]

redid my pedalboard today... I had a pedaltrain, then outgrew it and was using the furman powered pedalboard (which I had no issues with). But decided to scale back a bit, and cut down on what I take to each gig. So, I've downsized back to the pedaltrain:

Here's the signal chain:
bass
TU-2
Loooper (3 Loops wth master bypass)

Loop A

Dredgetone Angler Overdrive
Digitech Bass Synth Wah (for octave)​

Loop B

Prescription Electronics Depth Charge
EBS Bass IQ​

Loop C

Anything I want - connectors reach off board so I can attach wah or anything else I feel like​

EBS MultiComp
AnalogMan CloneChorus
MXR M-80 (might be replaced with programmable sansamp BDDI soon)



[Josh Ryan]

Here is the setup as of now:



[Beammeup]

I can't believe this thread fell to page 6!!! Everybody update their pics if they've changed.

Link Removed

This will probably change a few dozen times in the next week.

signal path:
Samson Airline Bass Wireless
Boss TU-2
MXR Phase 90
Boss ODB-3
Emma Discumbobulator
Dunlop 105Q
Loooper w/ Blend
- EH Mini Q-Tron in loop
EBS BassIQ
Line 6 Echo Park - stereo out to both inputs of my Mesa 400+.

Hi Mo'Phat,
I like what I see

Out of Curiosity - where do you purchase the Danish EMMA products in the US?



[mikkejohansson]

I'm about to upgrade my pedalboard and was thinking of getting two smaller boards for tranpsortability and versatility...

The boards would be set up;

1) DOD 270 A/B- to Boss TU-2 or Retrospec Squeezebox tube comp

w/ power strip

2) (example)

DOD FX10 Bifet preamp, EBS Octabass, Boss DS1 (modded my Invalid Link Removed), Ibanez TS9dx (modded by Invalid Link Removed), T-rex Tremster

w/ Cioks Baby John power supply

This board would be subject to change depending on the gig and my mood , and the new toys i get... For some gigs I would just bring board #1 and sometimes both boards.


Like the idea?
