Ol'Bass'ead said:
Yeah, that's the way I expected it to act. Unfortunately, I've got dark patches around the repairs, where the shellac didn't darken the wood as muck as the CA did. Any ideas?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Practice build: 5-string multi-scale, HD woods
- Thread starter pilotjones
- Start date
Yeah, that's the way I expected it to act. Unfortunately, I've got dark patches around the repairs, where the shellac didn't darken the wood as muck as the CA did. Any ideas?
Well, it certainly appears to be not wetting the wood as much as the CA, anyway. I don't know about comparison with the oil.
So, I figure I should do a decent sanding of the areas to remove the shellac, and then do the oil. Any thoughts on whether the oil might be thinned to aid penetration?
So, I figure I should do a decent sanding of the areas to remove the shellac, and then do the oil. Any thoughts on whether the oil might be thinned to aid penetration?

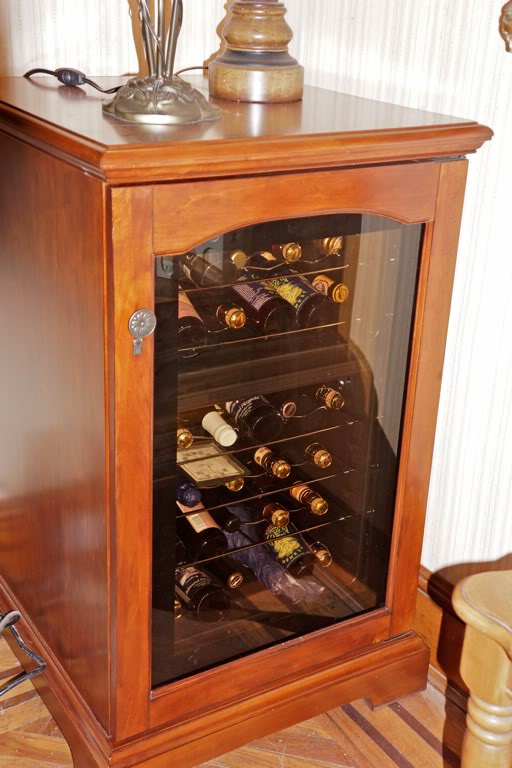

Over the weekend I picked up a very important tool through craigslist.
Unfortunately I underestimated the requirements, and it is already in use to past design capacity!
The idea was lower compartment at cellar/aging temperature, top generally empty and to be kept at serving temp as needed. Oh well. There are worse problems to have.
Unfortunately I underestimated the requirements, and it is already in use to past design capacity!
The idea was lower compartment at cellar/aging temperature, top generally empty and to be kept at serving temp as needed. Oh well. There are worse problems to have.
- Aug 21, 2008
- 10,386
- 252
- 68
- Disclosures
- Owner, SGD Music Products
Do I see a bottle of Golden Monkey down on the bottom shelf? Looks like there might be another Golden Monkey up near the top. Nice Trippel, as long as you won't be doing anything that's too strenuous, or that requires a high level of precision after drinking it!
Doug
Doug
Over the weekend I picked up a very important tool through craigslist.
Unfortunately I underestimated the requirements, and it is already in use to past design capacity!
The idea was lower compartment at cellar/aging temperature, top generally empty and to be kept at serving temp as needed. Oh well. There are worse problems to have.
I didn't scroll down to your reply .... you beat me to it with that observation. I love that beer .... but only in moderation, and under certain circumstances. At other times, a couple of Hop Devils or even the occasional Prima Pils will do just fine.
Doug
Doug
....
.....
.........
........:scowl:.............
......
...........
.......
........
Great work, pj. This thread has gotten me through many a long and tedious high school lecture
I tip my hat to you!
Over the weekend I picked up a very important tool through craigslist.
Unfortunately I underestimated the requirements, and it is already in use to past design capacity!
The idea was lower compartment at cellar/aging temperature, top generally empty and to be kept at serving temp as needed. Oh well. There are worse problems to have.
Beer, yeah yeah yeah. Lets see more pictures of that floor!
lowsound
I would guess that there aren't many places where wooden floor is appreciated as much as on luthier's corner! That's one nice floor too, might I add.
That's one nice floor too, might I add. I would guess that there aren't many places where wooden floor is appreciated as much as on luthier's corner!
Lol, I thought I was the only one who goes into old pubs and admires the floor (and of course a pint), sounds like you guys would be doing the same!
Man, I just had a doppelganger moment. Between the brew, parquet floor, engineering, and bass building I'd swear this is my thread from a parallel universe.
Lol, I thought I was the only one who goes into old pubs and admires the floor (and of course a pint), sounds like you guys would be doing the same!
Man, I just had a doppelganger moment. Between the brew, parquet floor, engineering, and bass building I'd swear this is my thread from a parallel universe.
Gym floors can be distacting, too!I would guess that there aren't many places where wooden floor is appreciated as much as on luthier's corner!
I guess Florida is kind of in a parallel universe, isn't it?

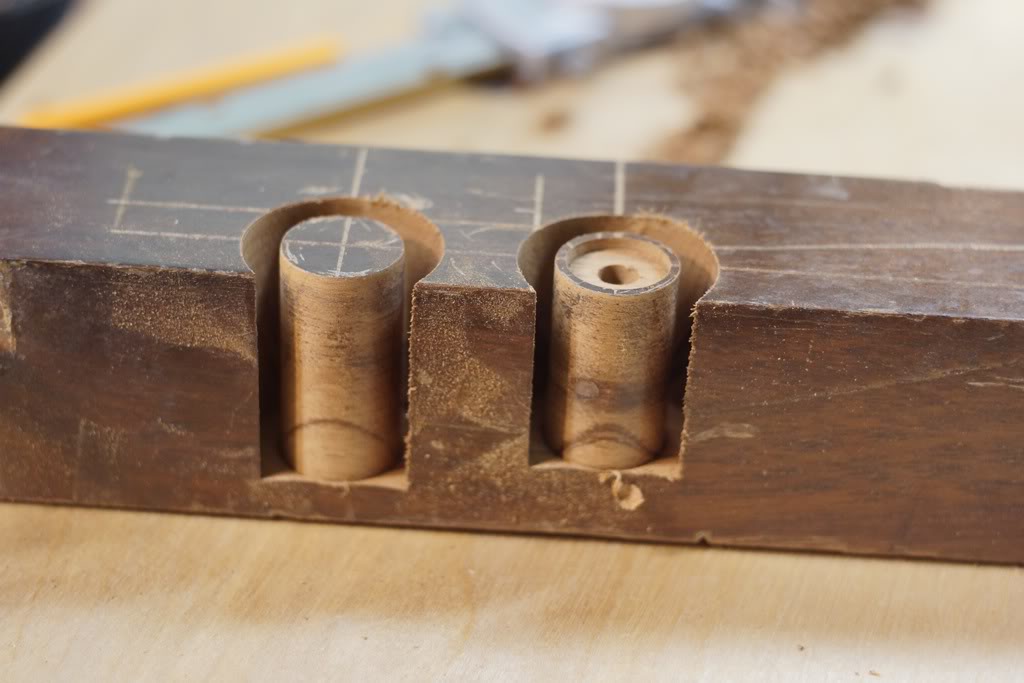

First, tried some boring on some scrap, an old walnut table leg.
Unlike with the old drill press setup, this time there was good enough concentricity between the cuts. Not dead perfect, but good to go, maybe .010" off.
So, I got out the neck cutoff I had saved,
(that's a test fret kerf there)

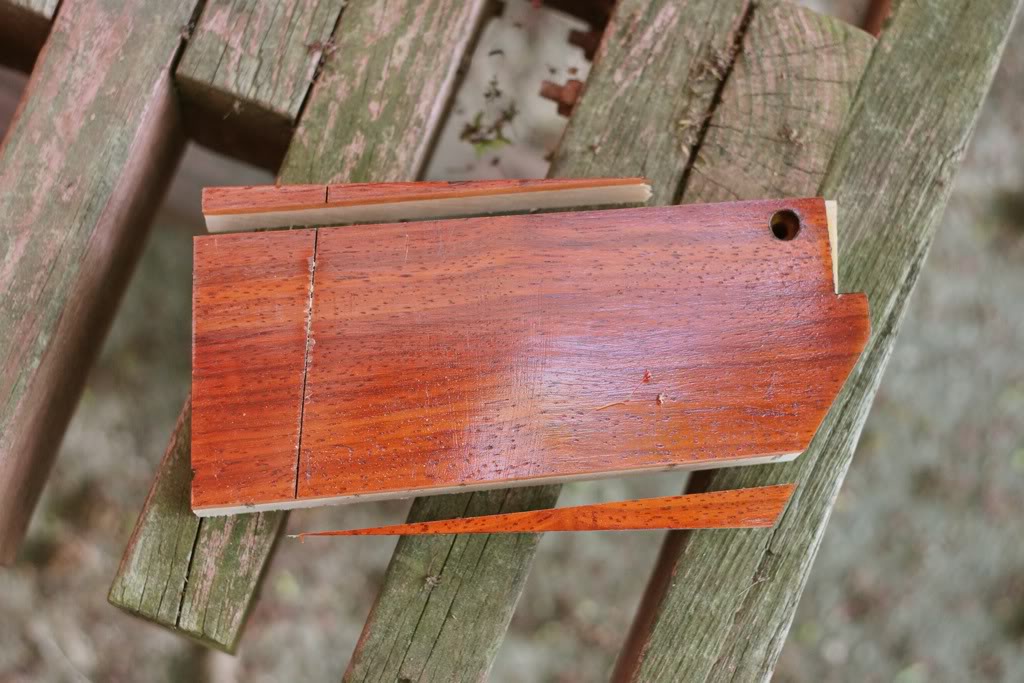

cut the edges to get parallel to the grain lines,

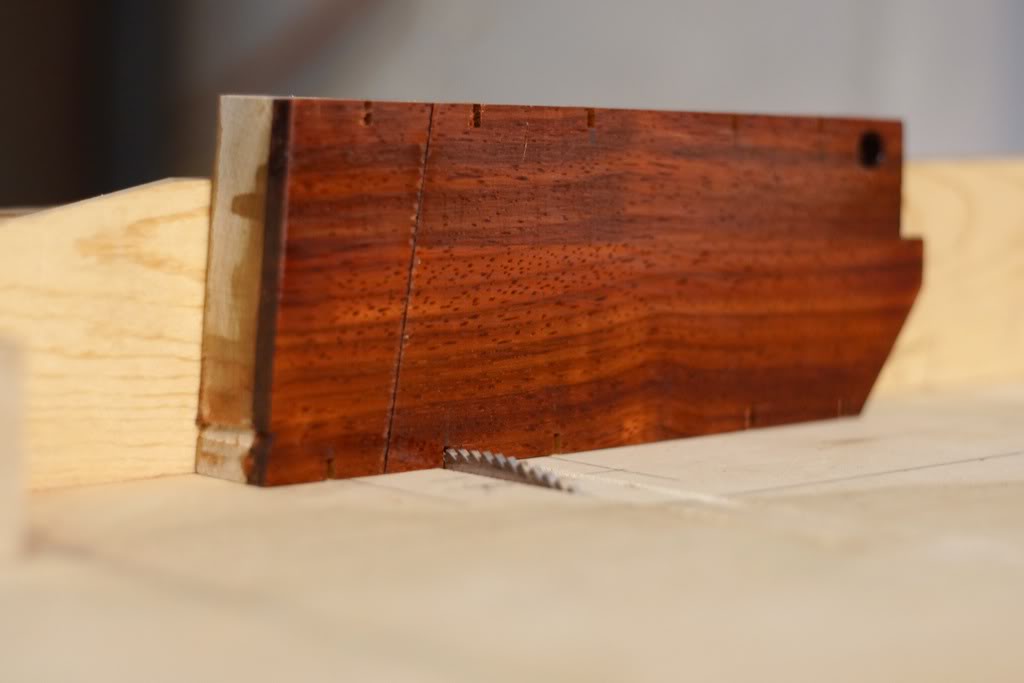

planned the positions and cut the kerfs,
(details on all this are in the section where I did the neck position markers)

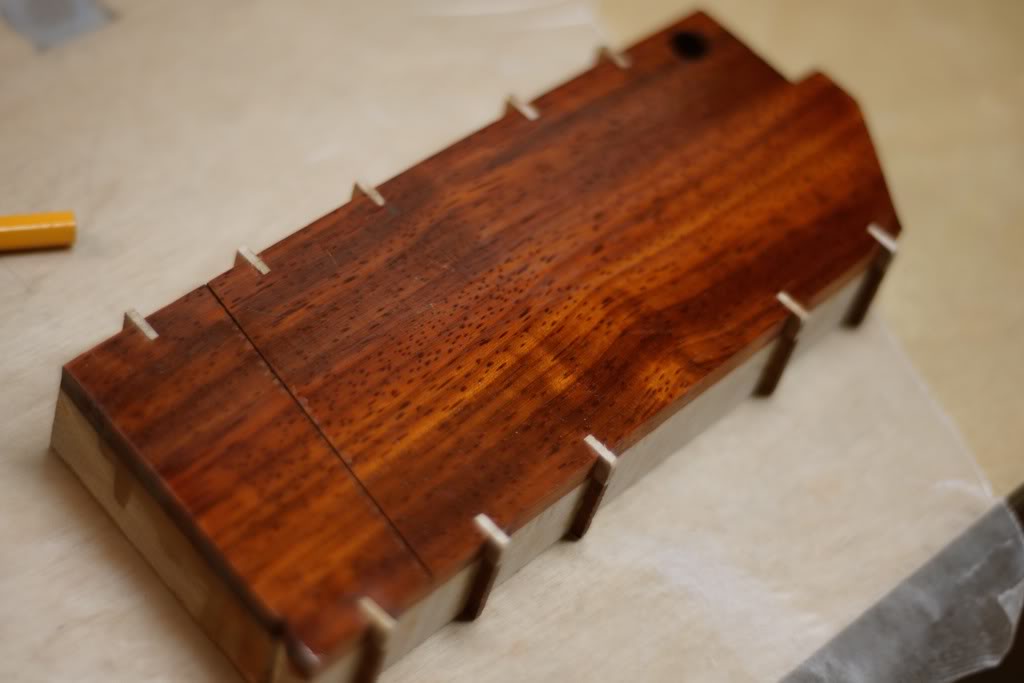

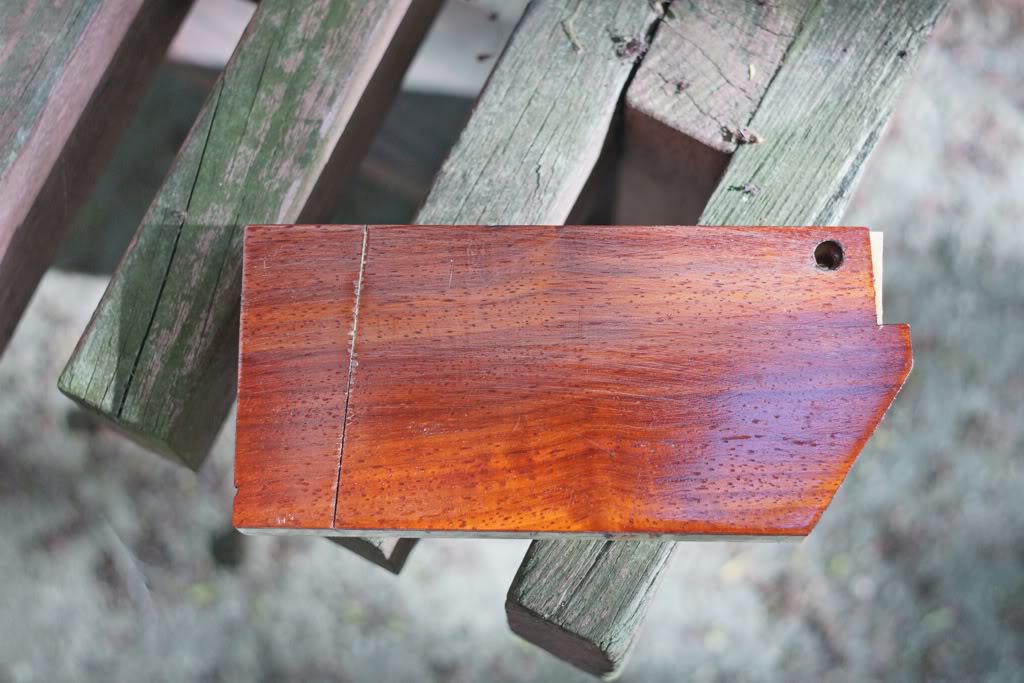

sanded the saved leftover inlay pieces to thickness to fit the kerfs, and glued them in.
There are ten possible knobs there, to be reasonably assured of getting at least five good ones. Like with the saddles, where I started with twelve, tried some experiments on them and made a few mistakes, and have eight or so that are usable.
Unlike with the old drill press setup, this time there was good enough concentricity between the cuts. Not dead perfect, but good to go, maybe .010" off.
So, I got out the neck cutoff I had saved,
(that's a test fret kerf there)
cut the edges to get parallel to the grain lines,
planned the positions and cut the kerfs,
(details on all this are in the section where I did the neck position markers)
sanded the saved leftover inlay pieces to thickness to fit the kerfs, and glued them in.
There are ten possible knobs there, to be reasonably assured of getting at least five good ones. Like with the saddles, where I started with twelve, tried some experiments on them and made a few mistakes, and have eight or so that are usable.
I'm enjoying 2 Golden Monkies tonight at home tonight - in moderation and under certain circumstances as you can see
Gotta love em. On topic: PJ, I like the strategy for getting the position marker for the knobs in through the kerf and drilling them out near the edge. I never thought about how wooden knobs like that would be produced.
This is why this thread delivers - it really breaks down all of the ideas and methods for people who are complete novices at woodwork (like me).
And, ya know... beer.
Gym floors can be distacting, too!
Yeah, there is some gorgeous quilted, flame, and spalted maple in the gym floor at my kids school. We go there for meetings and the wife is always; "What are you looking at down there?"
My dad has an amazing piece of quilted birdseye maple in his floor that is the perfect length and width for a neck. I want to rip it out every time I am over there.
lowsound
Quick post, more pics than words.
Not shown: removed overhanging inlay pieces with flush cut saw, cleaned up the edges with a chisel and then sandpaper on a flat surface. Then, marked and drilled indexing holes for the jig.
Next built the jig for drilling. It is basically a base with an indexing pin, a fence, and a marked point to line up the drill. This is it from the back side. You can see the white indexing pin from this view.

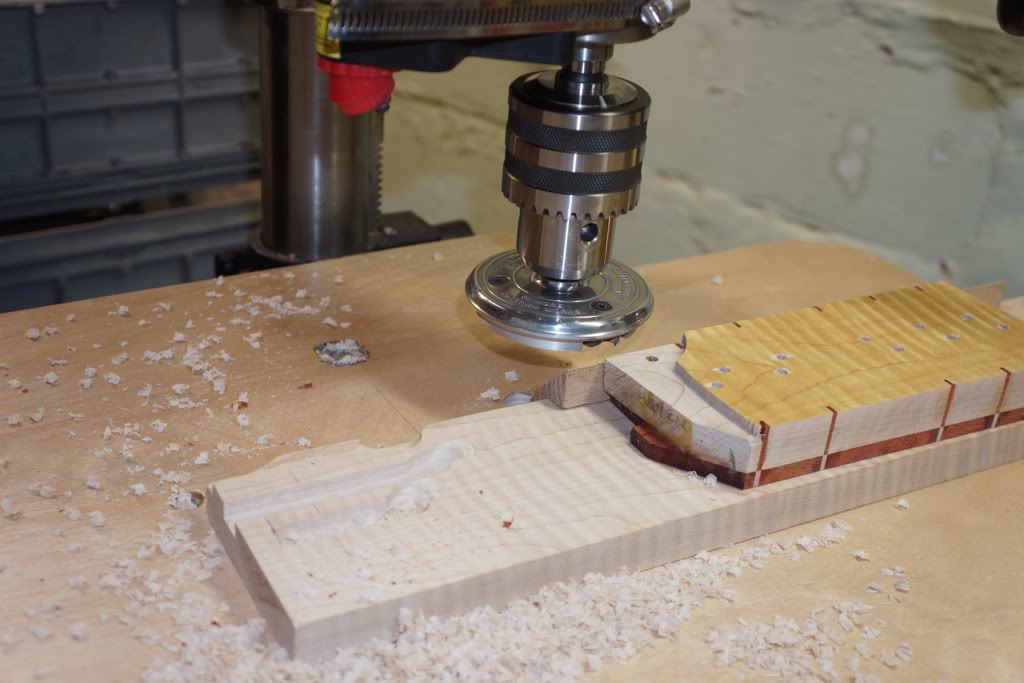

The work piece was thicker than the height of the final knobs, so a pass was done with the saf-t-planer on the bottom side,
then flip it over,
and take a pass on the top side, so that the padauk thickness will match the thickness of the fingerboard exactly.
The first drill of each cycle is a 5/8" forstner,
followed by a 1/4" for the pot shaft.

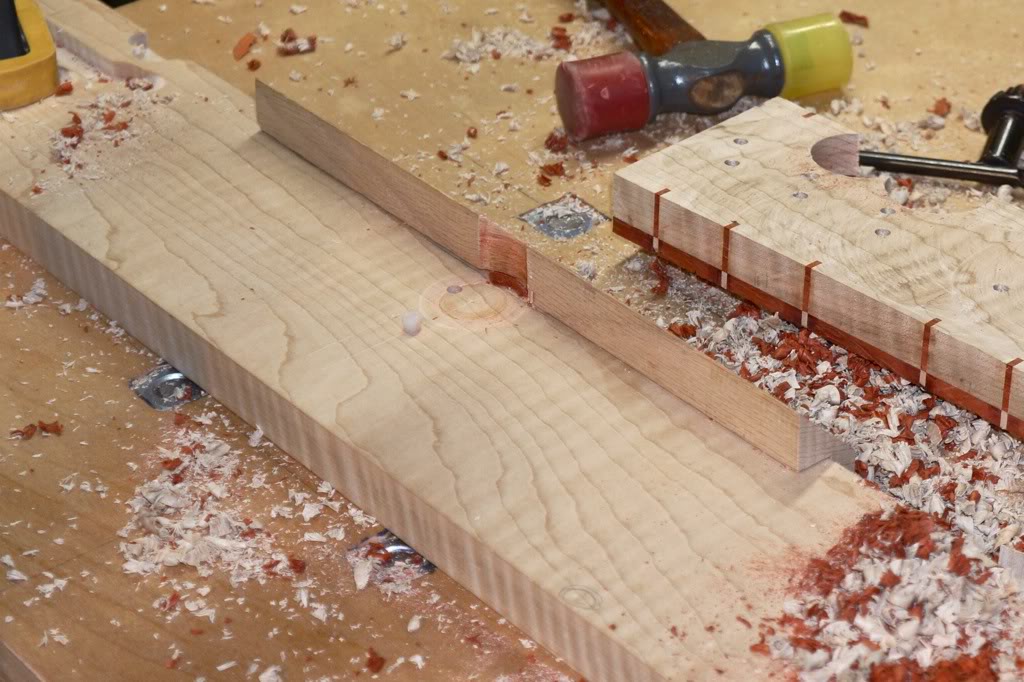

There you can see the tool I used to check the depth of the forstner counterbore. The tape on the drill bit is for depth on the pot shaft hole, but it also worked out to be a case of drill until you see "blood" (padauk). The bit has has the brad point ground down to just a bit longer than the cutting rim.

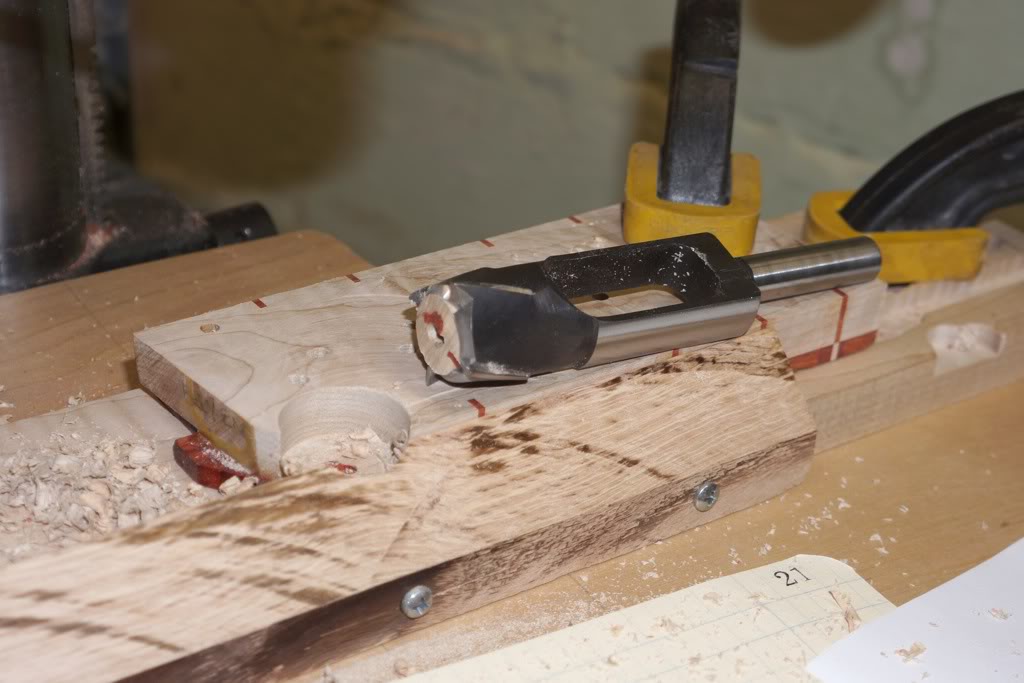

Next is the tenon cutter. Here it is lifting out a knob that was just cut.
The tenon cutter was running very hot, and even stalled out the motor on the the first few cuts. The first knob broke off short of full depth, and was ruined.
After the fifth knob, I took off the cutter and examined it. I then got out the files and changed the geometry on the cutting teeth. After that it ran much cooler and did not bog down. Also the first knobs had purplish burnt padauk bits embedded in the maple. The second five came out clean.

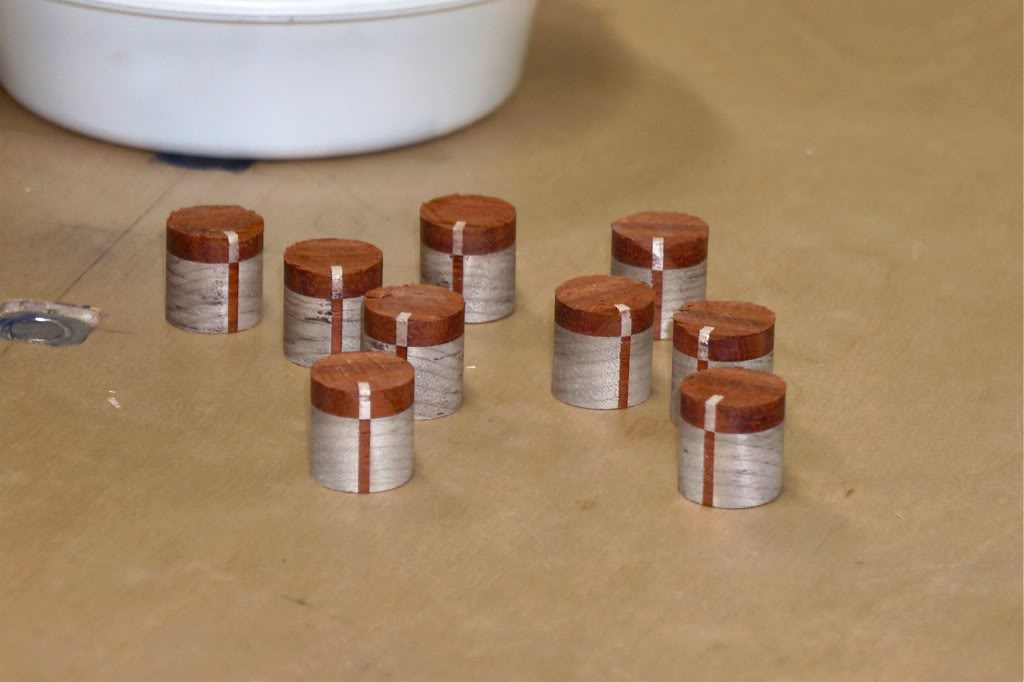

Here are the nine drilled-out pieces.
After that I did the dome shaping, just as on the string anchors. The difference this time was that the knobs were pressed onto a steel dowel pin that was in the chuck.

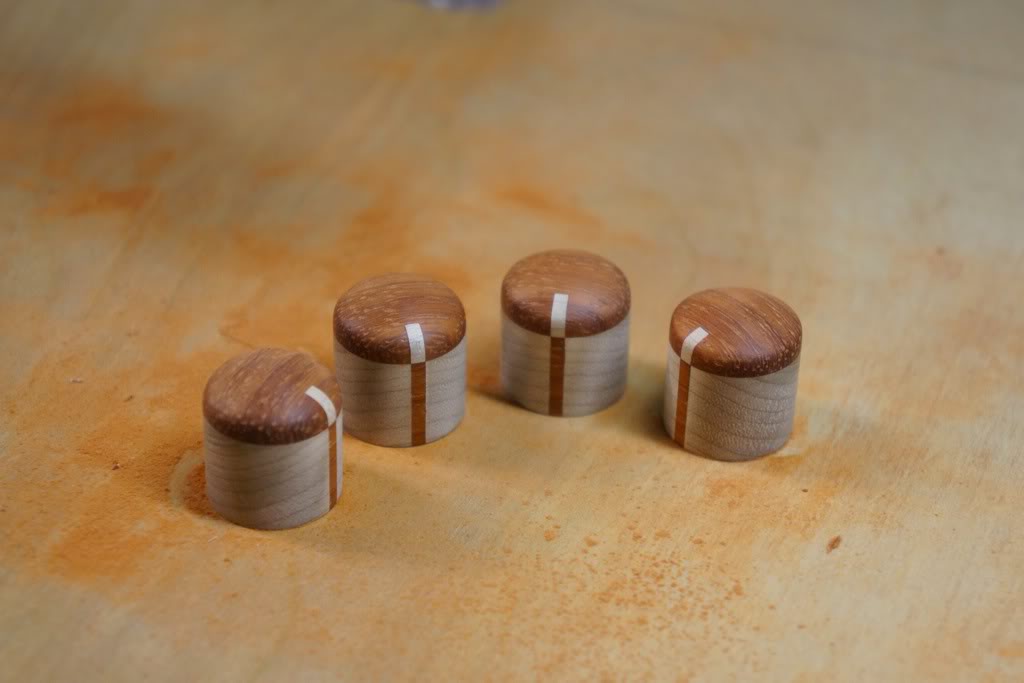

The first four knobs, with dome and smoothed.
Next will be putting the tapholes in the sides.
Not shown: removed overhanging inlay pieces with flush cut saw, cleaned up the edges with a chisel and then sandpaper on a flat surface. Then, marked and drilled indexing holes for the jig.
Next built the jig for drilling. It is basically a base with an indexing pin, a fence, and a marked point to line up the drill. This is it from the back side. You can see the white indexing pin from this view.

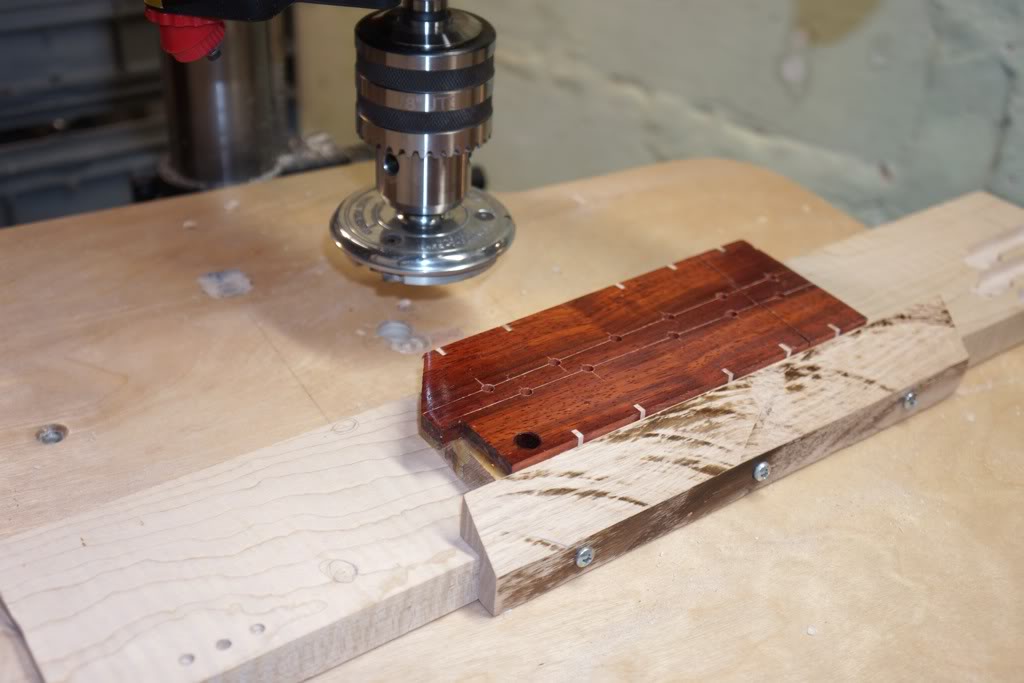

The work piece was thicker than the height of the final knobs, so a pass was done with the saf-t-planer on the bottom side,
then flip it over,

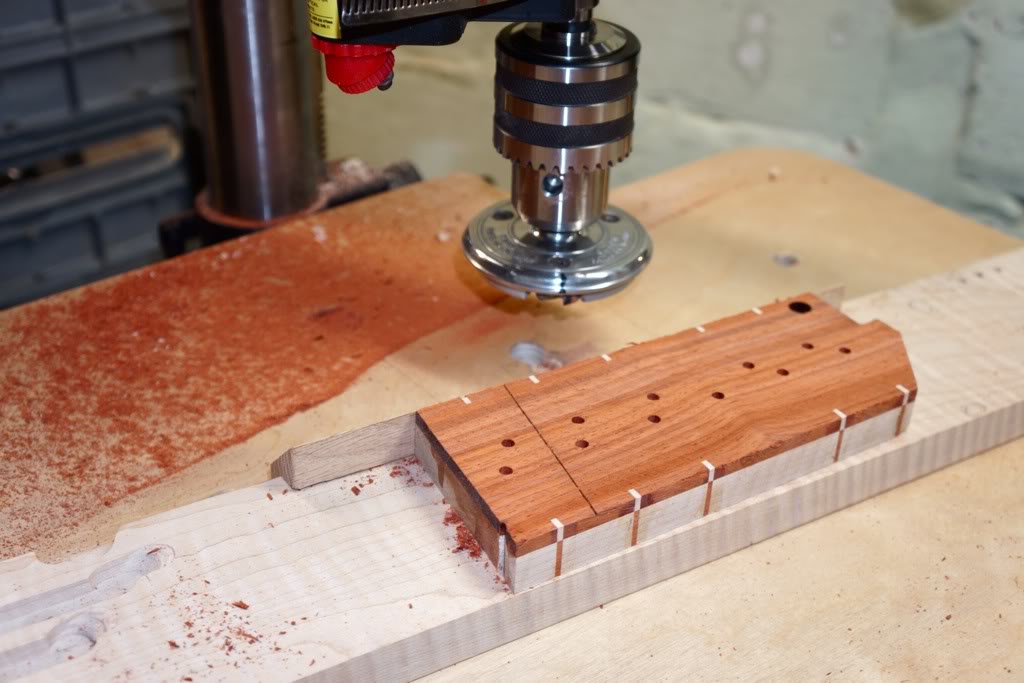

and take a pass on the top side, so that the padauk thickness will match the thickness of the fingerboard exactly.
The first drill of each cycle is a 5/8" forstner,

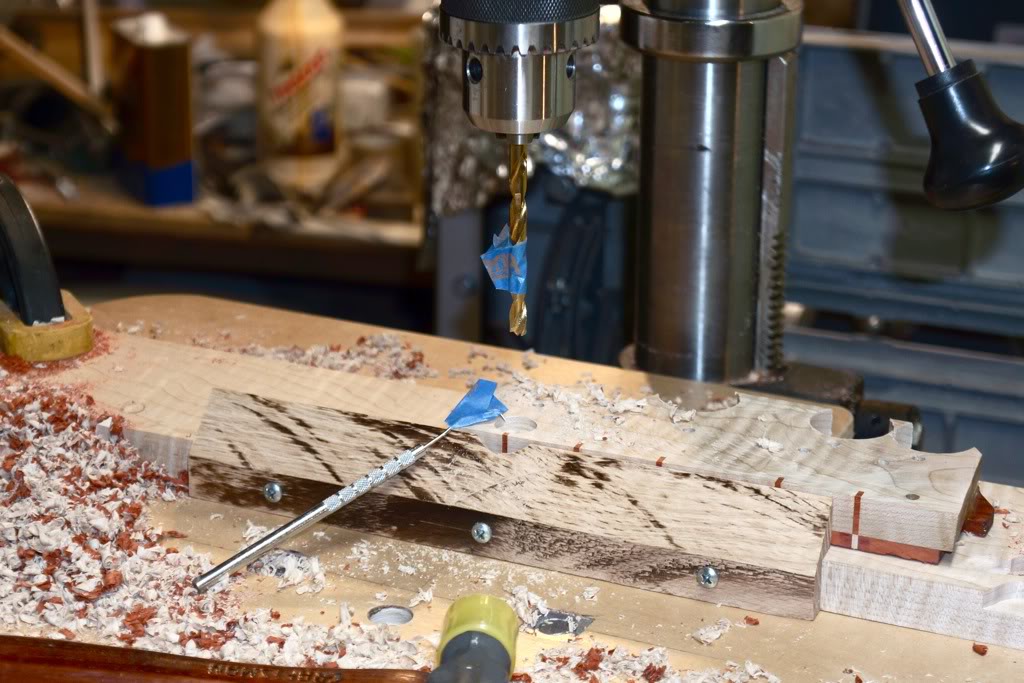

followed by a 1/4" for the pot shaft.

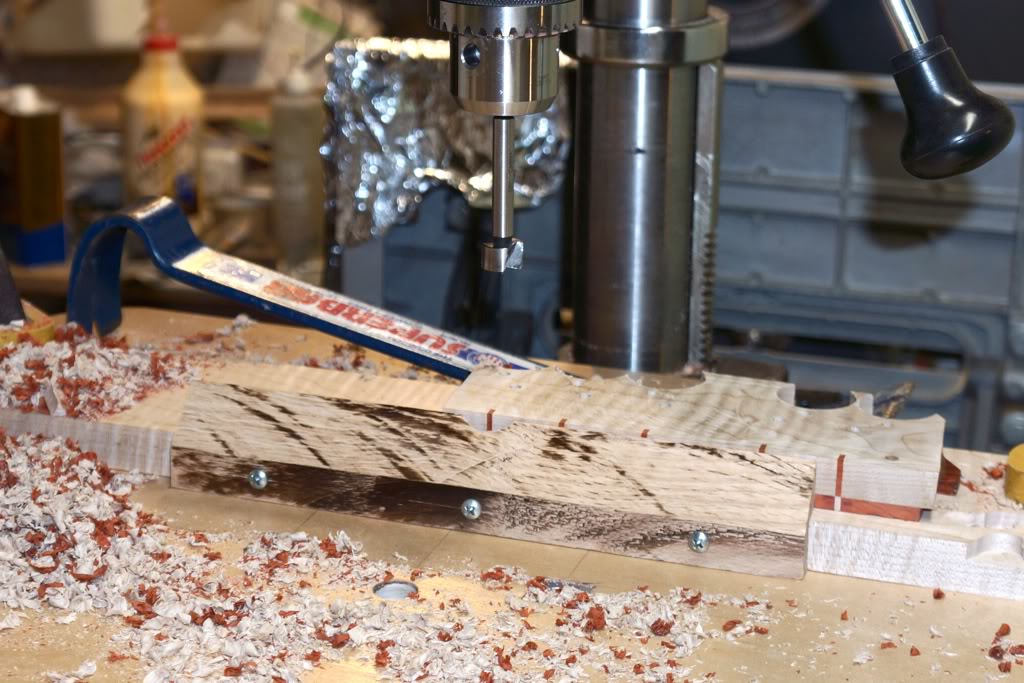

There you can see the tool I used to check the depth of the forstner counterbore. The tape on the drill bit is for depth on the pot shaft hole, but it also worked out to be a case of drill until you see "blood" (padauk). The bit has has the brad point ground down to just a bit longer than the cutting rim.

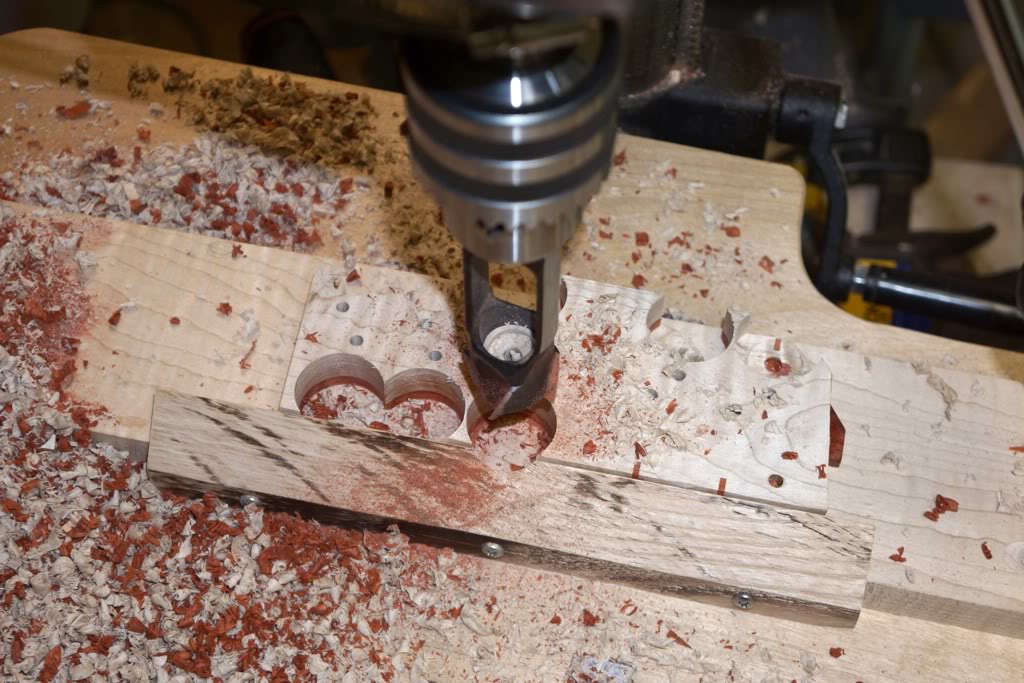

Next is the tenon cutter. Here it is lifting out a knob that was just cut.
The tenon cutter was running very hot, and even stalled out the motor on the the first few cuts. The first knob broke off short of full depth, and was ruined.
After the fifth knob, I took off the cutter and examined it. I then got out the files and changed the geometry on the cutting teeth. After that it ran much cooler and did not bog down. Also the first knobs had purplish burnt padauk bits embedded in the maple. The second five came out clean.
Here are the nine drilled-out pieces.
After that I did the dome shaping, just as on the string anchors. The difference this time was that the knobs were pressed onto a steel dowel pin that was in the chuck.
The first four knobs, with dome and smoothed.
Next will be putting the tapholes in the sides.
