Yeah, I did similar figuring based on 7ender dimensions. When I did my initial calculations, I forgot to account for the recessed ferrules; I was ok at 3/4", but as you said, 1/2" gives me pause.
Not too late to make it a set-neck, I suppose!
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
SBO 2022 - Minimalist Medium Scale - Scratch Build
- Thread starter BishopJP
- Start date
Yeah, I did similar figuring based on 7ender dimensions. When I did my initial calculations, I forgot to account for the recessed ferrules; I was ok at 3/4", but as you said, 1/2" gives me pause.
Not too late to make it a set-neck, I suppose!
One of my fave basses has a 1.25" thick body that is 9/16" below the pocket. It's a slightly larger than usual fender sized surface area in the pocket and has 5 countersunk ferrules instead of 4. The body section supporting the neck is about half/half hard maple/poplar and the neck is hard maple. No problems in several years of regular use.
One of my fave basses has a 1.25" thick body that is 9/16" below the pocket. It's a slightly larger than usual fender sized surface area in the pocket and has 5 countersunk ferrules instead of 4. The body section supporting the neck is about half/half hard maple/poplar and the neck is hard maple. No problems in several years of regular use.
That's good to hear! Poplar is a bit softer than black limba, so that gives me a little bit more confidence. I will need to think on this a bit; my neck pocket, as designed, is approx 3.5" x 2.5".
Is that one you made?
"Beej the Builderer", I can see a whole new TV series thereYou're quite a builderer.
My band saw is still not working so I cut out the bodies the hard way...

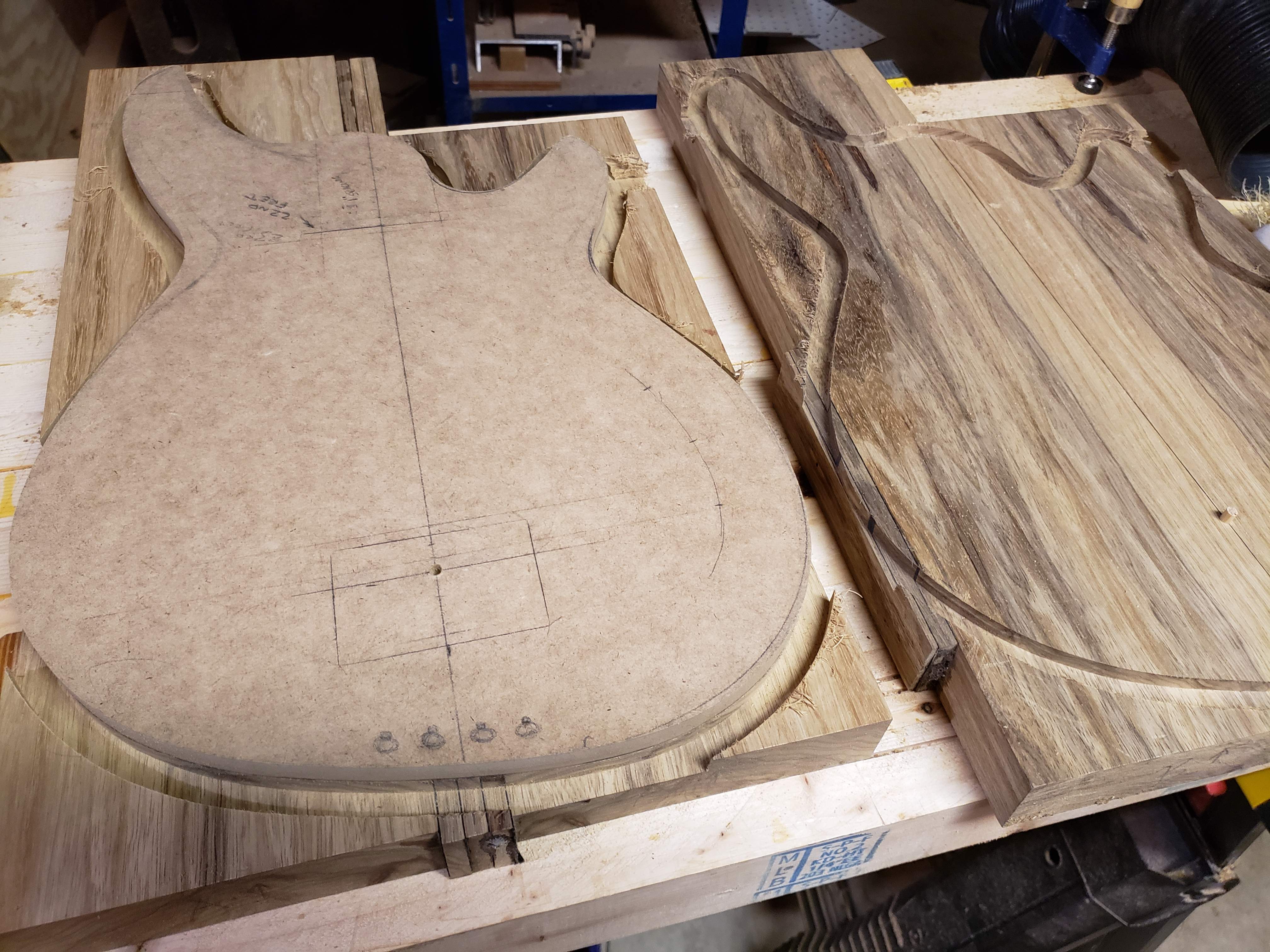

Route the perimeter using the template and a pattern bit, stepping down in 1/16" increments...
then, using a very cheap jig saw, cut the body out, following the routed channel...
finishing routing, using the previously routed perimeter as a guide for the pattern bit...

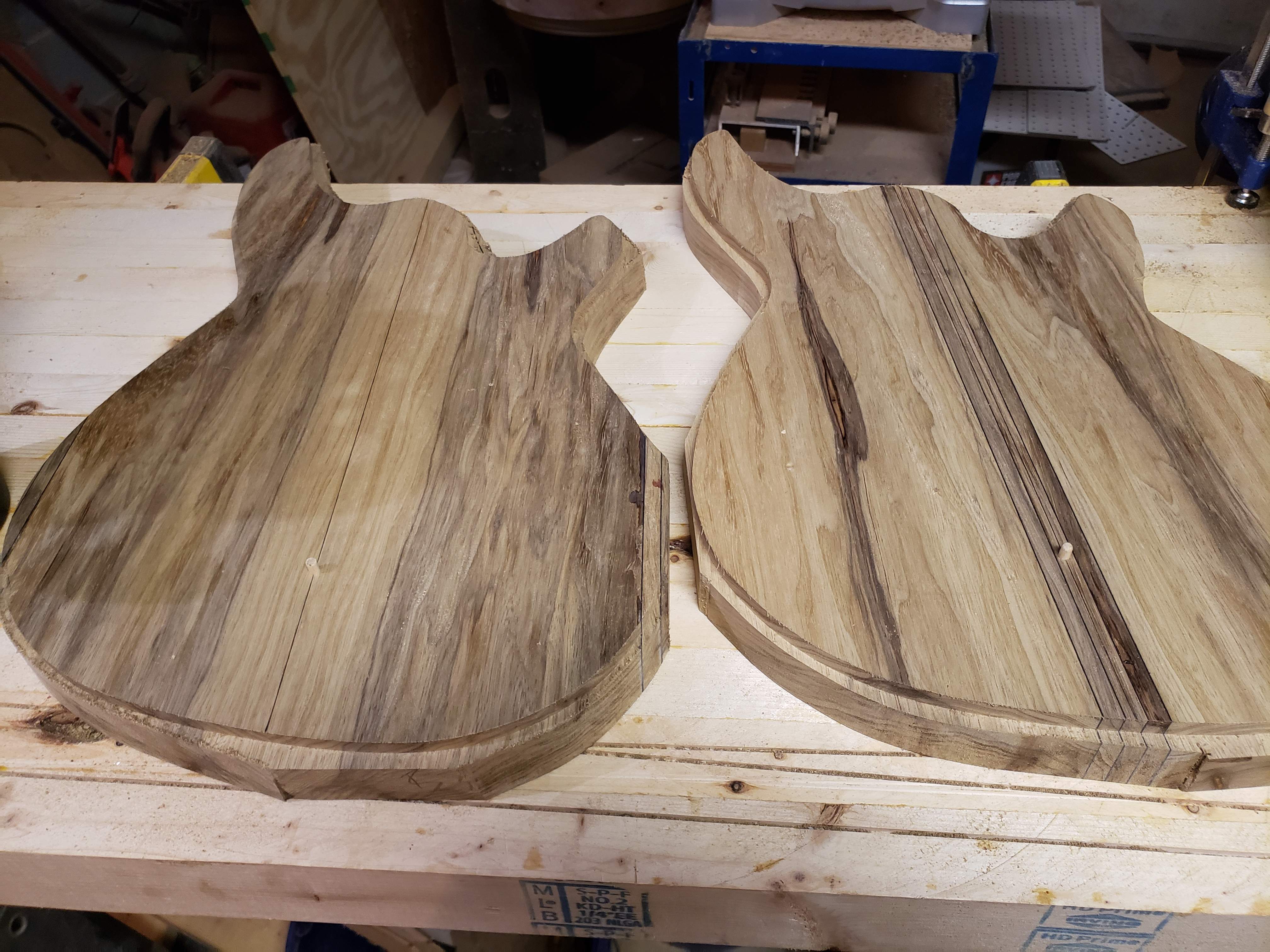

finished.

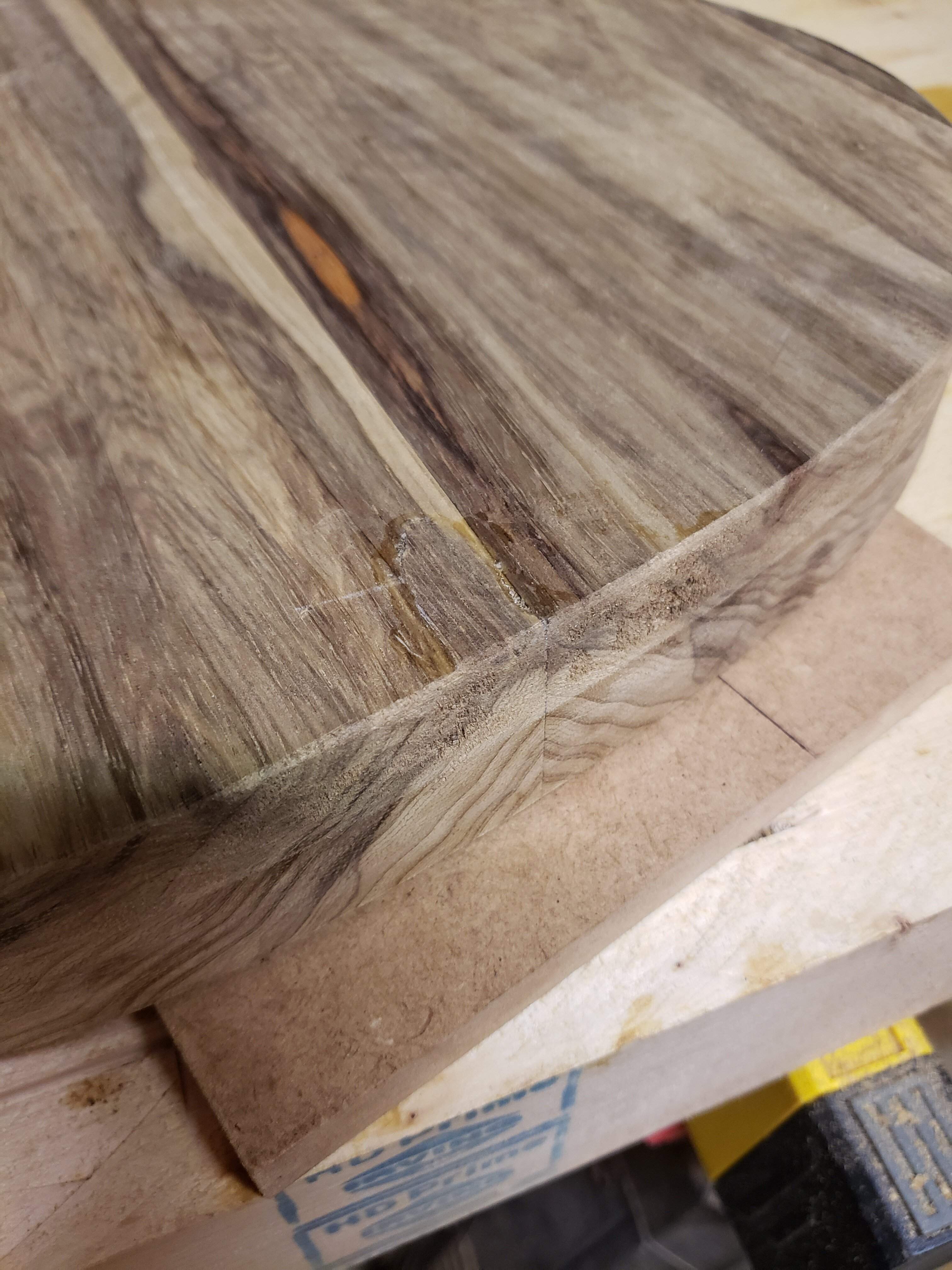

When gluing the two halves of one of the body blanks, I used clamps at the glue seam to align the halves and when I removed the clamps, a chunk of wood stuck to the clamp!
(one of my bits is not cutting cleanly ^^^^^)
fortunately, I was able to un-stick the chunk, which I then glued back in place...
cleaned up a little, with some sanding, it should be almost invisible.

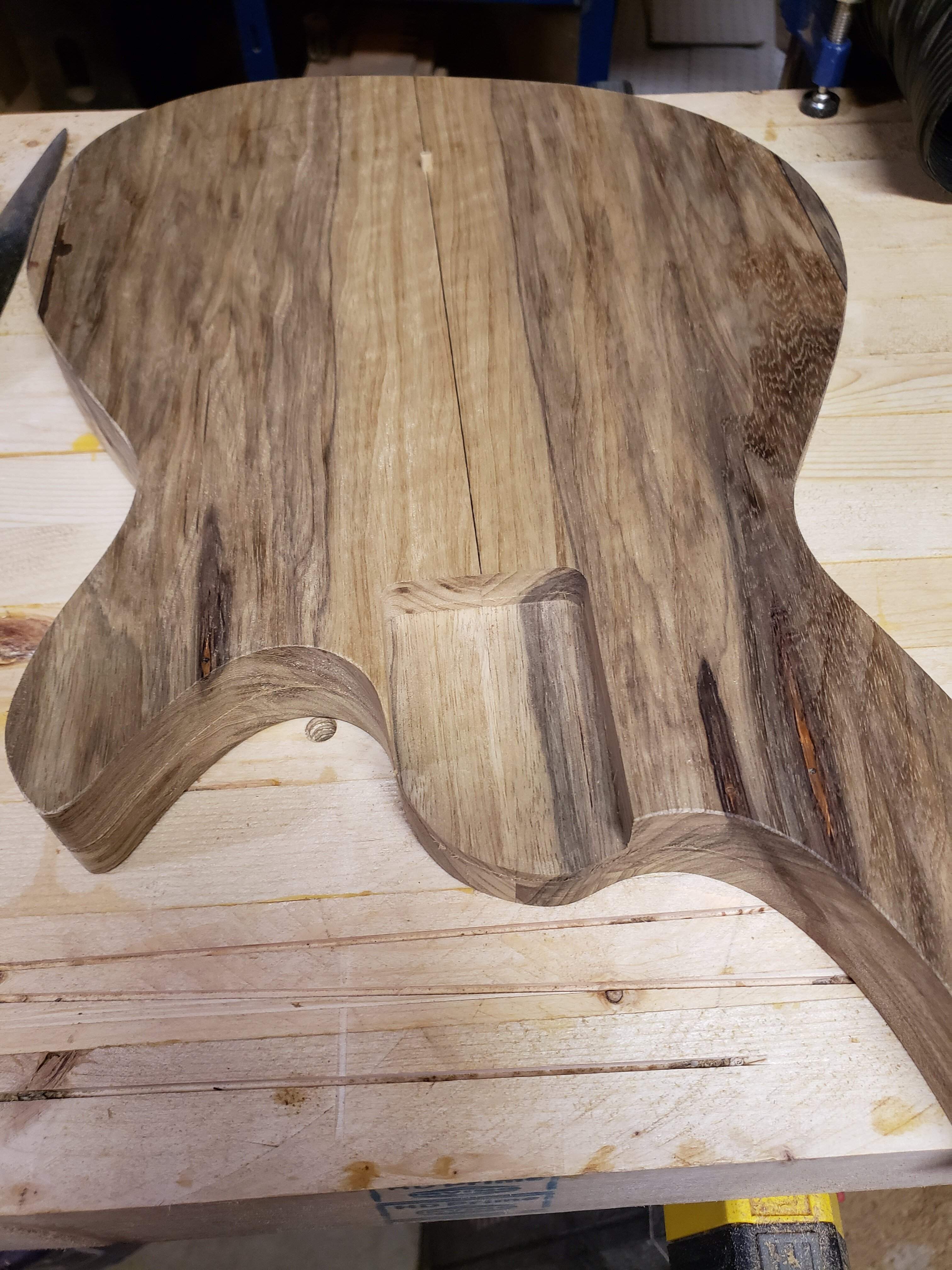

Routed a neck pocket into one of the bodies...
Per my previous post about body and neck thickness, I have routed 5/8" into the body, leaving 7/8" and incraesed the neck pocket length to approx 3-5/8". I will be reducing the overall thickness of the neck heel from 1-1/8" to 1".
Not sure yet if I will be using 4 or 5 screws, but I will be doing the usual t-nuts in the neck before the fret board goes on.
Route the perimeter using the template and a pattern bit, stepping down in 1/16" increments...
then, using a very cheap jig saw, cut the body out, following the routed channel...
finishing routing, using the previously routed perimeter as a guide for the pattern bit...
finished.
When gluing the two halves of one of the body blanks, I used clamps at the glue seam to align the halves and when I removed the clamps, a chunk of wood stuck to the clamp!
(one of my bits is not cutting cleanly ^^^^^)

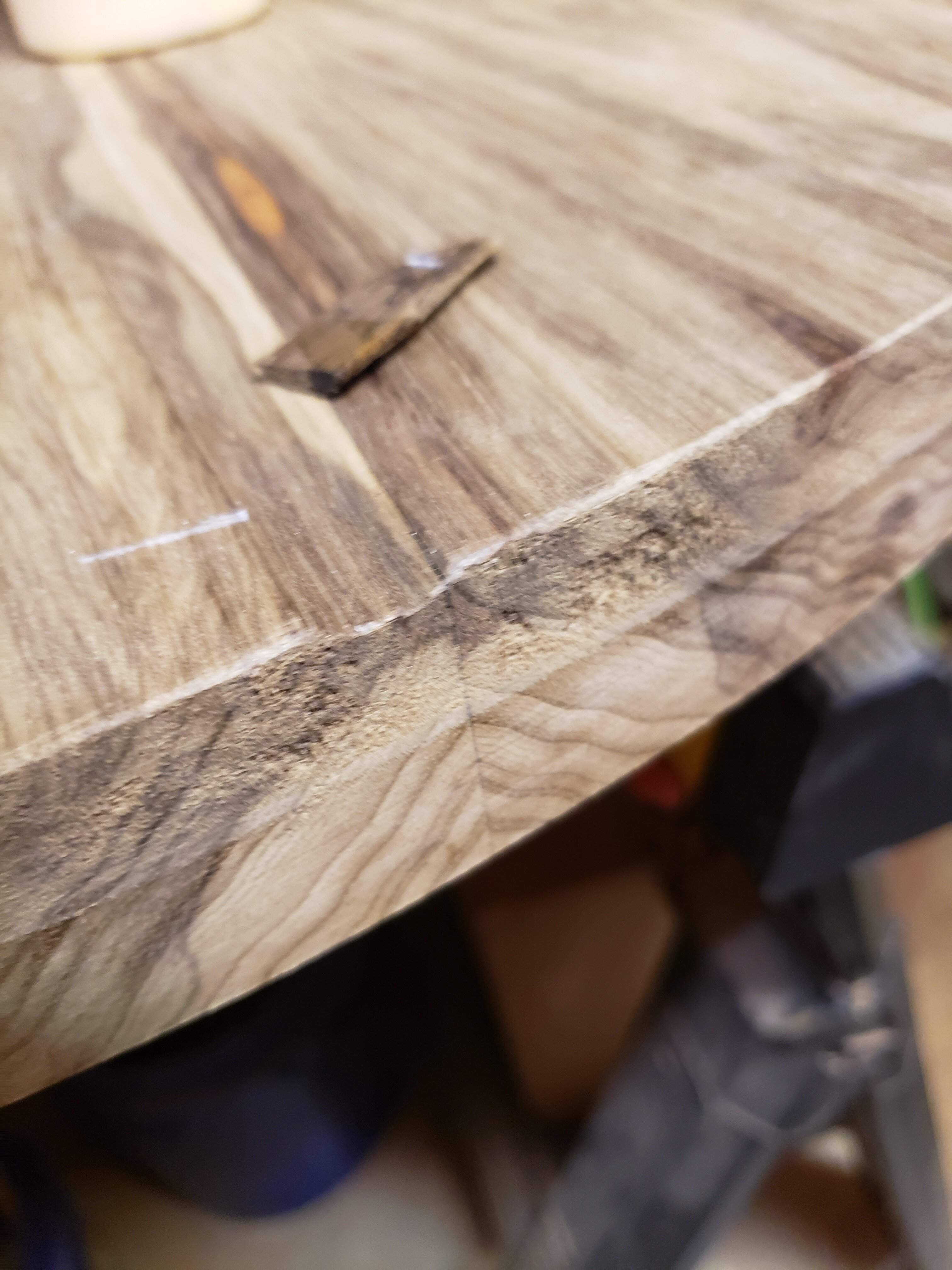

fortunately, I was able to un-stick the chunk, which I then glued back in place...
Routed a neck pocket into one of the bodies...
Per my previous post about body and neck thickness, I have routed 5/8" into the body, leaving 7/8" and incraesed the neck pocket length to approx 3-5/8". I will be reducing the overall thickness of the neck heel from 1-1/8" to 1".
That's a good solid process for cutting a body perimeter. And it's preparation for eventually getting a pin router.
I know you're thinking about it.....Nice woodworking technique overall.
That's a good solid process for cutting a body perimeter. And it's preparation for eventually getting a pin router.
Nice woodworking technique overall.
Thanks Bruce!
I definitely want a pin router! For the ways I like to do things, a pin router could really enhance the process and allow me to do things that are not possible with my current set-up.
Sooooo... just as I'm allowing myself a small pat on the back, thinking to myself, "Bishop, you're getting marginally acceptable at this bass-building thing!" and now I have another thing to fix...
Paying the price for my hubris!
I had the depth stop set properly (I thought) at the same depth I used for the previous neck pocket, went in for the final clean-up pass and I guess something slipped? I dunno...
I'm sure it will be fine, I guess this is relatively minor as far as screw-ups go...
Anyway, started out in the usual fashion...
Remove bulk of material with a forstner, attach template and route...

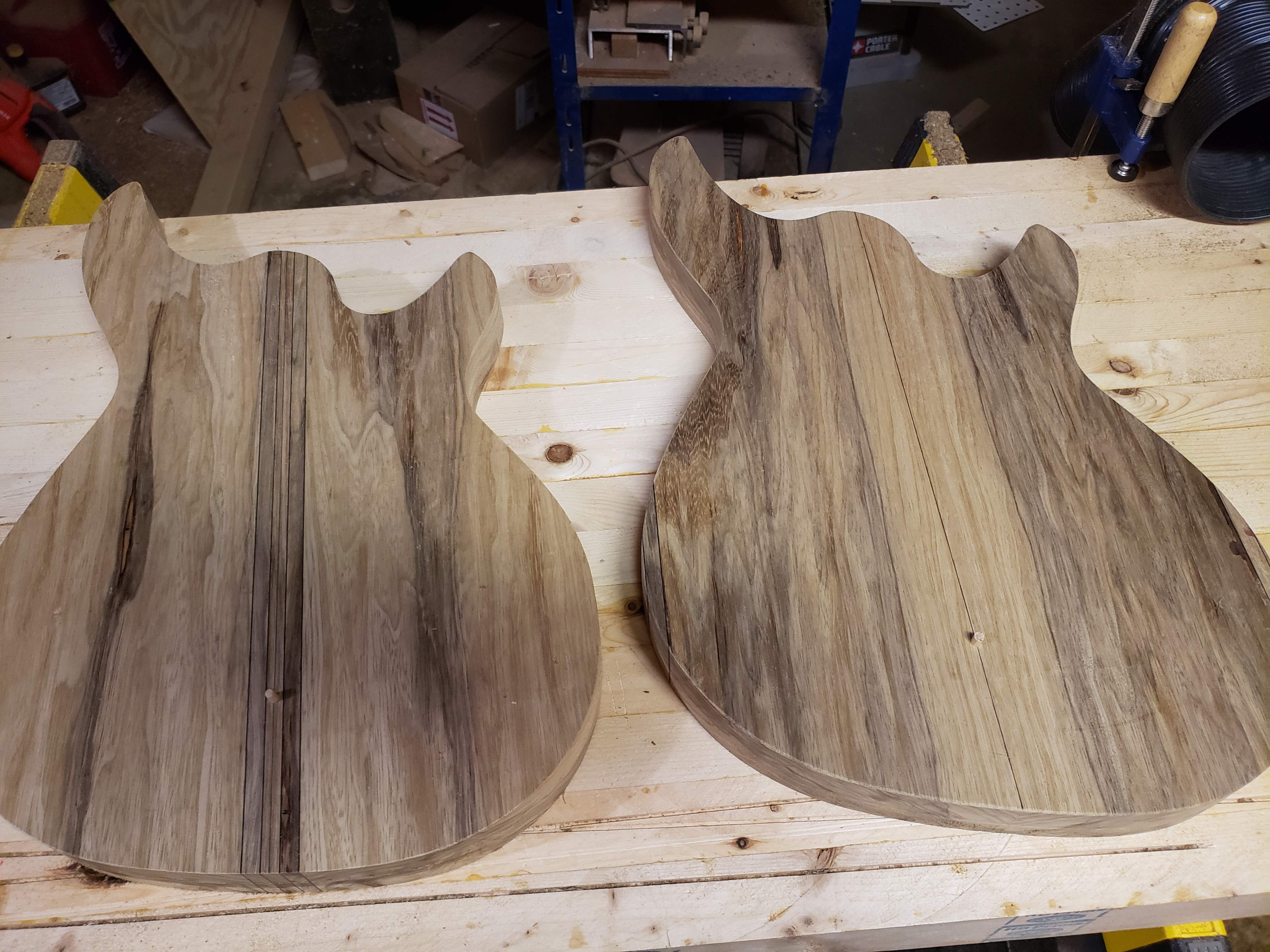

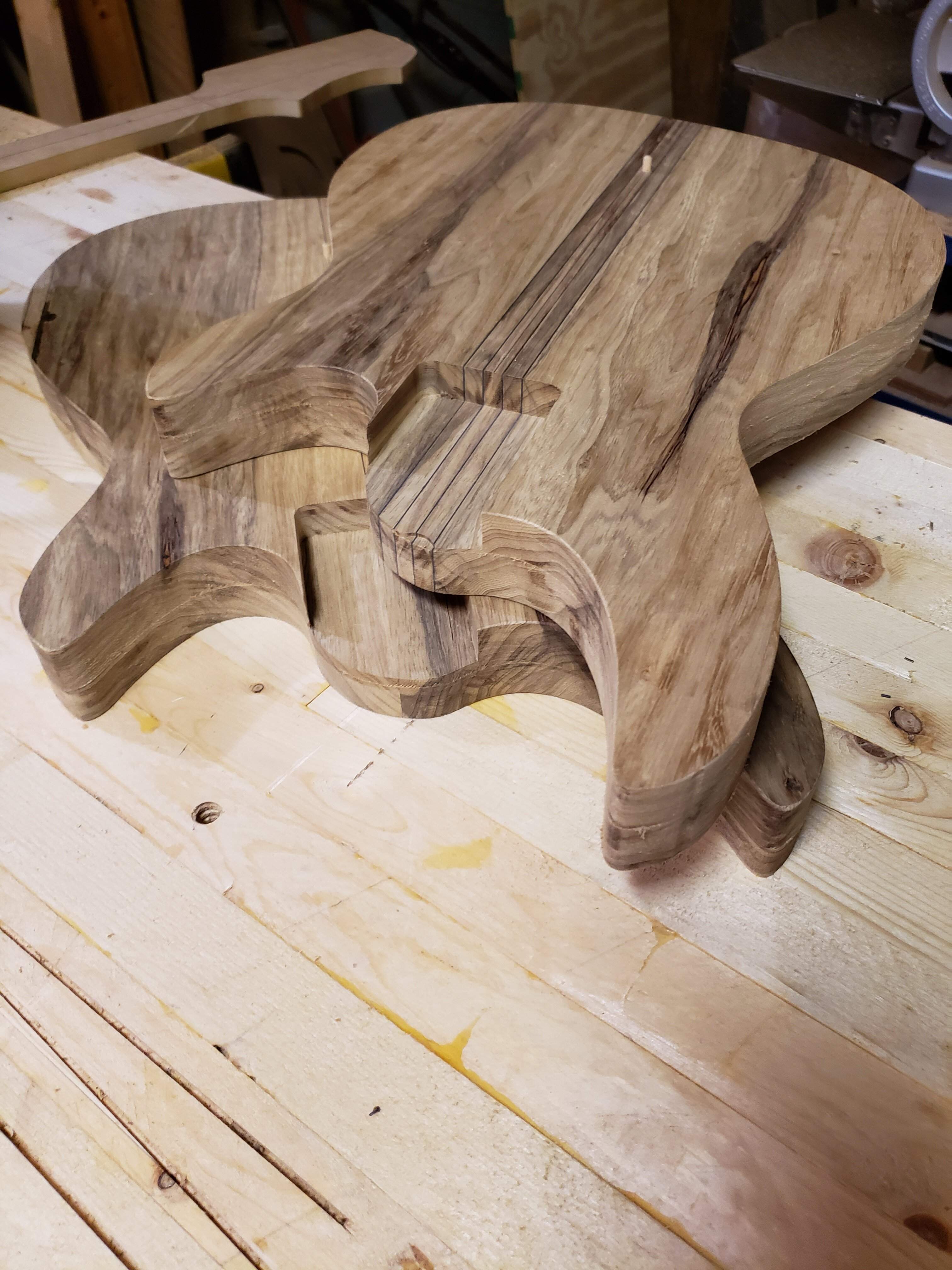

And now I have two bodies with neck pockets...

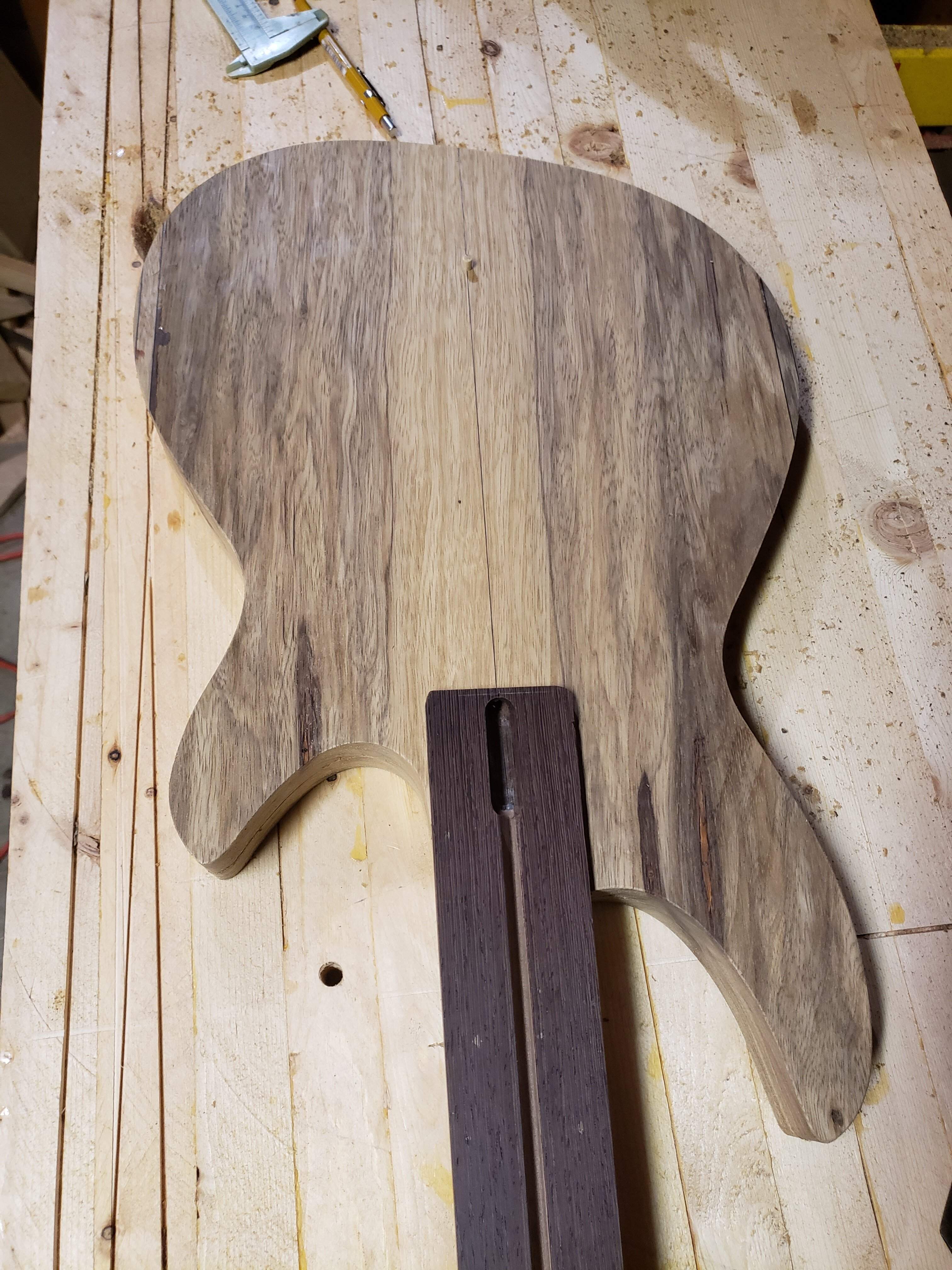

While I was in the shop this morning, I went ahead and thinned the necks down a touch...
Started out at 7/8", took them down to about 13/16"; I think I'll stick with that for now. That will allow for a total heel thickness of 1-1/16" which will get the top of the fretboard 7/16" above the top of the body and the material beneath the neck pocket at 7/8". I can live with that.
Next up, attaching necks to bodies! And fixing a couple issues...
Paying the price for my hubris!
I'm sure it will be fine, I guess this is relatively minor as far as screw-ups go...
Anyway, started out in the usual fashion...
Remove bulk of material with a forstner, attach template and route...
And now I have two bodies with neck pockets...
While I was in the shop this morning, I went ahead and thinned the necks down a touch...
Started out at 7/8", took them down to about 13/16"; I think I'll stick with that for now. That will allow for a total heel thickness of 1-1/16" which will get the top of the fretboard 7/16" above the top of the body and the material beneath the neck pocket at 7/8". I can live with that.
Next up, attaching necks to bodies! And fixing a couple issues...
Freekmagnet
Commercial User
Paying the price for my hubris!
I had the depth stop set properly (I thought) at the same depth I used for the previous neck pocket, went in for the final clean-up pass and I guess something slipped? I dunno...
Eh - just cut a little matching piece from your cut-off, add a little glue, file it down... no one will ever know!
Looking good!
Thanks!
Yeah, that's what I'll do.
Someday, I'll make it through a build without having to "fix" something!
Freekmagnet
Commercial User
Thanks!
Yeah, that's what I'll do.
Someday, I'll make it through a build without having to "fix" something!
haha - good luck with that! From my experience, I’d say that it’s practically impossible.
