Show me your compact pedalboard setup

[MTN.bass72]

View attachment 3679754

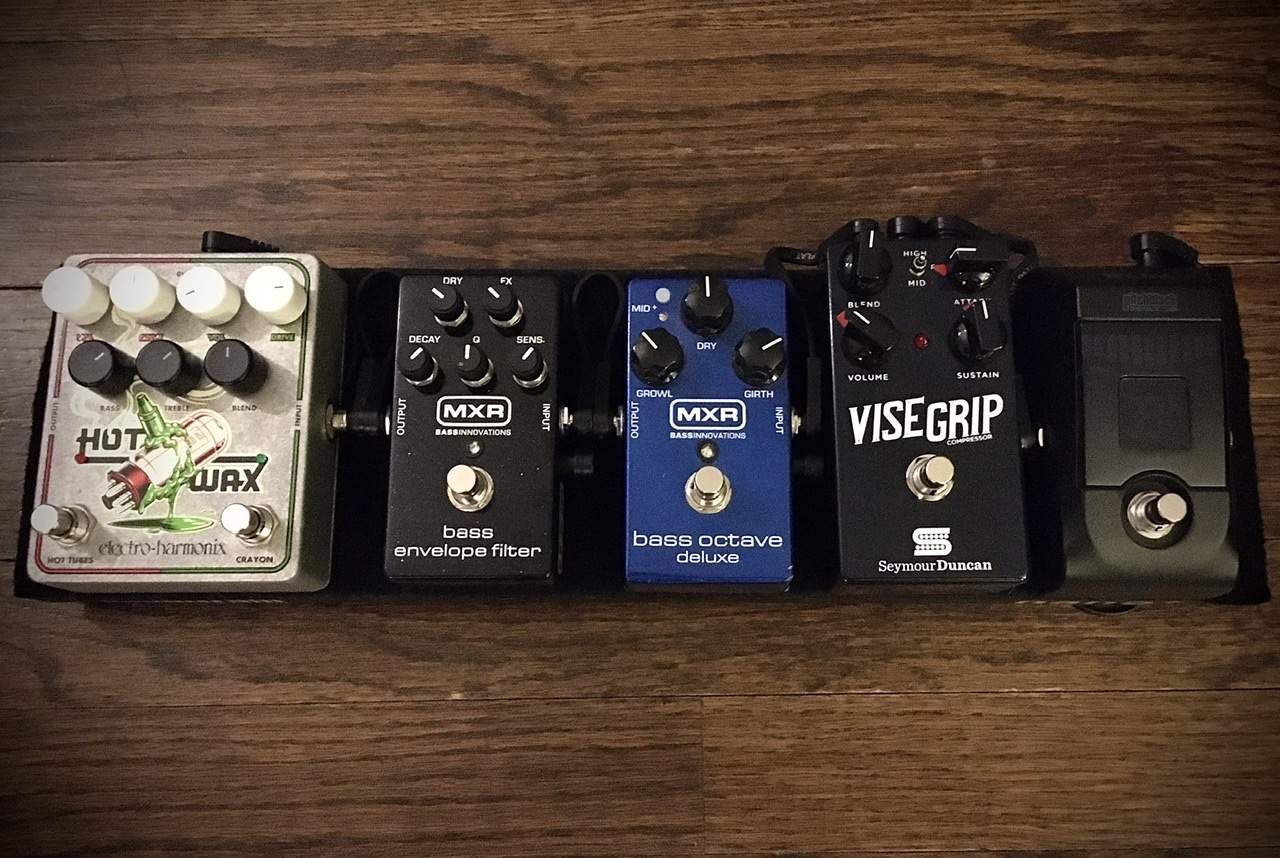

I had an MXR M80 at the end of my board, but haven’t been needing the DI lately and was mostly just using it as a distortion stompbox. So, I got a better one. Really liking the Hot Wax so far.

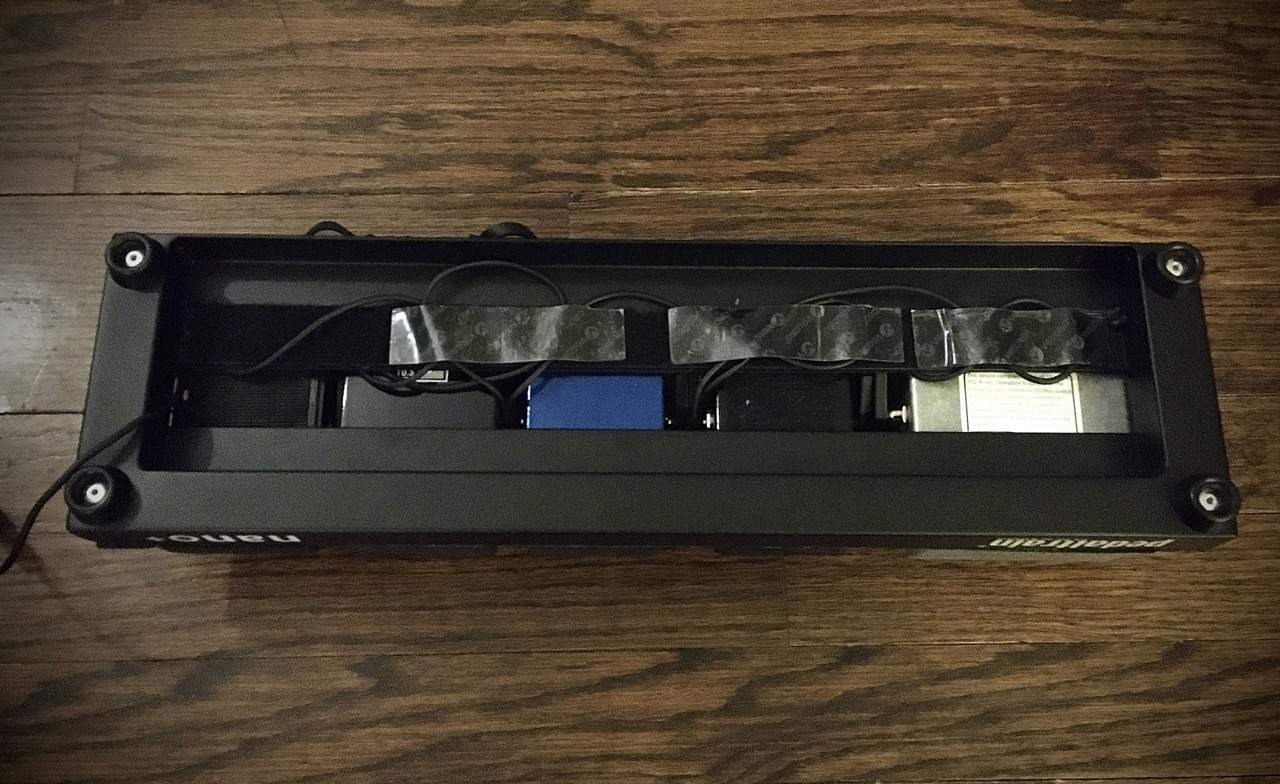

Anyone else use simple strips of Velcro on the underside for cable maintenance?

View attachment 3679755

Is the Visegrip just a Studio Bass in a different package?? Controls seem to be identical



[DoctorZee]

Is the Visegrip just a Studio Bass in a different package?? Controls seem to be identical

Yeah, Vise Grip was marketed to guitarists. The only real difference I’m aware of is the frequency boost selector switch. On the Studio Bass it’s low/mid, and on Vise Grip it’s high/mid. I just leave that off anyway. The Ovnilabs compressor reviews page has some info about it. It works for me!



[Mushroo]

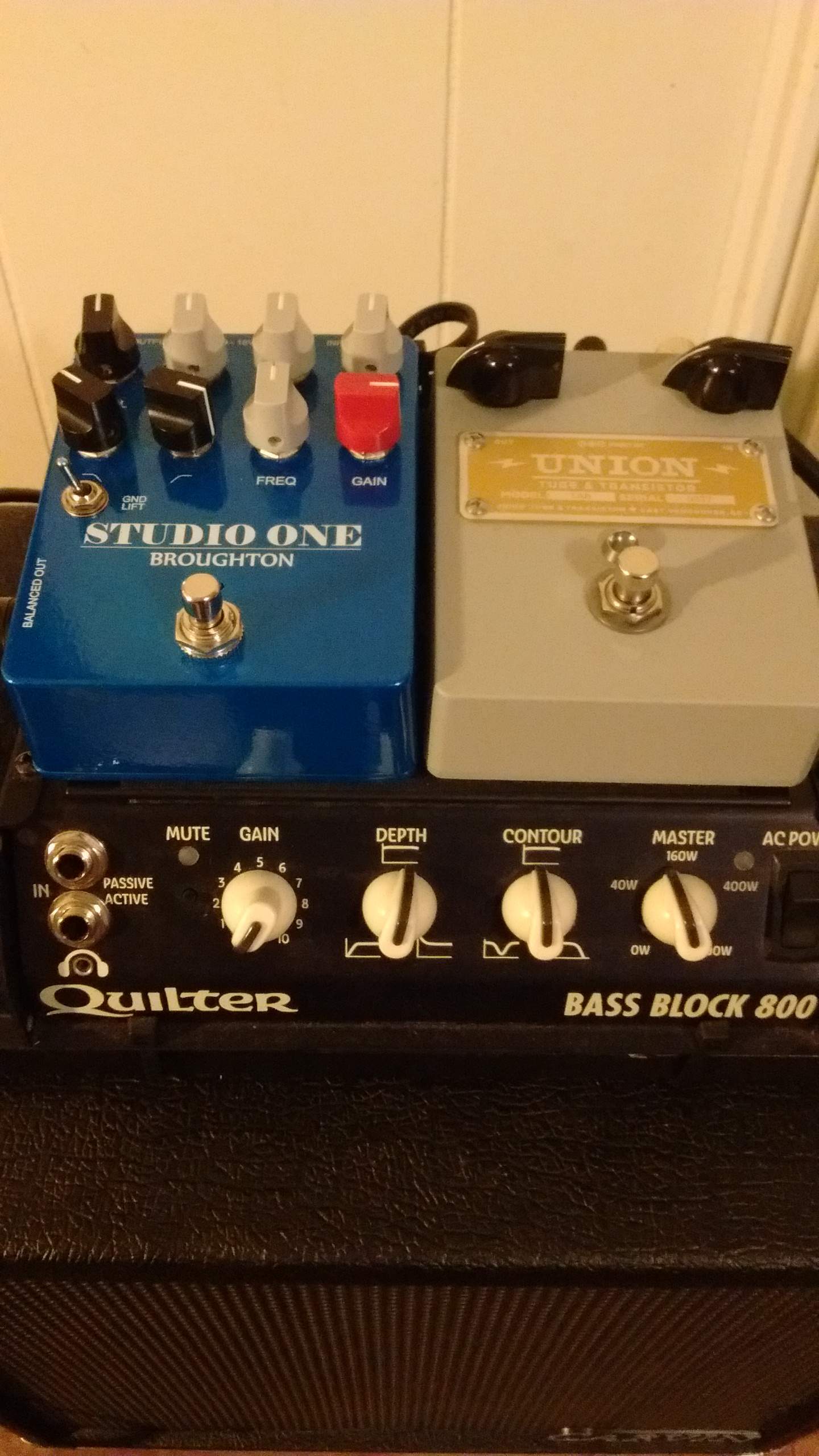

The latest iteration of my "two pedals, a medium PT Booster, and a Quilter BB800" concept: Union Tube & Transistor Lab compressor and Broughton Studio One preamp/DI. The goal is "thick, warm, mostly clean, sits well in the mix" like a studio channel strip. I'm running XLR out, bypassing the preamp section of the BB800 head.



[Btbp]

Finally got around to populating my Voodoo Labs Dingbat Tiny. Slapped this together for a gig tomorrow...View attachment 3679774

How do you like that Wah? I have considered getting the same unit but couldn't rationalize the cost or board real estate thinking that I'd rarely use it, but would still like one.



[DJCalamari]

I love my mini Crybaby. So much smaller and lighter than the full size version I had, totally easy to use, plus none of the tone suck. Think it's true bypass and the older ones are not.



[MascisMan]

The latest iteration of my "two pedals, a medium PT Booster, and a Quilter BB800" concept: Union Tube & Transistor Lab compressor and Broughton Studio One preamp/DI. The goal is "thick, warm, mostly clean, sits well in the mix" like a studio channel strip. I'm running XLR out, bypassing the preamp section of the BB800 head.

View attachment 3680632

So you are taking the XLR Out from the S1 in to the Line In on the back of the BB800?



[Mushroo]

So you are taking the XLR Out from the S1 in to the Line In on the back of the BB800?

Correct. XLR out from S1 into rear-panel Line In on the Quilter. I haven't tested it yet at rock and roll volumes, whether the S1 will have enough gain to drive the BB800's power amp. Specifically the reason I had it wired that way was because I just got the Lab in the mail today, and wanted to put it through its paces without the BB800's limiter in the signal path, coloring my listening. Generally speaking though, I do like the BB80's preamp; I'm not knocking it at all. At a gig, I would probably go from the S1's 1/4" out to the BB800's Active 1/4" in. That way, I could send the S1's DI to the console, and use the Quilter's preamp to make additional stage volume and EQ adjustments that wouldn't be heard in front-of-house (one of the most frequent criticisms of the BB800).

I'll tell ya, though: underrated feature of the Union Lab? Roll off the compression, and you can use the makeup gain as a gorgeous-sounding clean boost, up to +30db. I had to be careful not to clip the input stage of the Studio One. My first impression of the Lab is that it's simple yet powerful. It's got a ton of clean headroom and didn't flinch when I subjected it to some aggressive slap & pop. It's just one of those rare pedals that sounds good at every setting.

I've also got a JHS Pulp & Peel on the way for some A/B/C testing with the Lab and my Accountant.



[Jephmo]

My band is playing its first show this Sunday. For me, it's the first time playing out with a band in over a decade. After much tinkering (and many pedals) I think this is best for the show and maybe all of 2020. The Dyna Comp is always on and I use the Nautila for maybe a song and a half.



[ChronicPyromaniac]

It’s only been about 6 weeks, but that’s enough time for everything to have changed. New board:

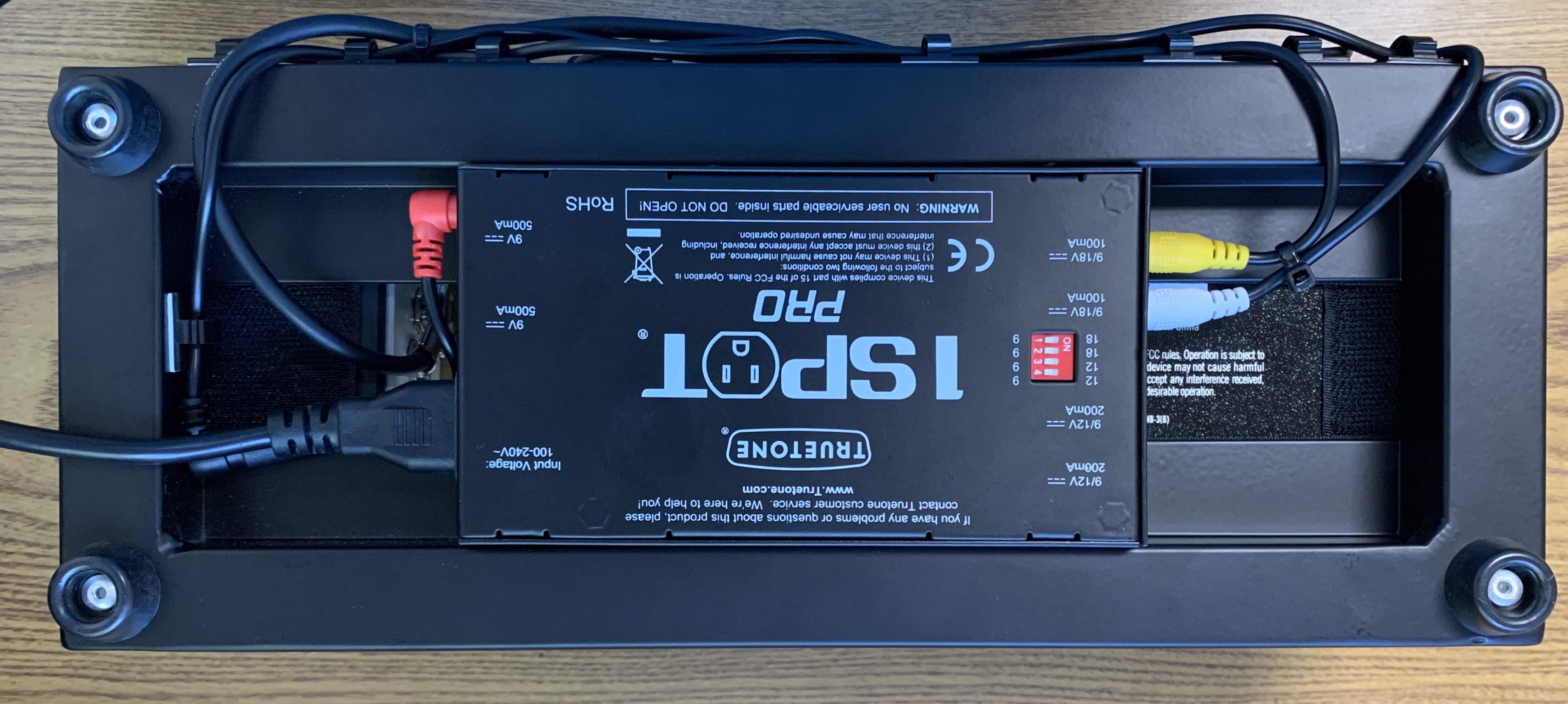

Underneath:

It’s pretty slick.



[Mushroo]

So you are taking the XLR Out from the S1 in to the Line In on the back of the BB800?

After a little more testing, I wanted to follow up on this: It seems to me that the Studio One is not as powerful at driving a power amp through an XLR cable, as compared to the Messenger or P-15.

This is corroborated by the Broughton website, which claims +20db gain for the Studio One vs. +30db (plus additional +15db boost) for the Messenger.

I also had a chance to try the Studio One's 1/4" output into the Active instrument 1/4" on the front panel of the BB800. As expected, it sounded excellent. The Quilter preamp adds an extra layer of subtle compression and tone sweetening. When I do my compressor testing next week, I will include the Quilter's built-in compression in the mix, to answer the question: How does the BB800's internal compressor stack up against a dedicated compressor pedal?



[Somnambulance]

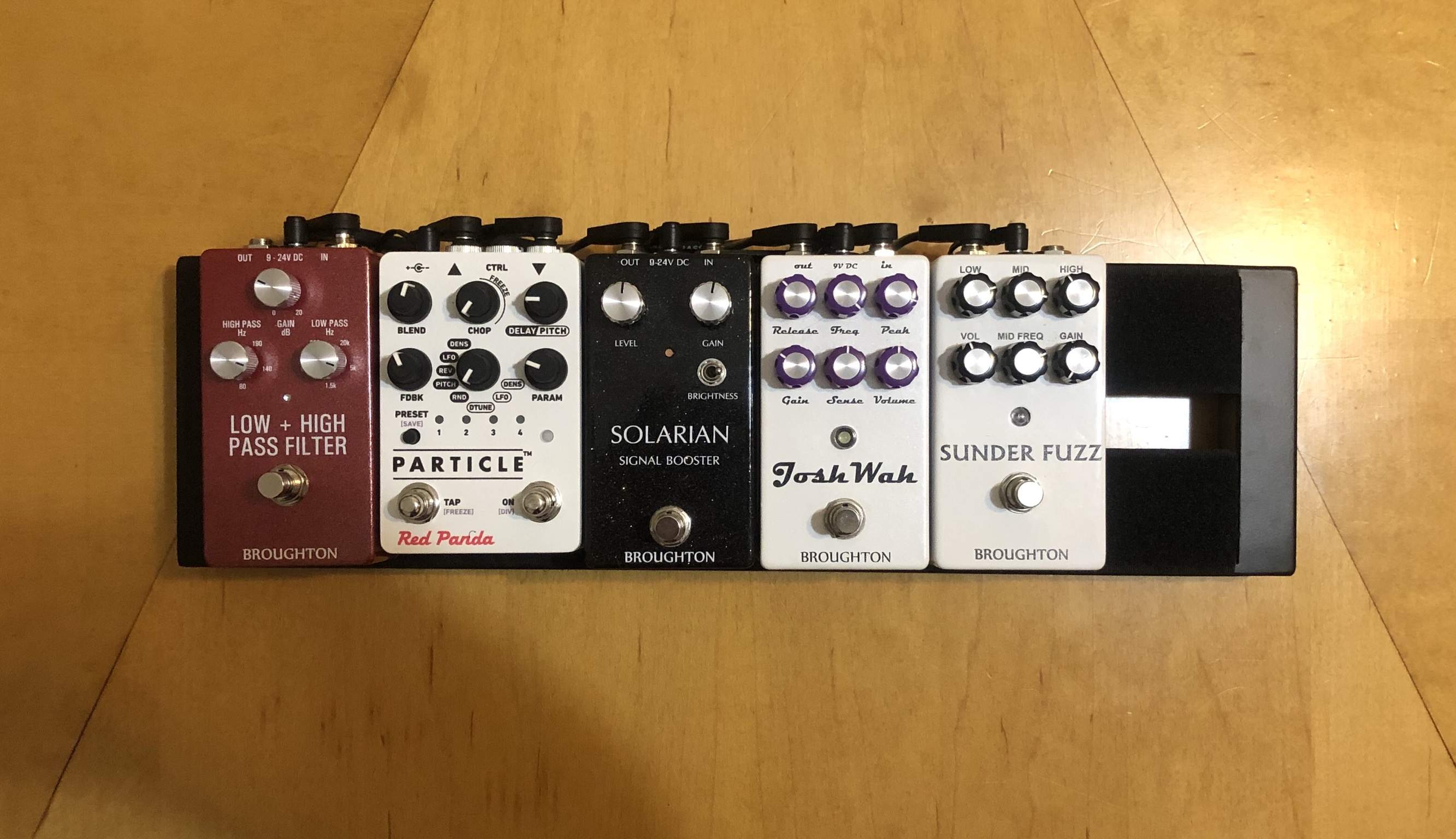

As compact as I’ve ever been



[gary mitchell]

I don't why I put the blackwidow of a peavey amp on it i just did



[cosmicevan]

After a little more testing, I wanted to follow up on this: It seems to me that the Studio One is not as powerful at driving a power amp through an XLR cable, as compared to the Messenger or P-15.

This is corroborated by the Broughton website, which claims +20db gain for the Studio One vs. +30db (plus additional +15db boost) for the Messenger.

I also had a chance to try the Studio One's 1/4" output into the Active instrument 1/4" on the front panel of the BB800. As expected, it sounded excellent. The Quilter preamp adds an extra layer of subtle compression and tone sweetening. When I do my compressor testing next week, I will include the Quilter's built-in compression in the mix, to answer the question: How does the BB800's internal compressor stack up against a dedicated compressor pedal?

I am currently driving a power amp w xlr out of studio one. While less powerful than some others that have more gain, it can still be done.

View attachment 3679754

I had an MXR M80 at the end of my board, but haven’t been needing the DI lately and was mostly just using it as a distortion stompbox. So, I got a better one. Really liking the Hot Wax so far.

Anyone else use simple strips of Velcro on the underside for cable maintenance?

View attachment 3679755

I like this...never seen or thought of, yet I use carpet side of industrial velcro under my boards for pedal and power supply holding. Thanks for sharing your ingenuity.



[bassbrad]

When you got so many goodies sometimes ya just gotta do something just for funky fuzzy freaky fun.



[glassmoon]

My band is playing its first show this Sunday. For me, it's the first time playing out with a band in over a decade.

Good luck mate. I hope it all goes swimmingly



[javi_bassist]

As compact as I’ve ever been

View attachment 3681938

All top mounted jacks... That gives me a lot of peace



[Somnambulance]

All top mounted jacks... That gives me a lot of peace

Me too



[furym]

Recovering from hernia surgery and not going to haul the big board to church tomorrow.



[remcult]

I have some dumb questions for you folks (making my first pedalboard, a pedaltrain metro 20):

-Velcro or dual lock or a combo of both?
-cable ties or bolt my power supply (1Spot Cs6) directly to the board?
-for a compact board should I be thinking soldered vs solderless, or should that not be so much of a concern at this size?



[MascisMan]

I have some dumb questions for you folks (making my first pedalboard, a pedaltrain metro 20):

-Velcro or dual lock or a combo of both?
-cable ties or bolt my power supply (1Spot Cs6) directly to the board?

My personal preference is Dual Lock. I also use Dual Lock to affix my power supplies under my pedal boards
