Show me your compact pedalboard setup

[Nick von Nick]

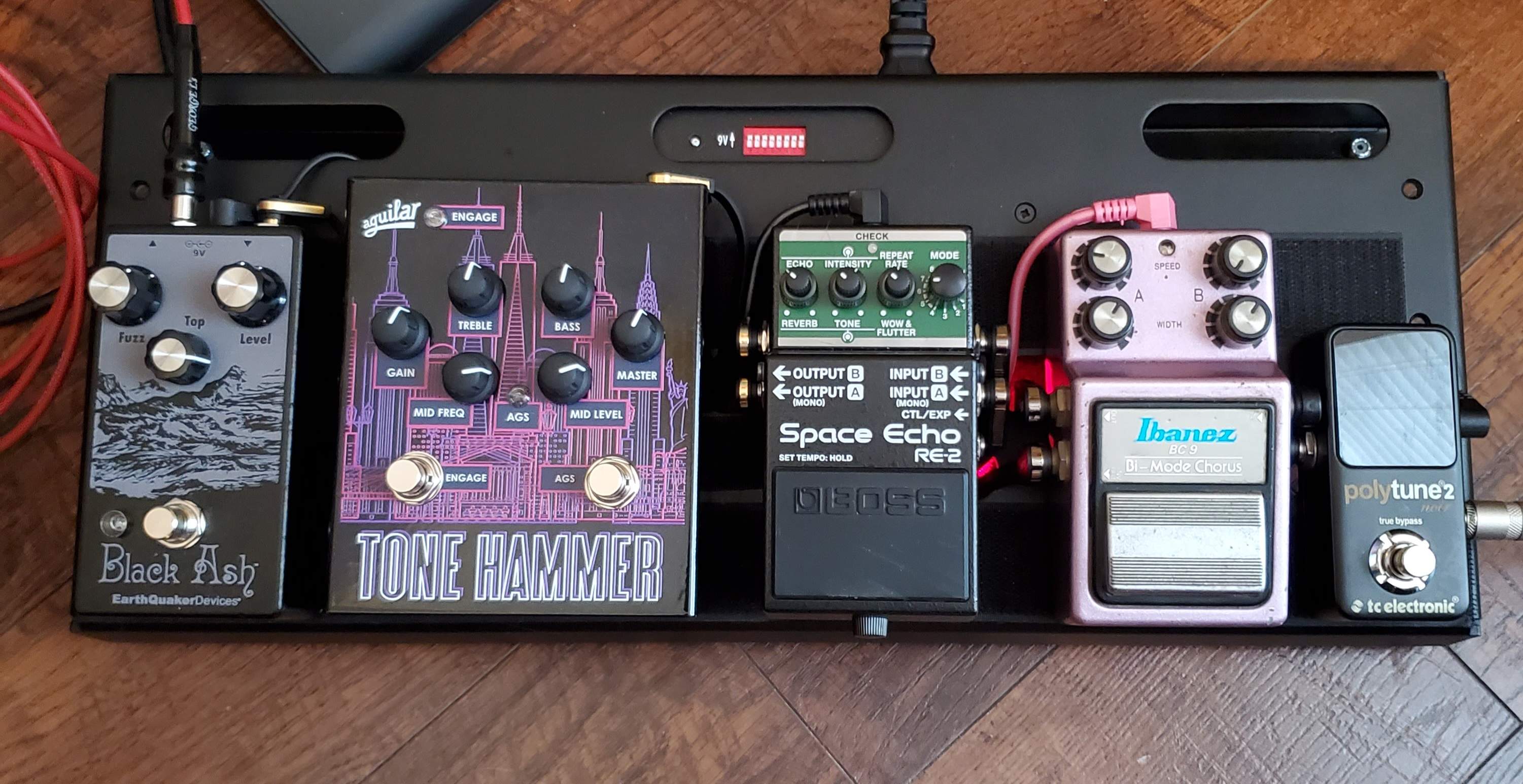

Saturday night project that ebbed into Sunday morning. Stereo chorus into stereo Space Echo. One out into Tone Hammer, second out into Black Ash. I can go FOH from TH, and/or into an amp via the Black Ash. Or use the TH into an amp, sans Black Ash. Or run both into my 4 hole 2 channel SVT. All that pends is an 18v 500ma wall wart to power the TH from the front AC jack on this particular Voodoo Lab power supply.
View attachment 4893327

Intentional or not, the color scheme on your board is gorgeous. It has a wonderful cyberpunk vibe.
~NvN



[TheArchitect]

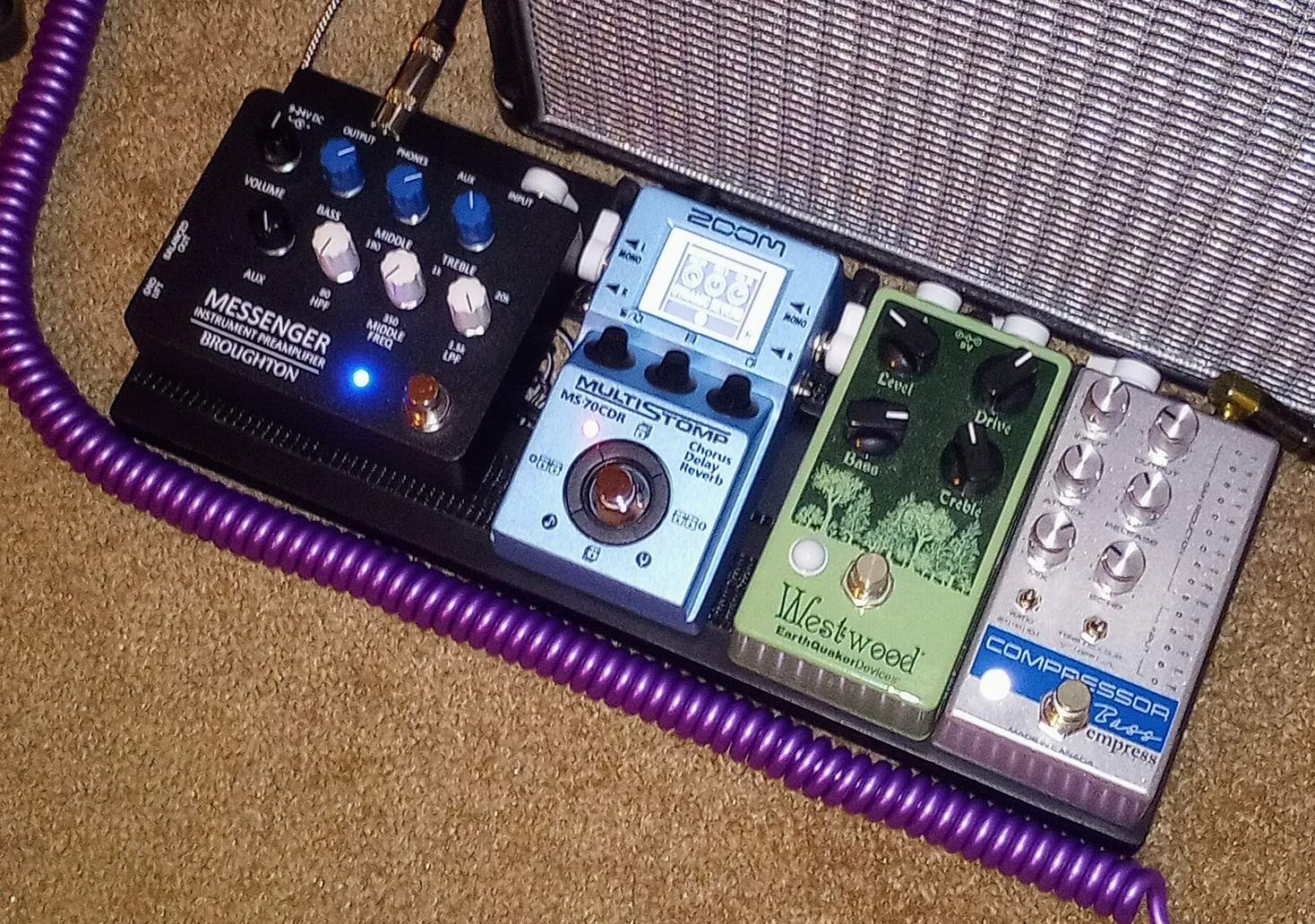

New setup.

View attachment 4890775

How do you like the zoom? What do you use it for?



[arvegrinden]

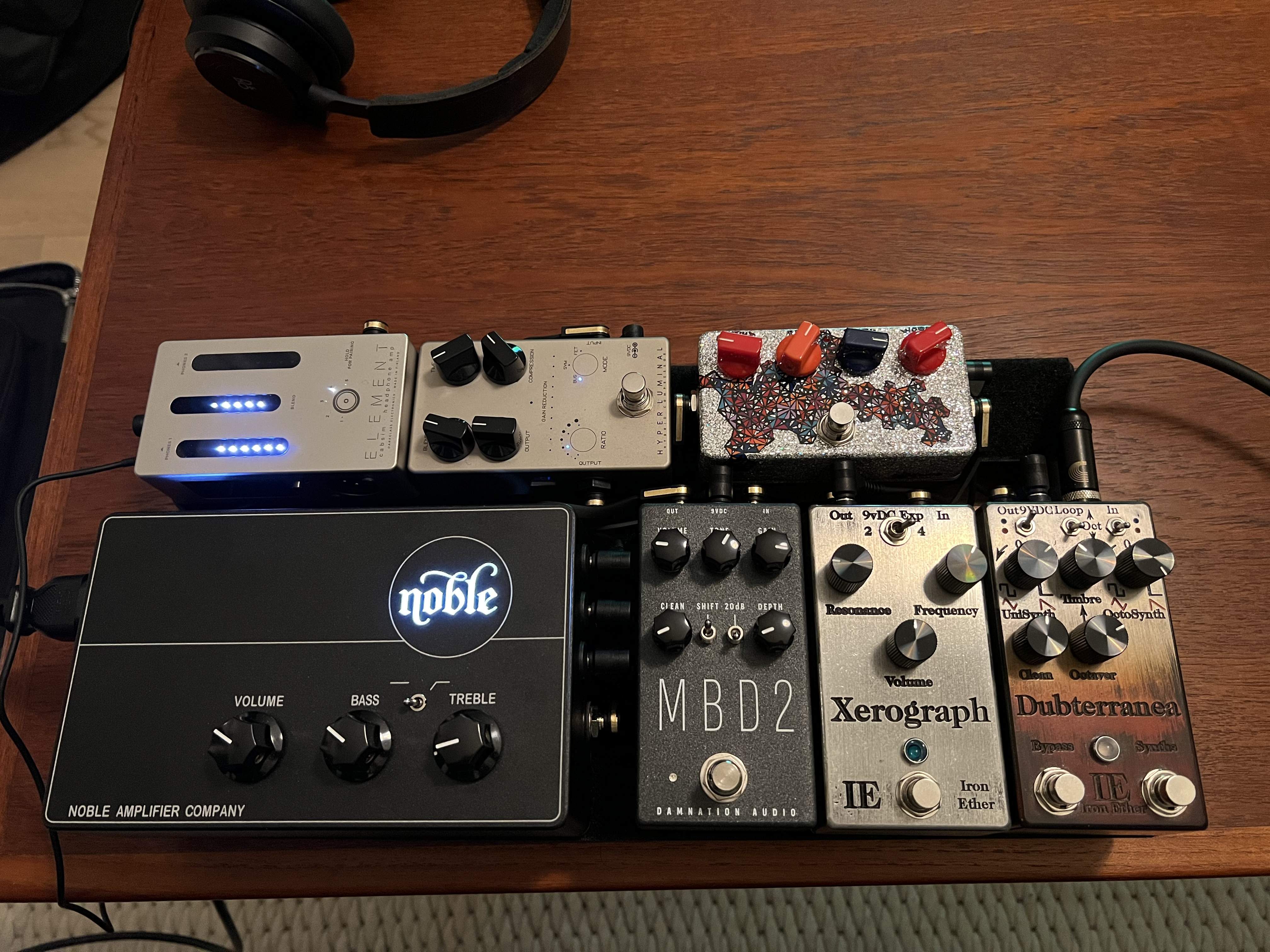

Getting there. Was planning a T-16, but got a good deal on the Dubterranea. Now there’s just a small square left, maybe I’ll be able to cram a nano tuner on there. Not too sure about the MBD2 yet…



[NerdyOcean]

How do you like the zoom? What do you use it for?

I dig it. I have had a few of the Multistomps. They are fine if you dont want dirt sounds. I am using this for tuner, phaser, chorus, filter, delay, reverb, and the znr patch.



[ianrck]

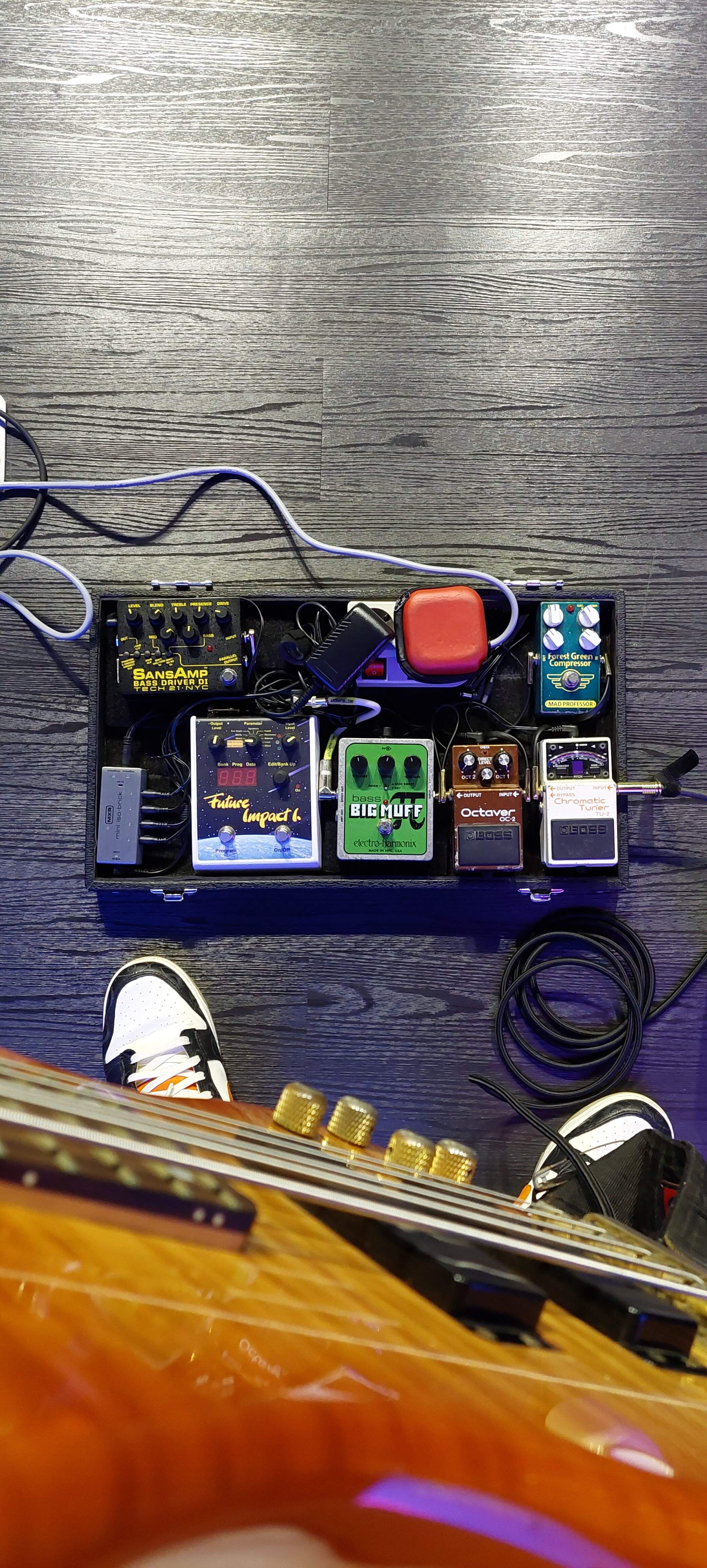

Board update, back again using sansamp bass driver instead of hx stomp



[Das Jugghead]

Board update, back again using sansamp bass driver instead of hx stompView attachment 4894730

Anything in particular that prompted that change?



[TerriblePeril]

Anything in particular that prompted that change?

I know I'm slowly making my way to taking the Stomp off my board and putting it (back) on it's own (with the expression/ controllers I've got tethered to it and the line isolator/DI) as an auxiliary modeling board.

It started with adding the C4, then a couple other flavors of octave and dirt, then testing some compressors and feeling like I was missing something in the HX universe for bass. I have some unique wants/needs in my rig but I'm finding the whole refinement and potential breakaway process very fun and it's forcing me to really focus on what sounds I REALLY want to use vs just having the best utility ratios.



[ianrck]

Anything in particular that prompted that change?

Just wanted to have a di option in my board. Any recommendation for a good di for bass?



[Gruff]

Any recommendation for a good di for bass?

In the spirit of "compact pedal board" I went with a Radius "Stagebug SB-2". It's passive, solidly built and with minimal features - but does the job. It has a 'thru' connector so splits my signal between XLR to a PA and 1/4" jack to my own amp.



[TerriblePeril]

Just wanted to have a di option in my board. Any recommendation for a good di for bass?

I put a Canvas by Walrus Audio after my HX Stomp (it's basically the same as the MISO, a DI/ Line Isolator for use after a device exactly like the HX Stomp) to give me the XLR out and such. Works great!



[JohnSmith2]

I put a Canvas by Walrus Audio after my HX Stomp (it's basically the same as the MISO, a DI/ Line Isolator for use after a device exactly like the HX Stomp) to give me the XLR out and such. Works great!

i have the same setup: Hx stomp (sometimes xl) into walrus audio canvas (stereo). Works/sounds great.



[Das Jugghead]

Just wanted to have a di option in my board. Any recommendation for a good di for bass?

That Sansamp should have a good DI but I am guessing you need something at the end of your signal chain.

I run a few options in terms of DI's. My amp has a pretty good DI built in so most soundmen just use that. I send FOH a post a post EQ signal from that so that my pedalboard is included. For gigs where I am just running the pedalboard I have a Radial DI on the pedal board for the soundman to use. I have never had a complaint with either

Preferences vary in terms of manufacturer but you really cannot go wrong with Radial.

Here is what I run:

Radial ProDI 1-channel Passive Instrument Direct Box​

I see a lot of guys running these when pedalboard space is limited:

Radial StageBug SB-2 1-channel Passive Instrument Direct Box​



[Esquillama]

Just wanted to have a di option in my board. Any recommendation for a good di for bass?

I looked for a long time to find the smallest form factor with a thru and ground lift. This also has a -20db cut (which I don't use with my passive basses). It's been rock solid for me, and I use it after my HX Stomp to have the xlr "locked" cable instead of a 1/4" that could get pulled out accidentally. I also appreciate having the ground lift there just in case, but it usually doesn't matter because I run my HX Stomp off a battery. Anyway, here's the Switchcraft 314 DI(passive, so no extra power required):
Switchcraft 314DI AudioStix 1-channel Passive Instrument Direct Box



[JoeDoe]

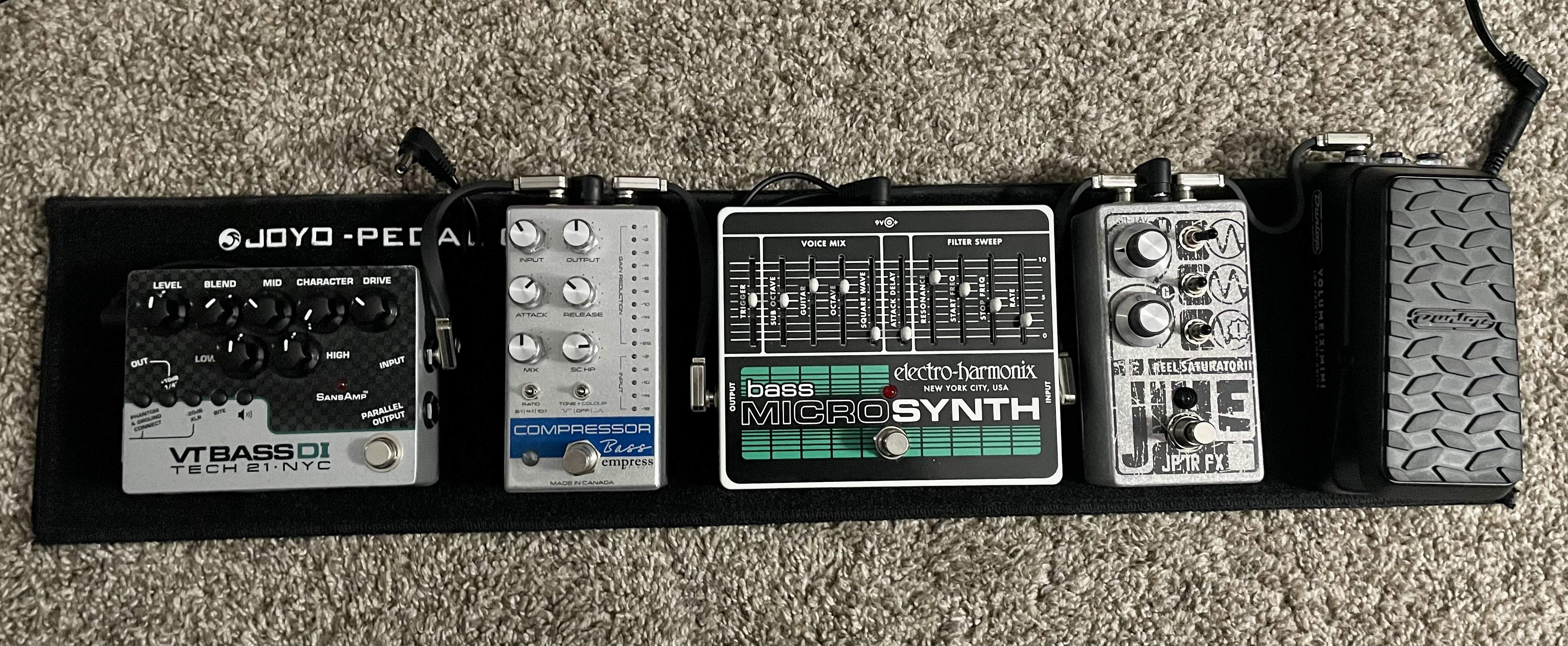

Really enjoying what I’m calling in my mind, my analog board.

Jive = vintage reel saturation
BMS = vintage analog synth
Empress = classic studio style compression (maybe a stretch lol)
VTDI = vintage preamp



[rafitoprtx]

Just wanted to have a di option in my board. Any recommendation for a good di for bass?

Neve RNDI



[villegastx]

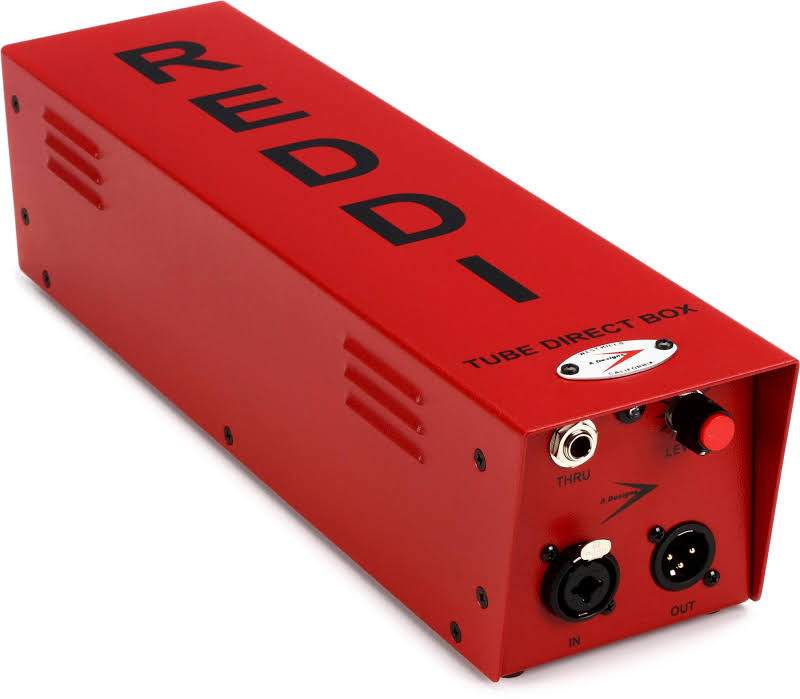

A reddi might be little bit too much, but a motown is small enough to fit in a pedalboard.
I had a countryman in my board, but I replaced with a pike vulcan XL



[arepa_funk]

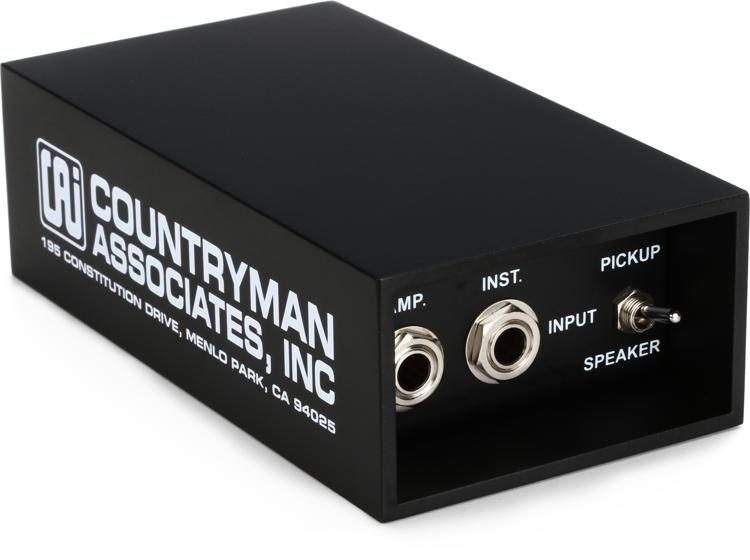

I'm using the Countryman Type 85 for recording and dig the Radial ProDI for as a passive backup. Sushi Box Finally is a tube DI that would fit great on a board. Haven't used it for recording yet, but should have some dates in the new year.



[sloppy_phil]

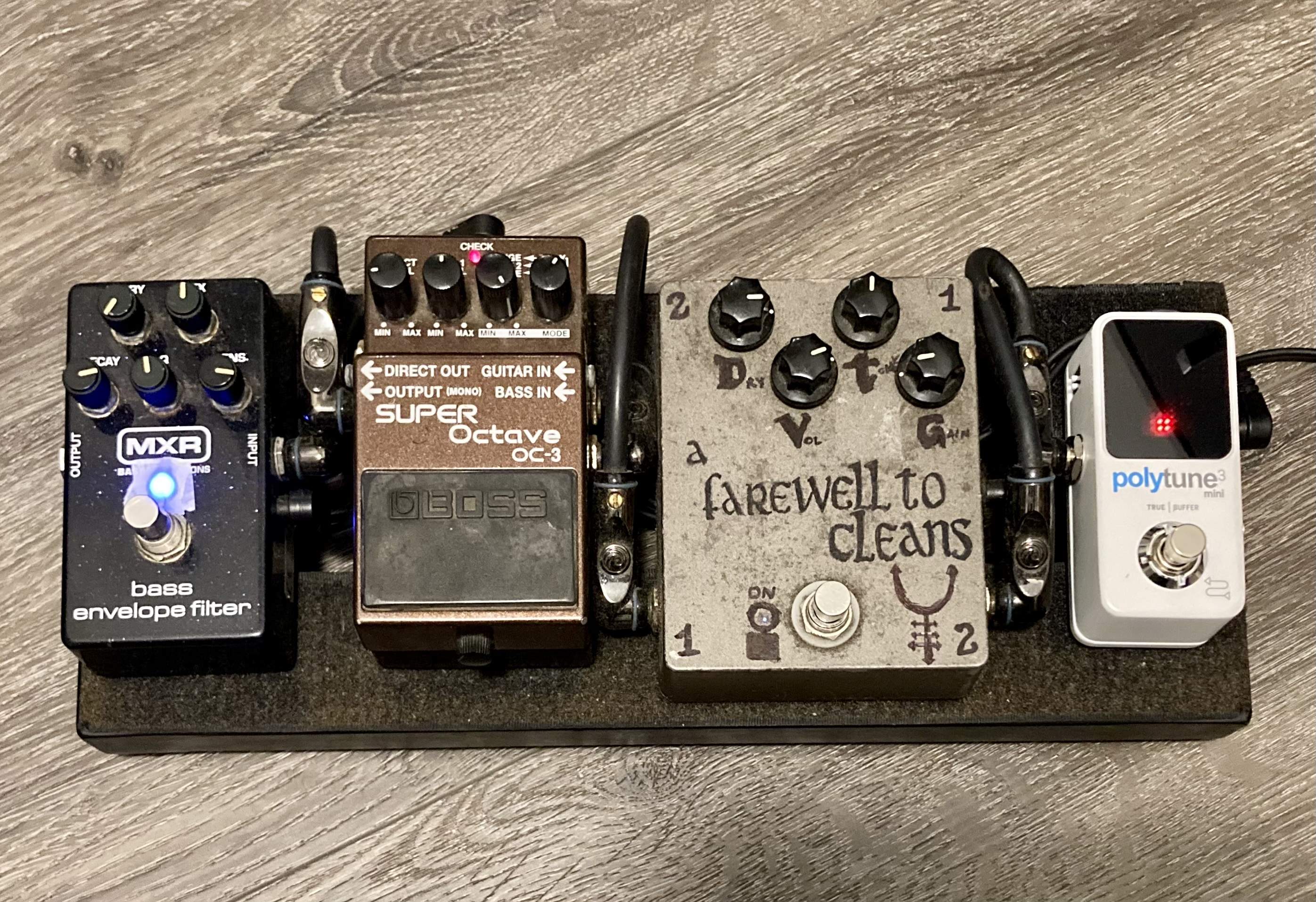

I'll play along; here's my little road companion. My ~20yo Korg Pitchblack finally died, so I've got a new tuner on there. But otherwise I haven't touched this guy in many years. It's getting ready for its first Eurotrip in the new year!



[bassbrad]

Just wanted to have a di option in my board. Any recommendation for a good di for bass?

I have amassed a small collection over the years with my current favorite being the @Sushi Box FX Finally Tube DI, just something sweet about tubes. Hard to beat for the sound quality, size and ease of power. I have long been using Countryman, RNDI, Radial, Avalon, Manley and many others which are all great the Finally is sweet simplicity IMHO.



[ianrck]

I looked for a long time to find the smallest form factor with a thru and ground lift. This also has a -20db cut (which I don't use with my passive basses). It's been rock solid for me, and I use it after my HX Stomp to have the xlr "locked" cable instead of a 1/4" that could get pulled out accidentally. I also appreciate having the ground lift there just in case, but it usually doesn't matter because I run my HX Stomp off a battery. Anyway, here's the Switchcraft 314 DI(passive, so no extra power required):
Switchcraft 314DI AudioStix 1-channel Passive Instrument Direct Box

Now this is maybe the one i need. Been using Tab Funkenwerk V71 DI but need something more compact.
