Show me your compact pedalboard setup

[Esquillama]

I also have one of those, but I got the 314 DI because I wanted to ground lift. This does definitely have that small form factor!



[deepestend]

Finally upgraded my looper after 10+ years. After getting the QC, I waited some time to decide what to keep or sell off my huge space ship size board. I listed most of the pedals and board and got a great offer for the bulk of my pedals. I wasn't planning on selling my Boss RC 50 but it was a good deal and saved me time piecing everything out. Upgraded to the Cioks DC7 and have a Crux on order to power the board. It's slim enough to fit under the board versus the Strymon Ojai which didn't quite fit - the laptop power style thing was millimeters too big and it was resting on the floor. Will probably move the DC7 over a bit so it's not covering the bottom vents of the QC.

I was interested in the Singular Sound Aeros since I saw it and decided to go for it. Super happy with it and all that it does. What a powerful yet tiny looper. I was hesitant about the lack of switches but it's easy to use hands free, navigate and has more to offer than I had on the Boss. I'm still learning it but what better way to learn than on a gig! I am in the middle of a series of live looping dates put on by my local library and took the chance with a week to learn and perform with it. The pressure to learn it definitely helps and I feel really comfortable with it so we'll see how it goes.

Signal path: Temple 4 way is my in to the QC. Another I/O is used to plug in my in ears for monitoring and click from the Aeros. The Aeros lives in the loop of the QC so I can process the loops as well. I have a basic reverb on them to feel more glued together and not so sterile as well as some fun FXs for certain parts. This also keeps things simple as I mix my lead and the loops in the QC to one out up my speaker. Dunlop is hooked up as an expression to the QC. I was using a DOD Volume Mini as an expression which worked fine but it took a y cable which was super short and it had to be to the left of the QC which was a little weird. The Dunlop works better and is a better size.

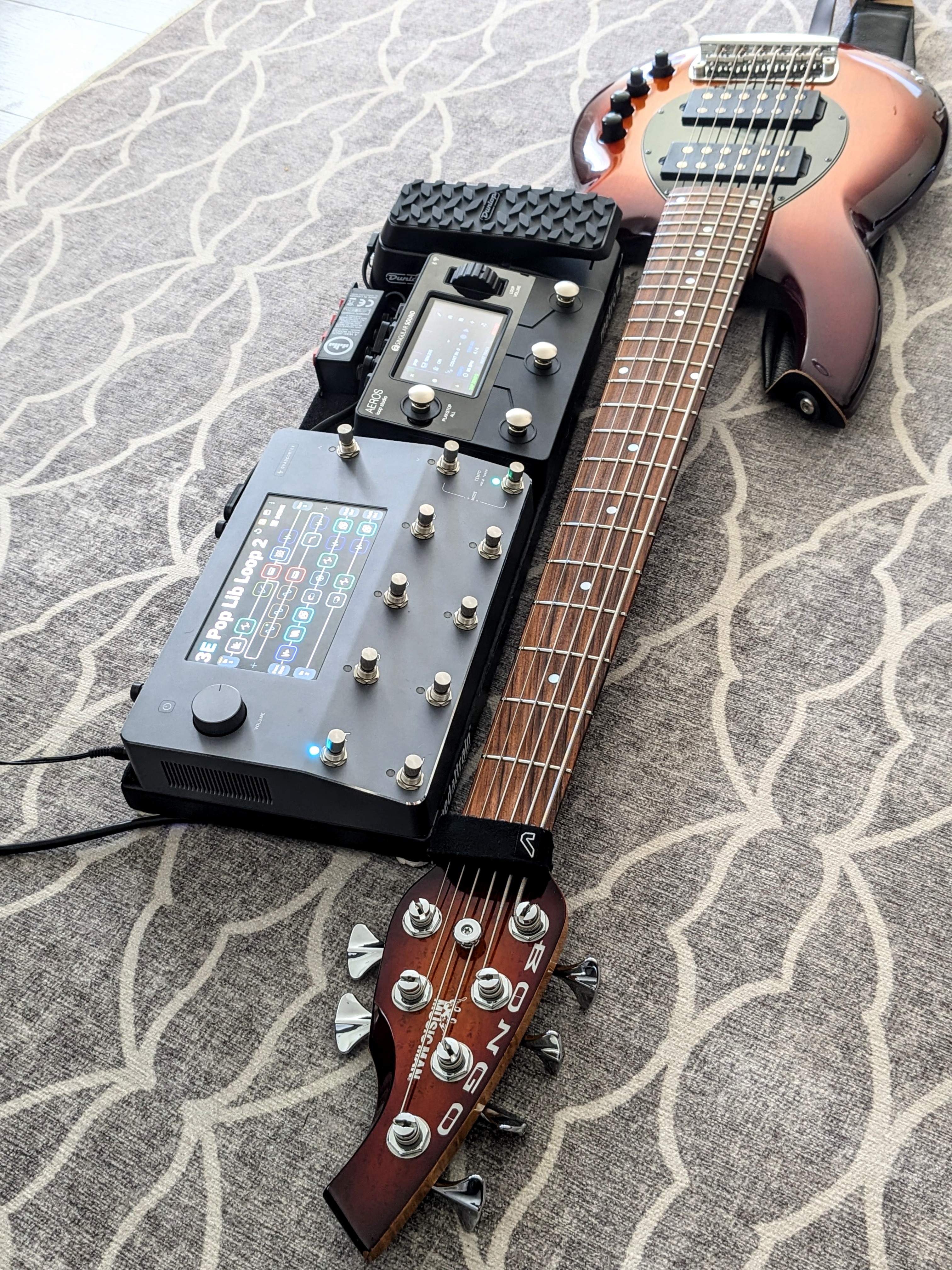

Fancy pictureView attachment 4960175

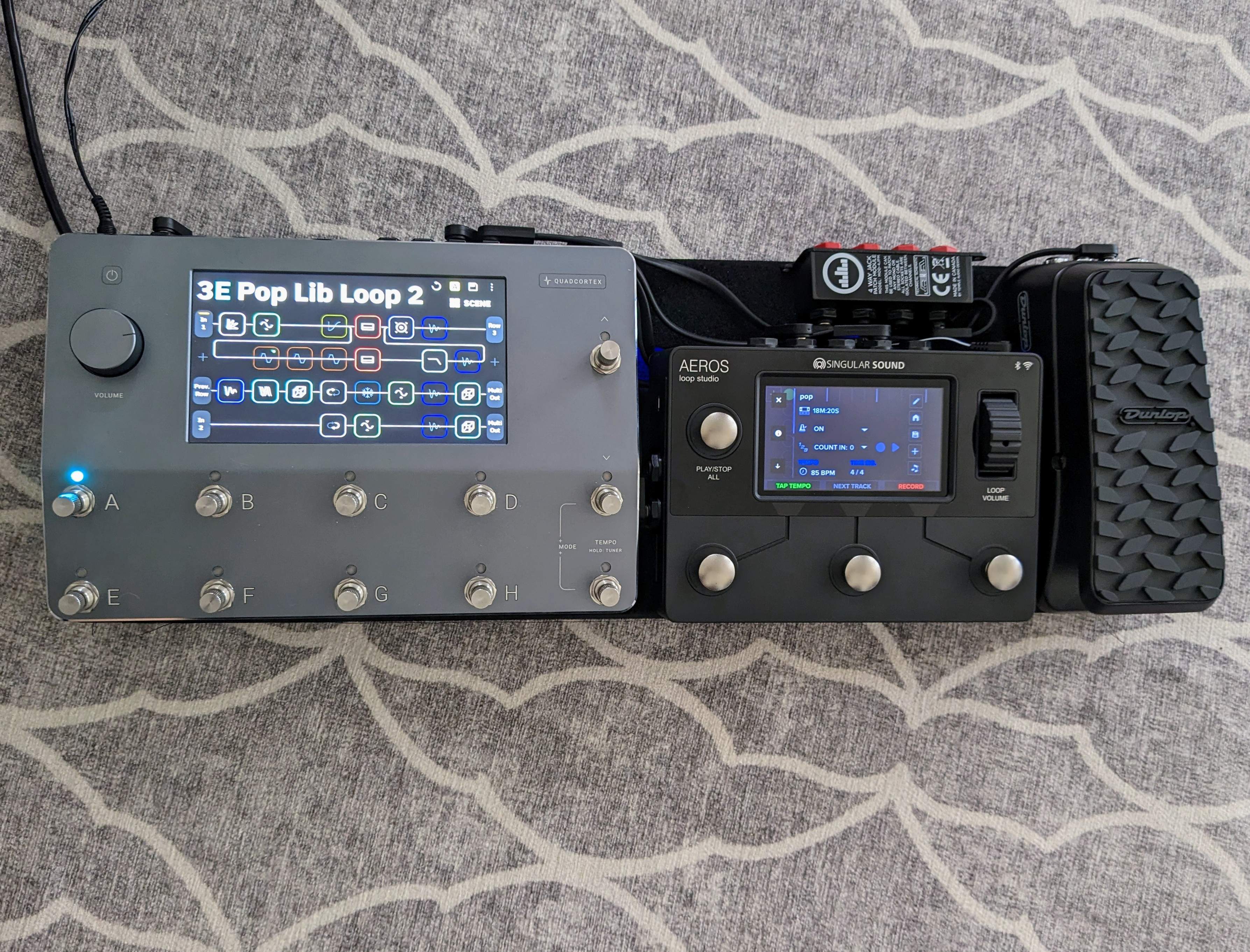

Board
View attachment 4960177

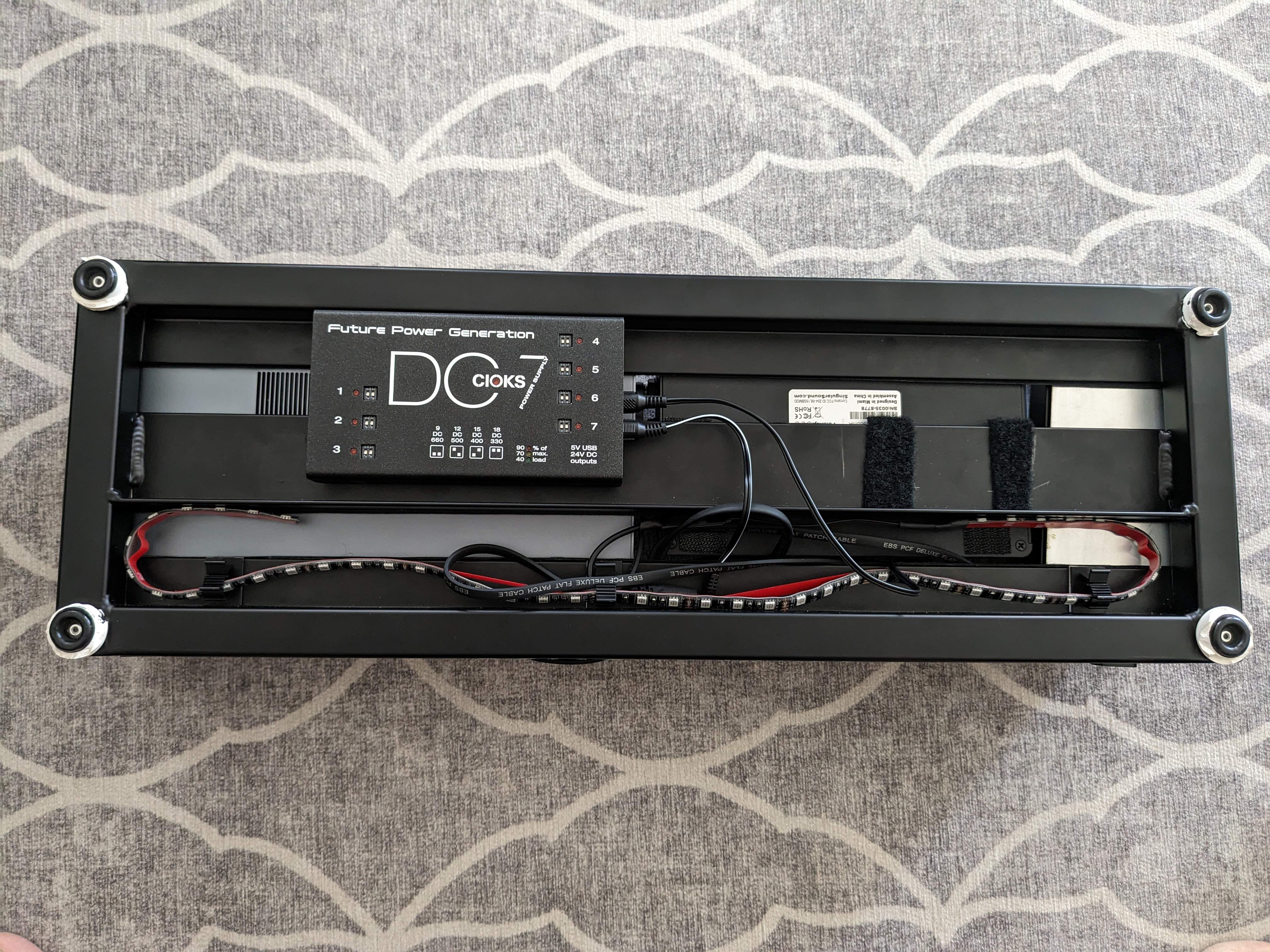

Underside
View attachment 4960176

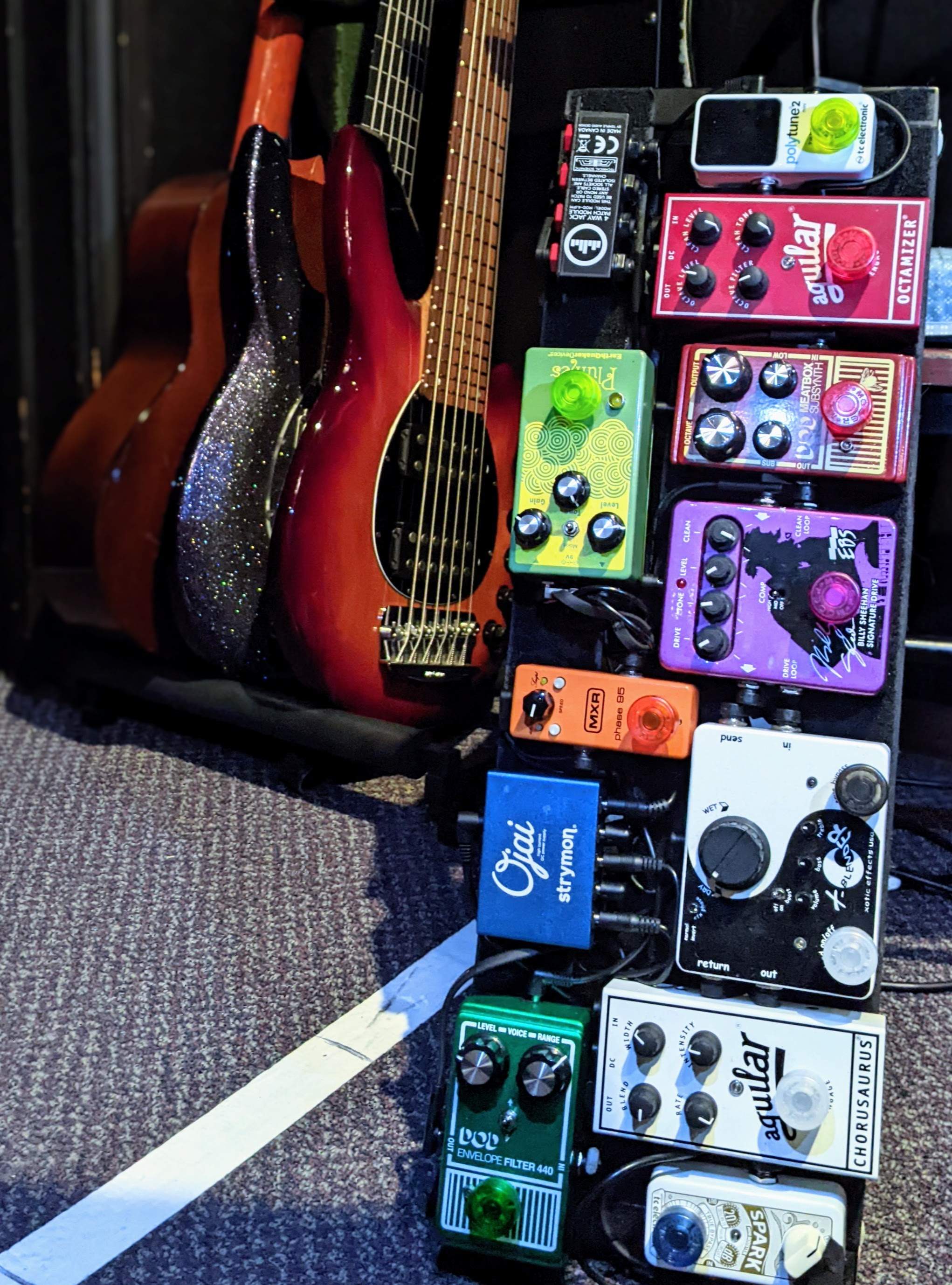

Latest compact board I had before making the switch to the QC.
View attachment 4960179

What did you think of the Plumes? I have a real off/on relationship with this pedal



[Justin Keoni]

What did you think of the Plumes? I have a real off/on relationship with this pedal

I’ve heard the Plumes is optimized for guitar and loses low end. BUT, The “JohnK Plumes” optimized for bass is pretty great as he’s found a way to optimize the low end so you don’t lose any bottom and still can use the tone knob to shape your sound. I actually haven’t been using any dirt lately, so I’m considering selling/trading my JohnK Bass Plumes.



[HoHumbucker]

So this is not exactly compact, but it is serving two purposes.
I thought it would be fun to have a pedal train that would be interesting to try out for both my bass and my woodwinds.
The ART Tube MP takes mic (SM57) signal from my saxes and bass clarinet.
A simple Loop-Master A-B switch to go between the instruments feeding the tuner.
Then it goes Quint -> Drive -> Chorus -> Reverb -> M81 (although this box just quit so is out of the current signal chain until I can diagnose).
This is a real hoot for sax. The Quint tracks far better than I expected and gives a great pipe organ sound. The Chorus and Reverb do just what I expected. The distortion has a real struggle to give me much more than a lot of feedback. Working on improving the sax-mic interface (without drilling into a $700 neck for a pickup).
It is also instructional for me to learn how these effects work with bass.



[PhatBottomBass1]

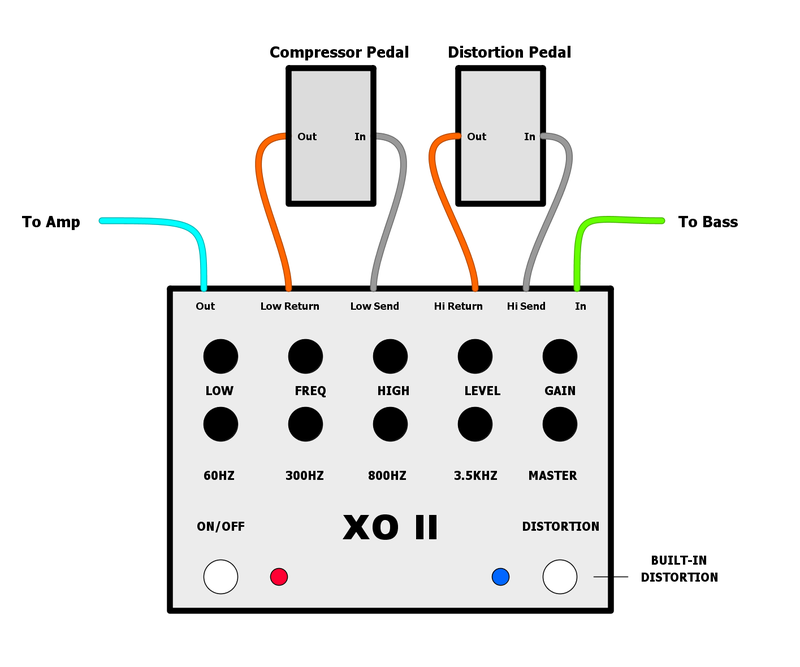

So, I'm not sure exactly when I will be getting this all together. The XOII arrives tomorrow and I have the board torn down and packed up...

...JohnK Rules!

...I also have the EHX Super Ego & MXR Looper to sit off the side...think about that for a hot minute...



[Cran]

I haven’t tried the stagebug, but I’ve been using the Switchcraft 314 DI for a couple of years now with no worries. The performance and form factor are hard to beat for sure.

I haven't had issues with the DI when in the studio or live, but at home when I plugged it in between my bass and my amp head I got such horrible noise that I had to mic my cab up instead. Haven't had the time or energy to figure out why.



[WhoopingHonky]

Count me as another Stagebug supporter. I have been running one of theirs under my pedalboard for at least 2 years now, no issues other than the minor complaint of having to cover the labelling to velcro it on, so every rewire is a guess and check if I plugged the 1/4 inch into the right jack.

Unfortunately, I think I may be sizing myself out of this group in the near future. After the Luminary was a bust, I am looking at putting an Attack/Decay on the board, and potentially an El Capistan...which would mean I have to upsize to a Tres 3.2...and that's without the Digitech Whammy I am thinking of leaving floor mounted...



[sloppy_phil]

Whisper it quietly, but I think I've just finished my nano board... Which is my only board. So I think, until my needs drastically change (which they may not!), I've crawled out of the rabbit hole. *Sees sunlight, eyes burn*

I don't do any solo/looping/ambient music, and the gigs keeping me busy all use amps on stage; my needs are modest. Drive, sub-octave, and filter are the three actual effects I need and use every show, then I have the always-on tone sweeteners/shapers. Since I almost always take public transit when gigging in town, I need small, but mighty, gear that fits on a hand cart/dolly; hence my determination to make it all fit on my old PT Nano!

Can't wait to start taking this out on gigs. The Sushi Box and Wampler are the two new additions from the last time I posted, and now that I've gotten to know them a bit, definitely remove much of the regret I felt over my custom drive pedal finally coming off the board.

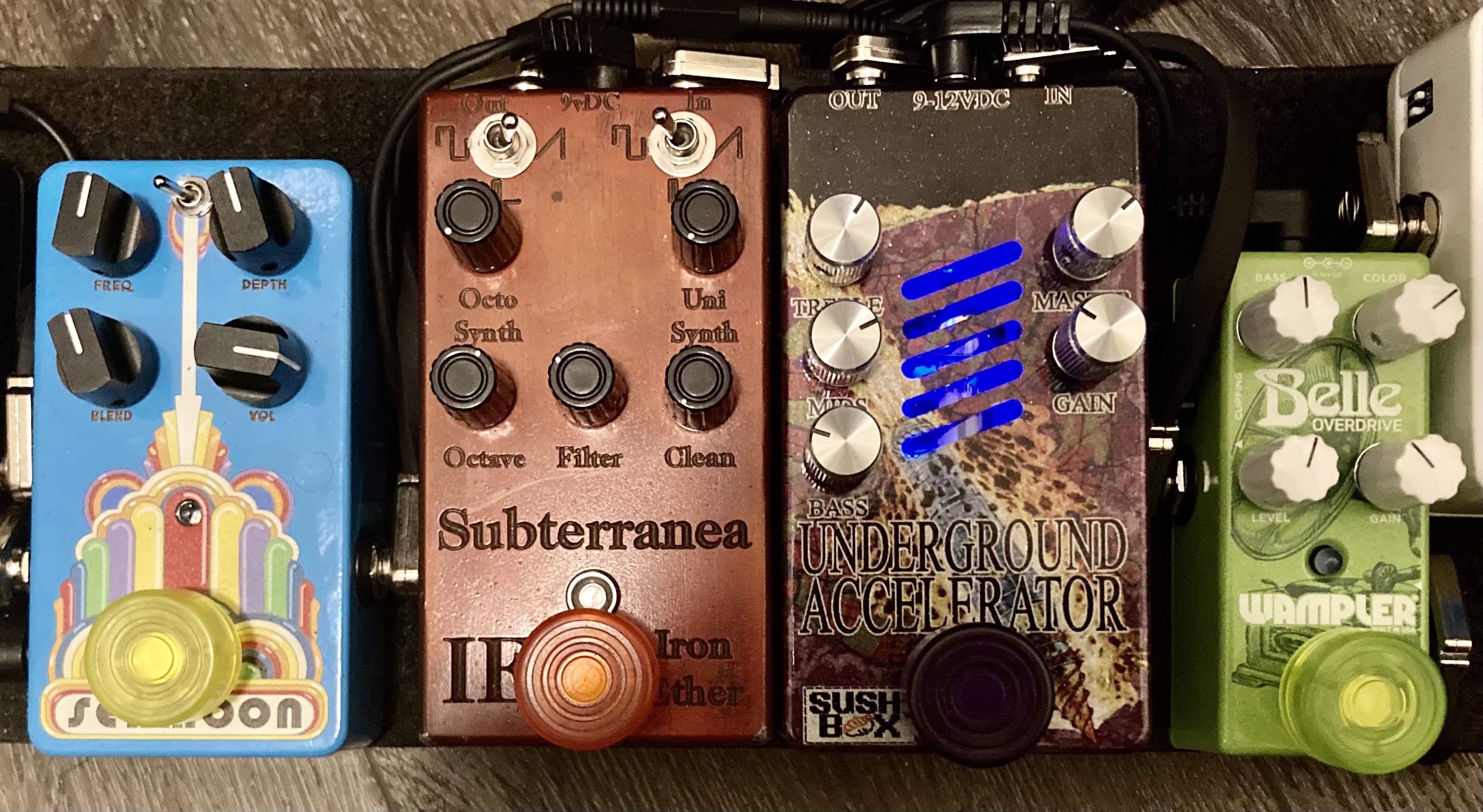

That was just after I put the Belle on (the very last to join the party); these are the current settings I'm using, since I've learned some folks here like to lurk what others are doing...



[kevk]

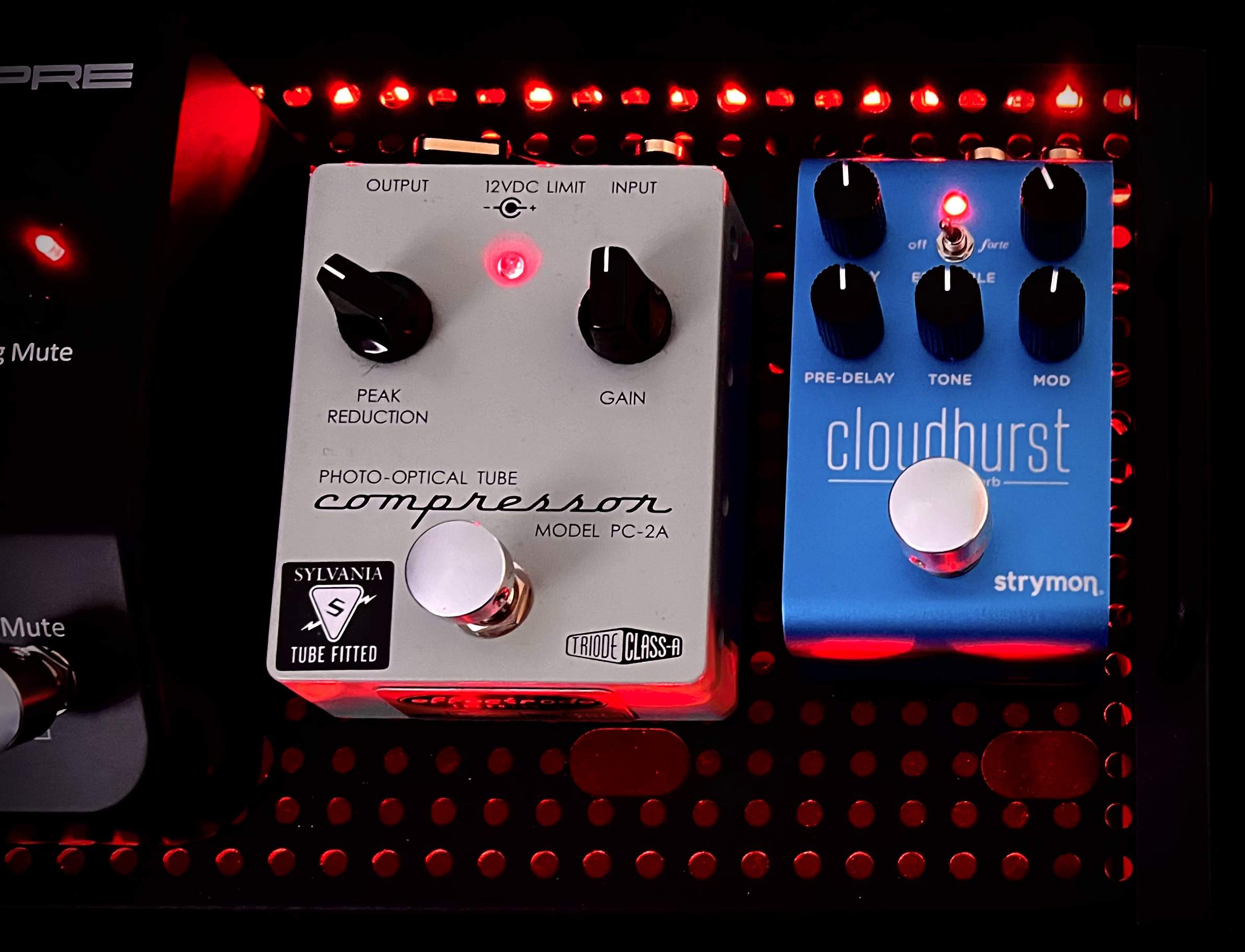

Just added the Strymon Cloudburst to one of my small pedalboards. Placed it in the effects loop of my (prototype Bergantino Super Pre) preamp…

I’m hearing the Bergantino preamp is being released this month…fingers crossed! Really liking this reverb so far! These three pedals fit perfectly on my TA Solo18—not too tight—can still see LEDs thru some holes…



[xav_paris]

Just added the Strymon Cloudburst to one of my small pedalboards. Placed it in the effects loop of my (prototype Bergantino Super Pre) preamp…View attachment 4961068
I’m hearing the Bergantino preamp is being released this month…fingers crossed! Really liking this reverb so far! These three pedals fit perfectly on my TA Solo18—not too tight—can still see LEDs thru some holes…

Effectrode PC2A



[lomo]

That was just after I put the Belle on (the very last to join the party); these are the current settings I'm using, since I've learned some folks here like to lurk what others are doing...
View attachment 4960915

That's a really nice board. The settings on the UA look pretty scooped. I use mine with mids at max, treble and bass at 9:00....still mid scooped but a little less (with passive basses) and then I like to push low mids on my amp to compensate. What kind of music are you playing? Remember the Fender (UA) tone stack is flat with mids at max and bass/treble at zero, and cannot actually push mids. I can easily get lost in a mix if I push too much treble or bass and don't compensate at the amp stage, unless I am pushing the UA gain high enough to get really hairy.



[Polfuste]

Compact you said ?

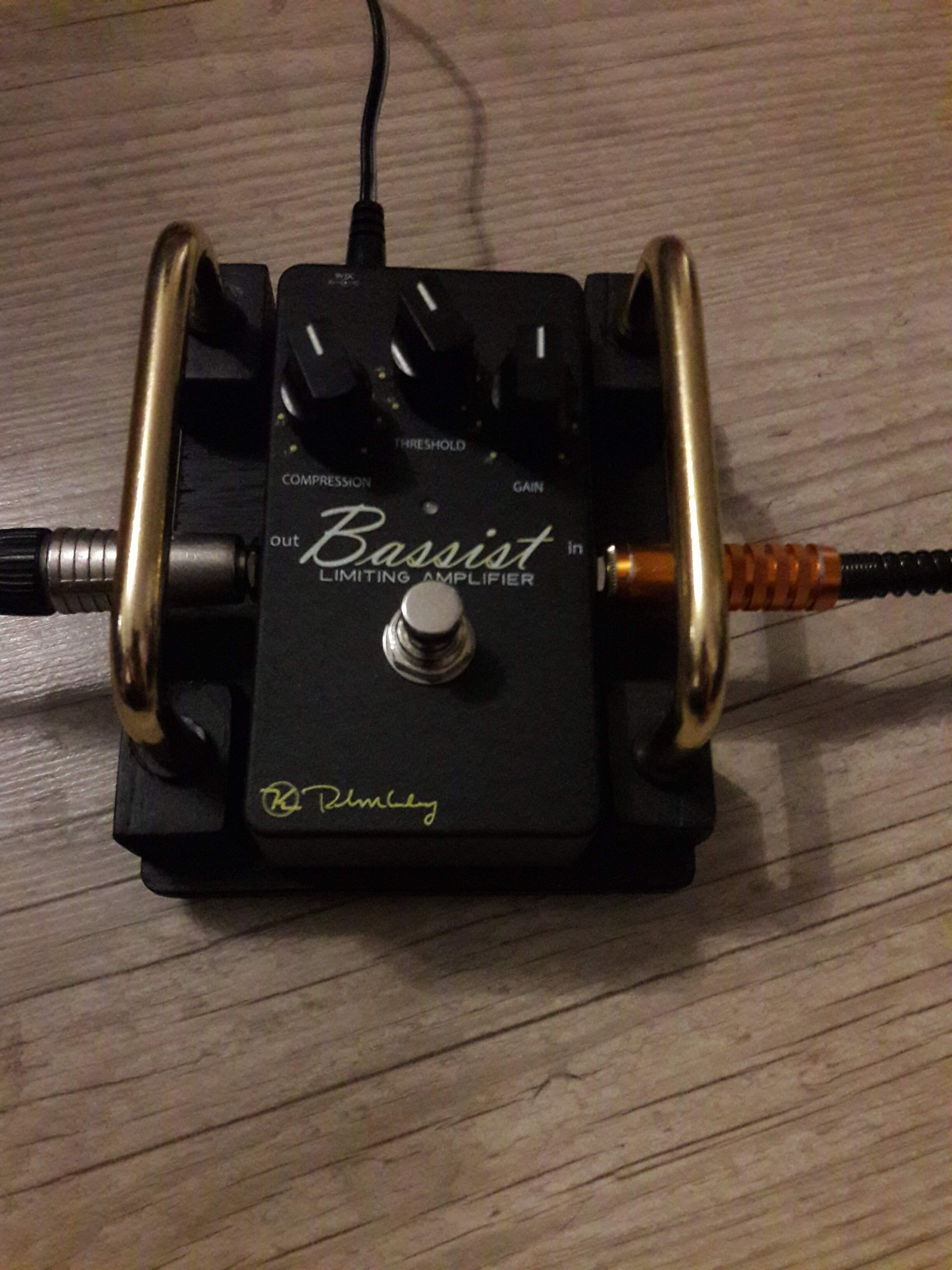

mini-pedalboard



[glassmoon]

Compact you said ?

That board is enormous - all the hahahahaha - sorry, couldn't help it. That's classic!



[sloppy_phil]

That's a really nice board. The settings on the UA look pretty scooped. I use mine with mids at max, treble and bass at 9:00....still mid scooped but a little less (with passive basses) and then I like to push low mids on my amp to compensate. What kind of music are you playing? Remember the Fender (UA) tone stack is flat with mids at max and bass/treble at zero, and cannot actually push mids. I can easily get lost in a mix if I push too much treble or bass and don't compensate at the amp stage, unless I am pushing the UA gain high enough to get really hairy.

Thanks! I've got an Orange Terror head that uses the same tone stack (and front end!) as the UA, so I'm familiar with the Fender settings/quirks. We shall see if these settings stay the same once I've had a chance to take the board out in the wild (the UA and Wampler arrived only after I'd left for a tour, or they'd have been in a proper trial-by-fire!); thus far it's lived at home. Hasn't even seen a rehearsal! I play a ton of genres; anywhere from Scottish-folk-tinged reggae (trust me it makes sense when you hear it!), proper Jamaican dance hall, soul, RnB, funk, all sorts of "rock". Hell, I was in a Rush cover band for a number of years, so the UA has a lot of territory to cover. It's done that well with at-home amp volumes, as well as straight-to-interface, but the real test will be in a full mix. I imagine some knobs will be twiddled!



[deepestend]

I like my broughton envelope, but I miss my spectrum... thinking of going back to it. Anyone else done this switch?



[darkhalf]

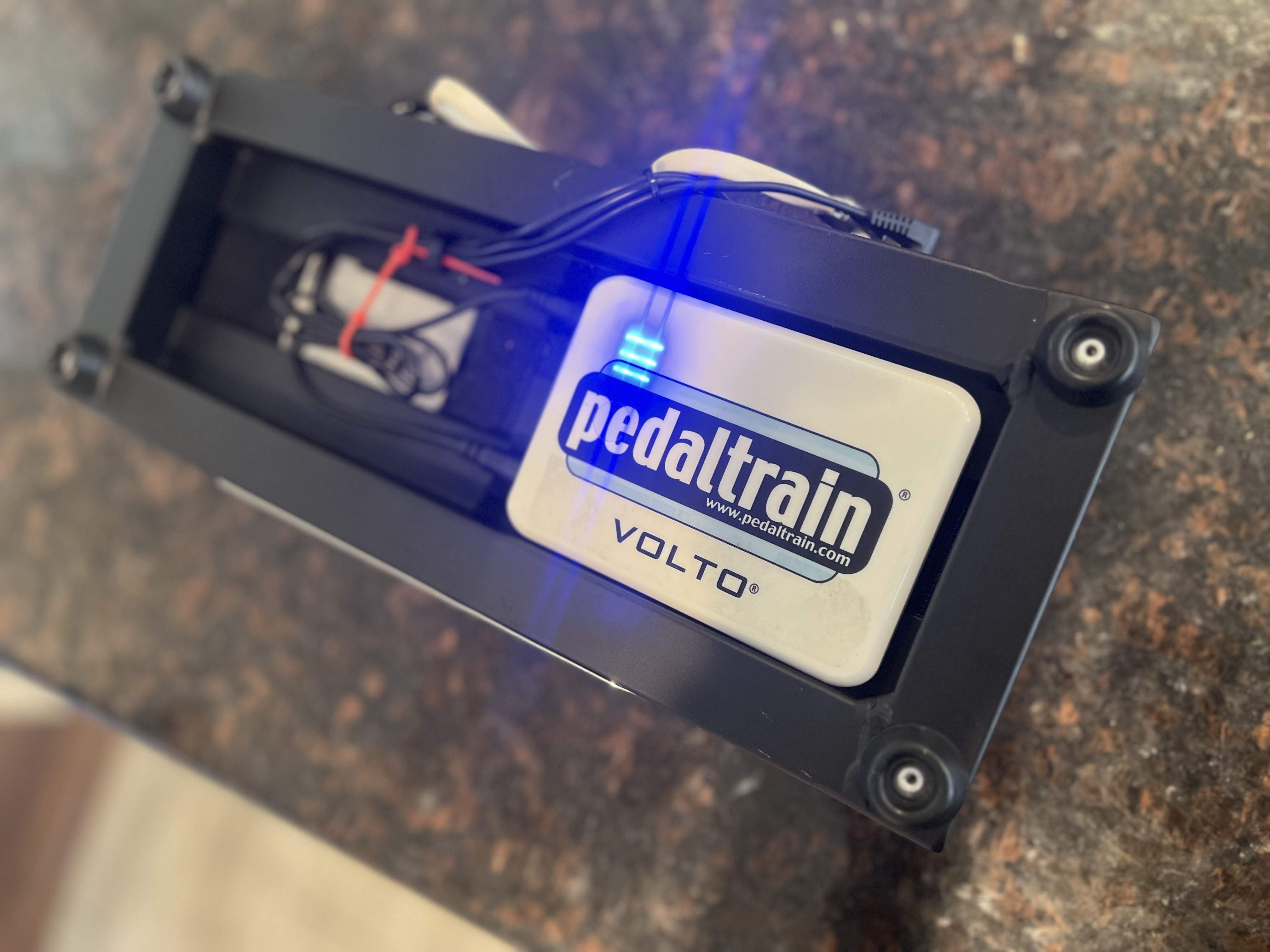

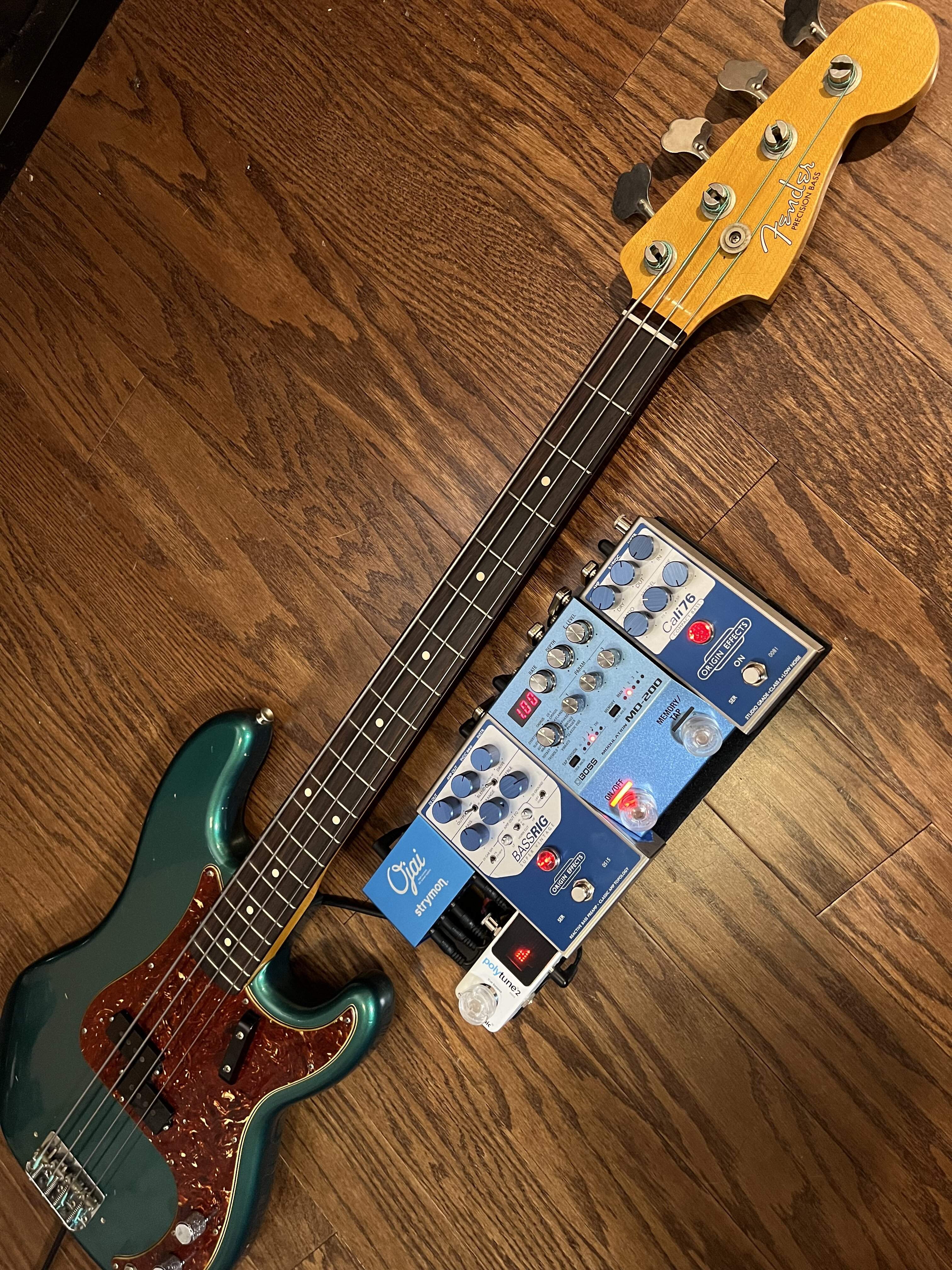

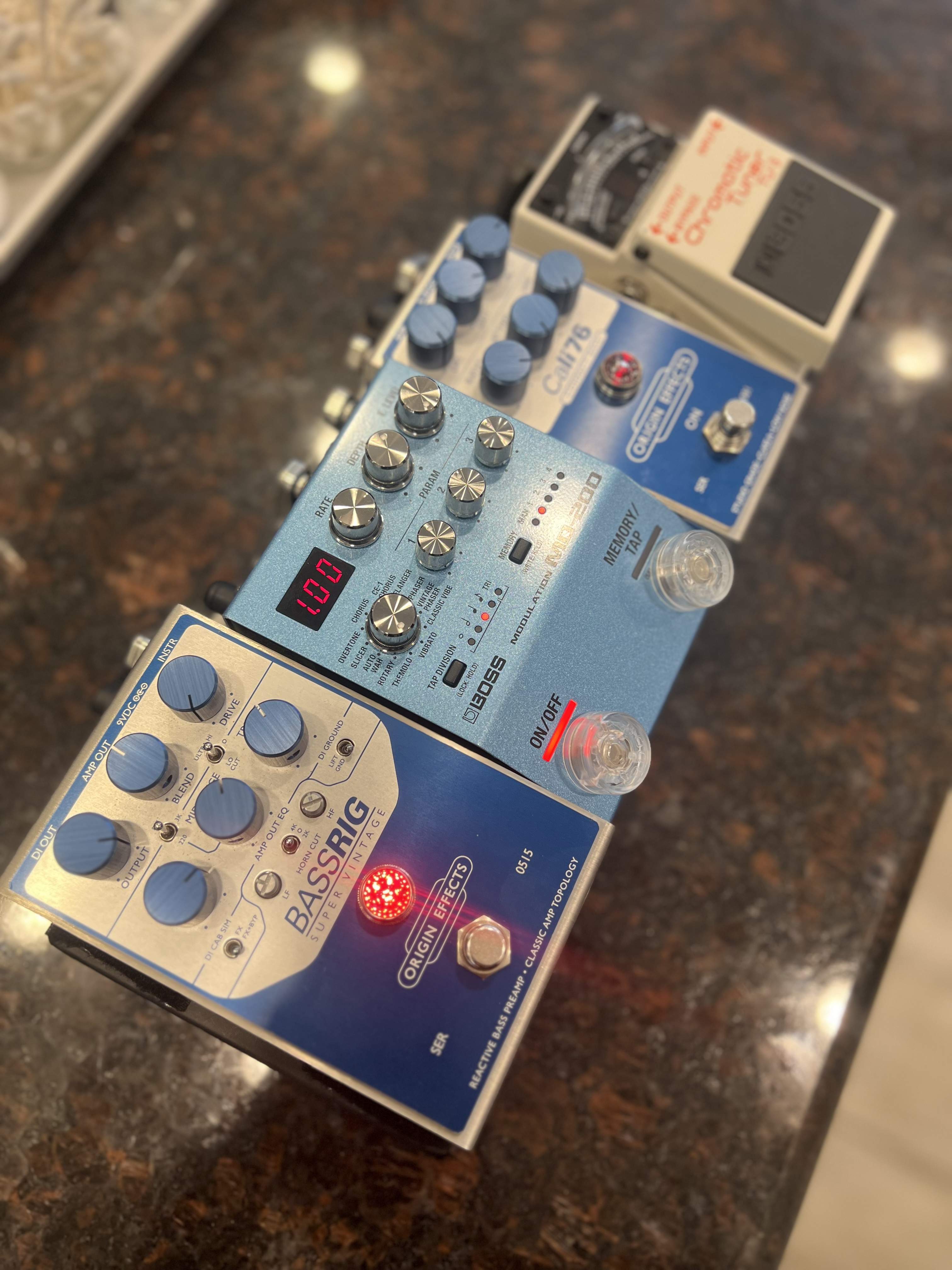

hello sirs! changed my ojai to a rechargeble pedlatrain volto and finally got a pedaltrain nano that took the place of an amazon compact board (the last pic is the previous before it got switched out) . for volto users out there, how long does it stays charge? i just gotvit and havent used it yet and im not a working musician but have gigs here and there so hopefully it stays charged for at least 4 hours for playtime. cheers!



[Nunovsky]

View attachment 4961454

I love Sherwood Green basses.



[HoHumbucker]

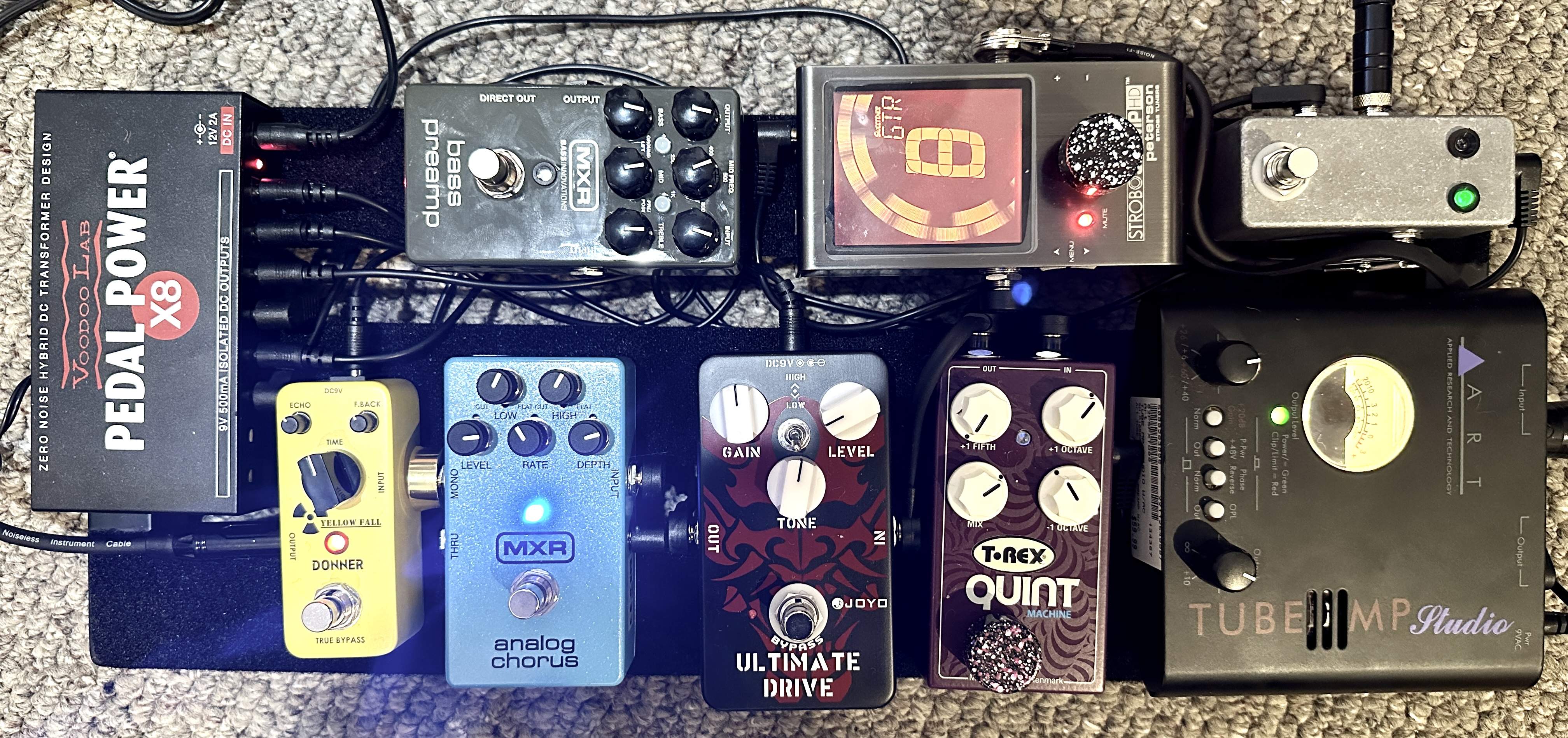

So this is not exactly compact, but it is serving two purposes.
I thought it would be fun to have a pedal train that would be interesting to try out for both my bass and my woodwinds.
The ART Tube MP takes mic (SM57) signal from my saxes and bass clarinet.
A simple Loop-Master A-B switch to go between the instruments feeding the tuner.
Then it goes Quint -> Drive -> Chorus -> Reverb -> M81 (although this box just quit so is out of the current signal chain until I can diagnose).
This is a real hoot for sax. The Quint tracks far better than I expected and gives a great pipe organ sound. The Chorus and Reverb do just what I expected. The distortion has a real struggle to give me much more than a lot of feedback. Working on improving the sax-mic interface (without drilling into a $700 neck for a pickup).
It is also instructional for me to learn how these effects work with bass.

View attachment 4960775

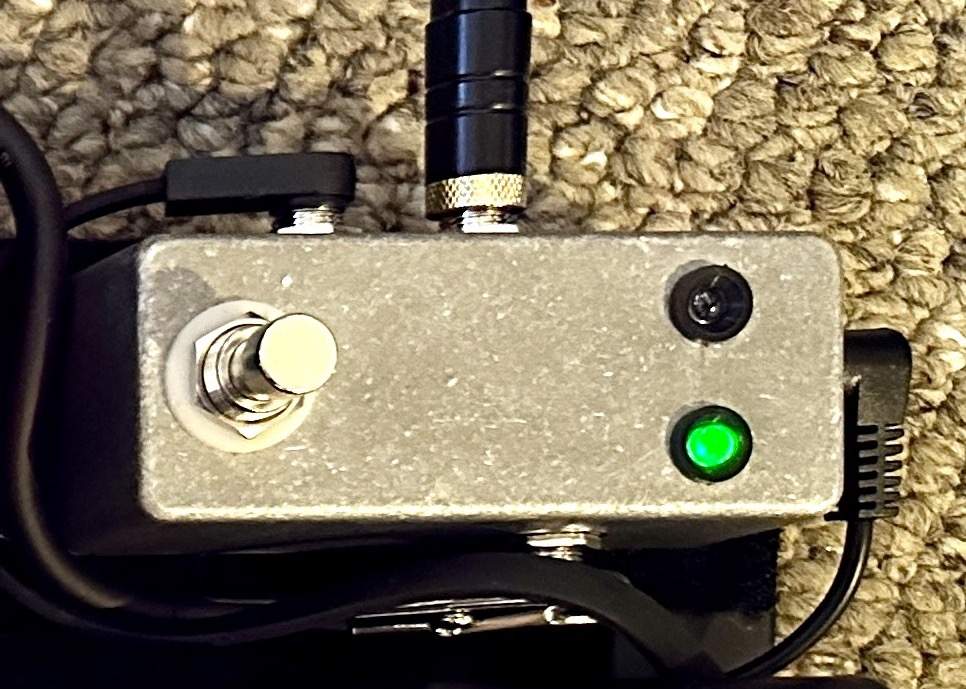

I picked up this cute A-B switch on my pedalboard from Loop-Master after seeing one on Alejandra Villarreal's pedal board. It works great to swap between my sax preamp and bass. But it was looking a little plain.

so I decided I could do better.

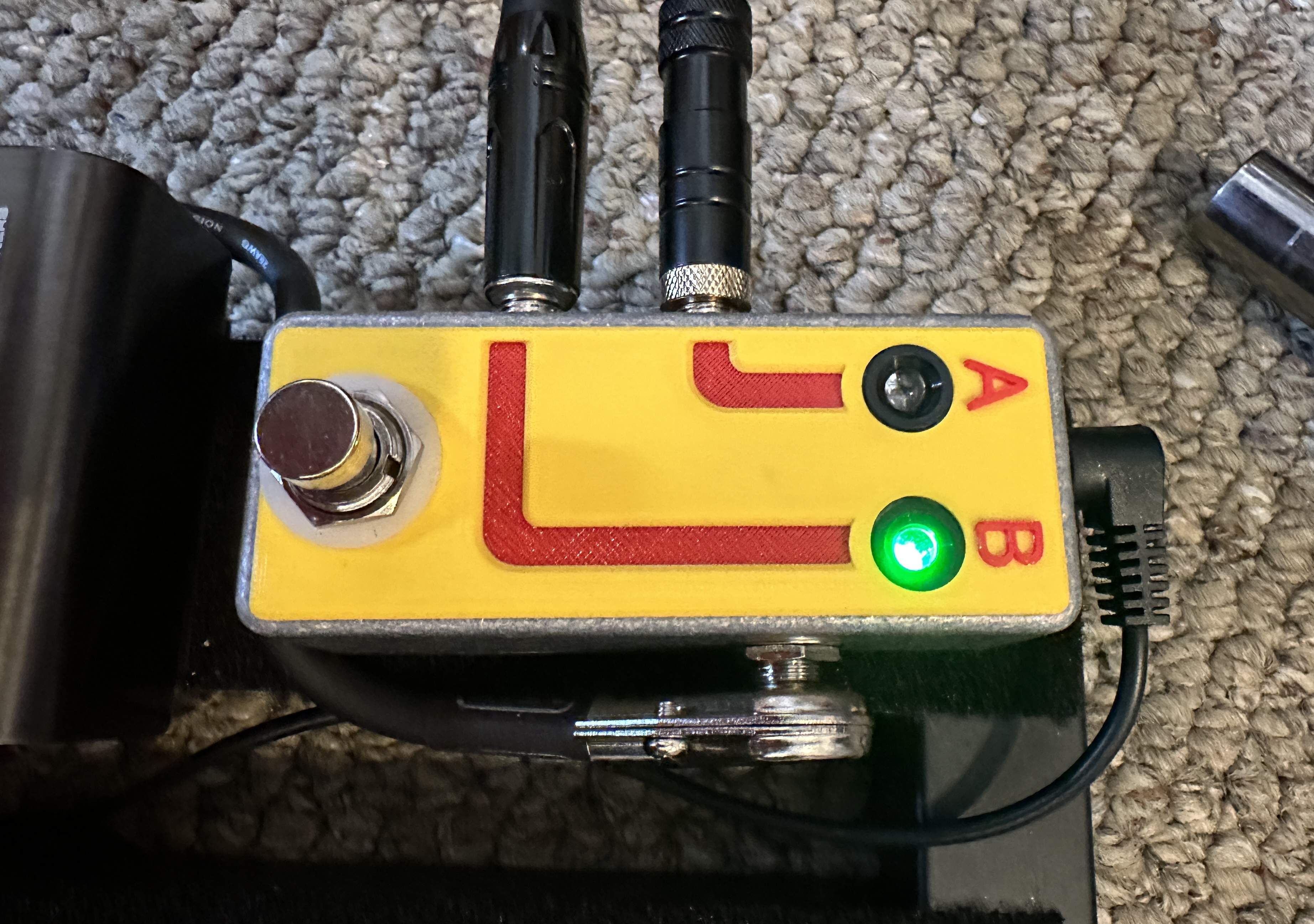

Went to my CAD software and designed a nice little coverplate that I 3D printed in PETG. It is held down by the switch nut and a little double stick tape. I think it is a big improvement.

Am considering adding a red stomp knob as well. I can print those easily. I am really enjoying bringing my other interests into my bass learning.



[TheArchitect]

I suspect that BOSS unit is going to be a pretty significant power draw. I have never used a Volto so I do not know for sure how long it will last



[HP Hovercraft]

hello sirs! changed my ojai to a rechargeble pedlatrain volto and finally got a pedaltrain nano that took the place of an amazon compact board (the last pic is the previous before it got switched out) . for volto users out there, how long does it stays charge? i just gotvit and havent used it yet and im not a working musician but have gigs here and there so hopefully it stays charged for at least 4 hours for playtime. cheers!View attachment 4961445 View attachment 4961447 View attachment 4961454

Awesome setup. Plus Sherwood Green is the best. AVRI?
