Great R&D there Mike. What other colors does the Scroll come in? I've heard white, blue and the red burst. I found a pic of 2 AMB-1's in what looks like "surf green" with black around the f-holes.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
SMB-35 Simpson Scroll Bass project
- Thread starter Blind Dog
- Start date
I have not seen a blue vintage Ampeg. I have seen a picture of a white one and I think there were some special orders but most are in the black/res scheme.

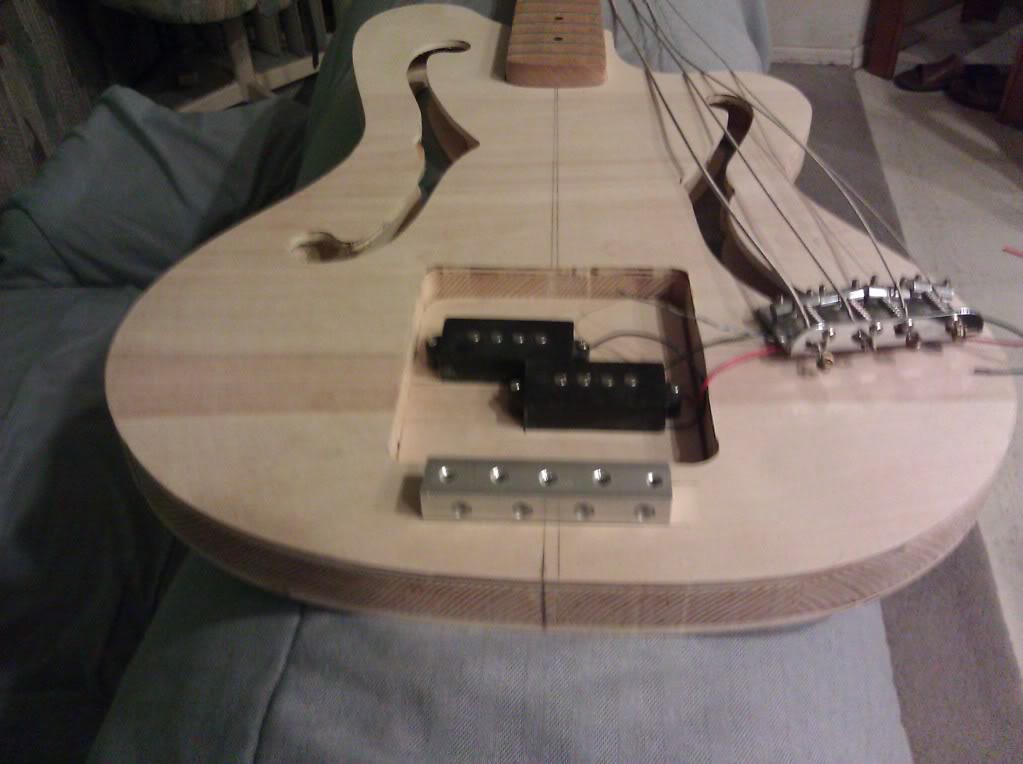

I glued the birch plywood back on the pickup test body and routed the shape and the F holes, The top is gluing on now.
Mounted the pickup to a piece of bitch plywood and made the string anchor today.
I thought you were installing a pressure or piezo transducer. Are you using the P bass pups in that location?
The original Ampegs had a magnetic pickup in a cavity under a 5"x5" plate of .018 spring steel. This is the same way the Highlander Tricone pickup works. The design is an old one that predates piezos.
I am just using a P-bass pickup as an experiment. I read that if the mechanical setup was correct that pretty much any pickup would work. I may eventually have some would or wind my own.
I am just using a P-bass pickup as an experiment. I read that if the mechanical setup was correct that pretty much any pickup would work. I may eventually have some would or wind my own.
It works !!!!
I took the electronics from the donor P-Bass and mounted them on a scrap of pickguard material and cut 2 pieces of spring steel to cover the pickup cavity and strung it up with some cheap long scale strings and holy cow.. it works... now onward to the real builds...
I took the electronics from the donor P-Bass and mounted them on a scrap of pickguard material and cut 2 pieces of spring steel to cover the pickup cavity and strung it up with some cheap long scale strings and holy cow.. it works... now onward to the real builds...
Jazzdogg
Less barking, more wagging!
Here is a short video of my son playing it a little (he plays guitar mostly) that I recorded with my G2 phone.
I can't figure out how to imbed the video
I can't figure out how to imbed the video
I threw this body together out of pine and birch plywood to test the pickup design before I cut up all the nice maple for the actual builds.
I will probably give this one to one of my sons or put the squier back together and sell it.
Very similar but the real builds will look pretty much like an Ampeg scroll bass. The bodies and necks are going to be curly maple with ebony fretboards. I am planning on a magnetic pickup in the middle along with the under bridge mystery pickup.
it works.... great job.
i highly recommend a blend pot so you can add as much or as little of the mystery pickup as you need. As the owner of 2 aub's and Bruce johnson #70 the difference in the magnetic pup versus the mystery is too dramatic to be just an "and or"....
I am probably going to use 2 volume and 2 tone that way any combination of pickup mix is available with a seperate tone adjustment for each pickup. The blend pot decreases the neck as the bridge is increased and you can't get 100% neck and 40% bridge like you can with 2 volumes... But I might expeiment with a blend before I decide... That would be 1 less knob...
- Apr 18, 2008
- 16,002
- 1
- 31,691
- Disclosures
- I'm highly opinionated and extremely self-assured
Man, this is a wonderful build!! I love these basses!!!! I can't wait to see how it turns out! Top notch workmanship!
