The Jag-Ray

[CletusMarley]

That's kinda cool. I'd play the strings off that sucker.



[aus_bass]

Looks the business, but the pickup is way too south for my tastes.



[skycruiser]

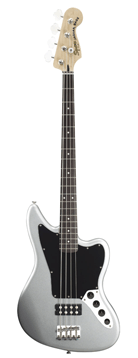

There was a Squier Jaguar Special HB, but it was 34" scale:



[BAG]

I like what you've done. I assume (if it hasn't already been mentioned) that it started out as the latest Jag medium scale?



[Gully Foyle]

Yea indeed, the very reasonably priced squier jag h.

I like what you've done. I assume (if it hasn't already been mentioned) that it started out as the latest Jag medium scale?



[Gilmourisgod]

I like it, right up my alley as a recent convert to 32" scale. I virtually never play over a neck pickup anyway, so I like the bridge biased pickup. Nice job!



[jimmydean]

YEAH BABY!......I would buy that bass in a second if I saw it . I can just imagine what it sounds like ( awesome ), if I ever build another bass.....that's the one !



[Ricky Rioli]

Yes, that is true unfortunately. The plan was the same ratio as the original Ray’s but it didn’t quite work with the control plate, and I decided that a little bit of difference was going to be just fine by me, but I definitely originally wanted to put it in the original ‘sweet spot’

Playing around with photos with a distinct lack of scientific rigor, I concluded that the screw on the RH side of the pickup would have been wanting to land bang on the point of the control plate.



[2saddleslab]

No way I could make use of a pickup that close to the bridge. But it looks great.

This^.



[bench]

This^.

Thought the same... Isn't the oroginal pickup in the ray position??



[Ric5]

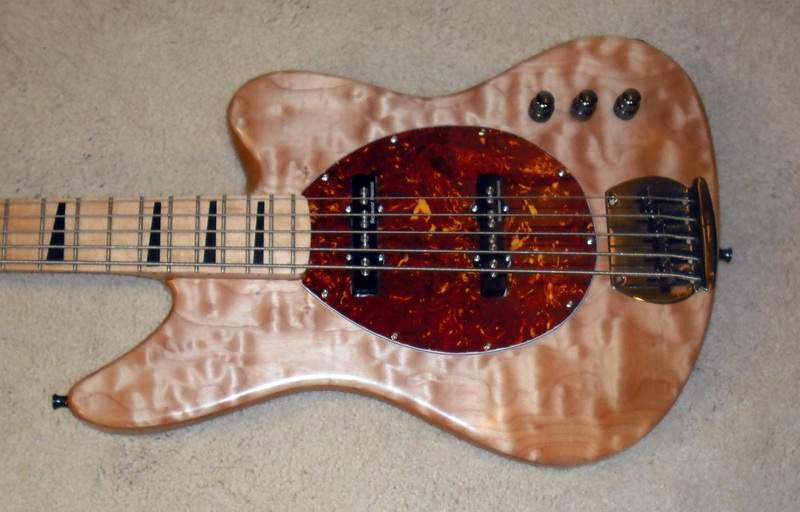

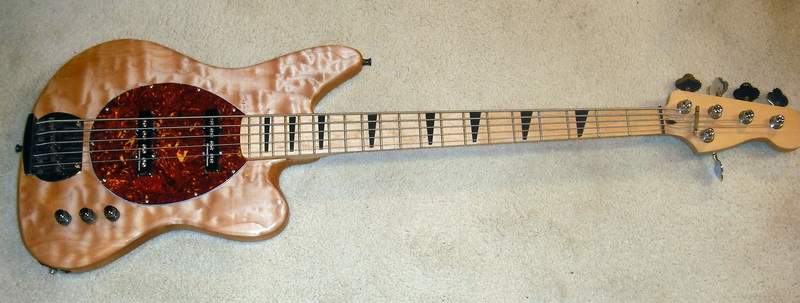

here's my Jag Ray with pickups in the Rickenbacker positions, 34" scale and a 4 band Audere preamp, and plenty of maple Quilt.



[iiipopes]

I kept the pickup on my Jag H in its stock position so I could play the bass as a substitute for a P-bass with La Bella flats, since my hands don't like 34-inch scale anymore. Yes, I was pleasantly surprised at the tone of the pickup, especially after I put vintage-style wiring on it, 250 kohm audio pots & .047 tone cap, and I can see how the pickup would be amenable to feeding an on-board preamp. Good, clean, mod.



[Ghastly]

That's absolutely awsome!



[BTL]

That looks like fun, congrats!



[maxschrek]

Hey, I really dig that! Good job, man!



[Captain Chaos]

Man, You got plenty of space for like 9 more pickups.



[DWBass]

I like the concept but don't like the pickup in that position.



[Ian774]

Meh, pickup is waaay too close to the bridge. Looks odd and must sound weird. Cool attempt, yet a failed one IMO.



[HaphAsSard]

The bass is active, and with an adequate bass boost it probably hangs with the ballsiest of them. In fact, with the above in mind (corrective EQ in order, but the tool to achieve it right at hand), the closer to the bridge the richer in harmonic content the picked-up tone is.



[kevmac]

Meh, pickup is waaay too close to the bridge. Looks odd and must sound weird. Cool attempt, yet a failed one IMO.

We won't really know until we hear clips.
