Nobelium has two outputs, a 1/4" and an XLR, that are fed off of separate points in the preamp. The XLR is fed from the output of the first tube, and the 1/4" comes from the output of the second. This means that if you're only using the XLR output of Nobelium, you're really only using one tube.

Neptunium is the exact same circuit as Nobelium but with the second tube removed, so it is just the part of the circuit related to the XLR output.

Thanks! Does the Neptunium’s 1/4” output come from the output of the tube, or is it an unaffected through?



[Sushi Box FX]

Thanks! Does the Neptunium’s 1/4” output come from the output of the tube, or is it an unaffected through?

Solid question, Neptunium's 1/4" output comes from the output of the tube, so it's going to be a preamp-affected output, but it's going to have a little different character than the Nobelium's 1/4" output because it doesn't have the "white cathode follower" output stage that Nobelium uses for the 1/4" out.



[RevOgre]

Solid question, Neptunium's 1/4" output comes from the output of the tube, so it's going to be a preamp-affected output, but it's going to have a little different character than the Nobelium's 1/4" output because it doesn't have the "white cathode follower" output stage that Nobelium uses for the 1/4" out.

I mean OBVIOUSLY you and I know what the "white cathode follower" stage is but you know just for everyone else um, what's that?



[Sushi Box FX]

I mean OBVIOUSLY you and I know what the "white cathode follower" stage is but you know just for everyone else um, what's that?

It's basically a fancy tube buffer stage.



[smeet]

It's basically a fancy tube buffer stage.

So I assume that means a very subtle difference then?



[Maxi Funkl]

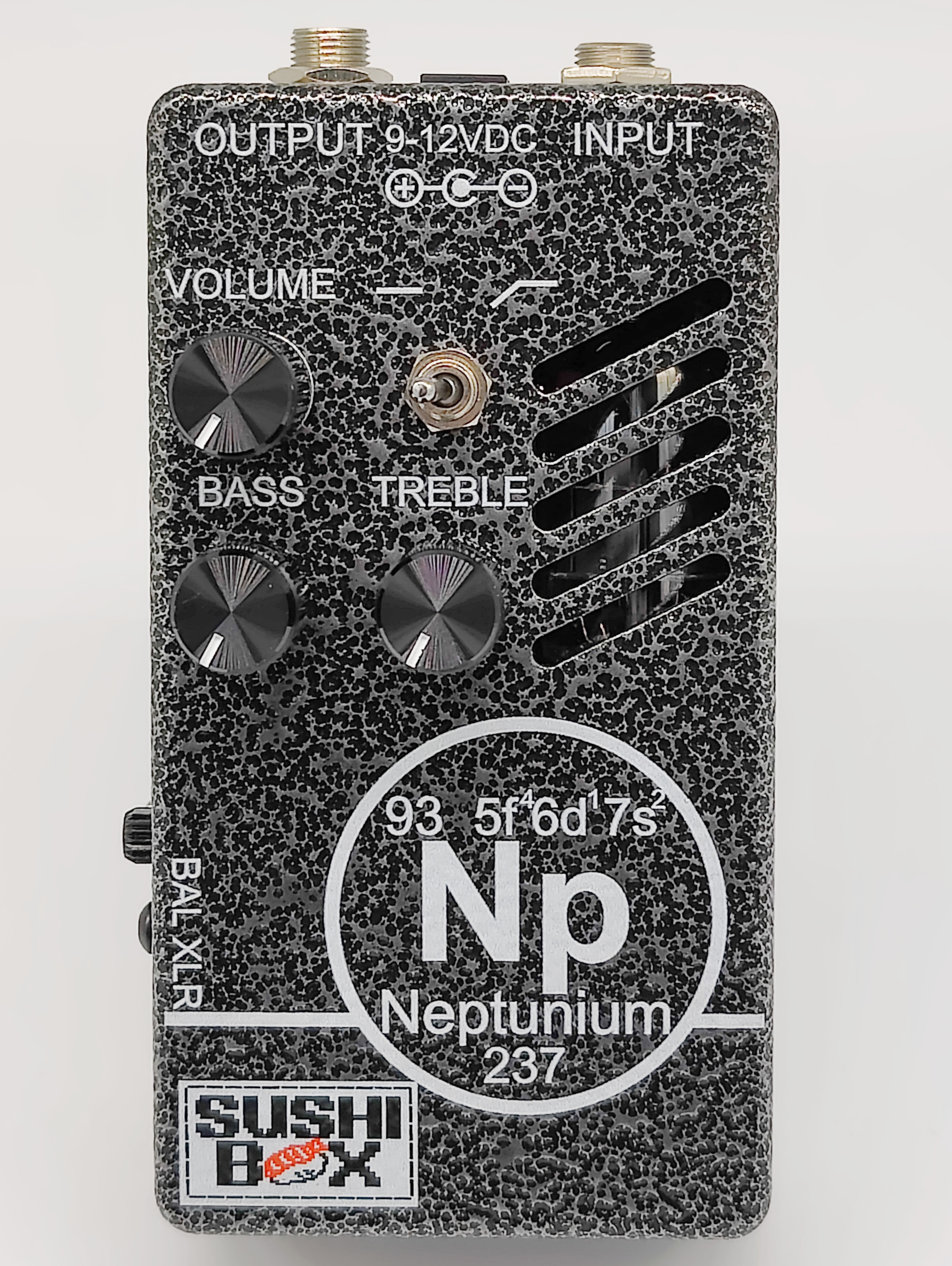

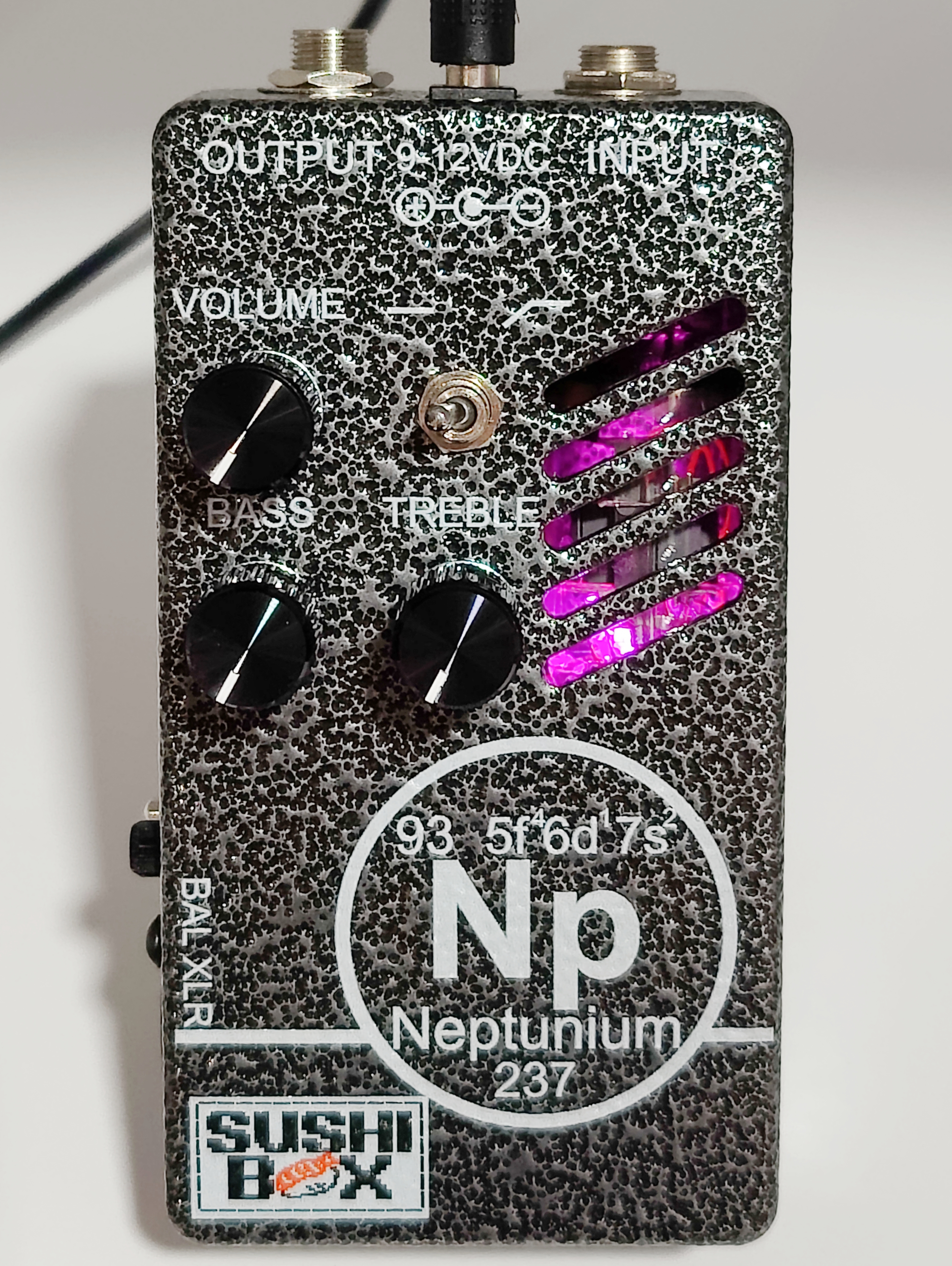

Got the first production-version unit put together this afternoon and snapped some pics of this handsome thing. I think this covers everything, let me know if there are other specs anyone wants to see.

Specs:

• Input impedance: 10MΩ
• Input: unbalanced 1/4"
• Outputs: unbalanced 1/4" preamp out; balanced XLR preamp out
• Power input: 9-12VDC
• Current draw: 470mA at 12V; 390mA at 9V
• Tube: 12AU7
• Tonestack: Fender-style shelving with fixed mids control; neither control has a fixed center frequency, they are interactive and shift as the controls sweep
• D.I. transformer: Unagi E4305
• Signal capacitors: metallized polyester film
• Signal resistors: thick metal film
• Enclosure size: 4.8"x2.6"x1.6" (122mmx66mmx39.5mm)
• Unit weight: 12oz (340g)
• Price: $350 USD

View attachment 5489714 View attachment 5489715 View attachment 5489716

That looks very tasty I've been wanting a tube preamp I've found one. Now fingers crossed on getting one.



[MIMike]

So, I know the development has been pushed back by other (very cool) things, but could someone remind me about the planned specs of the Furthermore? How will it be related (or not) to these other DI equipped offerings?



[Killing Floor]

I mean OBVIOUSLY you and I know what the "white cathode follower" stage is but you know just for everyone else um, what's that?

The nemesis of the Black Anode



[Sushi Box FX]

So, I know the development has been pushed back by other (very cool) things, but could someone remind me about the planned specs of the Furthermore? How will it be related (or not) to these other DI equipped offerings?

The main things Furthermore will have in common is the Unagi E4305 transformer, independent XLR output level, and ground lift. At a preamp level it's vastly different though.



[MIMike]

The main things Furthermore will have in common is the Unagi E4305 transformer, independent XLR output level, and ground lift. At a preamp level it's vastly different though.

Pre-amp wise, what will it (Furthermore) be closest to in the current line-up?
Also, how close is the pre-amp in the Neptunium to the UA besides the obvious lack of a mid control?
I’m envisioning a Neptunium and a UA as a pedalboard version of my Bassman 100 with the pre-amps jumpered…with the added bonus of a HPF and a DI!



[Sushi Box FX]

Pre-amp wise, what will it (Furthermore) be closest to in the current line-up?

More.

Also, how close is the pre-amp in the Neptunium to the UA besides the obvious lack of a mid control?

Somewhat I guess? The gainstages are similar, though UA uses a 12AX7 and Neptunium uses 12AU7.



[manchego_eggo]

on the neptunium, where will the fixed mid bump be and by how much? im coming from the regal DI on the Line 6, so dont know a ton about the nobel.



[HueyFreeman]

It's basically a fancy tube buffer stage.

So Neptunium's 1/4" out is unbuffered?



[Sushi Box FX]

on the neptunium, where will the fixed mid bump be and by how much? im coming from the regal DI on the Line 6, so dont know a ton about the nobel.

It isn't a fixed frequency in a fixed amount, it's a standard fender tonestack which does not have set frequencies for the controls.

So Neptunium's 1/4" out is unbuffered?

Correct. It comes from the preamp output with an output impedance of about 7k, compared to the Nobelium's output impedance of about 2k from the buffer.



[Sushi Box FX]

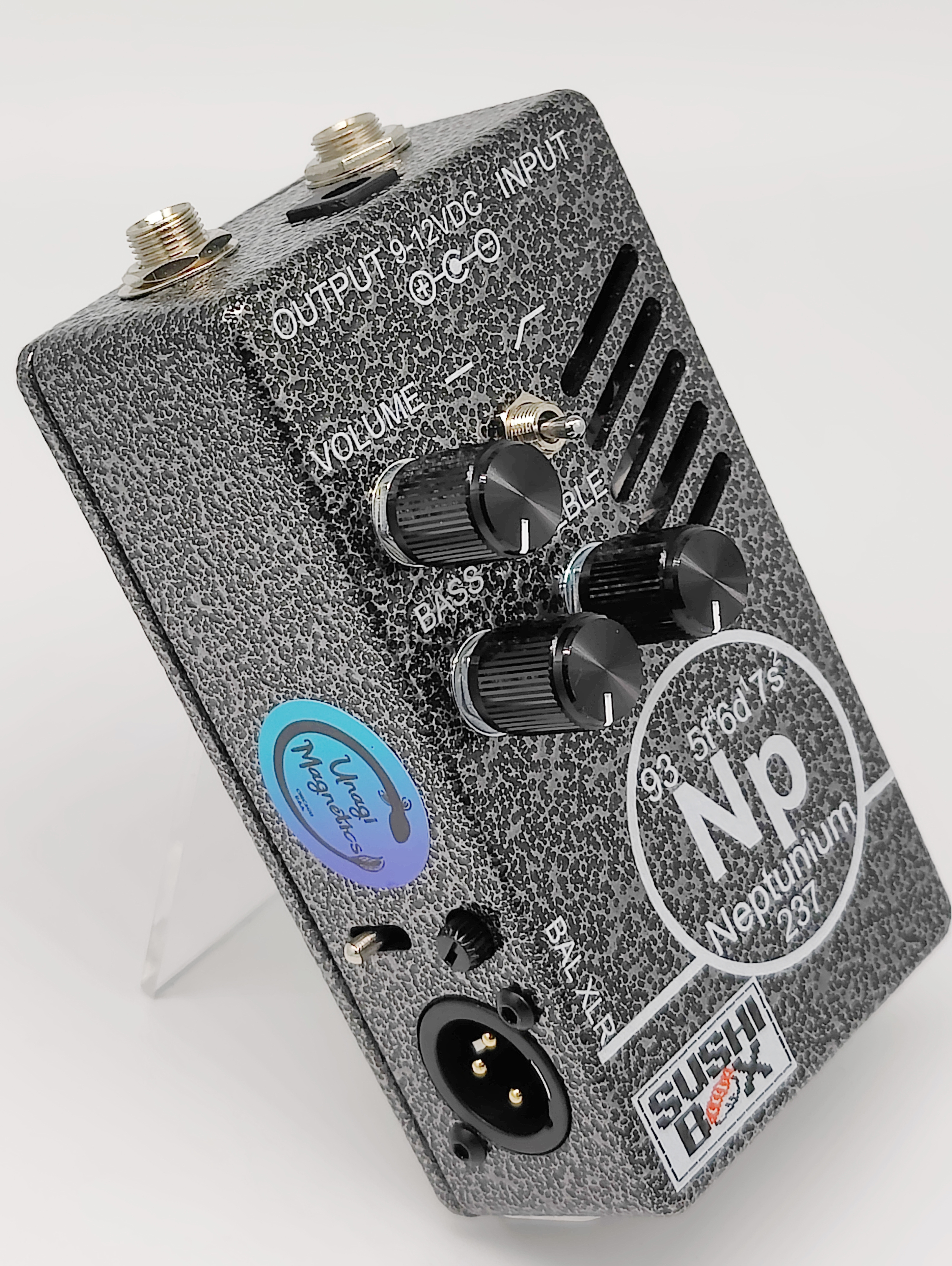

Grabbed some new pictures with the Unagi sticker installed, these will be making their way over to the website when I get around to making the page for Neptunium.



[letsgethandsome]

Grabbed some new pictures with the Unagi sticker installed, these will be making their way over to the website when I get around to making the page for Neptunium.

View attachment 5492720 View attachment 5492719 View attachment 5492718

Joking joking.



[Mayo Fan]

View attachment 5492736

Joking joking.

It's okay, we all know you're not joking. Not really. Neptunium looks like pure gold, I can't wait to get my paws on it. Who could have thought there ever would be a Noble offspring in a smaller enclosure, easy to power, without the 9v nonsense, but still with a great DI for this price? This is Nathan's way to do a mic drop.



[RobD_BritBass]

Yeah unlike so many other brands, Nathan seems to have the ability to really give people what they want (and often things they didn't even know they wanted)



[chiphaleonbass]

Grabbed some new pictures with the Unagi sticker installed, these will be making their way over to the website when I get around to making the page for Neptunium.

View attachment 5492720 View attachment 5492719 View attachment 5492718

Well... totally buying this



[chiphaleonbass]

Well... totally buying this

Any word on when these go live? Monday like originally planned?
