The Sushi Box FX Secret Society

[jmmyoh]

I bought new tubes for my glass butterfly and when I opened it up I found the problem, the previous owner put 12ax7 in the 12at7 slot and it changed everything about the pedal.
I bought 12at7 tube to try in my Finally v2 as well, and it was glorious. My new favorite. Since I had the extra 12au7 I tried that as well and that one now lives in my UA that use eq off.
I'll leave my hand wired Dr Watson as is because that pedal is perfect. Wish I used it more. It's funny the pedal that got me into sushi box was finding a sunnday drive on reverb. It's the one I play the least tho these days. Strange.
Try different tubes, glad I did.



[Sushi Box FX]

My photogenic little dude.



[Sushi Box FX]

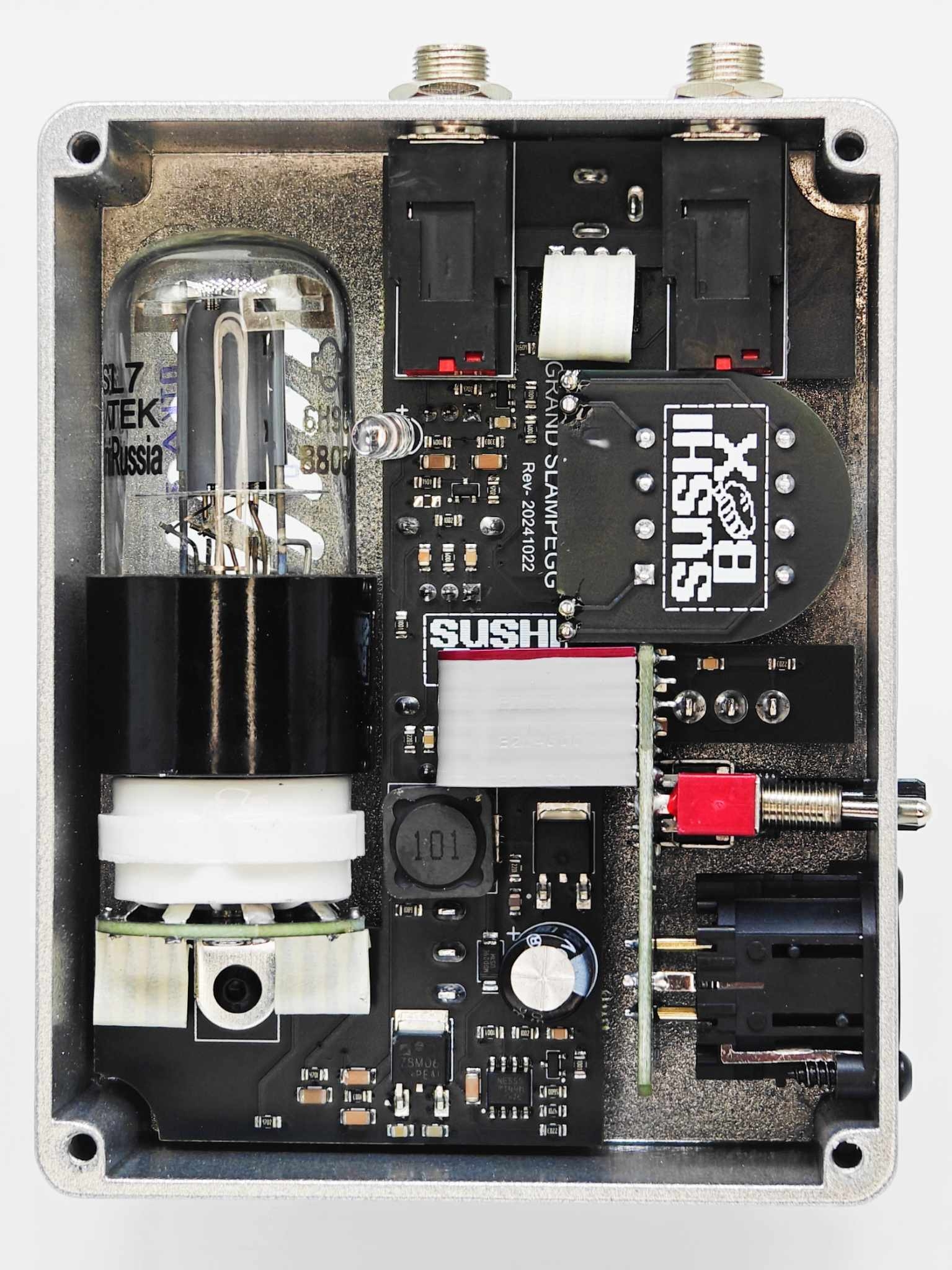

Oh, I almost forgot gut shots for those of you that are into that sort of thing.



[rcmbass]

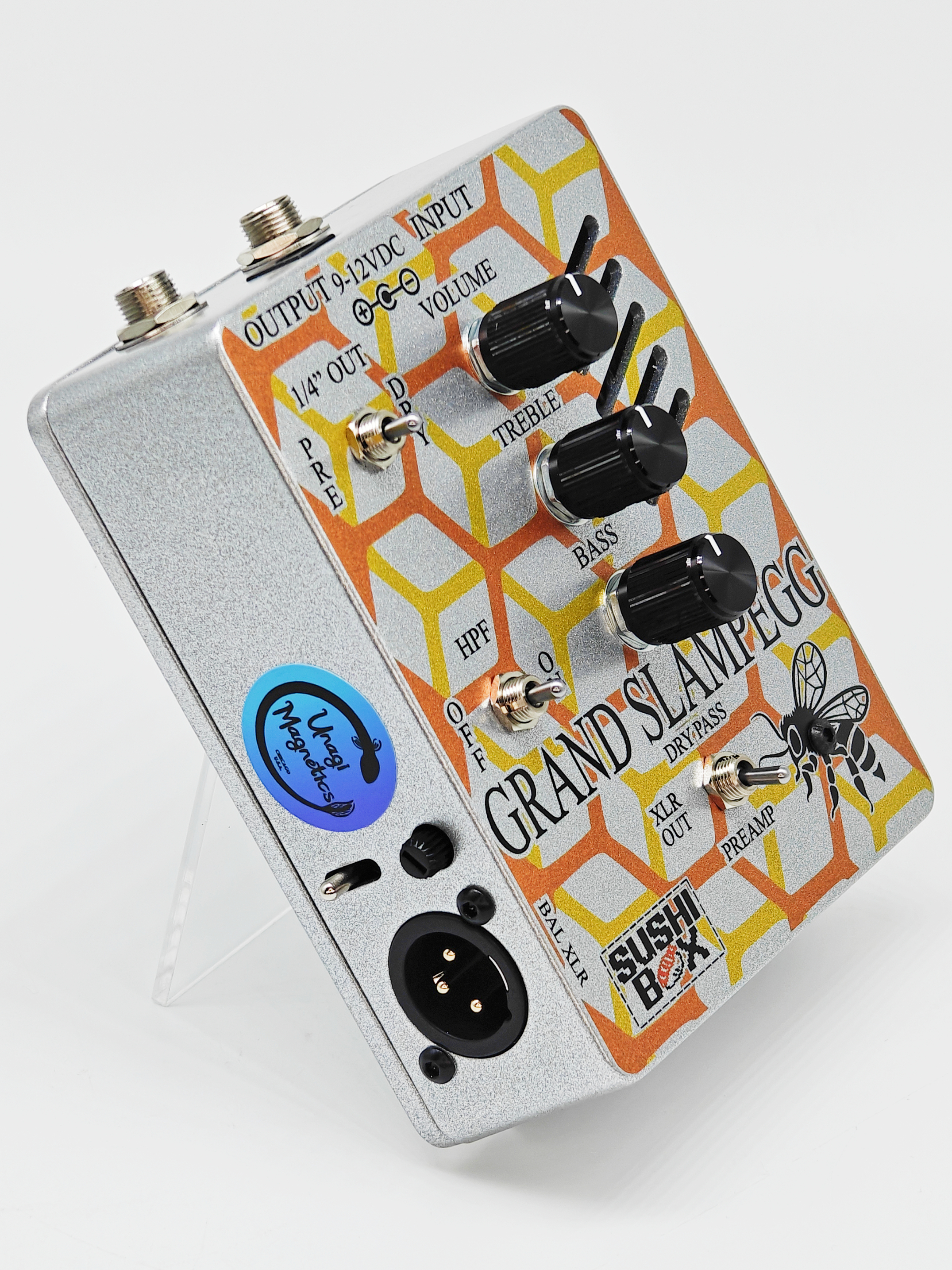

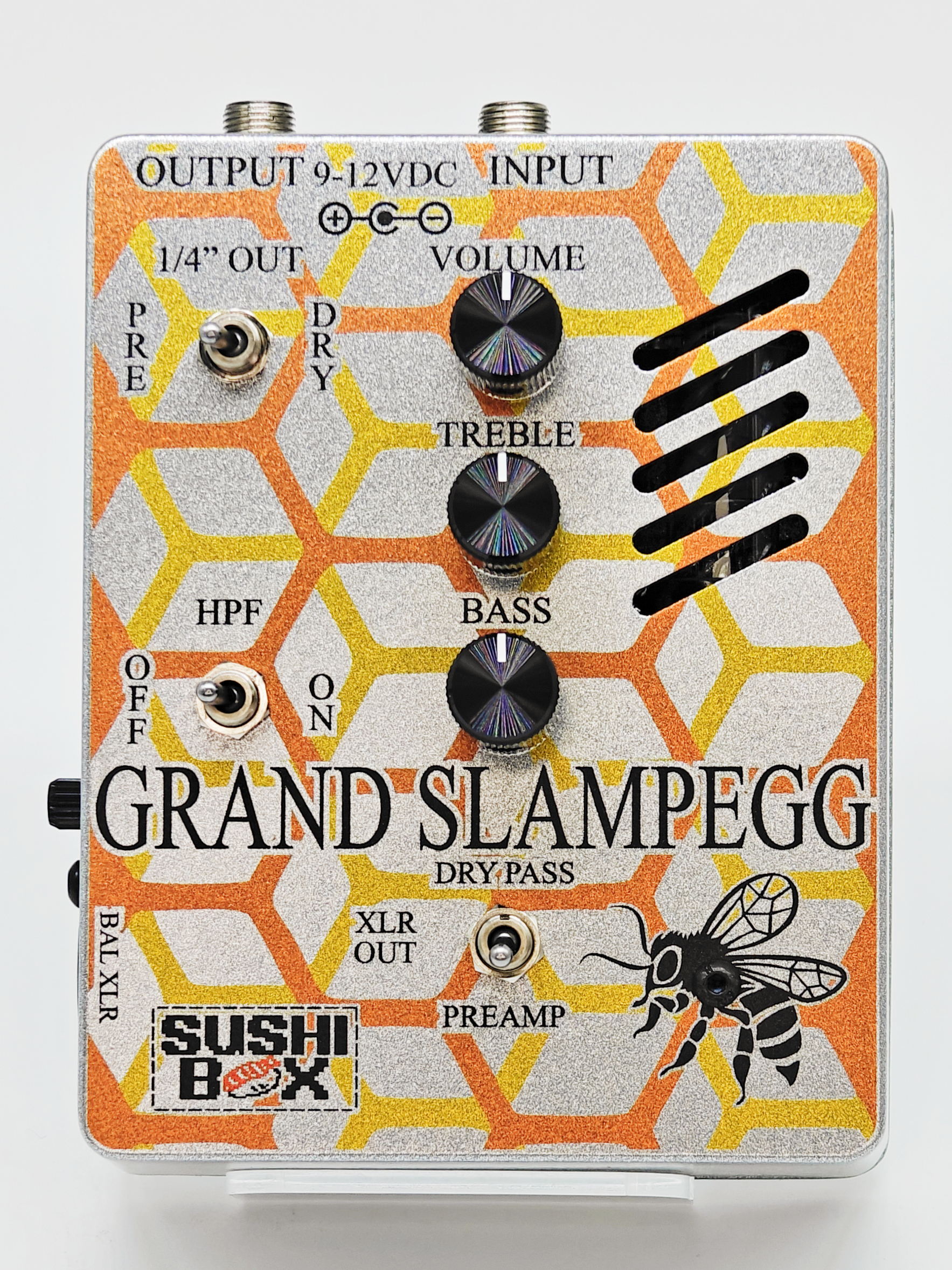

My photogenic little dude.

View attachment 7077698View attachment 7077699

Things in Sushi world just keep getting better and better and better and better and better and better…



[havnjero]

did you once say that the input impedance of the GS and SVT2 would be 5.6M?

@Sushi Box FX



[RobD_BritBass]

That is a lovely looking pedal! Could we get a picture of it next to the regular Slampegg for a size comparison?



[GR7G5TER]

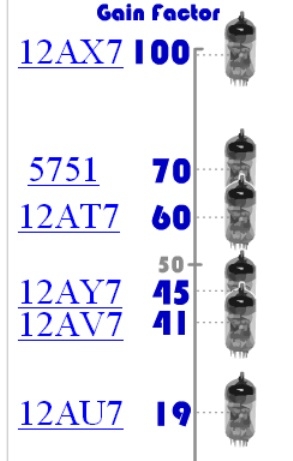

Here's the chart that someone posted somewhere here on TB that I snagged....

View attachment 7077484

Thanks for re-posting this, I've been meaning to find that chart and save for weeks now!

I had a sickness bug through the night so had to call in sick today.

But I'm feeling well enough to finally do some tube rolling into my Space Heater.



[GR7G5TER]

My photogenic little dude.

View attachment 7077698View attachment 7077699

What an absolutely gorgeous looking pedal. It's defo on the top of my wish list for 2025! Gonna have to start a go fund me page for all the Sushi dish I want



[GR7G5TER]

Can you let us know how it sounds with the au7 Gr7g5ter?? I have Space heater and thinking of doing the same.

Well I Finally. got round to rolling in an AU7 and the pedals sounds amazing, I'd say it becomes a lot more usable as the out put with AX is so high (cranked it will kill off the local wild life!) but to be fair I've never adjusted the internal trim pot which would tame the beast. I actually realised that I've never opened this pedal up before. Very neat and tidy (as we would expect from Nathan) check out the guts shot.

It does what I need it to do without breaking up which has really help fine tune my tone in the hour or so I've been playing with it. It's first in my chain alongside More and HX Stomp. THE SH and More together is sublime, in bring the B15 pre and LA2A compressor on the stomp and it's the best I've sounded. why didn't i do this years ago!!

This pedal pedal is so good now it's a wonder @Sushi Box FX hasn't thought of adding a DI and HPF

Since I've bought the stomp and been using this set up my PF50 hasn't even been turned on (and now it's missing a tube!) I'm seriously thinking of selling the peg now (it'll help raise funds for the GS when it's released.



[Sushi Box FX]

did you once say that the input impedance of the GS and SVT2 would be 5.6M?

@Sushi Box FX

Yes, both Grand Slampegg and SBVT II have an input impedance of 5.6MΩ.

That is a lovely looking pedal! Could we get a picture of it next to the regular Slampegg for a size comparison?

Absolutely, I'll grab that when I get home this afternoon.



[One Two]

Yes, both Grand Slampegg and SBVT II have an input impedance of 5.6MΩ.


Absolutely, I'll grab that when I get home this afternoon.

Ooh...Nice for piezo-equipped Uprights as well!! )



[GR7G5TER]

@Sushi Box FX
@Sushi Box FX

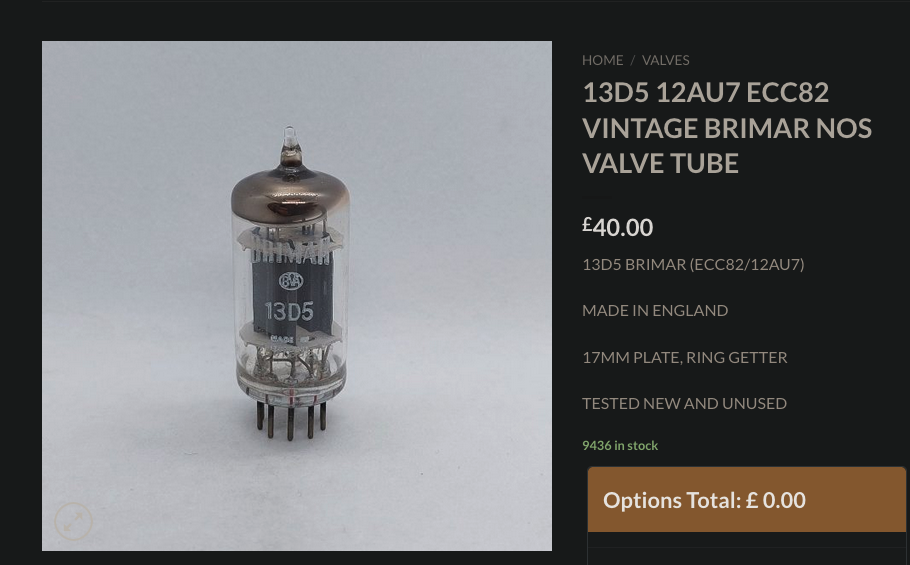

Any reason not to use one these? Specs seem right from (very limited) knowledge Seeing as I need to buy a new tube might as well go for NOS and see how that turns out. the 13D5 seems to get a lot of love. Not much more than getting a "tested" JJ 12AU7

NOS Mullards really get good feedback but they well over £100, seen a matched pair for £950



[Sushi Box FX]

@Sushi Box FX
@Sushi Box FX

Any reason not to use one these? Specs seem right from (very limited) knowledge Seeing as I need to buy a new tube might as well go for NOS and see how that turns out. the 13D5 seems to get a lot of love. Not much more than getting a "tested" JJ 12AU7
View attachment 7077922

NOS Mullards really get good feedback but they well over £100, seen a matched pair for £950

Brimar has a good reputation among European tubes, I know Effectrode likes them. Looks like it should be a solid drop-in for a 12AU7.

Interesting to note that Brimar is still selling tubes, though they don't manufacture them in the UK anymore. They're "working towards UK tube manufacturing," but currently procure tubes from elsewhere and slap the Brimar name on them. NOS/vintage Brimar tubes were actually manufactured in the UK.



[GR7G5TER]

@Sushi Box FX

Any reason not to use on these? Seeing as I need to buy a new tube might as well go for NOS and see how that turns out. the 13D5 seems to get a lot of love

Brimar has a good reputation among European tubes, I know Effectrode likes them. Looks like it should be a solid drop-in for a 12AU7.

Interesting to note that Brimar is still selling tubes, though they don't manufacture them in the UK anymore. They're "working towards UK tube manufacturing," but currently procure tubes from elsewhere and slap the Brimar name on them. NOS/vintage Brimar tubes were actually manufactured in the UK.

Yeah I found some new Briimars online but when I read "Each tube is scrupulously tested and only the best get badged with the Brimar thermionics logo" I guessed that they are probably re-badged JJs or similar.

Just pulled the plug on the 13D5, when that arrives the PF50T is going on the market.



[Sushi Box FX]

Exclusive Secret Society News:

I'm planning to drop Grand Slampegg tonight. I have 10 units boxed and ready to go with another 10 in progress, hopefully to be completed sometime this weekend. I still need to get the page on the website finished up, and I would like at the very least to get a quick looper+knob twisting demo done, I should be able to get that after work today.

While I'm working, here's a quick overview of the specs:

• clean preamp based on vintage Ampeg B-15N (not an exact copy)
• 1x 6SL7 tube
• 2-band (bass/treble) "baxandall/james" tonestack; both controls are boost/cut
• switchable HPF (90Hz @ 6db/oct)
• balanced XLR output with Unagi Magnetics transformer
• independent volume controls for XLR and 1/4" output
• 1/4" output is buffered so the XLR output doesn't affect the 1/4" and vice versa
• XLR and 1/4" output both have "source select" switches so either can be bypassed
• enclosure dimensions: 4.7" x 3.7" x 1.5" (120mm x 94mm x 38mm)

I'll have to double check the current draw, I want to say it's around 500mA. I know it's more than a typical single-tube pedal, but I'll verify how much more.

I typically use JJ tubes for everything, but in testing prototypes I found I preferred the sound of the Sovtek 6SL7 in this circuit, so that's what I've decided to use in these.

I will also be trying out something new, and Grand Slampegg will be the first pedal I offer with an option to include a power supply. This will be a 9V 1000mA "wall-wart" style supply with the Sushi Box logo slapped on it. I did not design it or build it, but I tested a good handful and chose this one for stability, noise, and size.

The cost of Grand Slampegg will be $400, and the power supply will be an additional $13.



[Averell]

I'm planning to drop Grand Slampegg tonight.

I don’t need another preamp.
I don’t need another preamp.
I don’t need another preamp.

Damn it ! I’m GASing this one too hard.

I don’t need another preamp.
I don’t need another preamp.
Argh, that’s too hard !



[bassbrad]

Oh, I almost forgot gut shots for those of you that are into that sort of thing.

View attachment 7077709

So very sexy and much respect for your design and diligence going into your creations, you area whirling dervish of a one man wonder.
This is awfully tempting but will have to see what my 2025 gig opportunities will be since I am finally getting back into gigging shape again.



[Mr. Business]

@Sushi Box FX

Any reason not to use on these? Seeing as I need to buy a new tube might as well go for NOS and see how that turns out. the 13D5 seems to get a lot of love


Yeah I found some new Briimars online but when I read "Each tube is scrupulously tested and only the best get badged with the Brimar thermionics logo" I guessed that they are probably re-badged JJs or similar.

Just pulled the plug on the 13D5, when that arrives the PF50T is going on the market.

I don’t miss my Pf50t one bit.



[wintremute]

Exclusive Secret Society News:

I'm planning to drop Grand Slampegg tonight. I have 10 units boxed and ready to go with another 10 in progress, hopefully to be completed sometime this weekend. I still need to get the page on the website finished up, and I would like at the very least to get a quick looper+knob twisting demo done, I should be able to get that after work today.

While I'm working, here's a quick overview of the specs:

• clean preamp based on vintage Ampeg B-15N (not an exact copy)
• 1x 6SL7 tube
• 2-band (bass/treble) "baxandall/james" tonestack; both controls are boost/cut
• switchable HPF (90Hz @ 6db/oct)
• balanced XLR output with Unagi Magnetics transformer
• independent volume controls for XLR and 1/4" output
• 1/4" output is buffered so the XLR output doesn't affect the 1/4" and vice versa
• XLR and 1/4" output both have "source select" switches so either can be bypassed
• enclosure dimensions: 4.7" x 3.7" x 1.5" (120mm x 94mm x 38mm)

I'll have to double check the current draw, I want to say it's around 500mA. I know it's more than a typical single-tube pedal, but I'll verify how much more.

I typically use JJ tubes for everything, but in testing prototypes I found I preferred the sound of the Sovtek 6SL7 in this circuit, so that's what I've decided to use in these.

I will also be trying out something new, and Grand Slampegg will be the first pedal I offer with an option to include a power supply. This will be a 9V 1000mA "wall-wart" style supply with the Sushi Box logo slapped on it. I did not design it or build it, but I tested a good handful and chose this one for stability, noise, and size.

The cost of Grand Slampegg will be $400, and the power supply will be an additional $13.

At last we will reveal ourselves to the bassists. At last we will have our high pass filter.



[GR7G5TER]

I don’t miss my Pf50t one bit.

I do miss having a valve power section, but not enough to build a rig around it, it's just so damn awkward, if it had an effects loop I might have persevered but I'm very happy I've gone the digital wrapped in tubes route.

Hopefully with the GS released the Firebox may get a little high up the list.

I don’t need another preamp.
I don’t need another preamp.
I don’t need another preamp.

Damn it ! I’m GASing this one too hard.

I don’t need another preamp.
I don’t need another preamp.
Argh, that’s too hard !

I'm GASing big time for this. It could well be perfect in all situations where i don't need the SushiStompBoard, which is most of the time.

Stick in front of sumo at home for practice, DI to my interface for silent practice, recording and jamming along to online stuff, perfect DI box for open mikes and gigs, stick it in the loop of the Stomp to integrate it into my board.

I'm not doing a good job of talking myself out of this am I

I want you so bad



I had been planning on getting a WBIM Finally. V2 to keep in my gig bag, but I think that's out the window now.
