How bad is this?
View attachment 4188176

If you want to tweak it a bit,, I would cut those resistor leads down to almost nothing, so the chance of them shorting/touching anything else is basically impossible. Only thing to be careful there is not scorching the resistors since your soldering iron would be so close.
That, and hestshrink on the resistor-wire connection if you have some so it doesn't get too close to the rear cover of the box. Or electrical tape works too.



[1983L2000]

Just make sure the lead from the 68k isn't touching R5 or C3 over there, or you're going to have a bad time. Otherwise looks good enough to work

Thanks - looks like r5 or c3 are safe... we’ll see how that works out



[MascisMan]

When you guys are soldering those transistors, what kind of solder are you using?



[1983L2000]

Thanks - looks like r5 or c3 are safe... we’ll see how that works out

Damn - no reduction of volume - now what did I do wrong? It’s still sounding great though!



[FenderP]

I just had to tweak something in the C.A.B. M+ (it was emitting a high pitched whine which I've been going back and forth with Two Notes). While I was doing that, I was obviously switching between the P-15 and the Slampegg Twin. If you want that B-15 sound and don't want to shell out the dough for the P-15, either of the Slampeggs (regular or X) IMO are worth the money over the Fliptop and probably anything else out there. I'm still impressed with what Sushi could do at a fraction of the cost.



[labeledbass]

D-180 hands down.

This -



[shaggy45]

When you guys are soldering those transistors, what kind of solder are you using?

I use:

Kester 24-6337-0027 Solder Roll, Core Size 66, 63/37 Alloy, 0.031" Diameter



[Sushi Box FX]

Damn - no reduction of volume - now what did I do wrong? It’s still sounding great though!

It's hard to tell colors in pictures, can you confirm the colors of the bands on the 68k resistor? It's hard to tell if the 4th one is brown or red.



[moon-bass]

Ooooh you're gonna love that thing!

Also, I'm quite proud of my purple PA with green knobs (very bruise-y if you're talking about a full-on sprain), but it's finally getting some serious challengers. We're making the most of this golden age of customized SB pedals, that's for sure lol

I have a purple PA with green knobs and green LED in the March slot. Can't wait to see it!



[Real Soon]

We may have discussed already, but what kind of specs do we have for the Echosaurus?

I know the Echorec had something like 300ms delay time available, and used a series of programs to position the heads via a couple of knobs. And, interestingly, a tube input gainstage, but 50mA is pretty nice for a digital pedal lol.

I imagine all those settings can be replicated via the head switches and full-range delay time knob, and Age adds interesting range of results.

Not being familiar with a multi-head delay aside from some preset patterns in the Vox DelayLab.... does each head respond at some percentage of the total delay time?

Finally, does maxing the swell control fall into analog-style self-oscillation territory?

(probably needless to say... someone's thinking about new p3d@15)



[moon-bass]

3) I have the prototype circuit board for SBVT and will be building it in the next week or two, if the first version works SBVT will be available for April orders. If it needs changes to the design it will get pushed back

Awesomeness. I happen to have an April pedal slot for just such an occasion!



[1983L2000]

It's hard to tell colors in pictures, can you confirm the colors of the bands on the 68k resistor? It's hard to tell if the 4th one is brown or red.

They look red to me, or you mean the brown next to the blue on the left?



[Sushi Box FX]

We may have discussed already, but what kind of specs do we have for the Echosaurus?

I know the Echorec had something like 300ms delay time available, and used a series of programs to position the heads via a couple of knobs. And, interestingly, a tube input gainstage, but 50mA is pretty nice for a digital pedal lol.

I imagine all those settings can be replicated via the head switches and full-range delay time knob, and Age adds interesting range of results.

Not being familiar with a multi-head delay aside from some preset patterns in the Vox DelayLab.... does each head respond at some percentage of the total delay time?

Finally, does maxing the swell control fall into analog-style self-oscillation territory?

(probably needless to say... someone's thinking about new p3d@15)

I haven't measured the max delay time and no longer own an oscilloscope, but I'll have to figure that out. If you're talking about the Catalinbread Echorec pedal that definitely doesn't have a tube stage in it, though obviously the original Binson oil can unit was tube.

You're correct on the heads though, each progressing head gives a percentage of the total delay time, so if you're only using the first head you only get short times, and if you're only using the 4th head you only get long times. Using more than one at a time can get some neat syncopated rhythms, I like using 2 and 4 together, setting 2 for the actual time I want and 4 will effectively double that, giving a neat thickness to the sound.

Maxing swell when the mix is up a bit will definitely pull it into self-oscillation.



[Sushi Box FX]

They look red to me but...

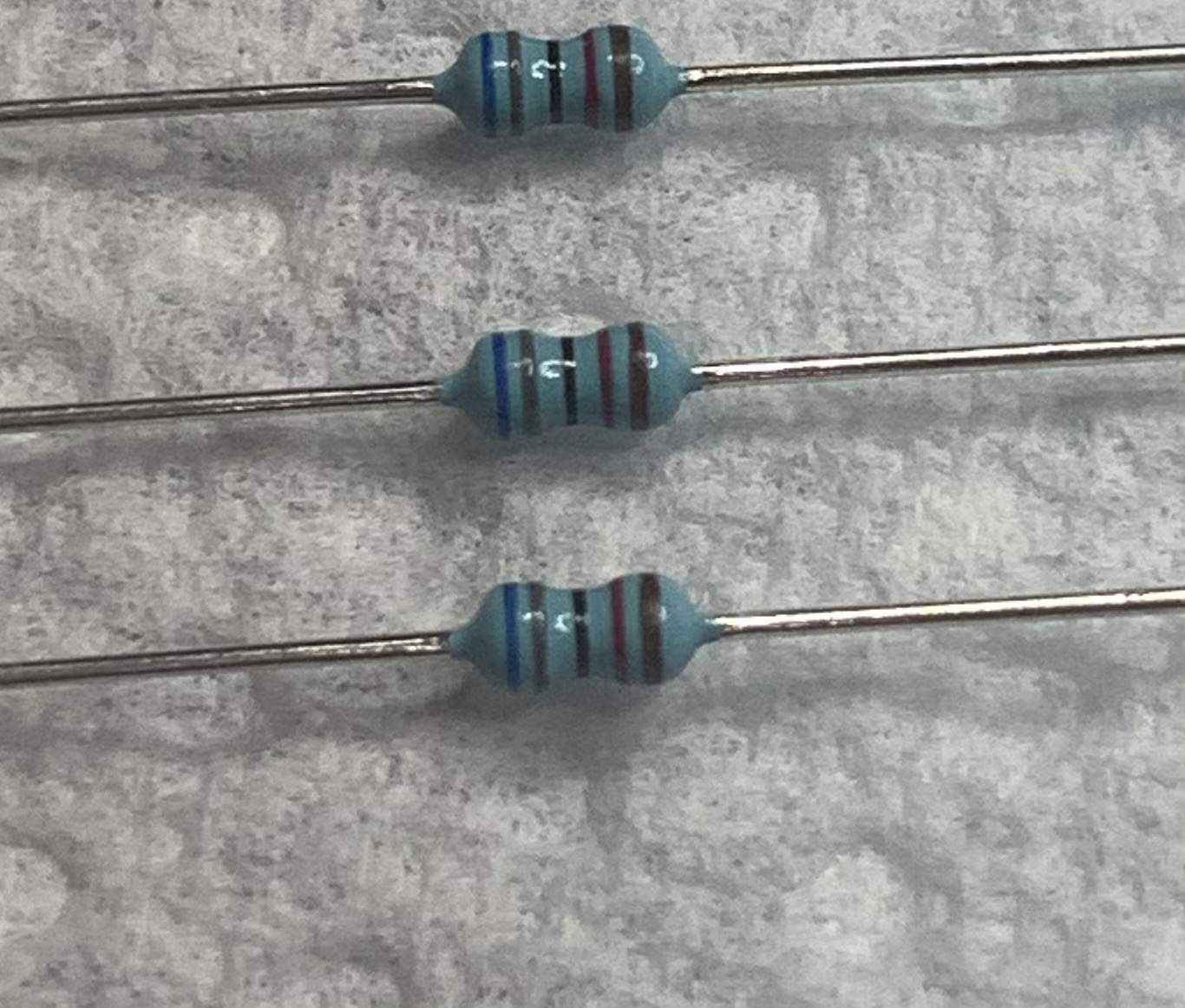

View attachment 4188217

That definitely looks red in that picture which means they are 68k, so you have the right values, and they appear to be hooked up correctly. Maybe double check the solder joints? If you want a more dramatic drop you can put two 33k in parallel (16.5k equivalent) to ground which would drop the volume quite a bit more.



[labeledbass]

They look red to me, or you mean the brown next to the blue on the left?
View attachment 4188217

4th from the left is the multiplier of the 3 bands to left of it. Definitely could make a difference if its not Red. Red=68k, Brown = 6.8K



[labeledbass]

They look red to me, or you mean the brown next to the blue on the left?
View attachment 4188217

I still haven't made the mod myself... lazy/busy, but did you notice ANYTHING at all change? others here have had good luck with your values you provided correct? @Sushi Box FX



[jbybj]

They look red to me, or you mean the brown next to the blue on the left?
View attachment 4188217

I don’t understand how anyone can ever discern resistor values from those indecipherable color bands. I’ve only built half a dozen kits, but without a multimeter I’d be hopelessly lost. There’s no substitute for taking a measurement.



[Real Soon]

@Sushi Box FX Whoops yeah, I was referring to the Binson...and while the Catalinbread one is fun-looking, I think the switches are far superior for visual layout and just fun factor.

In particular, when self-oscillating, flipping switches and gently nudging the delay time....



[1983L2000]

I still haven't made the mod myself... lazy/busy, but did you notice ANYTHING at all change? others here have had good luck with your values you provided correct? @Sushi Box FX

No, I’m really still at unity plus a bit at 9 o’clock on both gain and volume.



[1983L2000]

That definitely looks red in that picture which means they are 68k, so you have the right values, and they appear to be hooked up correctly. Maybe double check the solder joints? If you want a more dramatic drop you can put two 33k in parallel (16.5k equivalent) to ground which would drop the volume quite a bit more.

So double the 33k on the same holes? Will try this weekend. Otherwise... pedal might fly overseas
