Another Heads up for installing a Hipshot bridge on
Epiphone birds.
Recall yesterday I meticulously prepped my Goth for the new Hipshot bridge installation. I let everything dry over night and went to tighten it up this morning. Just as the bridge screws started to snug down - POP! Out came the anchor. I was even careful to use the Allen wrench in the vertical position vs horizontal to minimize the torque on the bolts.

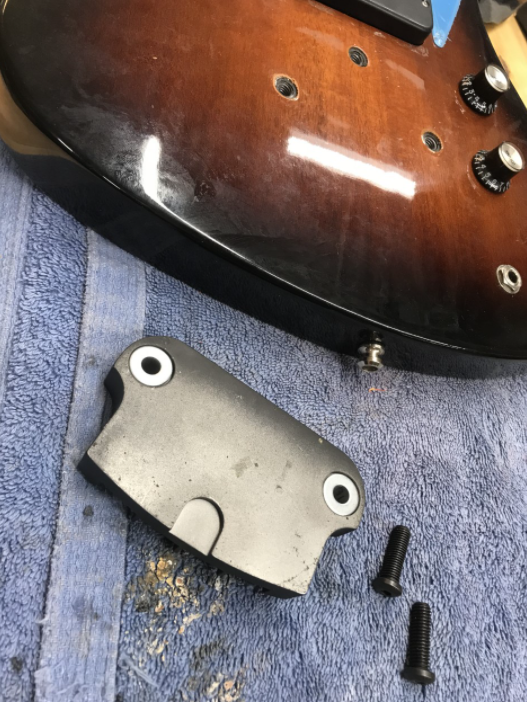

I removed the bridge and noticed something I hadn't taken into account - the depth of the recess on the bottom of the bridge is substantially greater than the thickness of the anchor shoulders. In other words, the bridge as it stands is a perfectly designed anchor extractor!
No big deal, just had to find some washers that would fit in the bridge recess and be the exact thickness needed to let the bridge contact the body without lifting the anchors. Turns out the closest thing I had with nearly the proper thickness and nearly the right diameter was a lock washer. Out came the dremel grinder again, and 15 minutes later we have a perfect fit (ugly but it won't be seen by anybody).
So, glue again this morning and drive the studs back in. And tighten up everything tomorrow, hopefully for the last time.
In honor of Kara and MCF here's some pics this time...

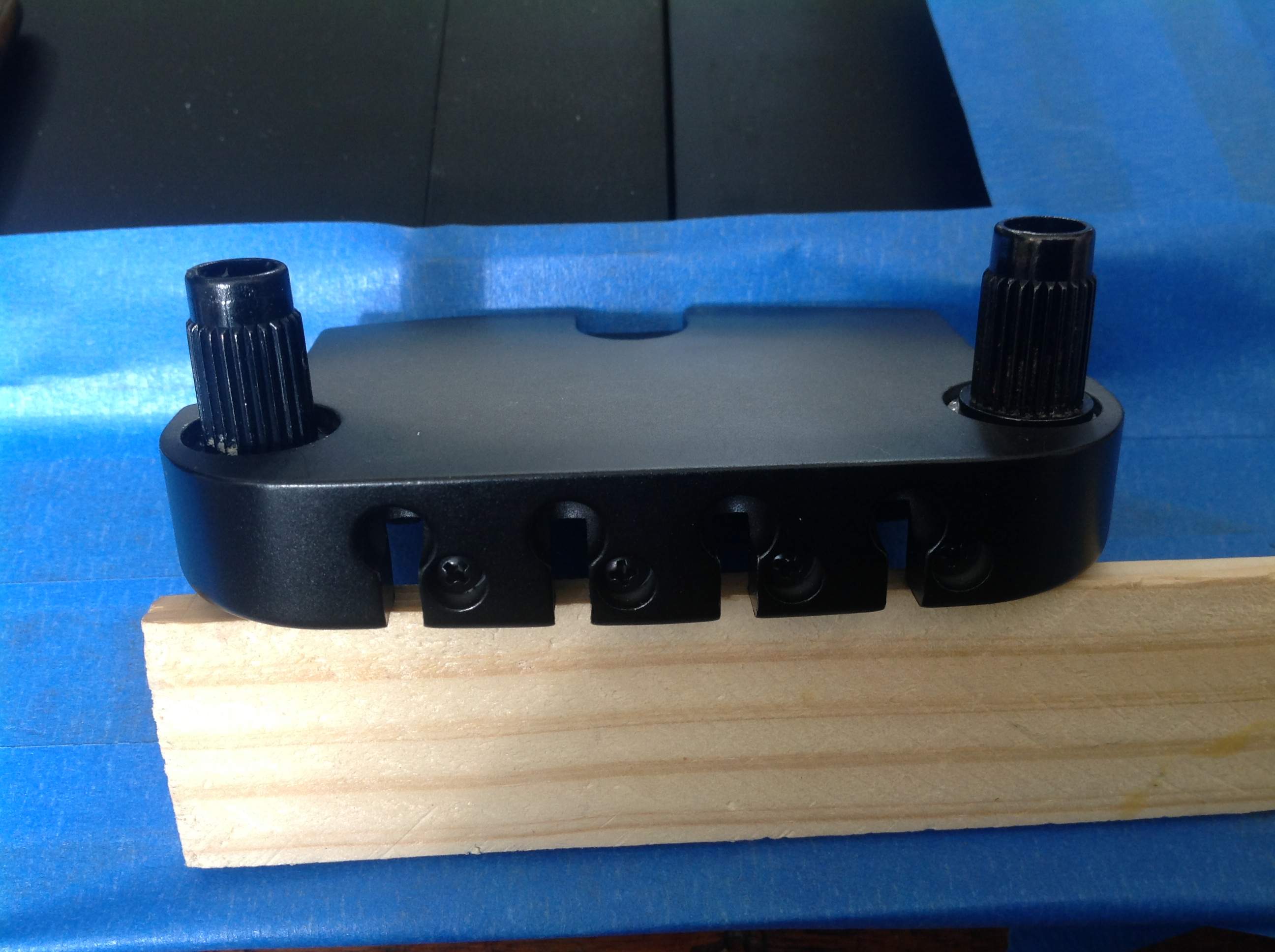

Under side of bridge, stud on left sits deep in the recess, stud on the right has been corrected with makeshift spacer...
View attachment 3994042

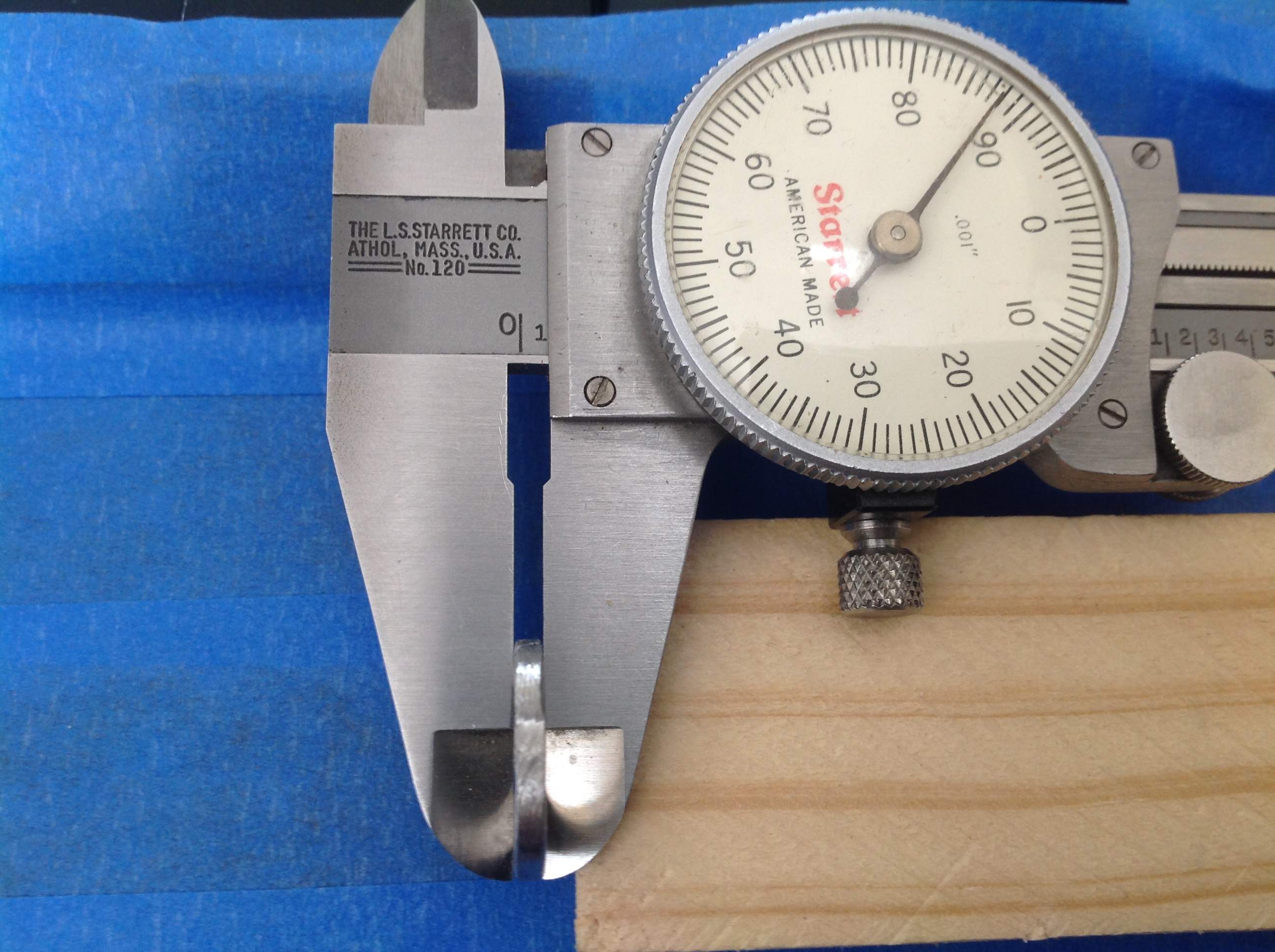

Makeshift spacer (lock washer flattened out, ground to proper thickness and proper outer diameter...
View attachment 3994043

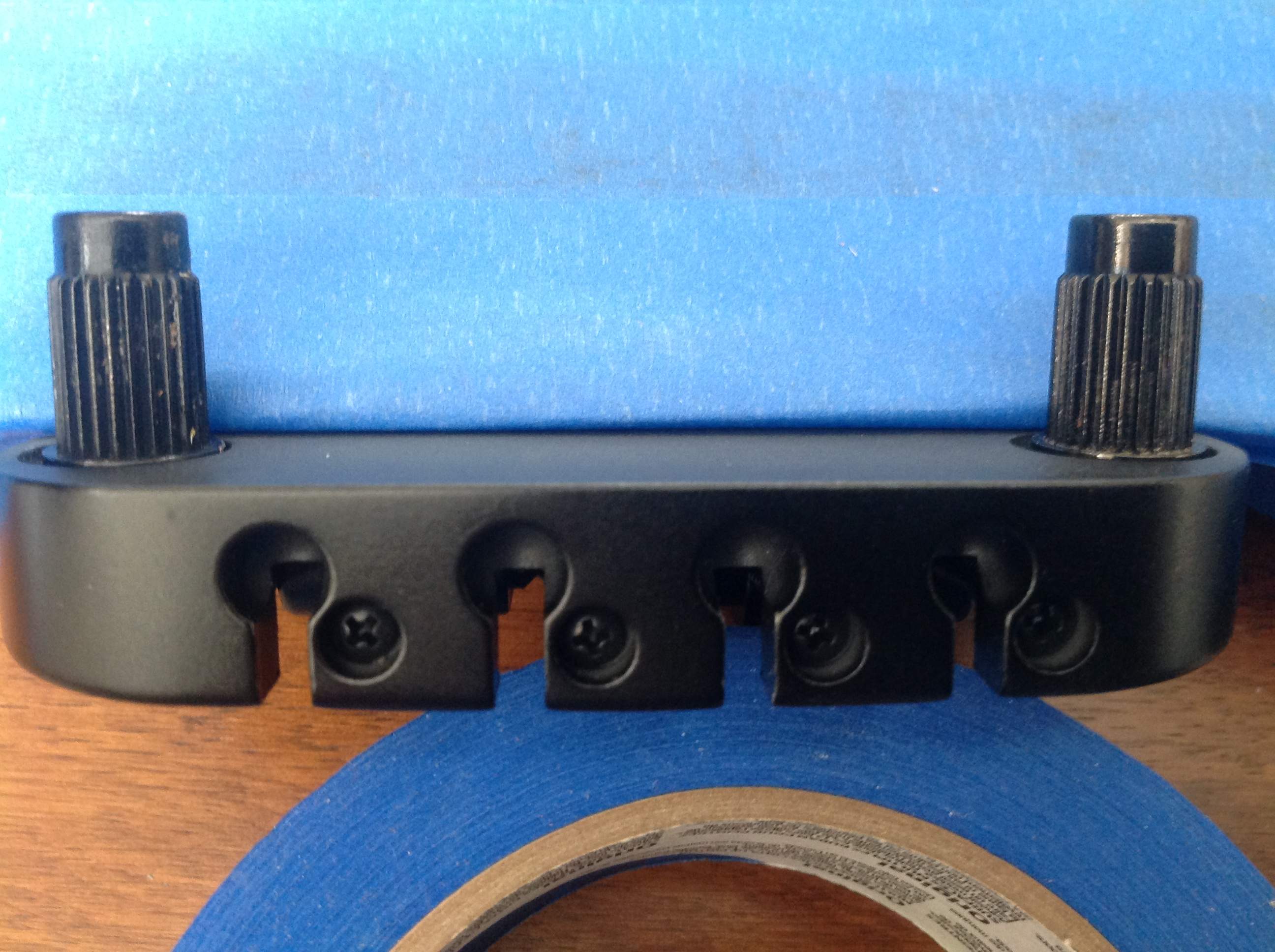

Planets aligned, shoulders now sit flush with the bottom of the bridge! Installing this type of bridge without the proper spacers runs the risk of extracting the anchors. May or may not happen to you, all depends on the quality of the friction fit and the amount of torque applied by the user.
View attachment 3994044
