Traynor Monoblock II preamp pedal

[johnk_10]

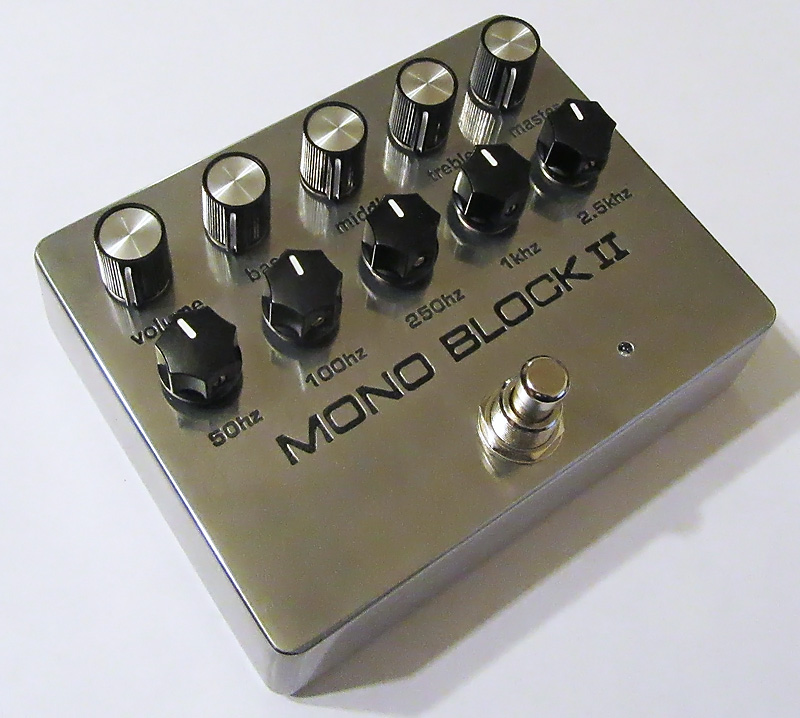

since I've built a TON of bass preamp pedals, I decided to build a Traynor Monoblock II preamp. I used the factory schematic and made an exact clone of it. the original circuit runs on a bipolar 15 volt power supply so I added an internal voltage converter to enable it to run off of a standard 9V power supply. the circuit draws 60ma. here's a pic of the completed project, mounted in an etched 1590BB with a true bypass relay:

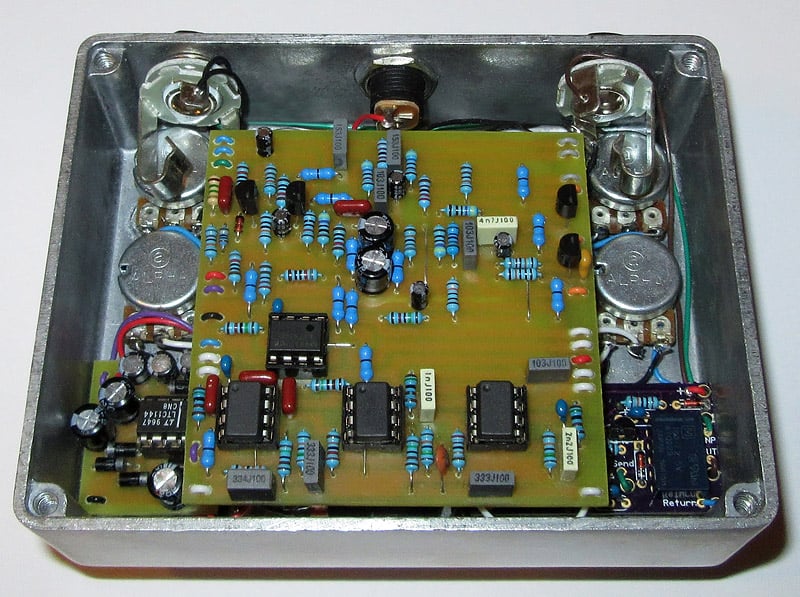

gut shot:

and here's a quick clip of it:



[andrew]

Another cool pedal build.



[bassboysam]

one of my favorite SS amps.



[Barbaric.Eric]

Love the enclosure, great gritty tones in the second half of that sound clip as well



[dcarwin]

John, is this very different from the preamp circuit in the Rusty Box?



[johnk_10]

John, is this very different from the preamp circuit in the Rusty Box?

yes. it's a completely different circuit. there are no Jfets and this one has a 5 band graphic (I used rotary pots) eq.



[Feral Feline]

I LOVE Traynor stuff.
Super styley with the two types of knobs. It's been interesting seeing the evolution of your builds from even a few years ago, you've really developed your own polished (parden the pun) look. After all this time, I never tire of your gutshots either.


Now that you're all buttered up...
Any chance of scoring a PCB, or have you put anything up on Tagboard?


Monoblock is the amp of choice by Ben Richardson, from Grady.



[vincent69]

...
Now that you're all buttered up...
Any chance of scoring a PCB, or have you put anything up on Tagboard?


Monoblock is the amp of choice by Ben Richardson, from Grady.

I saw that John gave links to his pcb design on FSB in this thread
Invalid Link Removed



[Feral Feline]

Thanks @vincent69 !

Mega-Thanks to you, @johnk_10 , for this Magnanimous Monoblock Benefaction.


I had checked DIYStomboxes, Tagboard Effects and I even tried FreeStompboxes.org, but the FSB site hasn't been letting me log in (I was snoopin' for some Schumann PLL and Peavey stuff earlier) despite repeated attempts ...

go figure, I just tried again and now it's letting me sign on.



[johnk_10]

I LOVE Traynor stuff.
Super styley with the two types of knobs. It's been interesting seeing the evolution of your builds from even a few years ago, you've really developed your own polished (parden the pun) look. After all this time, I never tire of your gutshots either.


Now that you're all buttered up...
Any chance of scoring a PCB, or have you put anything up on Tagboard?


Monoblock is the amp of choice by Ben Richardson, from Grady.

thanks Feral. since I etch PCB's for most of my pedals now, I don't do many vero's, but yeah, the PCB for diy'ers is posted on FSB.



[StayLow]

Awesome! Were these, or will these, be made for sale? I didn't see one while clicking around your site.



[Pedalnetics]

Traynor Monoblock ii pedal

• Pedalnetics
• Jan 27, 2017
• traynor

I just finished a build of this pedal this evening, and I love it!

Still need to do a cover or labels, but its up and working and sounding awesome!



[blindrabbit]

Awesome! Were these, or will these, be made for sale? I didn't see one while clicking around your site.

Actually, this pedal was originally built by @Azure Skies for myself and a collection of other fellows who commissioned it - John didn't even start his until after I had already received mine. I do believe you could still get Broughton to do one for you, but best to send him a PM directly and ask that way. I love mine, it is an always on preamp for me, and it sounds amazing. You can see it along the bottom of my board here:

Traynor Monoblock ii pedal

• Pedalnetics
• Jan 27, 2017
• traynor

I just finished a build of this pedal this evening, and I love it!

Still need to do a cover or labels, but its up and working and sounding awesome!

Looks kind of similar to mine! They do sound awesome, like I said mine has become an always on preamp. Such an incredible punchy tone. It looks like you are dumping all the low end off on yours...kind of the opposite of my settings!



[Pedalnetics]

It looks like you are dumping all the low end off on yours...kind of the opposite of my settings!

Hah, i noticed that after i took the picture and was wondering when someone would notice. I was just goofing around with it with a fuzz after it, and having fun with all the sounds it can make. Best pedal build yet =)



[Darchyboy]

since I've built a TON of bass preamp pedals, I decided to build a Traynor Monoblock II preamp. I used the factory schematic and made an exact clone of it. the original circuit runs on a bipolar 15 volt power supply so I added an internal voltage converter to enable it to run off of a standard 9V power supply. the circuit draws 60ma. here's a pic of the completed project, mounted in an etched 1590BB with a true bypass relay:

gut shot:

and here's a quick clip of it:

How can I buy one of these? This is brilliant! I have four of these amps. Sometimes they go up in smoke when I am performing. I would love to get one of these preamps!
Matt



[johnk_10]

Actually, this pedal was originally built by @Azure Skies for myself and a collection of other fellows who commissioned it - John didn't even start his until after I had already received mine.

correction. i actually built one for myself about a month or two before i posted it online and had no idea that josh was going to build them.



[Ti-Ron]

Is the inclined pedal between the nocturne dyna brain and the fea comp is a ss/bs buzzz?



[Azure Skies]

correction. i actually built one for myself about a month or two before i posted it online and had no idea that josh was going to build them.

And it's an impressive build at that. It's amazing you can get all that on single sided PCBs and fit it in a 1590BB.

Is the inclined pedal between the nocturne dyna brain and the fea comp is a ss/bs buzzz?

It's a custom pedal he had me make him. It is a germanium transistor drive feeding a univibe-like circuit. The enclosure etch was done by @JonnyAngle.



[Pedalnetics]

Someone(not me) is selling one of Broughton's monoblock pedals on Reverb if anyone is interested:

Broughton Mono block 2016 Black and silver Broughton Mono block 2016 Black and silver



[Feral Feline]

Why does all the good stuff become available when I've already just blown my budget?

​
