This is one of the more technically impressive builds I've seen on TB, can't wait to see it all polished up with exposed CF fabric weave.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Sorry to dissapoint you but I'm planning to go with satin stealthy look. Carbon weave will be visible but in a subtle way. Satin finish feels great also.
Impressive once again. MPU your posts never get old. Always a blast to follow your builds. Thanks.

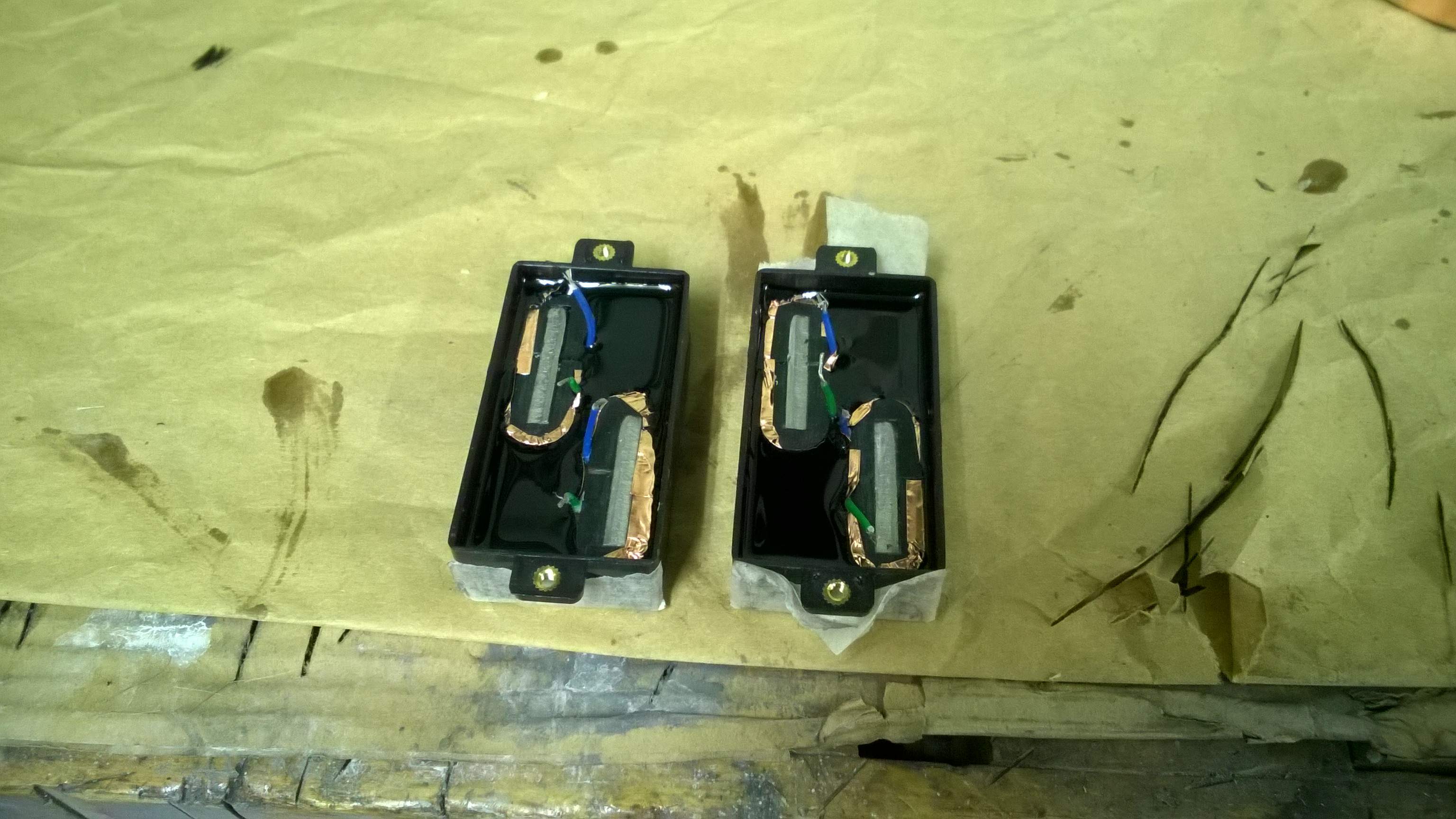

You're right. Carbon does work as a shield but there is no carbon and hence shield on top of the pickups. That's why I shielded the pickups. I'm not shielding the control cavity but I'm going to use wire as bridge ground.

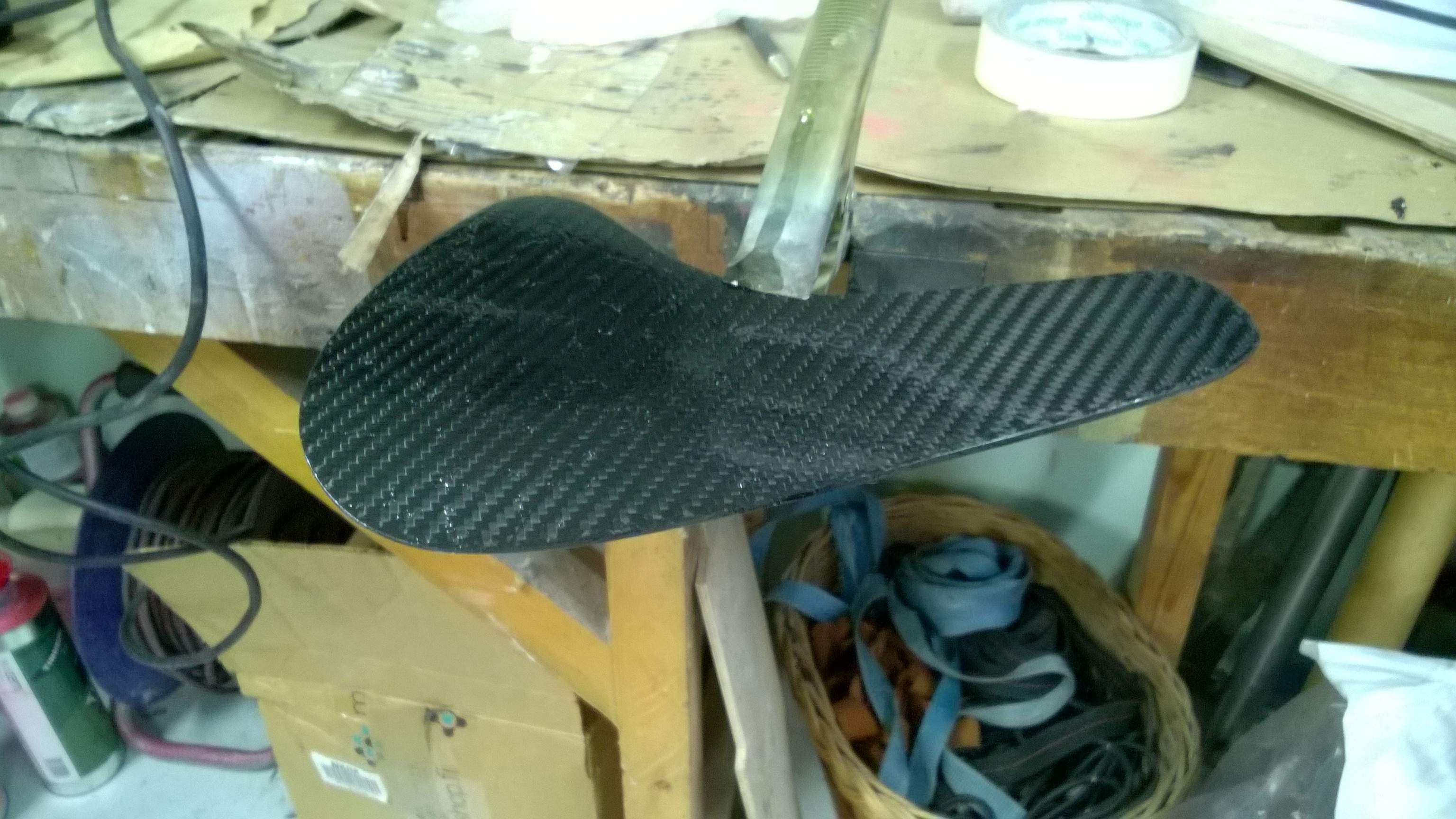

I tested one of the pickups today. Sounded just like a bass pickup. Didn't have time for more testing, mainly tested that the wiring was ok. Some epoxy brushed on the pivot plate. More bassbuilding on Sunday, tomorrow is for swimming competition, this time as Masters swimmer.

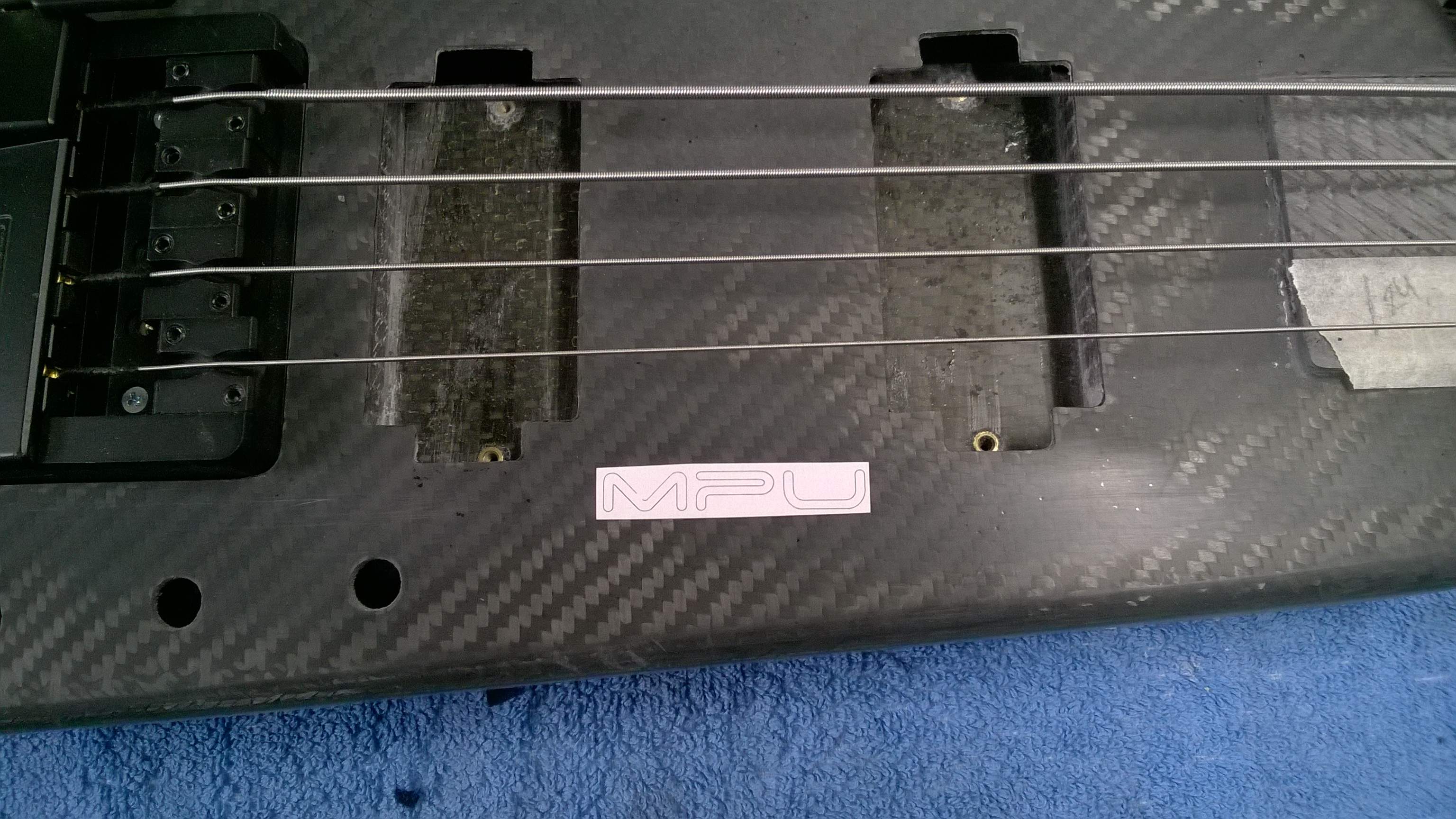

No reply from decal maker so time to learn to use Inkscape. I've used it at work before but just a bit. Well, it didn't take much time to stretch the font and make an outline pic of the font. Size looks good. I ordered waterslide paper for laser. In theory I print the text, spray couple of light coats of clear over the print, use water to remove the print, turn it over and paint the inside of the letters white. When paint is dry I transfer the waterslide on it's place, let it dry and spray clearcoat over the bass. We'll see how it goes.

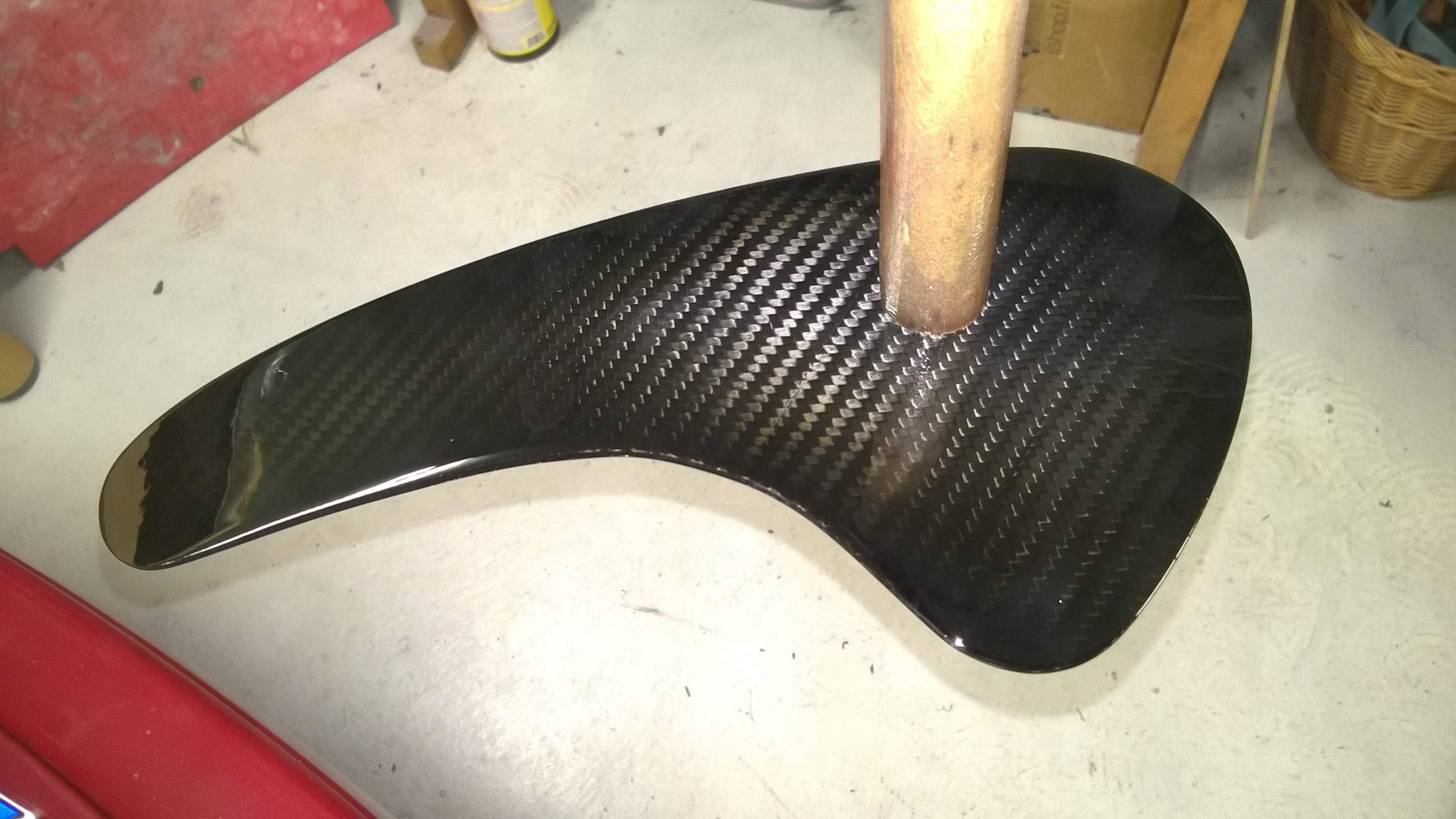

I sanded the pivot plate and brushed one more coat of epoxy. I'm going to use the pivot plate as test bed for spraying black burst with tinted clear.
I sanded the pivot plate and brushed one more coat of epoxy. I'm going to use the pivot plate as test bed for spraying black burst with tinted clear.
Last edited:
When you stretch a typeface in a way that doesn't honour the way it was designed the results often look unbalanced. Font designers take great care when balancing out the relative weights of the horizontal and vertical strokes but If you don't stretch too much, you should be fine.
Best of luck with the rest of your build. It's looking great.
Best of luck with the rest of your build. It's looking great.
I noticed too that too much stretching makes the font look strange. I have to make sure that the width of the letter lines remain the same like in the original size. May have to do some adjusting before printing.
In Inkscape you can convert type to paths and then adjust the shapes point by point. Watch out for curved corners though: Bezier handles can be frustrating if you're not used to them. Making a grid of guides can help keep those even.
This page might help if you need any tips but it doesn't go into much detail: [Invalid or Expired Link Removed]
This page might help if you need any tips but it doesn't go into much detail: [Invalid or Expired Link Removed]
Here's a sneak peak of what kind of finish I have in mind. Carbon black burst that hides the joints of top, back and neck.
I hope fretboard blanks arrive soon. While waiting I'm trying to find pots for the Stingray preamp. I want to stack bass and treble but 100k log/1M lin or rev log stacked pot has to be custom made. I hope I can find pots to use as parts.
I hope fretboard blanks arrive soon. While waiting I'm trying to find pots for the Stingray preamp. I want to stack bass and treble but 100k log/1M lin or rev log stacked pot has to be custom made. I hope I can find pots to use as parts.
It's Christmas again! Well, not exactly but the fretboard blanks arrived today. I'm hoping to have the fret slots cut tomorrow. Hopefully I can have the fretboard bonded to the neck during weekend.

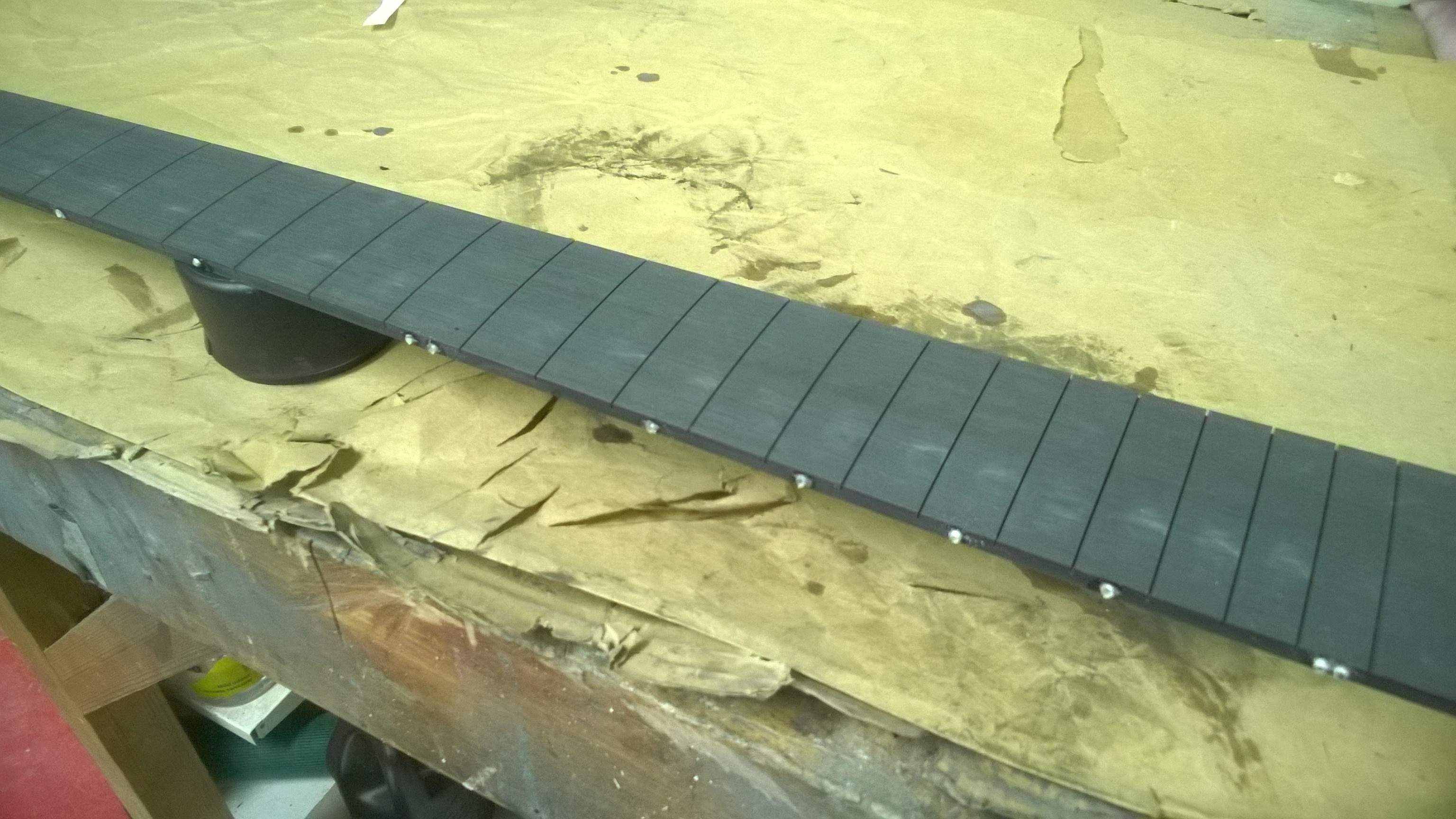

I got the fret slots cut, fretboard tapered and radiused to 10" radius with 100 grit paper. Luminlay side dots glued also. Richlite is easy to sand and cut with power tools but sawing fret slots with Stewmac fret saw is just pain. Saw heats quickly, saw dust sticks to saw teeths and saw sticks to slots. Very annoying.
Tomorrow I'm going to sand the side dots flush, rough sand the underside of fretboard and bond the fretboard on the neck.
I ordered right value pots for making a stacked bass/treble pot.
Tomorrow I'm going to sand the side dots flush, rough sand the underside of fretboard and bond the fretboard on the neck.
I ordered right value pots for making a stacked bass/treble pot.
Never cut slots in richlite before, but I always have a paraffin candle and wax the teeth before I cut each slot. Really makes a difference!
Amazing build by the way.
Amazing build by the way.
Wax helped a bit but still major PITA to saw the slots. I used Waxilit paste wax on the saw blade.

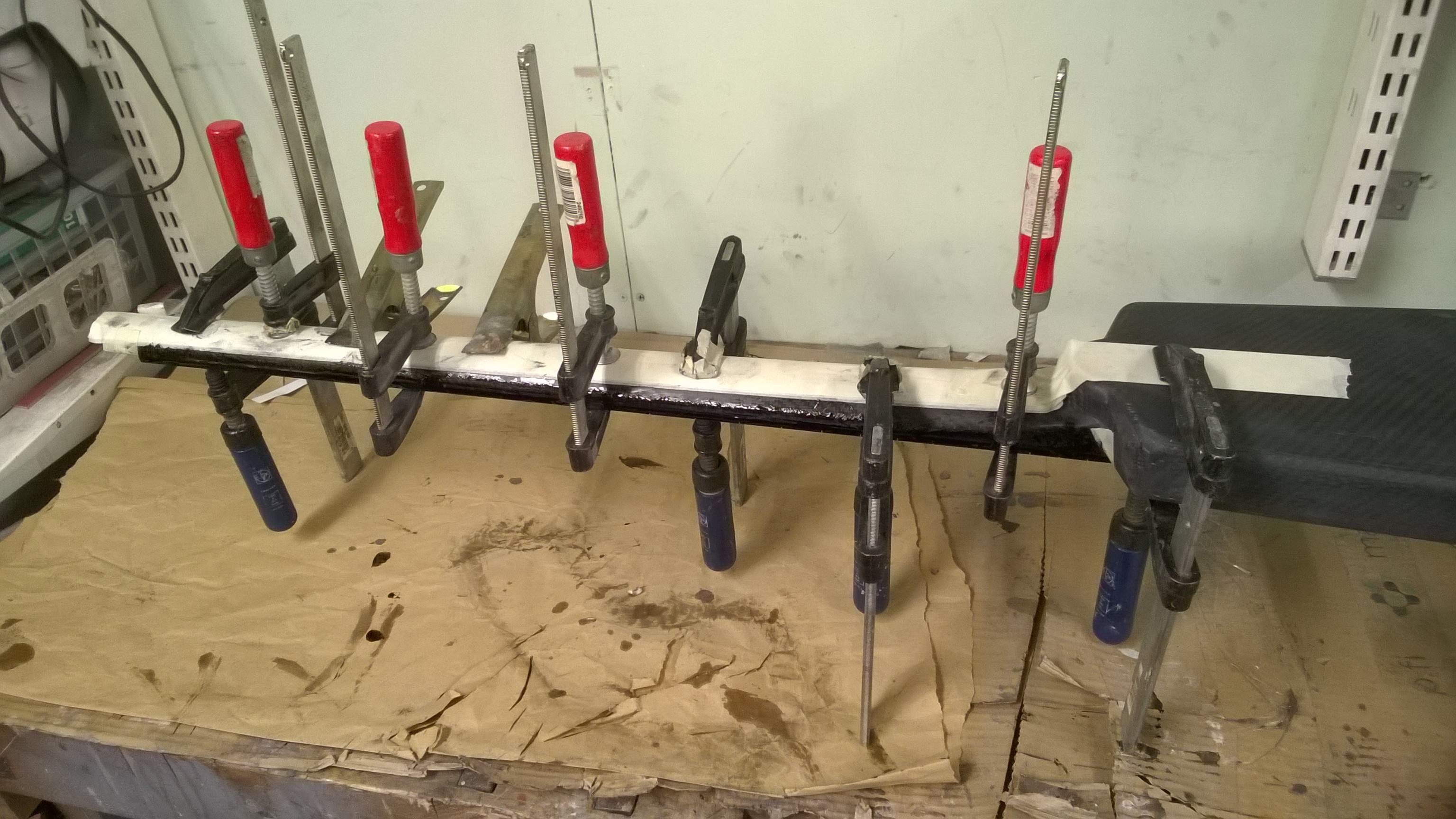

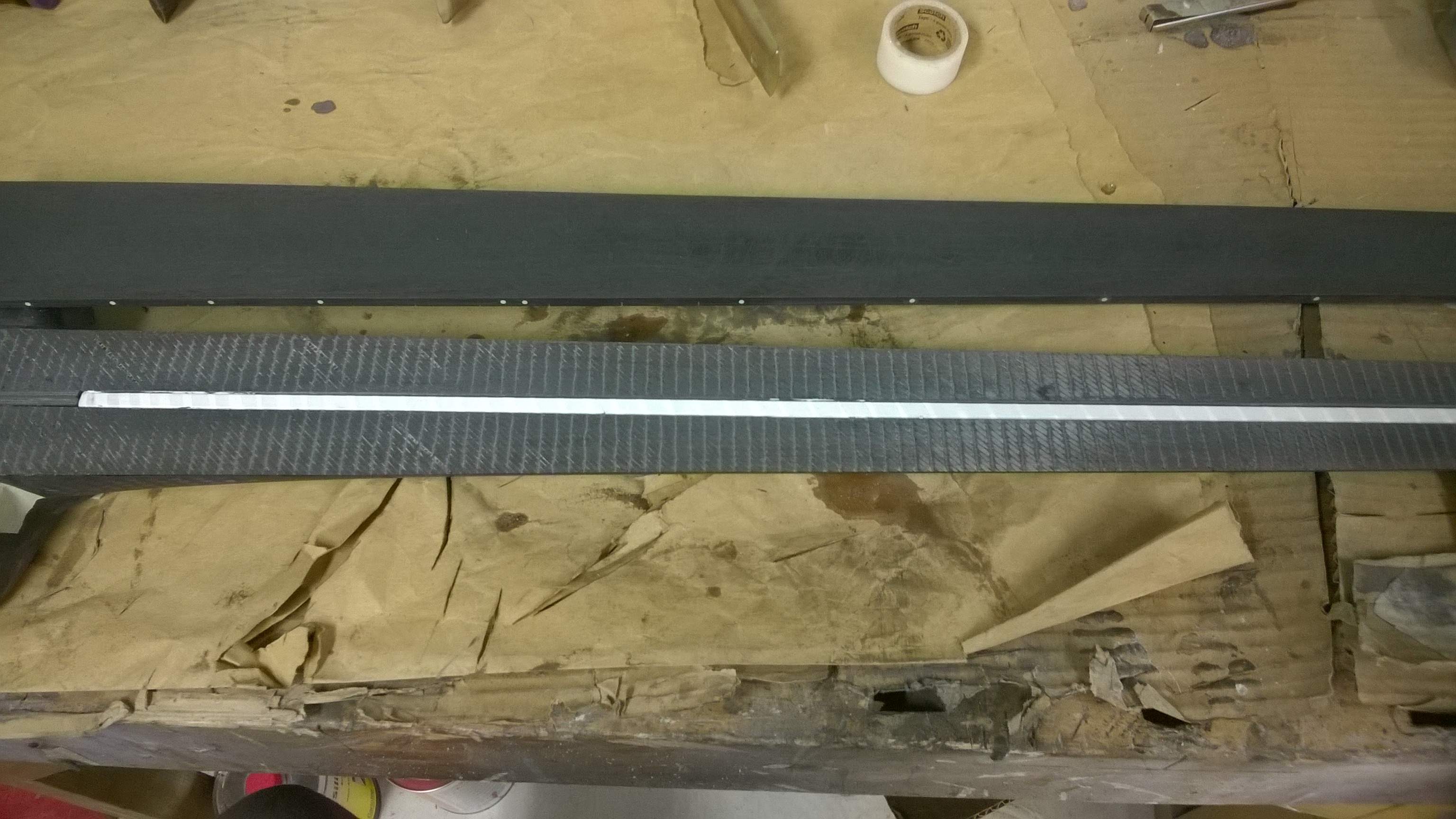

Got the truss rod mounted and fretboard bonded.

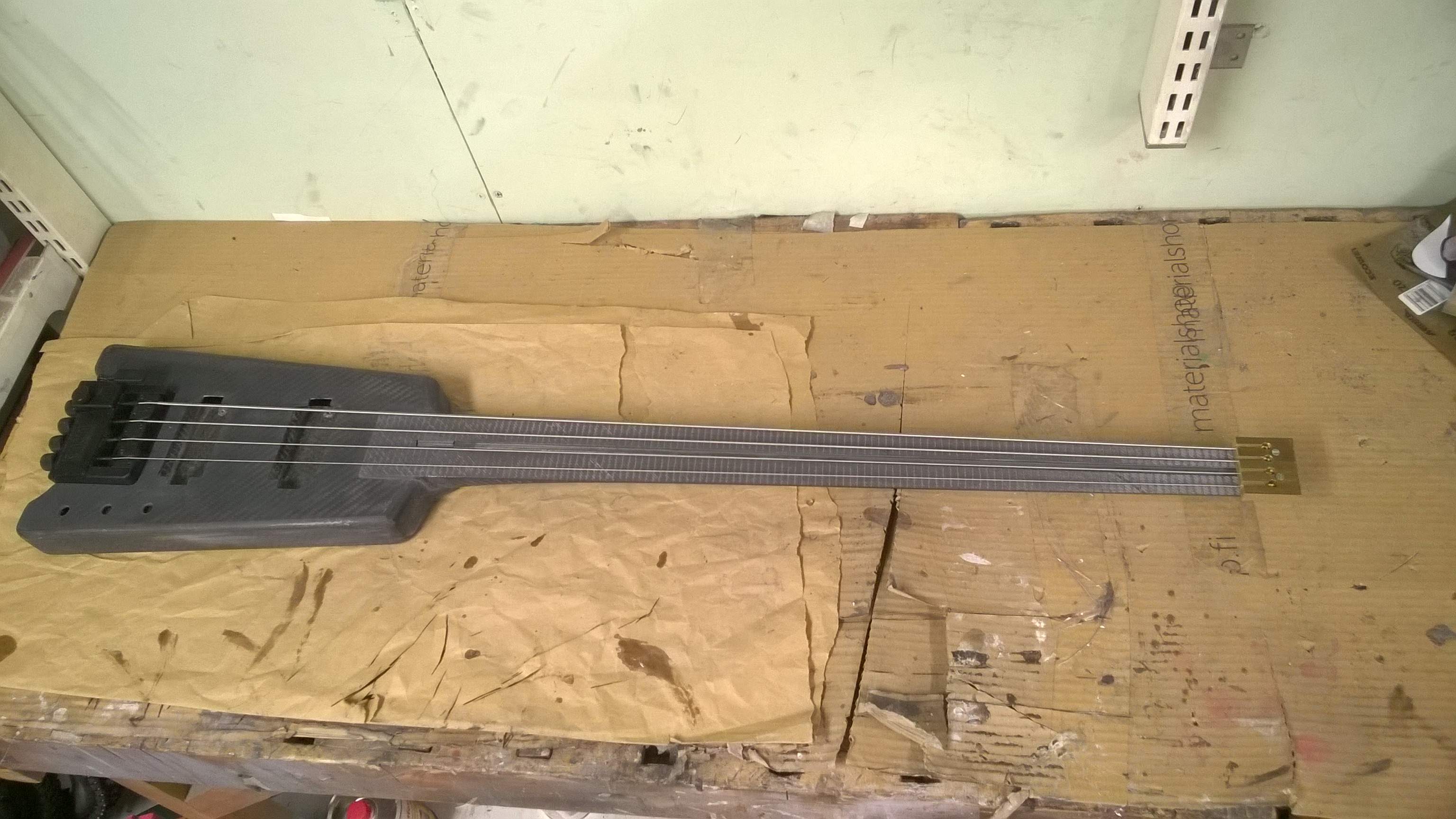

Tomorrow it's first acoustic sound tryout, fretless however.
Tomorrow it's first acoustic sound tryout, fretless however.
And here's what I think the decal will look. Or at least what I'm trying to make it look. White letters with black outlines.
