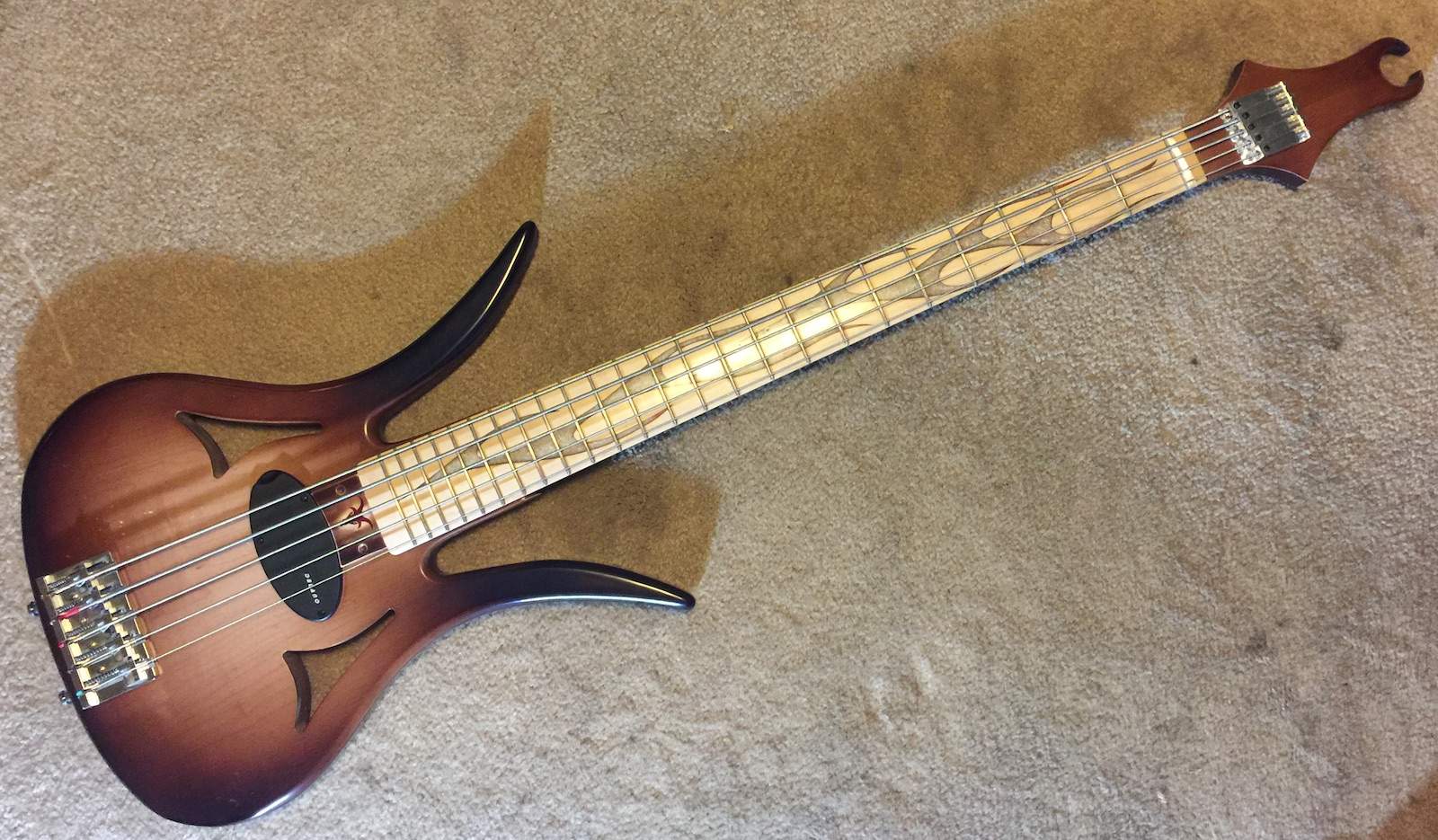

Hey, step by step as I put it together
Uh huh... what tune are you humming to yourself as you're doing this?Hey, step by step as I put it together
Only issue so far:
I can't seem to bring the G string up to pitch without it breaking (OK, keep your minds out of the gutter) @michaelwayneharwood do you have any suggestions?
I can't seem to bring the G string up to pitch without it breaking (OK, keep your minds out of the gutter
) @michaelwayneharwood do you have any suggestions?
Tuck a dollar into it?... Oops sorry.Only issue so far:

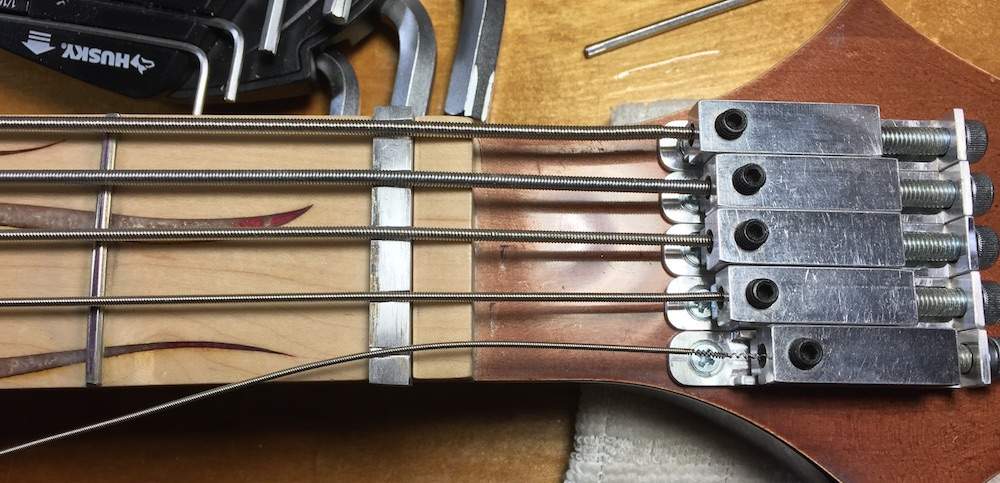

View attachment 1077048
I can't seem to bring the G string up to pitch without it breaking (OK, keep your minds out of the gutter
Only issue so far:
View attachment 1077048
I can't seem to bring the G string up to pitch without it breaking (OK, keep your minds out of the gutter
Quoting myself here as it's not exactly breaking - just the winding is getting pulled off. I seem to remember this happening with Michael's first install of these tuners. I don't remember the solution.
Well, since that string is shot, try taking the winding off and grabbing the core.
- May 1, 2014
- 2,494
- 2,341
- 56
- Disclosures
- Owner Melodious Resonance Constructs
It appears to me that the set screw is not tightened enough to get the core gripped and it's unravelling. I would tighten it more if possible, or unwind the string and just tighten down the core. Did i send you dog point set screws or are they cup point or flat point?Only issue so far:
View attachment 1077048
I can't seem to bring the G string up to pitch without it breaking (OK, keep your minds out of the gutter
They are the cup point set screws.
edit - No, flat point. Sheesh, my eyes are failing...
edit again, no, they are dog point. Now it's my mind that's going.
I think I'll leave this for tomorrow, and enjoy a drink.
- May 1, 2014
- 2,494
- 2,341
- 56
- Disclosures
- Owner Melodious Resonance Constructs
Since the bottom of the channel is rounded I found smaller strings to need the set screw to be tightened a bit more than the others. It's a balance between just right and too tight, but you can crank up the pressure some without fear. I take it for granted, but have done enough instruments with the tuners that it is second nature to me now. I have strung up plain steel guitar strings without issue as well.
Heh, great minds think alike.
I'll give it a shot tomorrow - I tend to get impatient when I'm tired. The D and A strings are also slipping. At this point, I don't want to strip the threads by tightening too much. I'll start fresh tomorrow. Thanks for the quick response, by the way
@michaelwayneharwood, have you considered drilling the hole for the set screws deeper to give you an irregular surface when clamping the screws.
- May 1, 2014
- 2,494
- 2,341
- 56
- Disclosures
- Owner Melodious Resonance Constructs
I was afraid of that as well initially, but have found they can tighten up nicely without fear. Worst case scenario I will fine tune a set and send you replacements.I'll give it a shot tomorrow - I tend to get impatient when I'm tired. The D and A strings are also slipping. At this point, I don't want to strip the threads by tightening too much. I'll start fresh tomorrow. Thanks for the quick response, by the way
I did, and that would be an improvement for a second manufacturing run if it ever happens. As it is now I have a ton of tuners and don't see myself running out anytime soon.
*edit* Unless I decide to take a stab at picking up where this thread left off and see if it can be done...
What the heck? 14 strings
Last edited:

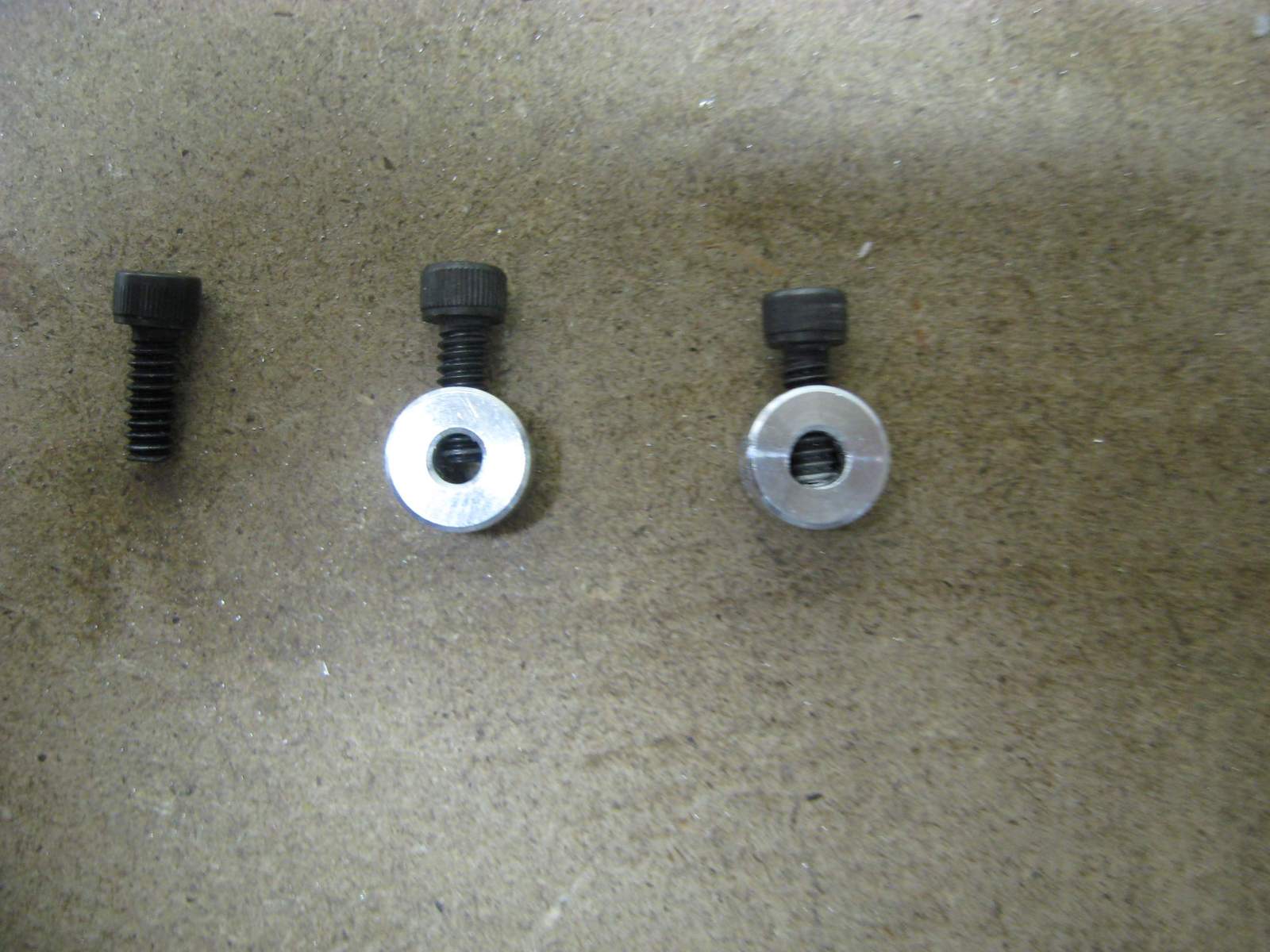

When I used set screws in a round hole, I had to file the hole so the set screw would go down all the way. The one in the middle is before and the one on the right is the after. Maybe this is what you are dealing with?
Another thing you could try: Cut a teeny rectangle of copper shielding tape and wrap a little collar around the end of the string, like two wraps. The setscrew will then smash the copper down into the gaps between the windings, adding to the surface area and increasing the grip. Soft copper sleeves are used when crimping fittings onto wire rope, for that reason.
Also, before you cut off the end of the string, bend a sharp 90 degree hook, facing up, right after where the setscrew would be with the tuner head fully extended. Then cut the string off, leaving a small hook, just low enough that it will fit in through the hole and hook behind the setscrew.
@michaelwayneharwood as a future design change, you might consider adding a drilled hole in the top surface, just behind the setscrew, leaning back at maybe 45 degrees. The idea is that, with the setscrew loosened, you would feed the end of the string in through the end hole and out the angled hole on the top. Then you could pull on the extended end to get it taught, while tightening the setscrew. And, tightening the setscrew would force a small kink into the string, which would add to the grip. After tightening, you clip the string off.
Also, before you cut off the end of the string, bend a sharp 90 degree hook, facing up, right after where the setscrew would be with the tuner head fully extended. Then cut the string off, leaving a small hook, just low enough that it will fit in through the hole and hook behind the setscrew.
@michaelwayneharwood as a future design change, you might consider adding a drilled hole in the top surface, just behind the setscrew, leaning back at maybe 45 degrees. The idea is that, with the setscrew loosened, you would feed the end of the string in through the end hole and out the angled hole on the top. Then you could pull on the extended end to get it taught, while tightening the setscrew. And, tightening the setscrew would force a small kink into the string, which would add to the grip. After tightening, you clip the string off.
