Winter Build Off 2018 - 30" telecaster
- Thread starter postalflunkie
- Start date

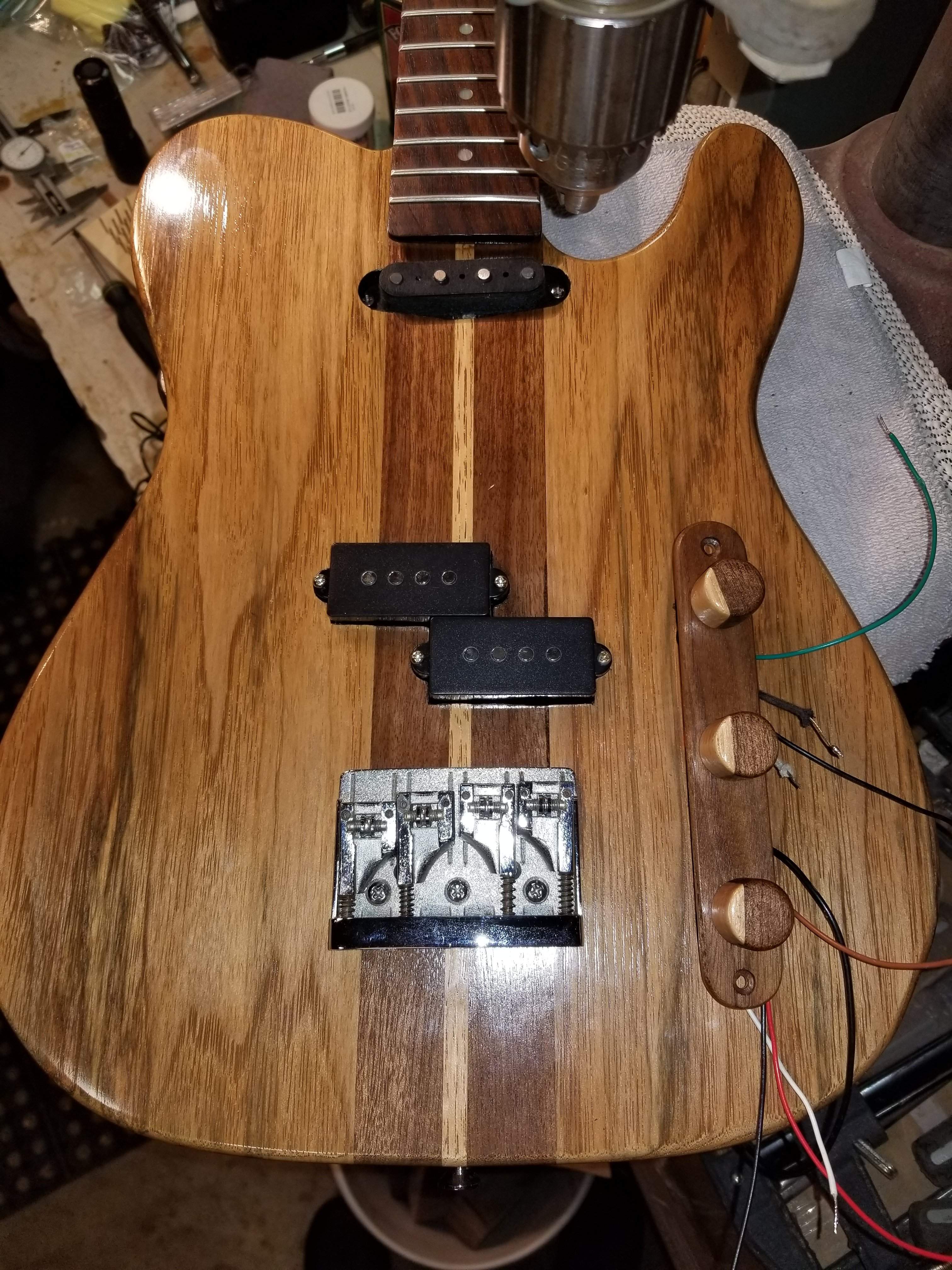

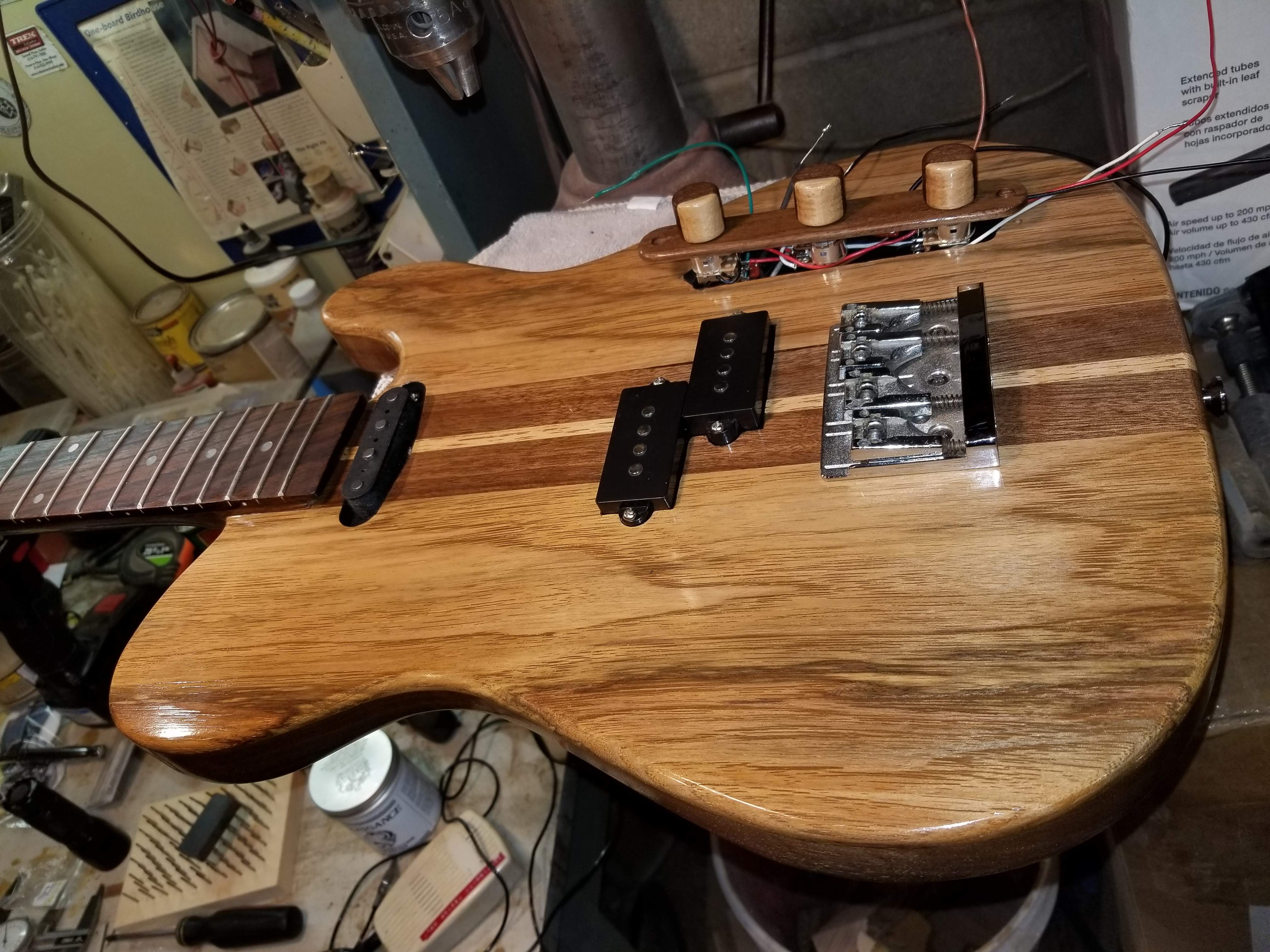

This evening's work, mounted the bridge and pickups. Tomorrow night, soldering...
The only mail that matters right now would be an Amazon box for Scoops with his Alumitones
So after my Amazon adventures, I went to ebay. I ordered a set from a guy that allowed to make an offer. He was asking $112 eash. I offered $100 each. I was refused.
Edit: I also put in a winning bid for a pair of used alumitones, but my bid did'nt get past the reserve

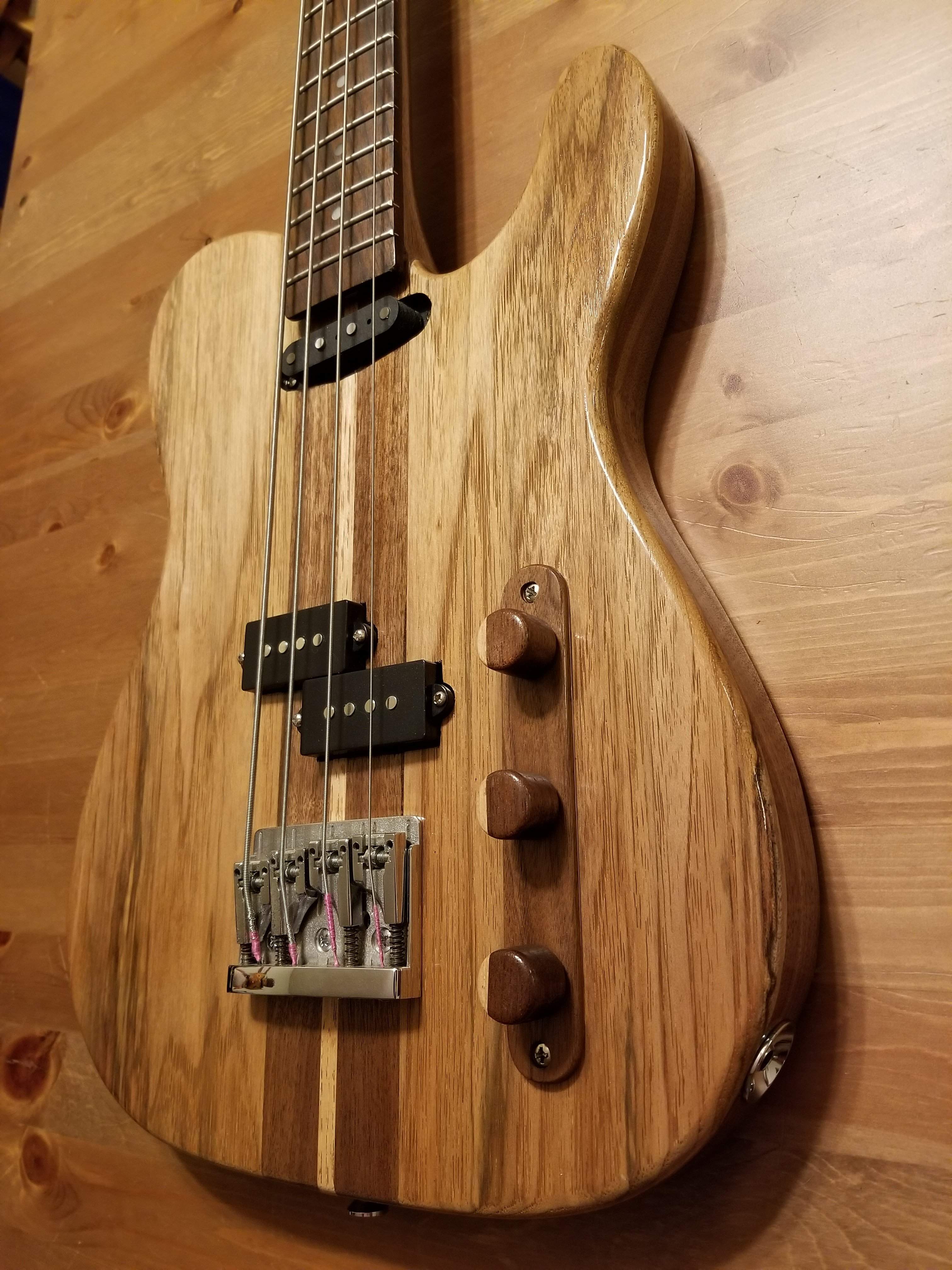

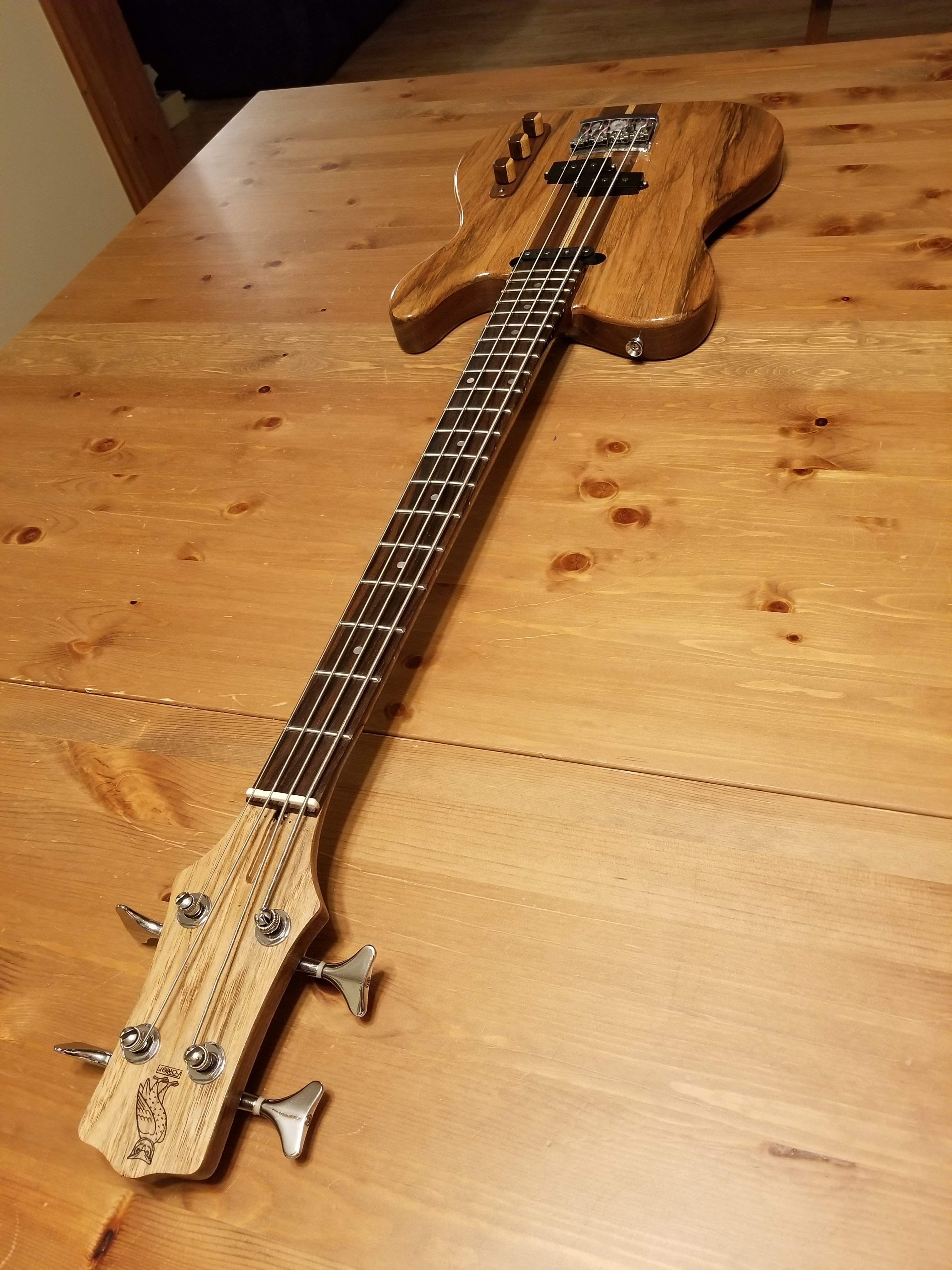

All wired up, put the tuners on and threw on some old strings (I have a new set of GHS pressure wounds to go on later). Sounds pretty dang good I think
I somehow managed to get the bridge almost perfect, only have to tweak the intonation on the D string.
I somehow managed to get the bridge almost perfect, only have to tweak the intonation on the D string.
I'll let it sit for a few days then change the strings, tweek the bridge a little and check the truss rod. Still have to put on the truss rod cover also.
Can't wait to take it in to work and put it on a post office scale, the bathroom scale read 7.2 pounds
Can't wait to take it in to work and put it on a post office scale, the bathroom scale read 7.2 pounds
Last edited:
I have a fondness in my heart for tele's
This is sweet!
This is sweet!
- Apr 18, 2008
- 16,019
- 1
- 31,730
- Disclosures
- I'm highly opinionated and extremely self-assured
Beautiful! I like that all of the frets are accessible. How’s the balance?
Hangs really good, no neck dive. I like how the 30" scale feels with the smaller tell body, its going to be a fun player.
I'd forgotten that it's a shorty.....
...
That's probably why it looks 'right' to me...
...That's probably why it looks 'right' to me...
So I've had this plugged into the amp tonight... The two different types of P pickups do play well together. The split in the bridge spot has nice authority, and in parallel mode sounds like a jazz bridge pickup. The neck pickup however is strange, by itself its brighter than the bridge pickup, now when you pull the volume and turn on the "half out of phase" the darn thing just comes to life. The volume goes up a little and the tone is big and round and just demands to be heard (and felt). With both pickups there is a little volume drop (typical of blend pots). Pull the volume pot and the volume drop goes away and it sounds like two big-old humbuckers, totally not what I expected.
Once I get the string height and intonation set I'll try to record some and get it posted.
Once I get the string height and intonation set I'll try to record some and get it posted.
- Apr 18, 2008
- 16,019
- 1
- 31,730
- Disclosures
- I'm highly opinionated and extremely self-assured

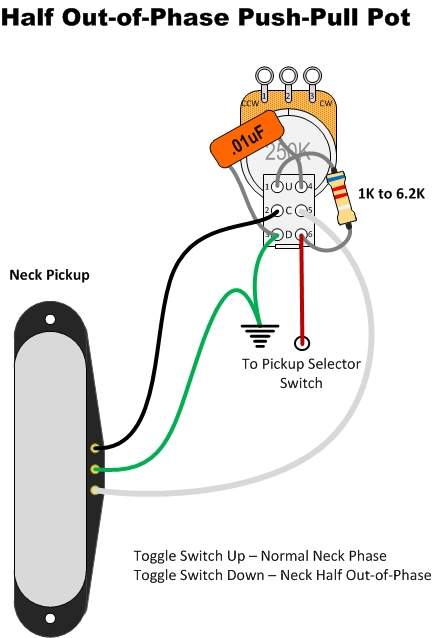

On a two pickup guitar it is supposed to simulate the 2 and 4 switch positions on a Strat. I have two guitars that I have put it in. Some playing around with the capacitor values and it sounds pretty good. As postalflunkie said, with just the neck pickup on, it give a nice bass cut that is also surprisingly useful. At least on guitar, I hadn’t thought to try it on bass.
- Apr 18, 2008
- 16,019
- 1
- 31,730
- Disclosures
- I'm highly opinionated and extremely self-assured
Thanks! Hadn’t seen that approach before. So there are three things happening there:
1. Phase switch - hot becomes ground, and ground becomes hot.
2. Slight level reduction with the series resistor.
3. Bass cut with the series capacitor.
Having just been playing with the bass cut capacitor on my 4620, I know how that can really open up the mids, since it removes the lower-frequency cancellation interaction between the two pickups. If you then put the higher frequencies out of phase, that should make the upper frequencies thinner. Is that essentially correct (even though it’s an over-simplification)?
1. Phase switch - hot becomes ground, and ground becomes hot.
2. Slight level reduction with the series resistor.
3. Bass cut with the series capacitor.
Having just been playing with the bass cut capacitor on my 4620, I know how that can really open up the mids, since it removes the lower-frequency cancellation interaction between the two pickups. If you then put the higher frequencies out of phase, that should make the upper frequencies thinner. Is that essentially correct (even though it’s an over-simplification)?
Here’s a link to the guitar version. The pickups aren’t going 180 degrees out of phase with each other more like 90 degrees off (simplification and probably wrong electrical theory).
Mod Garage: The Bill Lawrence 5-way Telecaster Circuit | Premier Guitar
Mod Garage: The Bill Lawrence 5-way Telecaster Circuit | Premier Guitar
Lastly but not least,the truss rod cover is on. Three ply walnut, maple, walnut.
