ZVex Wooly Mammoth alternative or clone?

[moose23]

Thanks. Found it all now.

I guess I've got no excuse but to give it a crack.

Here's another great link on off board wiring:

Link Removed



[vene-nemesis]

Here's another great link on off board wiring:

Link Removed

Great doesnt even start to describe it!



[Thunderscreech]

I might even do this. I have an enclosure with holes drilled, and I just need to add 2 more and order parts from Small Bear or something.



[Thunderscreech]

Also, what do I do if I can't find a 4.99K resistor? do I use a 5.1 or a 4.7?



[lowend range]

The closest pedal I have personally tried that comes the closest to the Wooly is the Arger FX Capricorn or Capricorn Plus.

Link Removed

It has the same compressed, gated sound in higher settings and sounds amazing.



[KarateKid25]

Also, what do I do if I can't find a 4.99K resistor? do I use a 5.1 or a 4.7?

You could use a close value as there is tolerance to consider anyway, but a 4.99k shouldn't be hard to find. They are generally a metal film rather than carbon film.



[moose23]

Also, what do I do if I can't find a 4.99K resistor? do I use a 5.1 or a 4.7?

Yes, I've never ever heard of a 4.99K resistor, I presume it's a measured value. I used 5.1K for mine.



[KarateKid25]

Yes, I've never ever heard of a 4.99K resistor, I presume it's a measured value. I used 5.1K for mine.

They aren't that uncommon.... Here you go:

http://cgi.ebay.com.au/10x-4-99k-1-4W-Metal-Film-Resistor-1-/220650173903?pt=LH_DefaultDomain_2#ht_1088wt_911



[moose23]

There ya go.



[iamdenialNJ]

I really have no clue. I have since sold the WM clone and have a real WM coming in the mail. Let's see if the WM really stands up to the hype.

How come it worked fine with active basses????



[Stu L.]

Coolest WM clone ever



[vene-nemesis]

I really have no clue. I have since sold the WM clone and have a real WM coming in the mail. Let's see if the WM really stands up to the hype.

Looking foward to it!



[moose23]

I doubt you'll hear any difference but the paintwork will certainly look nice.



[propel]

Has anyone here tried the different schematics in the thread over at freestompboxes.com? Just wondering if any of you had a preference for one of the ones they posted.

Can't wait to dive into to this..reading, buying parts, frustration, it's gonna be great! Just gotta finish my freaking exams first ...and build the LPB-1 kit I have lying around



[moose23]

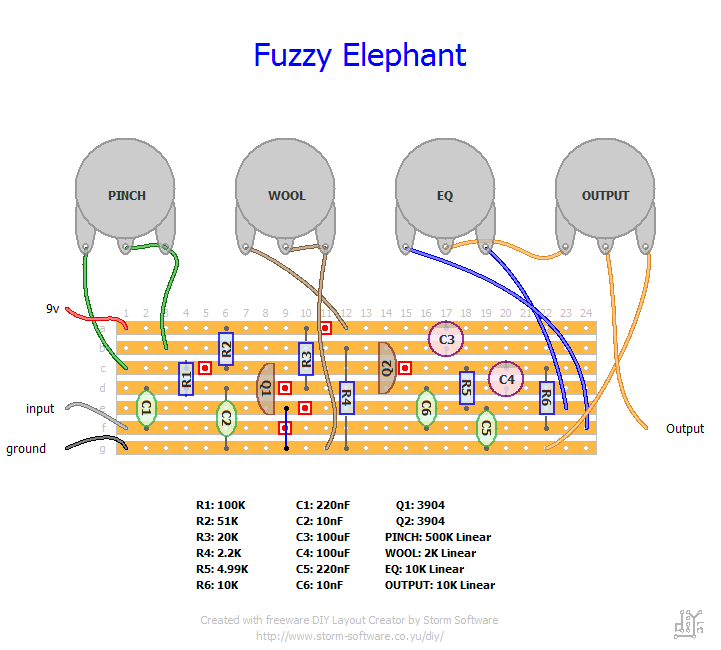

The one posted in this thread as the Fuzzy Elephant worked well for me, seemed to be the most popular at FSB when I made mine too. Here it is again:



[Stu L.]

The three I've built were all Furry Sabertooths by Mad Bean. Good stuff.



[propel]

Thanks, can't wait to try this!

Will that design fit into the same sized box as the wooly mammoth? Trying to save some room on my board



[Thunderscreech]

Soon as I get paid for house sitting, I am going to make one of these. But I'm going to change out the pinch pot for a trimpot, and wire the wool pot in the side of the enclosure so I can adjust it with my foot.

Cause I mean, really, how often do you adjust things like a noise gate?



[Stu L.]

Thanks, can't wait to try this!

Will that design fit into the same sized box as the wooly mammoth? Trying to save some room on my board

The last one I built was in the same size box as the Vex. I imagine any of the options in this thread would.



[moose23]

Soon as I get paid for house sitting, I am going to make one of these. But I'm going to change out the pinch pot for a trimpot, and wire the wool pot in the side of the enclosure so I can adjust it with my foot.

Cause I mean, really, how often do you adjust things like a noise gate?

It's nice for synthy stuff. I've never used/needed a trim pot with silicon transistors. Moving the wool pot would be handy though.
