ZVex Wooly Mammoth alternative or clone?
- Thread starter silky smoove
- Start date
The bad things is I REALLY REALLY want to run an octave down into it, but unless I install a thing to help with the impedence, it will sound bad...:scowl:
Stupid Fuzz Face clones. WHY DO YOU HAVE TO RELY ON LOADING DOWN MY PICKUPS AND STUFF.
yeah. I mean, it's a Micro POG. it will octave ANYTHING. and plus I'm using a Fuzz Face, Hi-Fi it ain't...
I guess it wont be a problem! Plus it will sound awesome and stuff most likely.
A trim pot and a regular pot are the same thing (variable resistor), only one is designed to be used as an adjustable knob, while the other is in a more enclosed housing for 'set and forget' type stuff.
Thunderscreech, why do you want to remove the wool knob and replace it with something that will require you to open the enclosure to change? If you just directly swap the regular pot for a trimmer, then changing your fuzz setting will be a pain. I think I'm missing the point here...
EDIT: Just re-read the post... Got my pots mixed up. You said Pinch!! Even though... The pinch knob is kinda cool on the WM. You're right though. It probably is the least tweaked of the lot.
A trim pot and a regular pot are the same thing (variable resistor), only one is designed to be used as an adjustable knob, while the other is in a more enclosed housing for 'set and forget' type stuff.
Thunderscreech, why do you want to remove the wool knob and replace it with something that will require you to open the enclosure to change? If you just directly swap the regular pot for a trimmer, then changing your fuzz setting will be a pain. I think I'm missing the point here...
EDIT: Just re-read the post... Got my pots mixed up. You said Pinch!! Even though... The pinch knob is kinda cool on the WM. You're right though. It probably is the least tweaked of the lot.
I'm gonna mount it on a piece of PC board so that way it can sorta poke up through the top of the enclosure for quick adjustment if necessary.
Oh yeah, I'm also making one of those pickup simulators so I can run my Micro-Pog in front of my Pelageated Loxodon (the working title for my Mammoth clone).
Thanks, can't wait to try this!
Will that design fit into the same sized box as the wooly mammoth? Trying to save some room on my board

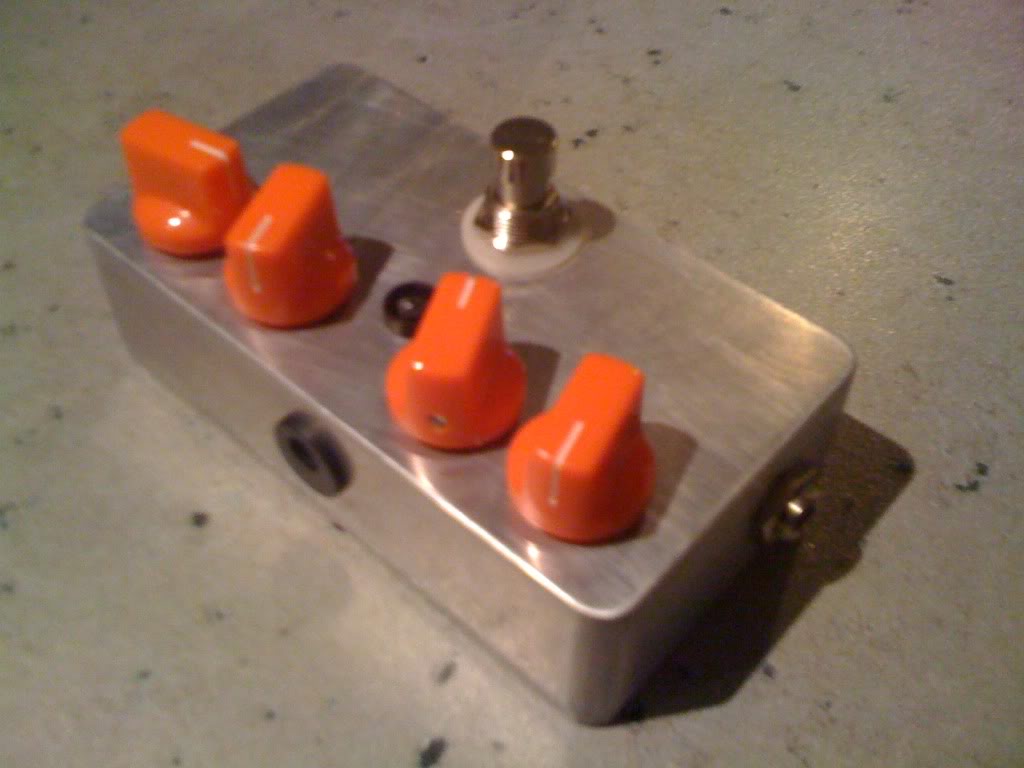

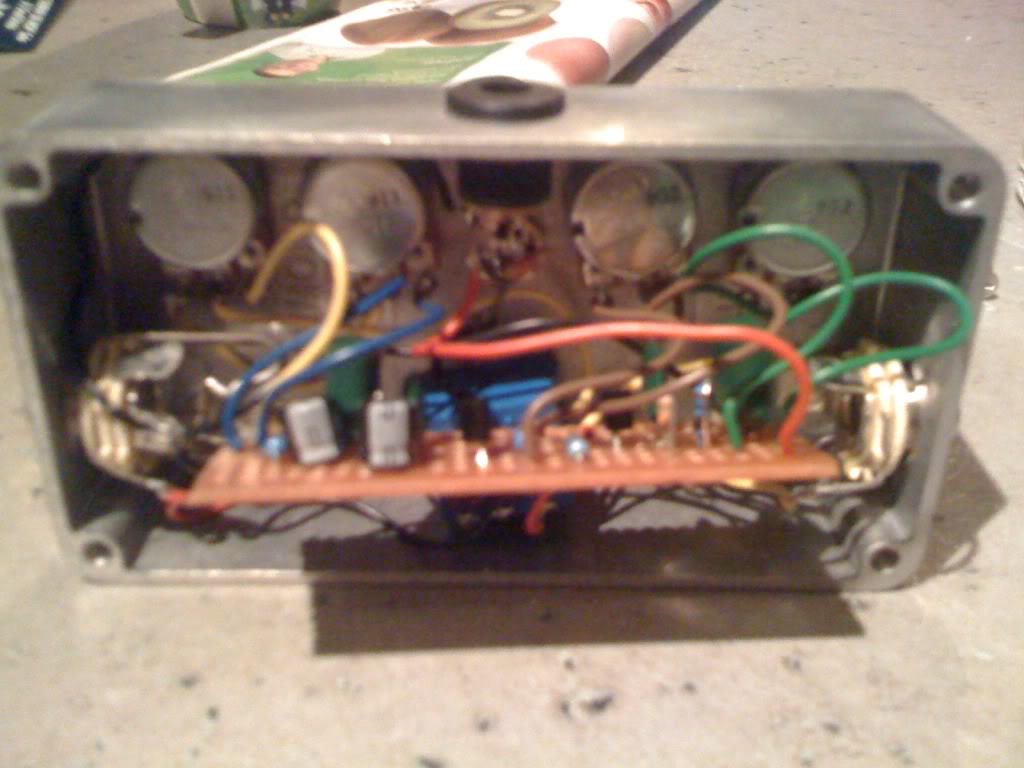

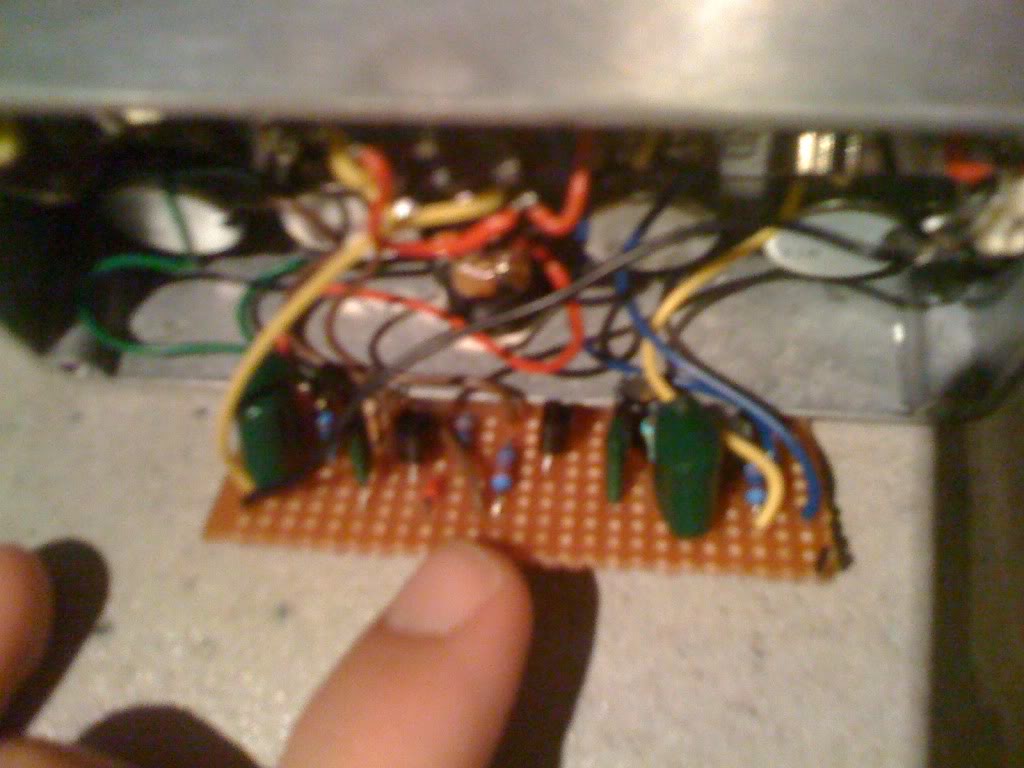

I built one a while ago using the layout shown. Mine is in a 1590B enclosure. Fits well, but no room for a battery if that bothers you? Here are some crappy phone pics. Excuse the mess in the pedal too. It was a Saturday morning 'for the heck of it' type project. Wasn't intended to be shown off!
A trim pot and a regular pot are the same thing (variable resistor), only one is designed to be used as an adjustable knob, while the other is in a more enclosed housing for 'set and forget' type stuff.
Thunderscreech, why do you want to remove the wool knob and replace it with something that will require you to open the enclosure to change? If you just directly swap the regular pot for a trimmer, then changing your fuzz setting will be a pain. I think I'm missing the point here...
EDIT: Just re-read the post... Got my pots mixed up. You said Pinch!! Even though... The pinch knob is kinda cool on the WM. You're right though. It probably is the least tweaked of the lot.
Yeah I know the difference. I actually presumed he meant adding a trim pot for bias instead of the pinch/gate.
Ah, sorry
No need, I should have been clearer.
@ Thunderscreech, are you talking about using a trim pot to adjust bias or to work the same as the pinch pot?
@ vene-nemesis, I've used cheapo green film caps with great results.
I wouldn't use the word "overkill" since Fuzz Faces have been build using some VERY expensive parts, but you probably won't hear a difference.
I built one a while ago using the layout shown. Mine is in a 1590B enclosure. Fits well, but no room for a battery if that bothers you? Here are some crappy phone pics. Excuse the mess in the pedal too. It was a Saturday morning 'for the heck of it' type project. Wasn't intended to be shown off!
Wow thanks! Nope, no need for a battery
But I have a question now, using this schematic, can it be powered by a regular old 1-spot? (pardon my newbness
)
Wow thanks! Nope, no need for a battery
But I have a question now, using this schematic, can it be powered by a regular old 1-spot? (pardon my newbness
Yep no problem with a one spot.
Here's two I built for friends. Someone else did the artwork on this one after I handed it over.
Link Removed
Made this one bigger so that a battery could be used:
Link Removed
Link Removed
and the one I made for myself:
Link Removed
Dang YouTube, I've gotta remember my password
I posted a pic a page or two back. I made one for another TBer that I had forgotten about. The second one was not my favorite, by far, but he said he's happy with it
My main gripe with that one was how long it took me to complete it. I suck
Ok...so I just recieved the woolly mammoth (the real thing) and it pretty much sounds the same as the clone I used to have but a bit warmer and having more bottom end. It might just be the placebo effect but the mammoth is definitely a keeper. I can see myself keeping onto this for all my fuzz needs.
