ACG Finished Work.

I've had the opportunity to work with the jigsaw, router, sander, and their drill. Every piece of equipment they put out is high quality and the dust collection works great. My neighbor used to work for woodcraft and got a great deal on them one christmas, I'm glad I got to be exposed to such great tools.

You can hook them up to any shop vac, it just may require a little ducktape to get the right fit haha.

Would you mind showing some pictures of your shop? Or if you already have I'd love to take a look, I'll take any inspiration I can get.

Thanks

Greg

Always a good idea to have everything that makes dust connected up to an extractor. I have Makita sanders Bosch and Hitachi routers all of which hook up to a shop vac. I would love a down draft table for hand sanding as well. An air scrubber is worth having to leave running for an hour or so after finishing and dusty work.. The Festool stuff over here despite the fact that it is a European company is seriously expensive. I would love a router and a couple of there sanding machines but I have other stuff I would like before then.
Next time I tidy the shop I will takes some pics.

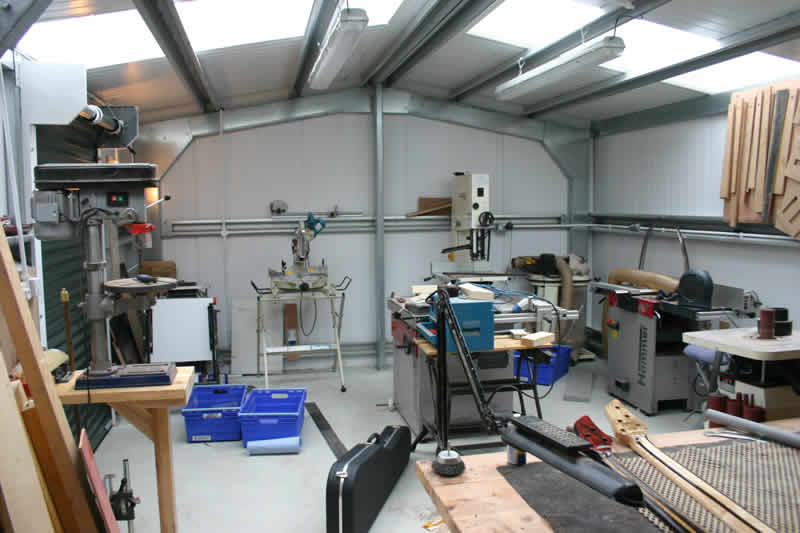

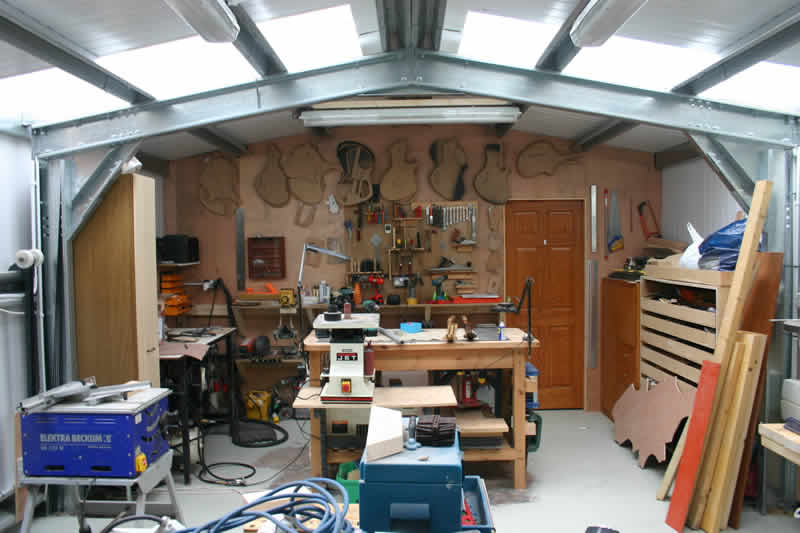

Some old pics just after I moved in.

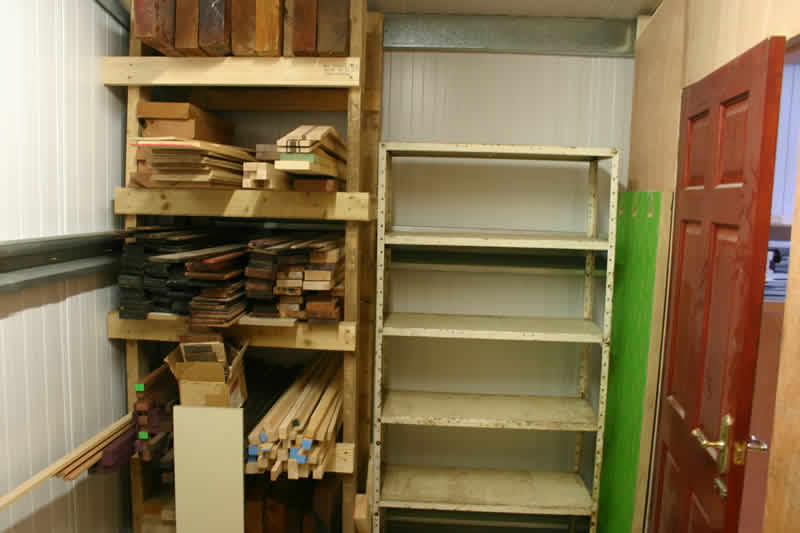

Wood store before I filled it up.





More machines in it now and more wood and general mess.
I so need m ore space the same as everyone else no doubt.

Those were probably intended to go to the "Build Progress" thread, but thanks for sharing, Alan!

They're all very striking, but the cocobolo board on the Gallus headless is actually grabbing my attention more than just about anything else--what a gorgeous piece of wood! I really like how the red-brown color is complemented by all the other woods on the bass, as well, so that everything just "fits". :hyper:

Speaking of cocobolo, it's great to see that Finn SC again, as well. I noticed it in the gallery a while back, but it seemed like it was further down in queue. That should be a spectacular bass, as well!

Of course, they all will be spectacular basses! :) This is the first I've seen of that 7-string Recurve S, but the neck laminates are a neat combination of woods.

Cool!

Very nice looking shop Alan, making me real jealous over here across the pond.

Have you ever tried unclogging sandpaper with rubber sticks? I'm not sure where exactly they sell them but they work great on thickness sanders if you leave them running, pop open the top and then drag the rubber over the sandpaper, cleans up the clogged dust really well.

As far as a sanding table goes, my neighbor built one for himself for fairly cheap. He constructed a table that was basically 2'x3' using 2x4's mostly, glued on a rubber toping to the table, and went at it with a drill, drilling a 1/2" hole every inch across and down on the top of the table (through the rubber top and the table top underneath). then he hooked it up to his dust collector using one of the attachments the company sells, but I think it'd be fairly easy to do with something homemade that could connect to a shop vac. With a few hours of your time and maybe 50 bucks you could have yourself a real nice sanding table (although you'd probably make the table longer in order to be able to sand a neck, or a whole bass when it comes down to it).

Just sharin ideas if theyre wanted haha

Greg

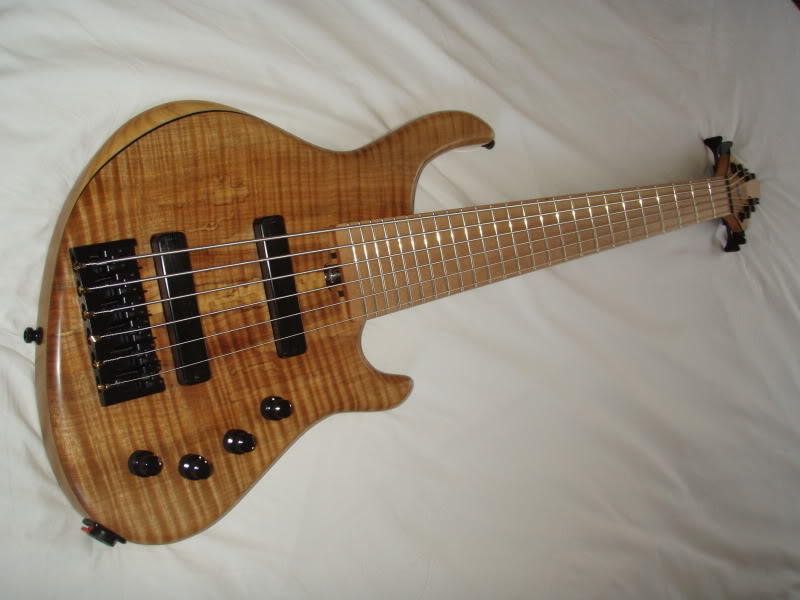

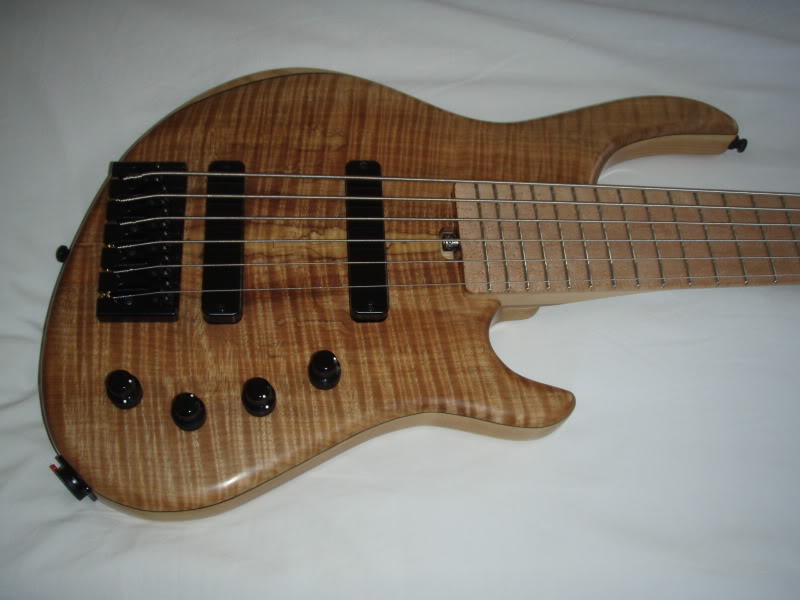

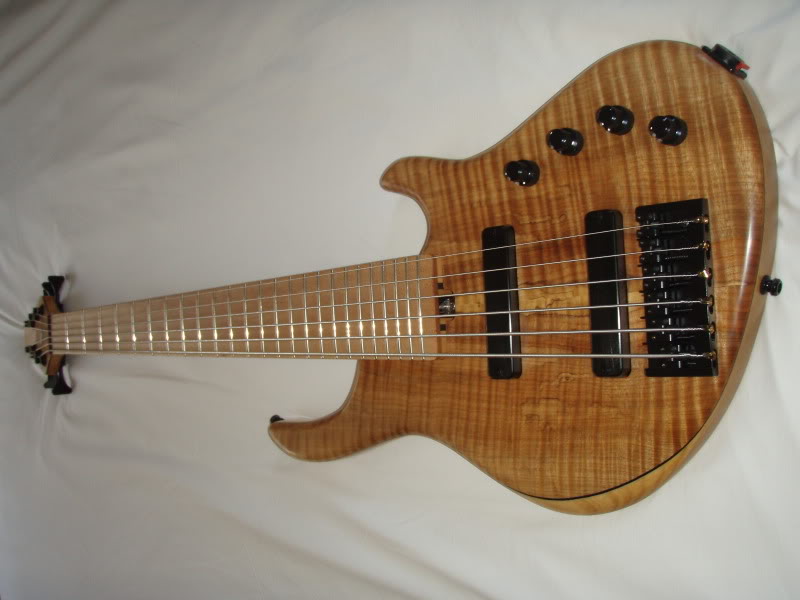

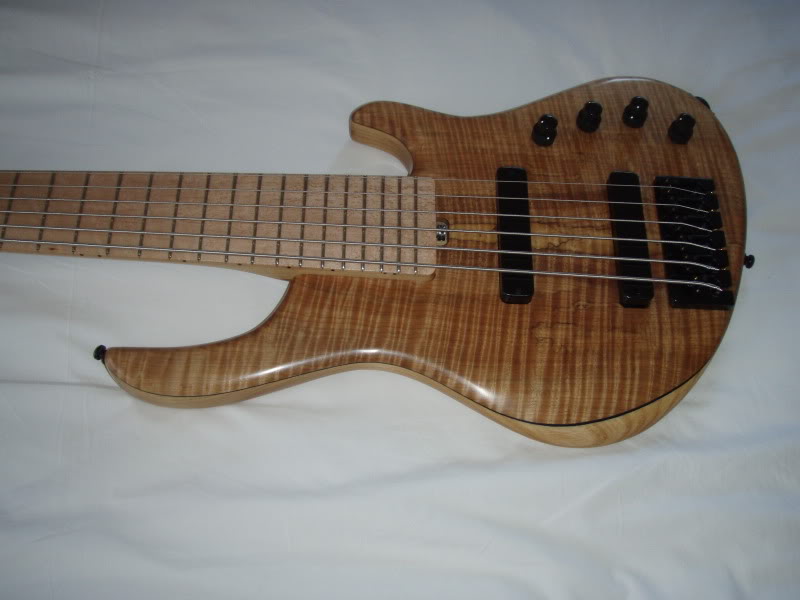

This is my ACG Finn 6 string bass – it is capable of a remarkable range of tone, stunningly low bass and rasping high end which is never coarse, it feels solid without being heavy, build is near perfect. I have been getting used to it and really enjoy playing it – so here are my considered impressions.

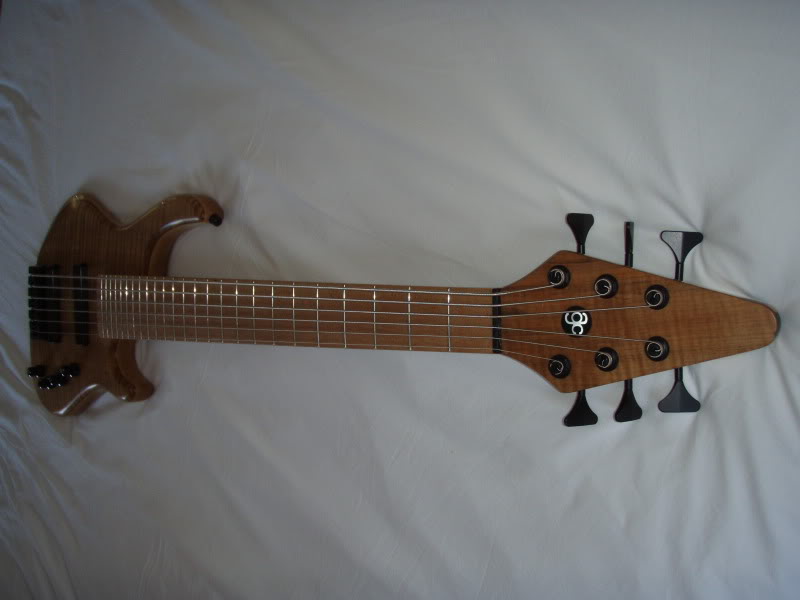

The wood choice was mine but Alan helped me through it with great patience when I struggled to make up my mind, and he indulged my arrowhead headstock design reminiscent of a Pangborn bass I own. The specification of a custom bass is actually quite bewildering as all of a sudden almost endless combinations open up to you, and I specified this bass without actually playing another ACG. Although I spent quite a bit of money on the bass, it was not a ‘money is no object’ project I would have liked flame maple in the neck and I toyed with a figured back (although I actually really like the look of the ash body so no great sacrifice).

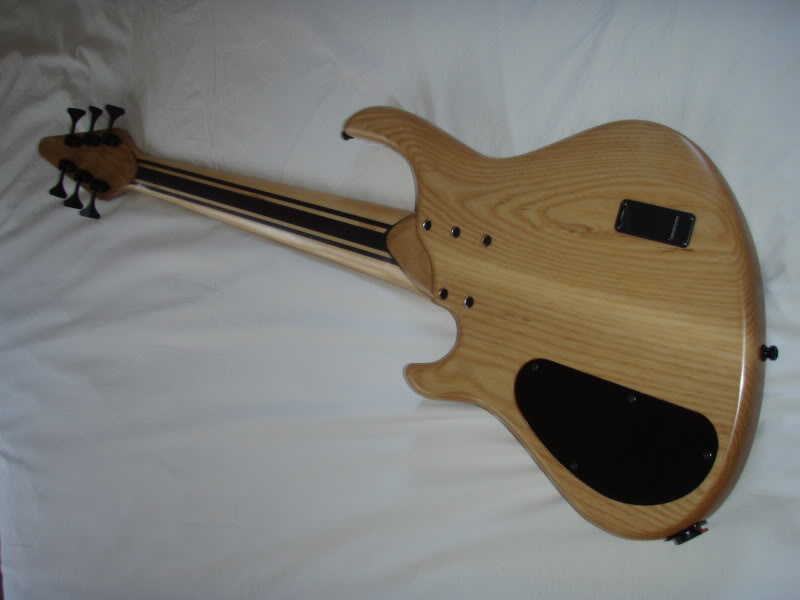

This is not a light bass but for a 6 string it is pretty good, and it feels very solid all round (in a good way). It is finished in Alan’s rubbed satin finish which very well applied and smooth, without feeling like a factory applied gloss finish which can be great but looks almost artificial or ‘too glassy’. I am very pleased with the visual result.

The neck has Alan’s asymmetric profile to it which I find makes it relatively easy to play a pretty large neck (my spec is the broader neck dimensions Alan does with 18mm bridge spacing). The ‘bass side’ of the neck looks quite thick, while the ‘treble’ side is shallower, it sounds a bit weird but works very well.

As it was delivered the action was pleasantly low, I got a tiny bit of buzz on the C string but I think this was a combination of it needing playing in and me adapting my style slightly as it has gone now. The acrylic impregnated fretboard looks like wood but I think it gives it a harder ‘pinging’ quality to the basses tone (think Status but more woody), this actually is quite demanding on your playing technique as you do have to play cleanly.

The access to higher frets is not a huge issue for me personally but it feels good on the few occasions I get near them. I prefer bolt on necks just in case of disasters and it keeps the cost down. I know there is a lot of debate about through necks giving different sustain etc. but I can’t really think of a situation where I could use more sustain than this bass gives. In fact if anything it is hard to stop strings ringing and it has made me adjust my damping technique as a result, not a fault of the bass.

The pre-amp has pickup specific filters not unlike those on a Wal with an additional hi end filter control, these enable you to sweep the frequency and gain on the filter, this is a bit like a parametric filter with boost and cut but it amplifies only the frequencies below where it has been set. When set at low frequencies it gives a really deep warm rumble in the felt as much as heard territory.

To set my sounds up on the bass I tend to adjust the neck and bridge pick tones on their own then sweep between the two pick ups to get the sound I like for what I am doing (the front control is master vol and pan pot). There are the tone controls for each pick up and the back control is a sweepable high frequency. It sounds complicated, I had forgotten what precisely each control did from the time I specified it, but it starts to feel fairly natural after a while. The electrics are 9v but there appears to be loads of head room and it is pretty loud compared to my other basses.

The bass is very clean and precise sounding with great depth and warmth (never sounds sterile) but also can produce some shimmering top end - I have never had a bass which is so capable of producing both these tones at the same time. It is one of those basses that can be played solo and still sound really good, the nearest bass to this I have played would be a Zon I test played a while back although the eq feels far more flexible to me. Perhaps the trade off is that you spend a little bit more time ‘tweaking’ sounds out of it but again it is not a problem for me, in fact I love it.

It would struggle to sound like a Fender which often can sound less focused, sometimes that is a good sound but not always, I have yet to play it in a band context (for which I usually take a Squire Jazz Bass V - cheap but very capable). I will try it out in the covers band at some point but I suspect i will rolling off a bit of the hi frequency filter for that..

Alan did a great job for me and I think his work is superb - so much of our impressions of instruments are based on our personal views and preferences, but having owned a Wal, and still owning a Pangborn and a couple of Shukers as well as scratch building 2 basses of my own I feel qualified to say Alan's work is up there with the very best.

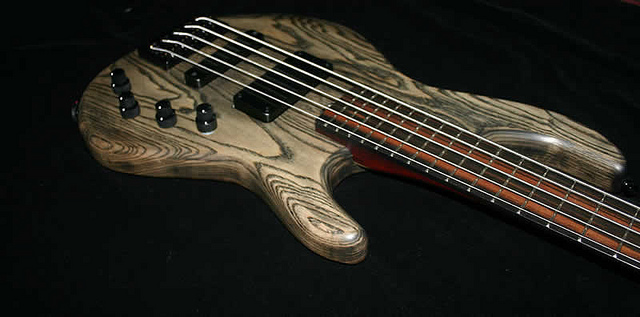

Looks great as usual, Alan! I like this "jazz" shape quite a bit, and the dirty ash finish really complements it. Looking forward to hearing feedback on the P pickup. Are the coils arranged like P, or a reverse P with the D G string coil more towards the neck?

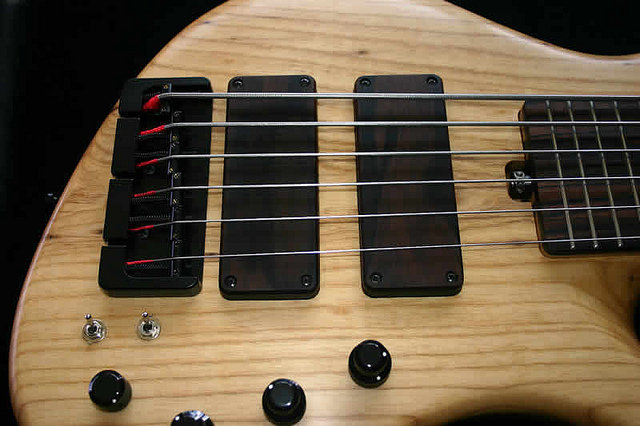

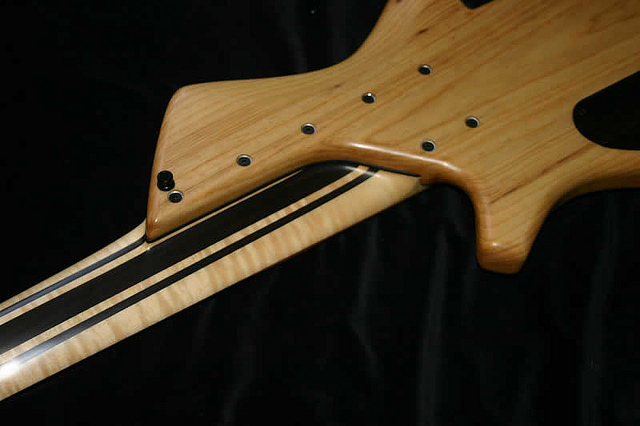

This is one classy beauty, Alan! I've been following it for a while--the RFS pickups and ebony covers were added to the spec later, weren't they? And is that a macassar ebony control cover, as well? They're definitely a nice touch, to go with the mac ebony fretboard and neck laminations.

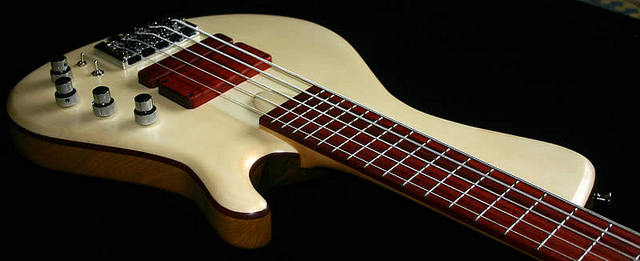

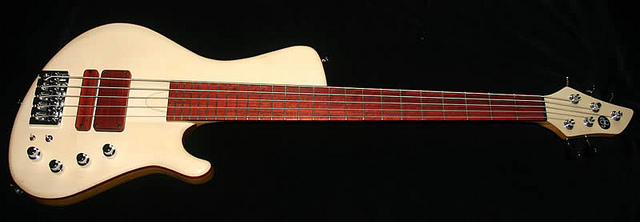

Holly top with Bloodwood accent and Black Limba body.
Body is chambered.
3 piece Northern Ash Neck with an Acrylic Impregnated Bloodwood board 32" scale tuned E to C.
Bloodwood pickup covers on the RFS and SB pickups. Bridge pickup switchable with Hipshot/Graphtech piezo bridge.
ACG EQ01 pre-amp.
Standard ACG satin finish.

Pickup covers were made by Haydn Williams.











Gorgeous, Alan! We've been looking forward to seeing that one completed.

The color on that Holly top is just amazing, and the bloodwood accents tie everything together very nicely. It seems like most of your instruments end up with black hardware, but the chrome definitely works on this one.

I notice this one and the chambered leopardwood Skelf you finished a few months ago have matching truss rod covers, which look really nice. Is that something you do by customer request, or for particular types of basses? I don't see any screws--how are they held in place?

Mike
