Amp Guts Photos - Official Thread - Lets see those pics

[disssa]

Ashdown CTM15

[Invalid or Expired Link Removed]

[Invalid or Expired Link Removed]



[Jeff Scott]

Ashdown CTM15

[Invalid or Expired Link Removed]

[Invalid or Expired Link Removed]

So, only the power amp stage is tube on it (along with the phase inverter I assume), the preamp looks to be IC based?



[MuthaFunk]

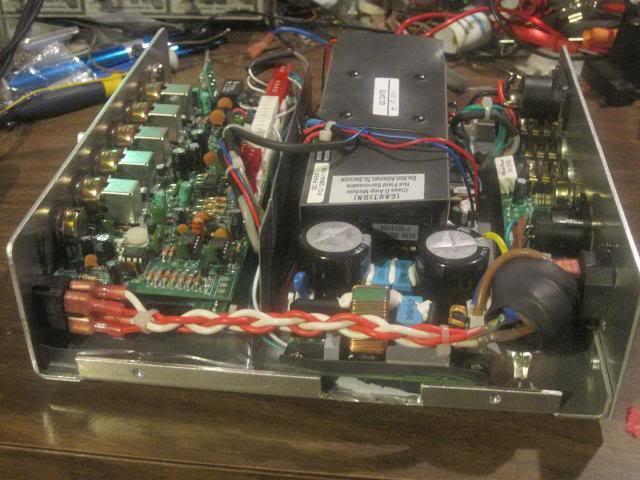

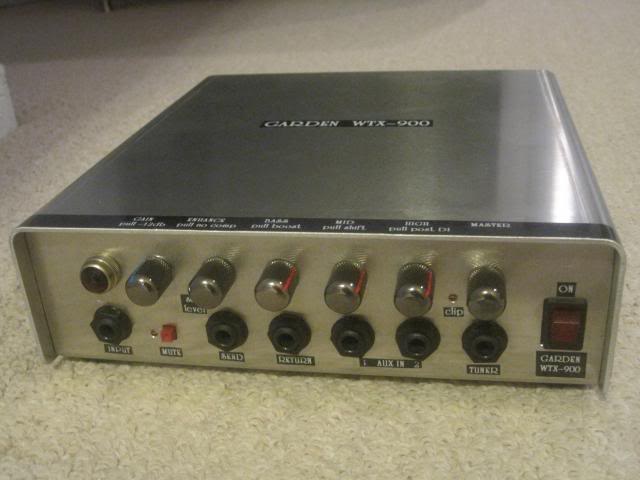

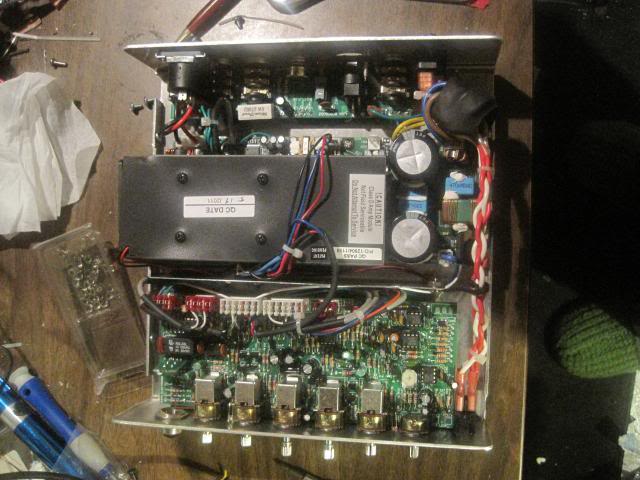

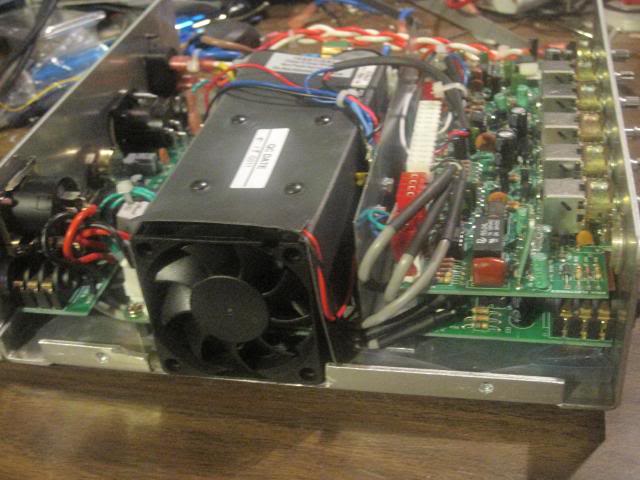

My homemade Genz 9.2 power section married to an Eden WTX preamp in one chassis. I called it the Garden WTX900:

9"X9"X2.5" - 5lbs, 900W rounded corners for the ultimate in gig bag friendly high power.



[BillyB_from_LZ]

My homemade Genz 9.2 power section married to an Eden WTX preamp in one chassis. I called it the Garden WTX900:

...

Do we know how this amp came to be?



[disssa]

So, only the power amp stage is tube on it (along with the phase inverter I assume), the preamp looks to be IC based?

You can also take a OP as a PI... The Ashdown HP said, the preamp is Tube-driven...



[BillyB_from_LZ]

You can also take a OP as a PI... The Ashdown HP said, the preamp is Tube-driven...

Perhaps, but in the photo, the Opamps are physically close to the input jack and the non power tube appears to be fed from the master volume control (which would strongly suggest that it's the phase inverter).



[disssa]

Yes, indeed...



[Jeff Scott]

Yes, indeed...

Hence, my comment. I am sure it is a great amp, just not an all tube one. Interesting that they followed the Music Man way of amp topology. Any other companies do this (SS pre-tube power amp)?



[MuthaFunk]

Do we know how this amp came to be?

Here's a thread I did on it.

http://www.talkbass.com/forum/showthread.php?t=1039400



[disssa]

So, only the power amp stage is tube on it (along with the phase inverter I assume), the preamp looks to be IC based?

Jepp, Ashdown answered, the preamp is solid state, only the power amp is tuby...



[Jeff Scott]

Jepp, Ashdown answered, the preamp is solid state, only the power amp is tuby...

Thanks for that update.



[Vintage-Blue]

First year Ampeg Heritage B15 with upgraded caps by George Metropoulos.



[Mr. Foxen]

Any other companies do this (SS pre-tube power amp)?

Lots, but often there is a token preamp valves among the SS preamp, sometimes on a dedicated channel. Sunn/Fender Bassman 300T, Laney Nexus, all the ashdown valve jobs with ABM preamps. Also big in Italy in the 70s, Mac and Gem have SS pres often.



[abarson]

So, only the power amp stage is tube on it (along with the phase inverter I assume), the preamp looks to be IC based?

Anyone know why there's an empty V3 socket location on the printed circuit board?



[Jeff Scott]

I can only guess that perhaps that could be for a rectifier tube if they made a guitar version of the amp?



[disssa]

No, the mainboard is used also for the Hayden MoFo 15H, the Guitar version of this low-watt-amp:

In that amp is the missing tube a "indicator"-tube, like a EM84.



[Jeff Scott]

Cool, I have never seen that type, just these like what was in my first tape recorder, a Webcor.



[DiabolusInMusic]

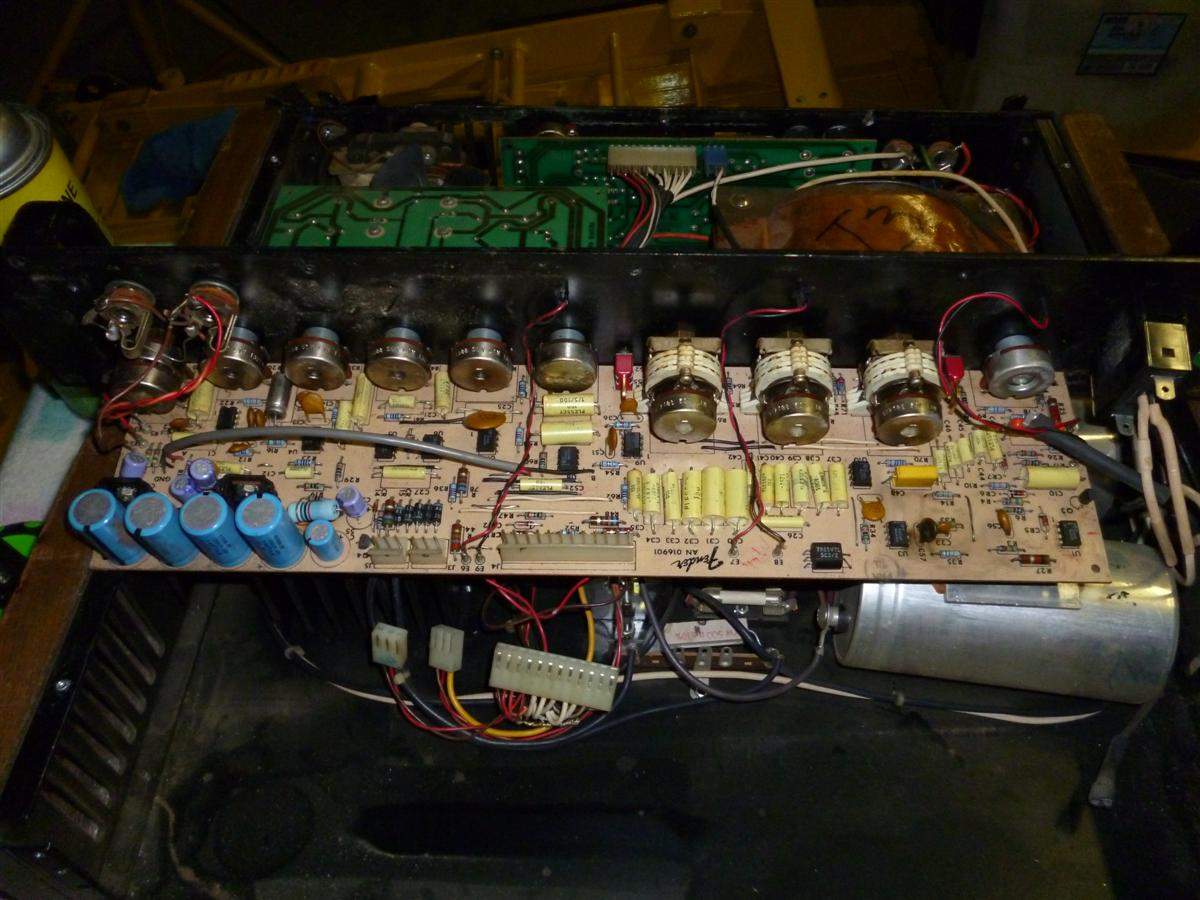

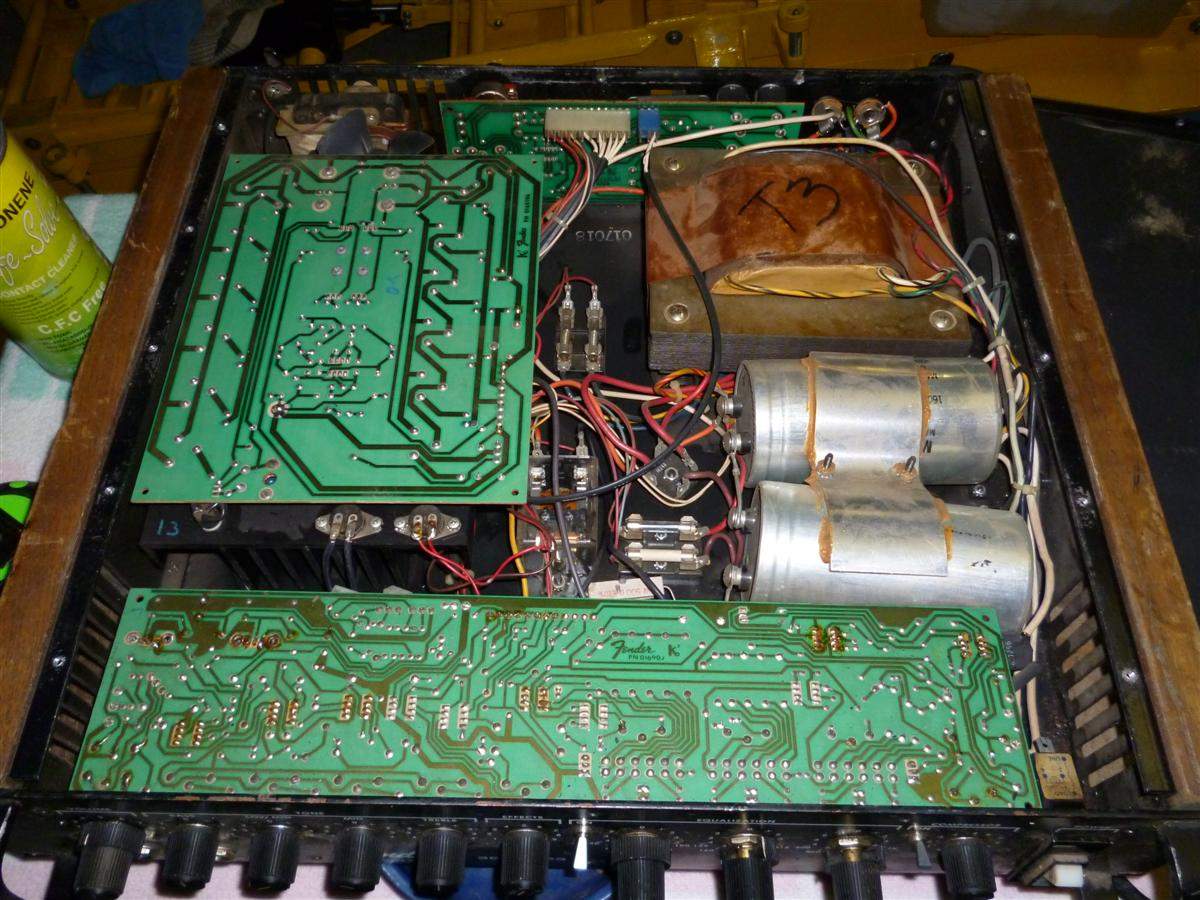

Here are some pics I took from an old Fender 300 Bass head, I started a thread looking for info but I didn't have any luck at all. I did not know this thread was here, you guys might enjoy this. Sorry they are so large.



[eldoryder]

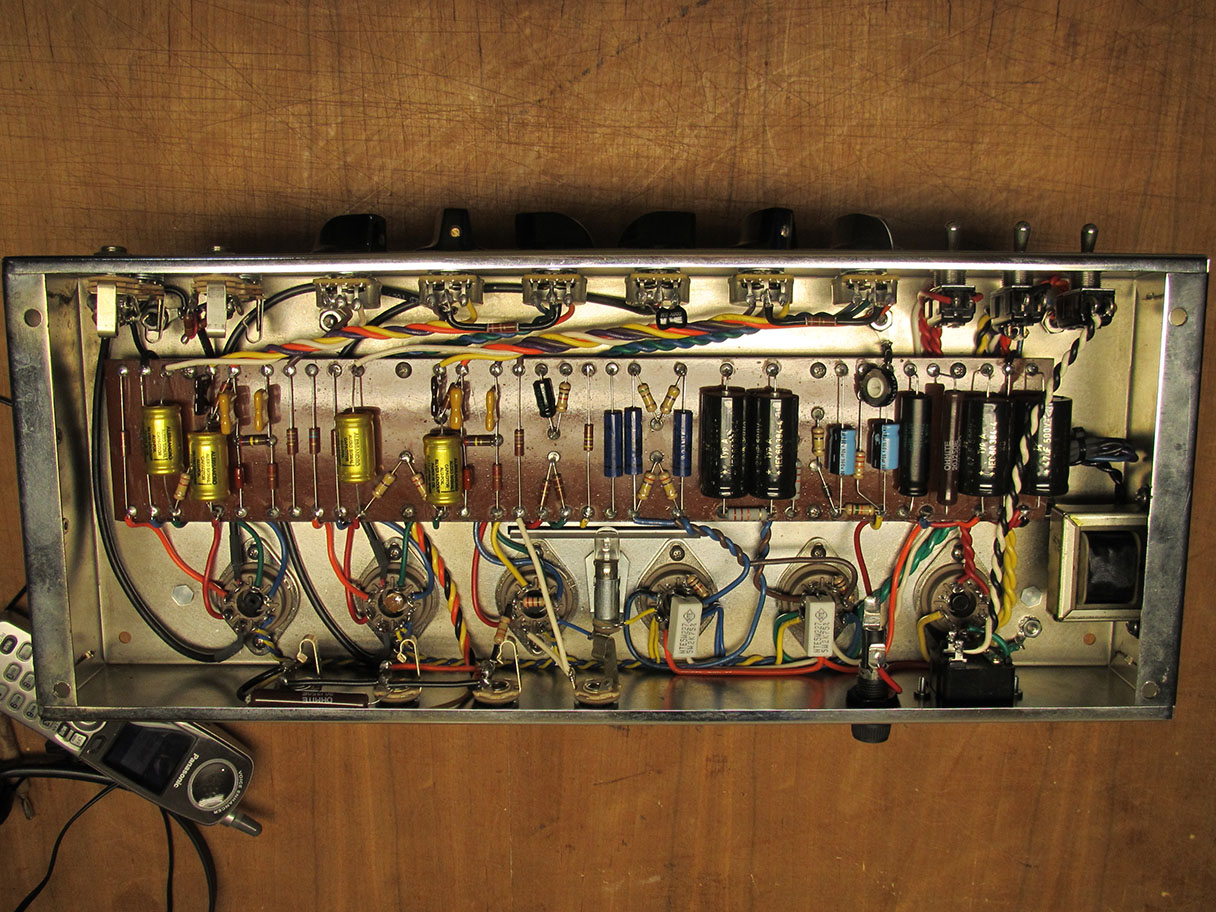

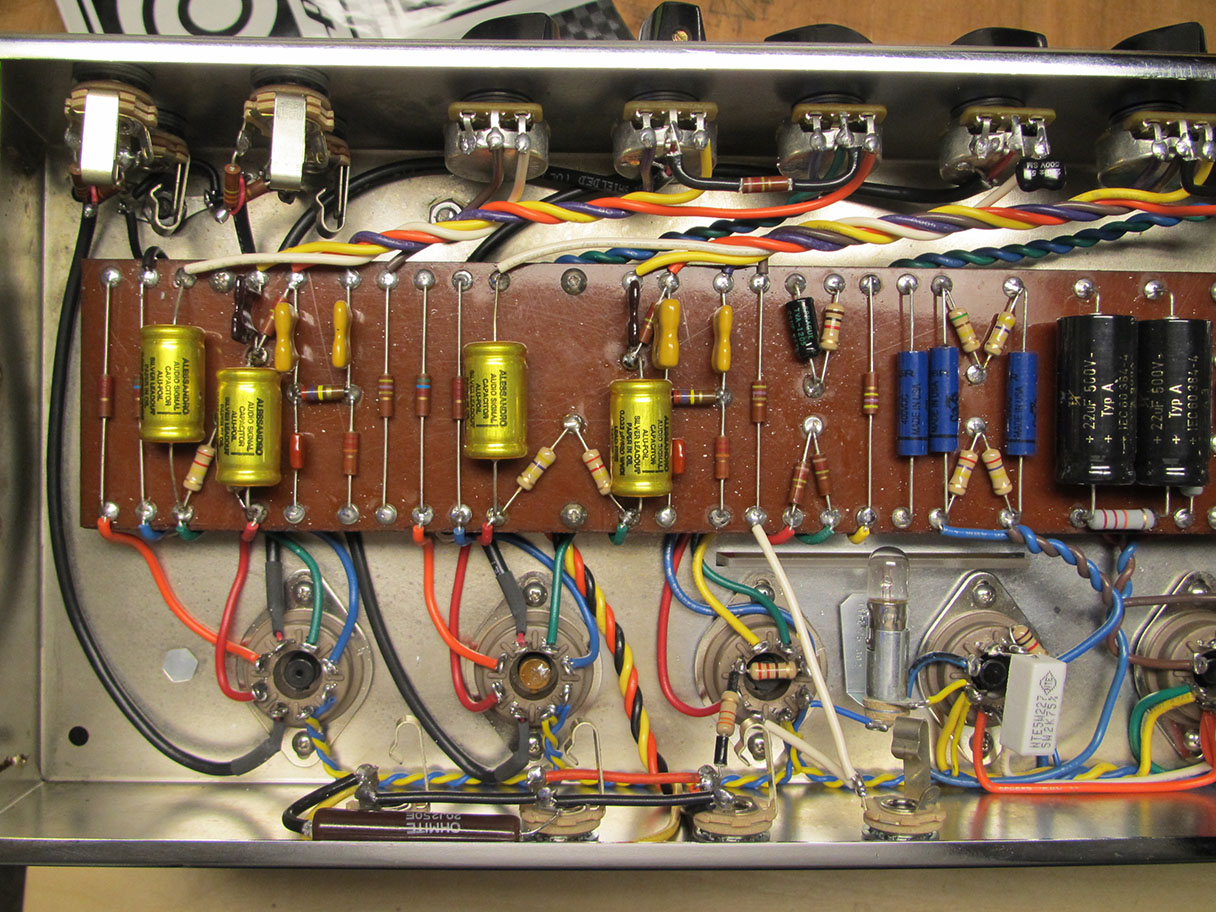

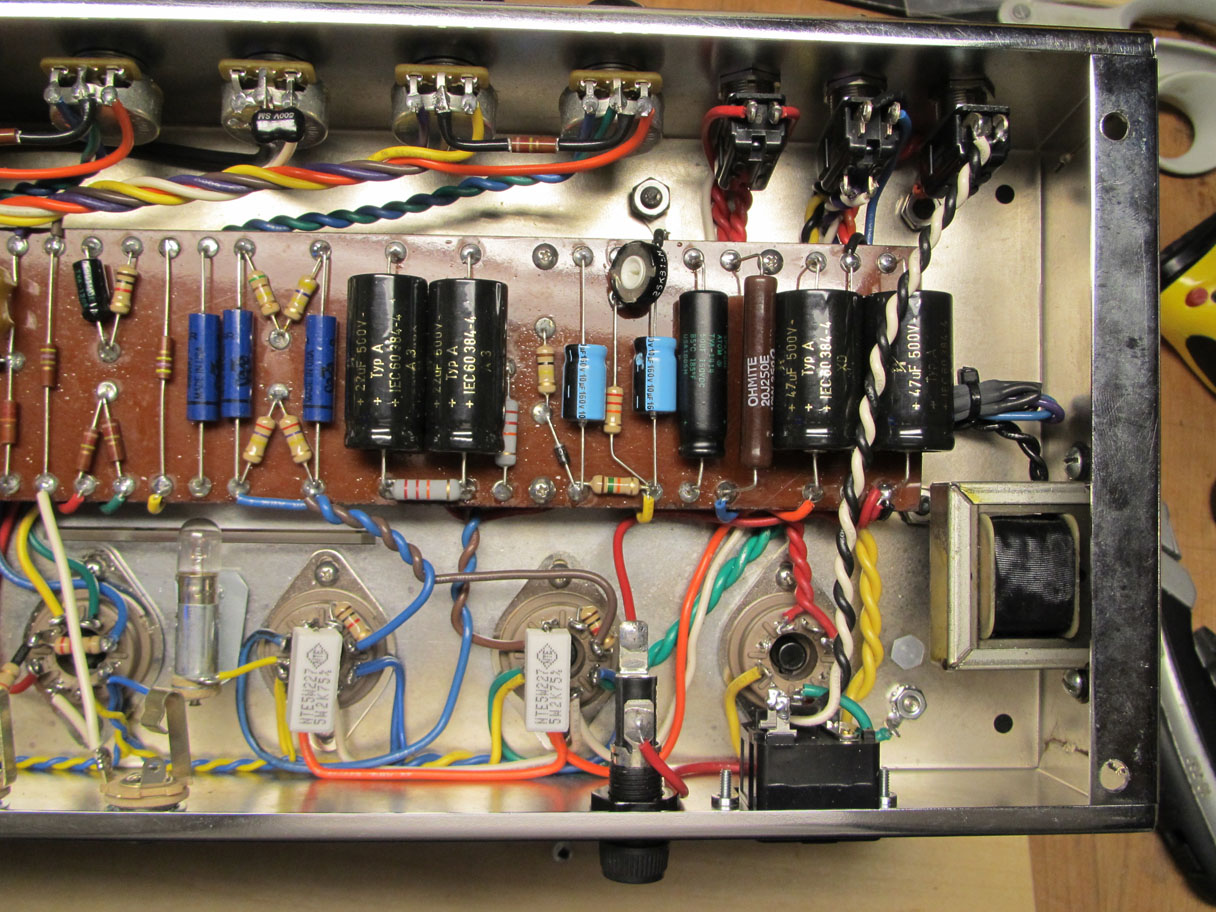

"Gutz Shot" of my brand-new, custom-made HammerTone B-100!​

NAD...HammerTone "B-100" All-Tube Bass Amp!​



[Surfnski]

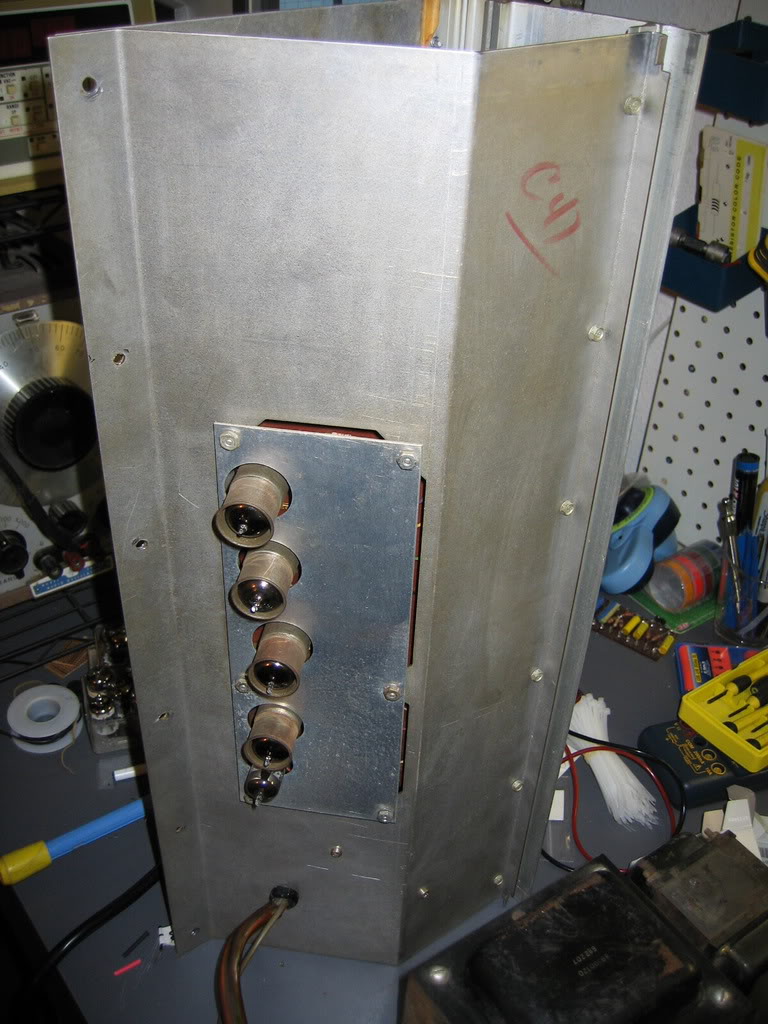

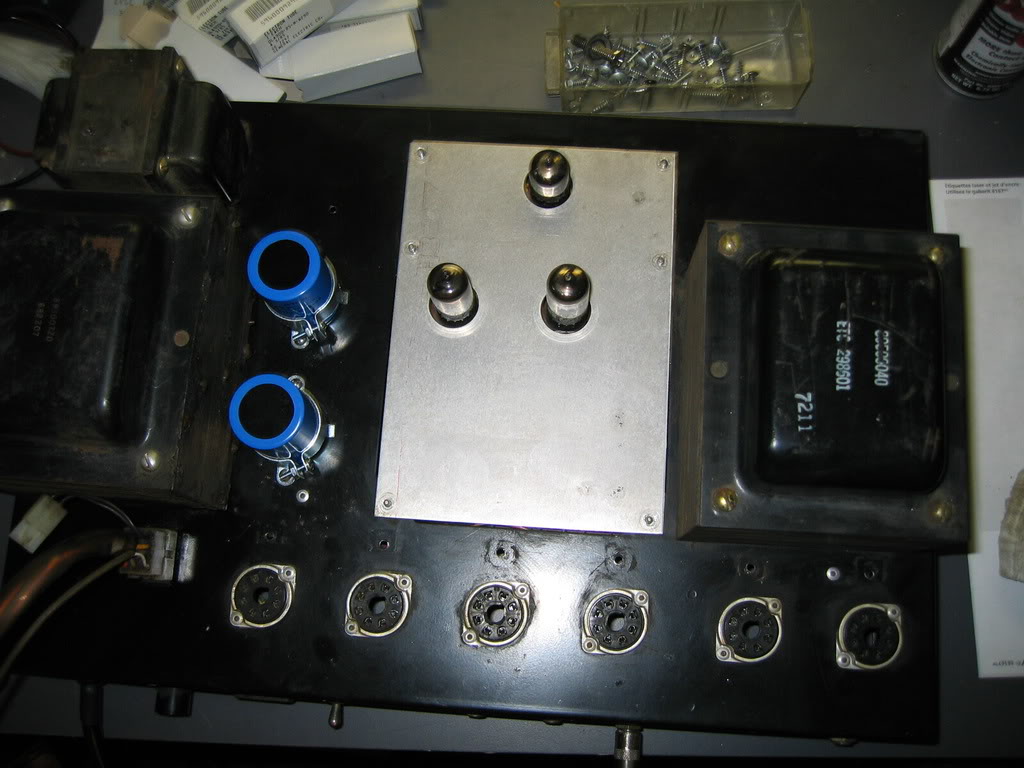

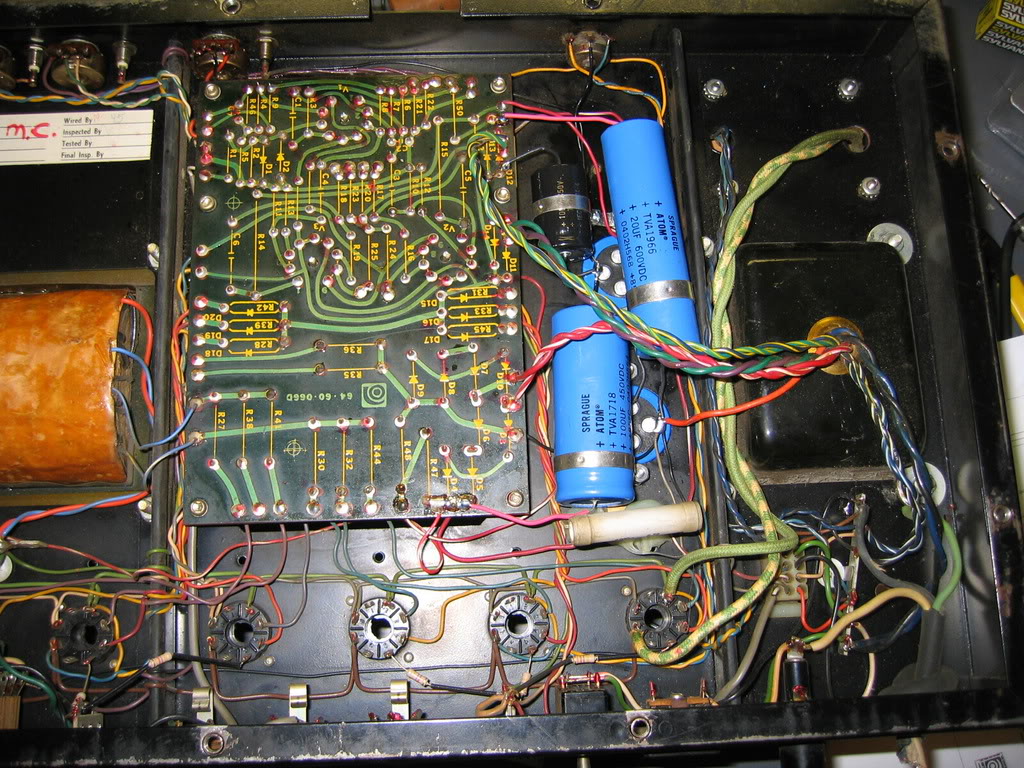

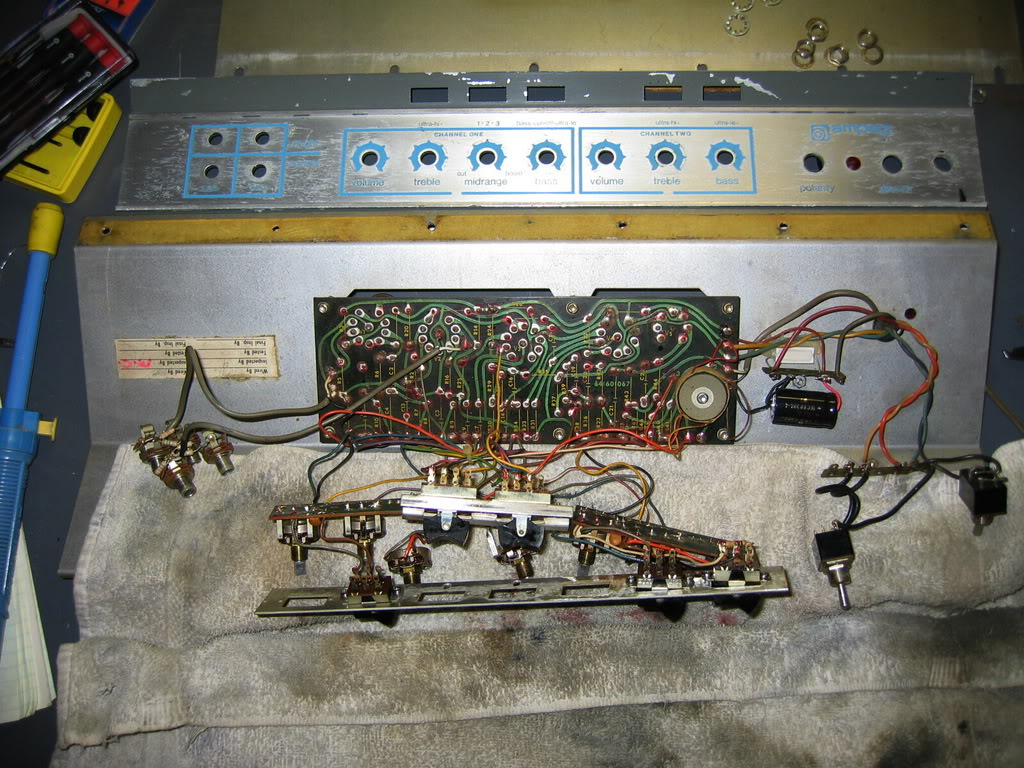

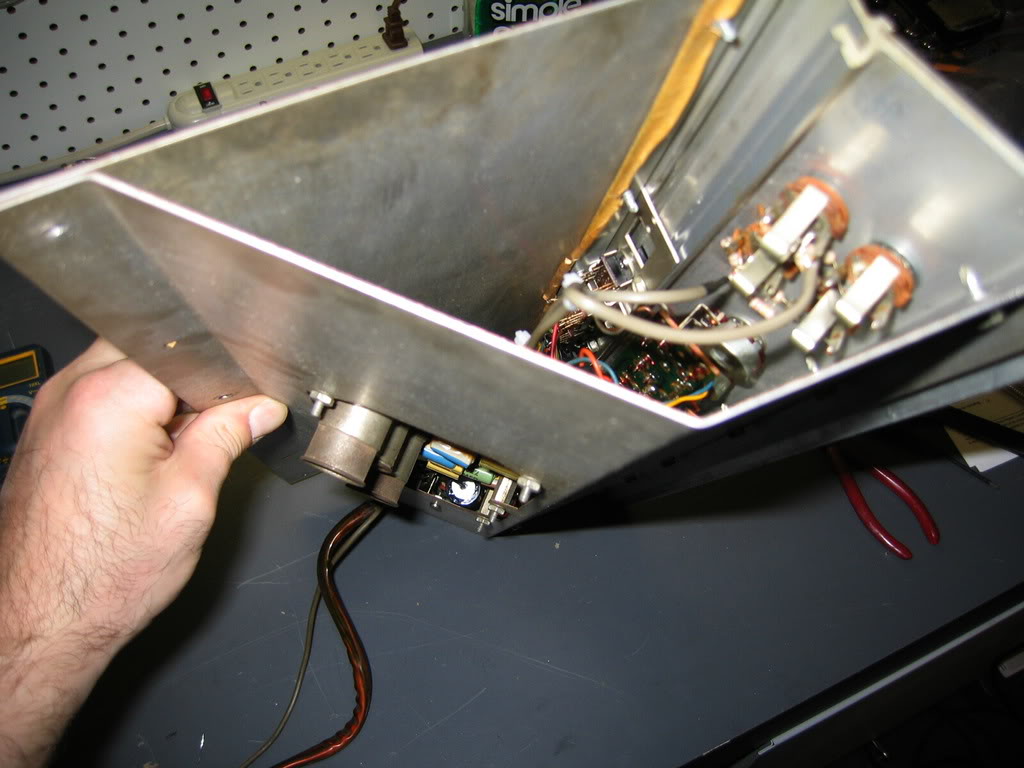

72 SVT guts:

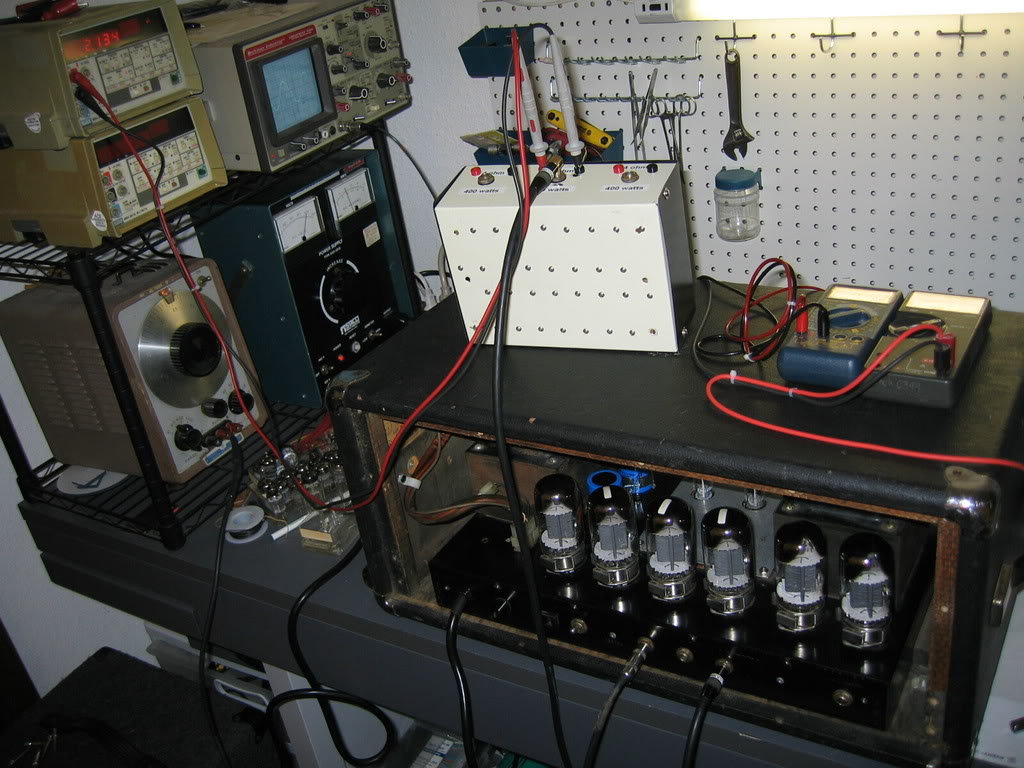

I like the dummy load box in that pic. I'm assuming you built that yourself. Got any drawings, pics or care to share specs for the resistors you used? I think its time for me to put one of these together and it's going to need to be in the 300-400 watt range.

Thanks

Bill
