Amp Guts Photos - Official Thread - Lets see those pics

Should we also add Bass Guts to this thread too?

  • Yes, Allow Bass guts, afterall Guts is Guts

    Votes: 223 28.7%

  • No way! Keep 'em seperate

    Votes: 553 71.3%
  • Total voters
    776
#1,043
Next Eminar update. It is home from the Dr having passed it's physical. I'll upload the pics from the usb prob on the weekend depending on what is going on.
Anyway... I quote:
Eminar 100 watt bass amp
All tube circuitry
Solid state rectifier
3x 12AX7 dual triodes
4x 6L6 output tubes

The amp is in good condition and suitable to be taken out for gigs.

The amp has two channels with shared tone controls. The first channel is voiced for bass and the second for guitar. The two inputs for each channel are either high or low sensitivity.

The amp is currently wired for 8ohm.... The output transformer has 16,8 and 4 ohm taps so the amp could be modified with either extra sockets or an impedence selector switch to run different impedence cabs if required.

And a warning:
The top of the output transformer has a tag strip mounted to it which is "live" when the amp is switched on. If you touch it you will receive a nasty, if not lethal, shock. This is a fairly rare setup and most amps do not have this kind of voltage outside of the chassis.
Please be careful if the amp is out of the cabinet at any time.

  • Like
Reactions: rodl2005, Snaxster and rufus.K
#1,045

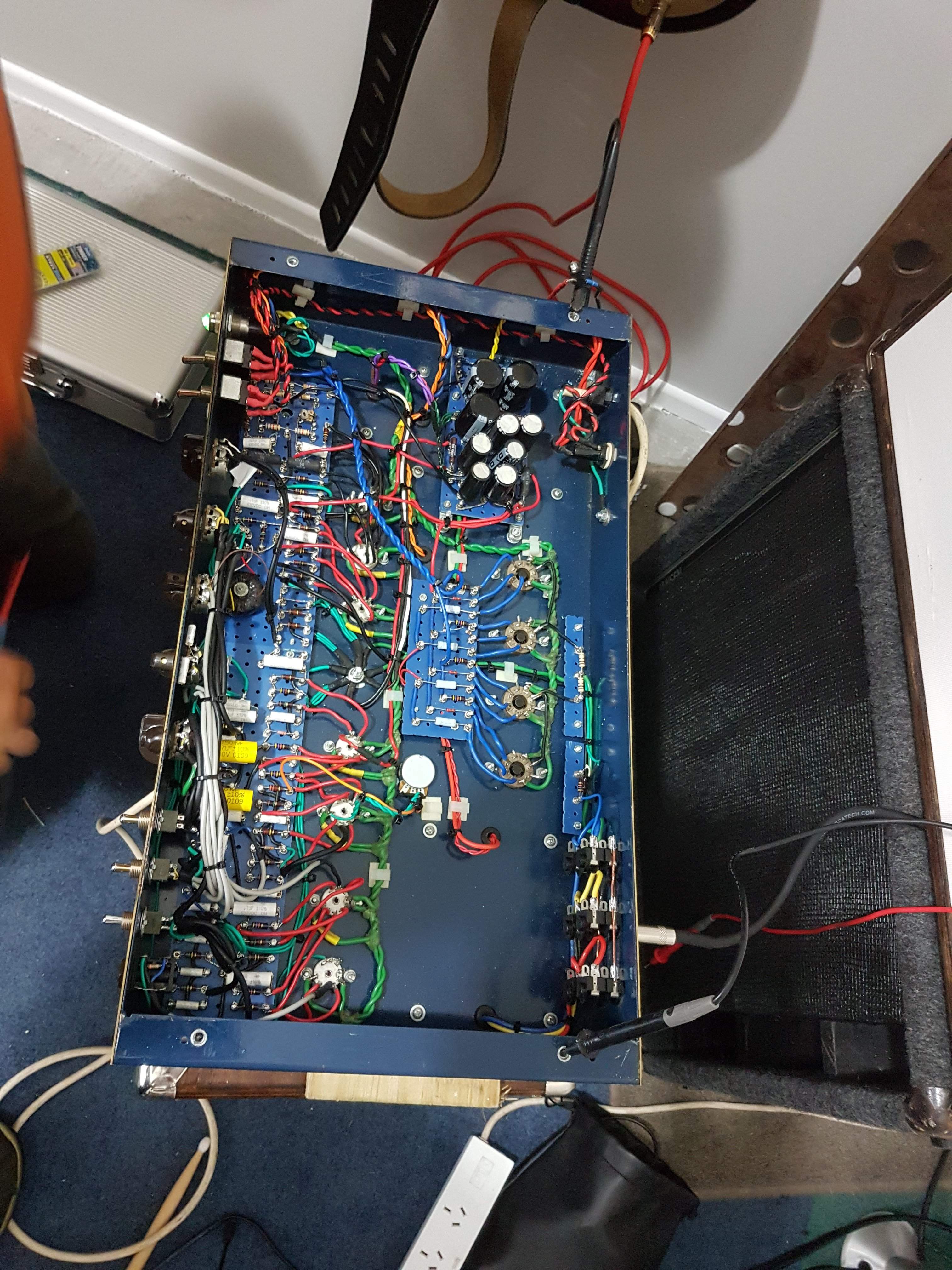

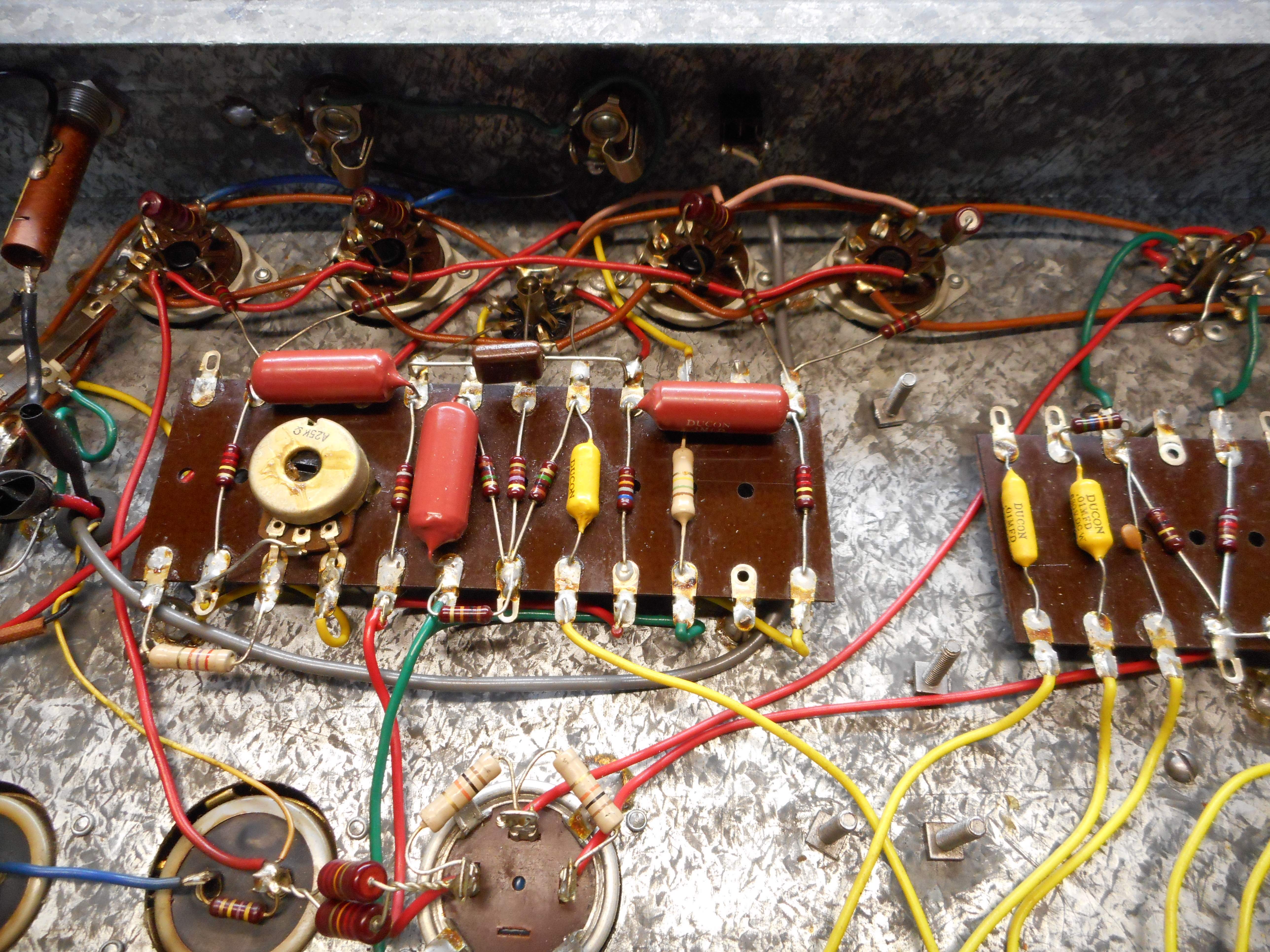

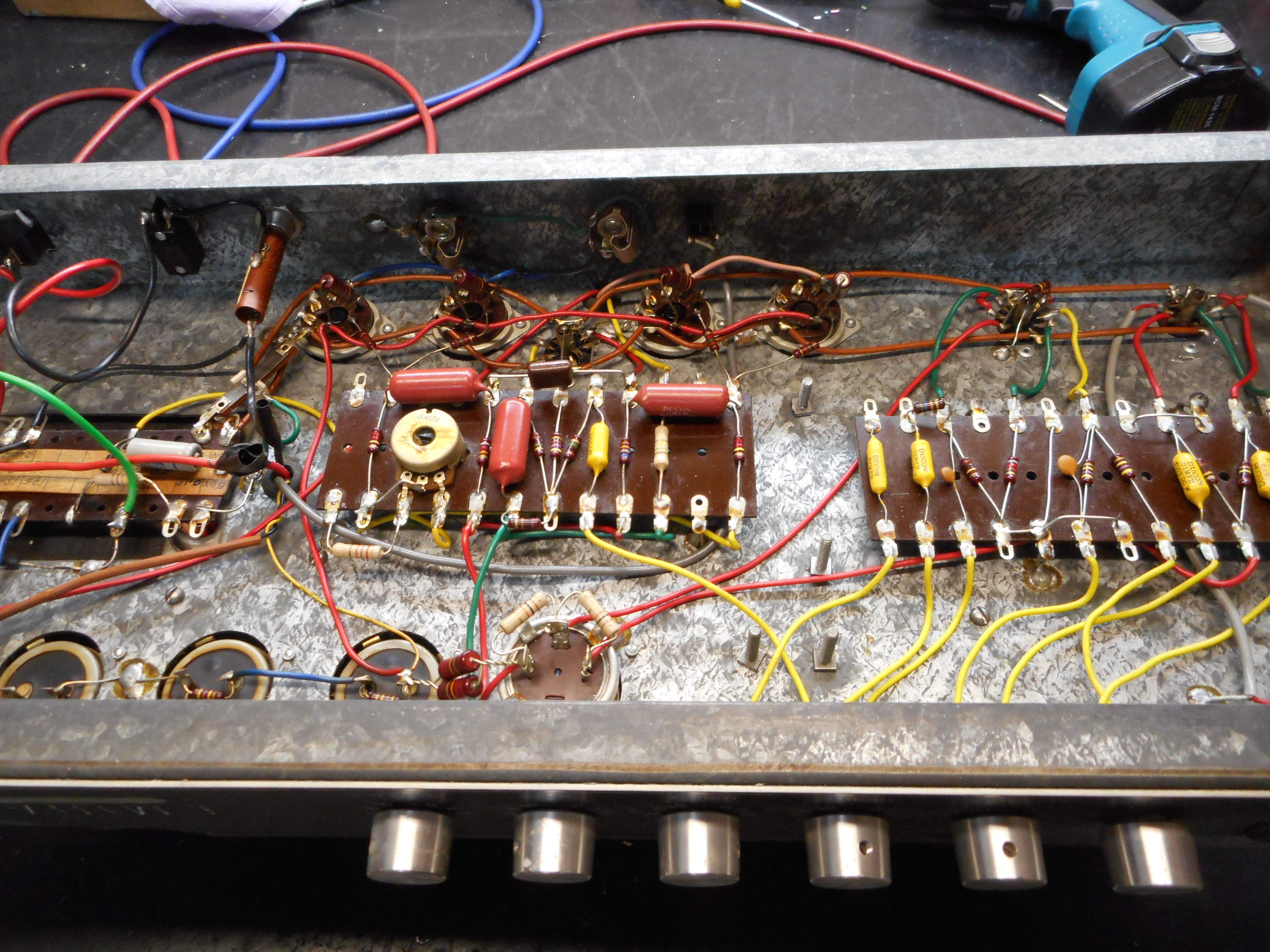

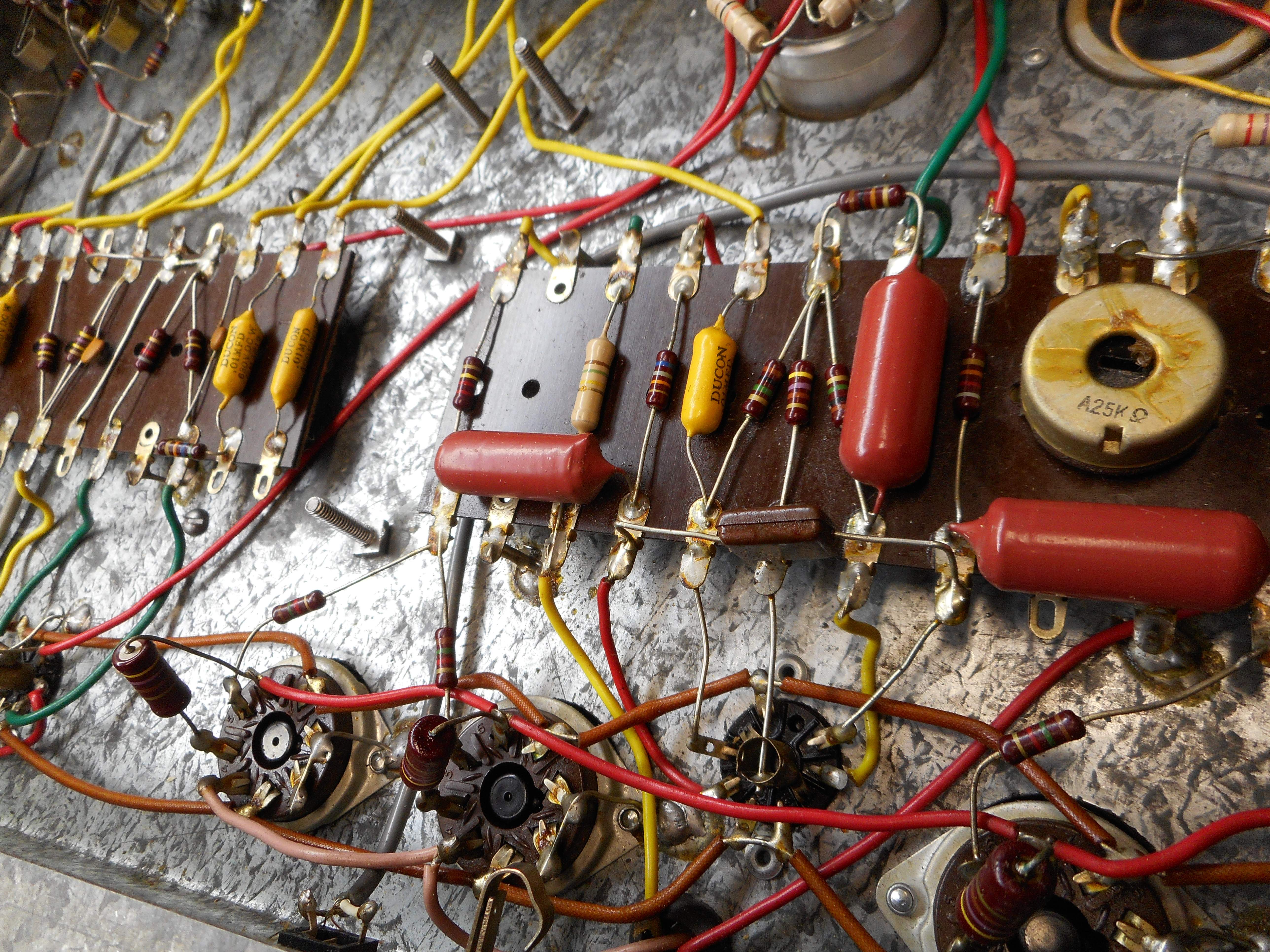

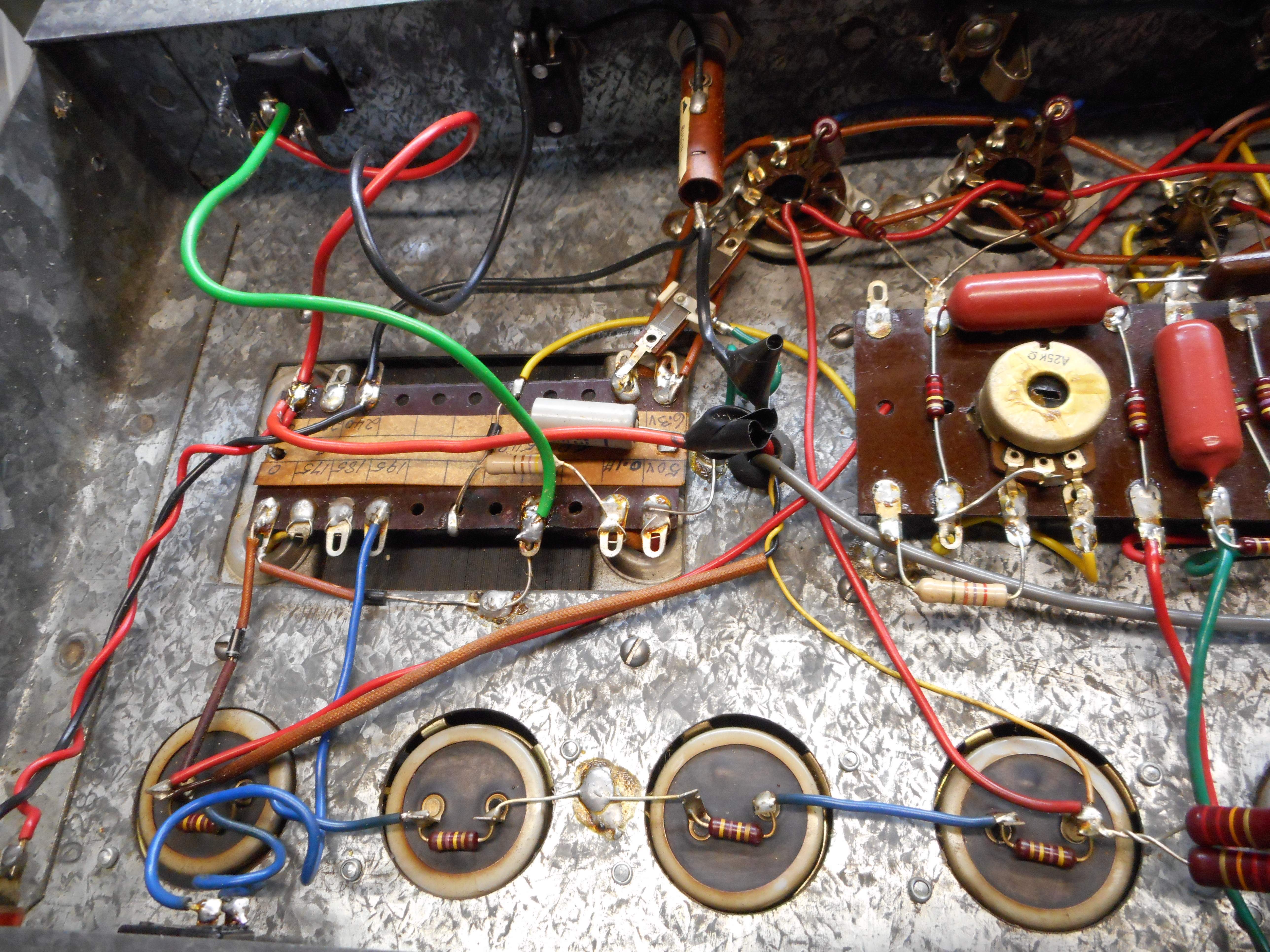

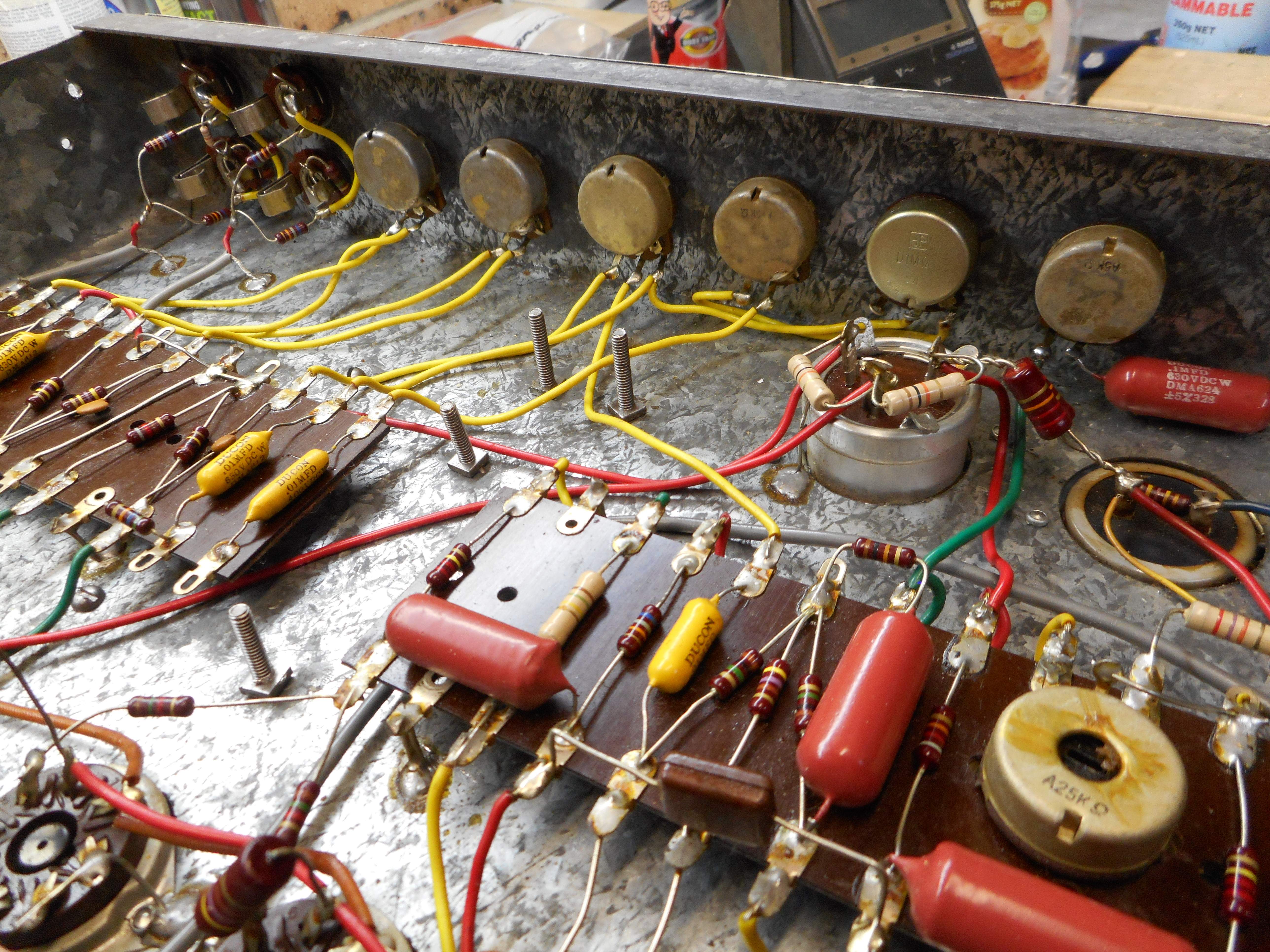

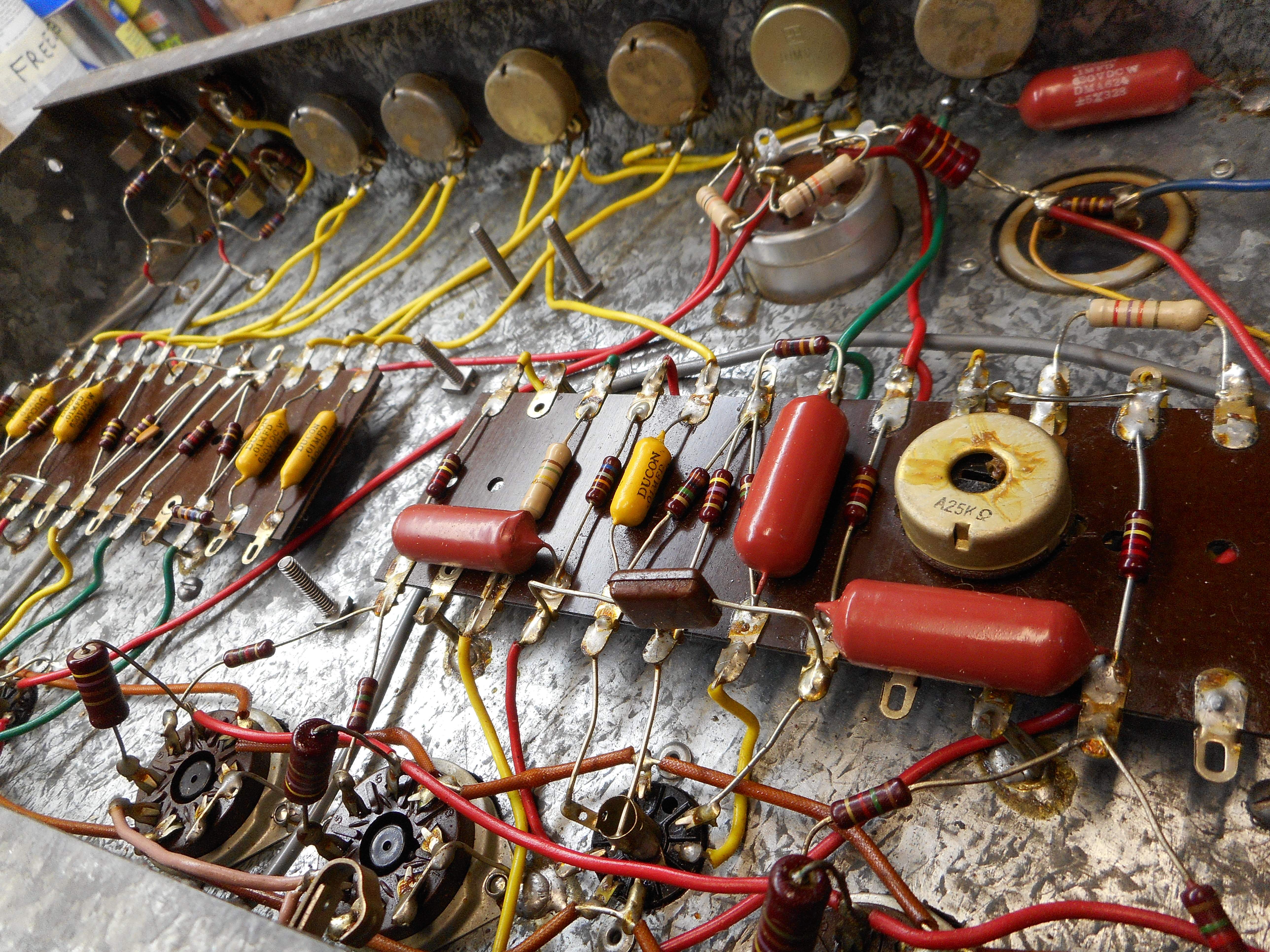

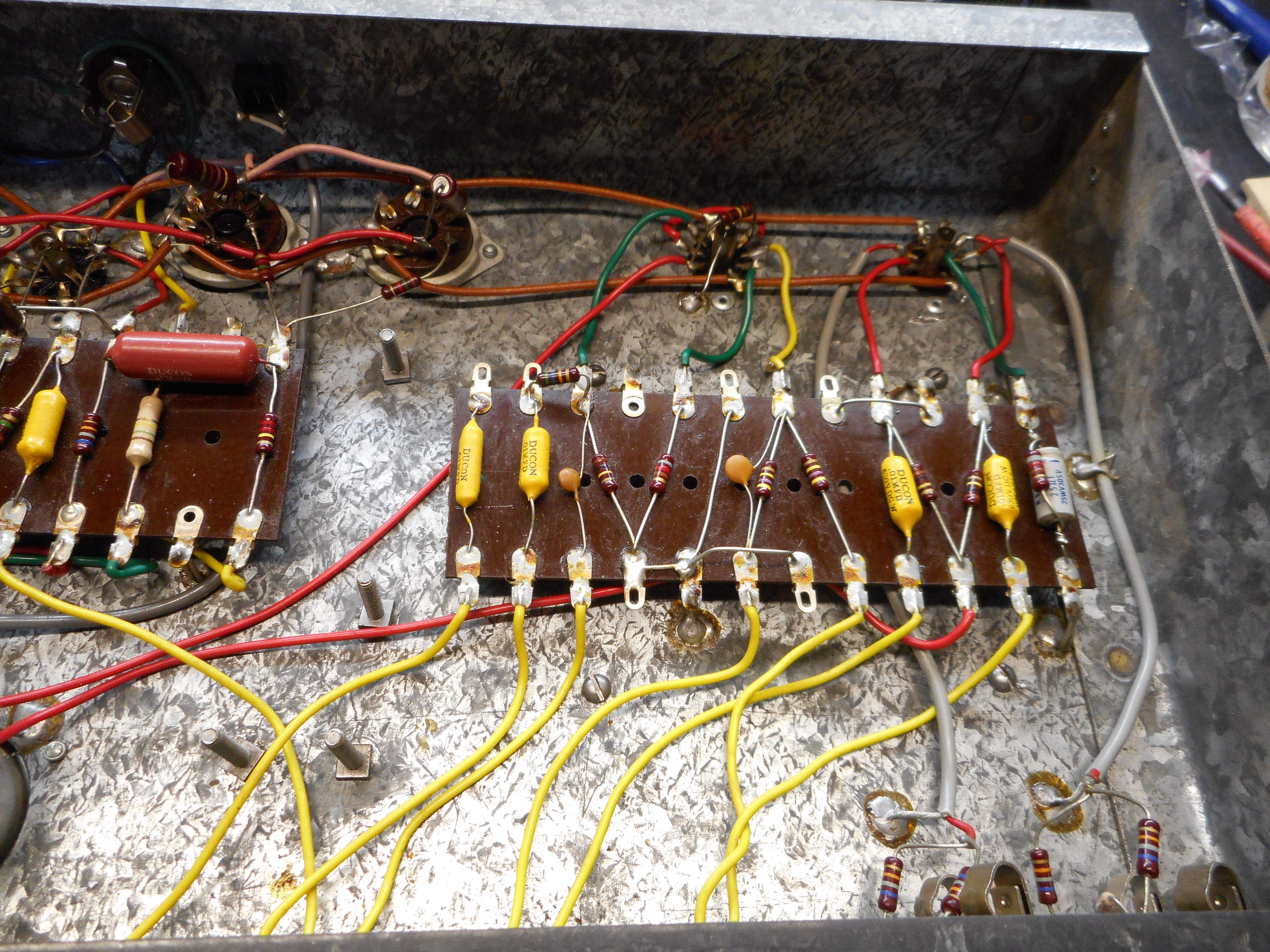

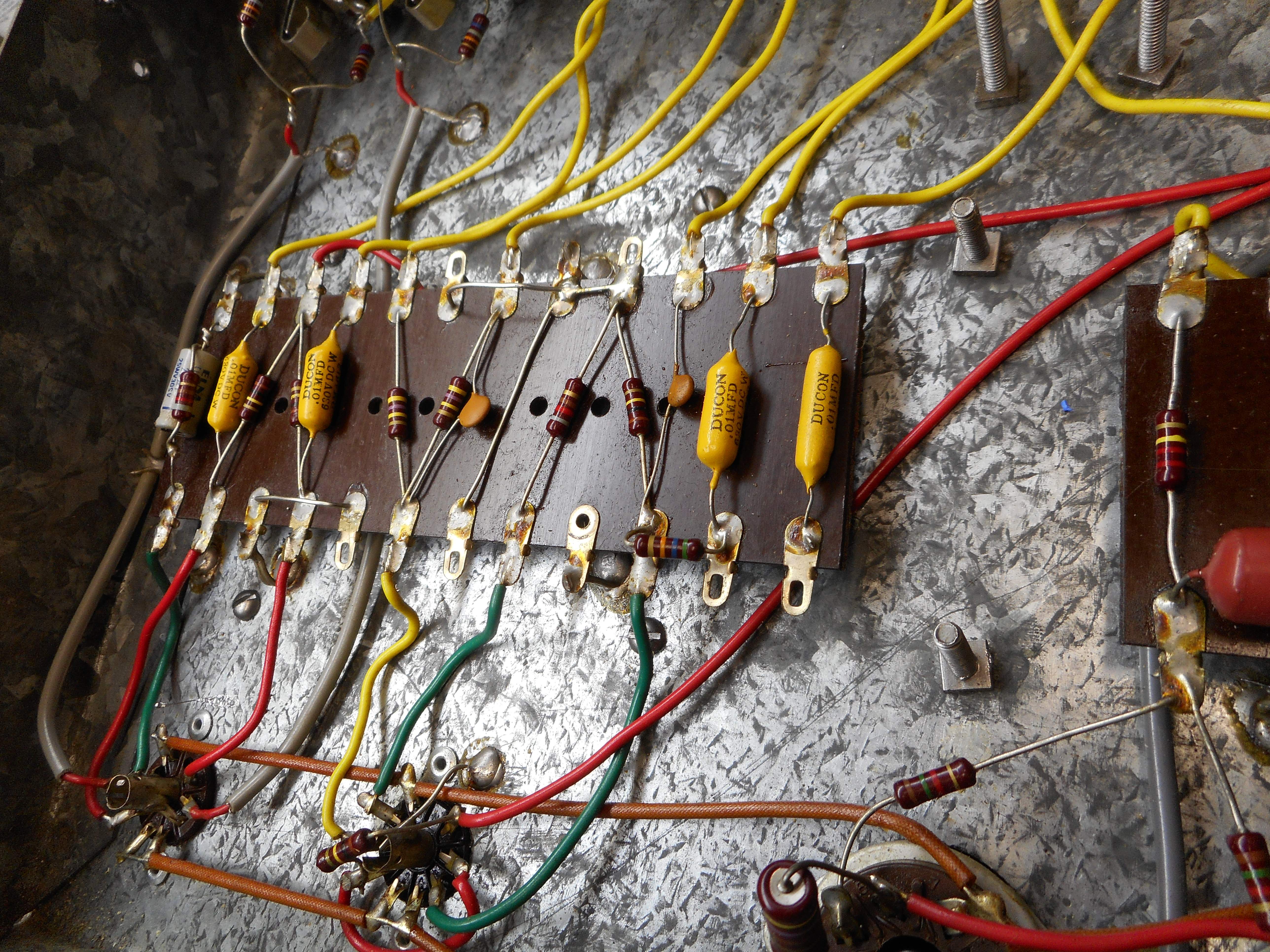

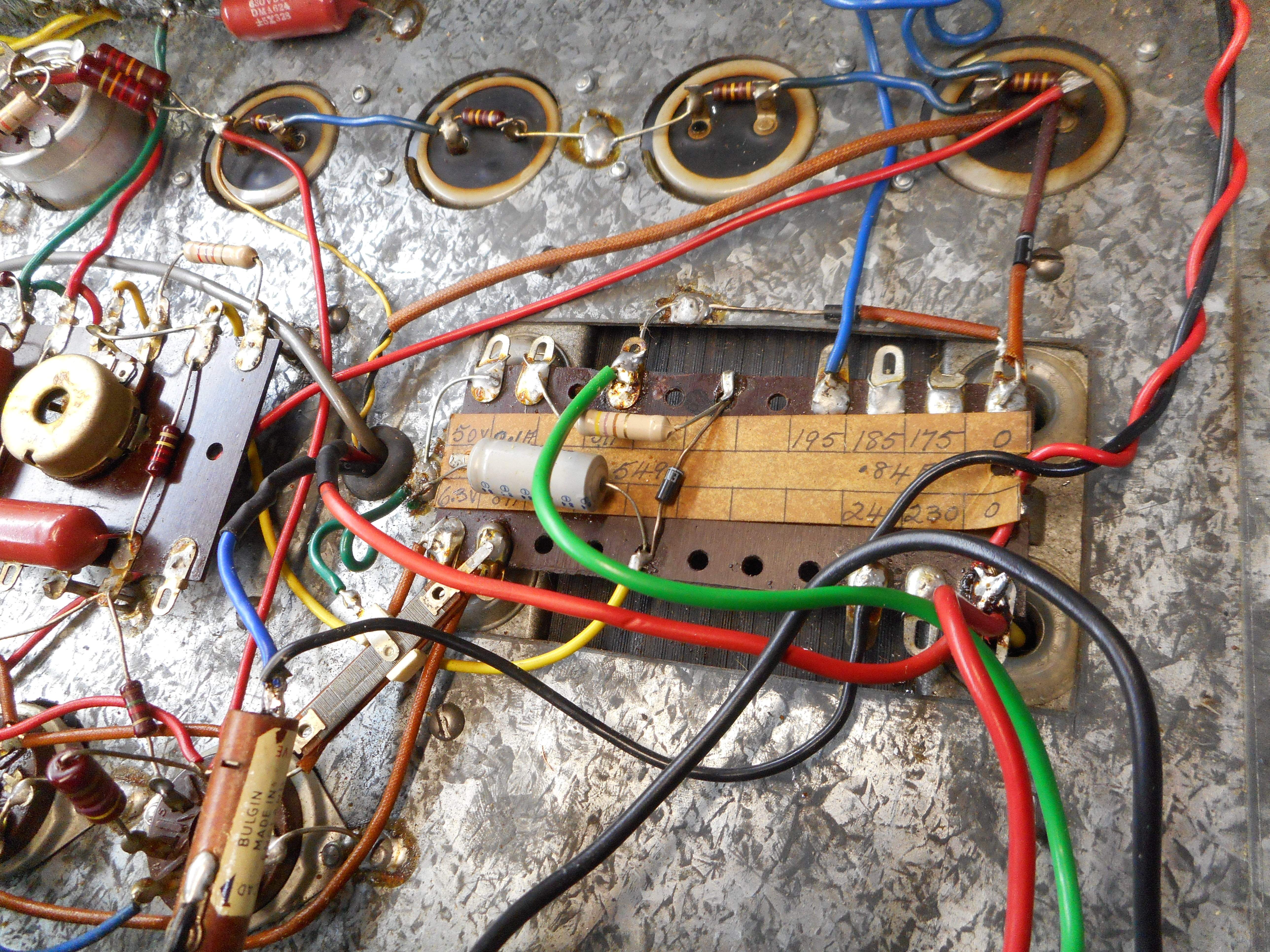

Ok, as promised - Eminar 100w Bass Amp "guts":

image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg image.jpeg

I hope this means something to someone lol.
BTW this was before he started. He forgot to take a shot with the changes he made.
1. New cap? 2. Removed a spurious power input that was wired in - you will see some black tape in one photo. Now gone, as is the 'floating' small board in my original photos.

  • Like
Reactions: svtb15, Snaxster and rufus.K
#1,046
RedVee said:
Ok, as promised - Eminar 100w Bass Amp "guts":

View attachment 1014946 View attachment 1014947 View attachment 1014948 View attachment 1014949 View attachment 1014951 View attachment 1014953 View attachment 1014954 View attachment 1014957 View attachment 1014958

I hope this means something to someone lol.
BTW this was before he started. He forgot to take a shot with the changes he made.
1. New cap? 2. Removed a spurious power input that was wired in - you will see some black tape in one photo. Now gone, as is the 'floating' small board in my original photos.
Click to expand...

Gee, it's all or nothing, isn't it?

;)

Thank you and congratulations. Your "new" Eminar should be a lot of fun to play.

  • Like
Reactions: RedVee
#1,048

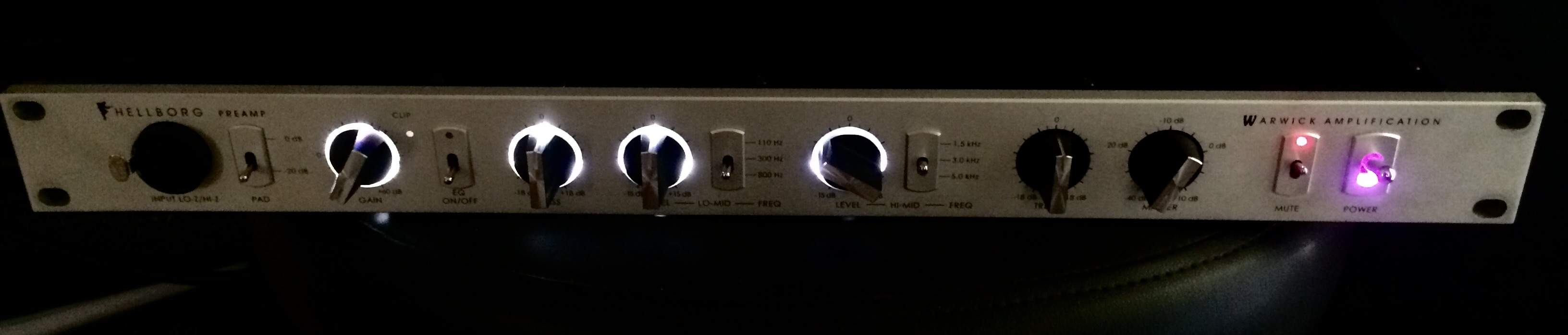

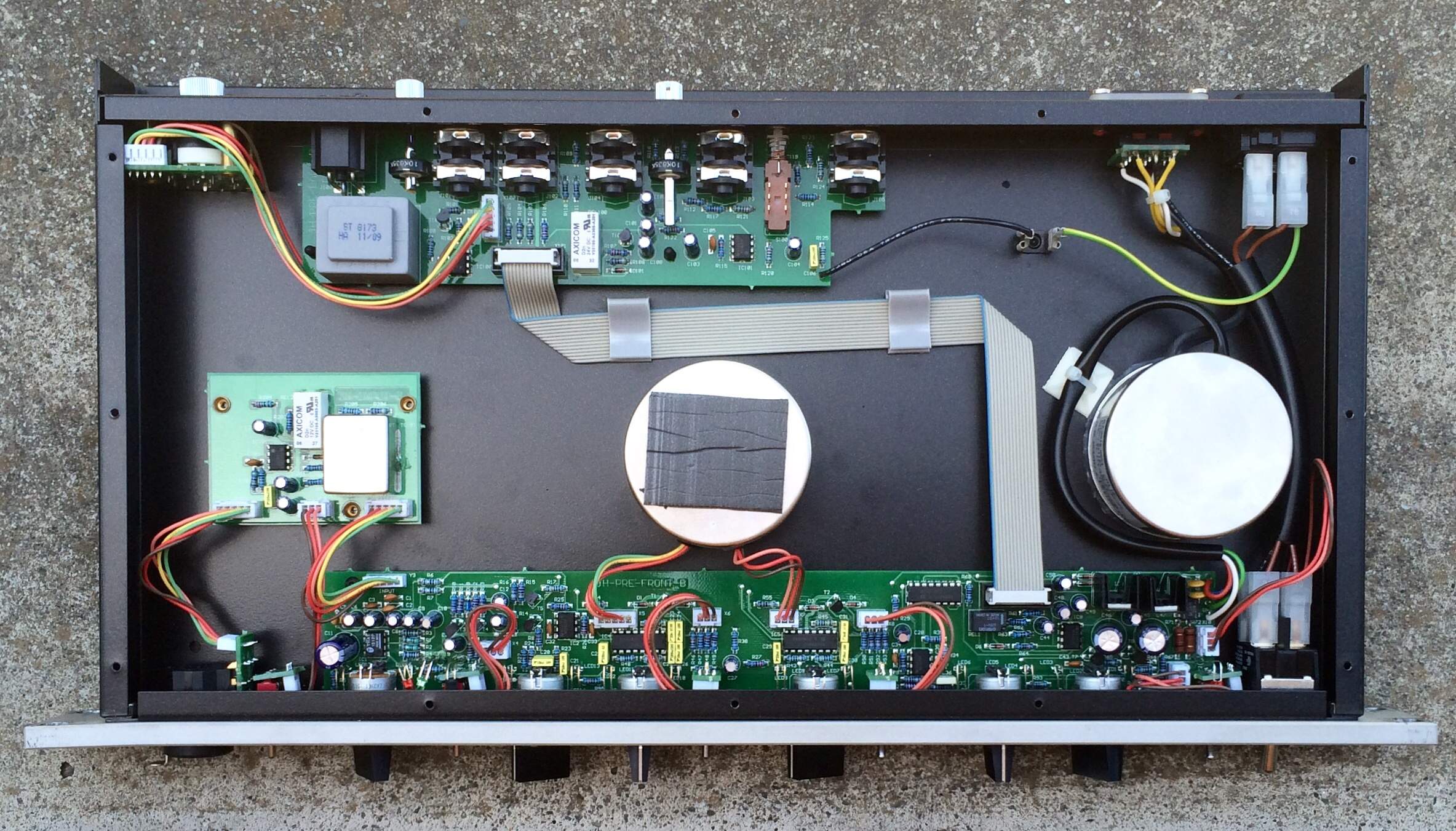

Jonas Hellborg (Warwick) preamp...

Absolute stellar bass preamp! Common problem however...the control knob lights stop working (in pairs) until none work. No effect on preamp performance...just an annoying cosmetic+dark stage issue.

Combing thru the Warwick forum, it seems to be mostly a USA owner problem.

Warwick suggested new LED replacement lights, but my two knob lights that are out, still flicker for a few seconds upon turning it on? Another suggestion mentioned...the resistor size used, could be a design flaw for US power sources?

I know nothing about electronics, but would love to get a permanent fix someday...

Last edited:
#1,049
kevk said:
Absolute stellar bass preamp! Common problem however...the control knob lights stop working (in pairs) until none work. No effect on preamp performance...just an annoying cosmetic+dark stage issue.

Combing thru the Warwick forum, it seems to be mostly a USA owner problem.

Warwick suggested new bulbs, but my two knobs that are out, still flicker for a few seconds upon turning it on? Another suggestion mentioned was that the resisters used, are a design flaw for US power sources?

I know nothing about electronics, but would love to get a permanent fix...
Click to expand...

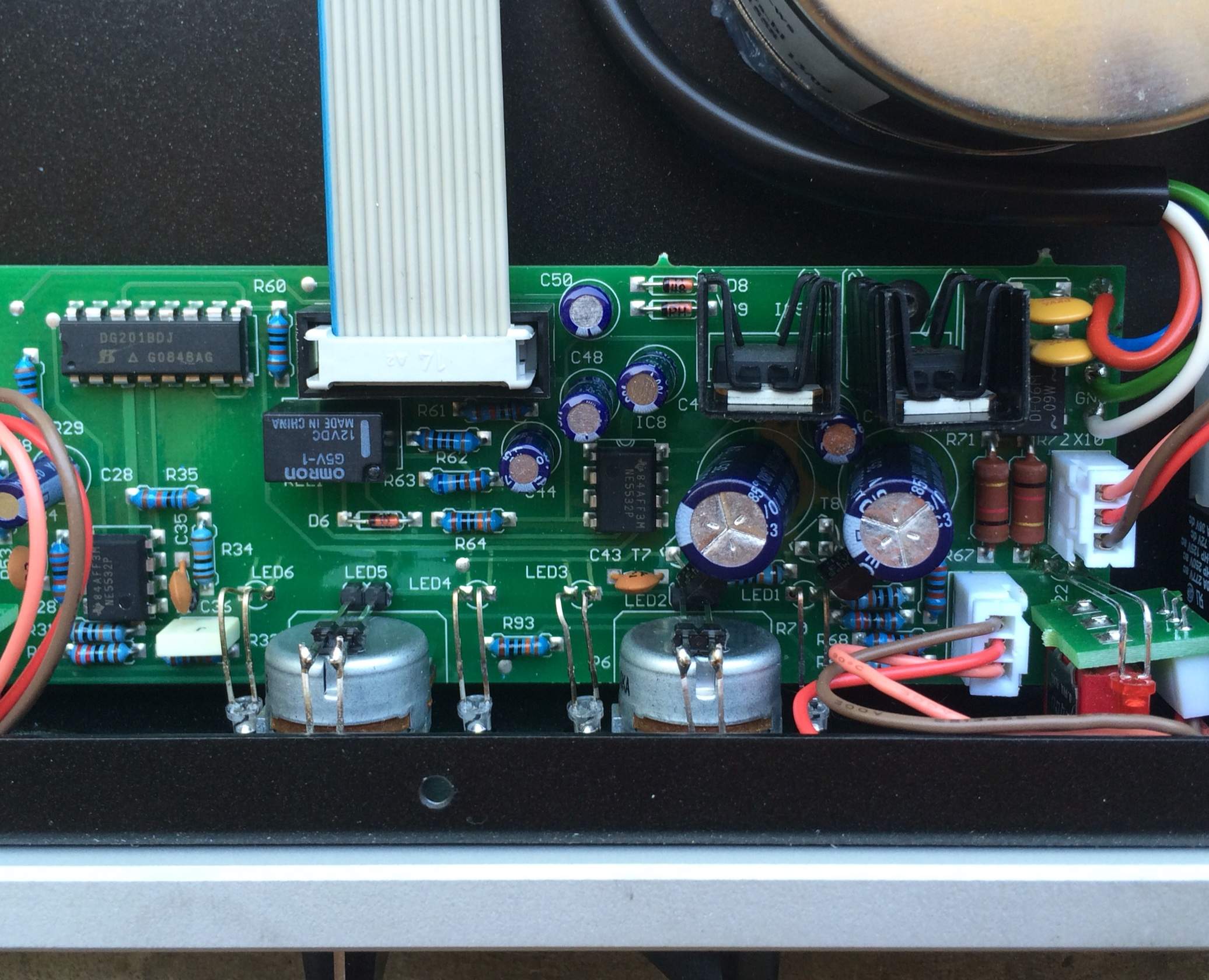

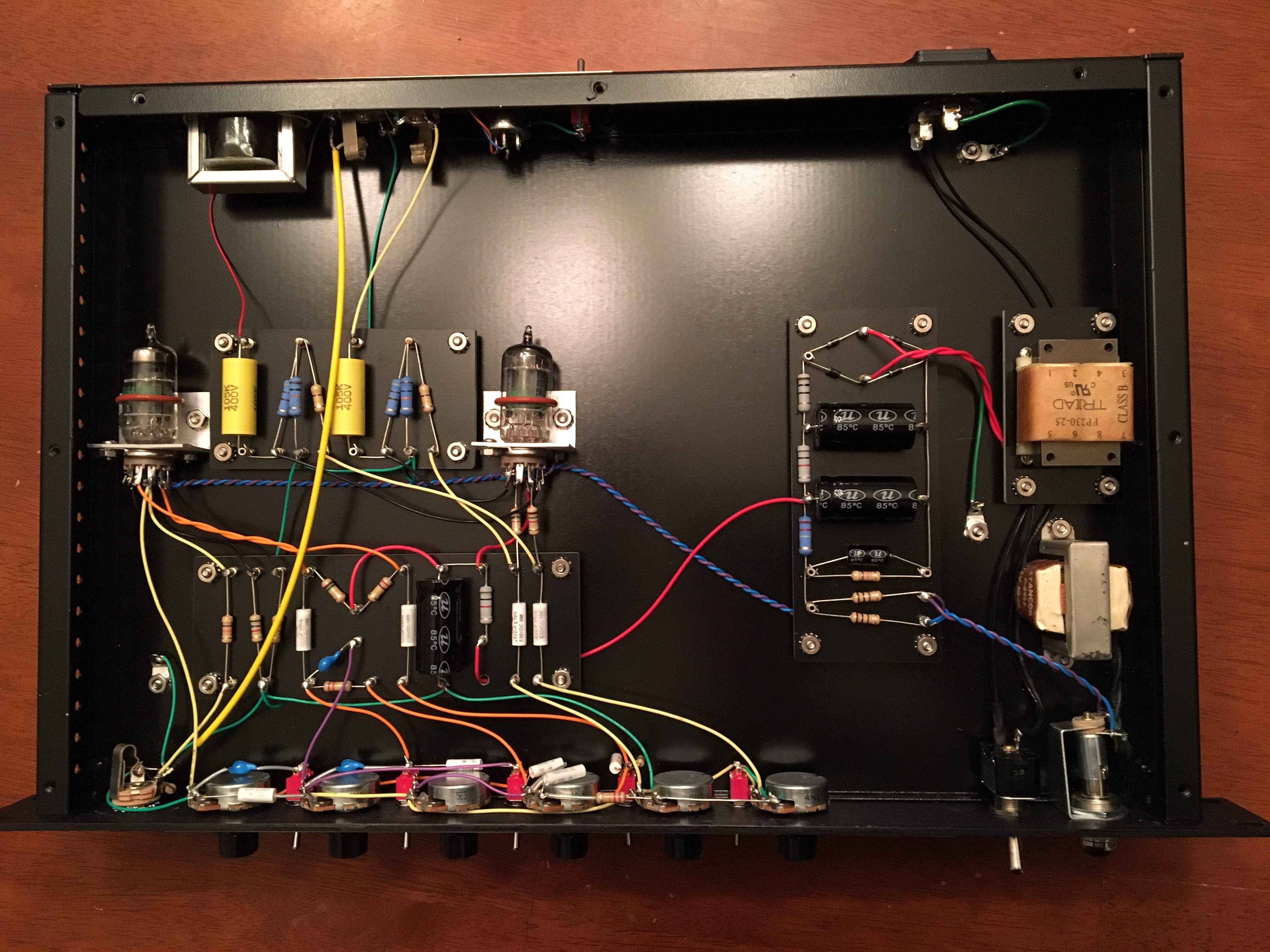

It seems so be all LEDs, no bulbs, and how the LEDs are mounted above and at the sides of the pots isn't very elegant. Broken solder joints could be an issue, as well as the supply voltage being too high (and therefore the resistors too small. Adding a small resistor in series with each LED could be a solution, though that's something you should take it to a tech for.

  • Like
Reactions: kevk
#1,050
Snaxster said:
Gee, it's all or nothing, isn't it?

;)

Thank you and congratulations. Your "new" Eminar should be a lot of fun to play.
Click to expand...
Does it look like anything in particular? Fender ? Marshall ? Vox ? Or go they all look much the same 'gutswise'?

All I know is I love the way it sounds, so much I now plug my zoom in front of my non-tube amps... usually Bassman emulation but I change it around sometimes.

#1,051
RedVee said:
Anyone have any feedback like 'it looks like a Marshall/ Fender/ whatever' ?
Click to expand...

Snaxster said:
In my non-expert opinion, it looks more like Marshall than Fender, but most of all like Eminar. The Eminar brand is new to me, so I thank you for the introduction.
Click to expand...

RedVee said:
Does it look like anything in particular? Fender ? Marshall ? Vox ? Or go they all look much the same 'gutswise'?
Click to expand...

That's all I know, mate. Let's see what the experts say. :)

  • Like
Reactions: RedVee
#1,052
Snaxster said:
That's all I know, mate. Let's see what the experts say. :)
Click to expand...
Fair enough. Maybe the bits in the chassis are enlightening.
Otherwise... it's an Eminar!

Edit: to illuminate- I have read about early Marshall's and (?) Traynors (?) being based on the Fender Bassman template. I like this Eminar warmth so much that if it was from the same gene pool I'll know where to look in future if I'm looking for another amp.

Last edited:
