Amp Guts Photos - Official Thread - Lets see those pics

[somebrains]

SWR Electric Blue



[Jeff Scott]

I had one of those, but the combo version - Baby Blue II. I always wanted the head version.



[somebrains]

I had one of those, but the combo version - Baby Blue II. I always wanted the head version.

I have other heads, but I use the EB the most.
It's like my 1st 20oz Estwing hammer.
I have way more of some attribute than what they EB does, but the EB can do a little of everything.

I've actually run it thru a power amp into an Epifani T310.
I threw in a set of Nordstrand Big Mans in a Corvette $$ and didn't think about it.

Plugged in and hit it, ports dumped so much air I thought I blew speakers.

I had it in the "Reggae" setting from the manual dumping near 800watts.



[Johnyb3000]

Trace Elliot elf



[basscapes]

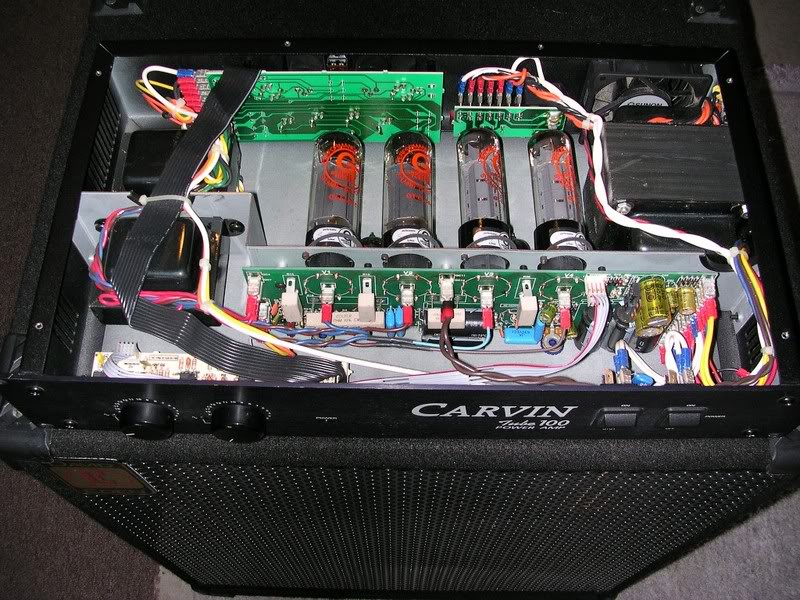

My Carvin tube power amp--100 watts of EL34s:

View attachment 1395789

Just curious-

Are you really using that for a bass power amp?

How does it sound?

How are you able to bridge the channels to get the full 100 Watts? I was under the impression they couldn't be.

A TUBE 100 Watt power amp would be a mighty tasty addition...



[basscapes]

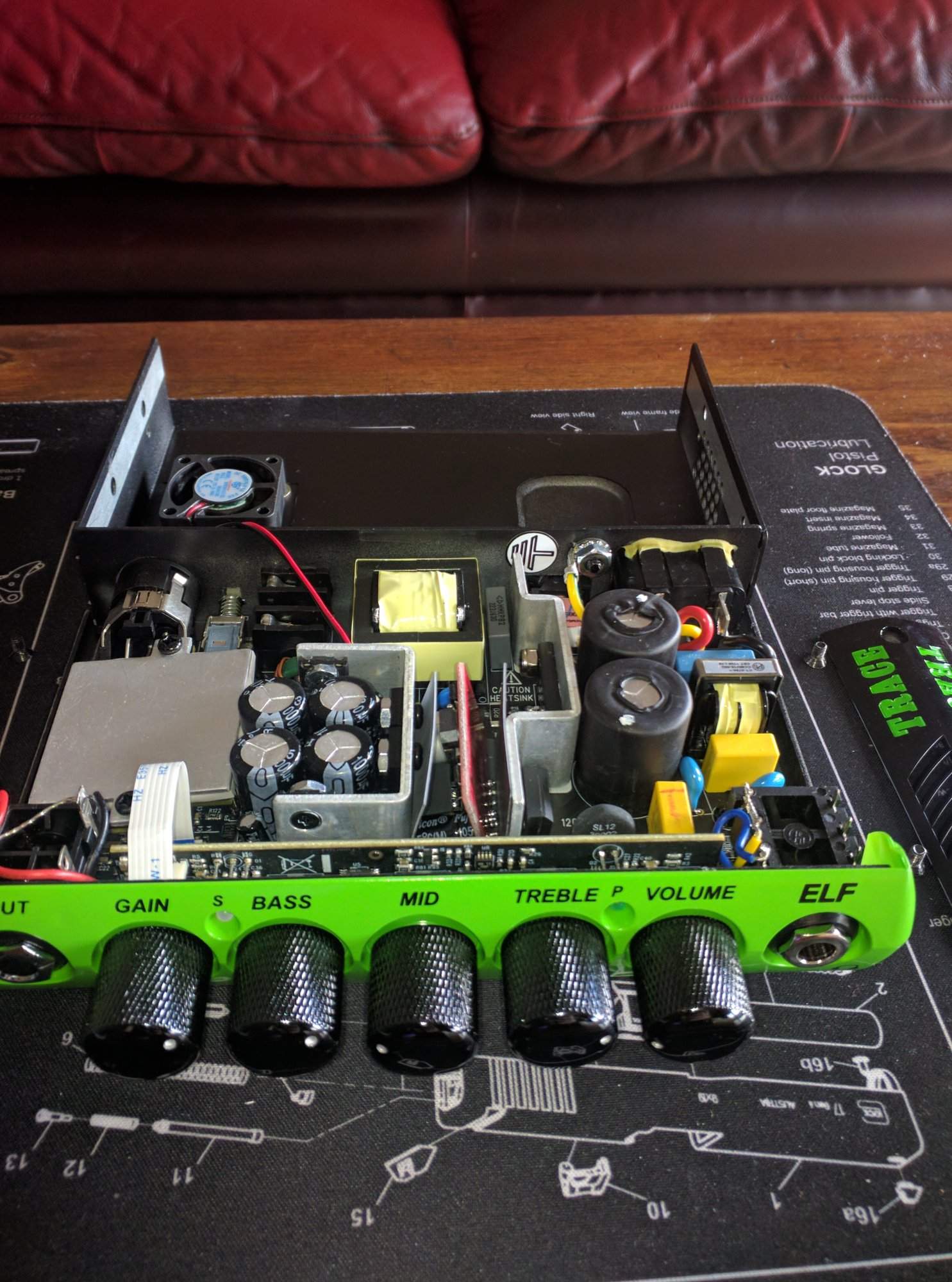

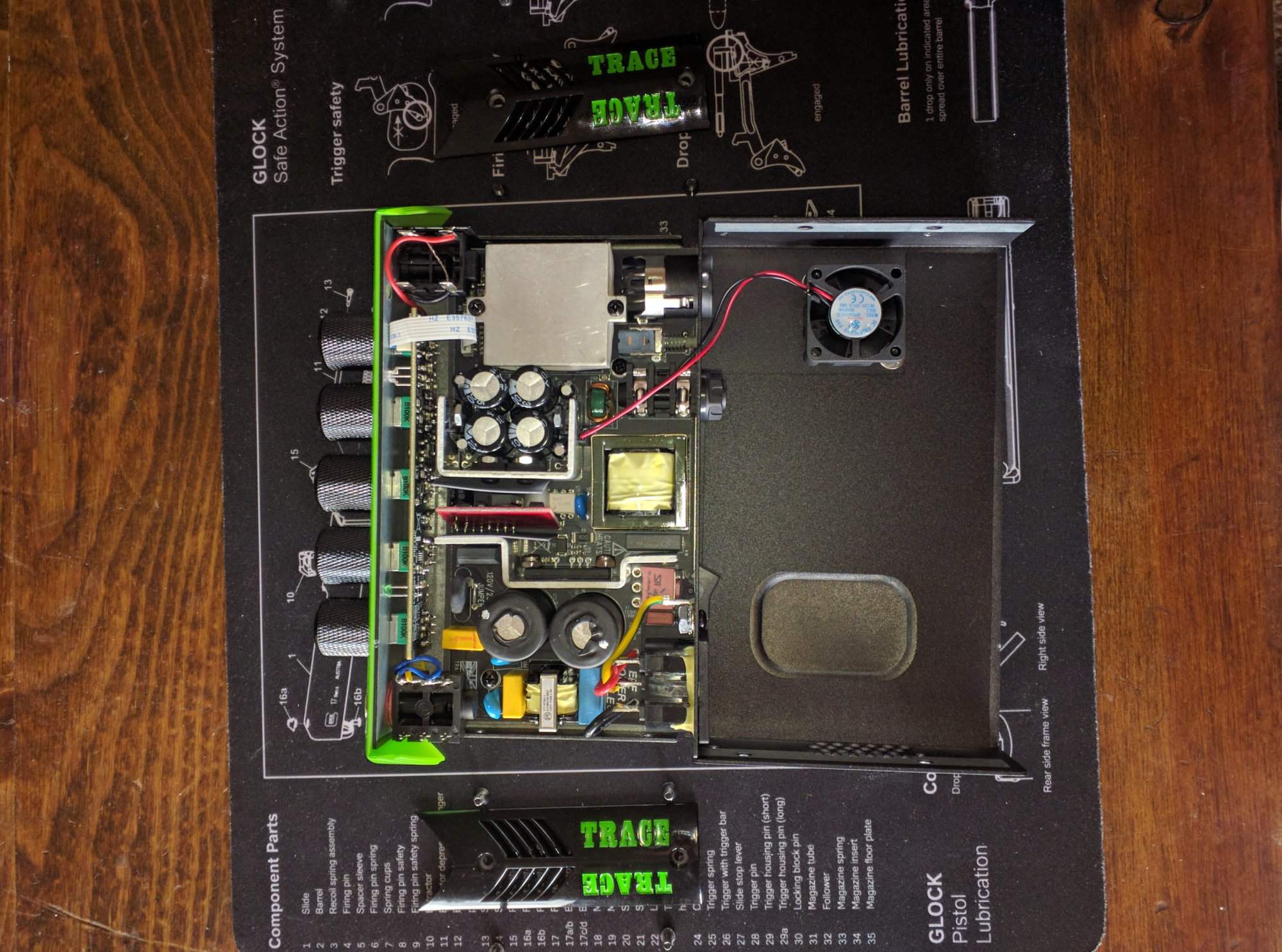

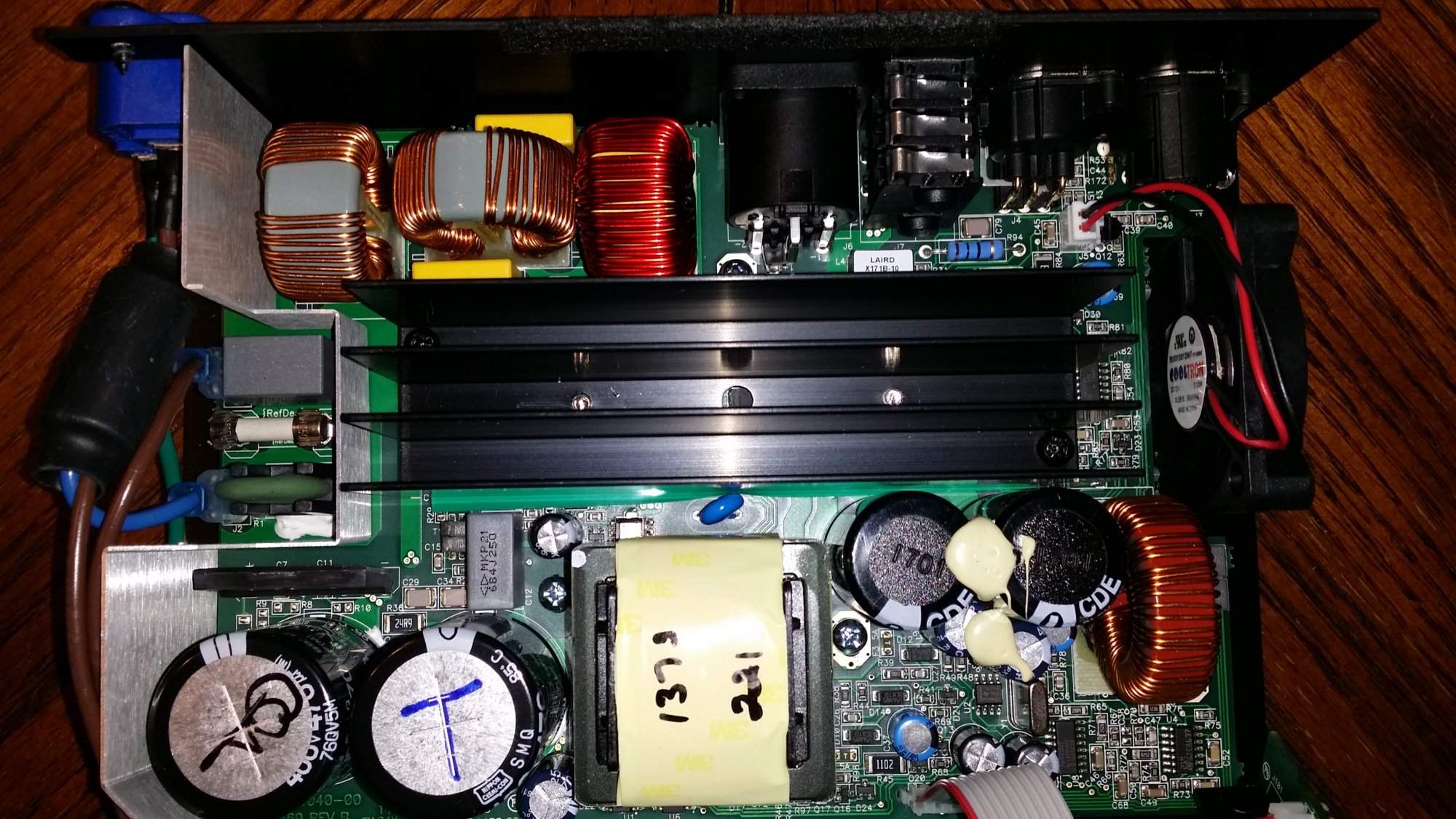

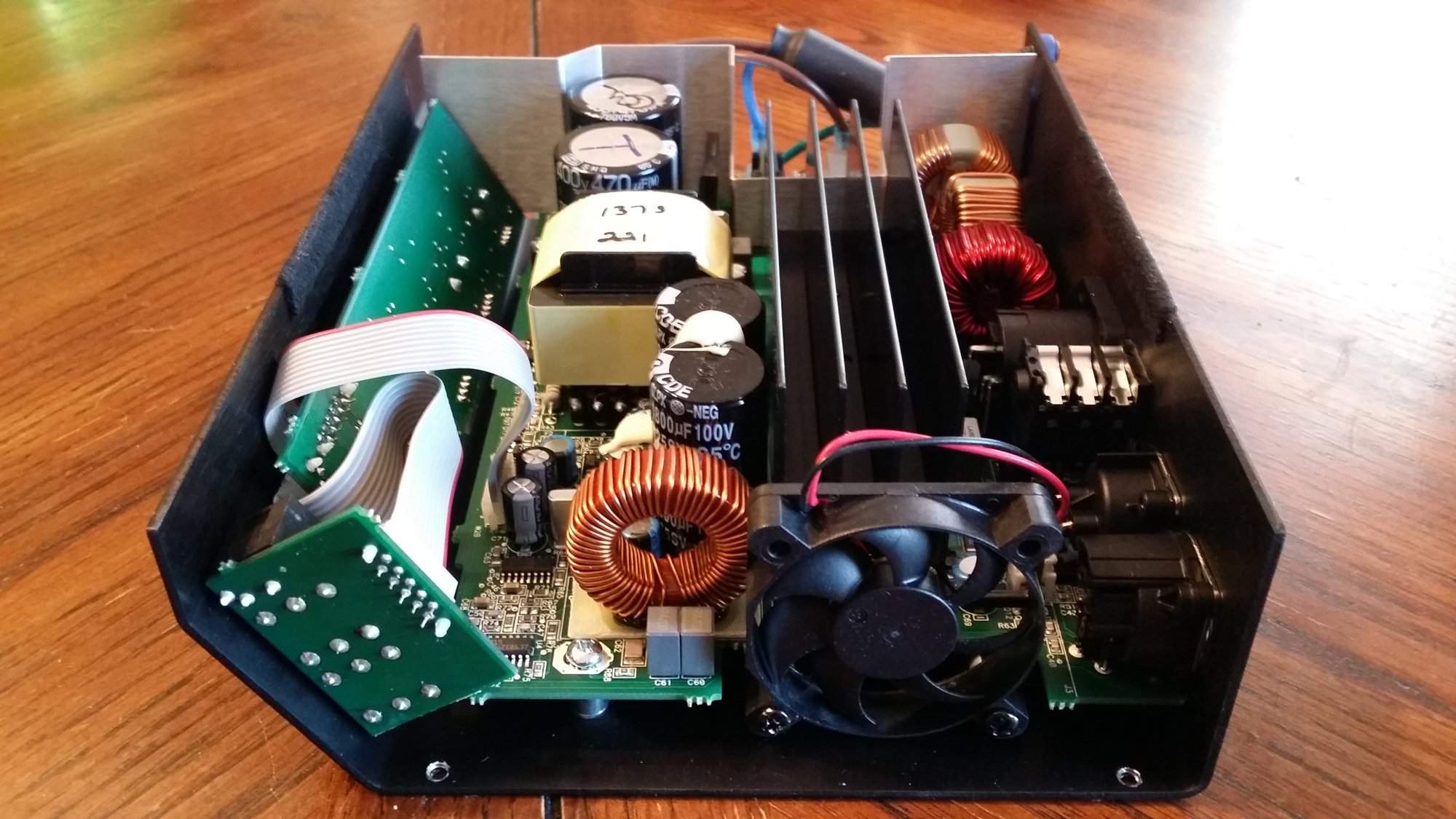

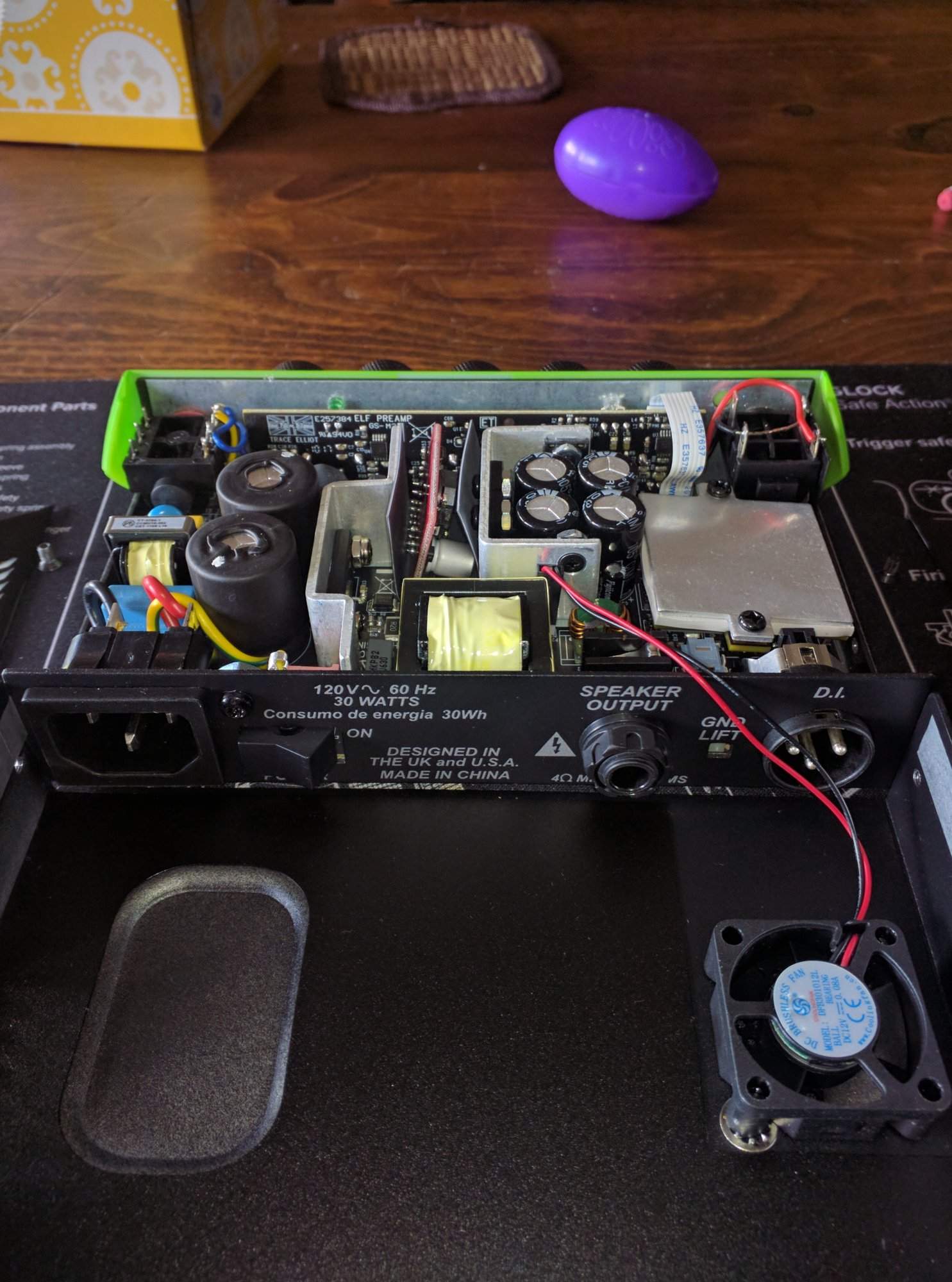

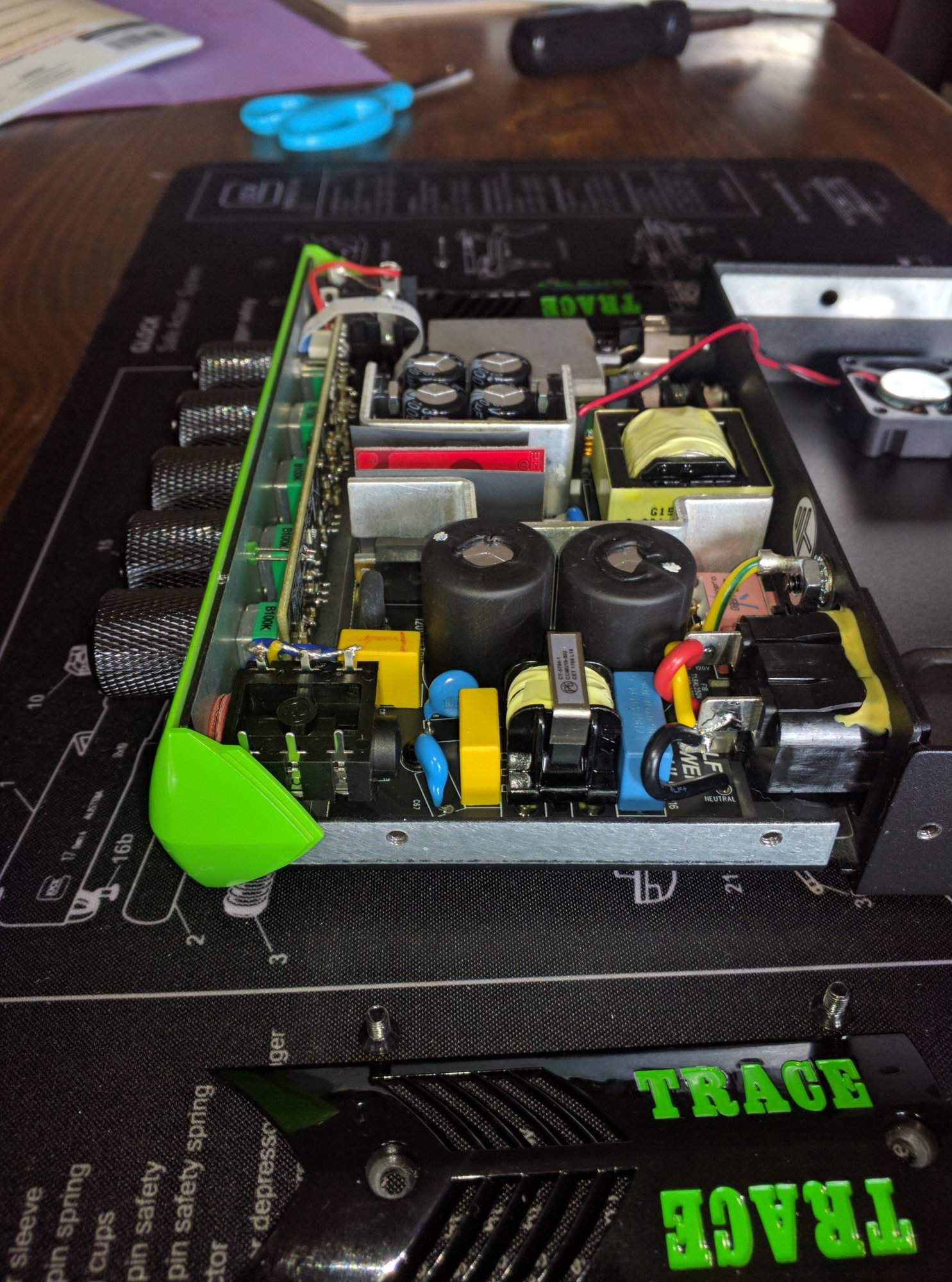

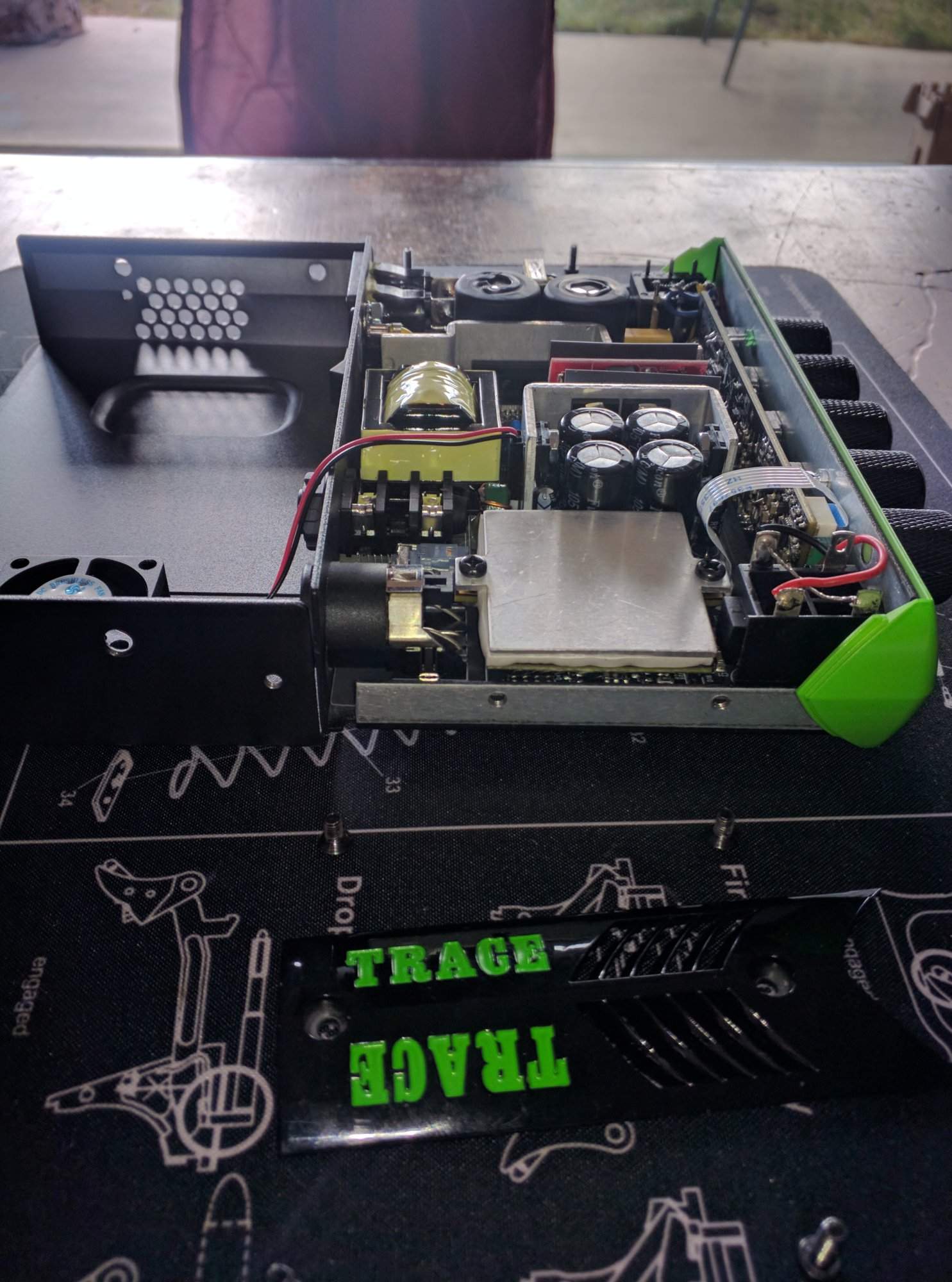

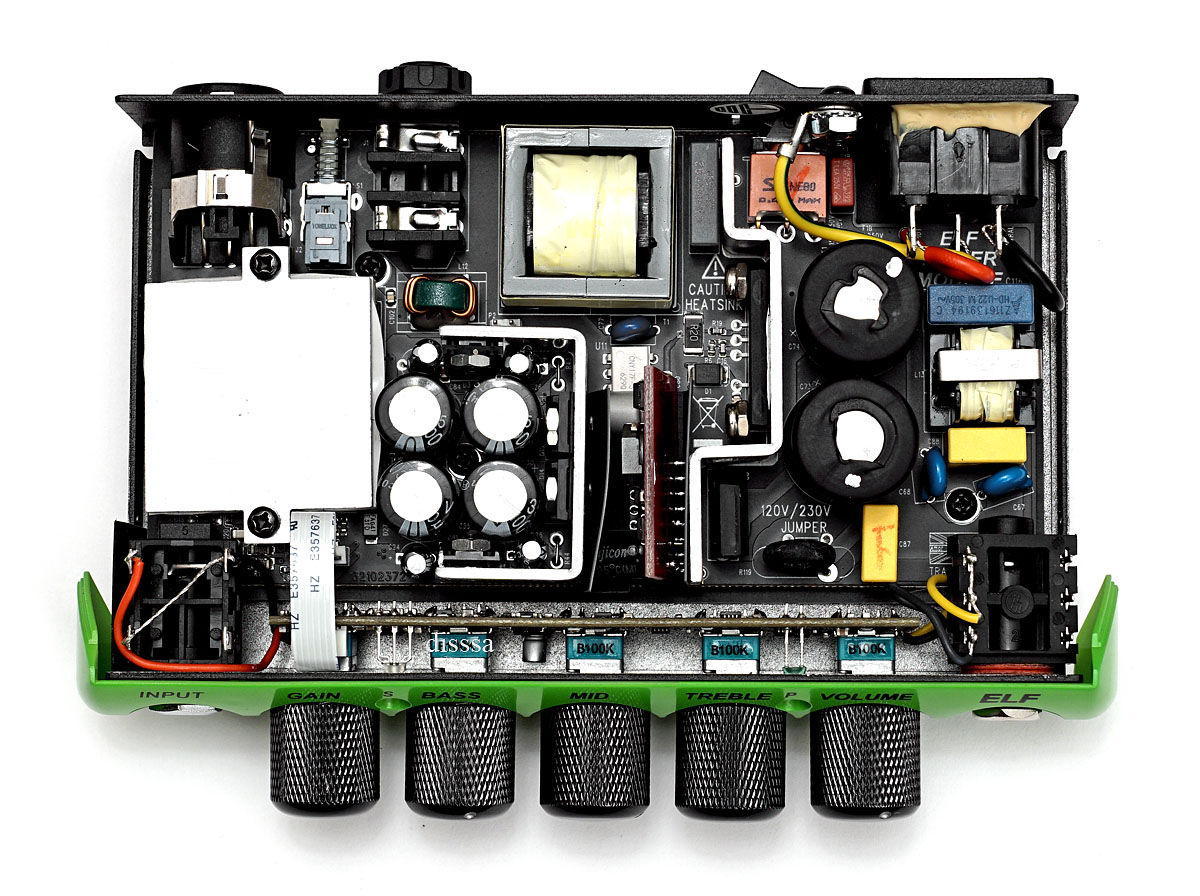

Trace Elliot elf View attachment 2777861 View attachment 2777861 View attachment 2777862 View attachment 2777866 View attachment 2777867 View attachment 2777869

Freakin' amazing how much can get crammed into a small chassis like that these days!



[Darkglass]



[bobcruz]

Just curious-

Are you really using that for a bass power amp?

How does it sound?

How are you able to bridge the channels to get the full 100 Watts? I was under the impression they couldn't be.

A TUBE 100 Watt power amp would be a mighty tasty addition...

I used it frequently as a bass power amp until I got my Streamliner; then I sold the Carvin. It sounded clean, clear and quiet. It would get fuzzy as you'd expect when pushed but I never pushed it hard enough to test for real overdrive. The fuzzy compression as I hit the full 100 watts was exactly right for the church setting where I used it. The amp is designed for bridging into 8 or 16 ohms by flipping a switch on the back. It got plenty loud when I drove four twelves with it at an outdoor setting, where I had to turn it down a bit. I really liked using it but now I have the Streamliner and a WalkAbout, and both are as tubey as I need. Bob



[basscapes]

I used it frequently as a bass power amp until I got my Streamliner; then I sold the Carvin. It sounded clean, clear and quiet. It would get fuzzy as you'd expect when pushed but I never pushed it hard enough to test for real overdrive. The fuzzy compression as I hit the full 100 watts was exactly right for the church setting where I used it. The amp is designed for bridging into 8 or 16 ohms by flipping a switch on the back. It got plenty loud when I drove four twelves with it at an outdoor setting, where I had to turn it down a bit. I really liked using it but now I have the Streamliner and a WalkAbout, and both are as tubey as I need. Bob

Thanks for the information on that. Was hoping it would do a 4 ohm load bridged, but...



[bobcruz]

Thanks for the information on that. Was hoping it would do a 4 ohm load bridged, but...

Each power amp can handle four ohms in mono mode so you can push a pair of four ohms speakers with 50 watts per cab. I used two 8 ohm cabs per side for the outdoor gig.



[mapleglo]

PA 100 guts

• mapleglo
• Sep 12, 2017
• pa 100

The insides of the PA 100

PA 100 top

• mapleglo
• Sep 12, 2017
• pa 100

Fender PA-100



[basscapes]

Each power amp can handle four ohms in mono mode so you can push a pair of four ohms speakers with 50 watts per cab. I used two 8 ohm cabs per side for the outdoor gig.

True. that can be done- I was just hoping to be a lazy SOB and just run one speaker cable (LOL)!

I will investigate further...



[hennessybass]

Fender TBP-1



[jazzbass_5]

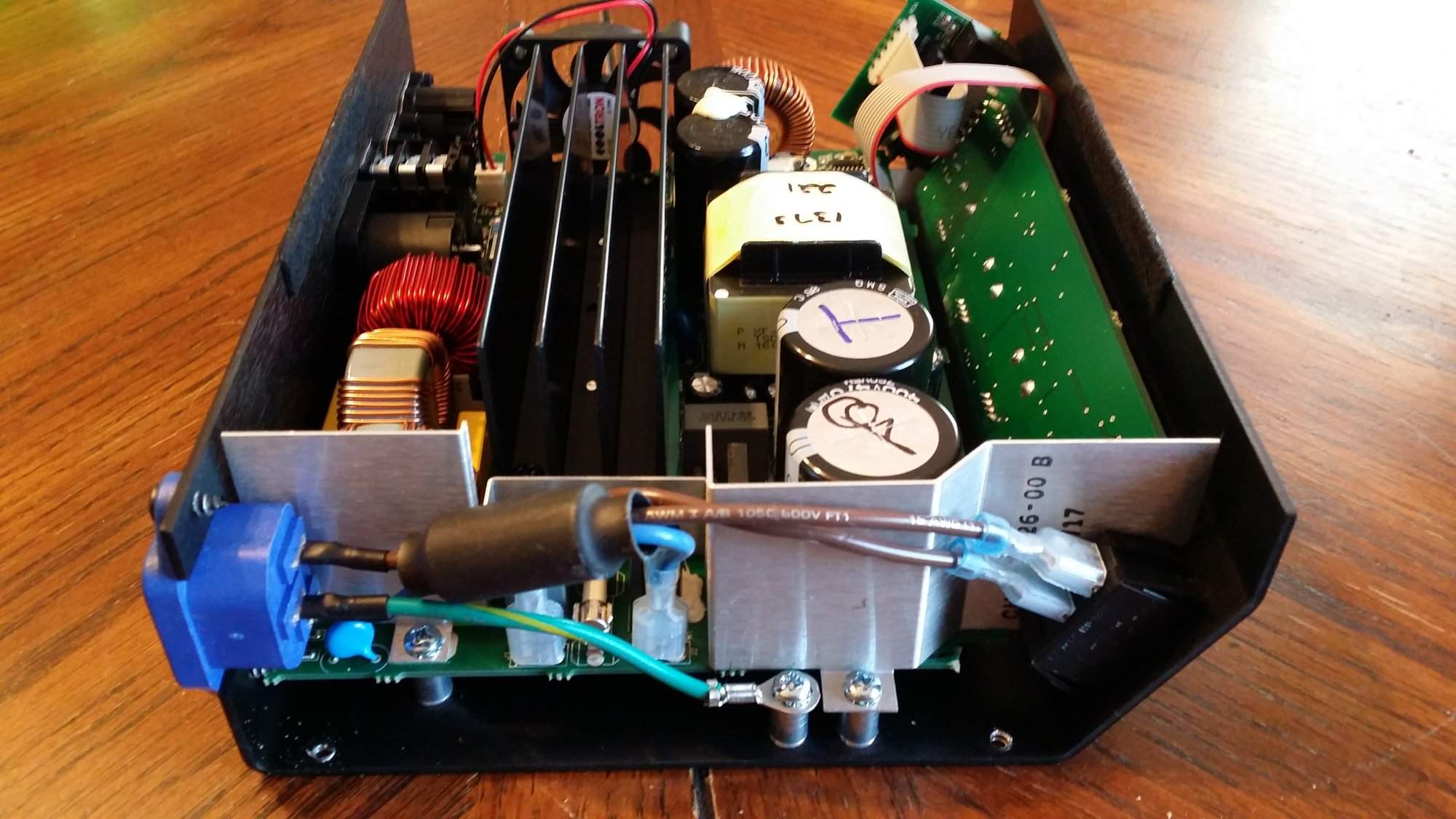

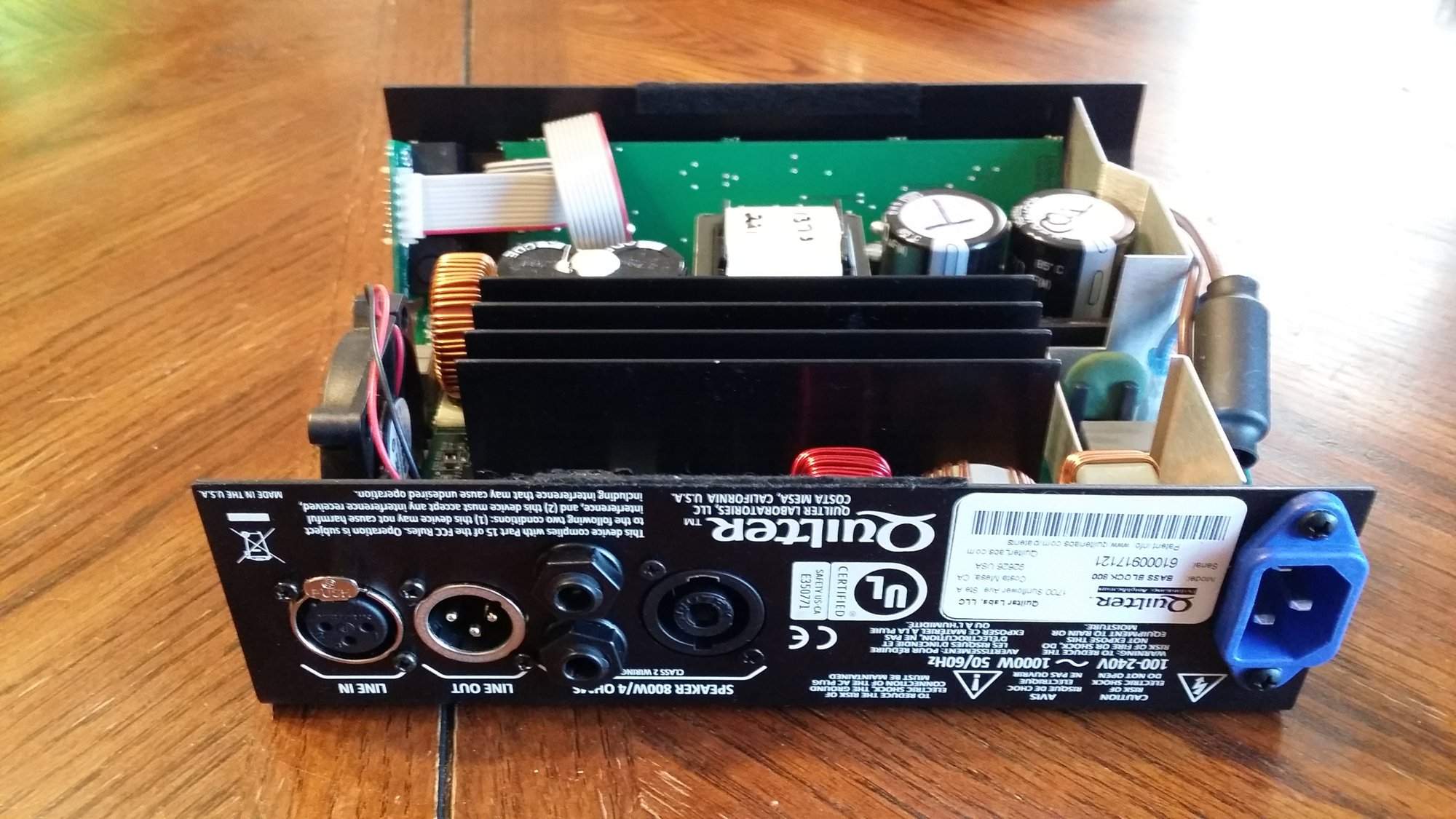

Quilter bass block 800



[disssa]

Invalid Link Removed (again)



[DaveDeVille]

this is all very interesting ...

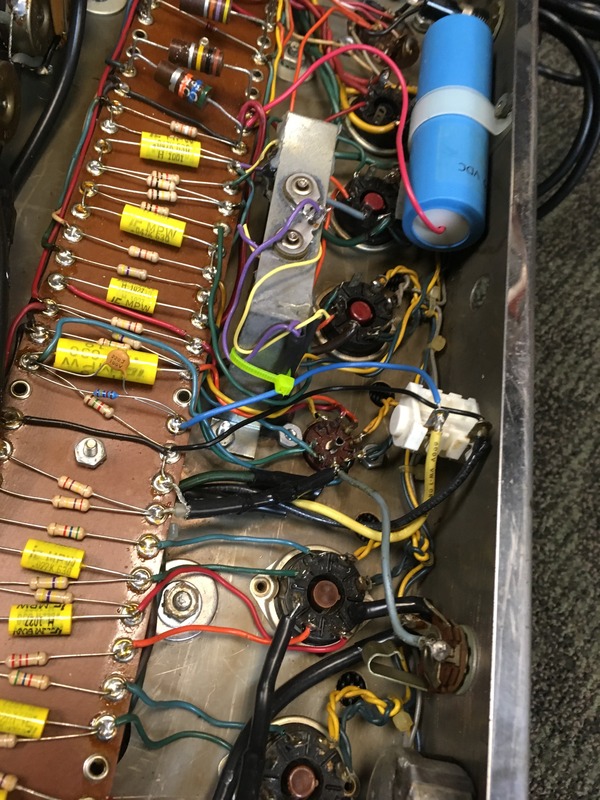

here's a few gut shots of my 1965 Ampeg B18



[jfn77]

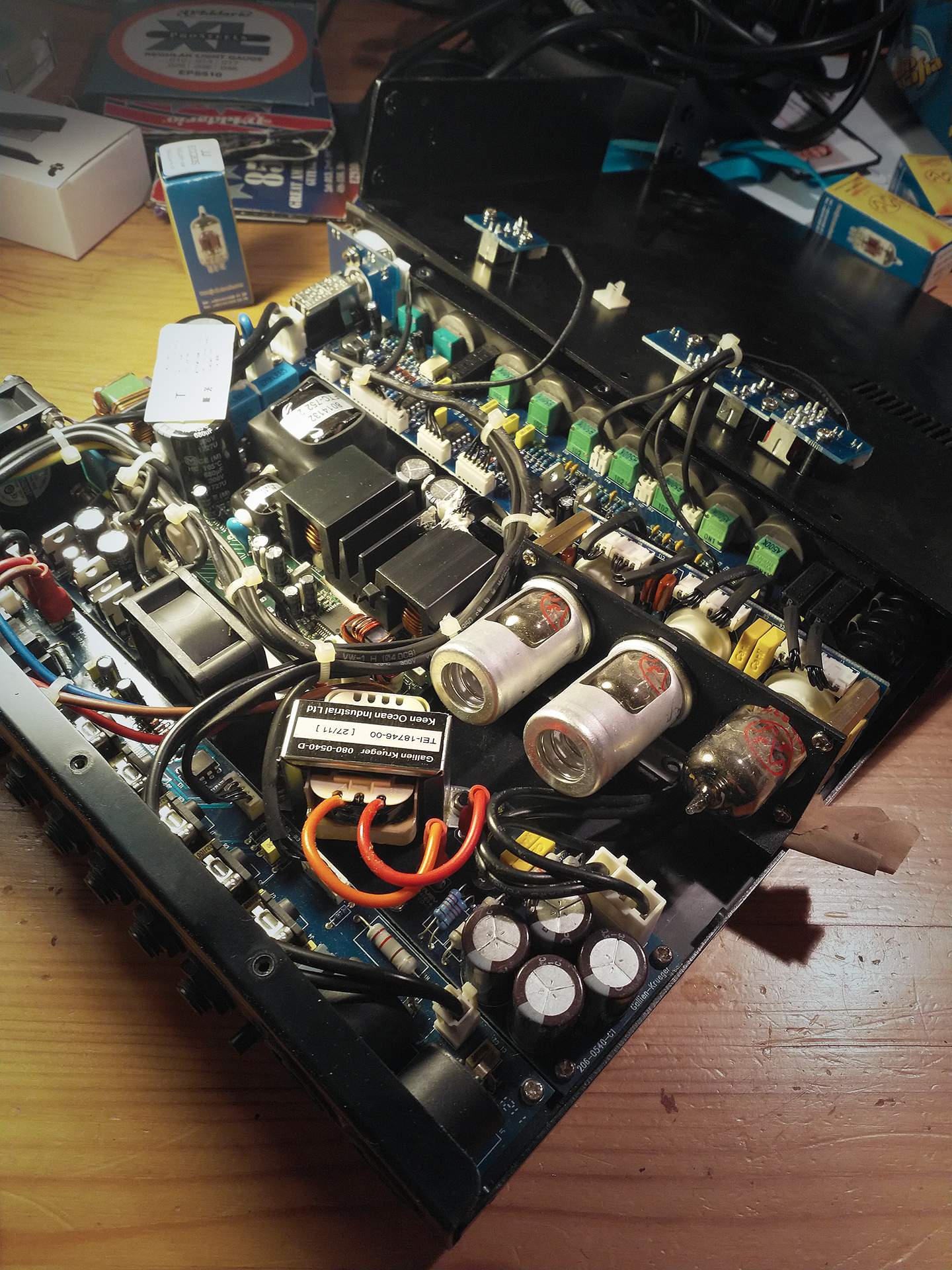

Gallien-Krueger MB Fusion 500 guts with one tube shield off.



[Jeff Scott]

Man, that amp is crammed to the gills.



[MuthaFunk]

this is all very interesting ...
here's a few gut shots of my 1965 Ampeg B18
...

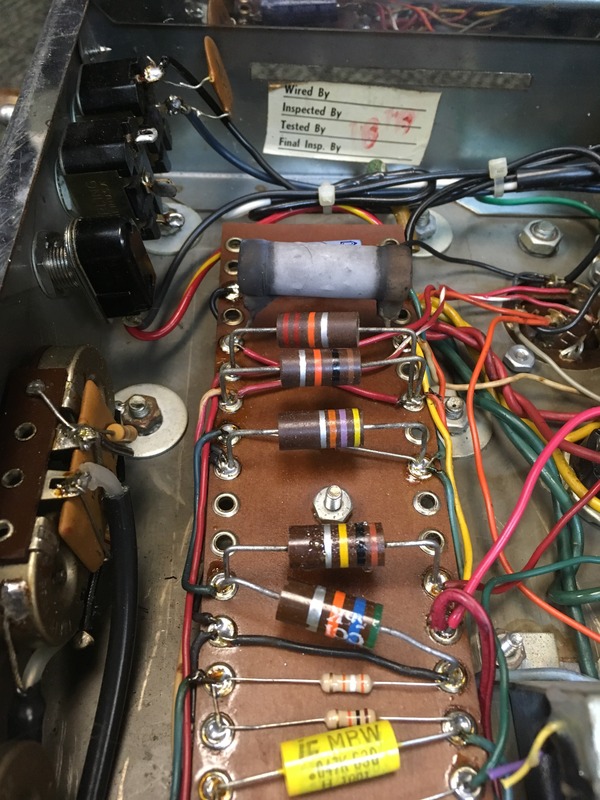

View attachment 2809934

That resister looks a little cooked! You may want to look up a schematic and replace it. Or have a tech do it. It shouldn't be expensive and will ensure reliable service from such a beautiful piece!



[disssa]

Invalid Link Removed
