Any DIY pedal builders on TB? Strut your stuff!

[swagbotbilly]

@disssa

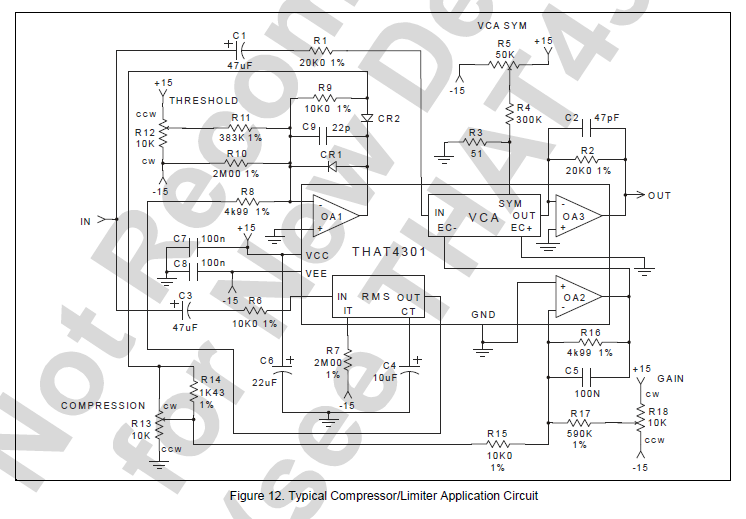

Looking at the example in the THAT4301 datasheet, there is a cap between VEE and GND (here it's C8, 100nF).

In tracing my circuit, I see + beep a 22uF between VCC and GND, but so far cannot find any caps between -9V and GND.

Should there be one, or is there not one at all?



[disssa]

@disssa
In tracing my circuit, I see + beep a 22uF between VCC and GND, but so far cannot find any caps between -9V and GND.

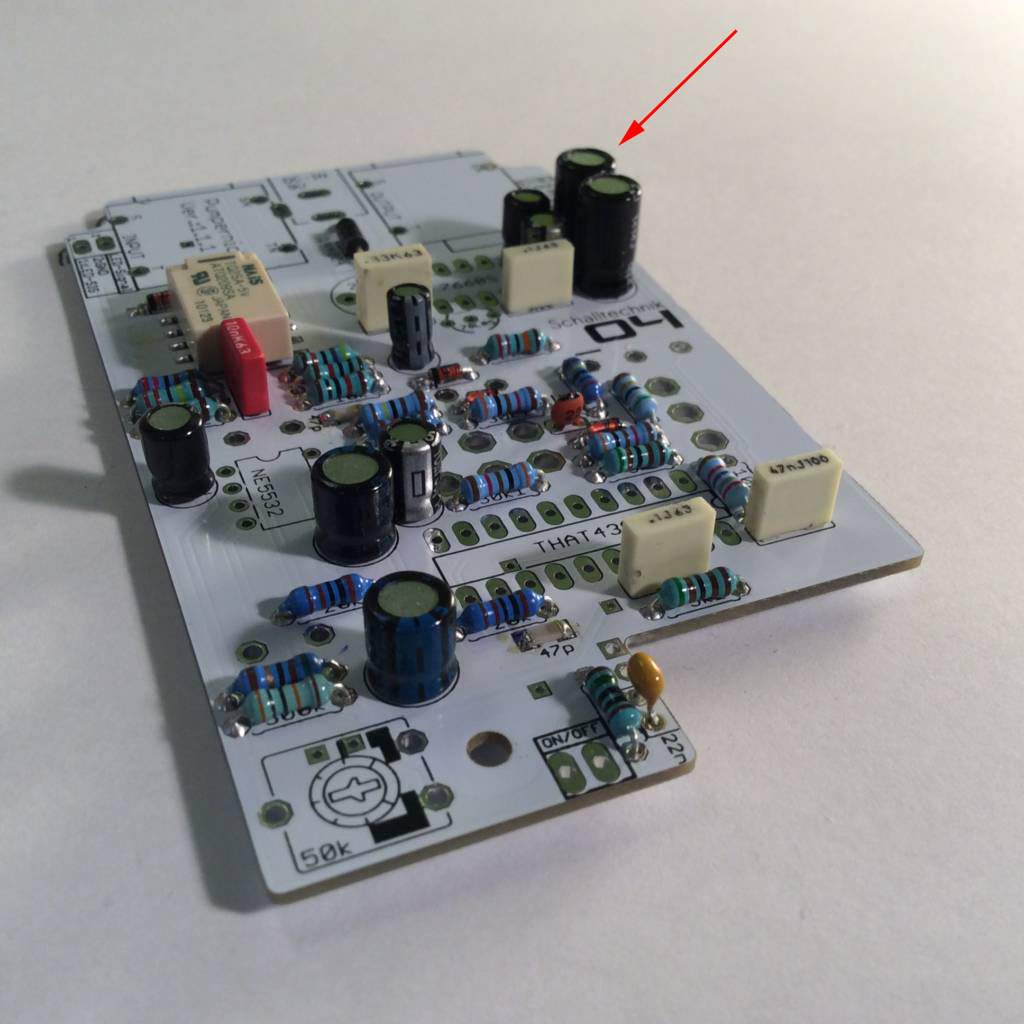

There should be a 22uF cap on pin11 and GND, also a 100uF on pin10 and GND.



[swagbotbilly]

There should be a 22uF cap on pin11 and GND, also a 100uF on pin10 and GND.
View attachment 4946888

Thanks! I'll get back to 'beeping'



[disssa]

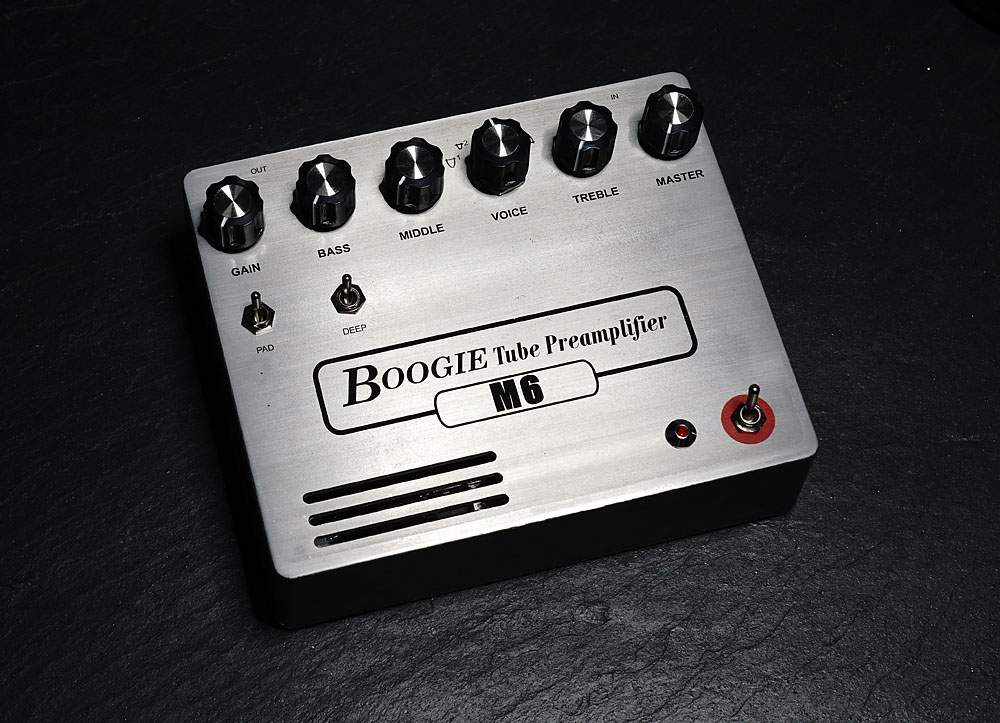

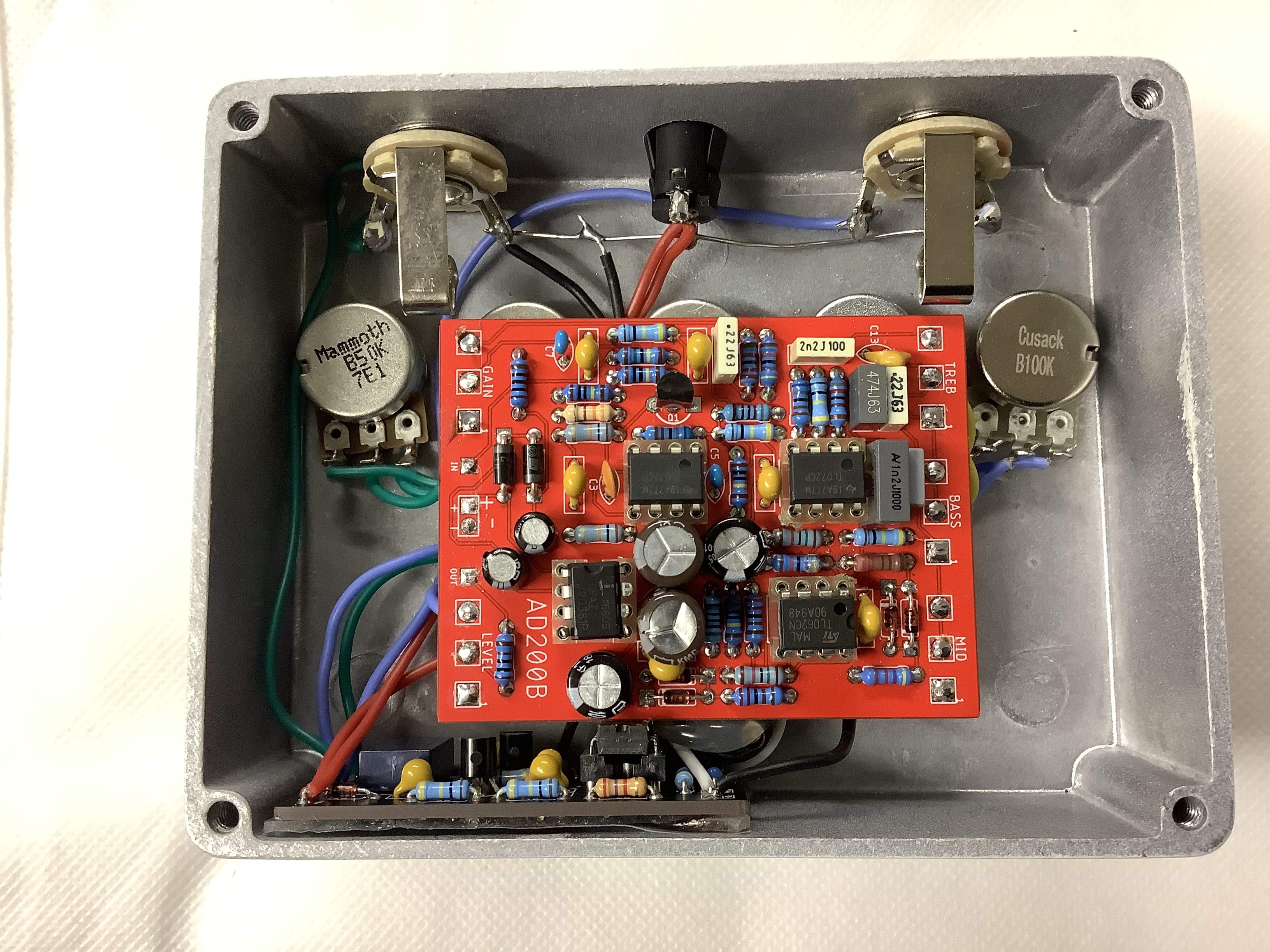

Mesa Boogie M6 Preamp:



[jmwreck]

Engineer's Thumb



[AudioTaper]

Engineer's Thumb View attachment 4950350 View attachment 4950351 View attachment 4950352 View attachment 4950353

Nice. Hows it sound for bass? Mine in in the works - I have about 60% of the board populated.
I built PedalPCB's Delegate Boneyard edition (version of 'The Warden') compressor last year and wasnt super impressed



[jmwreck]

Nice. Hows it sound for bass? Mine in in the works - I have about 60% of the board populated.
I built PedalPCB's Delegate Boneyard edition (version of 'The Warden') compressor last year and wasnt super impressed

I'll have to try it soon, I've only ran a music thru it since I don't have my bass and amp with me.



[WilbursaurusRex]

Has anyone built a CS2 clone?



[jmwreck]



[johnk_10]

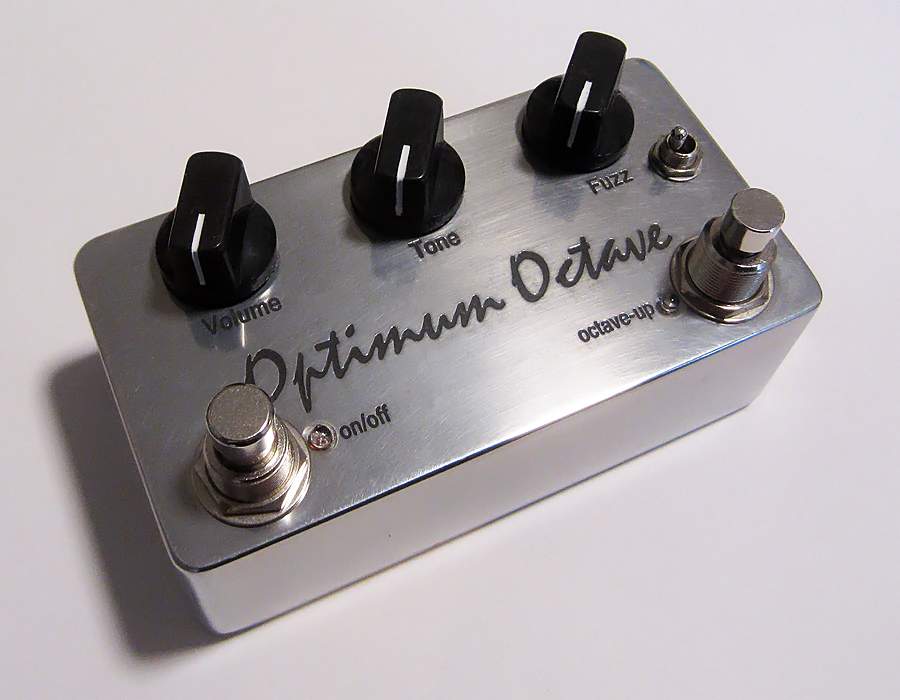

i just finished this Fulltone Ultimate Octave clone in a Hammond 1590B2 with a relayed true bypass:



[swagbotbilly]

View attachment 4952498 View attachment 4952499 View attachment 4952500 View attachment 4952501

SHEESH that print



[disssa]

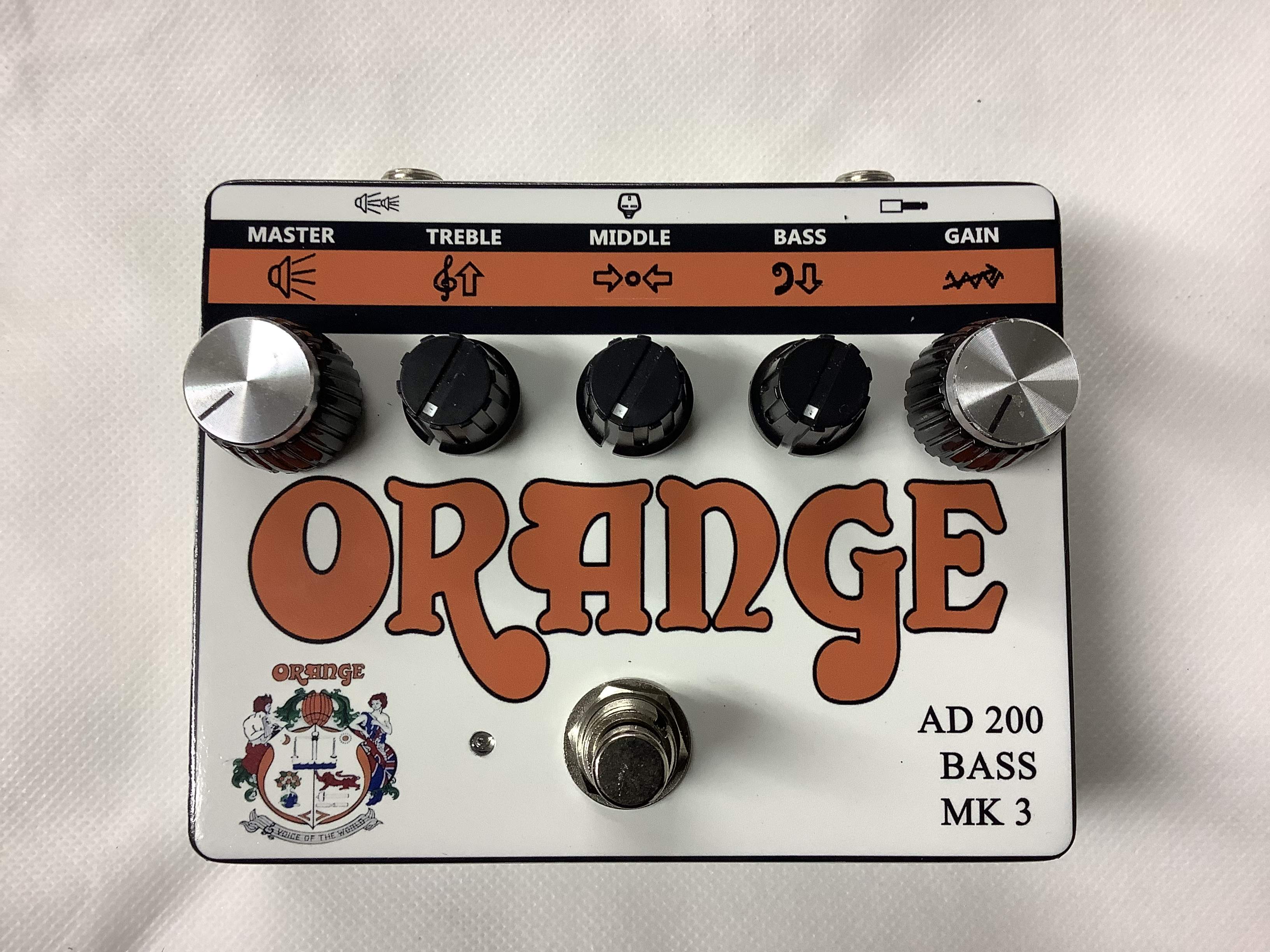

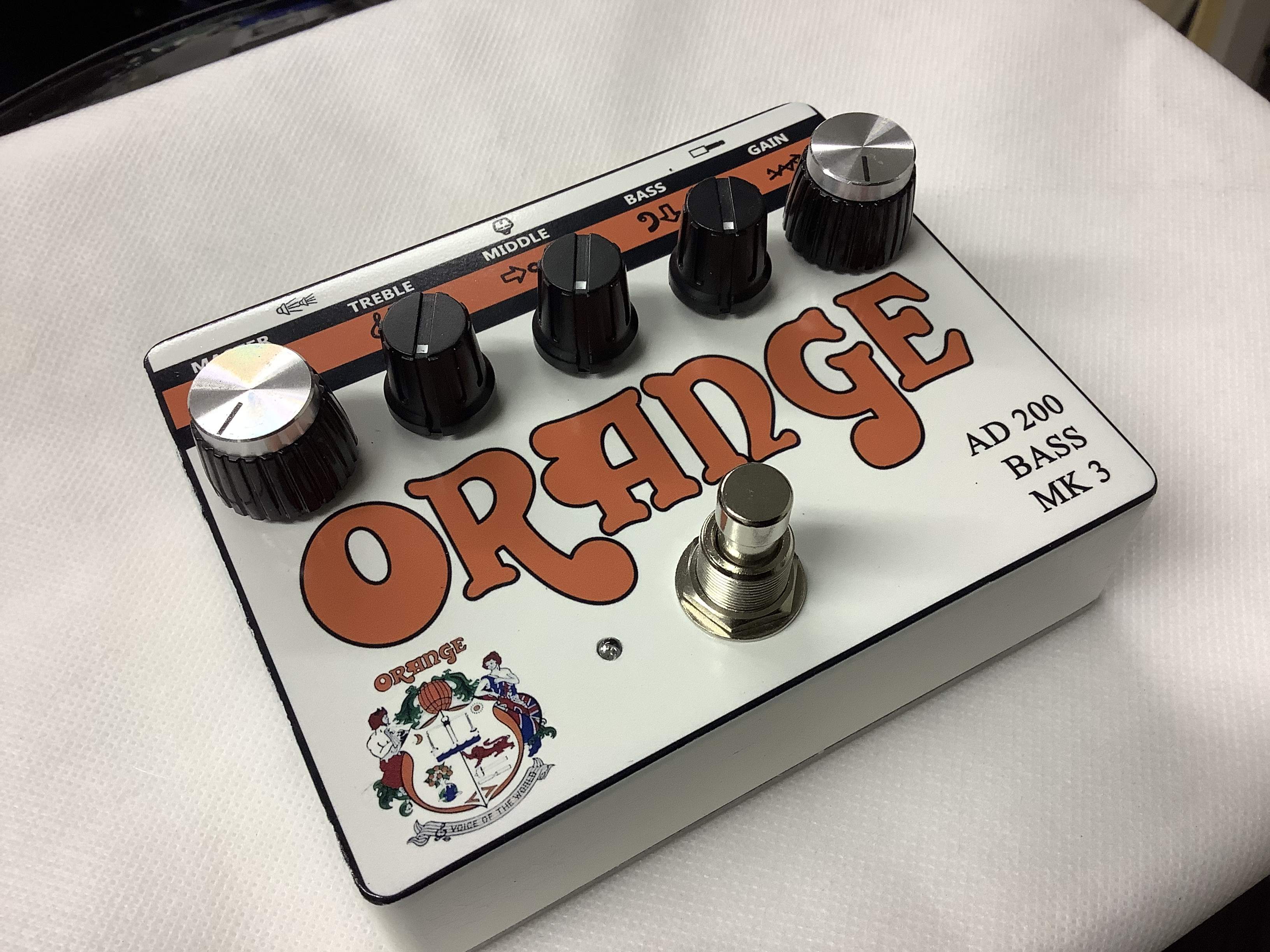

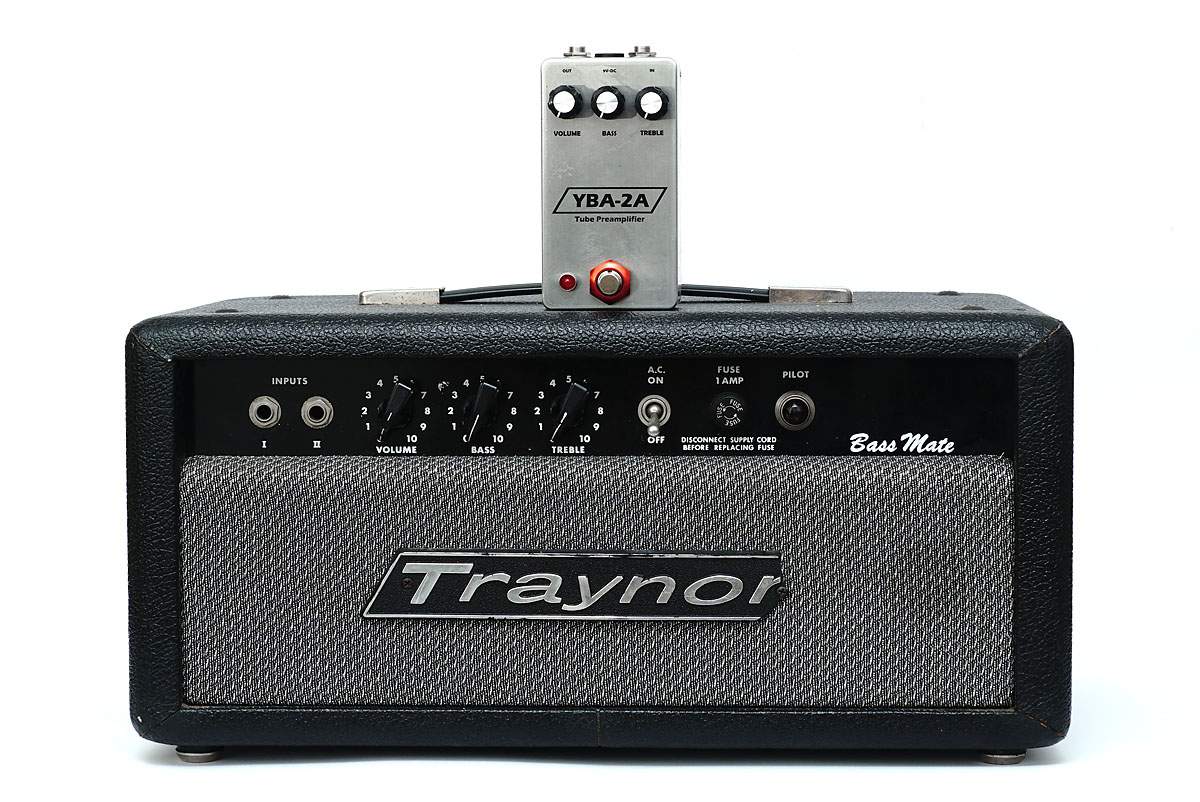

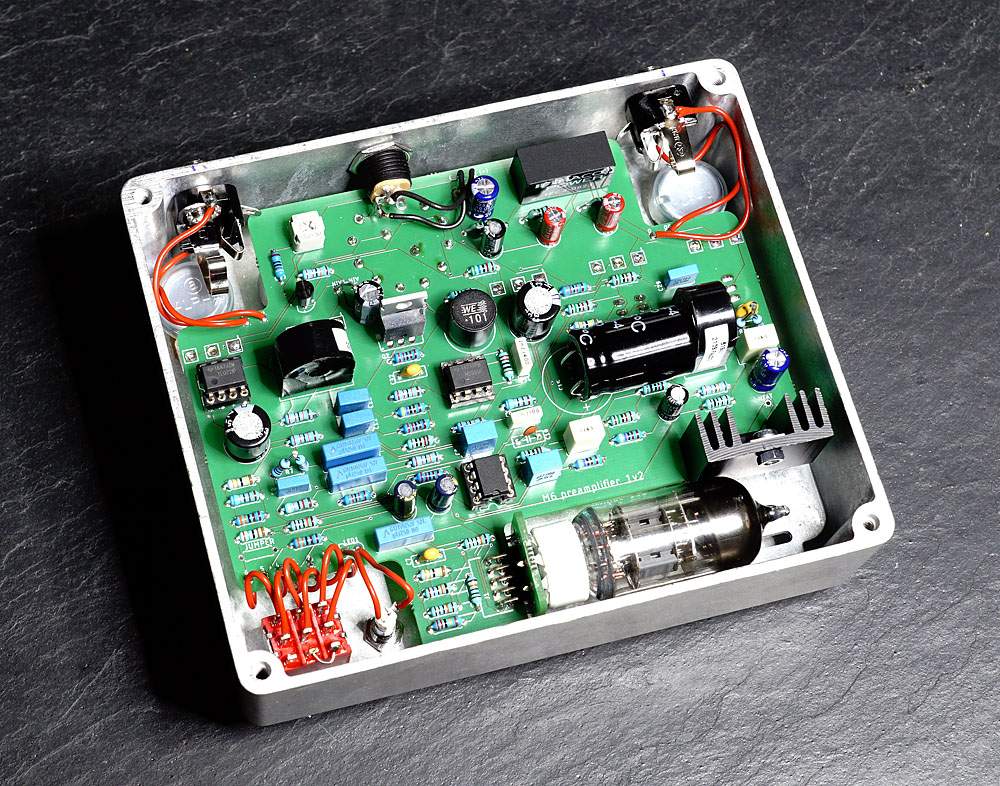

One of my favorite amps and my copy of the preamp:



[jmwreck]



[swagbotbilly]

Happy to report thanks to @disssa and Julian at Schalltechnik_04 I got my Pumpernickel working again!



[HueyFreeman]

I wish I had a Pumpernickel. I'd even settle for a broken one that I could get working again..

(pls no pm's trying to sell me your broken Pumpernickel. 'Twas a joke)



[swagbotbilly]

I wish I had a Pumpernickel. I'd even settle for a broken one that I could get working again..

(pls no pm's trying to sell me your broken Pumpernickel. 'Twas a joke)

That was why I was so pissed at myself for trying to 'fix' it, AFTER I knew I couldn't get another kit.

I will say, I learned a TON about tracing circuits, reading datasheets, and general troubleshooting, so while I won't say I'm glad I broke it, I'm glad I learned something.



[mdalamond]

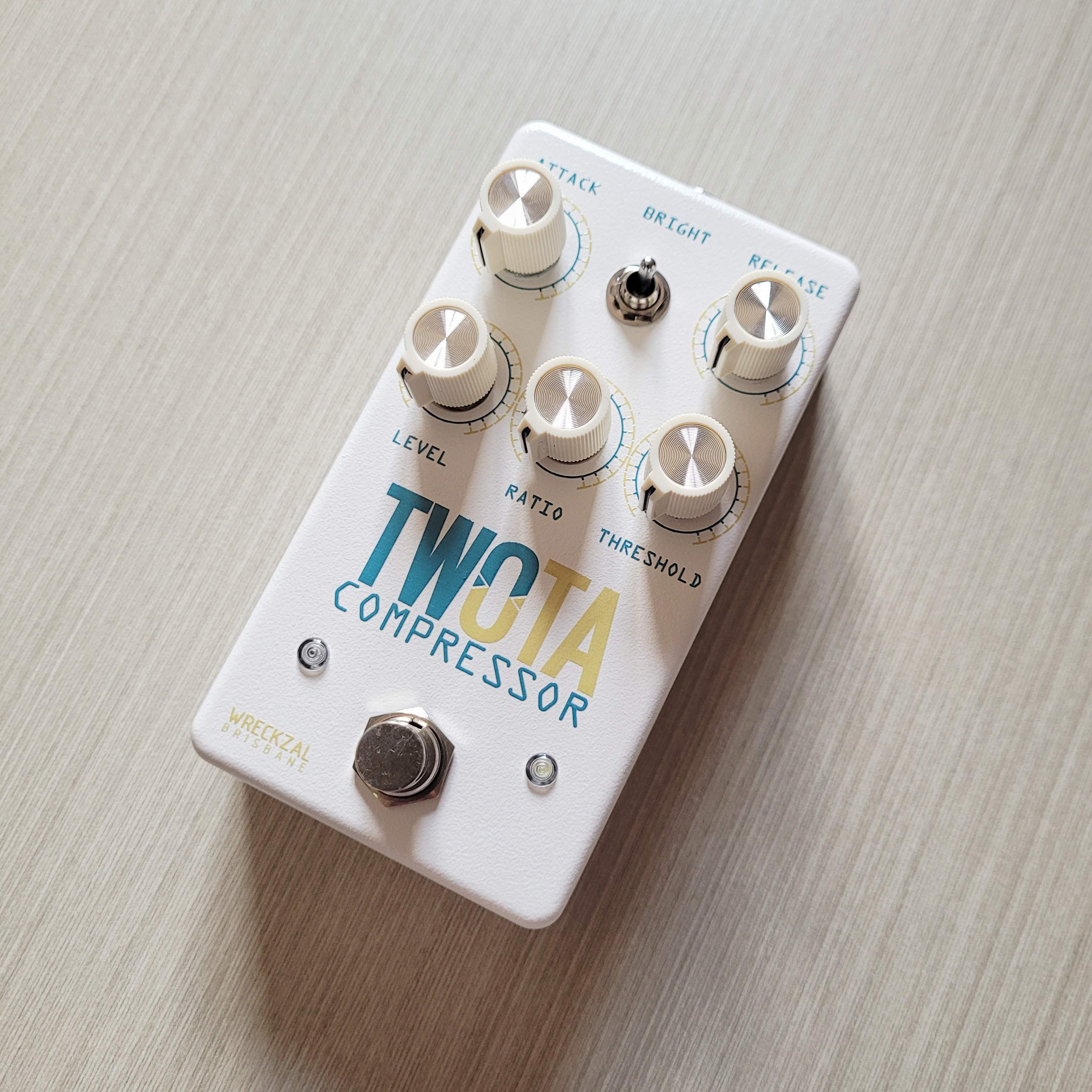

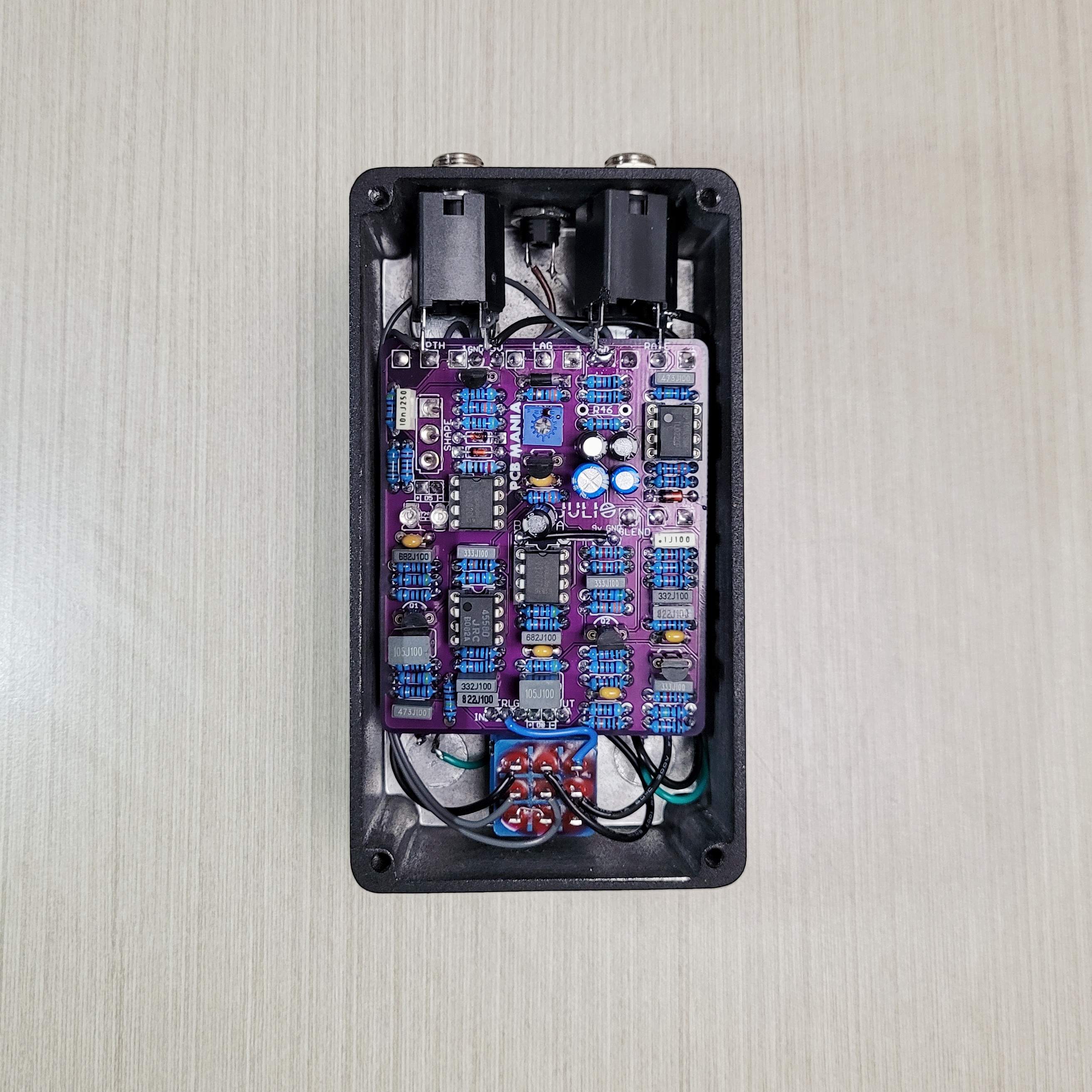

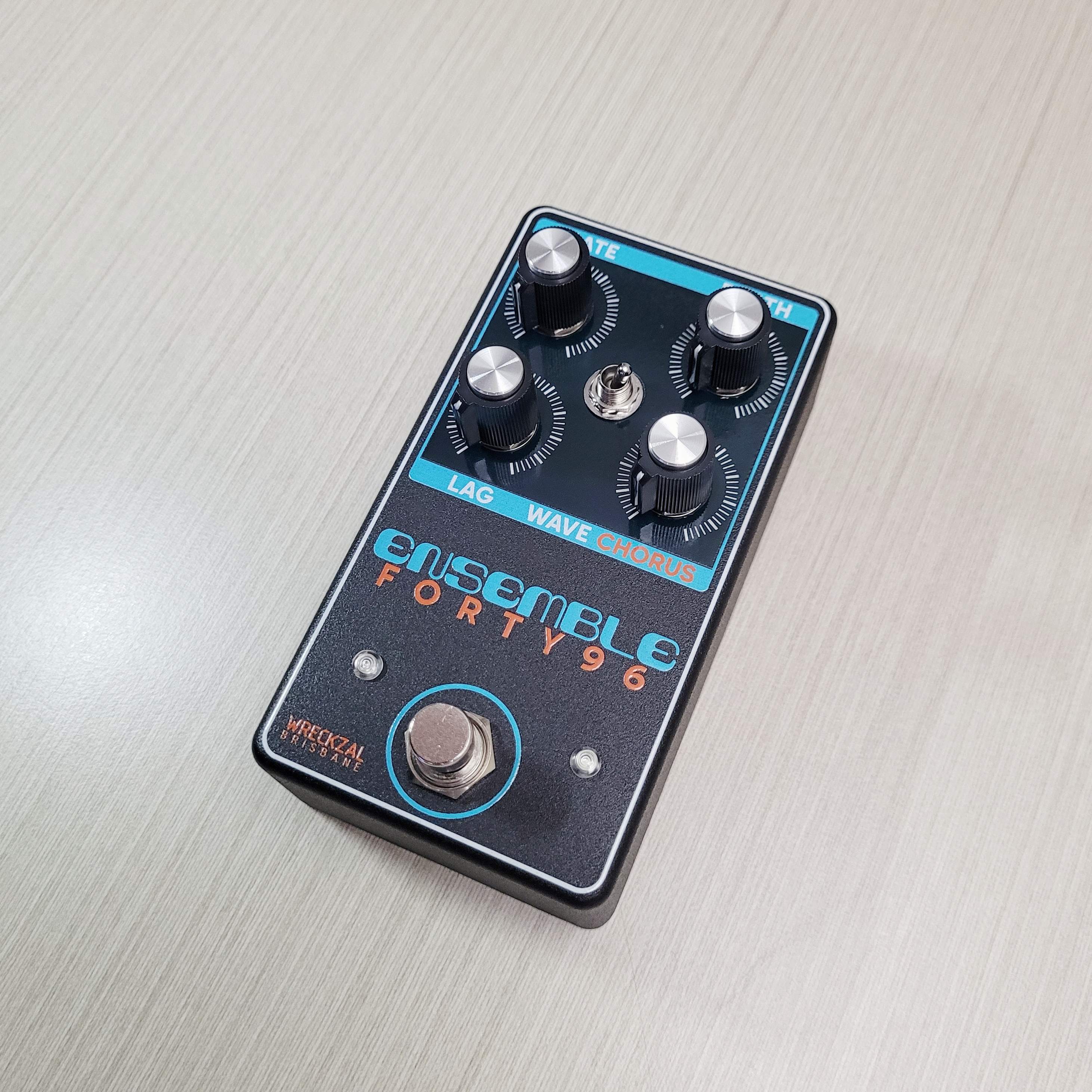

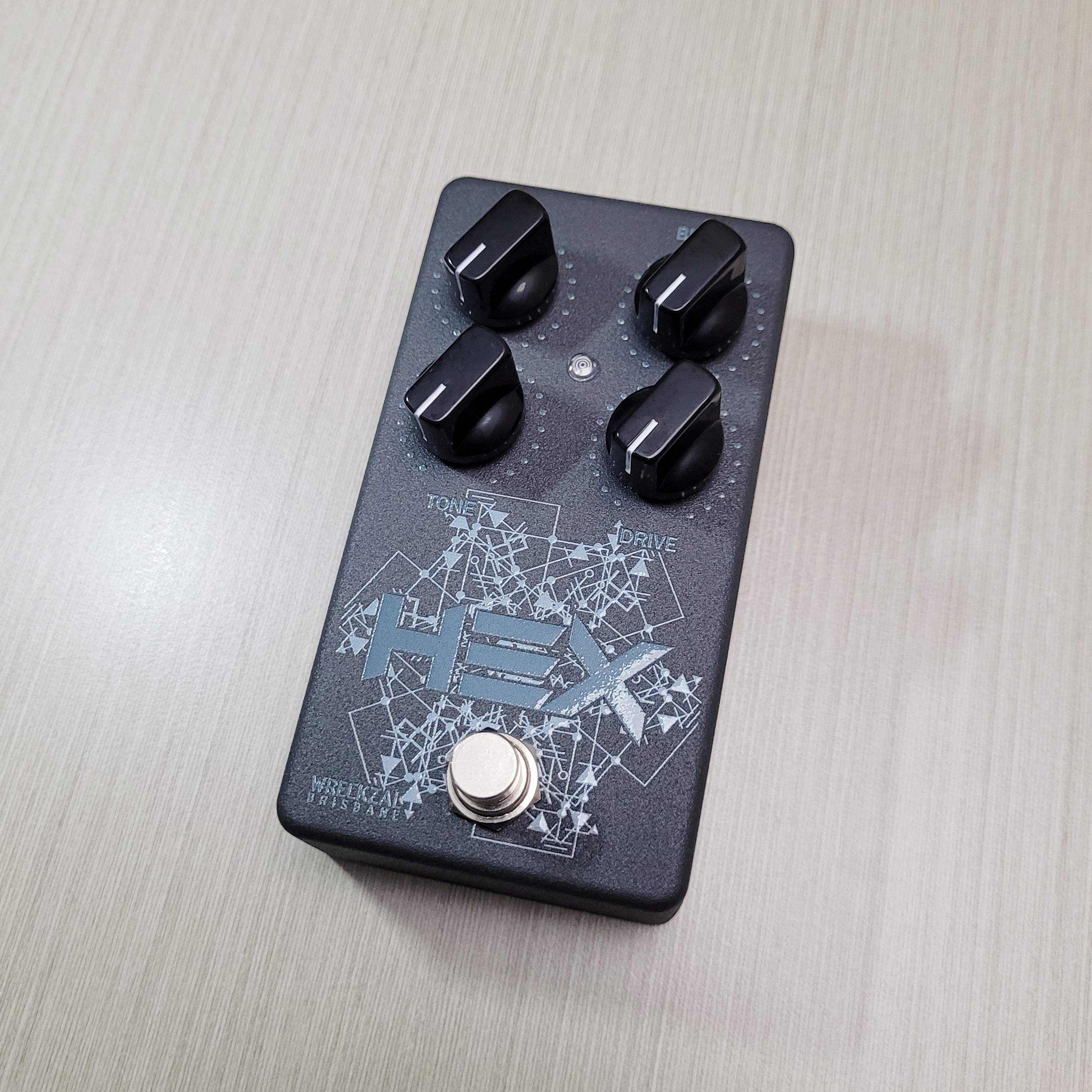

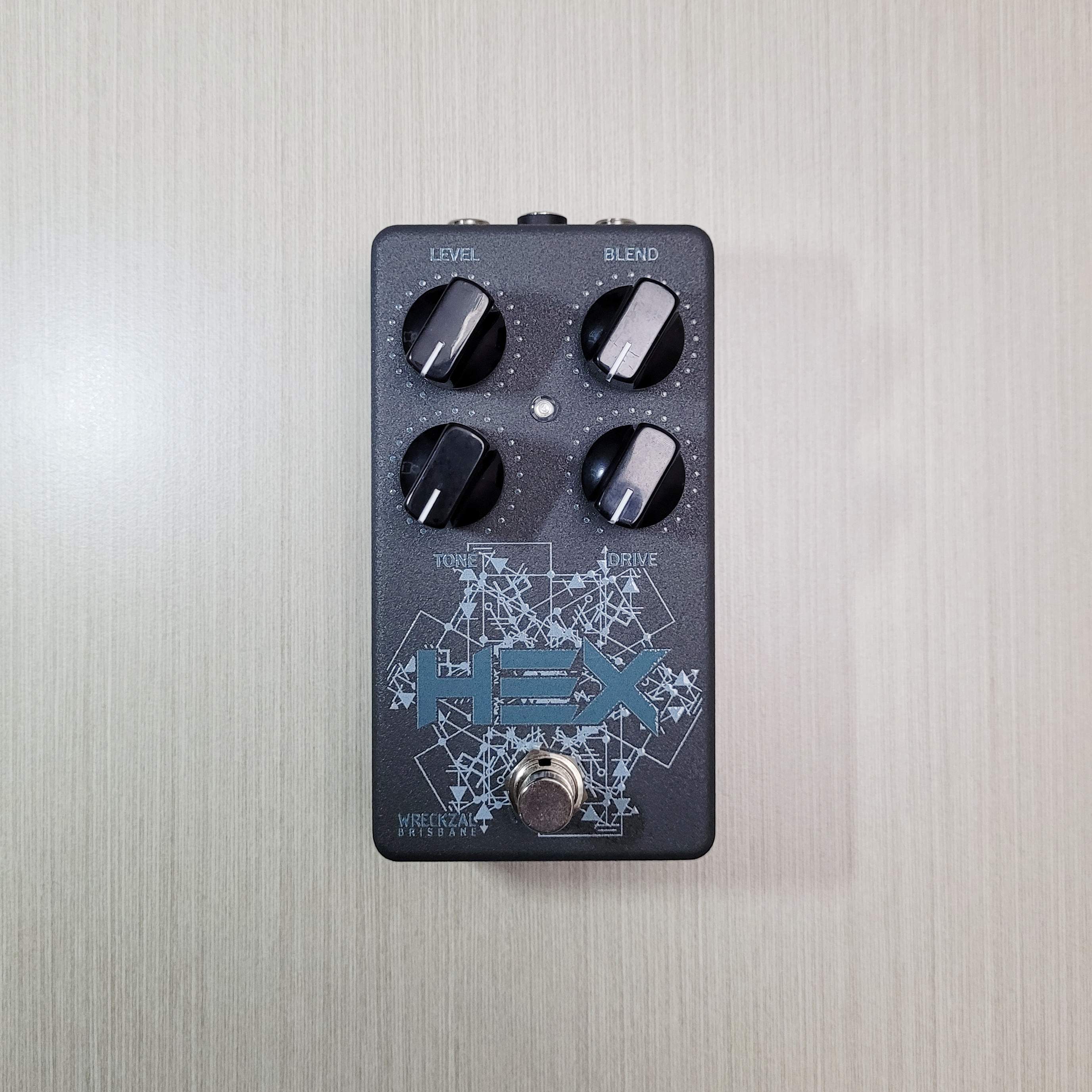

Fresh off the bench. I kinda like this one.



[swagbotbilly]

Don't have a nice backdrop for pictures, but here is my combo GUMA Antique and Drive that will be replacing my Hot Wax. I love that both effects have a wider usable range for me over the Hot Wax (which I still loved, but didn't use a ton).

Switch in the middle changes which effect is first in the chain.

Original Davies clone knobs slightly covered up the text, I guess I bumped the text up at some point, but I switched to these 16mm dia knobs, which have the added benefit of all my pedals have different knobs now too.

Shoutout to Spencer at AmplifyFun for his awesome work with my enclosure print. Tweaked the original from Schalltechnik and wanted it to nod to both of the 'original' effects.



[crguti]

^ looks like they are based of the Darkglass Vintage and B3K ?.



[swagbotbilly]

^ looks like they are based of the Darkglass Vintage and B3K ?.

That is correct
