Barber Linden EQ • New small form factor

Well...

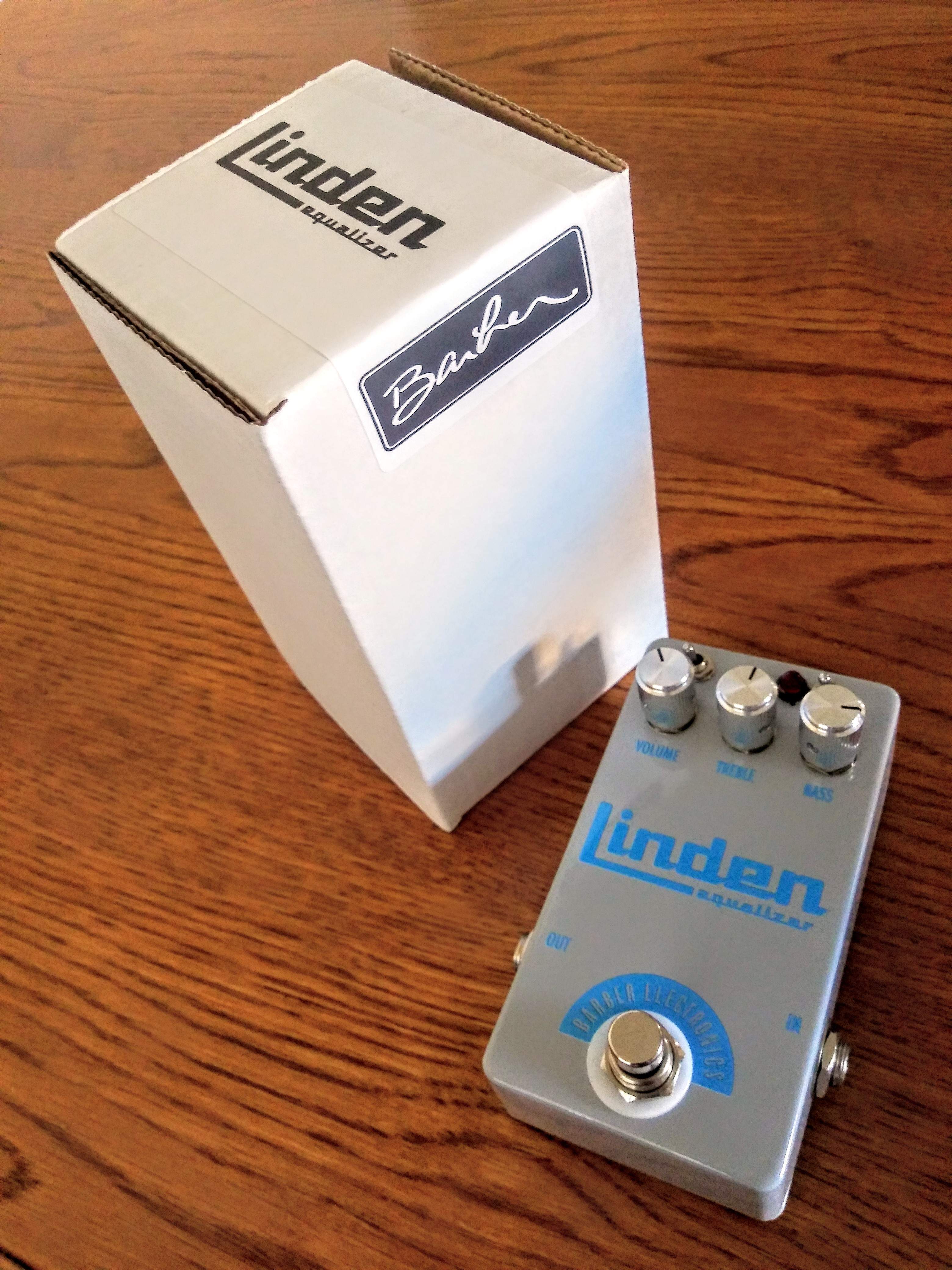

The pedal seems very well built, robust, and good looking. If you look inside is a work of art, really.
I started with everything at noon and both the "contour" and "input" switches on the left position, which is more natural with full frequency response.
Unity gain is around 1/2 o'clock with my passive P bass, so I needed to push the volume knob a little bit to get there. With both treble and bass knobs set flat, I don't hear an obvious coloration of the sound, to be honest. Since this pedal should replicate the EQ section of an Ampeg B-15, I guessed that it would impart a very specific tone to the signal. Instead, it seems very transparent with a touch of added presence and character.
I suspect that the gear I use is tonally speaking similar to the B-15 sound and/or can "mask" the pedal's unique tone. I tested the pedal into a BA-108, a BDDI and a Quilter BB800. The first one is an Ampeg, the second is some sort of Ampeg in a bog preamp/DI, while the third is a very flat-voiced amp which is very smooth and can be "dark sounding" depending on the bass you plug into it. My P bass is equipped with Chromes flat strings, enough said.
Let me know if with your setup you can hear a big difference in tone when the pedal is turned on/off with everything set flat.
When I started to turn the knobs a little bit the pedal's characteristics started to become more obvious.

For an "always on tone enhancer" I like to set all the knobs at 1/2 o'clock. Input switch on the left or center position depending on the amp and/or cab and contour switch on the left, when fingerpicking. It sounds very balanced with tight bass and great definition on the attack. When using a pick I do prefer the center position which is smoother and less sharp.

For a very bassy deep tone I like treble around 11 o'clock and bass at 4 o'clock. Contour switch is on the left (to get full treble and good definition of the attack) and input switch on the center or right for tighter bass. The bass sounds HUGE without making anything "fart"! Any of my amps can't get there without "consequences", honestly.

For a great slap tone I like treble at 4 o'clock, bass at 1 o'clock, contour switch on the right (mid scoop position), input switch on center or right position (more "throaty"). Again, any of my amps can get there, at least without "consequences".

I'm really impressed and I have the pedal since 2 days.

When I started to turn the knobs a little bit the pedal's characteristics started to become more obvious.

It does seem to be very flat and uncolored with bass and treb. @ 12, but you're right....turn the knobs a little and the tone magic begins. I knew it would be a great pedal, but I honestly didn't anticipate it being as versatile as it is. To be honest, I figured I would probably end up getting a larger multi-band EQ or para-EQ to handle certain gigs/styles, but the Linden has sounded incredible and I've been able to dial in every sound I've been looking for.

It definitely has some growl to it, which I love. Currently, I've set both switches left, Bass @ 2, Treb @ 9 o'clock, Vol. @ 11. That setting allows me to switch between all of my basses without having to touch the EQ. My LB-100 sounds perfect with that setting and slight adjustments to the on-board pre's on my actives can produce every other sound I want. I haven't noticed any scratchy noise from the Treb. pot, but I haven't been turning the knobs very much either since I use it as a set-and-forget pedal. Next time I'm playing though, I'm going to check that out and see if mine does it as well.

I haven't seen one on the used market really at all. That could mean that a) not many people have it and it's relatively unknown. or b) that its really good and people don't want to sell it.

I don't know much about EQ, or how messing with the knobs affects the mid frequencies, but it is fun to mess around with! It's funny, before Talkbass I was all about the weird sounding stuff (still like it), but since joining I'm all about compressors and EQ now. Go figure.

Weird stuff vs normal stuff, huh? Who said you can't do both? ;)



Yesterday I re-tweaked all my pedals having the Linden always on. I dind't change too much honestly, but the overall tone is WAY more present, precise, defined. Now I can have all the tonal advantages of using flats while having the attack and treble response of fresh rounds. I can also crank the bass a lot more and get an always tight tone.
That's amazing.

I tested the Linden at rehersals yesterday.
Voume at unity gain (2 o'clock), both bass and treble at 2:30 o'clock, contour swith on the left, input switch on the middle. Minimum overall tonal coloration and increased clarity and attack of notes.
I kept the Linden on all the time and my rig never sounded better, I got compliments from all the other members.

  • Like
Reactions: sonofshel
I kept the Linden on all the time and my rig never sounded better, I got compliments from all the other members.

Same here. This is one of the best EQ's I've ever used. Simple and effective. I've been experimenting with the input switch (right) set to the middle position ('tight' mode) and boosting the bass and volume a bit more. I love the punchy sound...made the 2x10's thump, so I can't wait to try that setting with the 1x15. I think that will be a great setting for live use.

Like I said, it's not the typical scratch of dirty pots. It seems different.

BTW...I did notice a slight high-pitched 'scratchy' sound in the treb. knob when it's being turned, but as mentioned previously, it's NOT faulty potentiometer crackle. It actually sounds more like a high-band sweep, which makes sense since it is an EQ. I gave it a good listen with a friend of mine (an elec. engineer). We tested at varying levels from practice volume to dimed (for EQ pedal, preamp, and power amp) and the only noise we could detect was electrical noise that was being accented and amplified along the varying frequency bands. As far as the pedal is concerned, no detectable flaws or crackle sounds to speak of.

Ever since I read your post about having a custom B15 type pedal made I have wanted one. How close goes the Linden get to your custom job?

They’re both very close. When I specced my custom pedal with Josh Broughton, I wanted to keep it as pure and simple as possible. So all I wanted was the baxandall tone stack plus some gain. And the Alex-1 does that beautifully. The Linden is arguably more versatile thanks to those two toggles which really up the game significantly. That makes it a little less B-15ish (is that a word?) on some settings. But IMO it nails a B-15 as close as anybody has come so far with a readily available pedal. And the fact it’s so affordable makes it even nicer.

Right now my custom pedal is used mainly at home since it’s one of a kind. For live use, the Linden has pretty much become an always on pedal for me. I’m contemplating getting a second one just to keep as a backup since I like mine so much.

I think you’re gonna love yours once it arrives. :thumbsup:

I just wish they’d make a dual channel rackmount version.

Right on, I'm pretty excited I ran across this pedal and intend to use it into the backside of my D800 into the Subway 15 for my 3 piece Blues band. I've been looking for a lightweight replacement for my Fender TV 15 and since I've never played through an B15, I'm really looking forward to using this to see how it goes. I think it'll work out just fine.
