Building '54 P-Bass

#64
Sorry for the delay. Had some gigs and rehearsals. I pressed the bushings in and mounted 3 tuners. The 4th One didn’t Fit the bushing ID. There Was a taper in the bore and it was too small on the bottom end to allow the tuner peg to fit properly.
One new bushing on the way.

Last edited:
#65

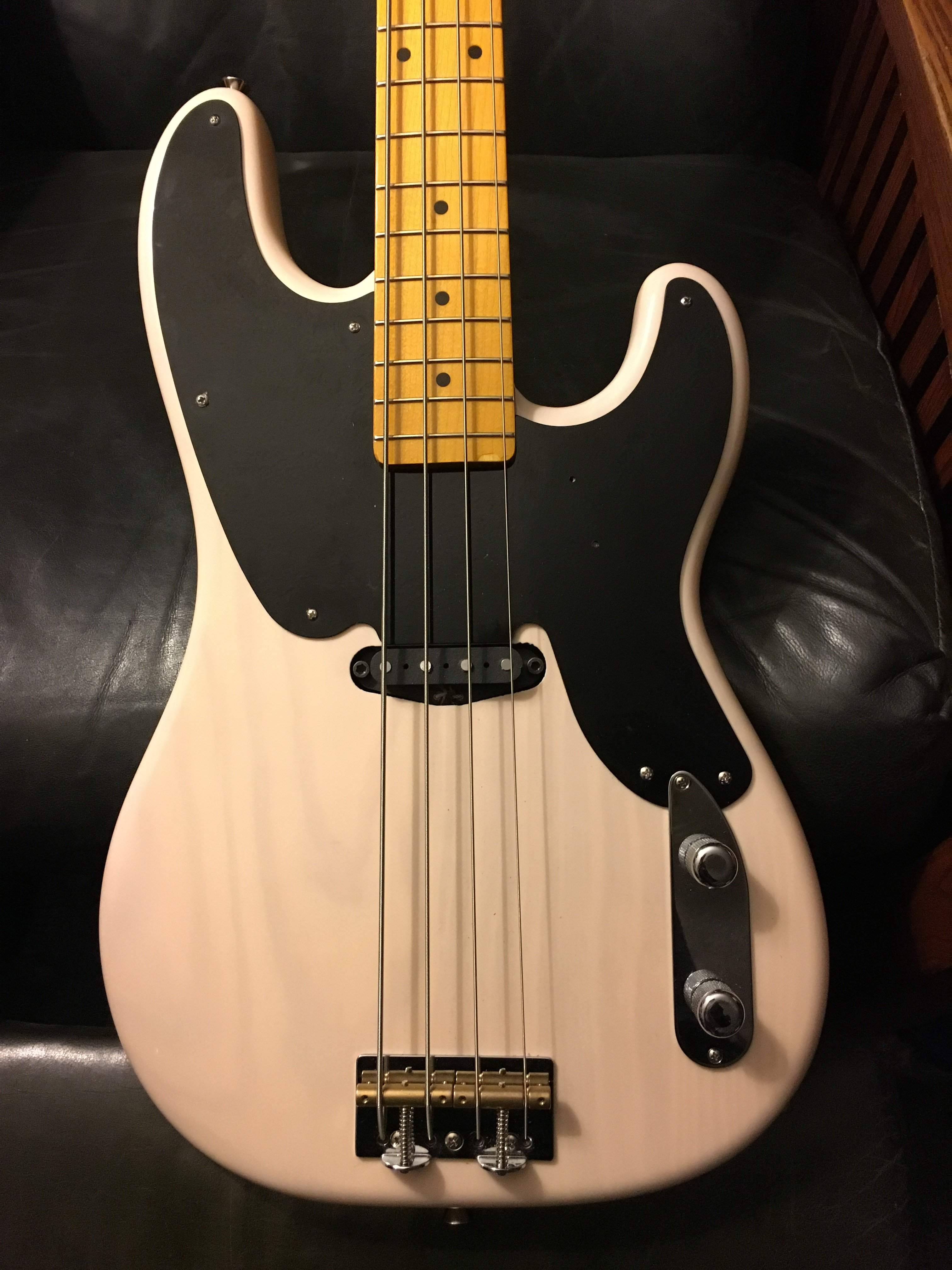

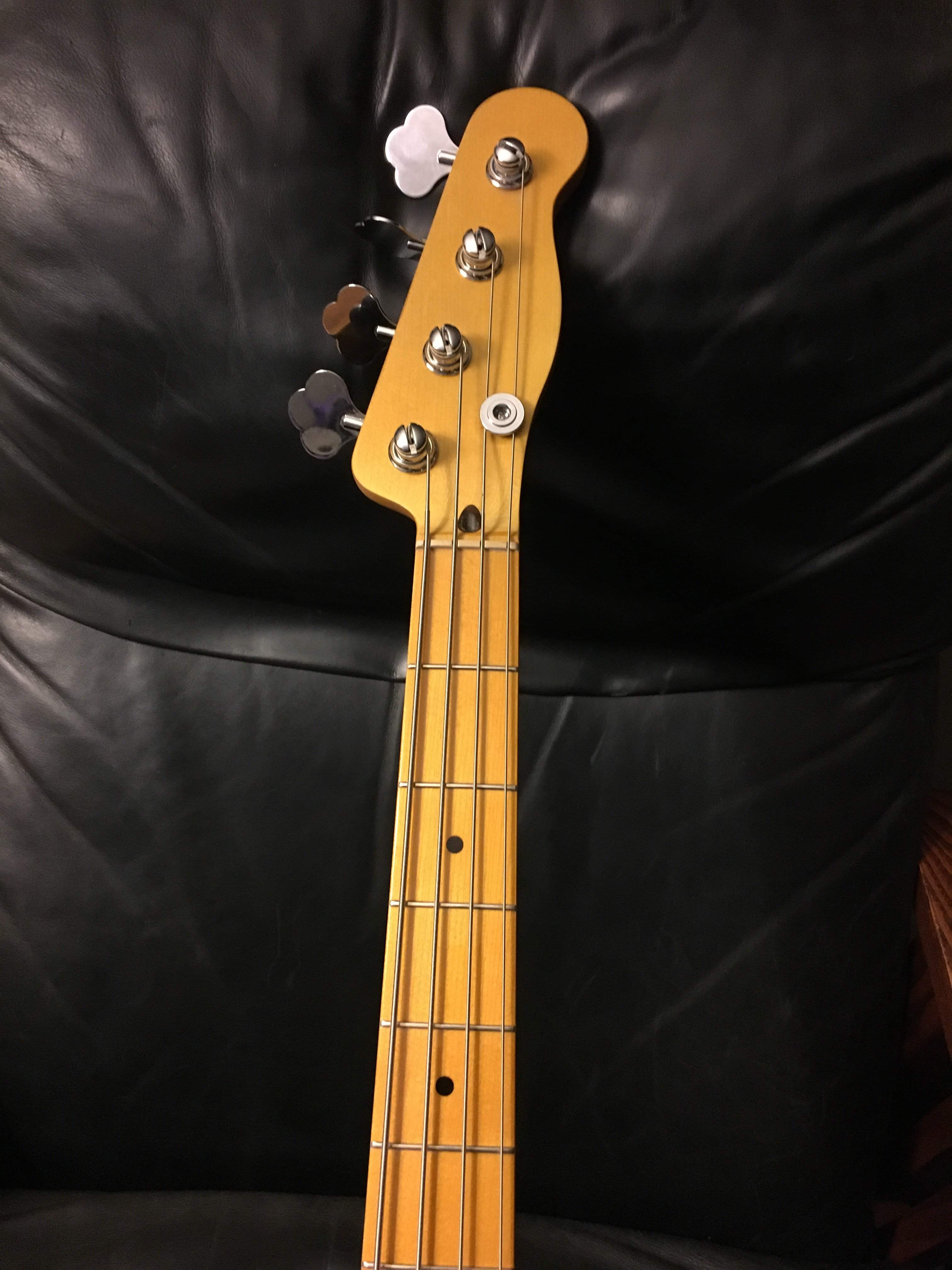

While we're waiting here's one built last summer. Came out great except it's more than a pound over my target. The body is too heavy, it plays and sounds excellent but I try to not gig with basses that hurt my back anymore. It only took me a week or two to find the Wilkensen bridge on EB.

  • Like
Reactions: Shawn Luckman, sneha1965 and 2saddleslab
#66
Kirk Bryant said:
View attachment 2908584 View attachment 2908583 While we're waiting here's one built last summer. Came out great except it's more than a pound over my target. The body is too heavy, it plays and sounds excellent but I try to not gig with basses that hurt my back anymore. It only took me a week or two to find the Wilkensen bridge on EB.
Click to expand...
Is this the white blonde Squier with a painted guard?. Seems familiar.

#69
Kirk Bryant said:
View attachment 2908584 View attachment 2908583 While we're waiting here's one built last summer. Came out great except it's more than a pound over my target. The body is too heavy, it plays and sounds excellent but I try to not gig with basses that hurt my back anymore. It only took me a week or two to find the Wilkensen bridge on EB.
Click to expand...

That looks great. Mine may be a little heavy as well, but we'll see. Bushing should be in tomorrow. I can't wait to get it done. I'm pretty sure that I won't mount a pickguard. The grain looks too nice. The only chrome on the bass will be the control plate (with black knobs). I'm wondering if that will look okay or if I should make that black as well.

#70
The ‘54 will be done by tomorrow and possibly tonite. I will post complete pics when finished. It’s been a long process but the finished product will be worth it.
The sustain on this bass is going to be unbelievable.

#71

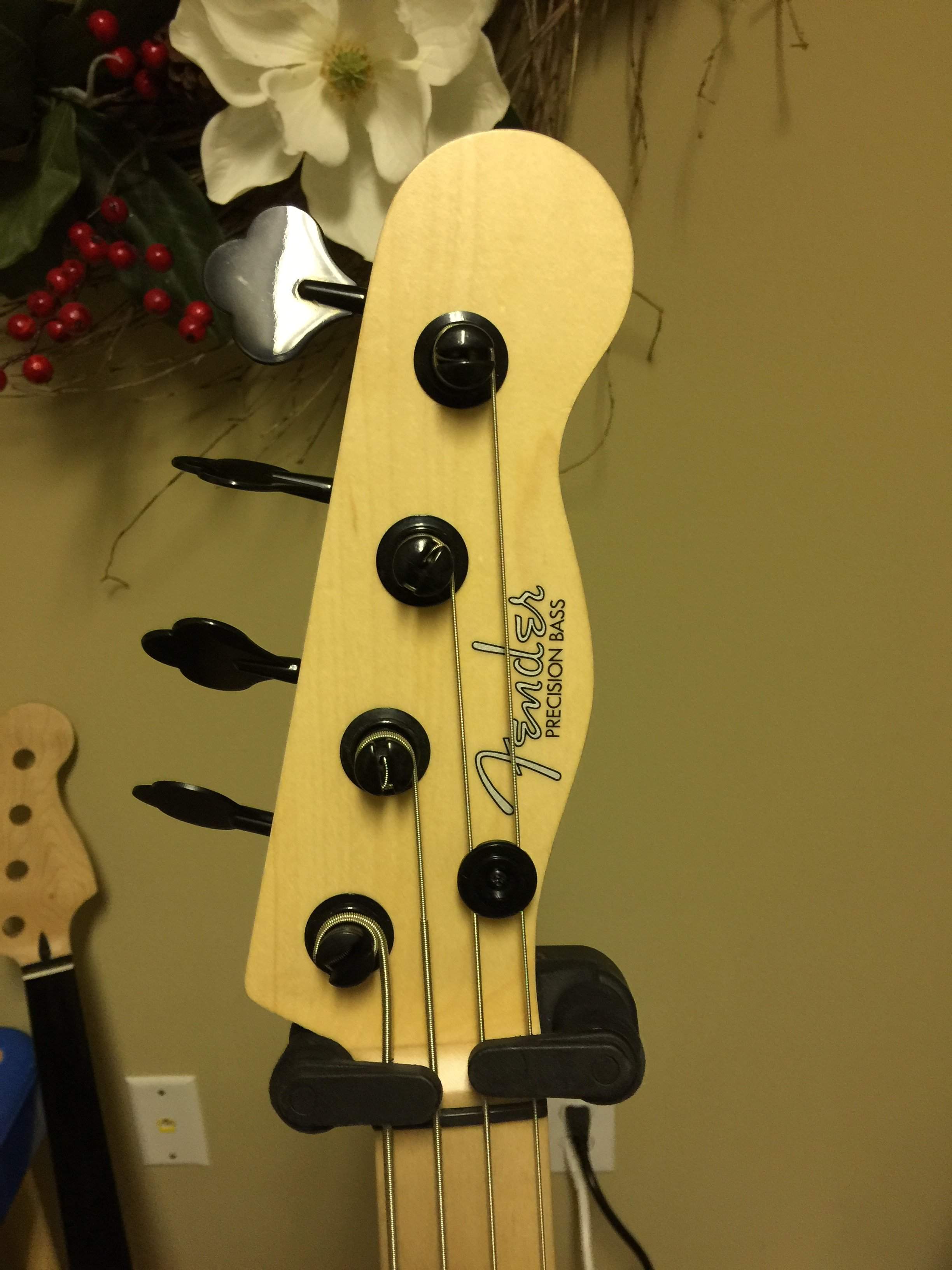

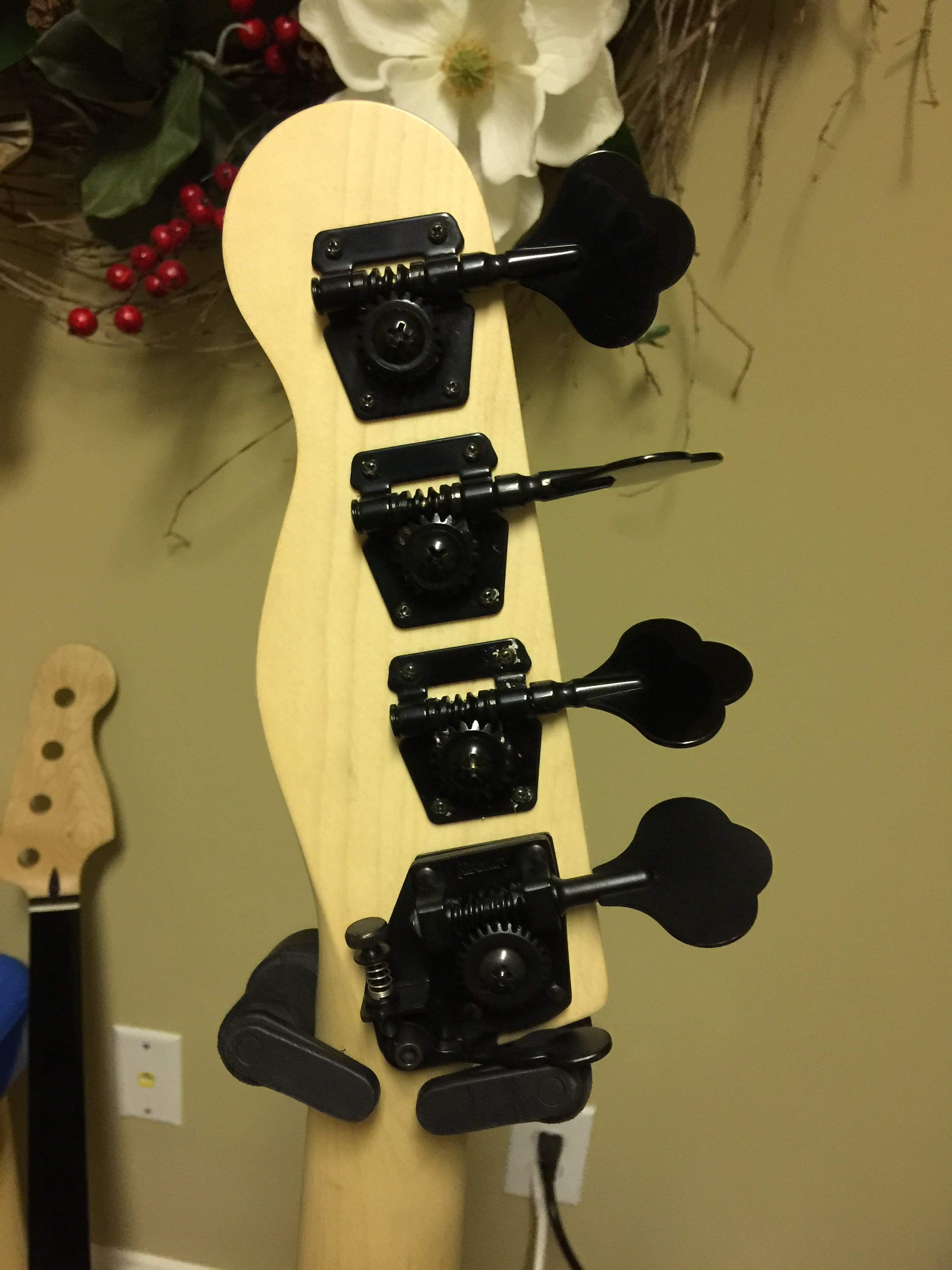

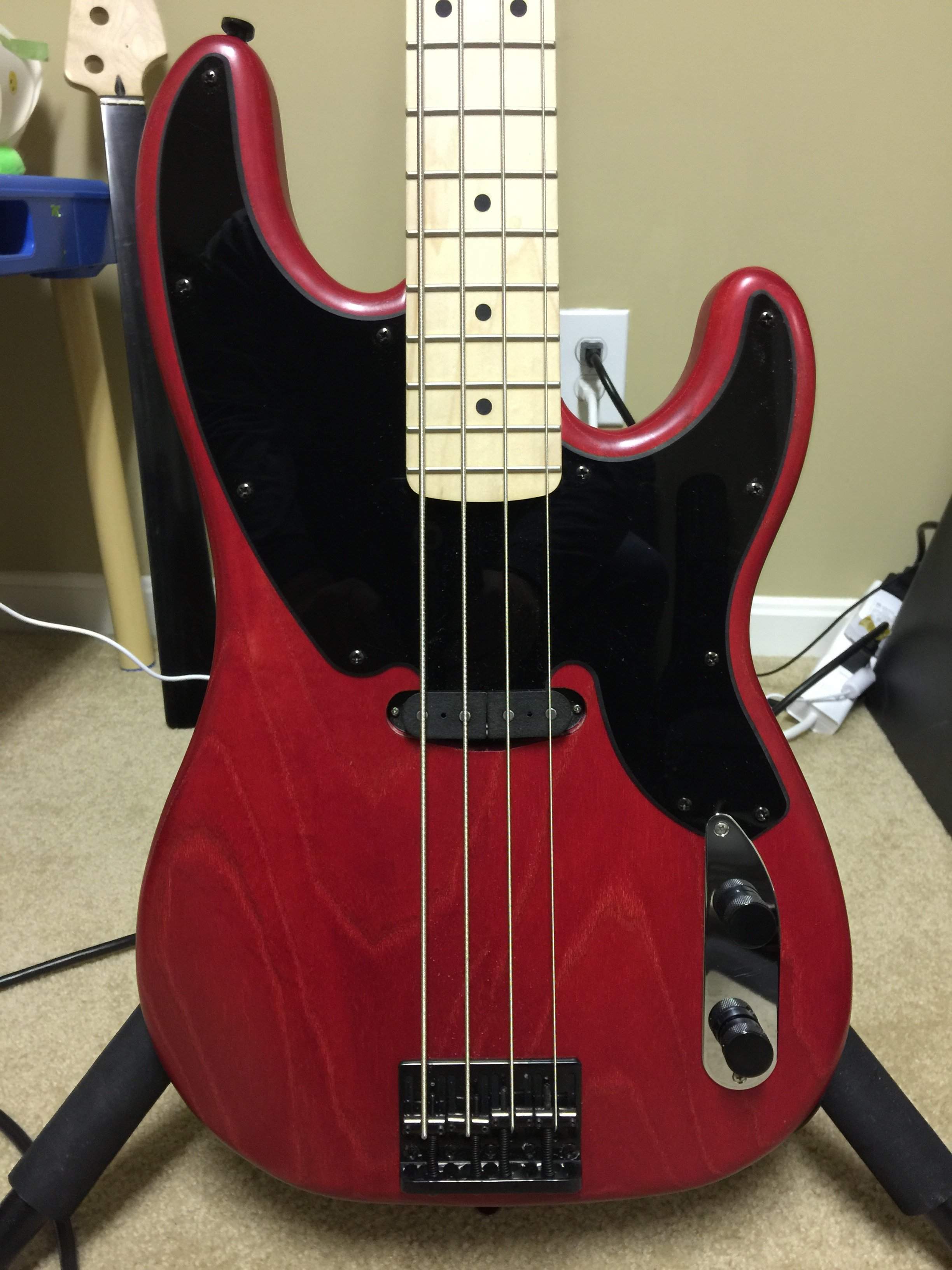

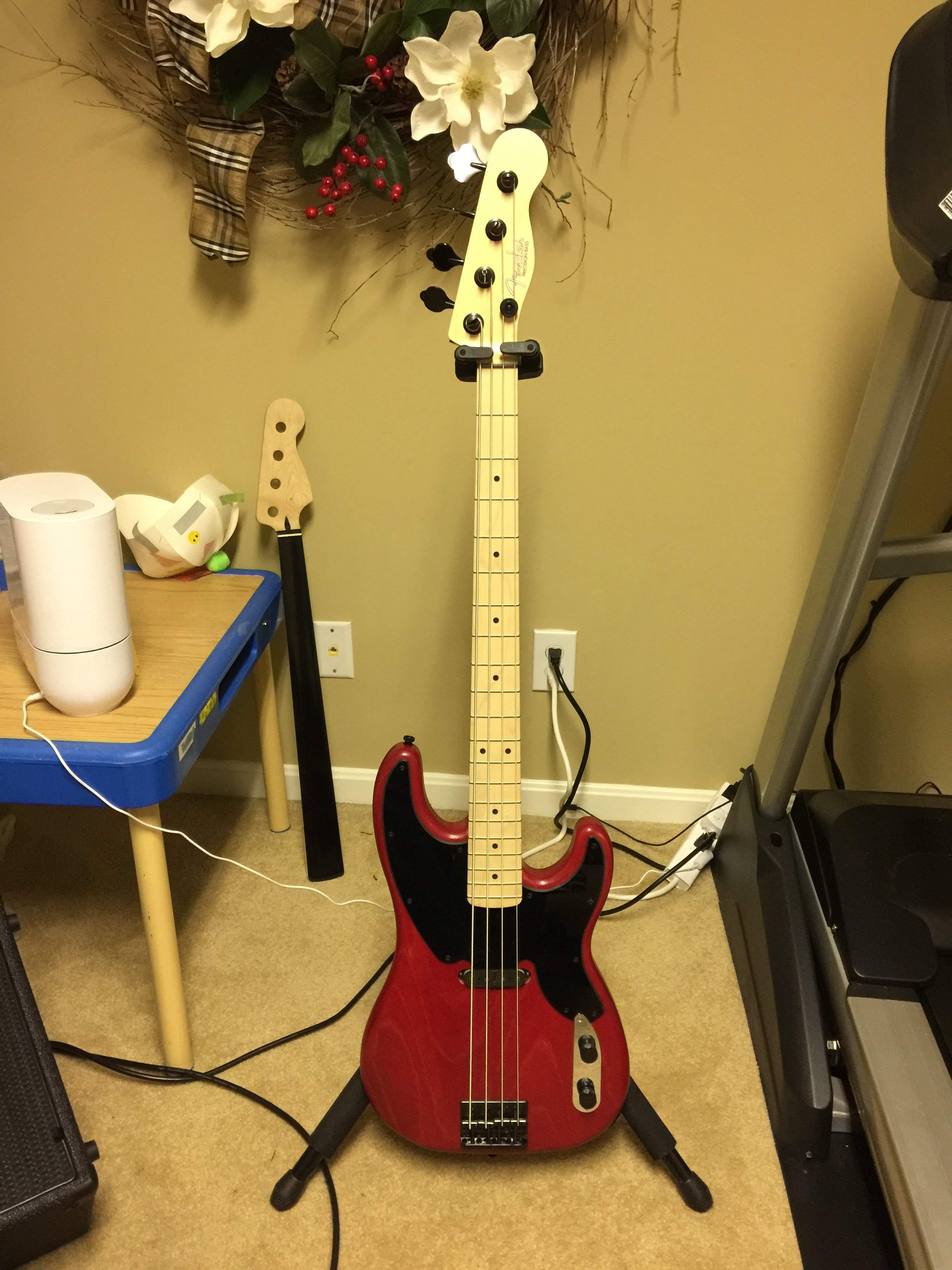

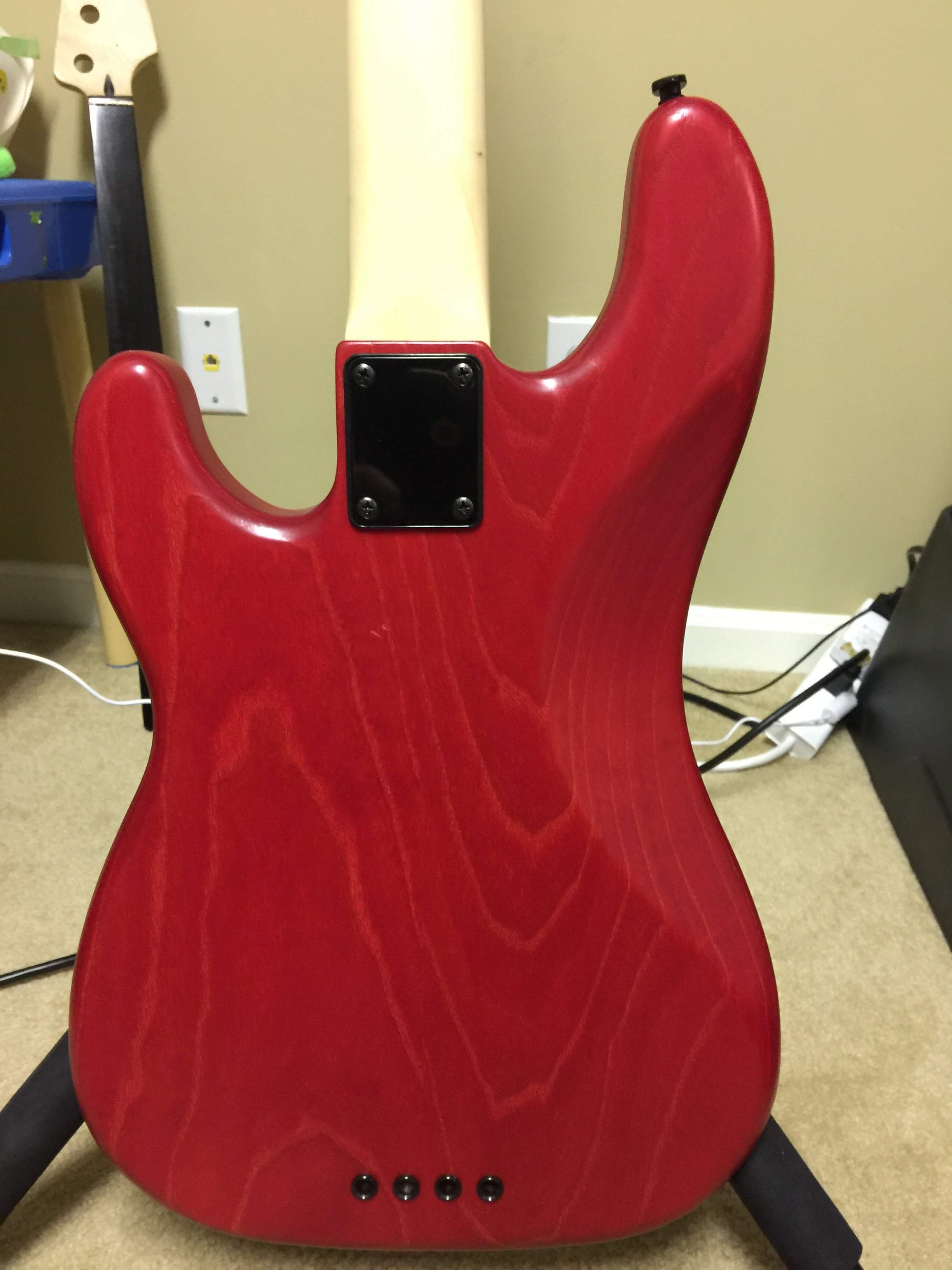

It’s finally done and I absolutely love it. It’s a little heavier than some of my other basses but it’ll be a keeper and a player!

Here are all the details:
Warmoth Swamp Ash ‘54 Body
Warmoth Maple Tele Bass Neck (satin fin)
Warmoth Pick Guard
Fender Control Plate
Fender Precision Decal
Hipshot Tuners
Hipshot “Drop D” Tuner on E String
Guitarfetish Bridge
Guitarfetish String Ferrules
Guitarfetish String Tree
Guitarfetish Strap Buttons
Guitarfetish Knobs
Guitarfetish Jack Plate
Switchcraft Jack
Switchcraft 250k Pot
Tonestyler “Detented” Tone Control
Lindy Fralin “Split” Single Coil Pickup
Vintage “waxed cloth” wiring
Lots of red stain, polyurethane & lacquer

  • Like
Reactions: gogoboy, frankgacy, Ghastly and 7 others
#76
Calexia13 said:
View attachment 2857445 That cardinal red takes the cake for most mesmerizing color. Can’t wait to see it when it is done.

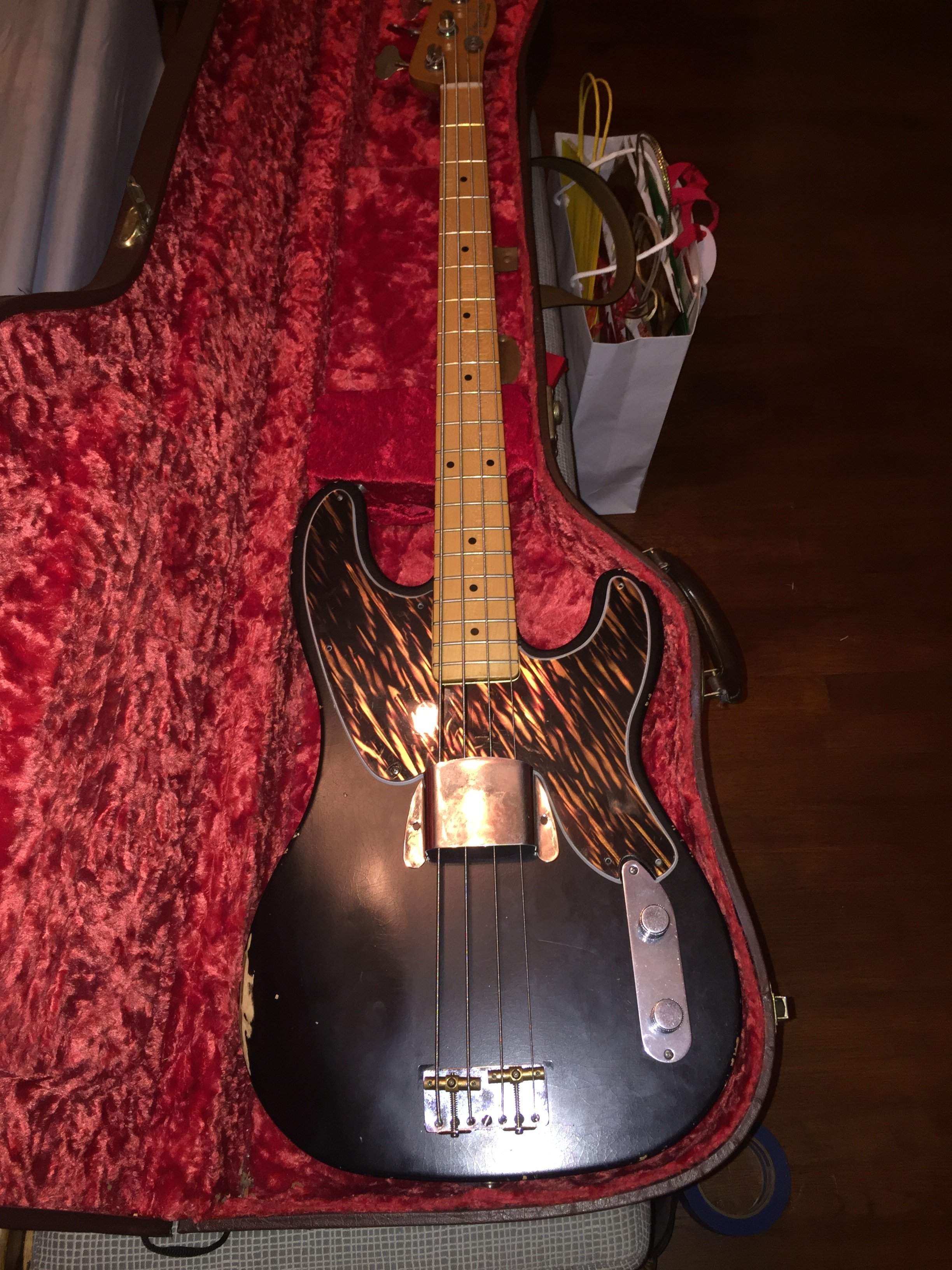

Here is mine, its a dirnt roadworn neck, slab body (not rounded) with forearm/gut cuts, gotoh vintage light weight tuners, and pinstripe guard with fralin split p 5% overwind. Its light and 8.2 lbs.
Sorry for the dark photos.
Click to expand...
Loving that pinstripe pickguard! Where did you source that at?

#77
Pep said:
View attachment 2919386 View attachment 2919388 View attachment 2919390 View attachment 2919387 View attachment 2919389 It’s finally done and I absolutely love it. It’s a little heavier than some of my other basses but it’ll be a keeper and a player!

Here are all the details:
Warmoth Swamp Ash ‘54 Body
Warmoth Maple Tele Bass Neck (satin fin)
Warmoth Pick Guard
Fender Control Plate
Fender Precision Decal
Hipshot Tuners
Hipshot “Drop D” Tuner on E String
Guitarfetish Bridge
Guitarfetish String Ferrules
Guitarfetish String Tree
Guitarfetish Strap Buttons
Guitarfetish Knobs
Guitarfetish Jack Plate
Switchcraft Jack
Switchcraft 250k Pot
Tonestyler “Detented” Tone Control
Lindy Fralin “Split” Single Coil Pickup
Vintage “waxed cloth” wiring
Lots of red stain, polyurethane & lacquer
Click to expand...
Wow! THAT LOOKS FANTASTIC! Even better than I envisioned early on in the thread. Great choice to go maple.
