fEARful 1212/6, first build!!

[hintz]

So I recently got to try out a few different TB'ers fEARful cabs and got the itch, I haven't had success posting pics on the official Greenboy/fEARful forum so I thought I share here for now(until I get to a real computer and not my phone)...

I have some woodworking experience from years ago(I worked at 2 different cabinet shops , 1 in high school the other right after graduation)... but after reading some build thread's on the Greenboy site I got "fEARful" myself on how rusty my skills may be so I ordered the precut flatpack and deluxe kit for the 1212/6...

Keep in mind there are a few mistakes(the result of rushing through things), so far its not perfect 100%, and its still not finished but I went off a few different build threads and the YouTube instructional vid, but if I could go back I would've done a few things different...

Either way its been exhilarating building this so far, I can't wait to finish it and I strongly encourage anyone to give this a shot, its been a blast and I'm already itching to build another..

Special thanks to Kekani and Jim Carr for letting me try their cabs out and other help!

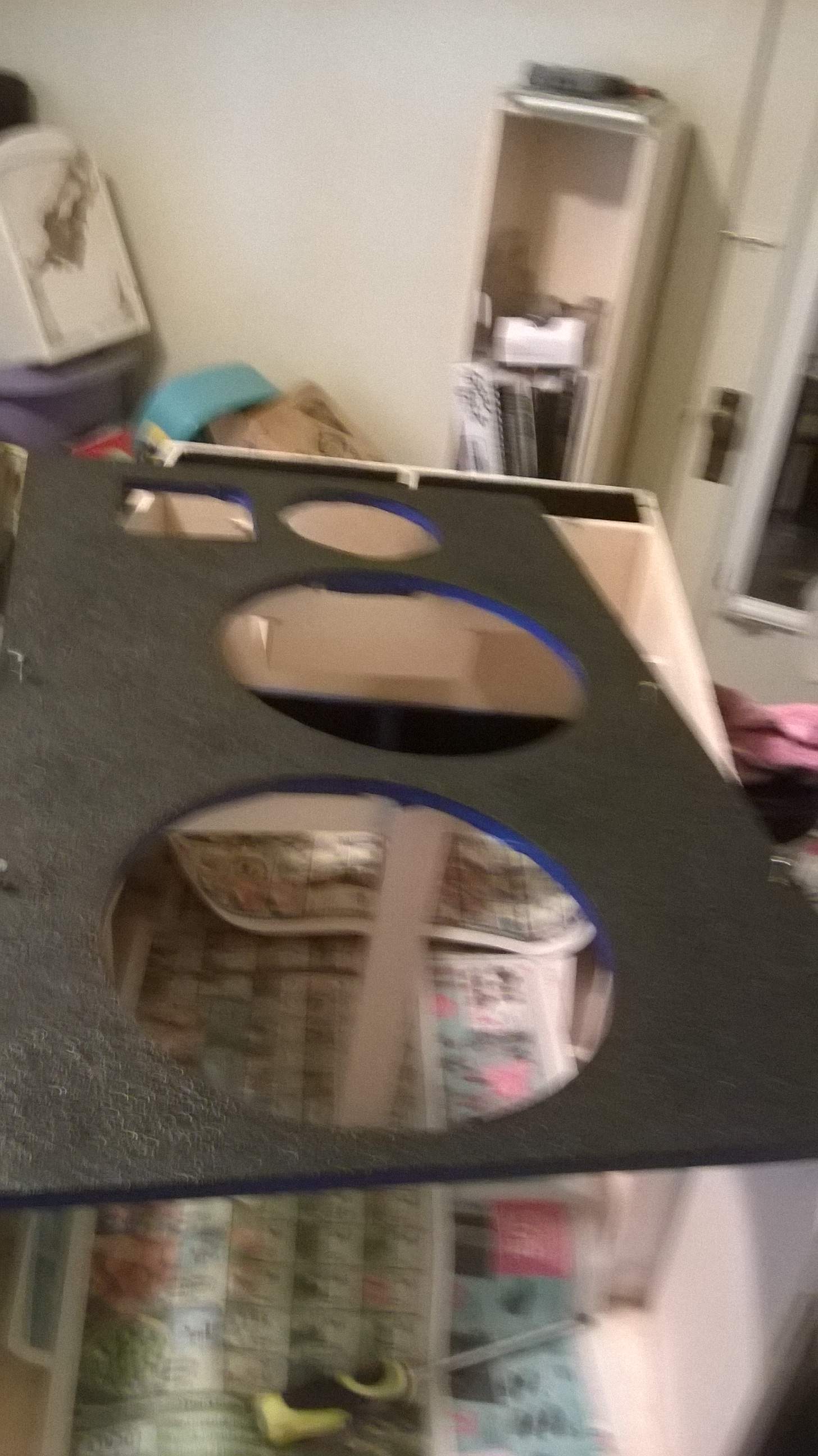

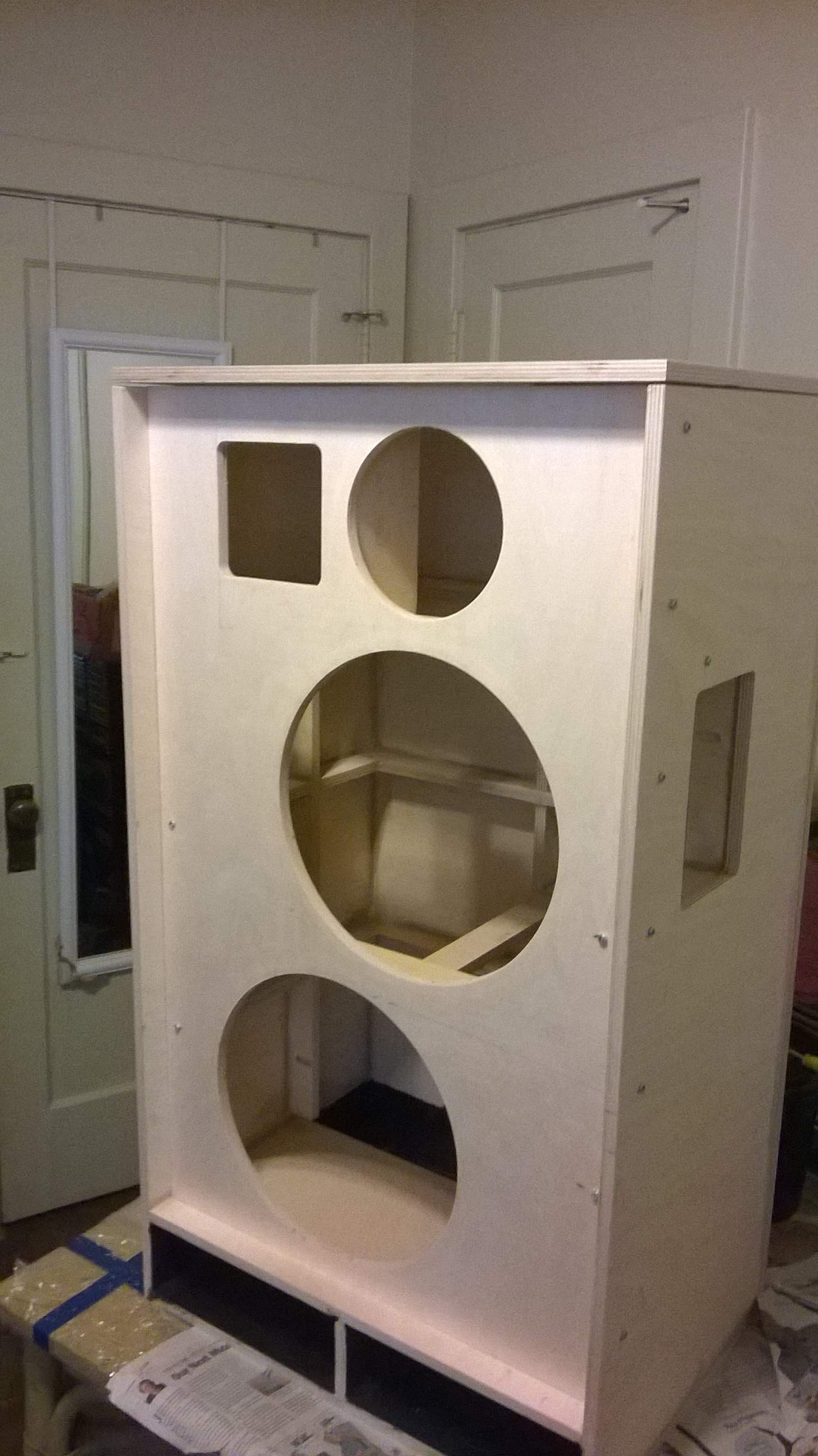

Here it is now(still waiting on drivers and foam)



[hintz]

I did this as sorta a primer/time saving thing for the handles and speak on plate



[hintz]

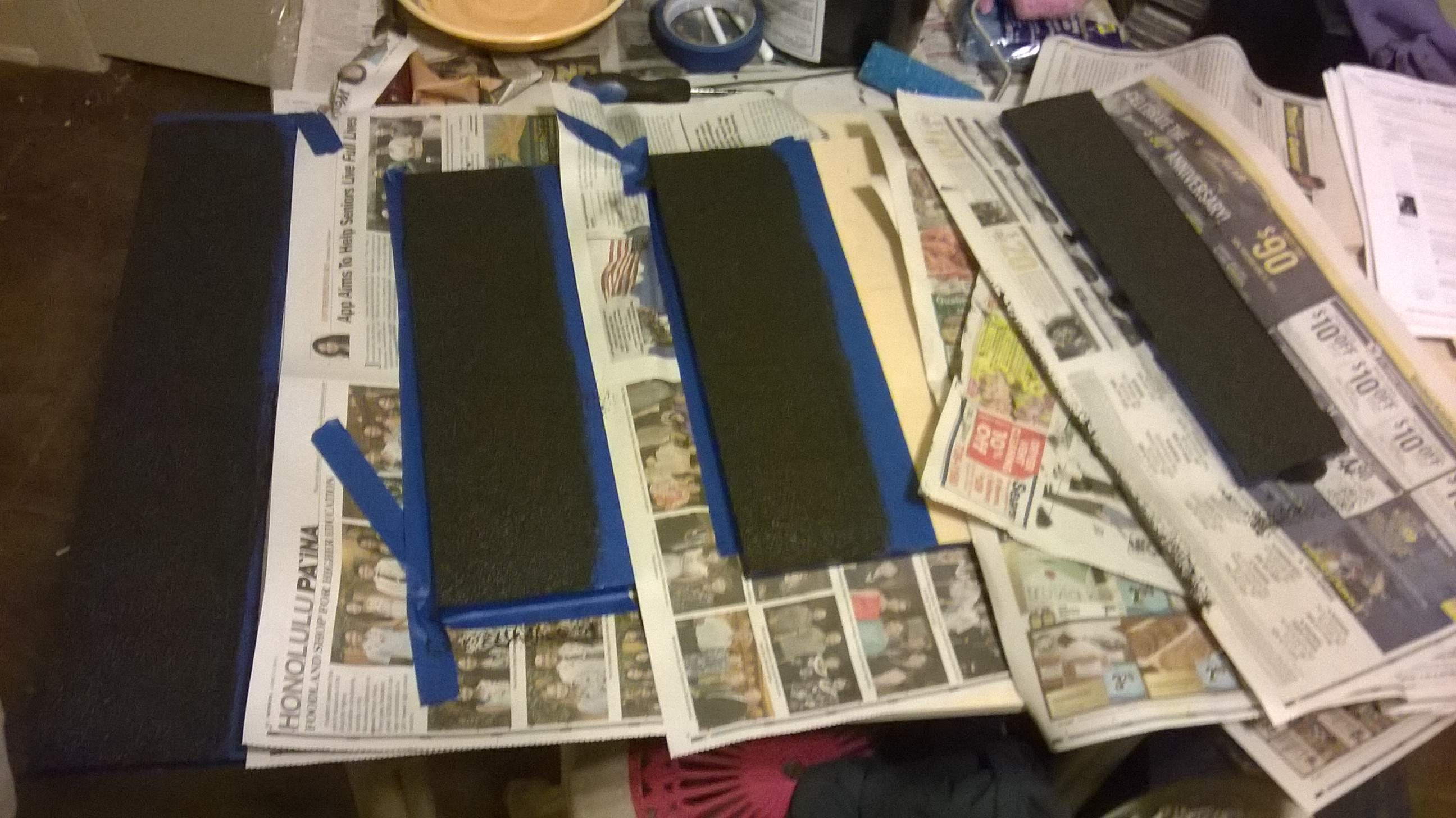

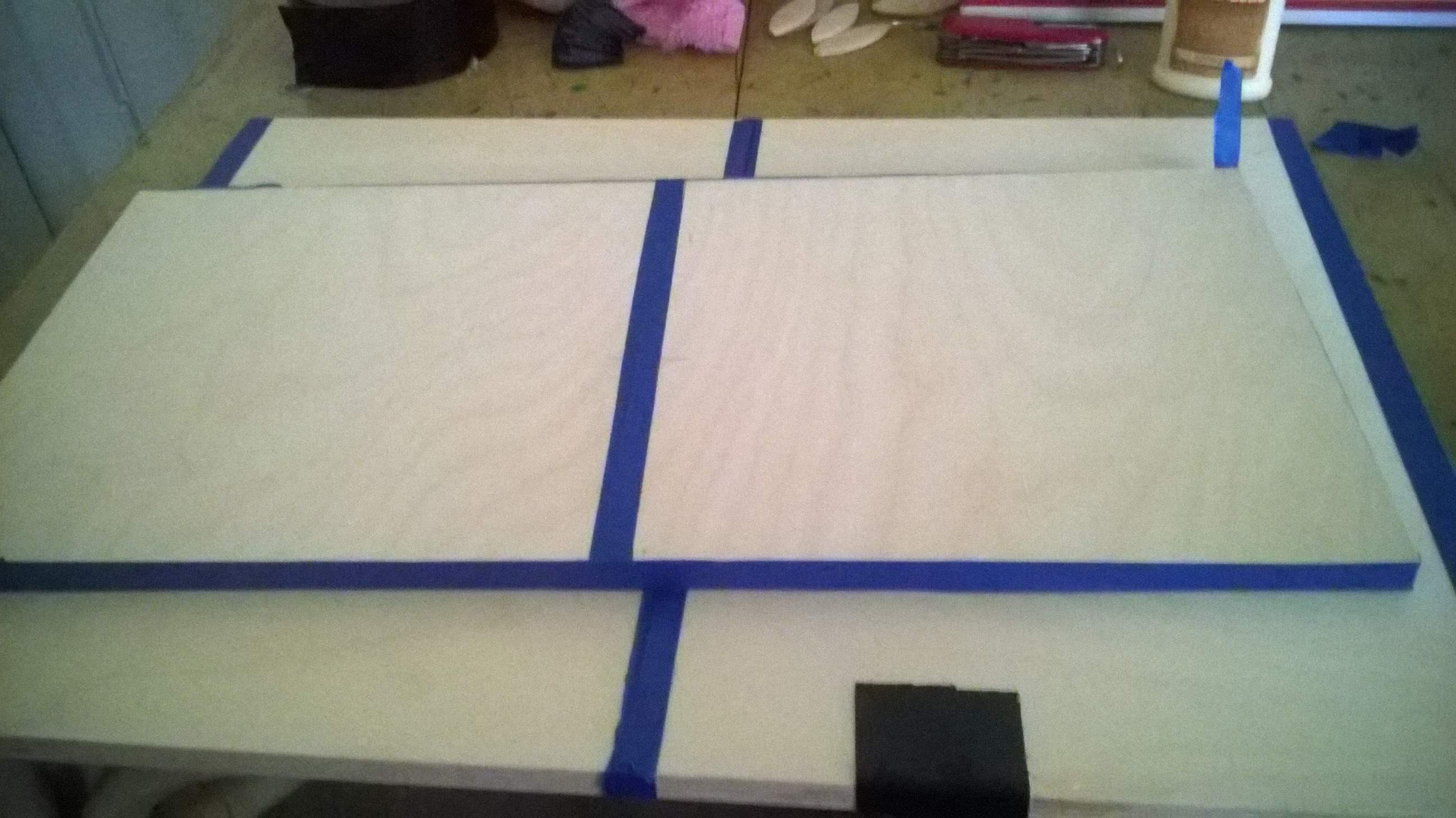

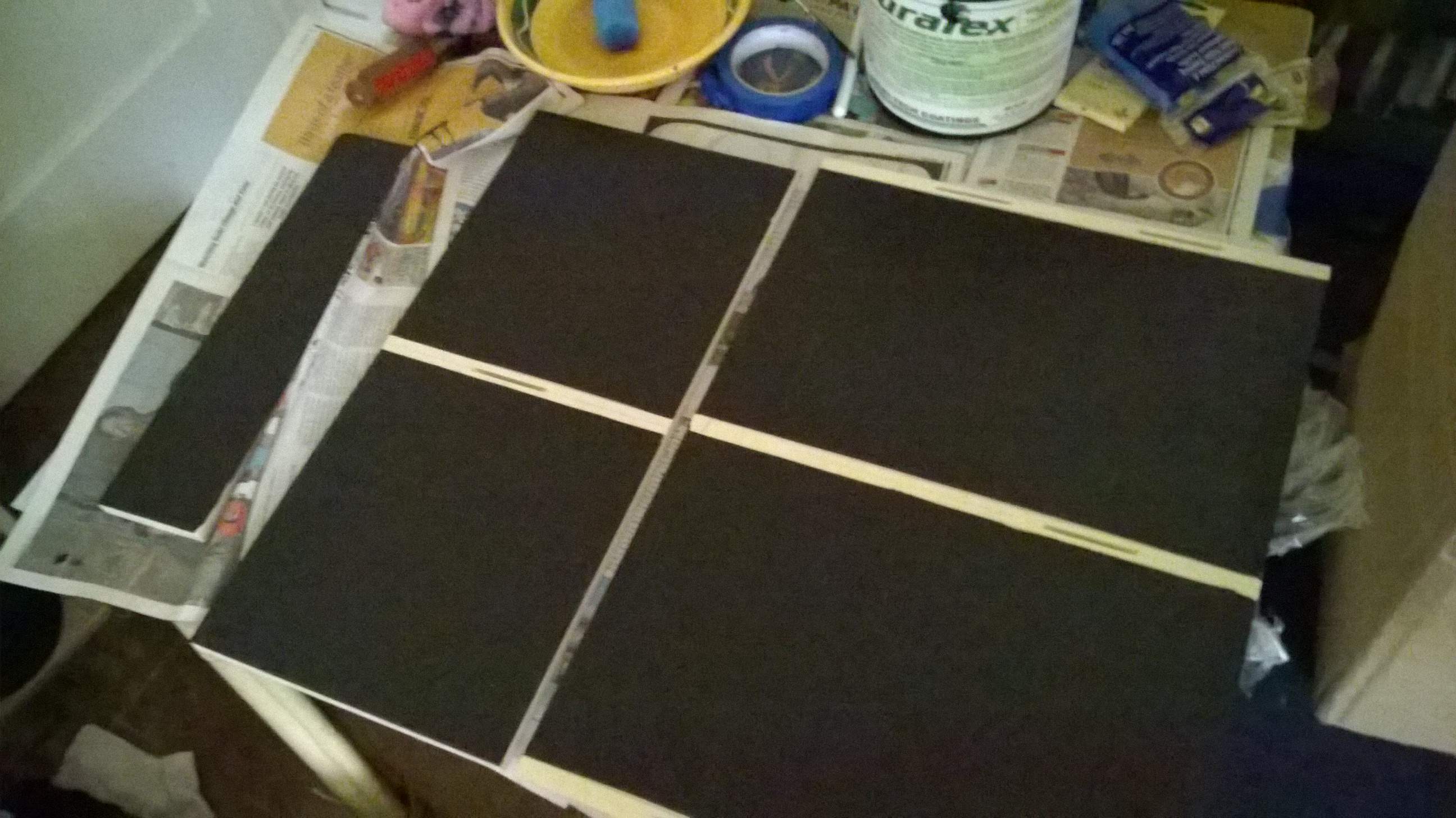

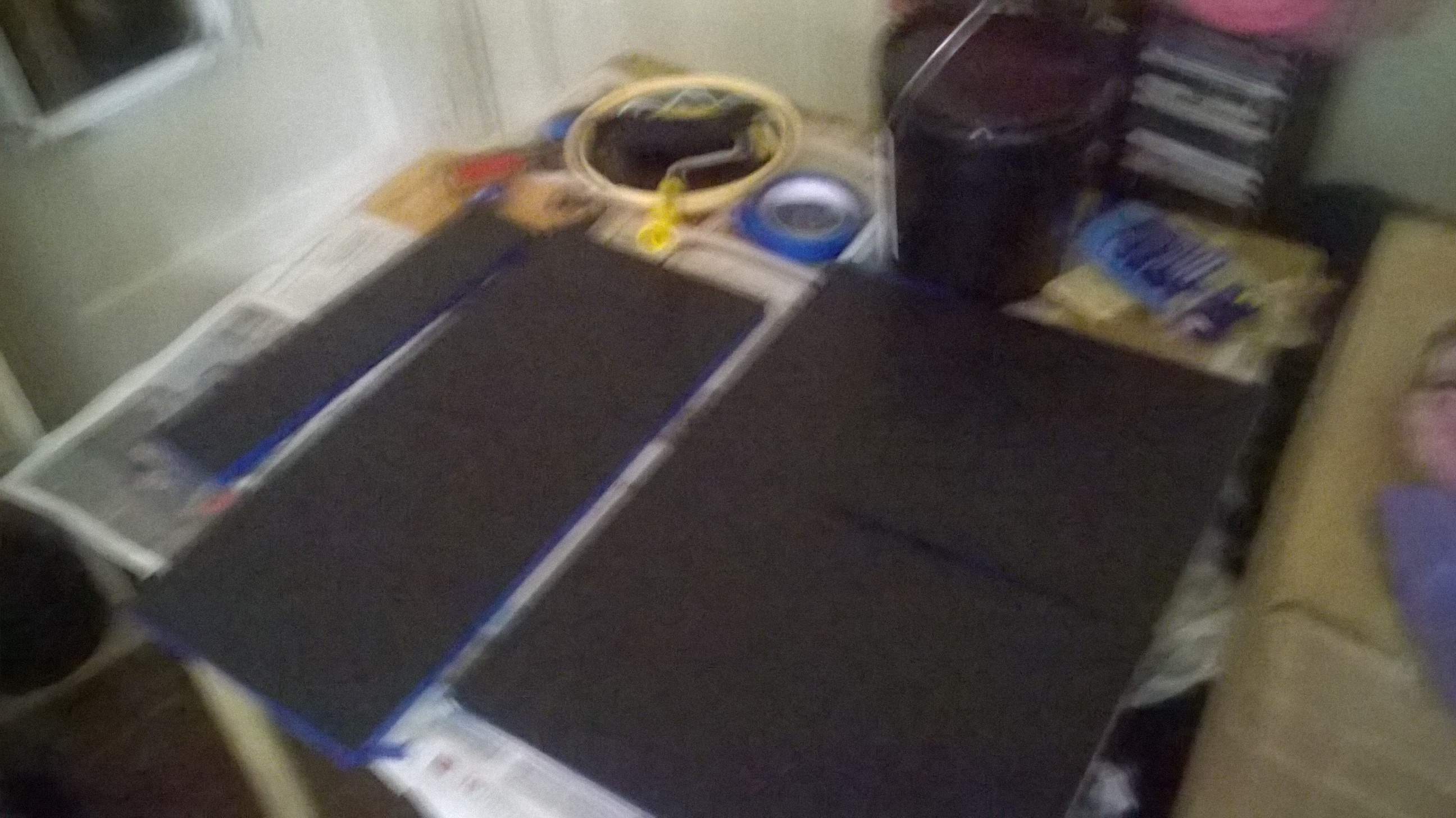

I started from the bottom up, I took this idea from Kekani to paint these parts before assembly...i want it look as good as it'll sound!!



[hintz]

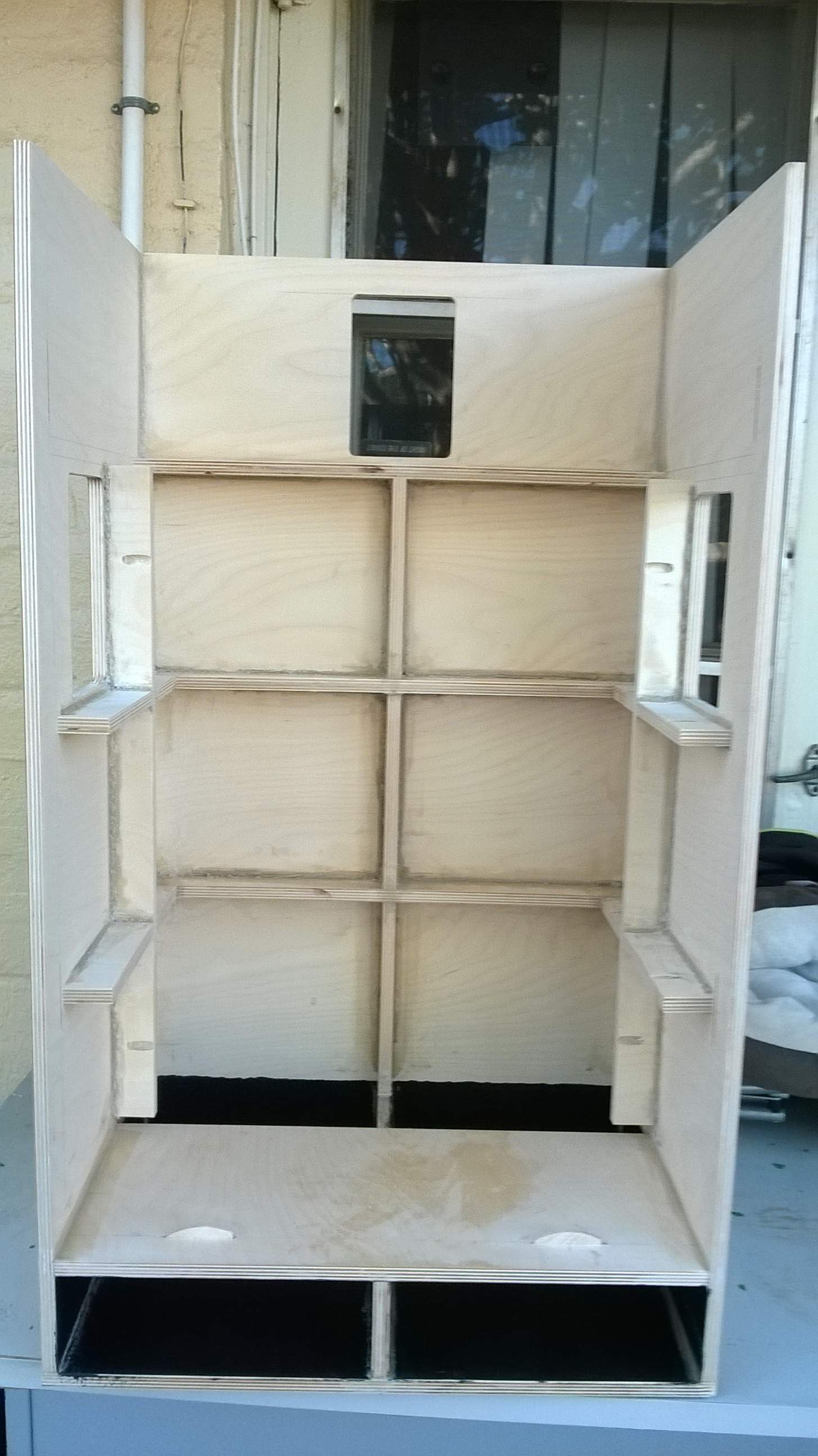

At first I tried to go without any screws, but my clamps alone were sliding out of place so I had to quickly drill pilot holes and use screws...

Looking back I would've dry fit everything, drilled pilot holes and attached all bracing before placing sides and back!! Maybe someday ill redeem myself and do it "right" the 1st time, I also used *way too much* PL...



[hintz]

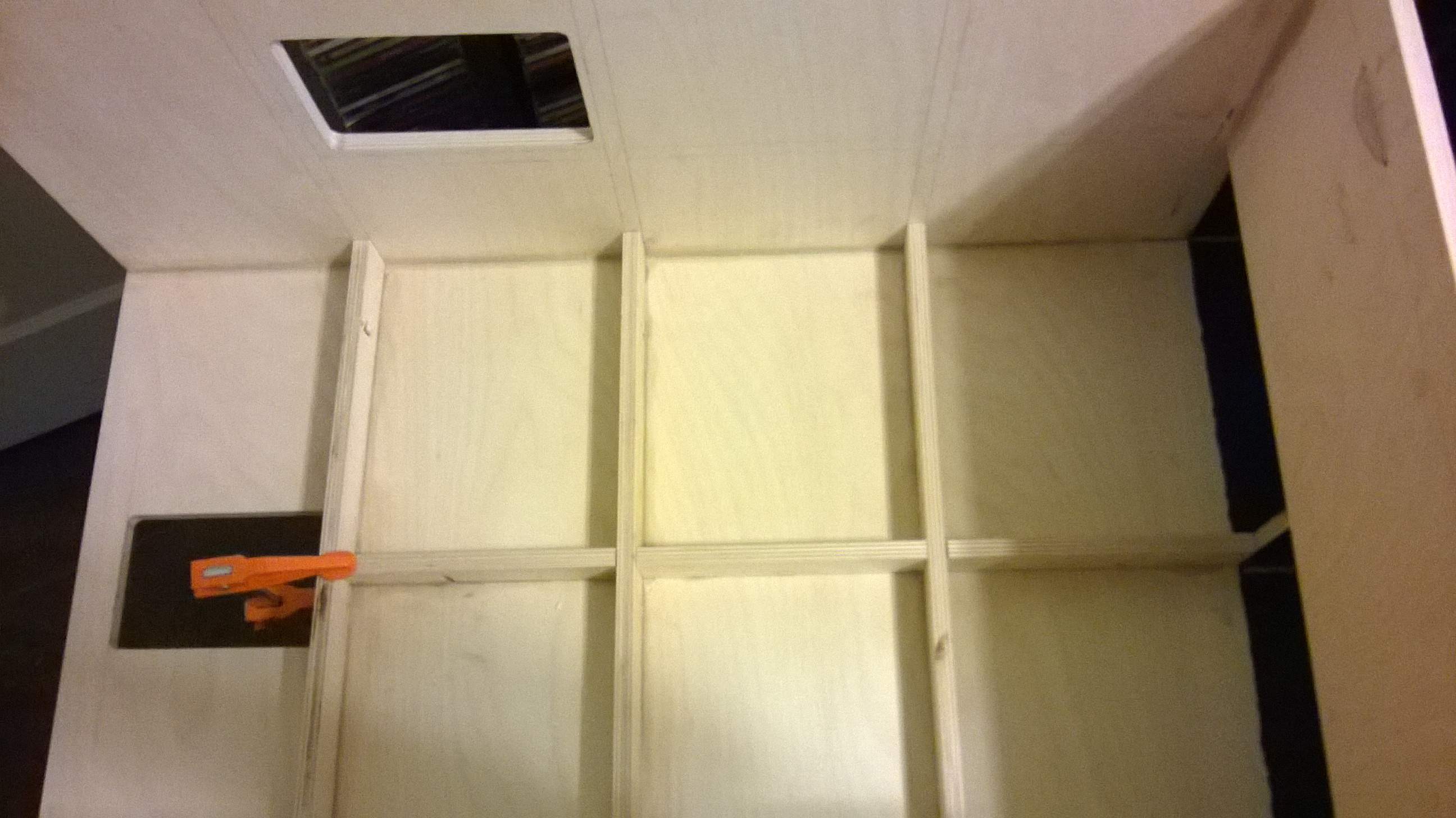

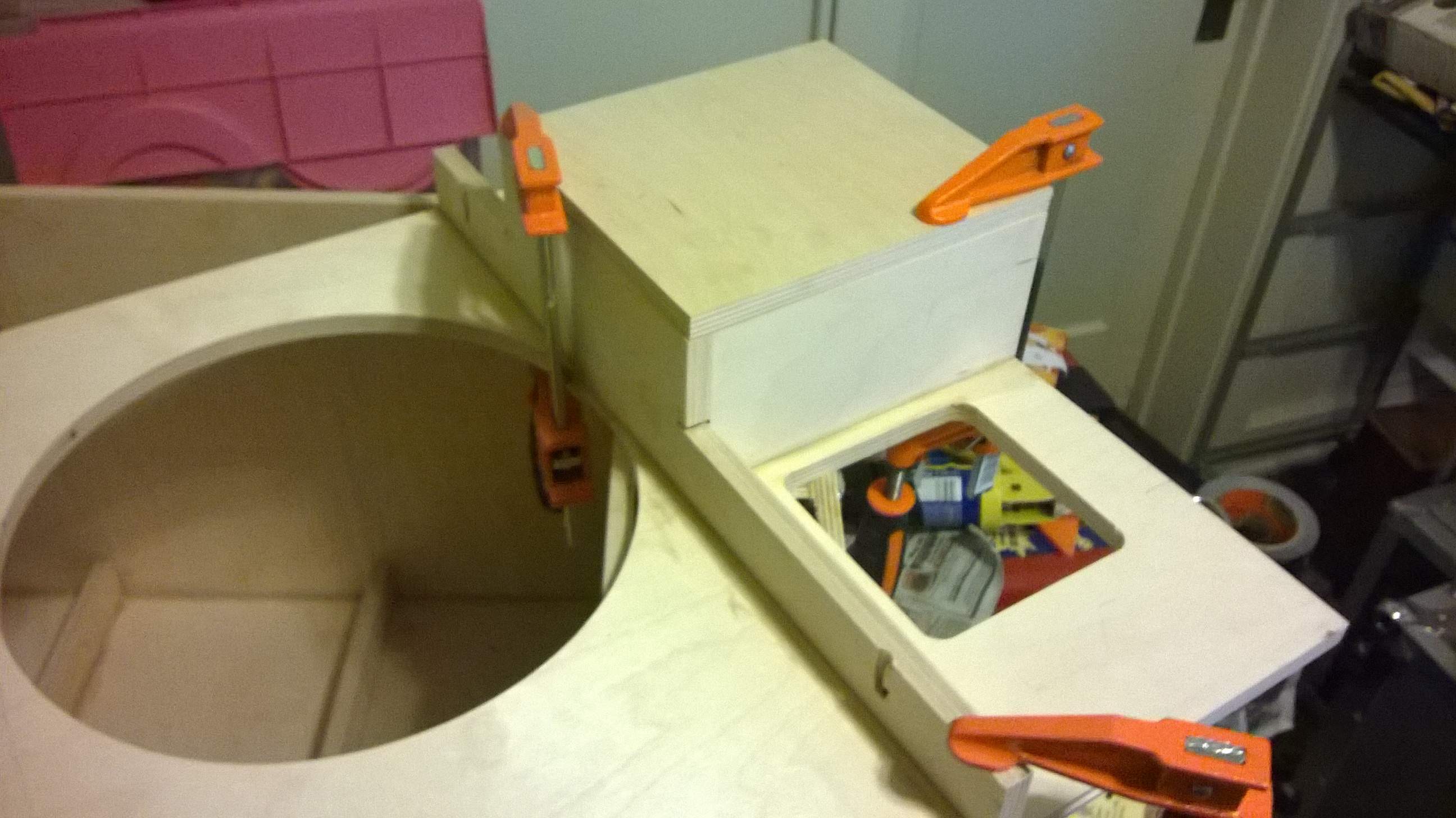

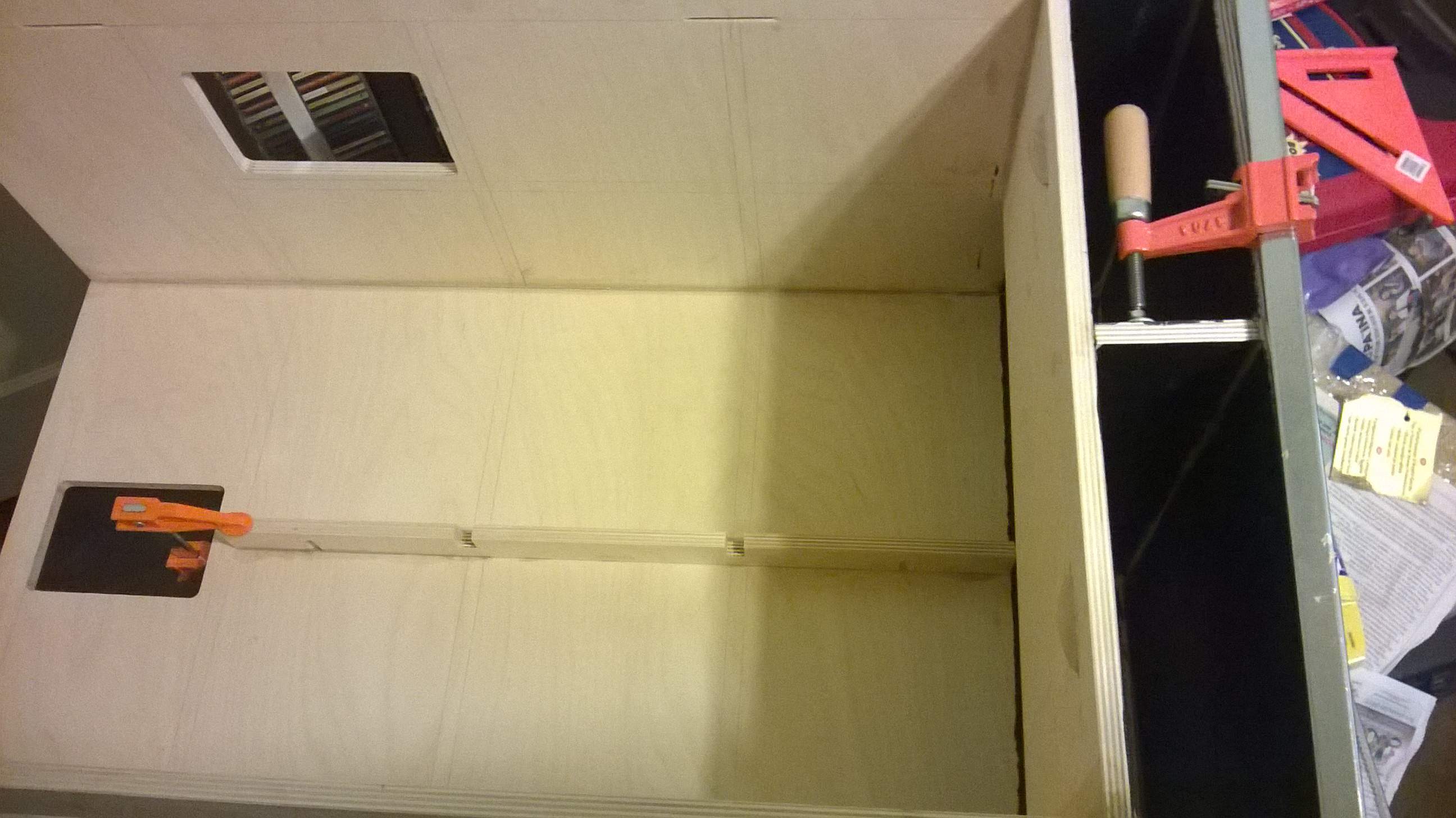

So here I glued on bracing, I managed to keep the bracing straight on the baffle with only the clamps....



[hintz]

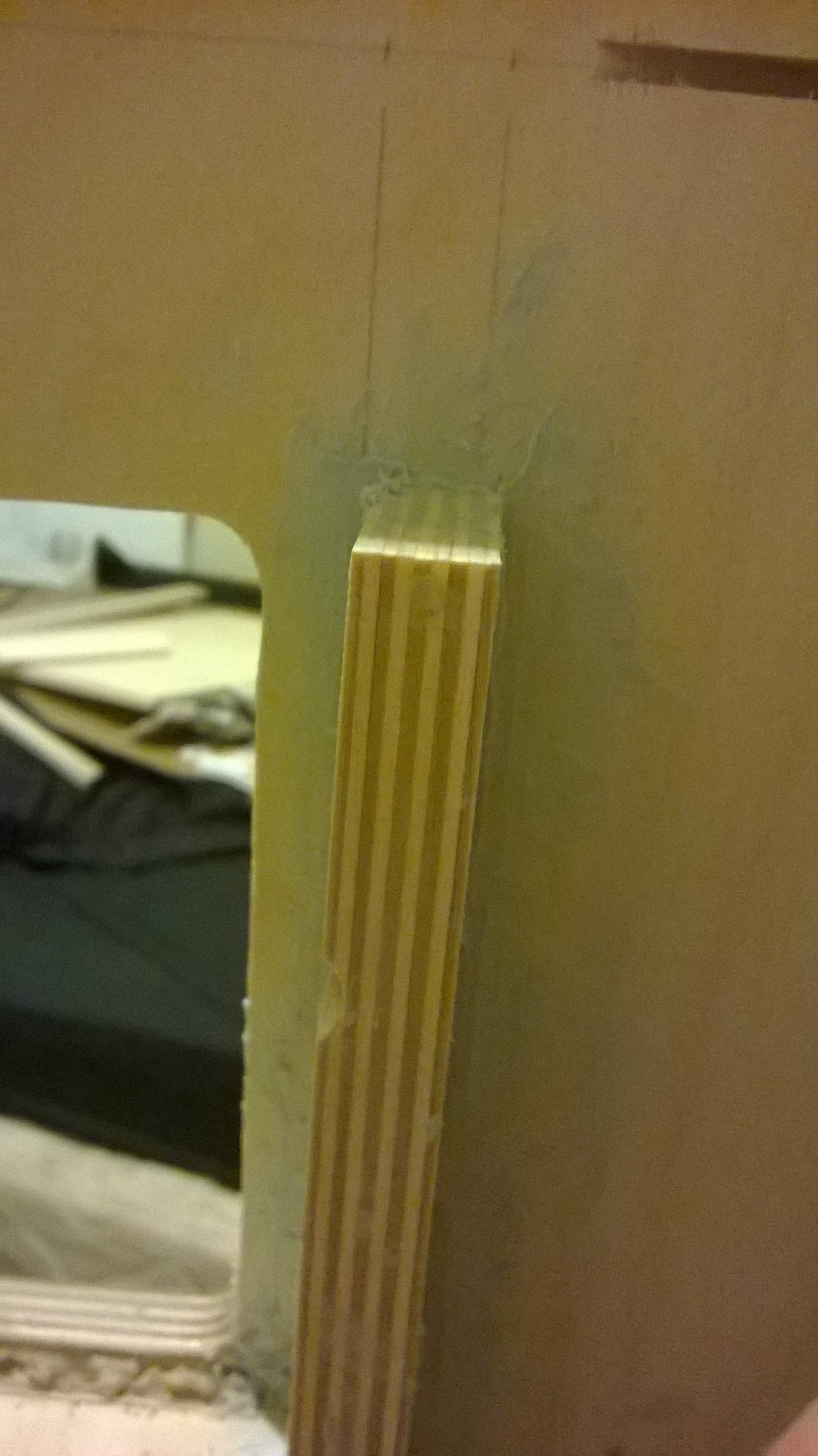

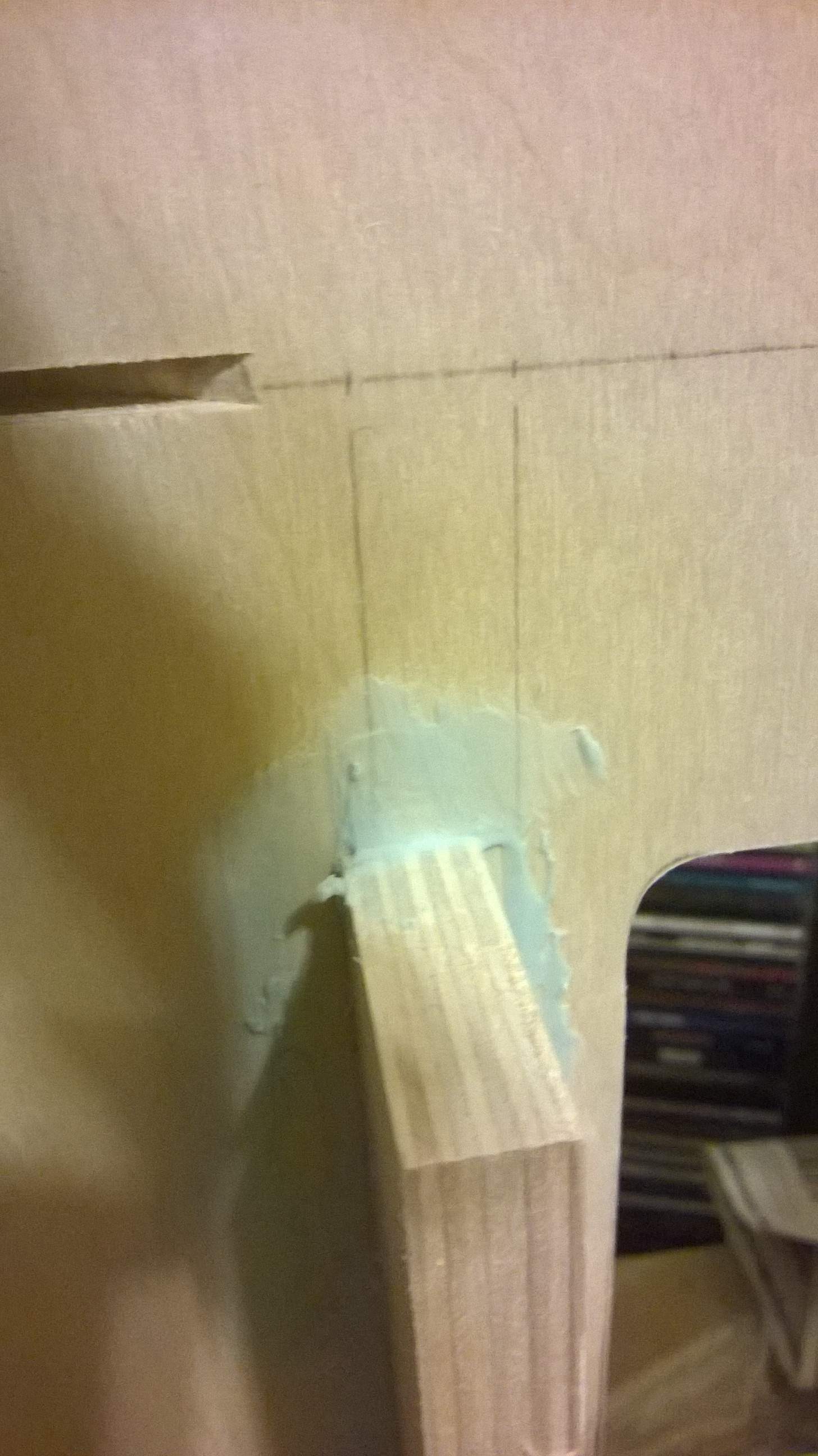

Here's some mistakes, I'm not sure if the wood bowed a little or if its my bad, but it still holds tight to baffle bracing, when I attach ill fill gap with PL...also note I ran out of the regular PL and got a different kind for wood, metal or concrete, when I attach baffle and top I'm gonna use the correct PL....



[hintz]

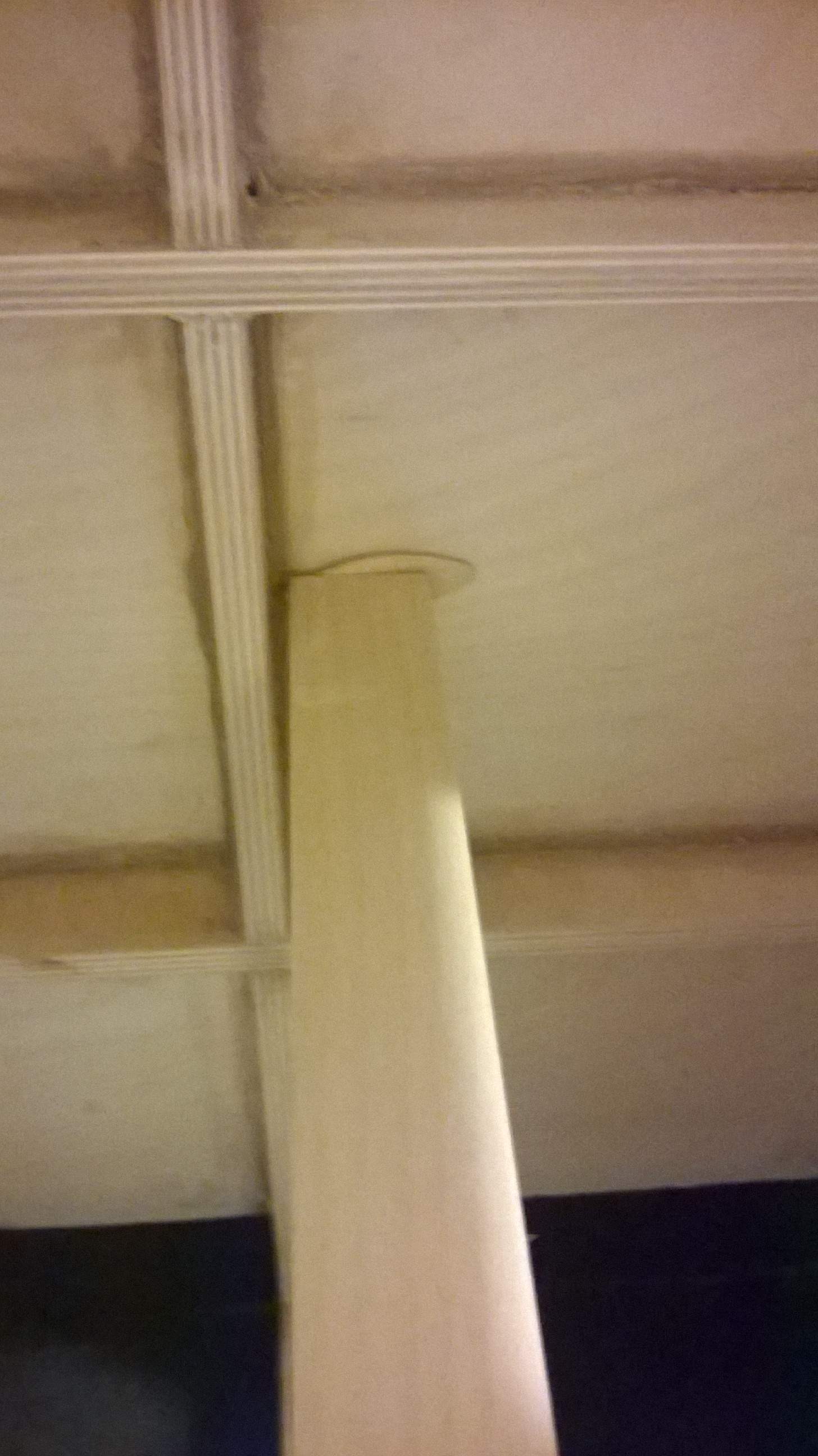

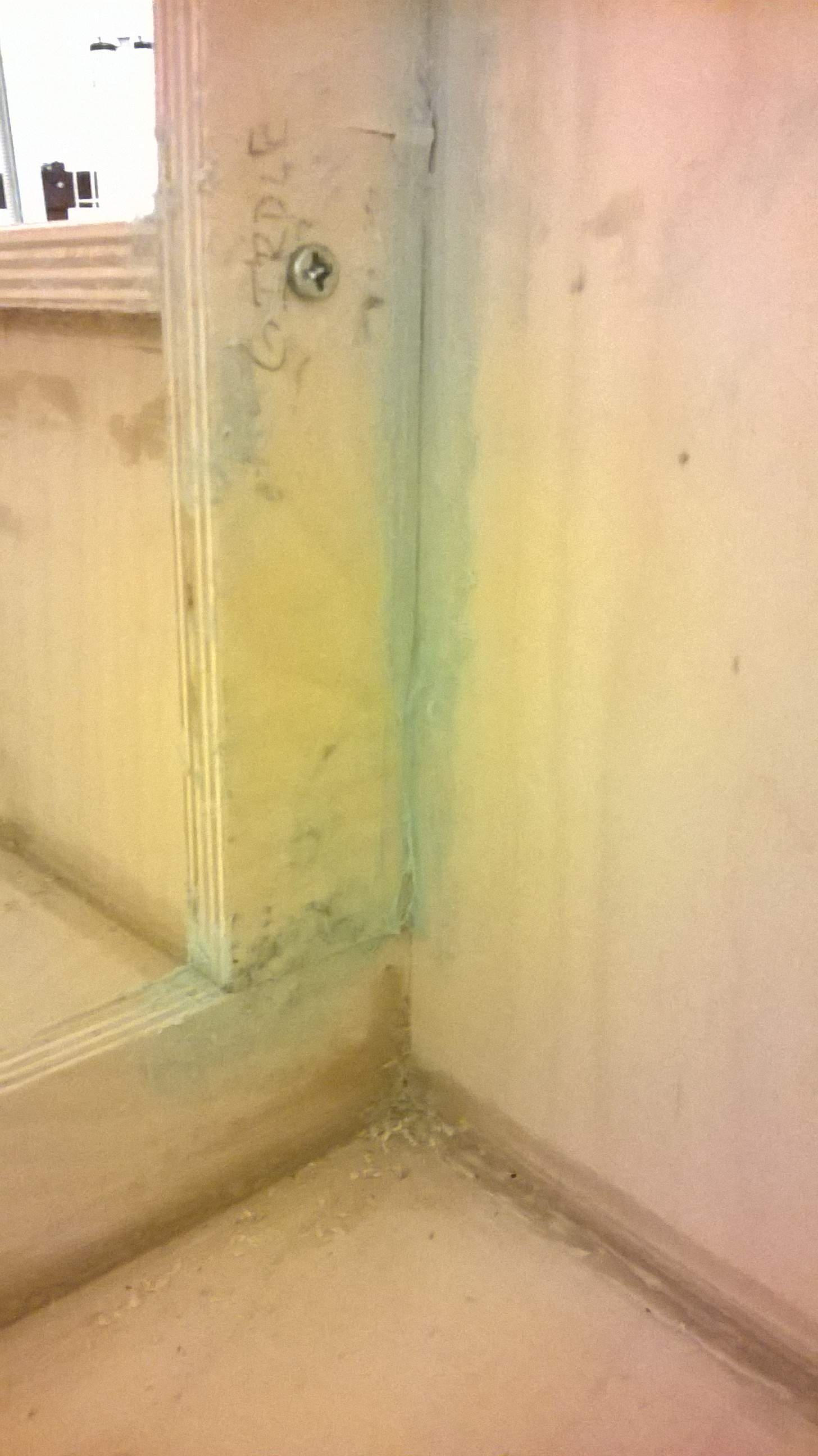

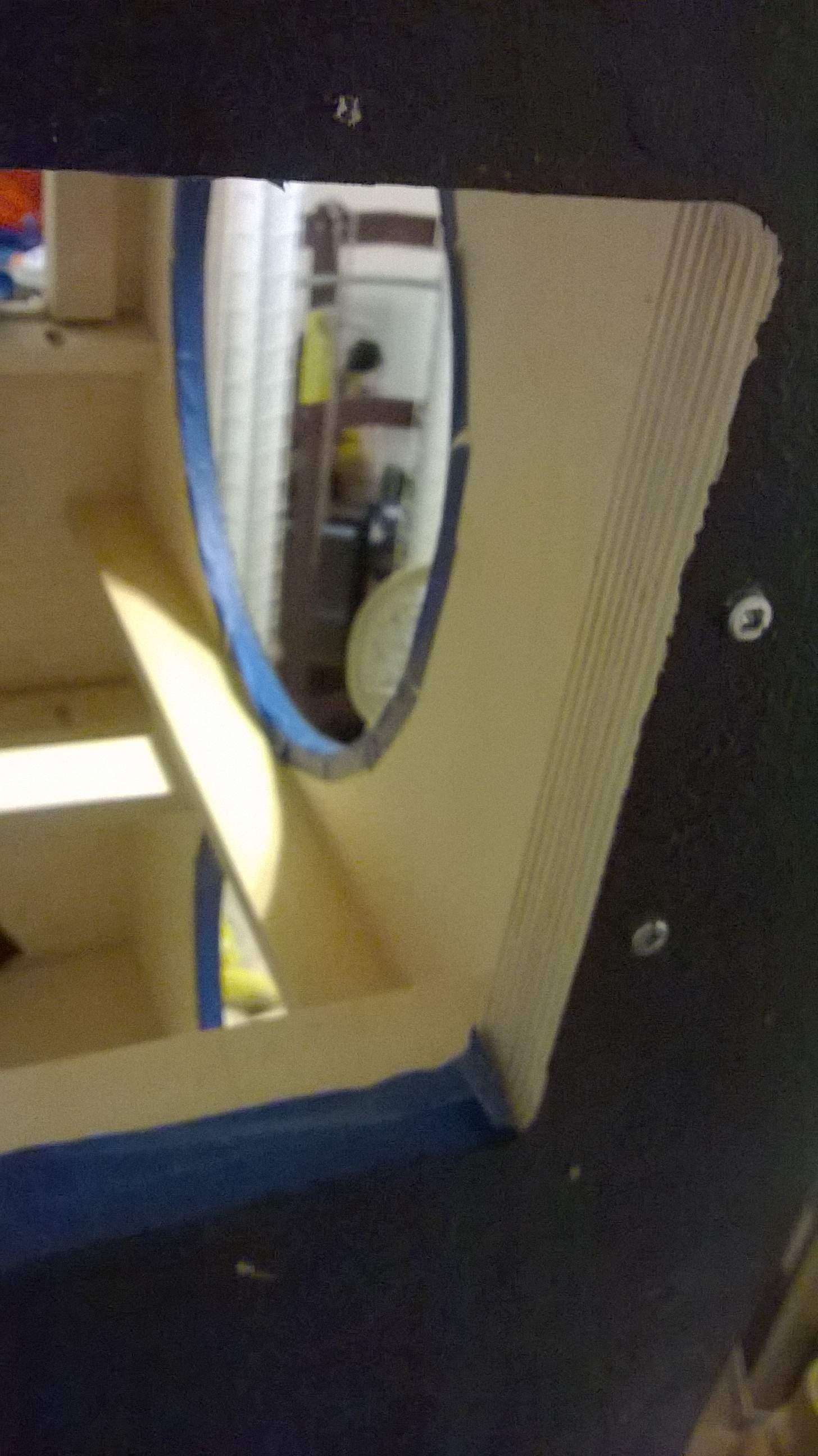

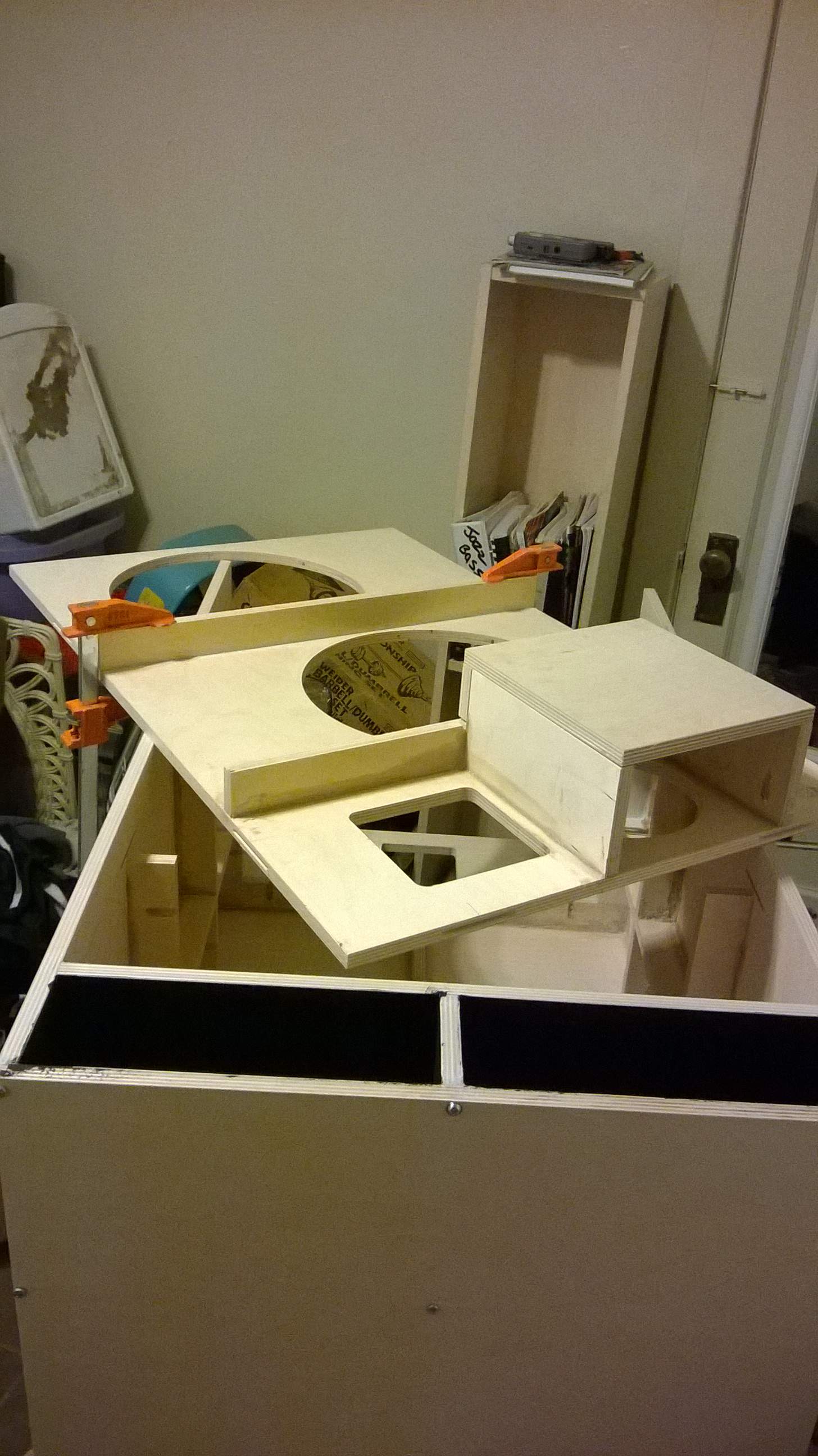

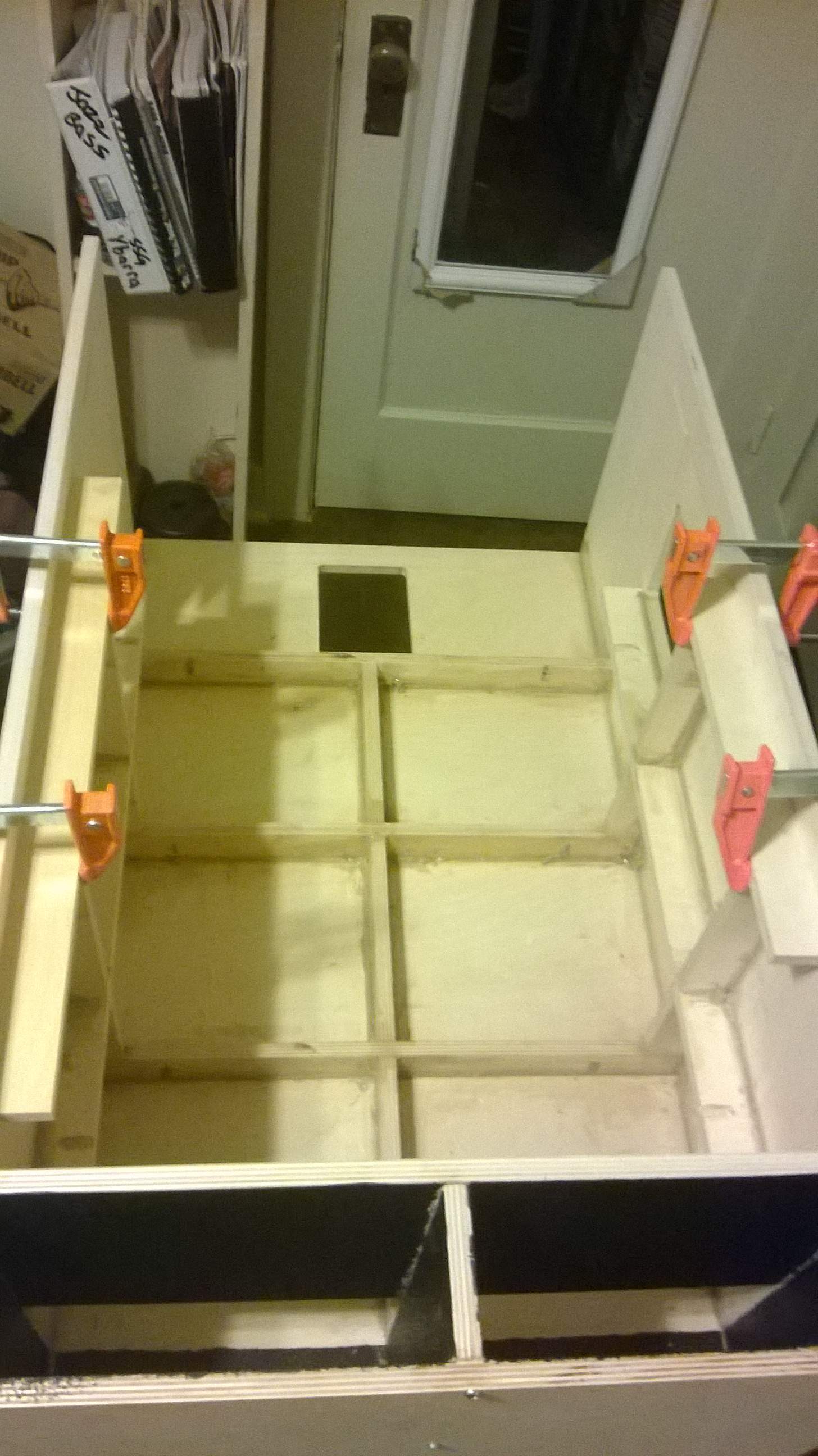

Dry fitted, found another mistake, the cross brace doesn't fit tight with back, I could fit a biscuit in the gap!! When I later dry fitted with screws I found the gap to be much smaller, so I'm gonna pl a tiny posicle stick to help fill the gap... I also used a power sander on the top of the baffle as it was too high, yet another reason to dry fit first...



[hintz]

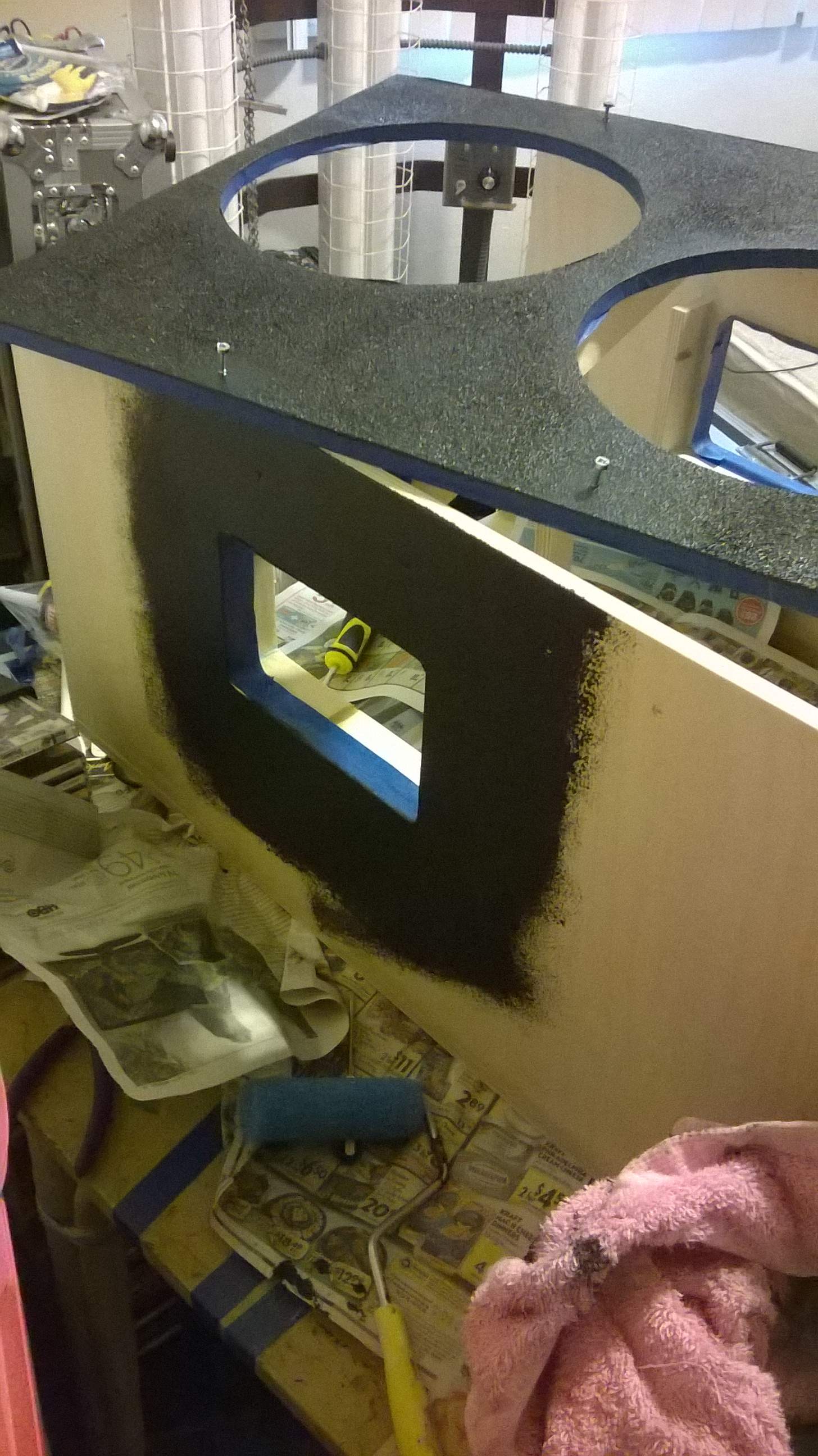

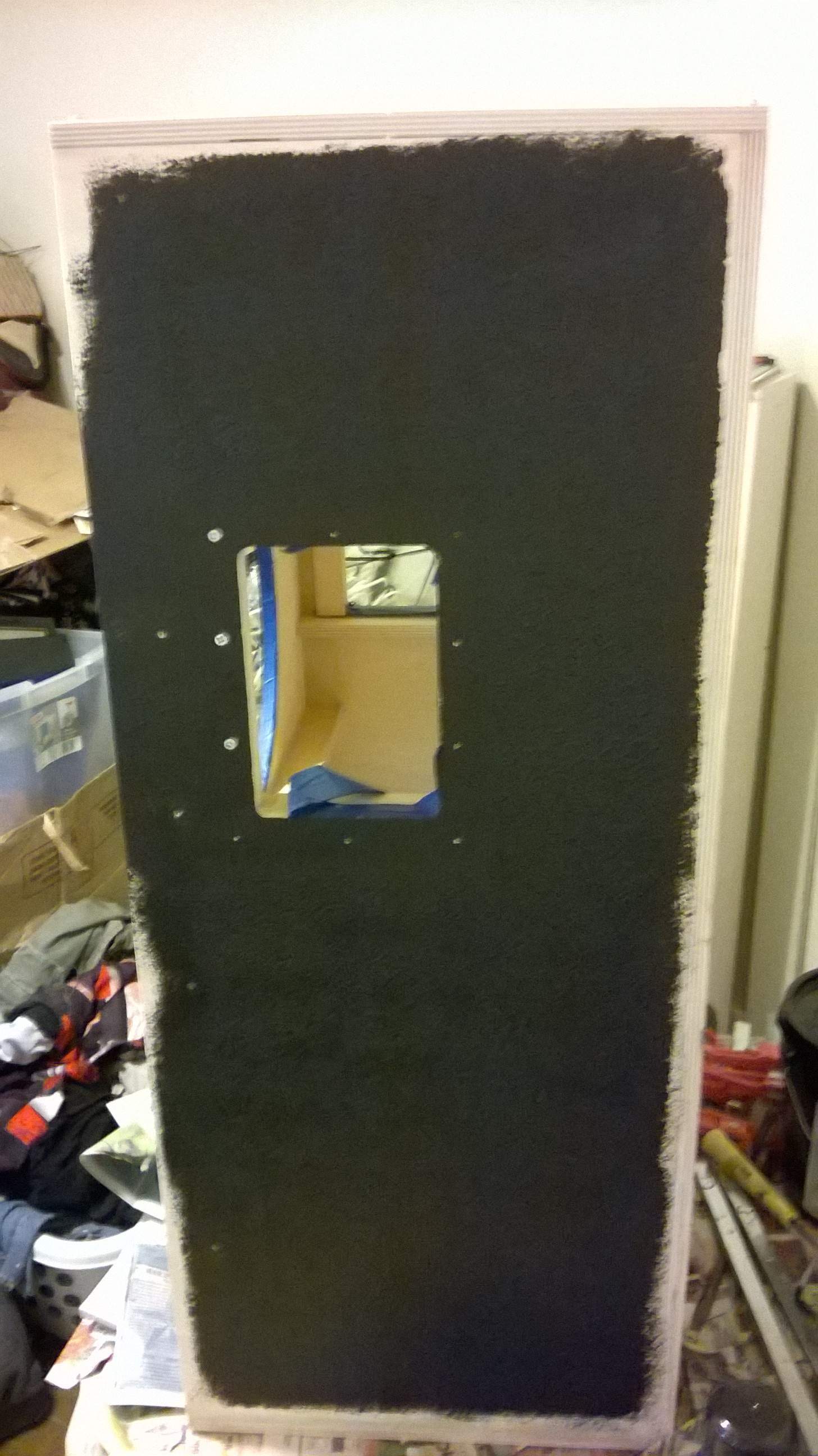

I took this idea from Kekani's build thread and used some duratex as prime around handles and primer on the baffle as well..



[hintz]

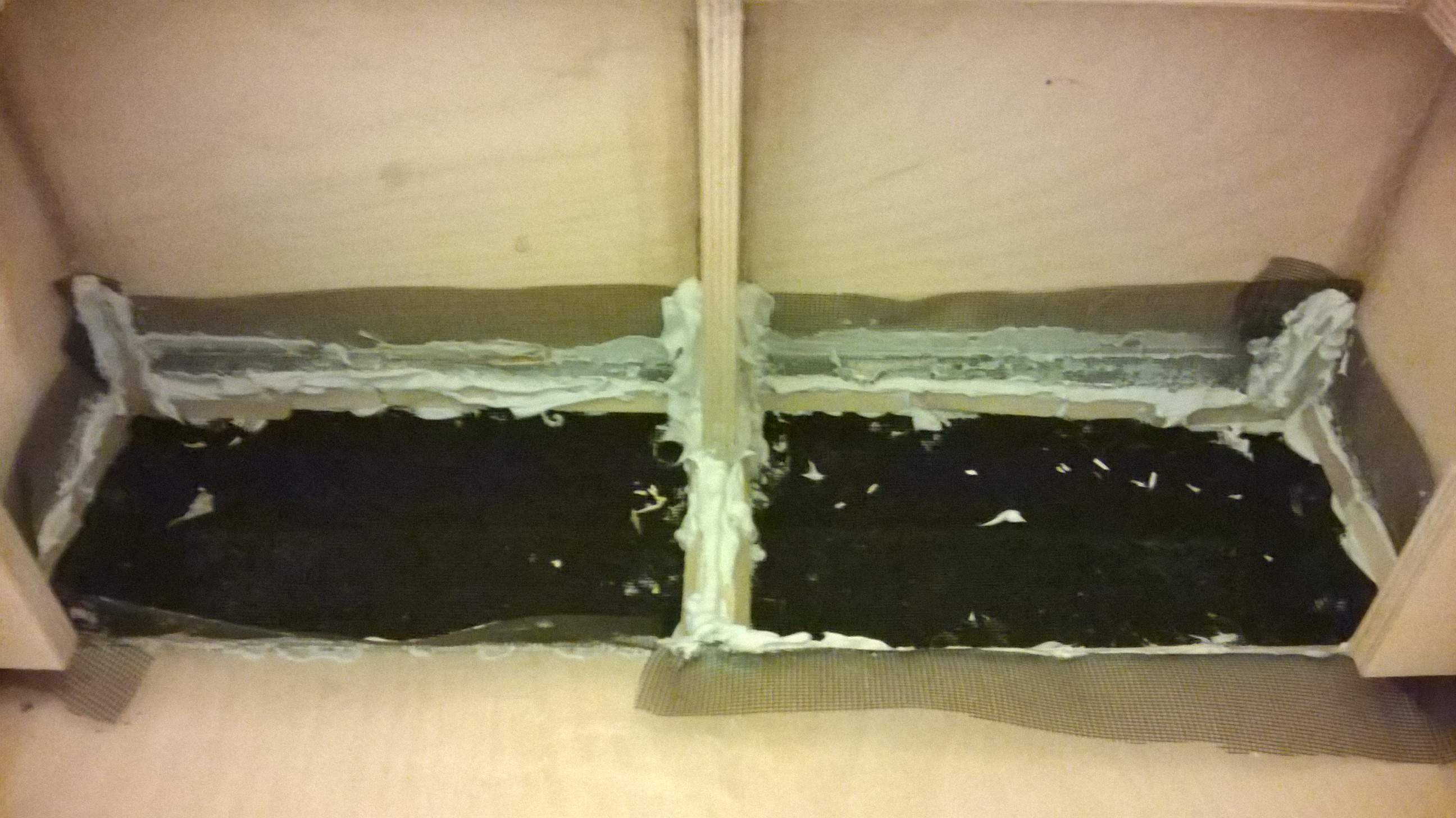

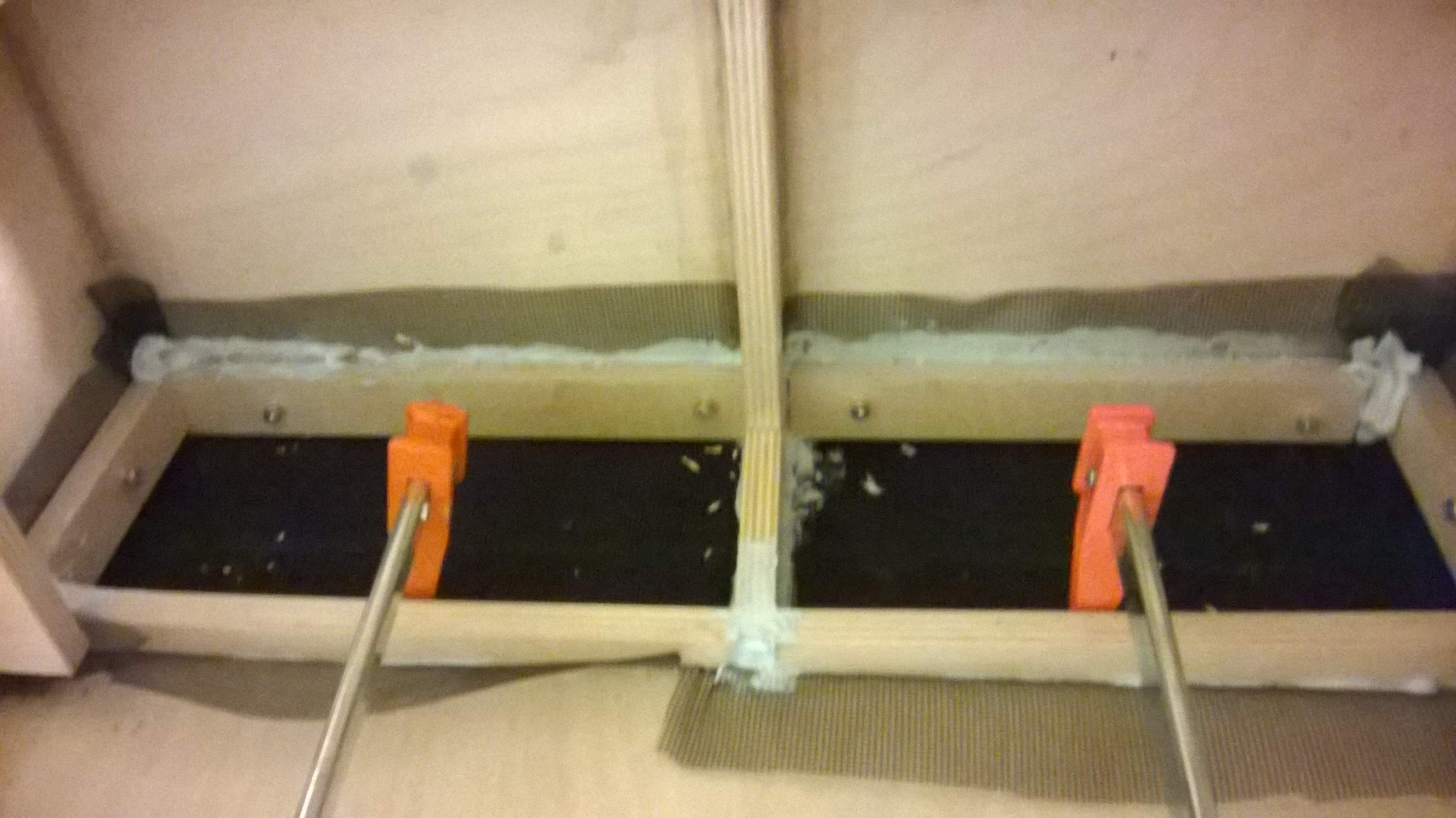

Bugs/Rodents are a real problem where I live, so I decided to install pet screen at top of port shelf



[hintz]

Kekani told me that this *will* change the sound a little, I don't want that so I removed the boards that secured the pet screen before the PL dried...

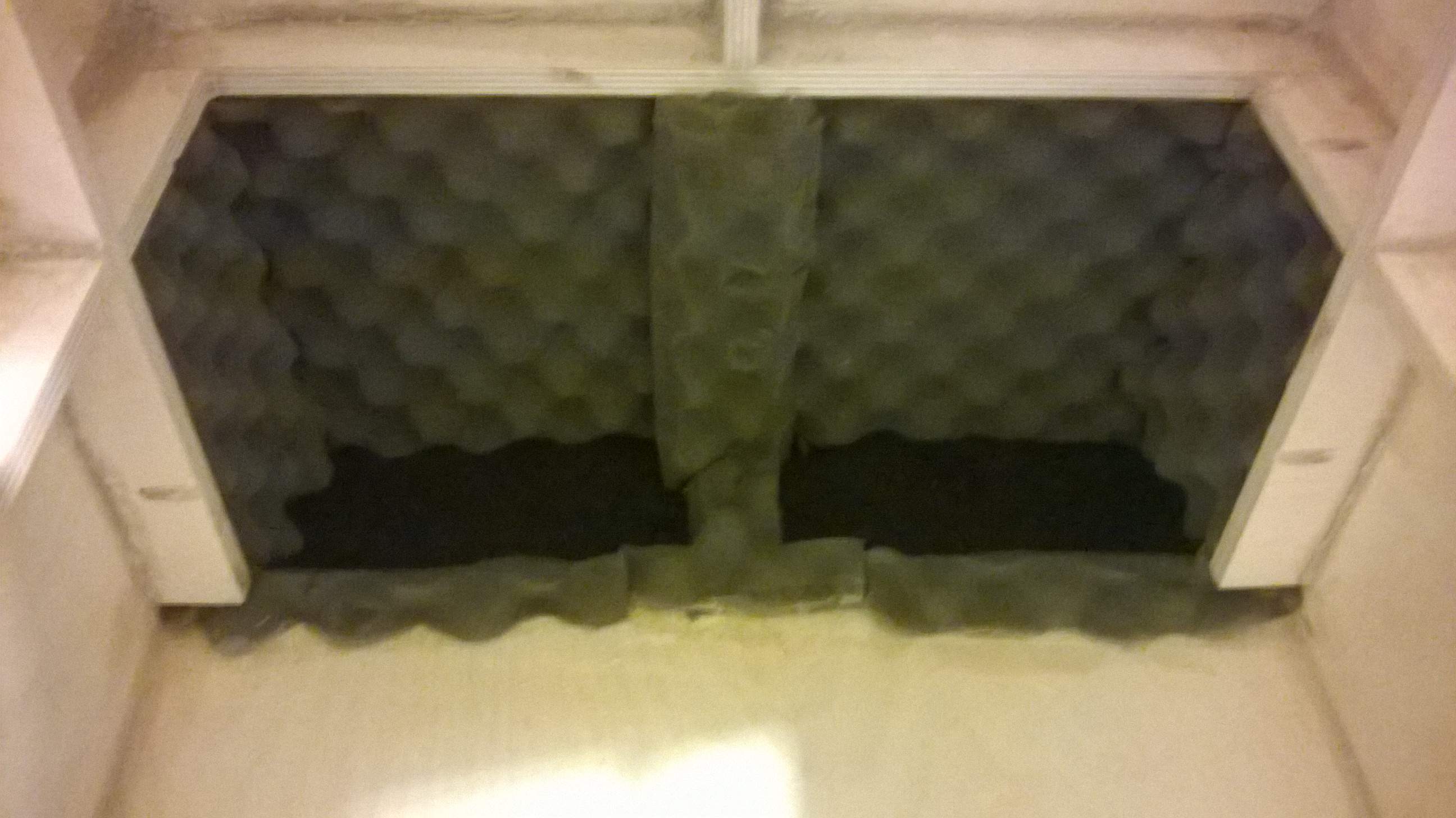

This looks like crap, just terrible!! So I carefully thinned out some 1 1/2 foam(so it doesn't block too much airflow) and covered my mess....

Hopefully this only minimally affects my sound, if at all...



[hintz]

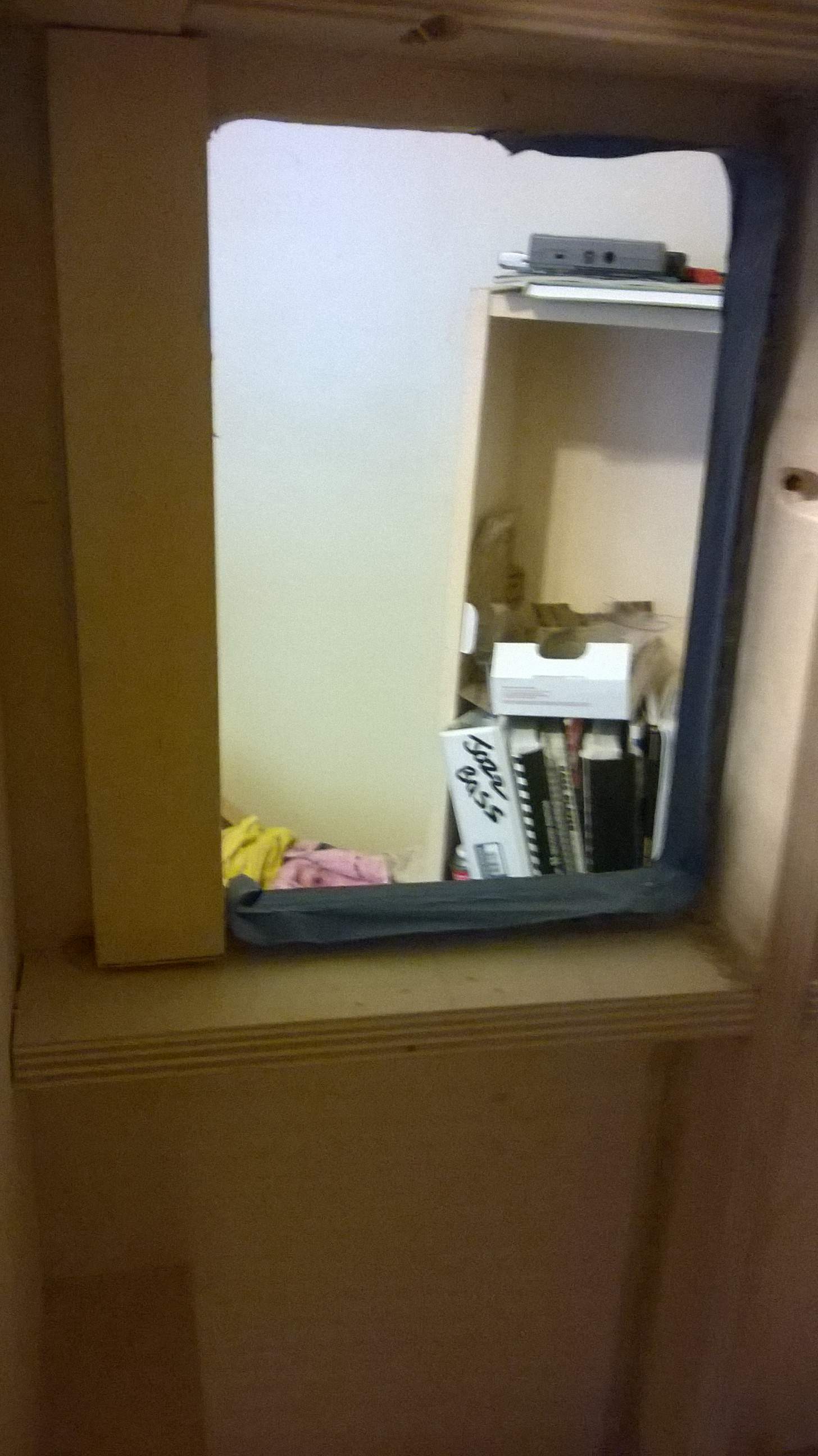

I added extra bracing for handle, another idea I stole from kekani..



[hintz]

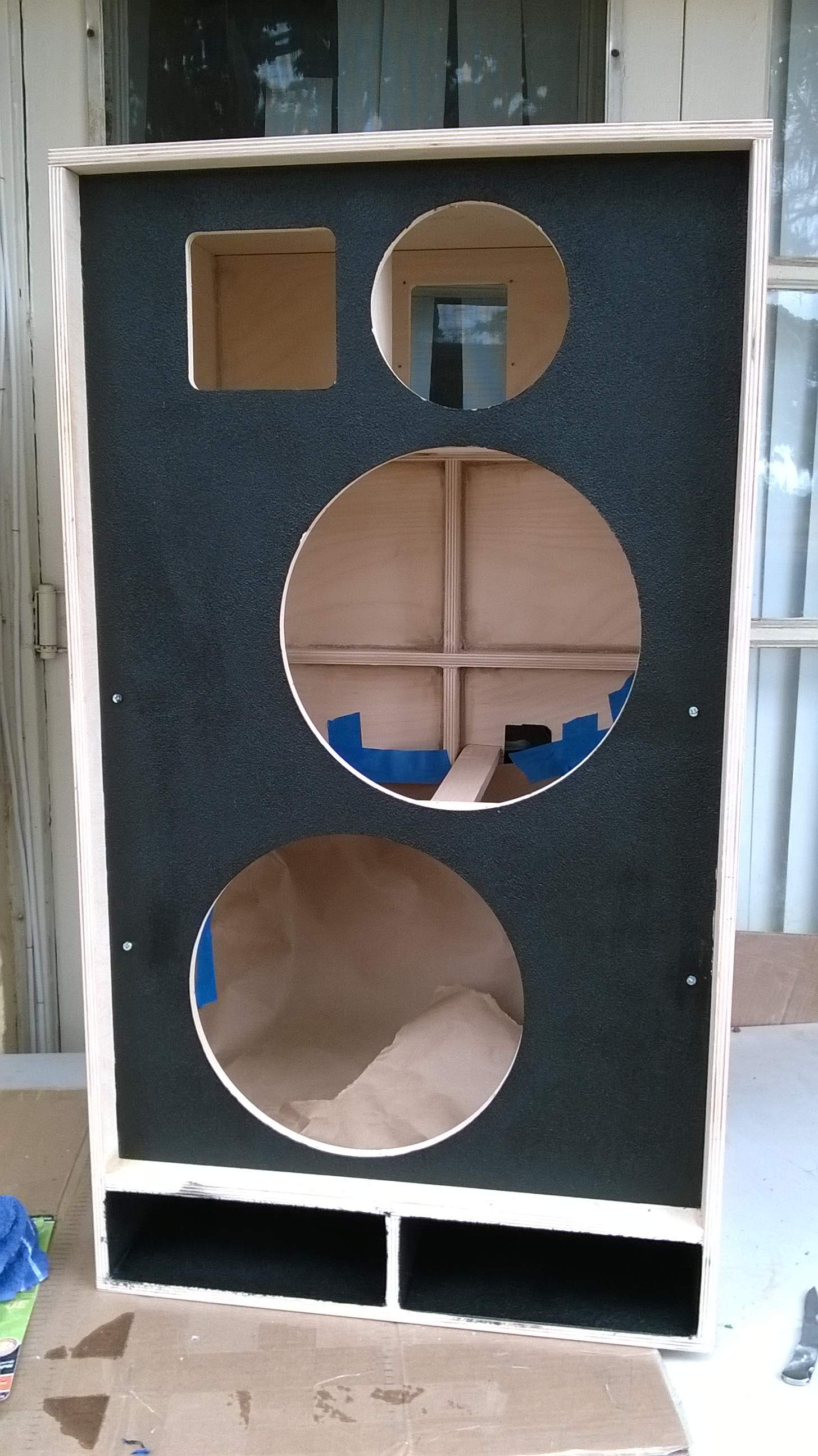

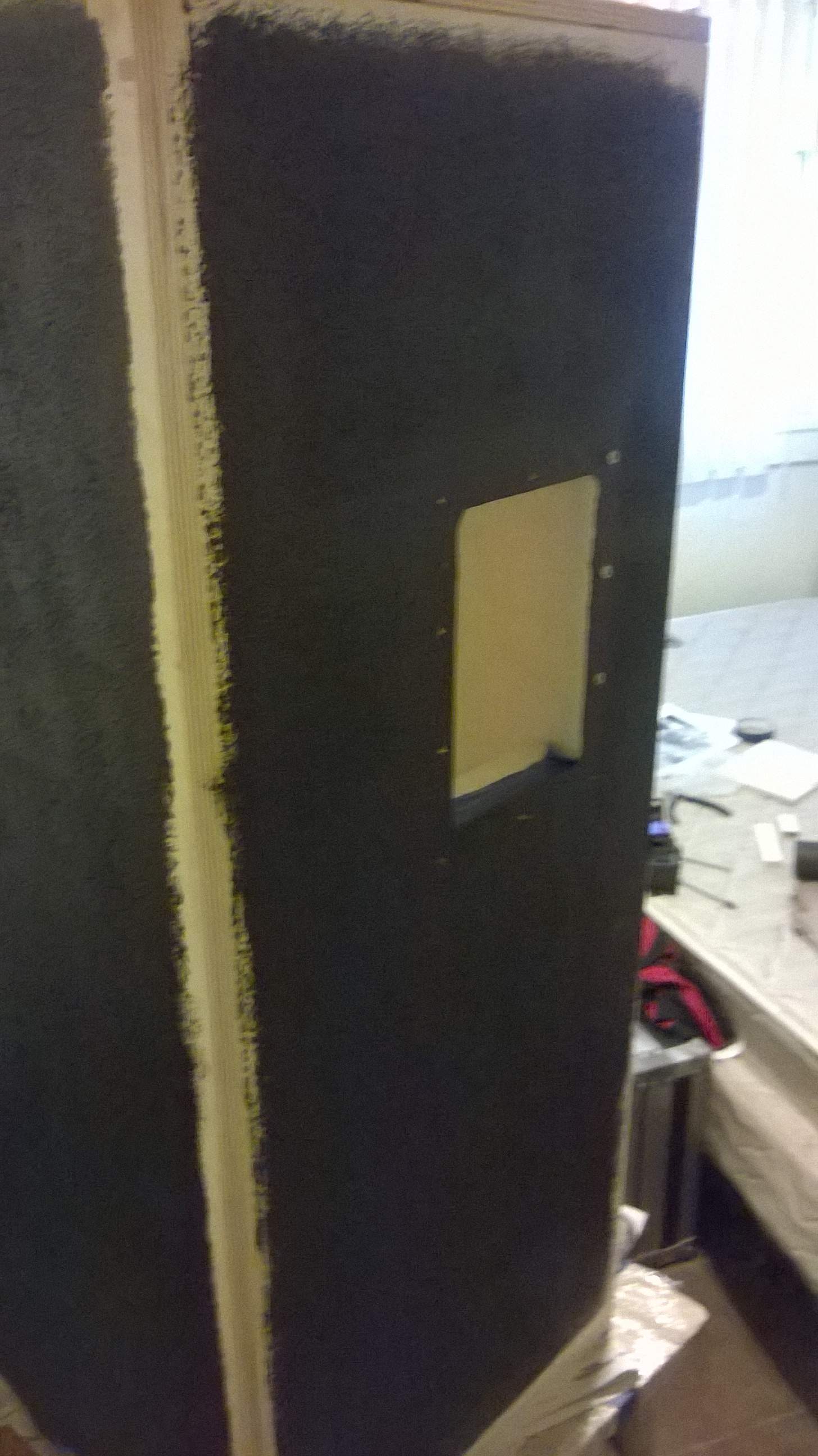

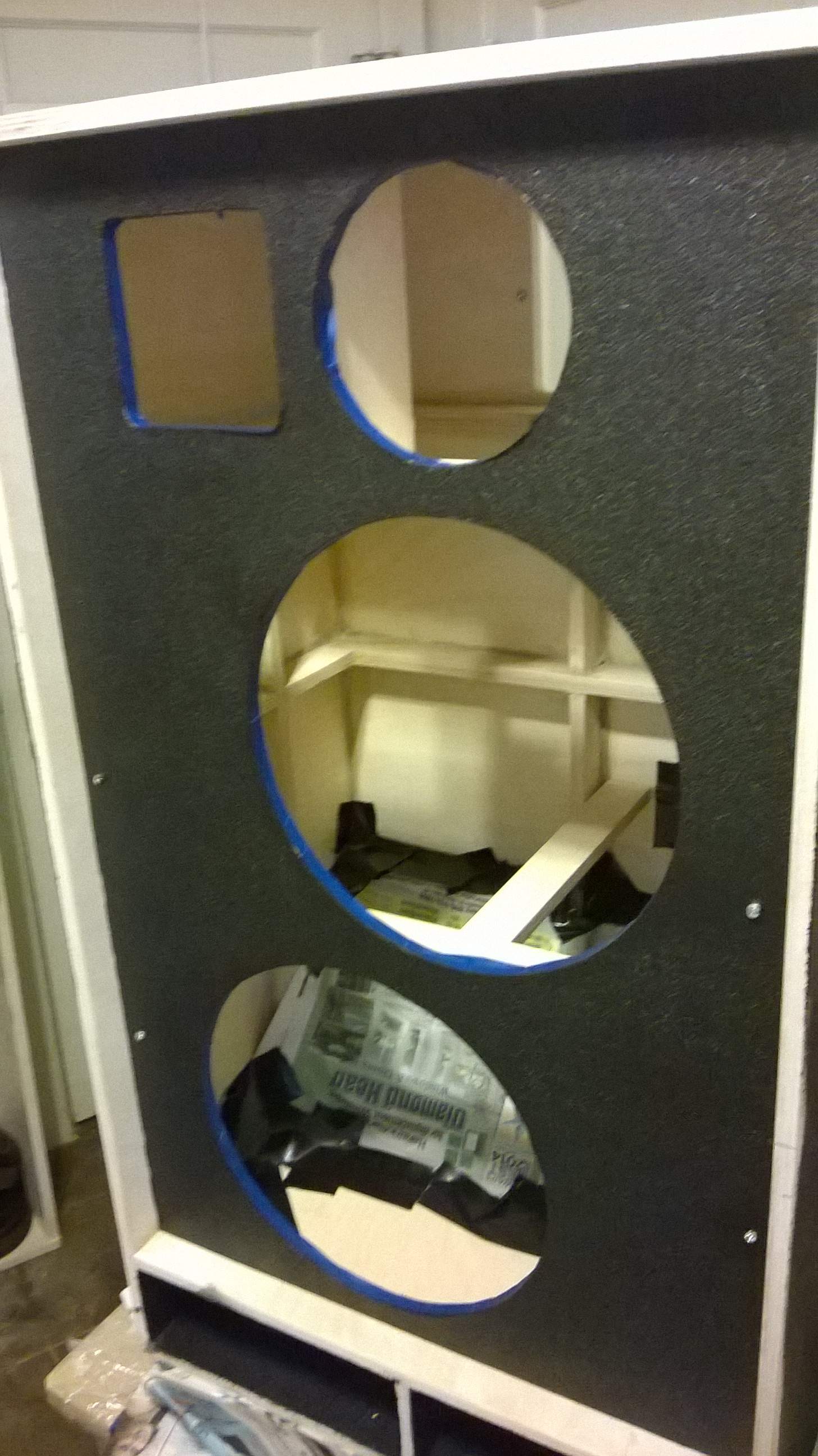

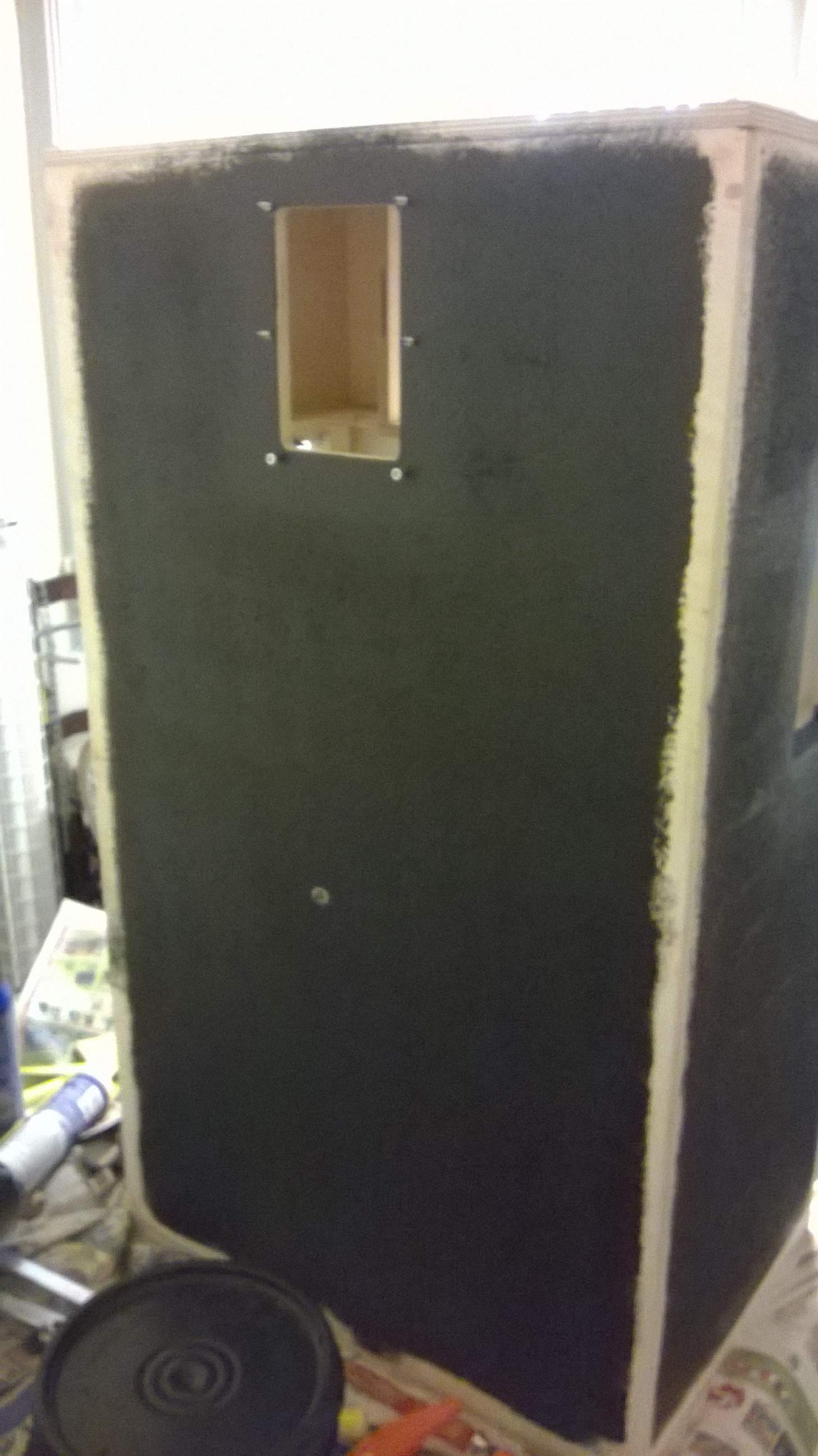

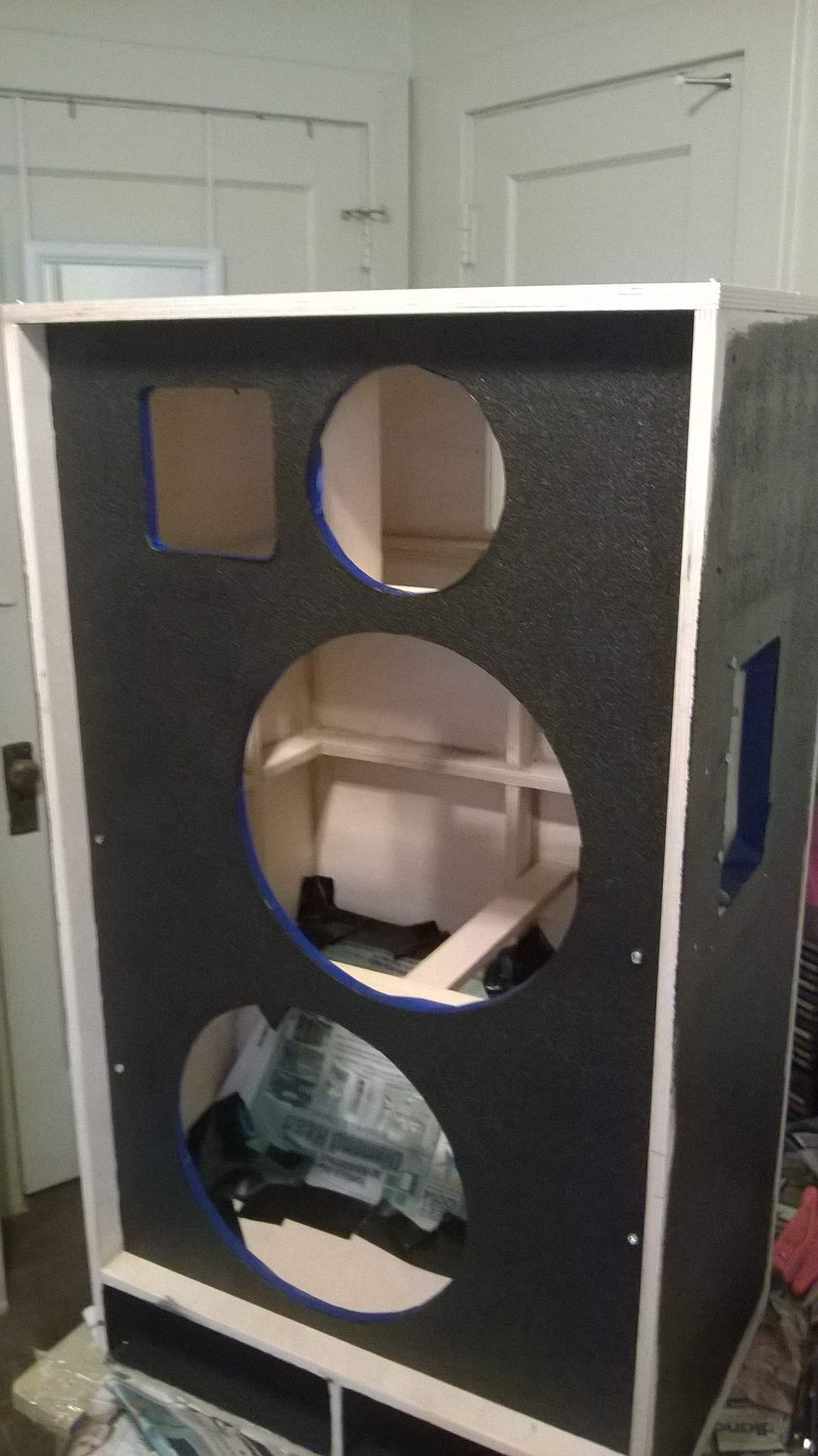

And here it is today!!

When the PL dried after 2-3 days I removed screws as the PL is supposed to be ridiculously strong, I filled the holes with bondo...

The way the flatpack was cut is absolutely dummy-proof, really I don't think you need much woodworking skill at all with a flat pack, thanks so much to greenboy and speaker hardware for designing these wonderful cabs and making the plans free for do-it-yourselfers'.... Will post more pics soon!!



[scottfeldstein]

Totally cool. I'm still scheming for my own first build. Having decided that a pair of 12/6 cabs, built one at a time, was the way to go. Lately, though I've been thinking that the real sweet spot is the 15/6. With enough watts, it can equal a 610. With that kind of output I wouldn't really need another cab. The downside is I'm still dealing with a 50 pound lift instead of a 35. But I can probably deal with that.

By the time the funds free up to start the project, i'll have probably changed my mind again



[hintz]

Way cool!! The first time i played through one of these it was like a blanket was lifted from my sound, simply amazing...this 1212/6 is definitely gonna replace my Hartke 2x10 and 1x15, plus its been way too much fun building this,at some point I probably gonna build another...

I cannot stress enough how easy this is, especially with a flat pack, the only tools you really need are caulking gun and a power drill, maybe a few clamps and a table...



[hintz]

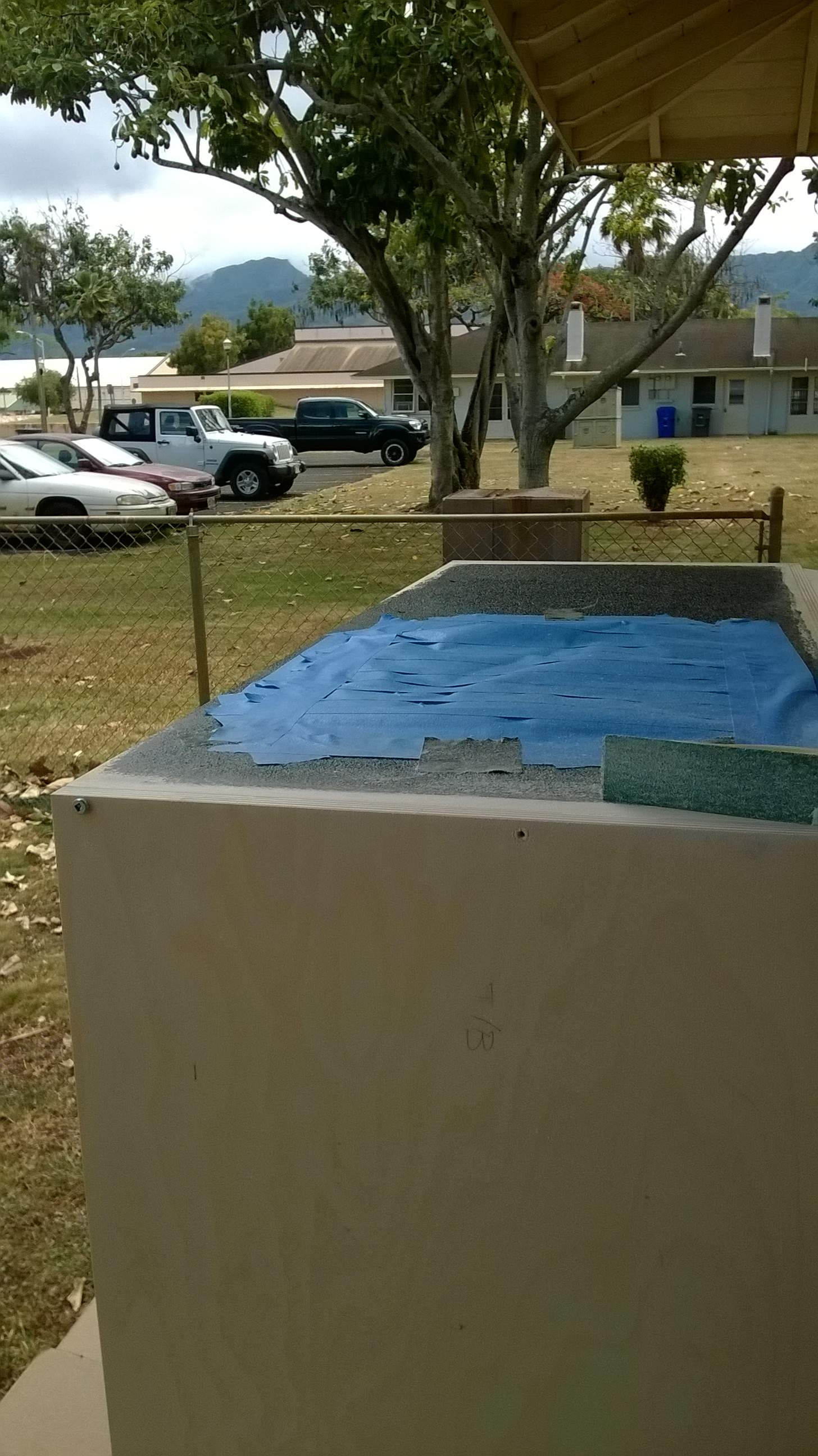

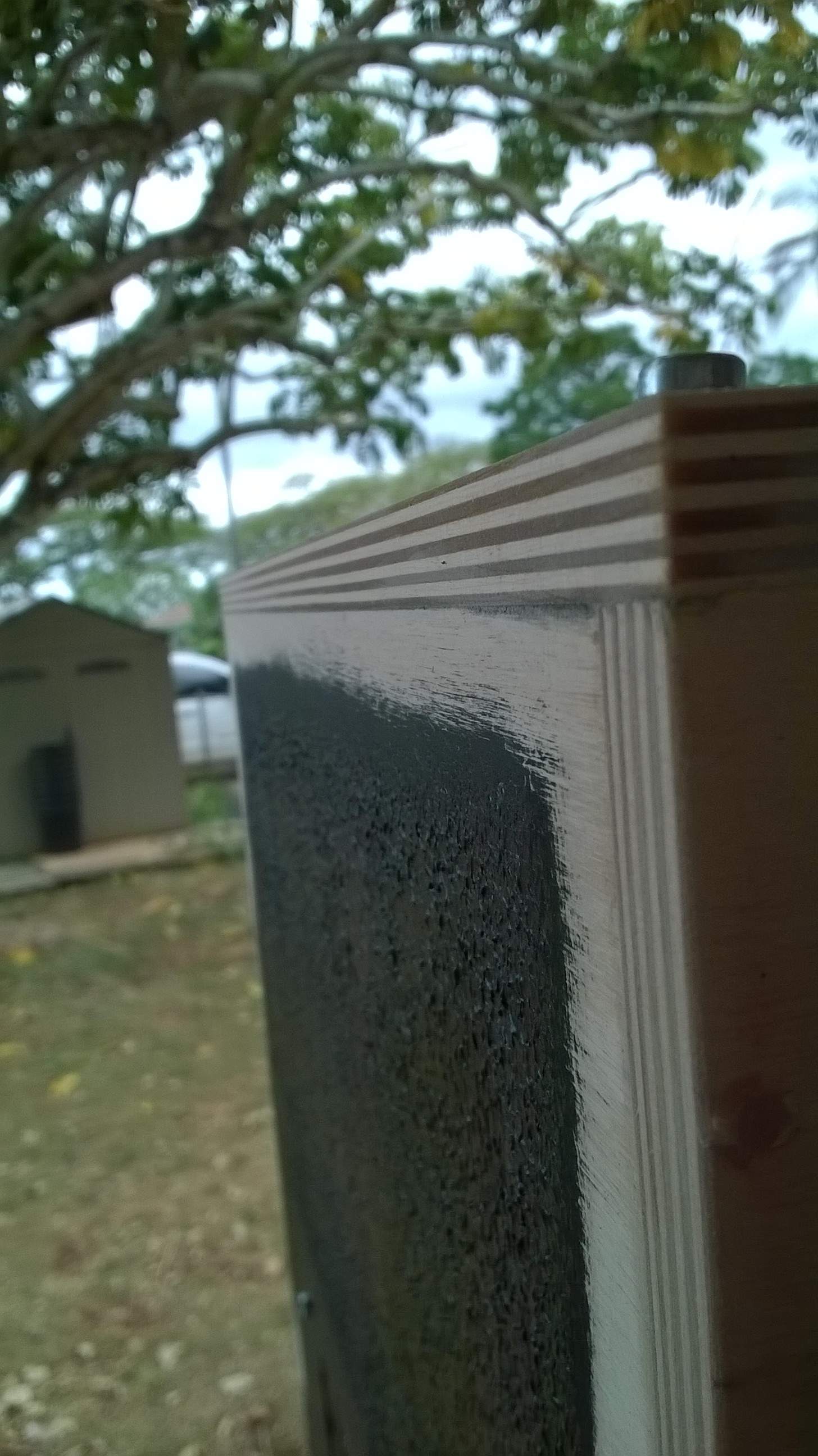

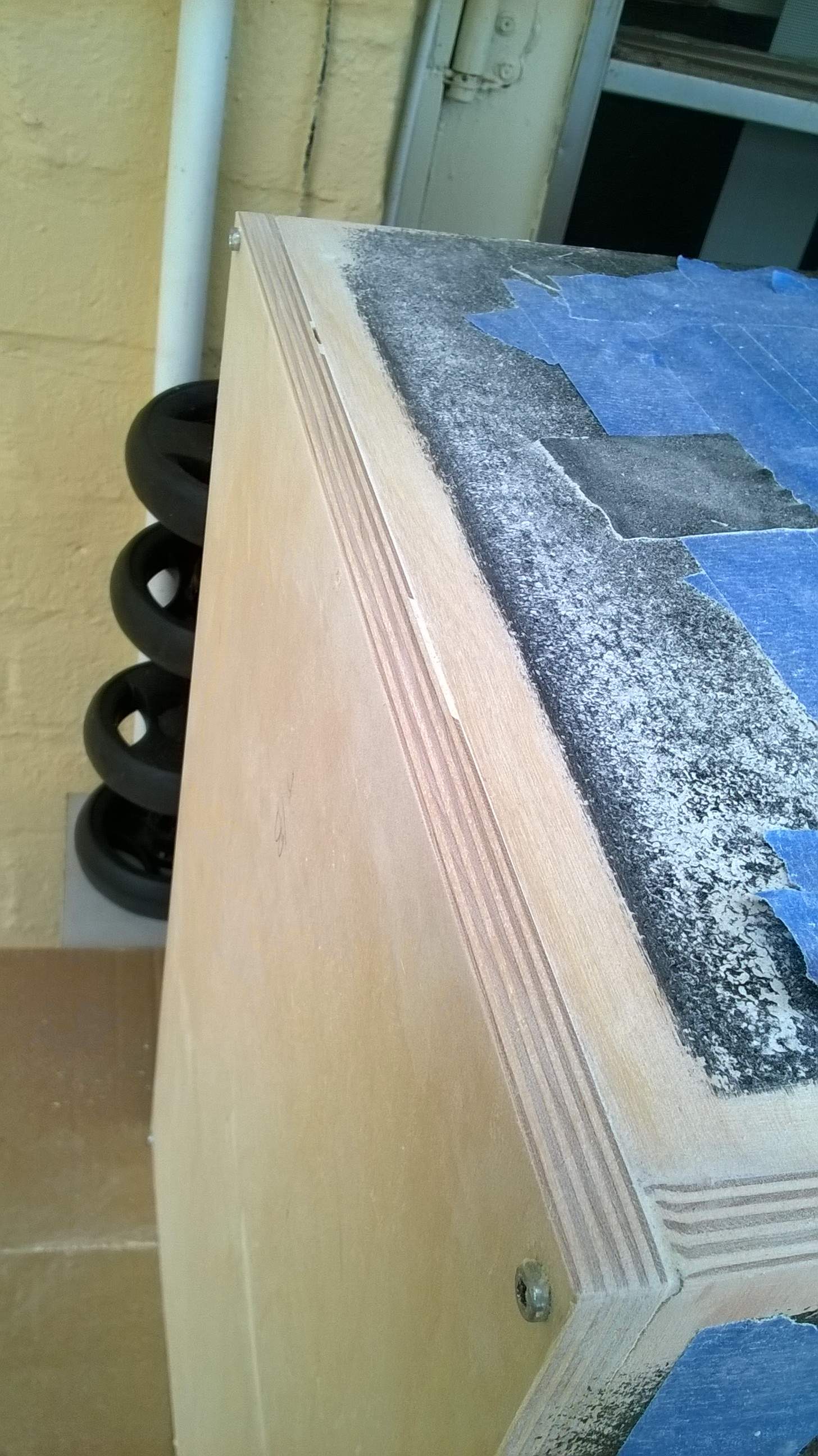

Since I have today off, probably unnecessary right now, but I figure it'll save some time when routing edges by sanding now.... Also I'm doing this by hand cuz I don't trust using my power sander, now if I had one of those "orbital" or DA sanders(iirc that's what they were called!!??) it'd be much easier...



[hintz]

Even though this is old school/doing it the hard way, I've found this to be the most enjoyable part so far, plus I really can't mess up hand sanding , good way to relieve stress going all caveman style



[hintz]

all cleaned up!!

I hope this makes it easier/quicker when routing, I hand sanded all sides....if it doesn't make it easier, at least ill sleep good tonite



[Foz]

Looks like you still have foam encroaching on the interior port throat - if so = bad idea. You need free flow of air in and out of the full cross section of the port area.



[Pudge Fish]

Nice build. I totally agree that building these "the hard way" is the best part!



[Nephilymbass]

I actually was just looking at those kits. Pretty cool. Thanks for the information and keep us posted on how it turns out
