Fender Rumble Club

[GonePlaid]

I hope so. In my experience the 'plus side' usually has gotchas. Would Fender sell me the part? My local dealer turns out to NOT do amps.
Anyway, appreciate any comments

If no one local is willing/able to fix it, and if you can turn it on somehow, then plug into a power strip w/ a switch...



[mixbus]

I hope so. In my experience the 'plus side' usually has gotchas. Would Fender sell me the part? My local dealer turns out to NOT do amps.
Anyway, appreciate any comments

Somewhere in the back of my crowded mind, I recall someone replacing the power switch on their Rumble combo. They posted this part number as replacement.

I cannot confirm or deny it works - just passing along a fuzzy memory.

It might not even be the same style switch from the combo to the head version.

As usual, proceed at your own risk.

Hope it helps.



[John Stephen]

I hope so. In my experience the 'plus side' usually has gotchas. Would Fender sell me the part? My local dealer turns out to NOT do amps.
Anyway, appreciate any comments

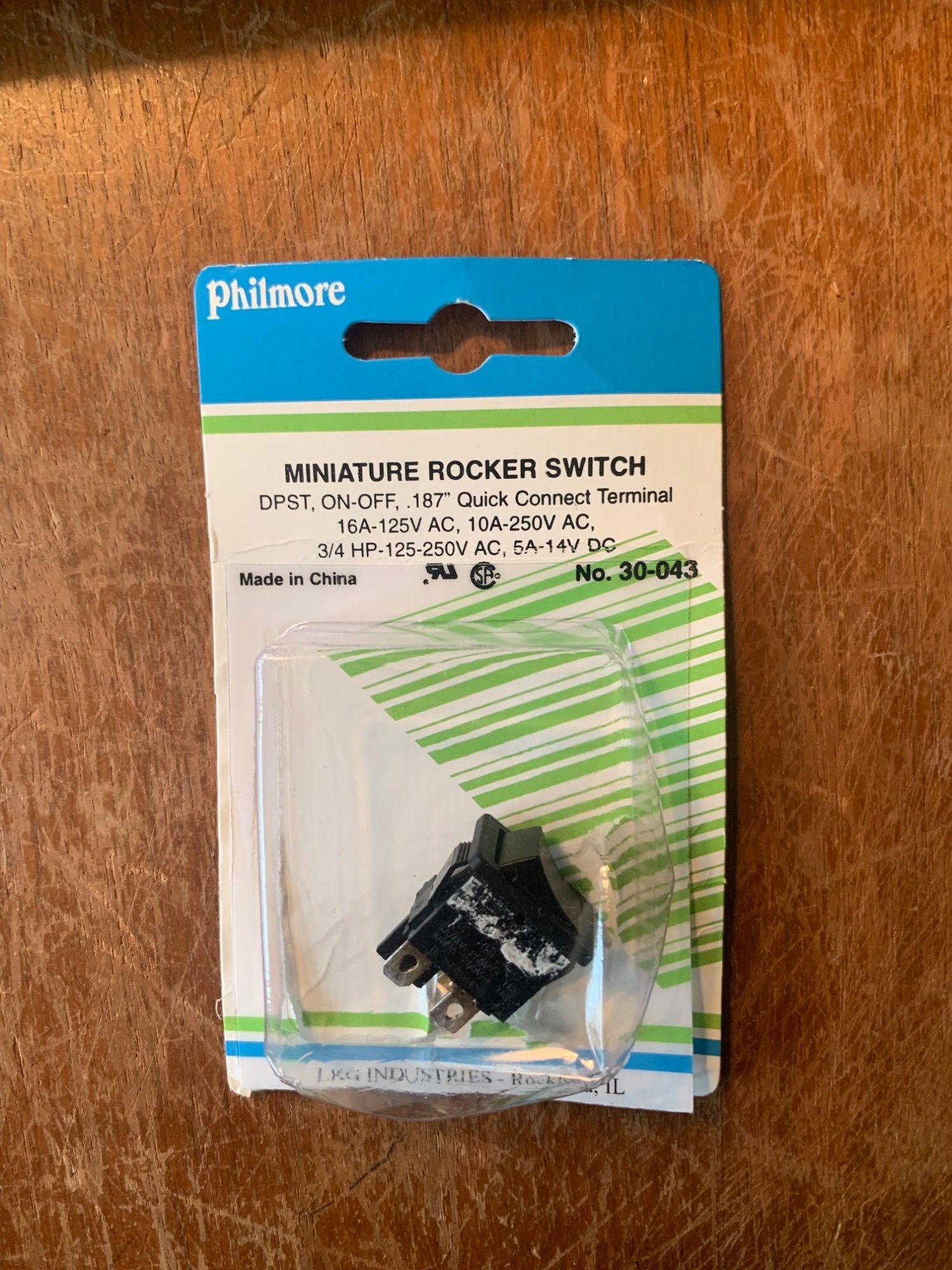

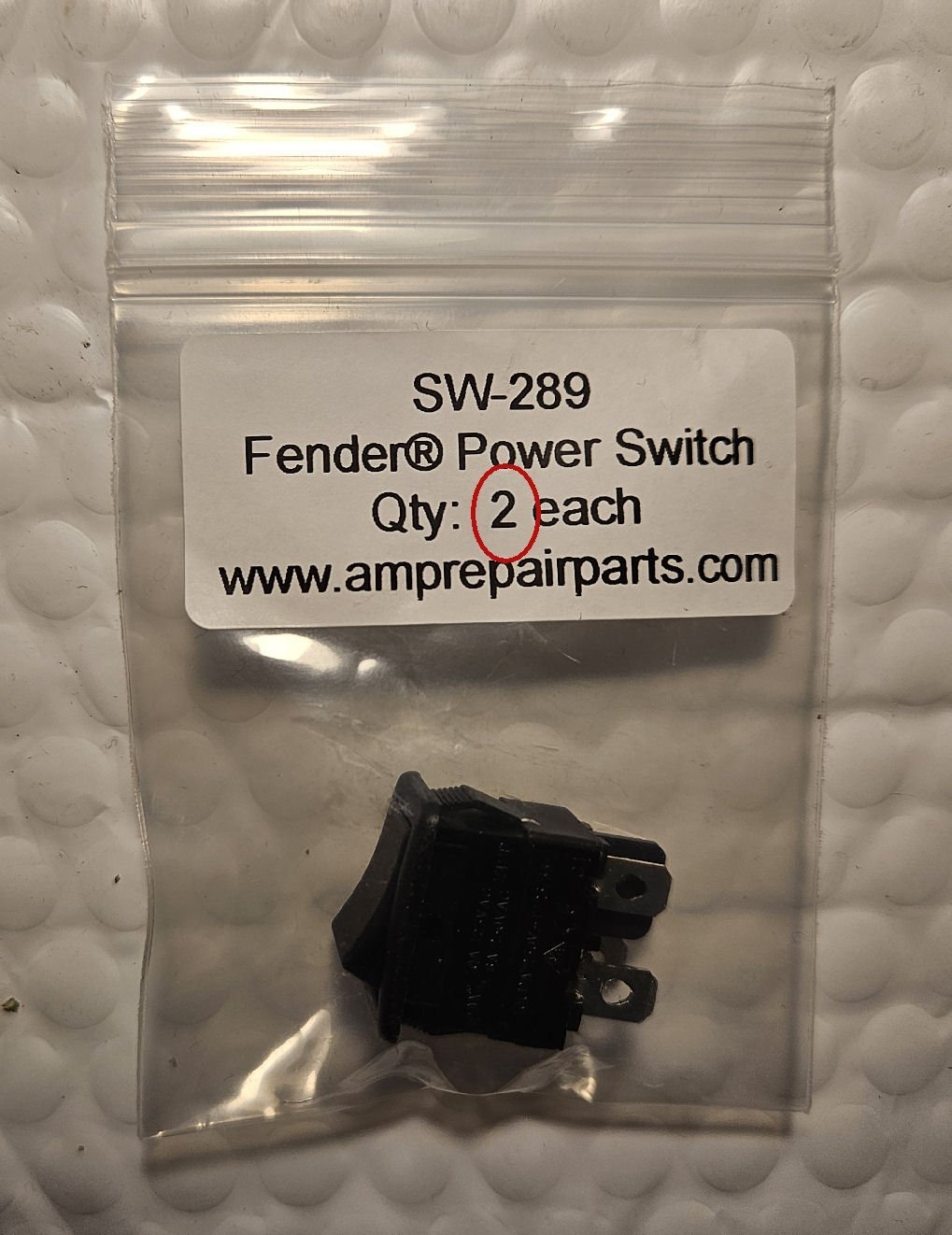

A few years ago I had to replace the on/off switch in my Rumble 40. I found the switch on amprepairparts.com, very cheap, and watched various Youtube videos to figure out how to do it. I will try to figure out where my post is stored here, and if I can find it, I'll give a link to it.

EDIT: link to my post about replacing the switch https://www.talkbass.com/threads/issues-w-fender-rumble-100.1416995/#post-23381425



[G-Dog]

I guess this is just a comment and what others may think. I went to turn on my Rumble 800H and unfortunately the switch just fell off. I love my amp, that's not a problem, great amp. But it seems like the on-off switch for such a piece of gear would be a little more robust. ... ... I have a Fender shop nearby but I haven't got an estimate yet ... ...

... .... Would Fender sell me the part? My local dealer turns out to NOT do amps. ... ...

I don't see that part on the 7ender website, but you could call them and ssk.​

Somewhere in the back of my crowded mind, I recall someone replacing the power switch on their Rumble combo. They posted this part number as replacement.

I cannot confirm or deny it works - just passing along a fuzzy memory.

It might not even be the same style switch from the combo to the head version.

As usual, proceed at your own risk.

Hope it helps.
[This invalid link has been removed]

A few years ago I had to replace the on/off switch in my Rumble 40. I found the switch on amprepairparts.com, very cheap, and watched various Youtube videos to figure out how to do it. I will try to figure out where my post is stored here, and if I can find it, I'll give a link to it.

EDIT: link to my post about replacing the switch https://www.talkbass.com/threads/issues-w-fender-rumble-100.1416995/#post-23381425

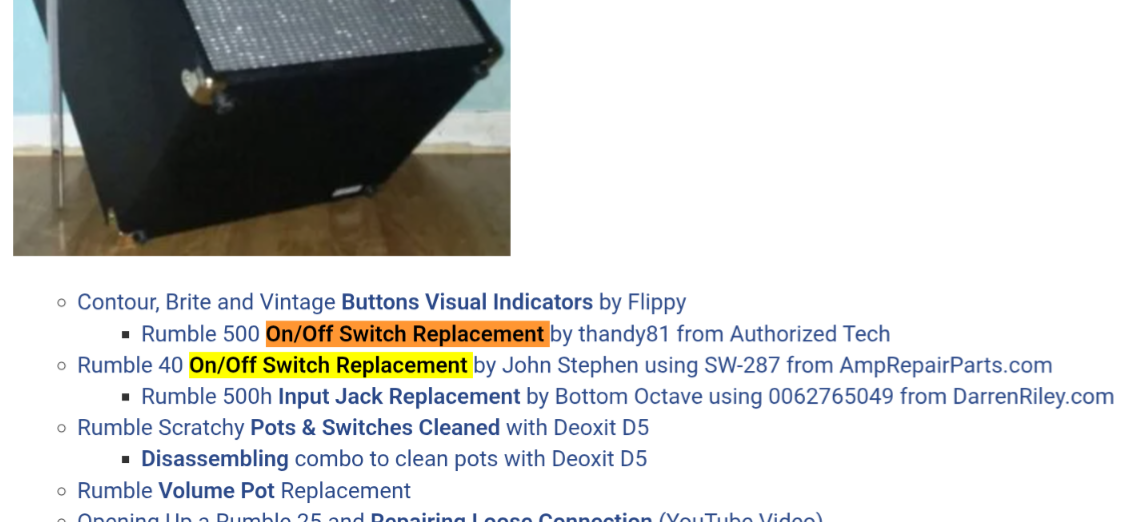

@John Stephen, I linked your post on the Rumble Club Wiki page, right under a link to @thandy81's post showing that part he used for his Rumble 500c.​

​

​

​

My only caution would be to remove the old switch from the Rumble 800h and check that it's spec. is matched by this replacement part! The 2-ohm capable R800h may, or may not, use a higher rated part than the 4-ohm capable R500c.​



[John Stephen]

I don't see that part on the 7ender website, but you could call them and ssk.​

@John Stephen, I linked your post on the Rumble Club Wiki page, right under a link to @thandy81's post showing that part he used for his Rumble 500c.​

​

​

View attachment 7471699​

​

My only caution would be to remove the old switch from the Rumble 800h and check that it's spec. is matched by this replacement part! The 2-ohm capable R800h may, or may not, use a higher rated part than the 4-ohm capable R500c.​

Perfect, thanks @G-Dog.



[Stealth57]

I ended up ignoring the horn on my 500c external amp mod. Made life a lot simpler. I did document what I did in case anyone else wants to do it.

Dropbox



[mapleglo]

For what it's worth, I've never used the horn on my 500. If I disconnected it, I'd never know it.



[Miles_ONeal]

R100s don’t have horns. If mine did, I’d turn them off.

I’m officiating a wedding for two of my best friends from college next weekend and was asked to provide a sound system. Rather than rent one unnecessarily I carried my two R100s and a mixer out back onto the porch, plugging my iPhone into the mixer. I cranked it up and the music was conversation level around the perimeter of our large back yard (50-120) feet from the porch), so more than enough for what’s needed. Sounded just fine, too. Not as good as my stereo, but a whole lot easier to haul and set up / tear down. I knew this ought to work, but always prefer to check first!

I had to involve the mixer because if you plug into a Rumble’s Aux Input, you bypass the Send jack, meaning you can’t daisy chain the amps. That’s fine; the couple didn’t ask for mics but I’ll take a pair, anyway since the mixer is there. With this crowd, we may well end up with some live music and/or singalongs/faux karaoke as well.

I’ve done this before to watch a movie at a baby shower in our back yard, but that was a small group in close proximity.



[GregT]

Well, I finally got around to hooking up the new Broughton Low + High Pass Filter with my Rumble 100 and the Banshee with TI Flats. Wow! It does exactly what I bought it for. With the low pass filter, I can dial out the clank of the strings completely, and with the high pass filter, I can dial out the low end boominess. It takes out the parts I don't like and leaves the big round tone I love. I have it set at unity gain, so if I need my bass to sound "normal" I can just turn it off. It'll be a mostly-on pedal for me.



[Froski]

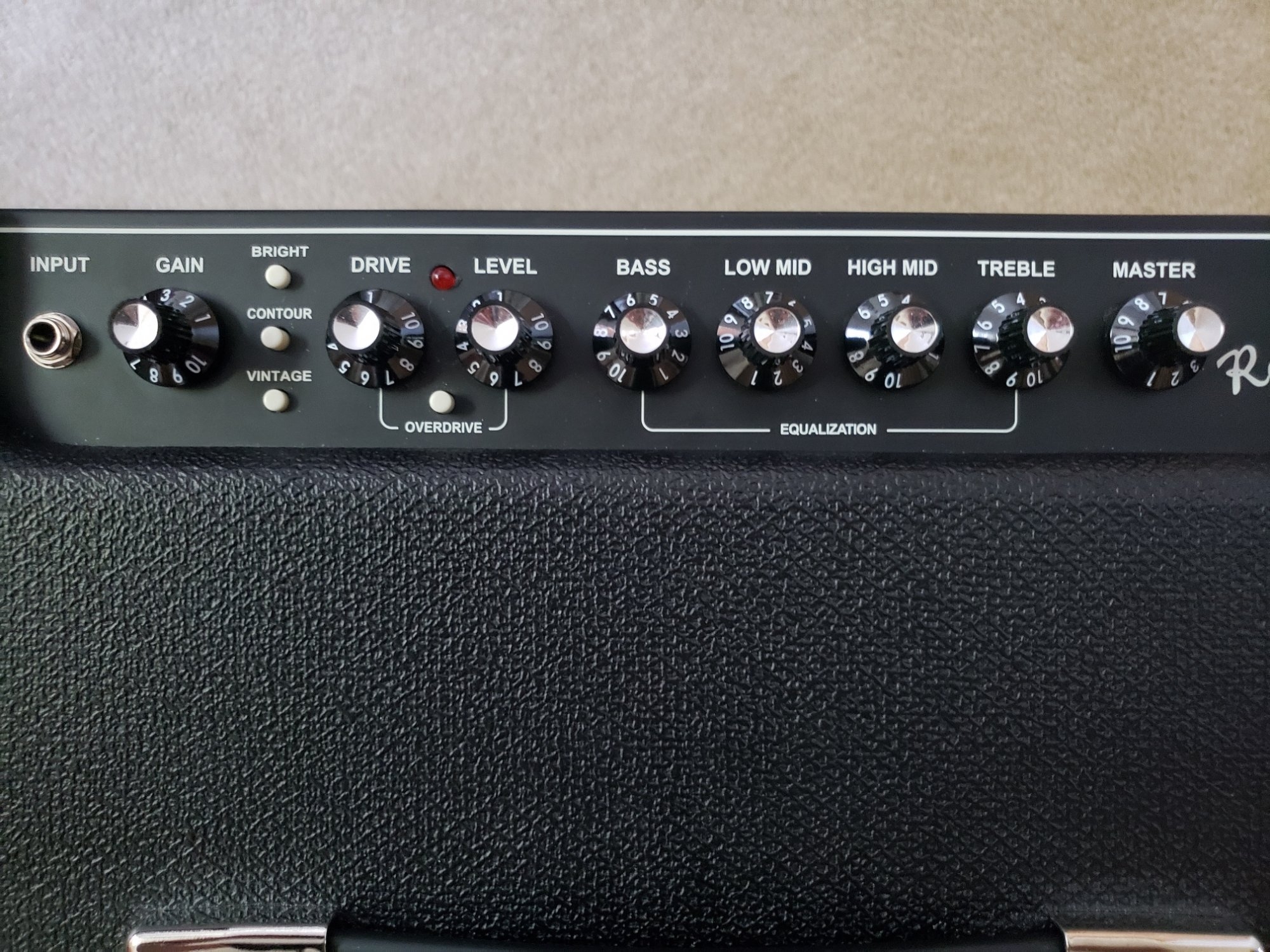

I want to blackout my 40. Can I get some links for the knobs? I know I can search but can I get some renewed interest at the top of the Rumble club?



[GregT]

I want to blackout my 40. Can I get some links for the knobs? I know I can search but can I get some renewed interest at the top of the Rumble club?

I checked the Rumble Wiki page, and it looks like you need Kevins1701's post #8,995. Hope that helps.

Post in thread 'Fender Rumble Club'

Jan 11, 2016

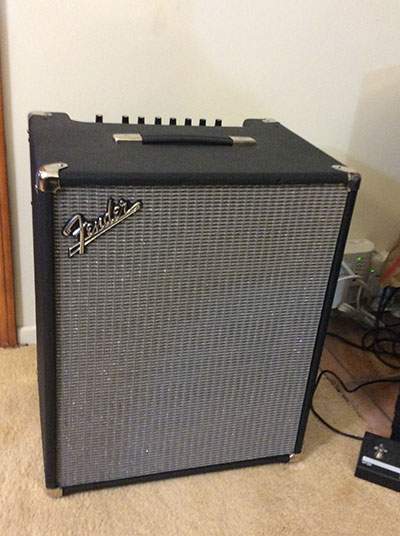

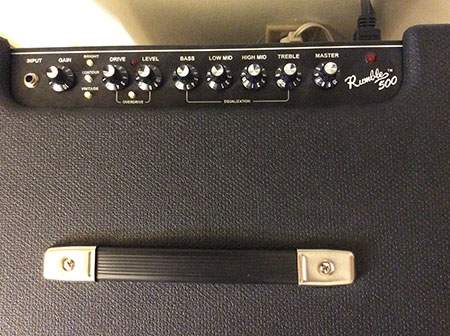

BLACKFACE IT!

I like my Rumble 500 Combo, but it had a little cosmetic dissonance going. Fender borrows styling details from various eras of its history for these amps, but to my eye black Tolex and silver grille cloth recall the classic mid-'60s look. And the flat logo, cutout corners and cream knobs didn't hang with that. The handle also looked a little foreign. Turns out they're all easily and cheaply fixed, using genuine Fender parts, and the changes are all reversible.

The signature lipped corners to use are the "flat" ones, without the dished screw holes...

• Kevins1701

•



[ratdoc]

I want to blackout my 40. Can I get some links for the knobs? I know I can search but can I get some renewed interest at the top of the Rumble club?

I went with the witch hats on my R100...

Amazon.com: Fender 7/8" Skirted 1-10 Push-On Amplifier Knob, 4 Pack, Black/Silver : Musical Instruments

Buy Fender 7/8" Skirted 1-10 Push-On Amplifier Knob, 4 Pack, Black/Silver: Knobs - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[J-Bassomatic]

Somewhere in the back of my crowded mind, I recall someone replacing the power switch on their Rumble combo. They posted this part number as replacement.

I cannot confirm or deny it works - just passing along a fuzzy memory.

It might not even be the same style switch from the combo to the head version.

As usual, proceed at your own risk.

Hope it helps.
View attachment 7471674

Somewhere in the back of my crowded mind, I recall someone replacing the power switch on their Rumble combo. They posted this part number as replacement.

I cannot confirm or deny it works - just passing along a fuzzy memory.

It might not even be the same style switch from the combo to the head version.

As usual, proceed at your own risk.

Hope it helps.

View attachment 7471674

Thanks for the input to all. I called a Fender Repair shop and their guy says just put some cheap switch in, that's what we do. Since they are such a sturdy part I ordered two. 10 minute fix, works fine.



[Zam]

Hi everyone. I have a used Fender Rumble 40 (likely an older 2000s version), and it has always worked well.

I recently bought an HX Stomp and read that I should connect it to the amp’s EFFECTS RETURN to bypass the amp’s preamp and use the HX Stomp’s amp simulation.

Problem: when I plug into the RETURN, the sound is very poor—there’s hiss, and sometimes it feels like there’s no proper signal. The same happens with the SEND. However, if I plug into the normal input (of the amp), everything works fine.

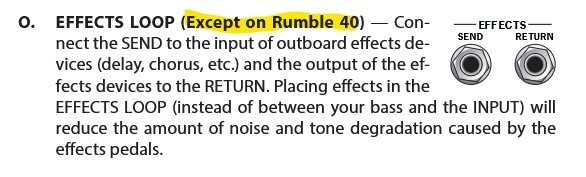

When I checked the Rumble manual (image below), it explains SEND and RETURN but includes the note “EXCEPT ON RUMBLE 40,” which is confusing.

What could be happening? Could the SEND/RETURN jacks be faulty, or is the Rumble 40 designed differently?



[G-Dog]

Hi everyone. I have a used Fender Rumble 40 (likely an older 2000s version), and it has always worked well. ... ...

??? The currently produced Rumble V3 40 is the only 40-watt Rumble ever produced, beginning in 2014. The V1 from 2003-2010 had a 25 & 60. The V2 from 2010-2014 had a 30 & 75. So, yours can't be more than 12 years old.​

... ... I recently bought an HX Stomp and ... ... Problem: when I plug into the RETURN, the sound is very poor—there’s hiss, and sometimes it feels like there’s no proper signal. The same happens with the SEND[???]. However, if I plug into the normal input (of the amp), everything works fine. ... ...

??? Can I assume you're plugging the amp's Send in to the pedal's input and not the pedal's output? ​

... ... When I checked the Rumble manual (image below), it explains SEND and RETURN but includes the note “EXCEPT ON RUMBLE 40,” which is confusing.

That's because the Rumble 40 does not have an Effects Loop! If your amp does have an FX Loop, might it be another model? Please check the nameplate again and post a picture of it.​

... ... What could be happening? Could the SEND/RETURN jacks be faulty, or is the Rumble 40 designed differently?

View attachment 7479636

Your FX Return may just be dirty and need cleaning. See the FX Return Jack Fix wiki for an explanation and cleaning.​



[Zam]

??? The currently produced Rumble V3 40 is the only 40-watt Rumble ever produced, beginning in 2014. The V1 from 2003-2010 had a 25 & 60. The V2 from 2010-2014 had a 30 & 75. So, yours can't be more than 12 years old.​

Thanks for the info!

??? Can I assume you're plugging the amp's Send in to the pedal's input and not the pedal's output?​

I will definitelycheck this out

That's because the Rumble 40 does not have an Effects Loop! If your amp does have an FX Loop, might it be another model? Please check the nameplate again and post a picture of it.​

As soon as I get home I send the picture.

Your FX Return may just be dirty and need cleaning. See the FX Return Jack Fix wiki for an explanation and cleaning.​

??? The currently produced Rumble V3 40 is the only 40-watt Rumble ever produced, beginning in 2014. The V1 from 2003-2010 had a 25 & 60. The V2 from 2010-2014 had a 30 & 75. So, yours can't be more than 12 years old.​

??? Can I assume you're plugging the amp's Send in to the pedal's input and not the pedal's output?​

That's because the Rumble 40 does not have an Effects Loop! If your amp does have an FX Loop, might it be another model? Please check the nameplate again and post a picture of it.​

Your FX Return may just be dirty and need cleaning. See the FX Return Jack Fix wiki for an explanation and cleaning.​

Hey, G Dog! Thanks for the time to reply me. As soon as I get home I will do it all and post pictures here. Take care!



[G-Dog]

Posted on April 24, 2024: I have a Fender Rumble 100 v3, and I'm using a Samsamp VT Bass DI with it with the purpose of give the tone the Samsamp "color".

Posted today: Hi everyone. I have a used Fender Rumble 40 (likely an older 2000s version), and it has always worked well.

Posted today: Thanks for the info! ... I will definitely check this out ... As soon as I get home I send the picture. ... Hey, G Dog! Thanks for the time to reply me. As soon as I get home I will do it all and post pictures here. Take care!

Hey, Zammy, might you still have the Rumble 100 V3 you reported 2 years ago? Or have you changed it for another?

The Rumble 100 V3 does have an FX Loop, which could (hopefully) just be dirty as explained in the linked FX Return Jack Fix wiki.



[Stealth57]

Hey, Zammy, might you still have the Rumble 100 V3 you reported 2 years ago? Or have you changed it for another?

The Rumble 100 V3 does have an FX Loop, which could (hopefully) just be dirty as explained in the linked FX Return Jack Fix wiki.

The only thing I would add to that Wiki is adding some Deoxit 5 to the cable end when you insert it into the jack. It's a great contact cleaner and lubricant.



[Miles_ONeal]

Hi everyone. I have a used Fender Rumble 40 (likely an older 2000s version), and it has always worked well.

I recently bought an HX Stomp and read that I should connect it to the amp’s EFFECTS RETURN to bypass the amp’s preamp and use the HX Stomp’s amp simulation.

Problem: when I plug into the RETURN, the sound is very poor—there’s hiss, and sometimes it feels like there’s no proper signal. The same happens with the SEND. However, if I plug into the normal input (of the amp), everything works fine.

When I checked the Rumble manual (image below), it explains SEND and RETURN but includes the note “EXCEPT ON RUMBLE 40,” which is confusing.

What could be happening? Could the SEND/RETURN jacks be faulty, or is the Rumble 40 designed differently?


View attachment 7479636

You may need to crank the Stomp's output as well. You need a higher level output going into the FX Return than into the Input jack.



[G-Dog]

The only thing I would add to that Wiki is adding some Deoxit 5 to the cable end when you insert it into the jack. It's a great contact cleaner and lubricant.

That was originally mentioned there, but a certain respected and very experienced elder equine said it's a waste of time & money 'cause it doesn't even get to the switch contacts that way! And spraying it into the jack just creates a mess and can actually harm other things.

But, thanks for trying to help.
