Fender Studio Bass Club!

#141
rodl2005 said:
Can only answer a couple, hopefully someone else can also help.
2 inputs are the same AFAIK I often use both at same time.
I've got a orig manual. Just a couple pages ïirc, but I could photograph it for you à post pics. Only trouble is I'm away for a couple days, & manual's at home.
I'll do it anyway huh?
Replacing the power cord should be easy enough. Mine has original fixed power cord in place (it's very clean) & unless it gets wonky, I ain't touching it:)
Goodluck with it :thumbup:
I assume the tubes are in two sets of three, I'm in the dark on them:confused:
Click to expand...

rodl2005 - I will take a pic of the manual pages if you can do it without a ton of hassle. Be interesting to read what Fender says about the settings and such.

The power tubes are in arranged in 2 triplets. They sound great, as do the preamp tubes, so I am not going to mess with them right now. The amp is very quiet.

I have a friend who is a solid tech and he is going to replace the power cord and inspect the caps for me. If the caps look ok, I'll leave them too, but if this amp dates from the late 70's, I don't know if the caps would still be in the best shape.
We'll see.

The Studio Bass sounds (and looks) very good to me right now. The only "fixes' I want to make are to address the obvious stuff.

#143
Just realized one (at least) of these pics is not clear. Pm me for clearer ones later this week.
Might be better if I email them to you, photobucket seems to make em worse. I swear they're a lot clearer than they appear here.






And schematics. These are for a 240V model in Australian ;)

#148
jumbodbassman said:
Rodl2005. does using both inputs add anything like the old ampegs or do use both with an AB switch so one has certain effects added???
Click to expand...

To the best of my knowledge, the Studio Bass has two input jacks, but only one real channel, so you can't jumper the two like you can with 2 channel amps like the older Bassmans or ampegs.

The way rodl2005 is explaining it, with his Studio Bass, he uses the footswitchable EQ section to get a second tone setting (using EQ). It is a very useful feature, which is similar to what some of the Mesa MPulse amps had described as a "Solo" channel, where you can lift the volume and have a different EQ curve, so your soloing can stand out better. But the Studio Bass is not a 2 channel amp. Just a single channel with 2 inputs.

#151
jumbodbassman said:
thats what i thought. i use the footswitch on my super twin that same way.
Click to expand...

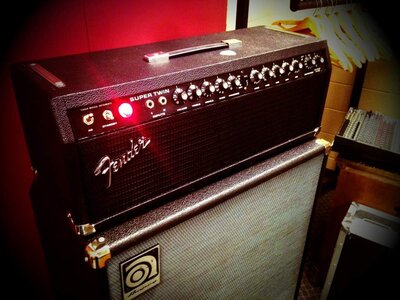

Yes. Same amp. Super Twin & Studio Bass. Only Super Twin has a "distortion" control. Apparently useless from what I've heard, but I've not tried it.
Oh & the Super Twin came in a 212 combo, Studio Bass in a 115 combo.
Are the active eq points the same? Any other differences?

#152
There was some discussion about how to use the Line/Recording output jack on the Studio Bass amp. Basically what I got from the original exchange by rodl2005 was that you needed a DI to use on the output to go into a PA, and that somehow, you would get both the pre and power amp output via this jack.

So, what is going on with this output of the amp ? What is the best way to use this output for either FOH/PA or recording. Can one of the more technical folks here offer some insight to a non EE owner of a Studio Bass amp ?

thanks

#156
I noticed while poking through the various web sites with Studio Bass/Super Twin content that there are 2 distinct face plates. One has the amp name in Fender script on the right side, the other has the amp name in Block Letters below the 2 inputs.

I wonder if this is a way to distinguish the 2 versions of the amp. There are two different schematics that show different part numbers for the transformers, as well as two different power ratings .. 180w bass amp, and 200w bass amp.

interesting stuff.

#159
FWIW, for anyone who wants the original Studio Bass amp user manual and schematic (dated 1978), the Fender archive service will send you a pdf copy free of charge. I just got mine, a day after I sent my request.

cool.

the manual does not say much that is useful, but it is still interesting to have none the less. The back pages have some accessories and some 70's marketing blurbs about Jazz, Precision and Mustang basses too.

"Slim neck design lets any guitarist play bass with ease"
quote from the Jazz Bass blurb. too funny.
