G&L Club Part 2

[Roborooter]

My wife thinks I am cheating on her...

A couple pics of me playing my 81 L1000

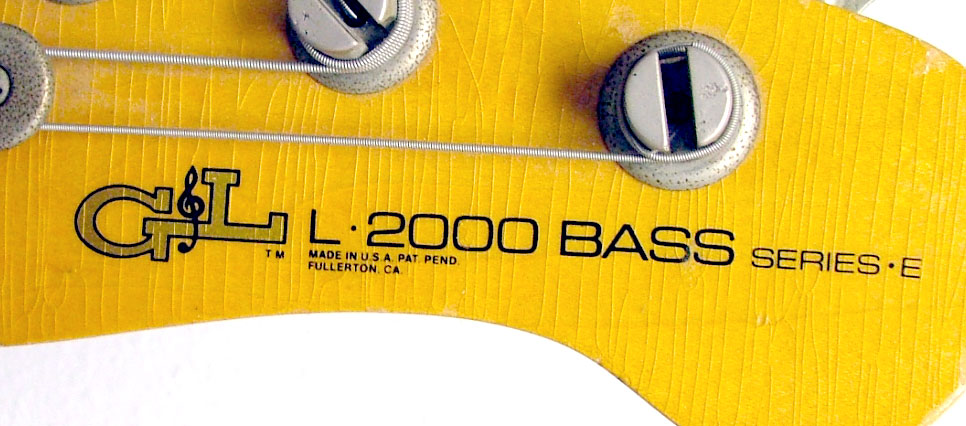

What's my number?



[spufman]

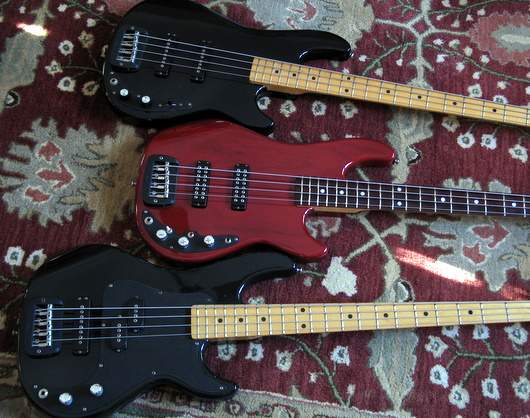

Added my third G&L, the '89 El Toro. These are three VERY different sounding basses, all of them are wonderful. So, here's my G&L stable:



[Rockit]

I've got a Tribute SB-2 that I'm totally in love with. Paid $350.00 for it used. Recently disconnected the bridge p/up, dropped it down into the body and wired a 62P Bass tone circuit in it and I'm really happy with the sound.

Used it @ a gig last weekend and I got some compliments from the other bass players.
Link Removed



[theduke1]

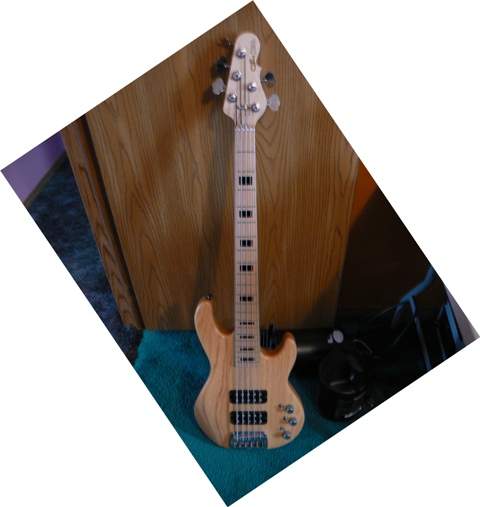

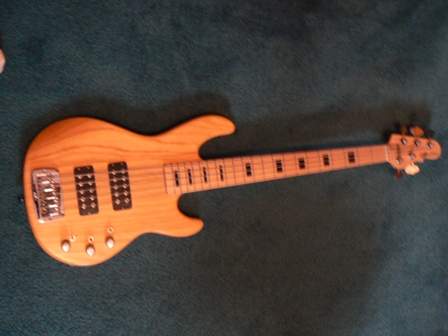

My main Bass



[theduke1]

First time I posted a picture, they are small, but I'm a newbie please forgive I'll try again later



[Chef]

Are those f-er-really blocks, or stick ons or what?



[Chef]

Coming soon to a music room near me...well, my music room, actually

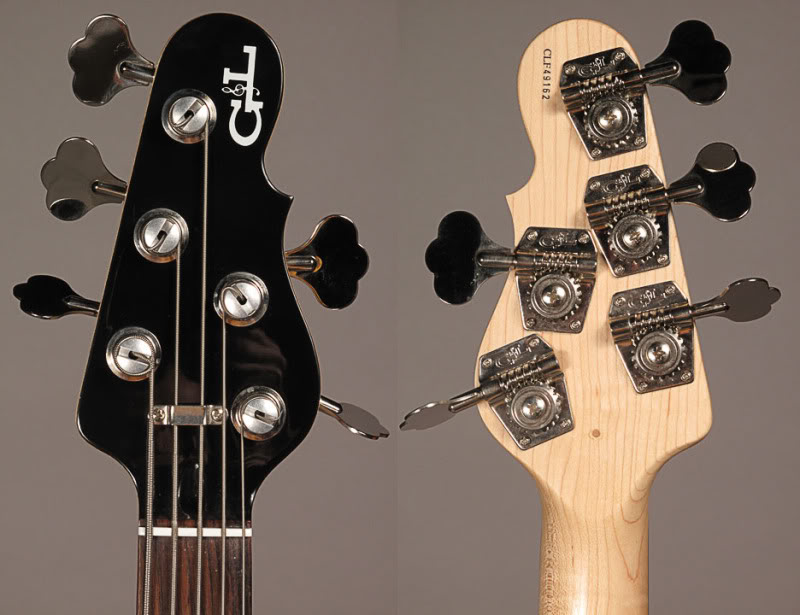

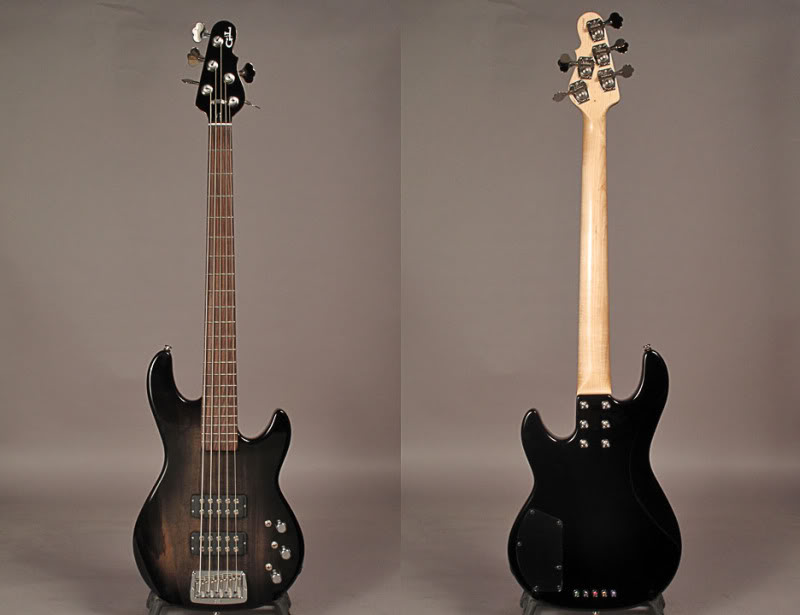

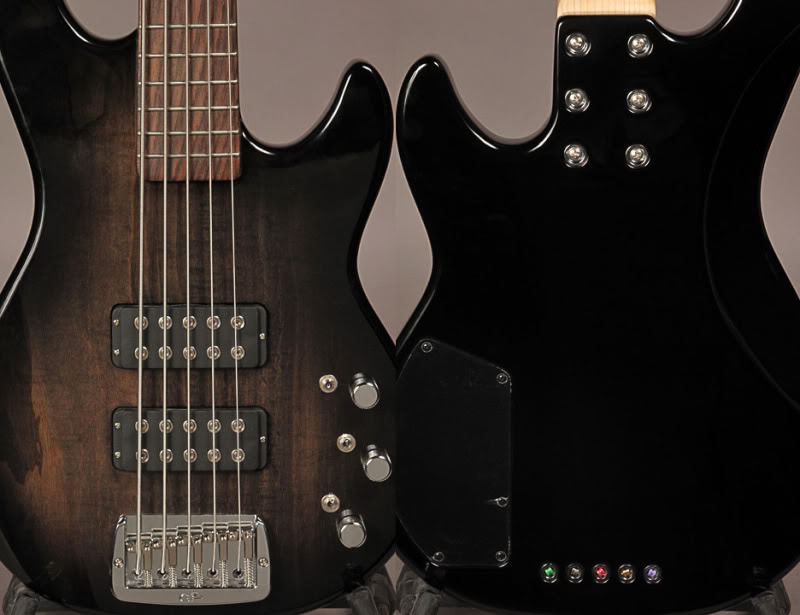

2008 BABP L2500K-LE limited edition: sweet.

Ash body, black burst, totally kewl striped brazilian f/b...
The "K" indicates Olde Skewl Switching, with single coil single coil+bass boost, and dual coil parallel, just like my olde L1K's and L2Ke.



[Quadzilla]

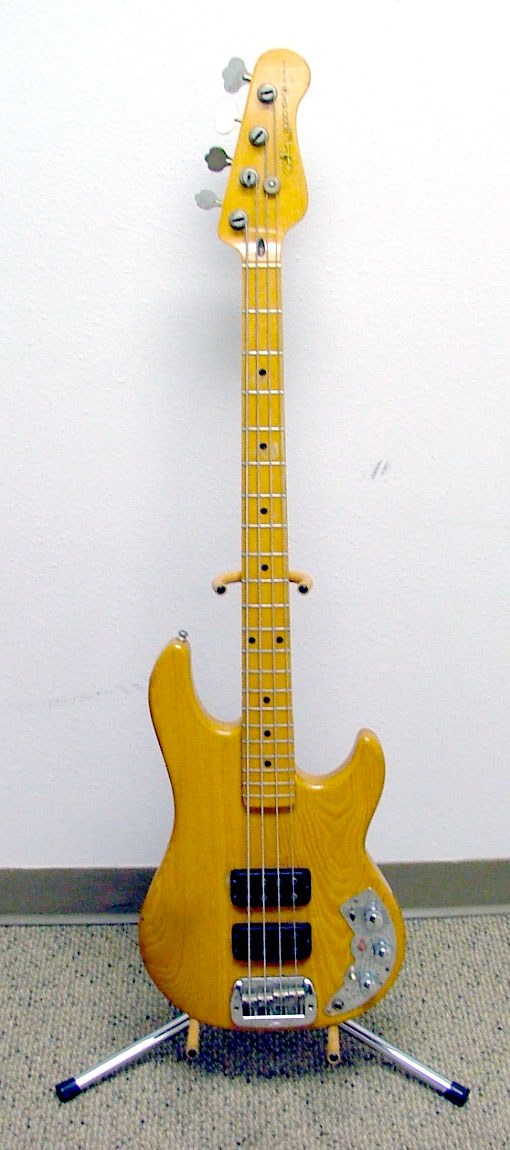

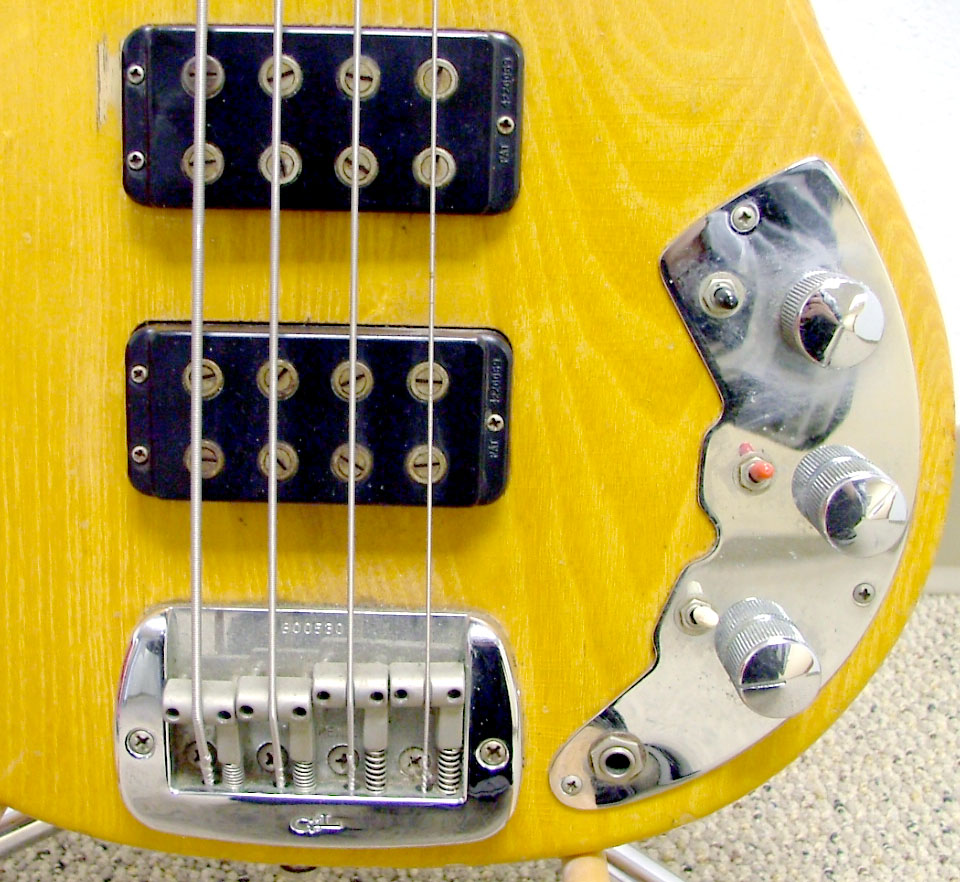

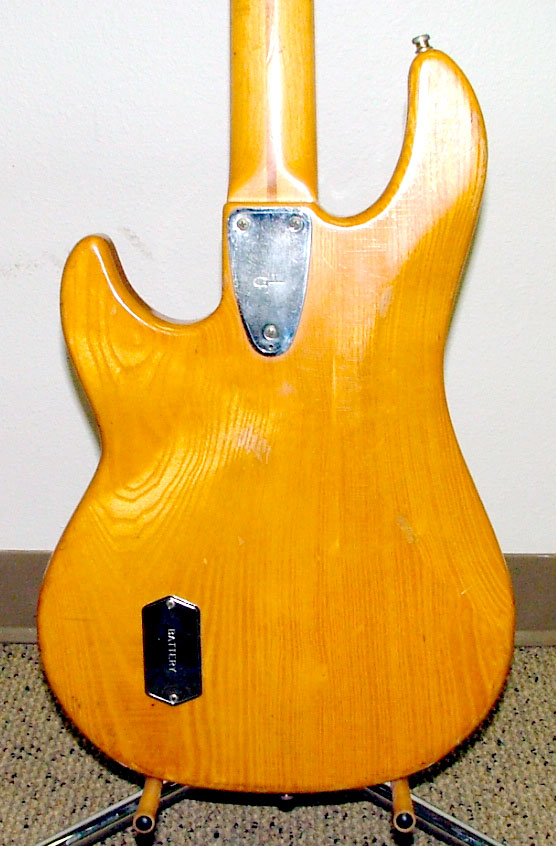

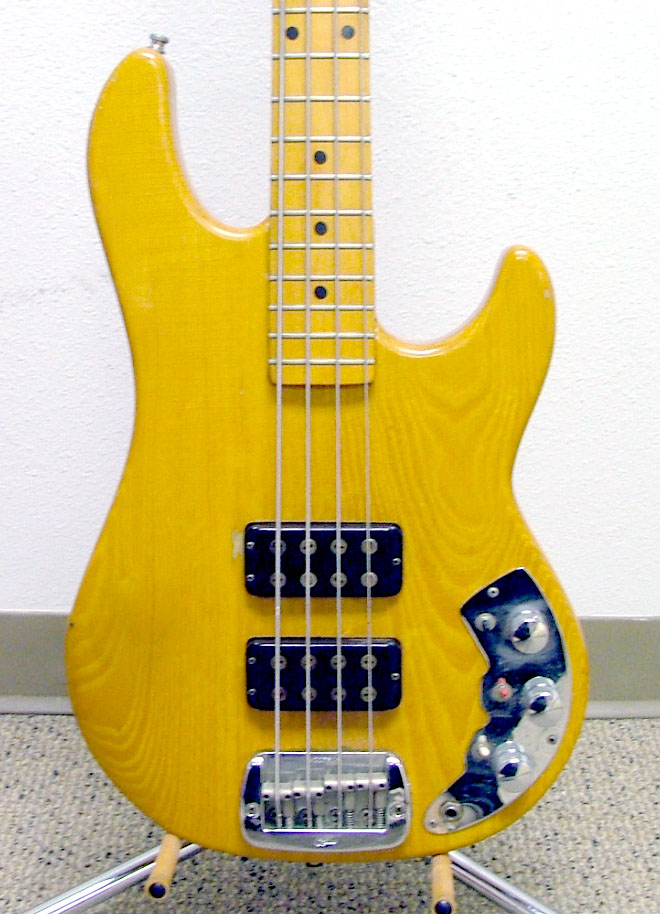

My new to me, 1981 L2K



[theduke1]

The Blocks are ??? I will say I added them
The BABP, I saw one on ebay for 1600, but couldn't raise the cash. you are a lucky man.
Also
Reading here, where can I get the board to set my L2500 pu's like your K setup?



[Chef]

Not sure, I'm no electrician.
I've read "it's not that hard with a new three way switch," but I'm personally unclear on that.
There should be someone in this thread that knows better than me. Also you can try asking for help over at the badassbassplayers forum, in the G&L section.



[Chef]

Quad: that's sweet man!



[Timmay on bass]

Coming soon to a music room near me...well, my music room, actually
2008 BABP L2500K-LE limited edition: sweet.

Ash body, black burst, totally kewl striped brazilian f/b...
The "K" indicates Olde Skewl Switching, with single coil single coil+bass boost, and dual coil parallel, just like my olde L1K's and L2Ke.

Hey Chef, the "K" switch is actually different from the old school "single coil with bass boost". It's just single coil for the Jazz bass tone. The first time I tried a Tookay with this switch, I immediately traded in my '82 Tookay for it. And then I put in an order for an L2.5k with the "K" switch.



[Chef]

So K is:
Single Coil
Dual Parallel
Dual Series....................??



[kai_ski]

Not sure, I'm no electrician.
I've read "it's not that hard with a new three way switch," but I'm personally unclear on that.
There should be someone in this thread that knows better than me. Also you can try asking for help over at the badassbassplayers forum, in the G&L section.

I recently emailed John @ G&L regarding modding my ASAT. I guess the "K" pickups have a third, blue, wire that taps the coils. here's his response:

Hello Kai,

A single coil tap requires the “K” version of our pickups and a 3way mini toggle.
Currently we do not have the “K” pickups available for sale.

Regards,

John R. Toner
G&L Musical Instruments Customer Service
2548 Fender Ave.
Fullerton, CA 92831
(714)897-6766 x156



[Chef]

I thought that took a third wire off the pups, but didn't want to open my fool mouth on that...my memory isn't all it used to be sometimes



[lowfreqgeek]

^^^ Very interesting! I didn't know they had a different pickup for K-switching.

I've wired my L2500 for SC/"SC w/BB"/Parallel and I love it that way. It did require a 3-way switch. I don't have the schematic in an electronic form, but I'm sure someone here does. I just did it on my own... My pickups are the regular MFDs, so I don't know exactly what the "K-switching pickups" are. Probably not much more than an additional wire to make it "easy".



[Chef]

Well....maybe it doesn't then



[Handyman]

The modern MFD pickups have four wires, meaning both terminals of both coils are available for you in the control cavity. Any wiring scheme that's possible with a three wire version is possible with the normal four conductor versions. Why they would bother making a special "K" version of the pickups is entirely beyond me.



[kai_ski]

Well, I was interested in having my ASAT modded at the factory, as it's still under warranty. I guess that was John's way of telling me "no."



[Ken Baker]

The modern MFD pickups have four wires, meaning both terminals of both coils are available for you in the control cavity. Any wiring scheme that's possible with a three wire version is possible with the normal four conductor versions. Why they would bother making a special "K" version of the pickups is entirely beyond me.

Noise control.

On the usual 4 wire G&L bass pickup the green wire comes off one end of a coil, connects to the metal baseplate of the pickup, and is extended on to the cavity. The "K" pickup has the green coming off the coil and going straight to the cavity. The extra, blue, wire connects to the baseplate.

The blue wire ensures as much quiet as possible in single coil mode and allows for better coil isolation (no bleeding in an unused coil).

I haven't had eyes on a "K" circuit, so can't comment on the model switch they're using and whether it's different than the switch we use for modding the non-"K" basses for single coil. If it is the same switch (C&K 7411), they're wiring it differently than we do.

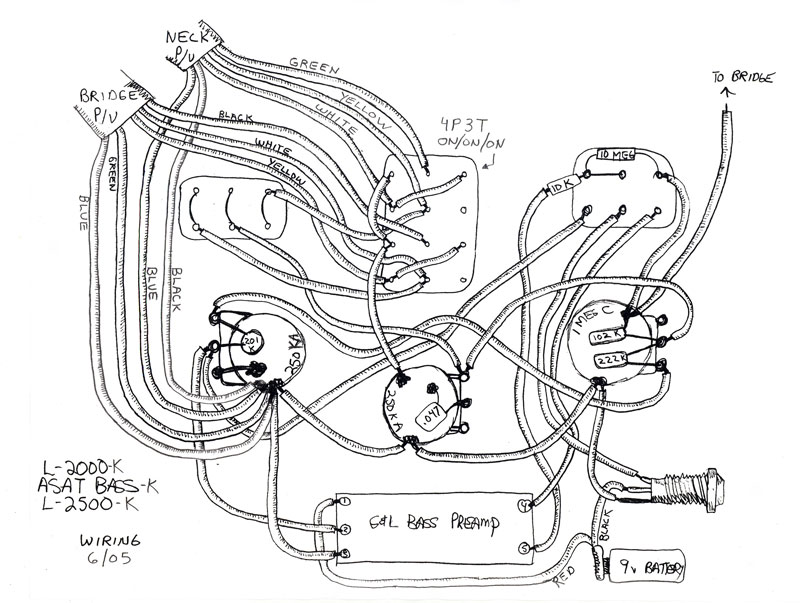

From the designer:

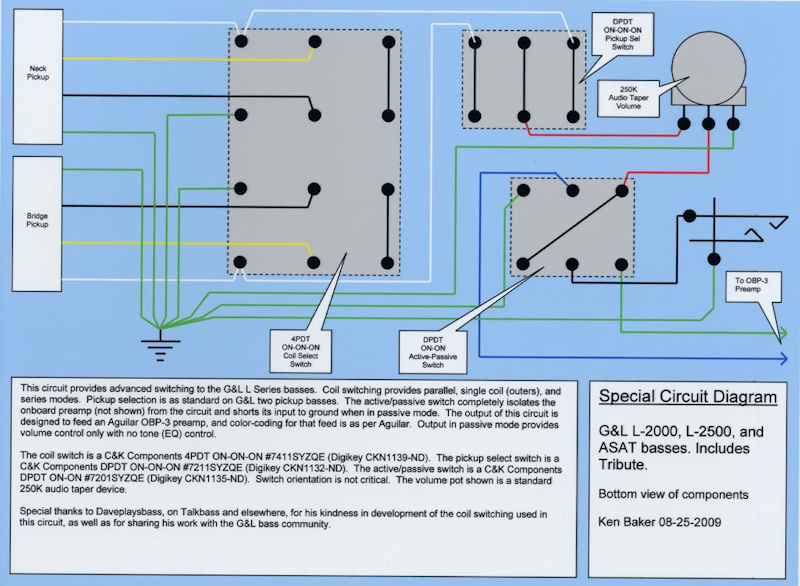

The DavePlaysBass circuit:

That help?

Ken...
