G&L Club Part 7

Thanks for the link- I've done the deep dive on that site & have yoinked all of the variations of L2K diagrams. Good stuff!
I have a couple Kilotons, which are passive, but I like the preamp in the L-series basses. It seems to add just a little bit of sparkle to the tone, which I like. And of course, at the flip of a switch, it can become a passive bass. Lots of possibilities with an "L".
I like the sound of that! I think I'm going to set it up with the pre-wired preamp & sort out all of the split coil stuff later on. I've never owned an L2K with the stock configuration before (the only other one I've had was the Blackburst BABP edition, which had the K Mod config) so it'll be a fun ride :bassist:
You've already got a sweet active with that Jazz. Go passive!
Thanks! Yeah this J was a bucket list bass for me. It's exceeded all of my expectations, to boot!

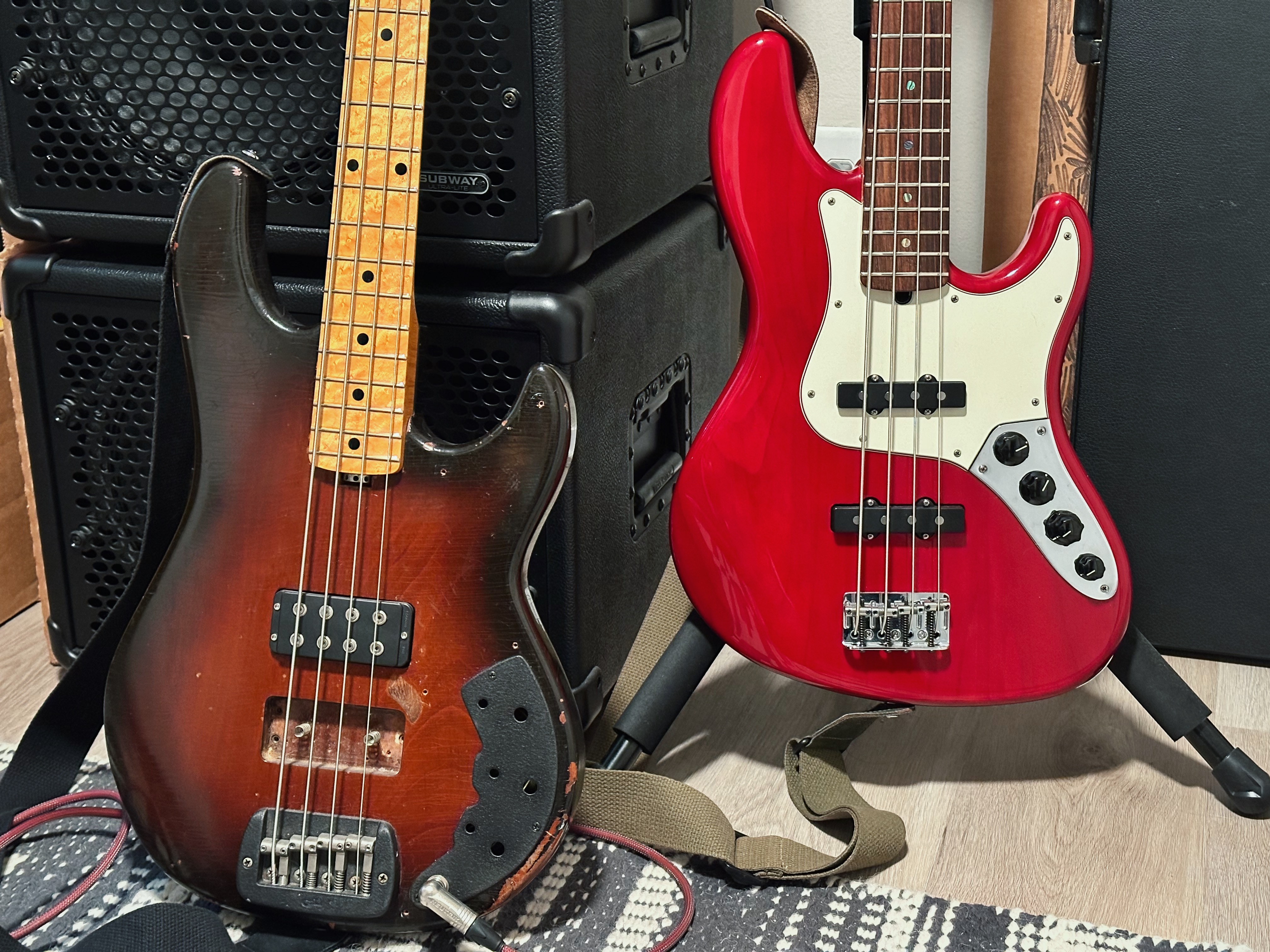

Apologies- I posted a NBD thread last week on it, so figured everyone saw it (lol) but it came with only one pickup. I have a second one on order and on its way from G&L. I'll probably order a prewired preamp next week.
View attachment 5474340
Oh wow you got one with the black crinkle bridge & control plate... I would restore w/ an OE preamp myself.

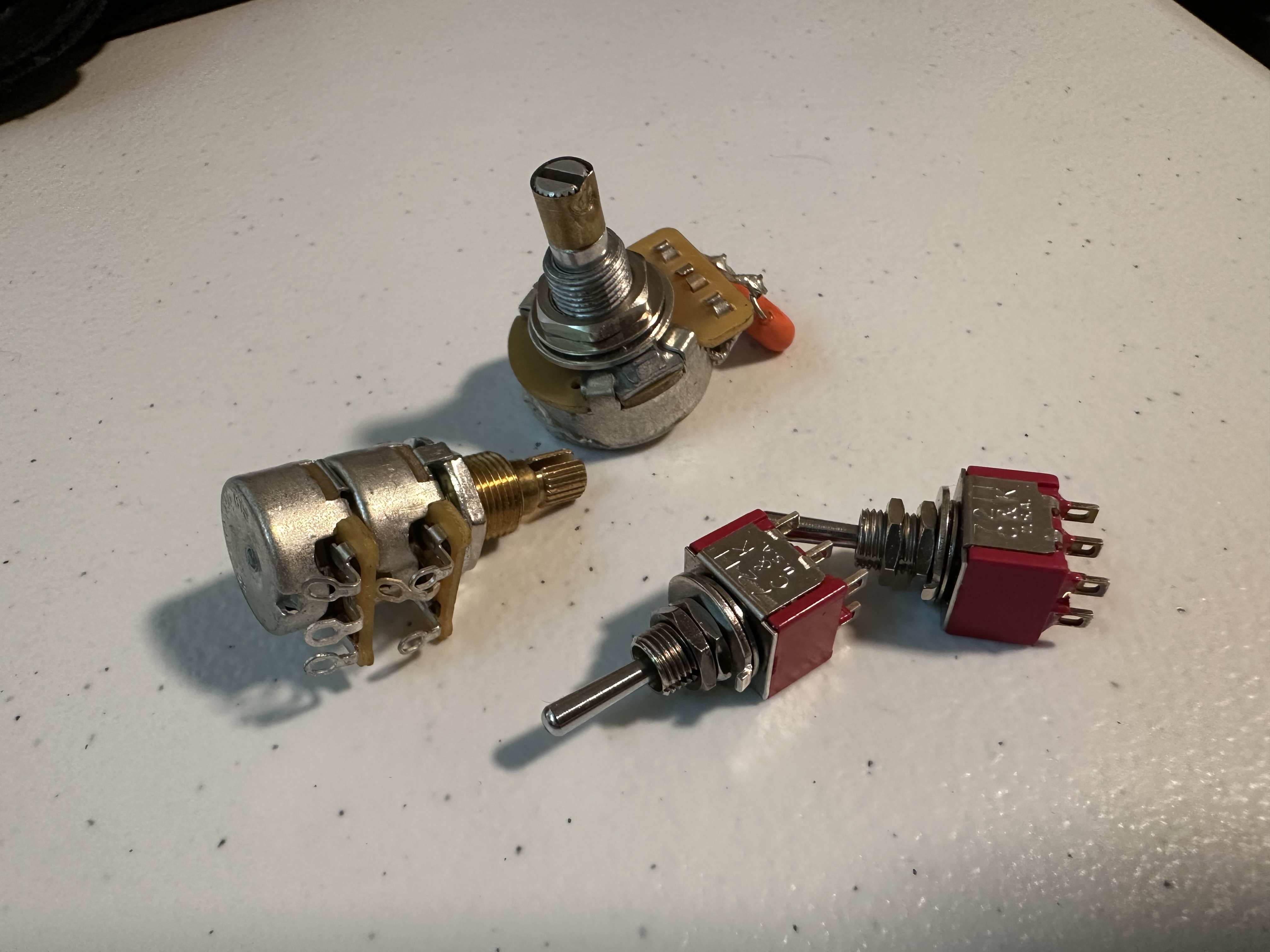

Fishing for opinions here- I've decided to install a second MFD in my recently acquired 1981 L2000 that came sans preamp, with the neck pickup wired straight to the output jack. Would it make more sense to order a replacement preamp from G&L and use it as the foundation for getting the instrument back up to snuff? Or should I simply wire the pickup in and keep the circuit wholly passive? Planning on wiring up at least one single coil configuration. I have a couple of 3 way switches handy, as well as a blend knob w/ center detent and one volume pot.
View attachment 5474231
I'm really enjoying the overall tone from the raw neck pickup.. but…..
Thinking it might make more sense to just start with a stock preamp and go from there. I'd have to source a battery plate for the back of the bass though. lol let me know what you think!

I suggest go with passive VVT. 2 switch for individual pickup parallel/sc/series, the last one for passive/active

  • Like
Reactions: cataract
I have a Tribute JB2 that I'm trying to lighten.
Is there a lighter bridge that would bolt on?
The Fender style is not even close.

No, nothing that would bolt on. There's a big hole under the bridge, too, so you'd have to find something that covers that. If I remember, the edges of that hole would extend past most bent-plate style bridges. You might cover it with a Hipshot B-style, which you can get in aluminum.

The G&L bridge is very much proprietary and designed to have a bar underneath that pulls the bridge against the end-grain of the body for better energy transfer between the strings and body. Thus the big hole under the bridge.

Last edited:
I have a Tribute JB2 that I'm trying to lighten.
Is there a lighter bridge that would bolt on?
The Fender style is not even close.
Lighter, no and the baseplate of standard bridges won't cover the oval route under the bridge foot.
You could lighten the tuners.
You could fashion a thin baseplate (aluminum sheet) to go under the bridge to cover the "foot" routing in the body, then use a bridge of your choice.

Thanks fellas. I suppose another option would be to either drill holes or mill hidden routes underneath with a milling machine. I need to take it off and see exactly how much it weighs.
I think the bridge is a good design but I need to get some weight off this bass.

The BassesByLeo forum is shutting down later this year, here's the announcement:

On October 10, 2024 the BassesByLeo forum will have been up for 15 years. That's about right. And enough.

On 10/10/2024 the BassesByLeo forum will go Read-Only. Forums will be locked, PMs and emailing through the board will be disabled, a few stickies and announcements will be tossed, and it'll be done.

The BassesByLeo website will remain in use and I will be retaining the domains.

There is a great deal of information here that I don't want to remove or restrict access to, so the forum will remain available for now. People may wonder how long "for now" is. Let's call it, "for now", a year.

Thank you to everyone who has contributed to our little knowledge base.

Ken...

Please forgive my ignorance, but I have a question about the L 2500. Does it have a coil tap? Is that the same thing as the series/parallel switch?

A coil tap can choose between running the humbucker with the coil on either side or both together humbucking, Series/Parallel just choses how the coils are wired when playing them but isn't a "coil tap" as such. If you have SCM, Single Coil Mode, (running just one coil of the humbucker is called single coil mode) it's kind of a coil tap but it only runs the coils in the humbuckers closest to the neck and bridge, you can't choose like say, my Lakland that has an actual full coil tap switch and I can choose front coil, both in humbucking mode or back coil.
Hope that helps!
