G&L Club Part 7

this one is giving me me semi gas

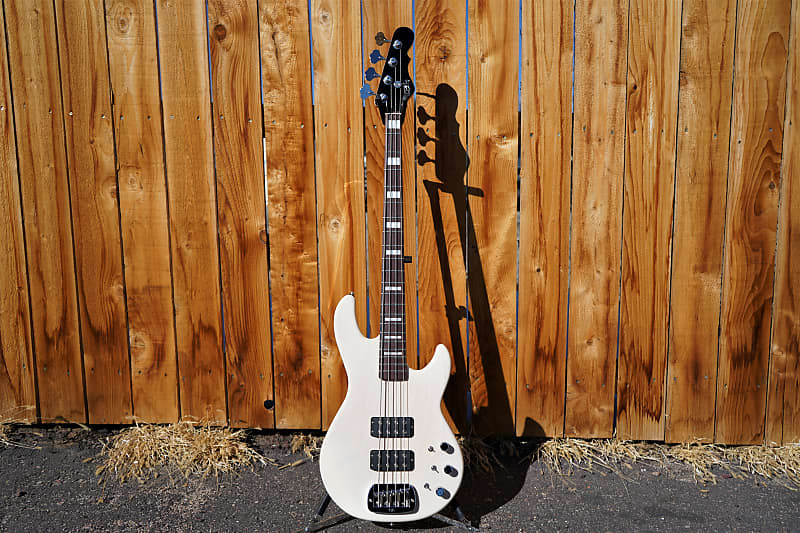

G&L USA L-2000 Blonde 4-String Electric Bass Guitar (2021) | Drum City GuitarLand | Reverb

Filed under "DAMN..."

Bought the Mad Hatter PJ kit for my SB-2 with single volume, blend and tone knobs. Tore out the G&L harness, loaded the new pots on the new pickguard (G&L was quick about shipping that btw) and voila! The config of V - B - T does not fit as the rear tone pot is much larger than the stock one and hits the input jack. Oh no.

So now I think the only way it will fit is if I use V - T - B as the blend is very shallow and will probably fit. Seems like a strange config to me but I'm sure I could get used to it. Or, I pull out the soldering iron and put it all back the way Leo intended it. Dang. I don't think I've played/seen a bass with the blend at the bottom.

Any thoughts?

** EDIT: Tried putting the blend pot at the bottom and while it's shallow enough...it's too wide as the routing narrows considerably down there. Damn again. I guess it's going back. :(

Last edited:
Filed under "DAMN..."

Bought the Mad Hatter PJ kit for my SB-2 with single volume, blend and tone knobs. Tore out the G&L harness, loaded the new pots on the new pickguard (G&L was quick about shipping that btw) and voila! The config of V - B - T does not fit as the rear tone pot is much larger than the stock one and hits the input jack. Oh no.

So now I think the only way it will fit is if I use V - T - B as the blend is very shallow and will probably fit. Seems like a strange config to me but I'm sure I could get used to it. Or, I pull out the soldering iron and put it all back the way Leo intended it. Dang. I don't think I've played/seen a bass with the blend at the bottom.

Any thoughts?
Well that sucks :(
What is hitting? Pics might help.
Mad Hatter uses full size pots, but a smaller diameter blend , odd.

Well that sucks :(
What is hitting? Pics might help.
Mad Hatter uses full size pots, but a smaller diameter blend , odd.
Ask and ye shall receive...

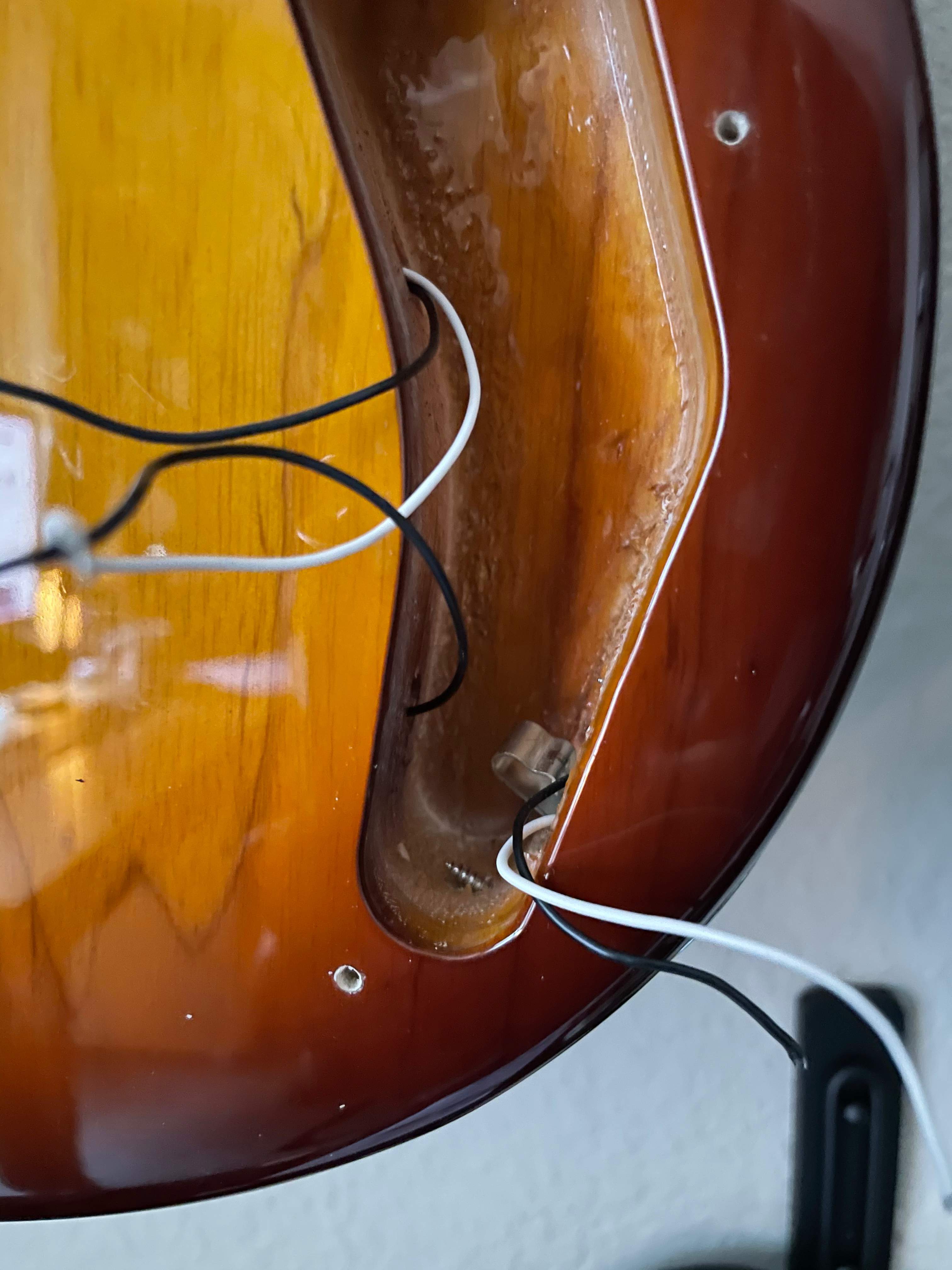

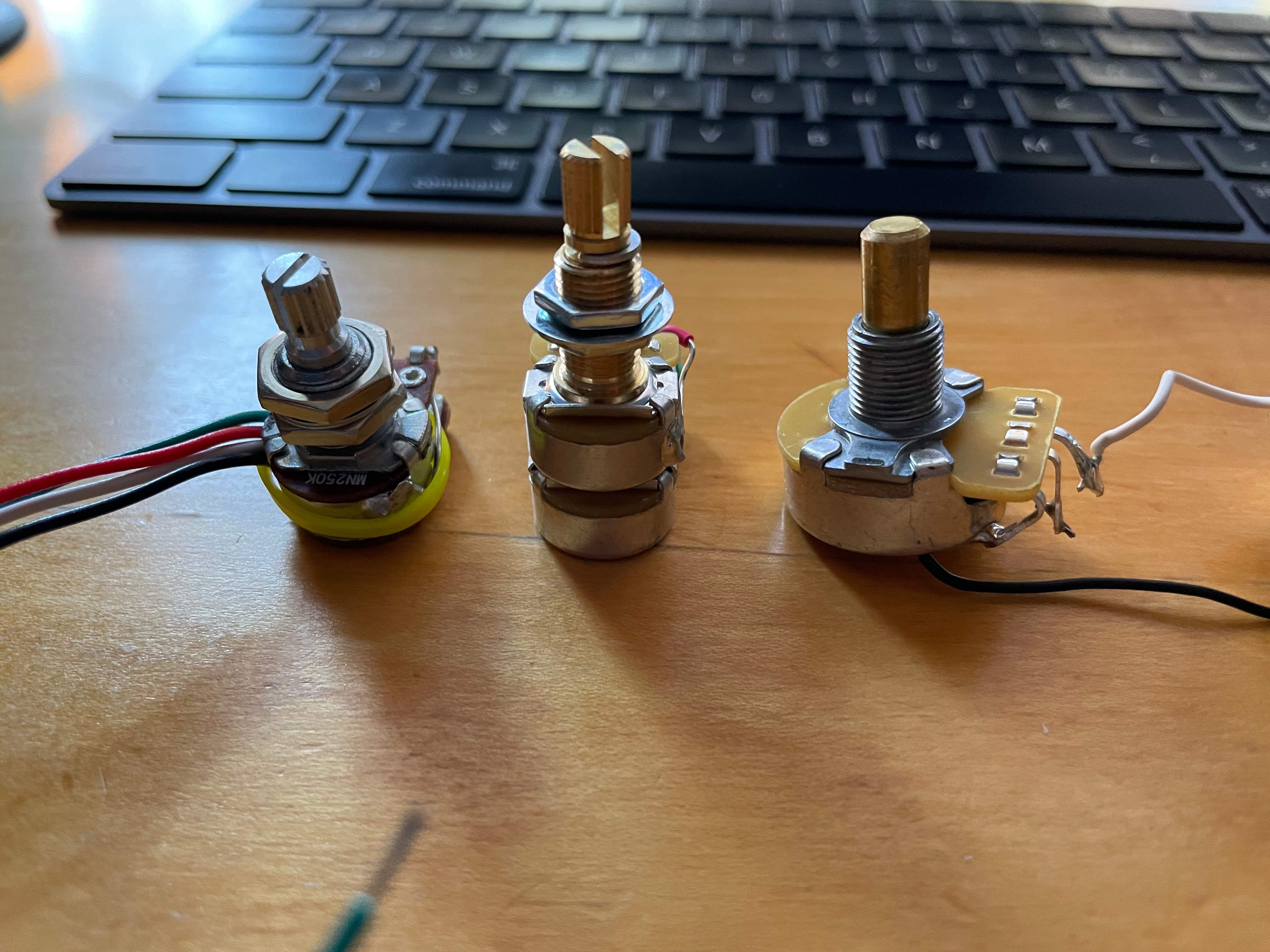

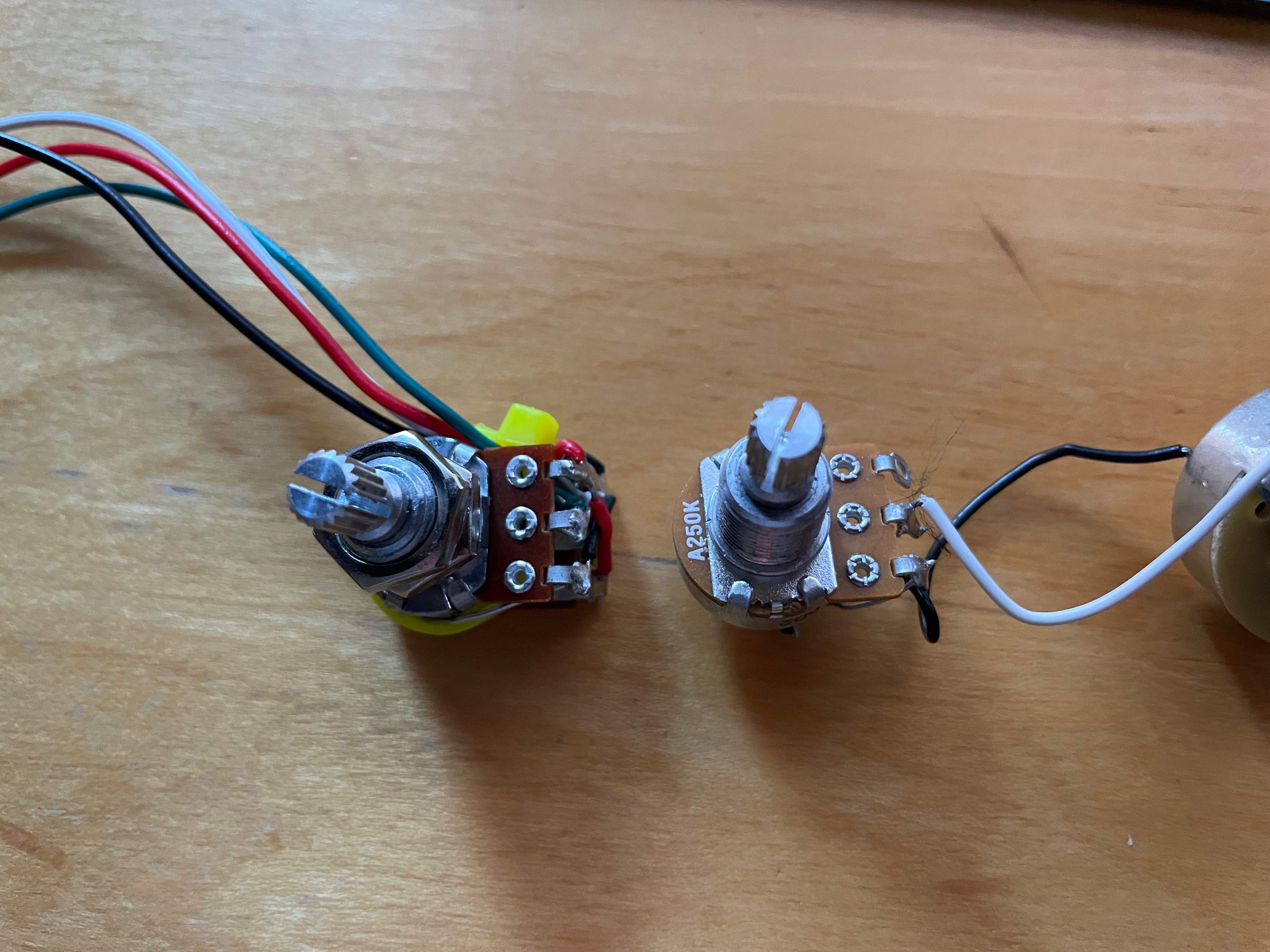

Pics are showing the empty cavity, then the depth of the new pots (from the left blend, then vol/tone) compared to the original. The third pic shows that the new blend pot is wider than the tone pot that normally would be in the lowest position.



  • Like
Reactions: Murch
Ask and ye shall receive...

Pics are showing the empty cavity, then the depth of the new pots (from the left blend, then vol/tone) compared to the original. The third pic shows that the new blend pot is wider than the tone pot that normally would be in the lowest position.

View attachment 4190347
View attachment 4190348 View attachment 4190350

You may want to look in to a Best Bass Gear passive harness. They use Noble pots which are smaller than CTS. I recently had a similar issue with a narrow cavity. Only way I could get the tone pot to fit.


Did you notice any improvement in sound? Or was it just a functionality change? I'm looking to switch to a volume - blend - tone primarily but I was going to try the 500k setting on the Mad Hatter pots.

It was primarily a function change. Going from V/V/T to V/B/T. I generally run my basses with all knobs at 10, so for me, no tonal difference.

  • Like
Reactions: dwellers
It was primarily a function change. Going from V/V/T to V/B/T. I generally run my basses with all knobs at 10, so for me, no tonal difference.

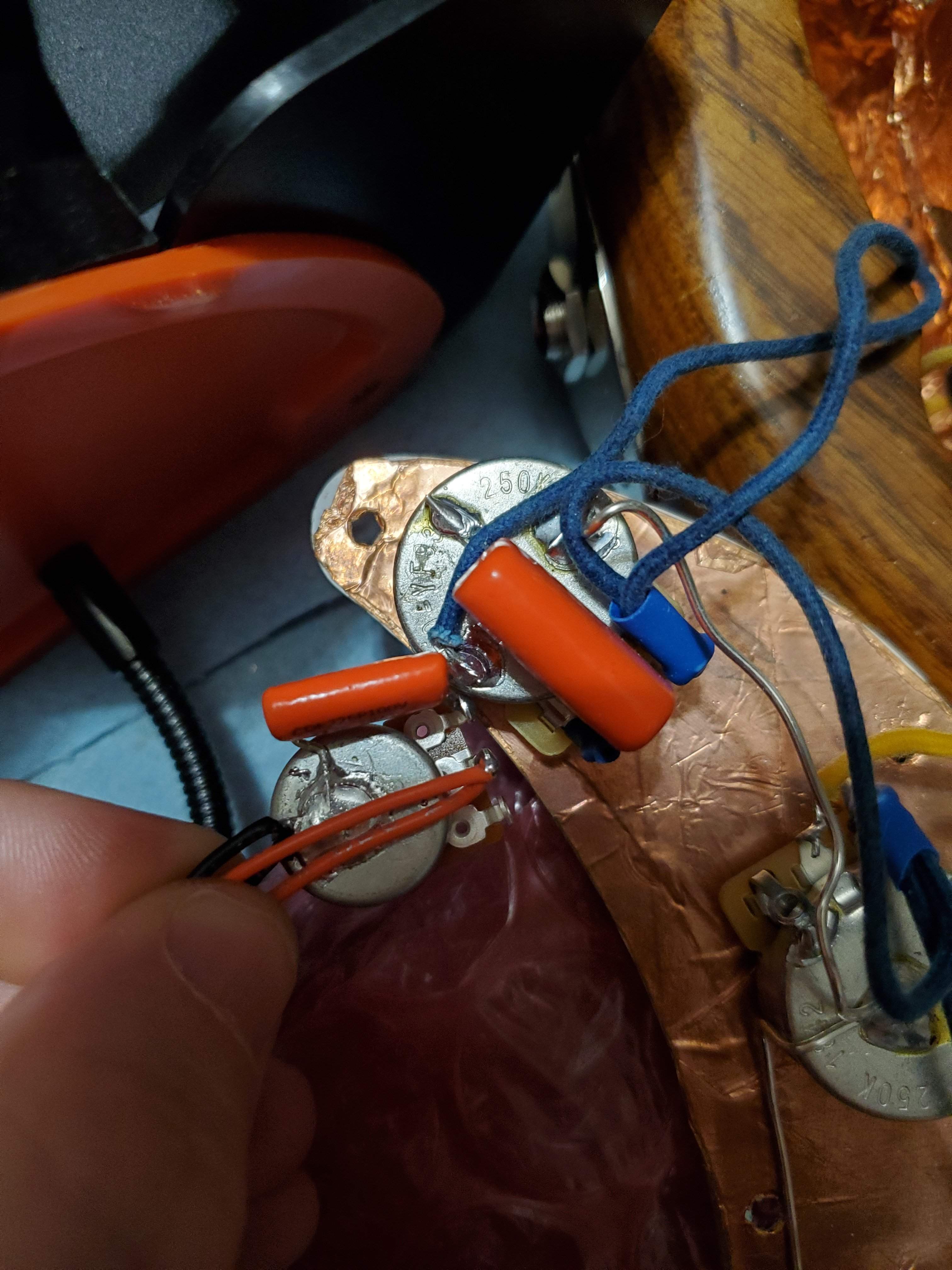

I had a bass with a similar problem of contact between the last pot and the tip contact for the input jack. I just put a strip of insulating tape over the offending part of the input jack or maybe the pot (the tip connector could still move enough to function) and it's been just fine ever since. [N.B. I'm not a purist, physicist rather than engineer, and am not mortally offended by the presence of electrical tape in a control cavity.]:nailbiting:

It was primarily a function change. Going from V/V/T to V/B/T. I generally run my basses with all knobs at 10, so for me, no tonal difference.

Interesting. The SB-2 is one bass where the sweet spot is with the bridge pickup backed off to 70-80% and IMHO all up is not a great place to be tonally.
