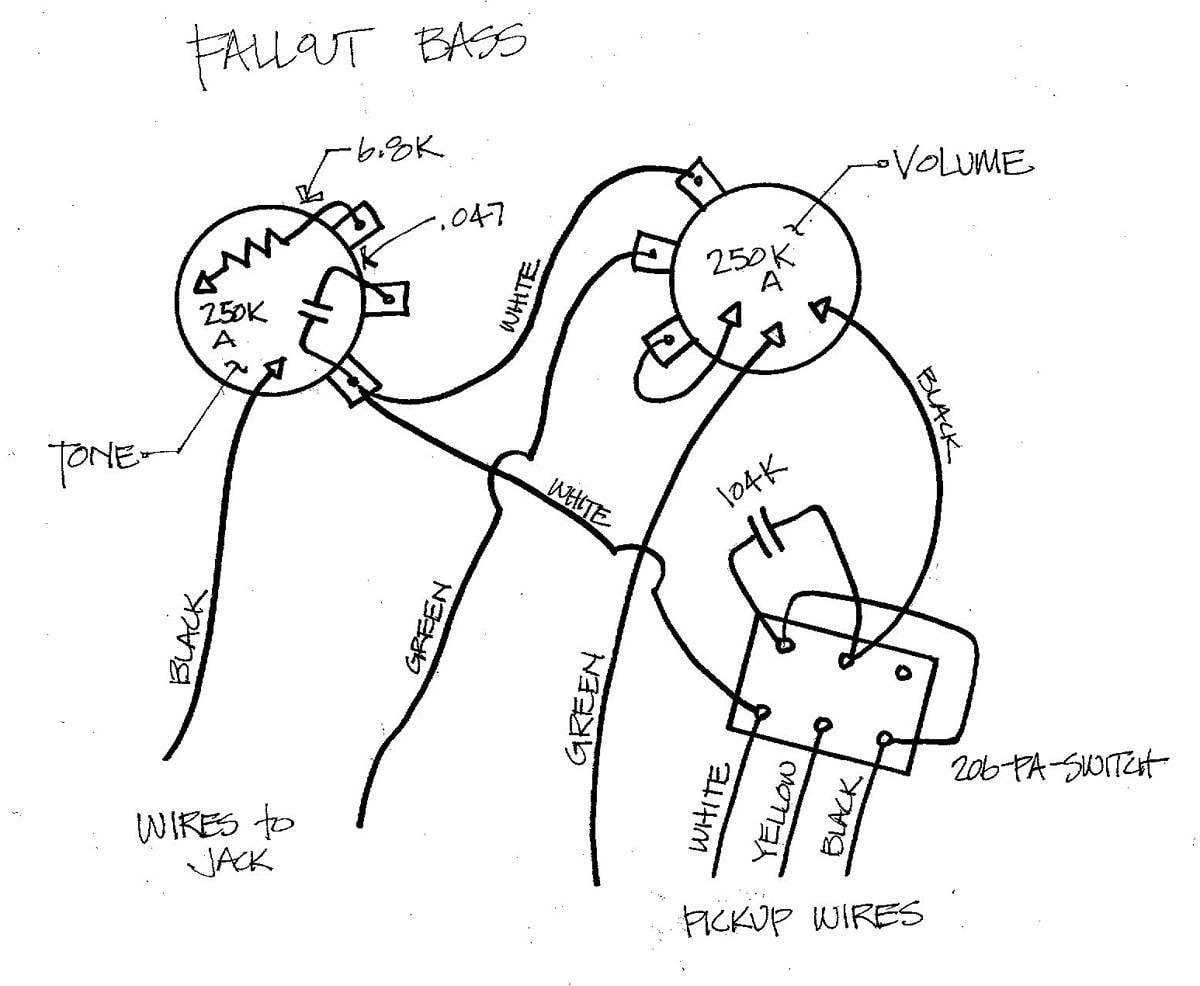

Ok, this wiring diagram is 98% how my Fallout Tribute is wired. 2 differences:I got this off a well know G&L forum
View attachment 4749246
A. no 6.8K resistor on the Tone pot
B. the green wire from the volume pot's center wiper to the output jack is white
All else appears the same. Cap values are correct.
And the 3 position switch:
Forward is Parallel
Center: Single Coil
Back: OMG mode
If for some reason you want just pickups in Series you can remove the .1ufd cap on the switch. I for one love the tone of the OMG mode.
