High Pass Filter (HPF) and Low Pass Filter (LPF) Mega Thread

#1,221
Pulverizor said:
How's that working out?
People are talking about them but no one has said if they're doing the job. Seems like a great solution for those on a budget.
Click to expand...

it´s doing the job. i´m definetly better audible in our rehersal room, without being louder.

Bassbeater said:
Several online reviews claim that the Hotone gate does not in fact LPF and HPF, but that those knobs define which frequencies are ignored by the gate and don't change the frequency content of the output signal.
Click to expand...

i thought the description in the manual suggesting exactly this, but as said above it definetly has an audible effect apart from noisegating...

can´t say if the hicut has an effect, but i think not

  • Like
Reactions: Stumbo
#1,222
dabis said:
In stock again! Just ordered mine.
Click to expand...

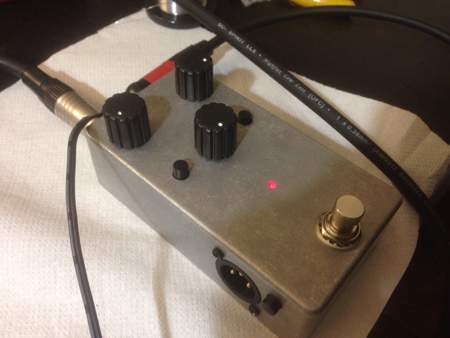

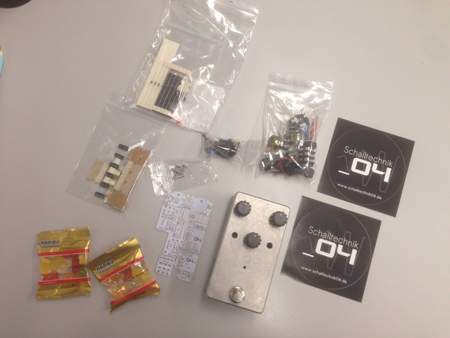

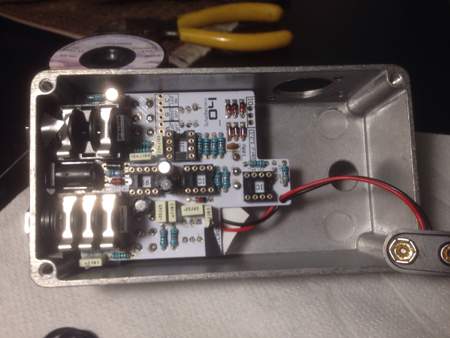

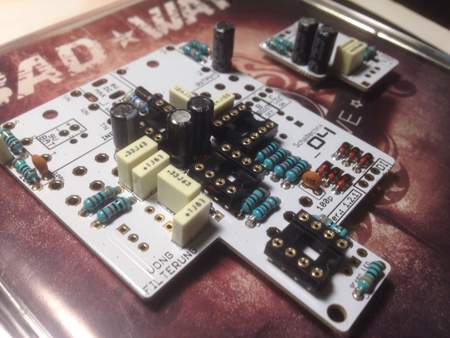

Mine arrived this week and I found time yesterday to build it. I used it this morning in the reherseal room with my band, but I think I have to reset all the eq's and other settings to really apreciatte a big step. At the moment, the lowest note I play (A# aprox. 29Hz?) seemed to be more focused, that it's one of the original purposes.

vong 1.jpg vong 2.jpg vong 3.jpg vong 4.jpg

Last edited:
  • Like
Reactions: Zbysek and Stumbo
#1,223
dabis said:
Mine arrived this week and I found time yesterday to build it. I used it this morning in the reherseal room with my band, but I think I have to reset all the eq's and other settings to really apreciatte a big step. At the moment, the lowest note I play (A# aprox. 29Hz?) seemed to be more focused, that it's one of the original purposes.

View attachment 3166061 View attachment 3166062 View attachment 3166063 View attachment 3166064
Click to expand...

Hola dabis :)








greetings

Wise(b)ass


Attachments

  • hang_him_high.jpg
    9.3 KB · Views: 37
Last edited by a moderator:
  • Like
Reactions: Stumbo, SoulReflection and dabis
#1,225
#1,230
Downunderwonder said:
That spec info is the Vong kit. Is that a clone of the Hotone?
Click to expand...

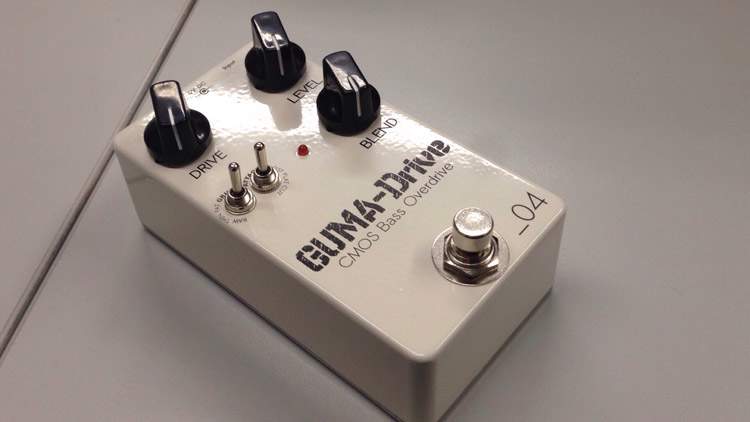

Not in particular, because the Hotone it's a noise gate with HPF/LPF included. The overall Vong pedal it's unique I think, don't know from where the designs of every feature came from (HPF,LPF,Booster,Phase inverter,DI). But the designer (Julian Pöhler) has deep knowledge on the electronics as I see, so I think it's an original design from him as the Pumpernikel (compressor) is. Not the same as Guma Drive and Guma Antique that are B3K and Vintage Microtubes clones. I already built a Guma Drive from him too:

  • Like
Reactions: Downunderwonder, Wisebass and Stumbo
#1,231
Wisebass said:
Hi basstscho :) (grüass di!)

I think we all would like to know, if the Hotone is a real HPF/ LPF!!!! :hyper:

Maybe post the manual? (koi Stress! After one beer or two! :laugh:)


greetings

Wise
Click to expand...

i wish i could like your post more than once. you put a big grin in my face, thanks for that :)
you wrote "koi stress" exactly like lots of people in my area pronounce it.

as for the hotone, here is a link to the manual.
Invalid Link Removed

this is whats confusing to me:
"Use the CUT button to enable a harder noise reduction mode."

i have never tried another hpf/lpf, so no comparison and clue ;)
all i can say is the low cut really "tightens" my sound.
as i wrote above, i´m definetly better audible in our rehearsal room.

i don´t think it would have this effect if the cut-function would just deal with "noise".
so i would guess it´s a "real" hpf/lpf

Last edited:
#1,232
from the hotones product page:

Noise Reduction

GATE is a true-bypass designed noise reduction stompbox for guitarists/bassists. No matter what kind of style you are playing, this tiny pedal will effectively keep noise and hum away from your pedalboard without changing your own tone.
The CUT button enables a more harder noise reduction mode, which provides a low cut filter (from 40Hz to 120Hz) and a high cut filter (from 5kHz to 15kHz) adjustable by the two small knobs onboard.
It’s time to get rid of the annoying hum and noise----Keep your pedalboard pure!

#1,233
basst scho said:
from the hotones product page:

Noise Reduction

GATE is a true-bypass designed noise reduction stompbox for guitarists/bassists. No matter what kind of style you are playing, this tiny pedal will effectively keep noise and hum away from your pedalboard without changing your own tone.
The CUT button enables a more harder noise reduction mode, which provides a low cut filter (from 40Hz to 120Hz) and a high cut filter (from 5kHz to 15kHz) adjustable by the two small knobs onboard.
It’s time to get rid of the annoying hum and noise----Keep your pedalboard pure!
Click to expand...

Is the high pass and low pass on the gate's key signal and not on the audio path?

  • Like
Reactions: Stumbo
#1,234
basst scho said:
from the hotones product page:

Noise Reduction

GATE is a true-bypass designed noise reduction stompbox for guitarists/bassists. No matter what kind of style you are playing, this tiny pedal will effectively keep noise and hum away from your pedalboard without changing your own tone.
The CUT button enables a more harder noise reduction mode, which provides a low cut filter (from 40Hz to 120Hz) and a high cut filter (from 5kHz to 15kHz) adjustable by the two small knobs onboard.
It’s time to get rid of the annoying hum and noise----Keep your pedalboard pure!
Click to expand...
Those 2 pieces of information are printed on the pedal itself.

The AMOUNT of cut on the LPF and HPF is what people actually want to know.

#1,236
Hi basst scho :)

basst scho said:
"Use the CUT button to enable a harder noise reduction mode."
Click to expand...

Sounds very :wacky: to me too!

No real information! Nothing about the slope. :(

basst scho said:
i don´t think it would have this effect if the cut-function would just deal with "noise".
so i would guess it´s a "real" hpf/lpf
Click to expand...

Try what happens to your sound at 120 Hz (max freq. that you can "low cut")?

You should have a lot of "wire" and not much "deep end" in your sound?

greetings

Wise(b)ass

btw: thx for the compliment :D

basst scho said:
exactly like lots of people in my area pronounce it.
Click to expand...

On my planet they will say: Koin schdress nit! ;) :roflmao:

  • Like
Reactions: basst scho
#1,238
agedhorse said:
Is the high pass and low pass on the gate's key signal and not on the audio path?
Click to expand...
This is a good question but I do have to ask,
What good would a noise gate be if you are high passing just the trigger mechanism seems like its be too easy for it to ignore line noise?
Same with the LPF how helpful is it if the "bees in a trashcan" noise is ignored?

Maybe I'm lacking imagination here.

#1,240
mbelue said:
This is a good question but I do have to ask,
What good would a noise gate be if you are high passing just the trigger mechanism seems like its be too easy for it to ignore line noise?
Same with the LPF how helpful is it if the "bees in a trashcan" noise is ignored?

Maybe I'm lacking imagination here.
Click to expand...

You are not lacking imagination, but adjusting the HP and LP filters on the gate can change how the gate feels, how it transitions, and its perceived sensitivity to signal.

If you high pass and low pass the signal, the gate can become more sensitive to opening on the signal you want to hear and less sensitive on the signal that you wish to gate out with no signal present.

It's a common paramater that's used when designing a gate, or in some gate applications, which is why some pro gates include these filters (or a bandpass filter) on the control or key signal. This is why I asked the question.

  • Like
Reactions: Wisebass, Craig4003 and mbelue
