New Tech 21 Geddy Lee DI-2112

#61
AndyLES said:
Whoa. A nice compromise between the rackmount and the pedal, functionality wise. I'm interested.
Click to expand...

This unit was designed for Geddy and to his specifications. He wanted a more portable version of his signature rack mount unit.

StayLow said:
Totally agreed. If only for those using batteries, or just not wanting a bright blue LED burning 24/7, they should've included an on/off switch and ideally a mute too. Plenty of space for another for the Drive. Terrible oversights that'll cost them sales.
Click to expand...

There is a mute on the pedal that turns off the LED. The high efficiency LED only draws 1mA.

birminghambass said:
Hopefully there will be an internal jumper to combine the channels. Not concerned about an on/off switch but I do wish the mute switch was a stomp button. Not a deal breaker though. Can't be mad at Tech21 for giving us more options of a great product.
Click to expand...

There is an easy to access internal switch that allows the end user to combine the channels. The DI-2112 was designed to be your preamp. The YYZ was designed for those that want a stomp box format.

But my main question, adding to this thread is, the blend knob is -/+ from center, the rack model simply increases from DRY/WET(SansAmp) moving clockwise. Ive never seen a blend work like this, is it 50/50 at 12 and mixed accordingly from there?[/QUOTE]

It works the same as the Blend in the rack mount, just like all our SansAmps that have this function. It's just a different graphic on the DI.

  • Like
Reactions: byoung93888, HalfManHalfBass, clarke46 and 2 others
#62
tech21nyc said:
This unit was designed for Geddy and to his specifications. He wanted a more portable version of his signature rack mount unit.



There is a mute on the pedal that turns off the LED. The high efficiency LED only draws 1mA.



There is an easy to access internal switch that allows the end user to combine the channels. The DI-2112 was designed to be your preamp. The YYZ was designed for those that want a stomp box format.

But my main question, adding to this thread is, the blend knob is -/+ from center, the rack model simply increases from DRY/WET(SansAmp) moving clockwise. Ive never seen a blend work like this, is it 50/50 at 12 and mixed accordingly from there?
Click to expand...

It works the same as the Blend in the rack mount, just like all our SansAmps that have this function. It's just a different graphic on the DI.[/QUOTE]
Thanks for the information, if I run this from a power supply, does it need to be from an 18 volt tap or a 9 volt -and what is the consumption in Ma?

When the switch is engaged to combine channels, which becomes the combined output? -Or do both the 1/4" outputs put the same mixed channels out?

Many thanks.

#65
tech21nyc said:
You can use either a 9 or 18V DC supply. The mA draw is 55mA. When the channels are combined with the internal switch all XLR and 1/4" outputs will have the combined signal.
Click to expand...
Oh one more thing, if the channels are combined does this also mean that each of the 4 outputs are suitably buffered to be used in any combination without loading or loss of treble frequencies?

Many thanks in advance!

  • Like
Reactions: Rocknroller4
#70

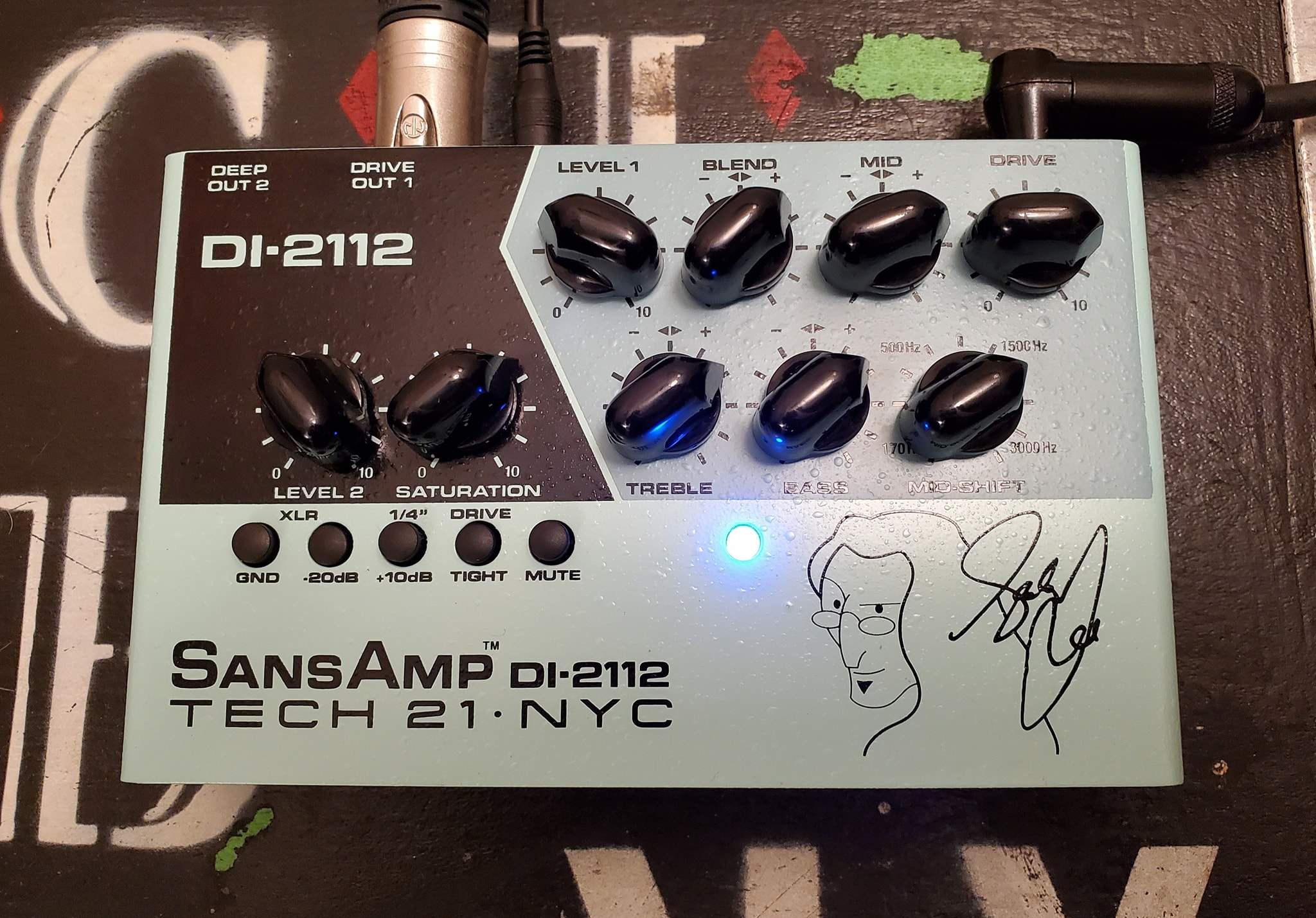

And this just arrived...it's like a cross between a giant chicken roaster, a few washing machines, and a Gefilter added for good measure. From deep to drive its a KILLER, versatile, portable preamp. Stay tuned...

Last edited:
  • Like
Reactions: Rocknroller4, fenderVI, byoung93888 and 10 others
#71
Gefilter1001 said:
And this just arrived...it's like a cross between a giant chicken roaster, a few washing machines, and a Gefilter added for good measure. From deep to drive its a KILLER, versatile, portable preamp. Stay tuned...View attachment 3712399
Click to expand...

@tech21nyc please make a Programmable version of this, or a Deluxe one. With storable presets, anyway. It will become THE definitive preamp.

  • Like
Reactions: MJB1961, stubborne, BrentSimons and 1 other person
#75
Probably sounds great, but the Orange Bass Butler appears to have a few advantages at first glance, including the option of controlling with an expression pedal. I don’t understand the lack of foot switch. I’d rather have the rack mount version if I’m not engaging it with my feet. Still, it probably sounds amazing.

  • Like
Reactions: WallaceSnr
#77
HailSatan4ever said:
Probably sounds great, but the Orange Bass Butler appears to have a few advantages at first glance, including the option of controlling with an expression pedal. I don’t understand the lack of foot switch. I’d rather have the rack mount version if I’m not engaging it with my feet. Still, it probably sounds amazing.
Click to expand...
...maybe because it's meant as an always-on unit, which makes perfect sense to me as it's not meant to be an effect in the strict sense of the term. Also, why in the world would one have to lug a rack around when it can have the same product in a pedal?
As I mentioned before, a Programmable-like version would be IMHO even "more perfect" for the reason that one might be able to switch between different settings, but not, as I envision it, to turn it on and off. That's not how this was designed for, it's just not its function. There's the YYZ pedal for that. This is meant to be "the one and only voice" of your instrument, not an alternative/optional one, like a "standard" effect.

Did I use enough '"'s? :-D

  • Like
Reactions: Auspuff and BrentSimons
