Noble Amps Preamp
- Thread starter IanMartinAllison
- Start date
I'm using a standard (T/S) 1/4 " phone jack shielded cable with mine. Works just fine. As far as I know there's no need/requirement for anything else.
Thanks, just wondering as when I had a Sonic Farm 2di4 the unbalanced preamp-to-amp XLR-to-quarter inch cable had a specific wiring configuration that was hard to find, so I had my cable tech build one. If I get a Noble, I want to have all the ducks lined up. It's also a situation where I'd probably have a high quality cable w/good connectors made to order. Kind of dumb to have the "last mile" be the worst signal quality.
Last edited:
I think they call that a Quasi balanced connection.It is the same as what was used on the Bergantino IP cabs Jim had years ago.Basicly it is a Xlr wired to a TRS jack like a TS Jack.It is where the wires from the XLR go one wire hot to Tip on TS Jack and the ground wire and other wire from XLR both go to Ground on TS Jack or on a TRS Jack the sleeve is not used and two wires from XLR go to Both ground.I think Pin1 on XLR is always supposed to be hot though.
Totally OT but this is the wiring for the 2di4 cable, 1/4 to XLR. Probably irrelevant to the Noble.
For the line level DI output: MALE XLR, connect both pin 1 and pin 3 to the ground, pin 2 being your hot signal (jack tip).
For amp Line Input: MALE 1/4" phone jack, leave XLR pin 3 floating (disconnected). Connect pin 1 to the ground, pin 2 to jack tip.
Jack Roan just sent me the definitive answer. This is not a patch cable!
Yes, the 1/4” unbalanced cable is the standard instrument cable, aka “mono”, aka “guitar cable”. Both the 1/4” input and 1/4” output use the same type of cable.
More clarification by Jack:
What you mean by “patch cable” may be a “stereo” version of the 1/4” male/male (TRS, tip ring sleeve).
This would work fine for the preamp (R would be unused) but may not work with your pedals, depending what jacks they use. Some jacks expect a TS cable and use the ring connection on the jack as a ground (expecting it to connect to S when a mono cable is inserted). But the jacks on the preamp, both input and output, can accept a TRS cable without issue.
This would work fine for the preamp (R would be unused) but may not work with your pedals, depending what jacks they use. Some jacks expect a TS cable and use the ring connection on the jack as a ground (expecting it to connect to S when a mono cable is inserted). But the jacks on the preamp, both input and output, can accept a TRS cable without issue.
Last edited:
Unbalanced believe. I ran into a problem trying to go 1/4" to XLR. Unbalanced 1/4" solved the problem
Ya I had the pins mixed up didn't have a Female XLR to look at since they are usually marked on the end of the XLR.
[Invalid or Expired Link Removed] This is somewhat we are talking about here when we say Quasi Balanced and all kinds of ways to wire XLR,s and Jacks.

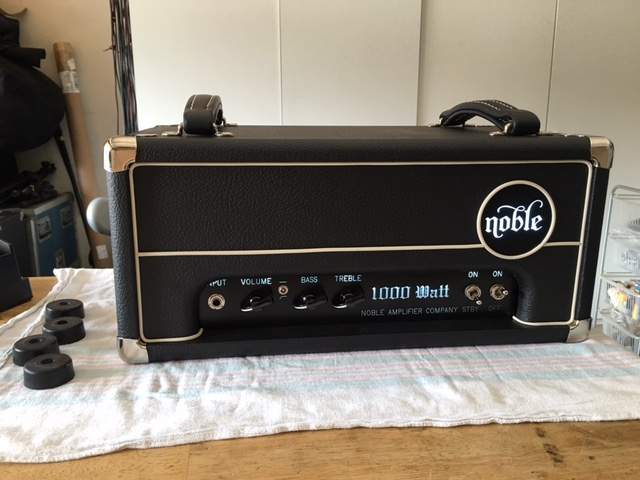

It's the same width as the guitar amp. Not sure about weight. I know the original size weighs around 24lbs.
Lowendtech
Happily trending in my own peculiar direction.
What is the module on that? Ice or Hypex?
I just picked up a Noble pre and am absolutely in love with it through the Hypex in my Monique 700.
Makes my P bass sing like never before and my DW Super J/P is on fire through this.
Cant put my bass down once I plug in.
Last edited:
Just emailed Jack and bought one, after reading this thread and listening a lot to a lot of samples and songs where it has been used.
Thanks for all the info, am looking greatly forward to testing it!
