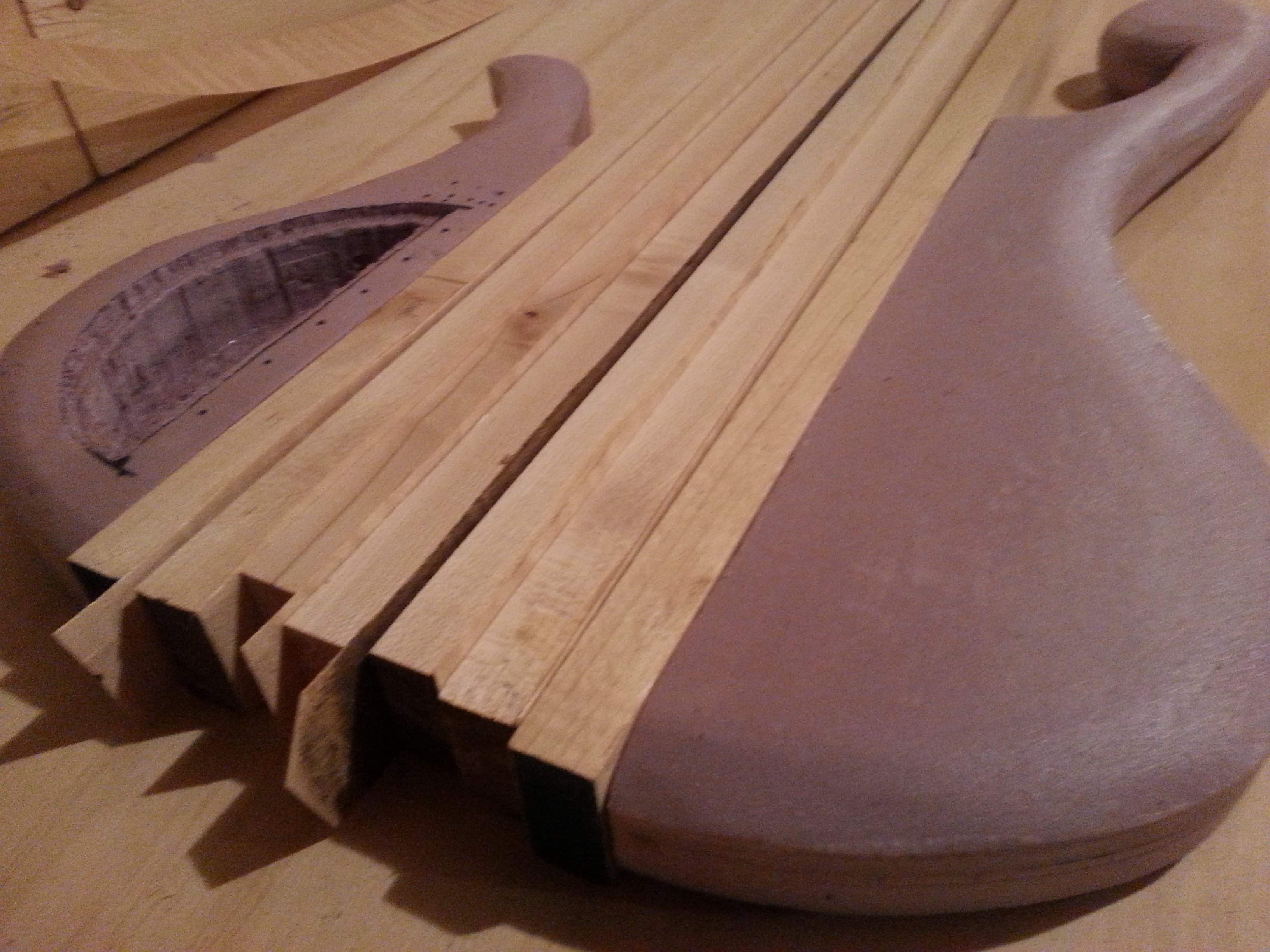

Lunch break has started, I'll give you one whole picture! It's truly an awful picture.
I'll let you guess why the body is made of pink insulation foam
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Rozitis Custom 6 Fretless Build
- Thread starter bachlover
- Start date
Yup, I just passed all my exams with flying colors. Thanks!
Lunch break has started, I'll give you one whole picture! It's truly an awful picture.
I'll let you guess why the body is made of pink insulation foam

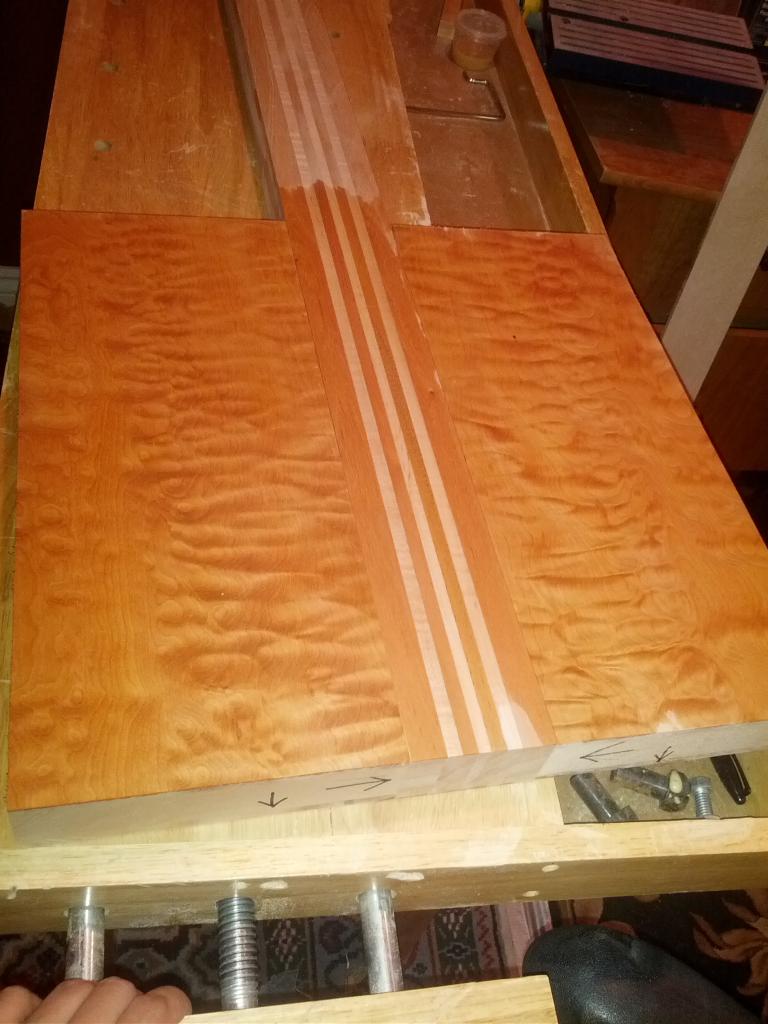

Here's what it looks like all cleaned up with some water on it to better show the grain. Looks like those glue joints are going to hold ok.........
Front:
Back:
Front:
Back:
Last edited:

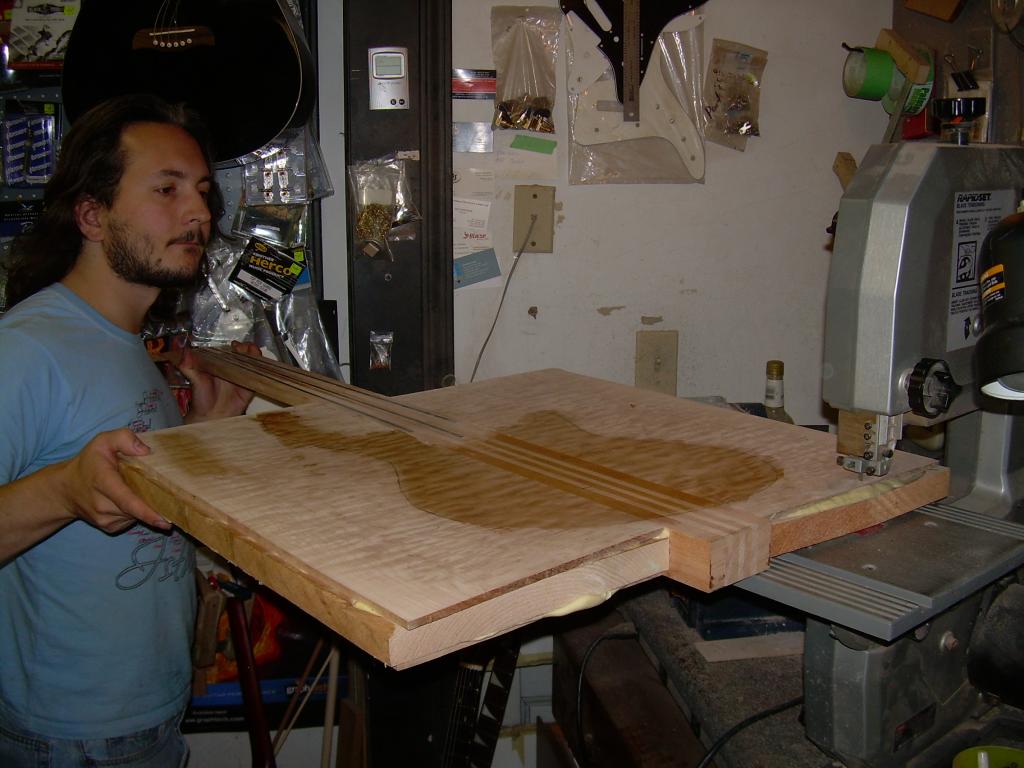

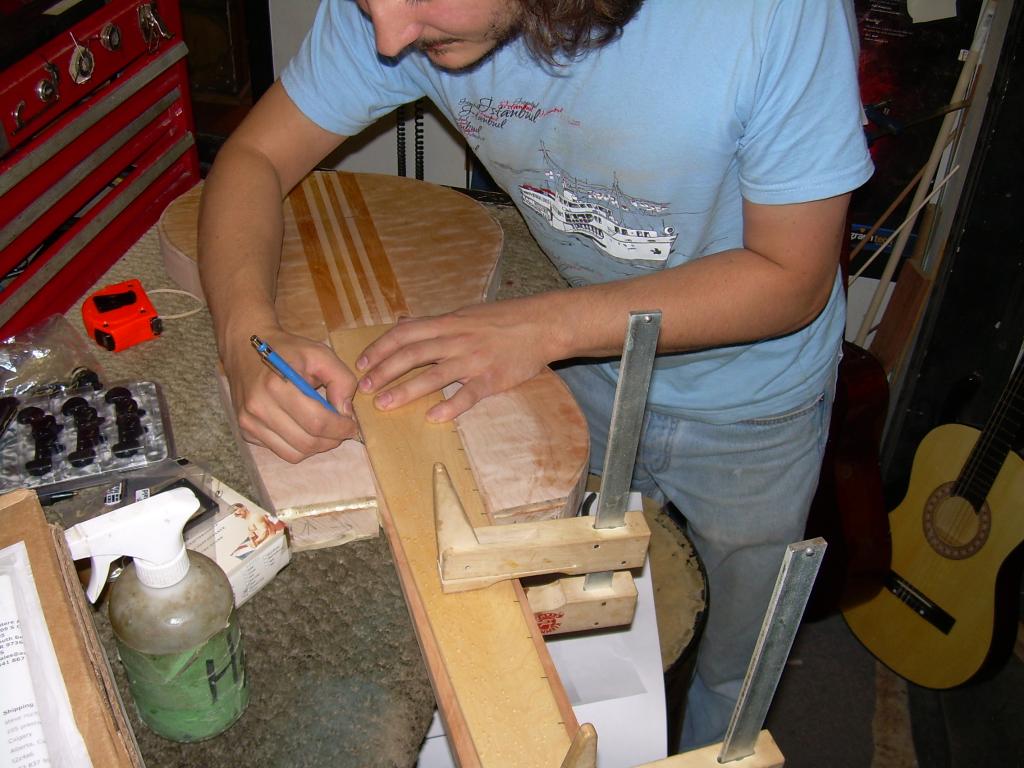

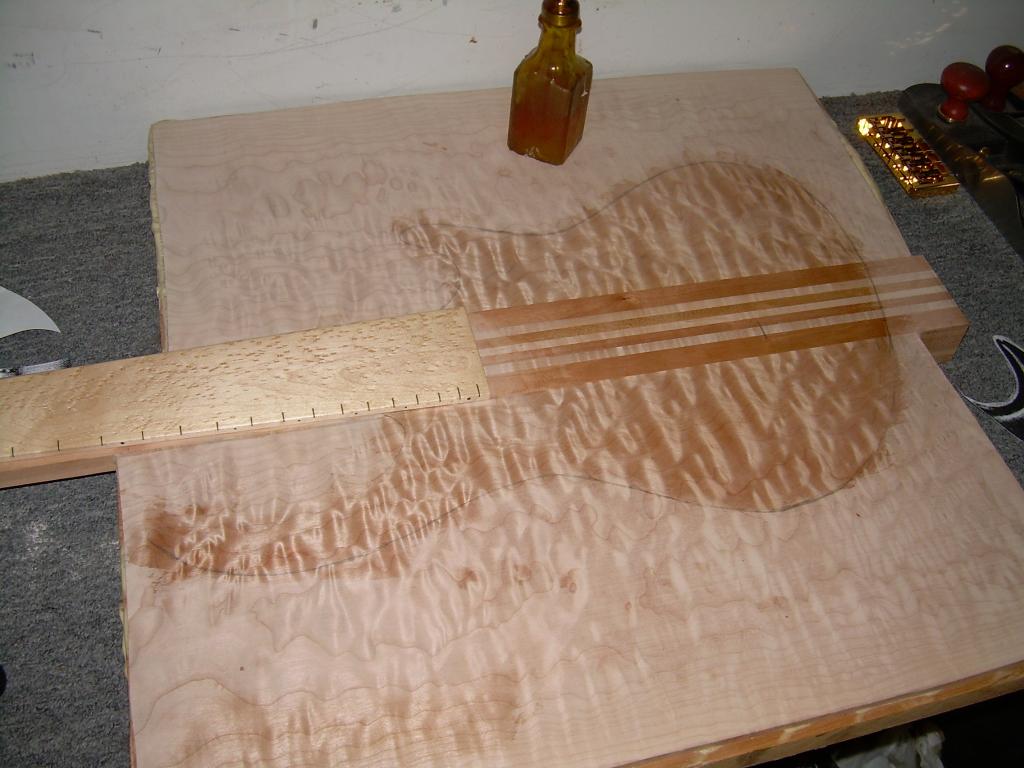

Steve got the body rough cut today. 1st he cut out a life sized photo of the body and used it as a template:
The body's shape is traced:

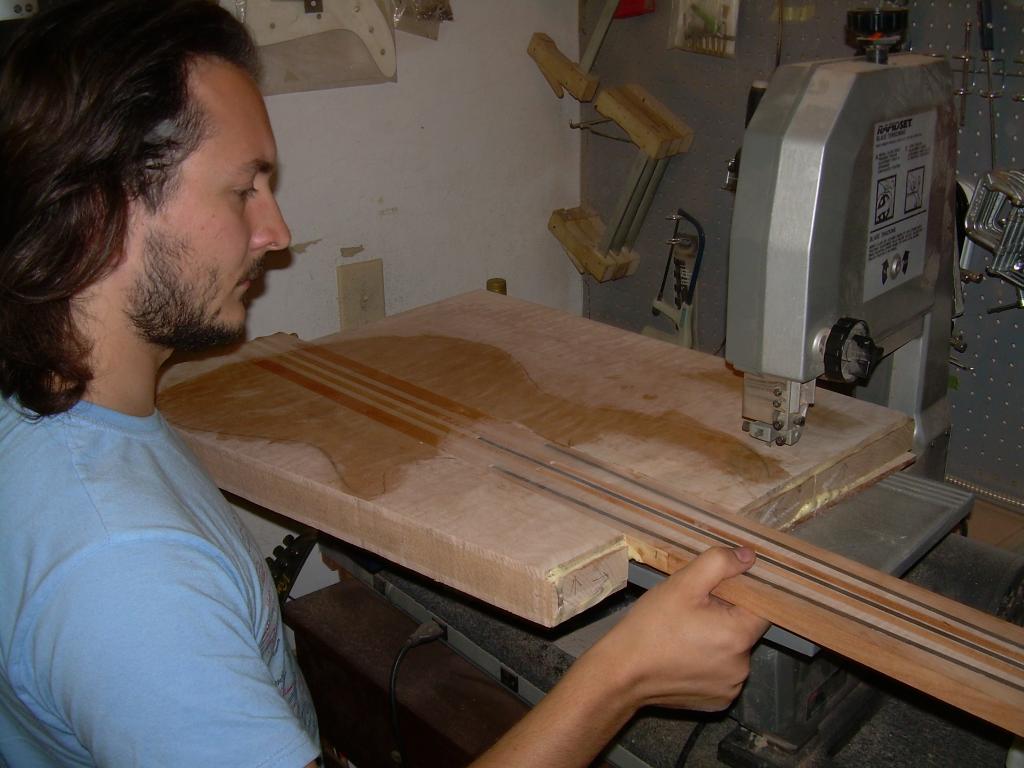

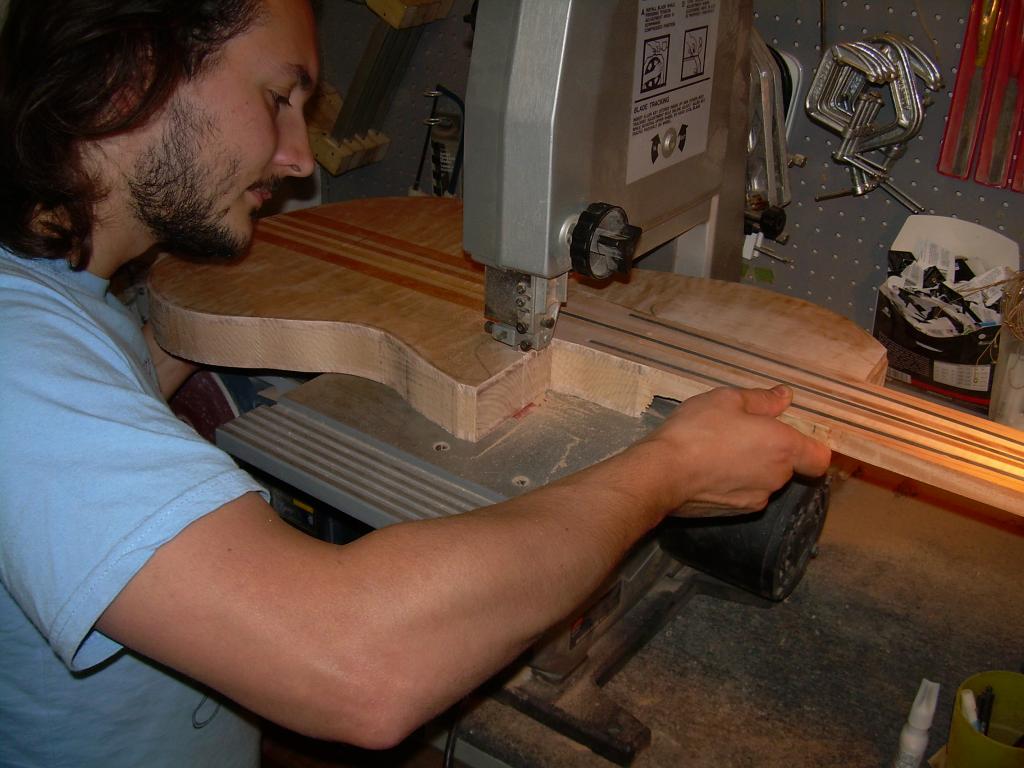

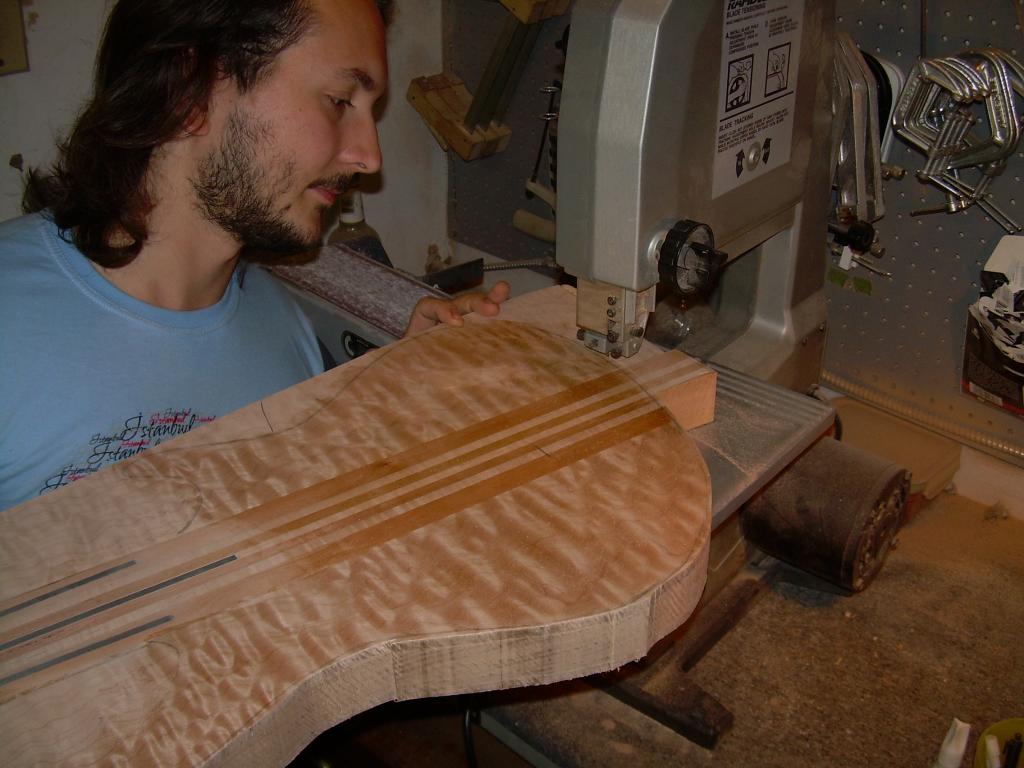

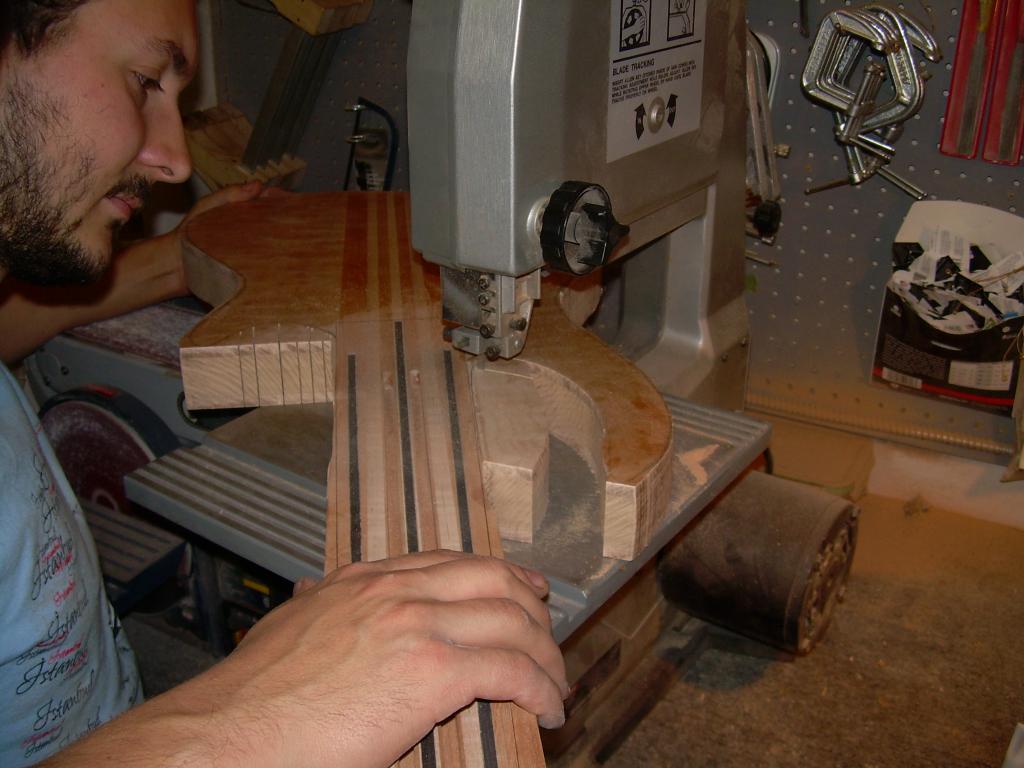

Then the cuts are done, 1st roughly, and then "closer to the bone":
I'm already lovin' this bass:

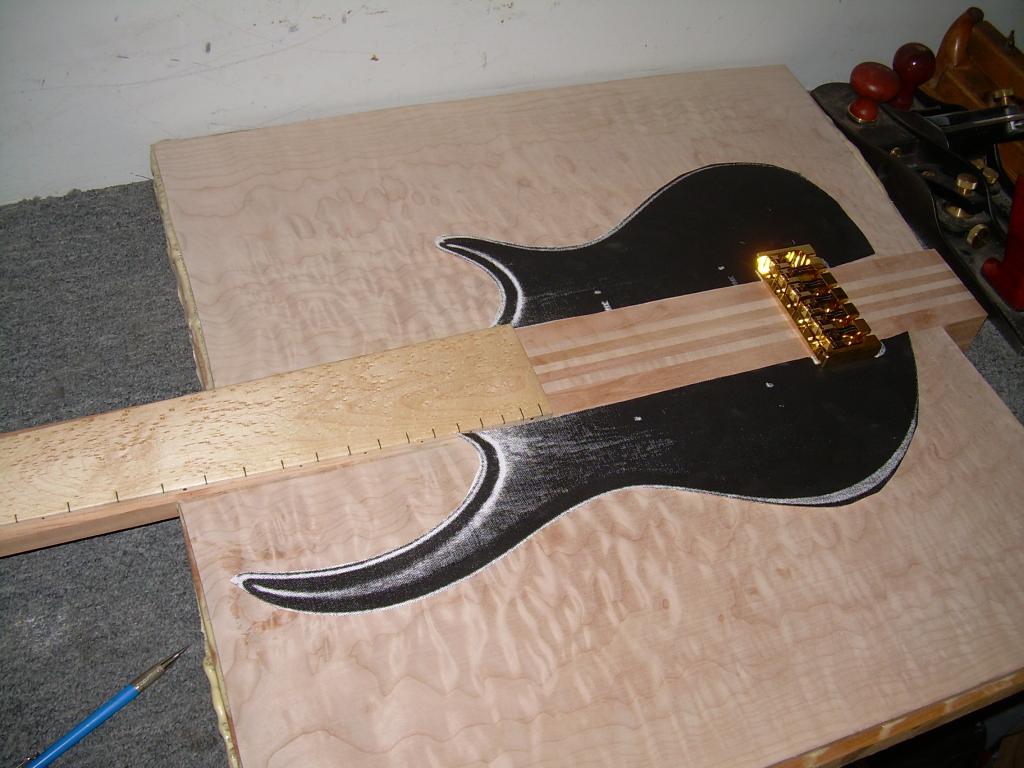

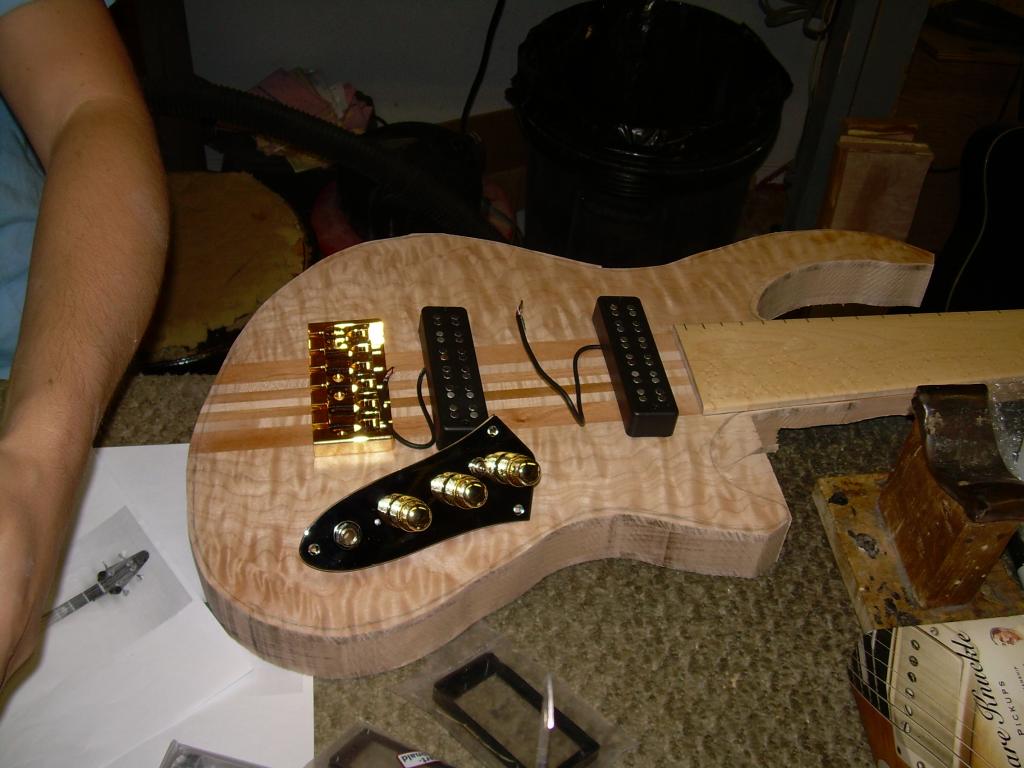

Here it is with the pup/preamp/bridge configurations with the rough cuts done, ready to go to his shop for the finessing:
The body's shape is traced:
Then the cuts are done, 1st roughly, and then "closer to the bone":
I'm already lovin' this bass:
Here it is with the pup/preamp/bridge configurations with the rough cuts done, ready to go to his shop for the finessing:
The veneer edges have been routered and sanded. Here's the top before:
and after:
and after:
Since we live in pretty much a symmetrical world, here's a shot of the back as well:
Steve put wings (flame maple) to the top of the neck to make room for the 3 + 3 headstock configuration:
......and then shaped it (he added a red filter on this pic for mood):
Here's how it looks with one of the pegs:
......and then shaped it (he added a red filter on this pic for mood):
Here's how it looks with one of the pegs:
Last edited:

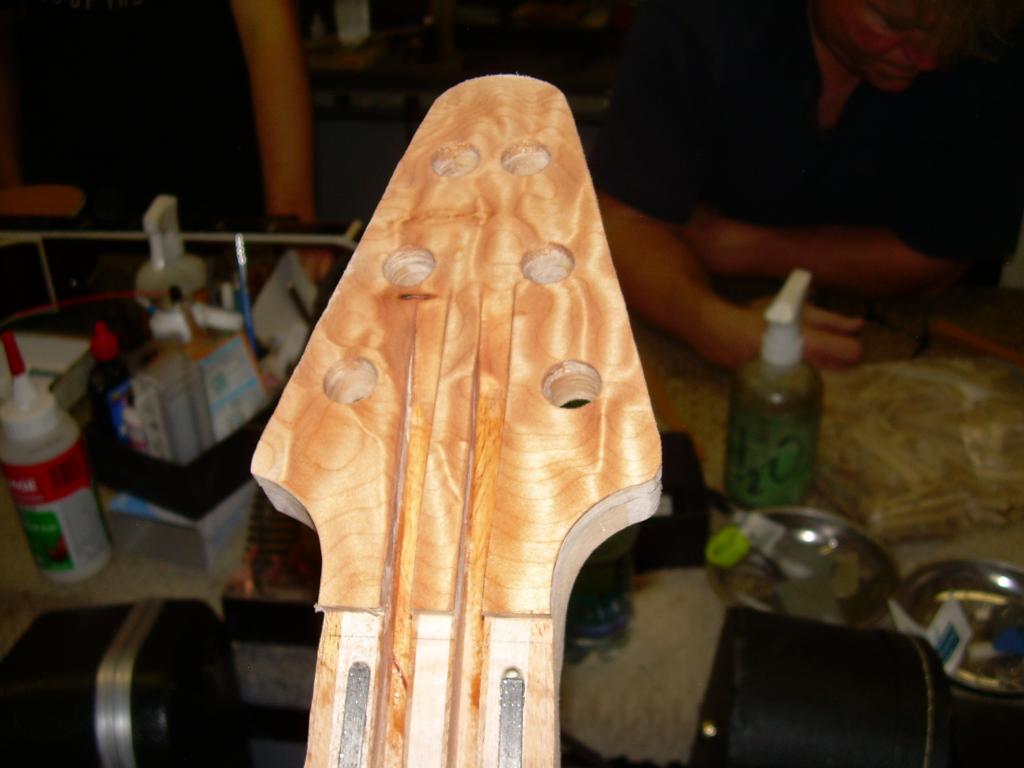

The tuning peg holes have been cut. Steve picked up a 14mm bit so it would be an exact fit. The posts are "press fit" meaning there are no gaps making for maximum tuning stability. He also has glued and clamped the maple cap onto the headstock. 1st the peg holes:
and here's the glued cap:
and here's the glued cap:
Last edited:
So this is how a real luthier makes a bass....
.... (Quietly hiding his dremel and mighty mite raw body)
.... (Quietly hiding his dremel and mighty mite raw body)
The bridge is all squared up and attached to the body now:
Last edited:

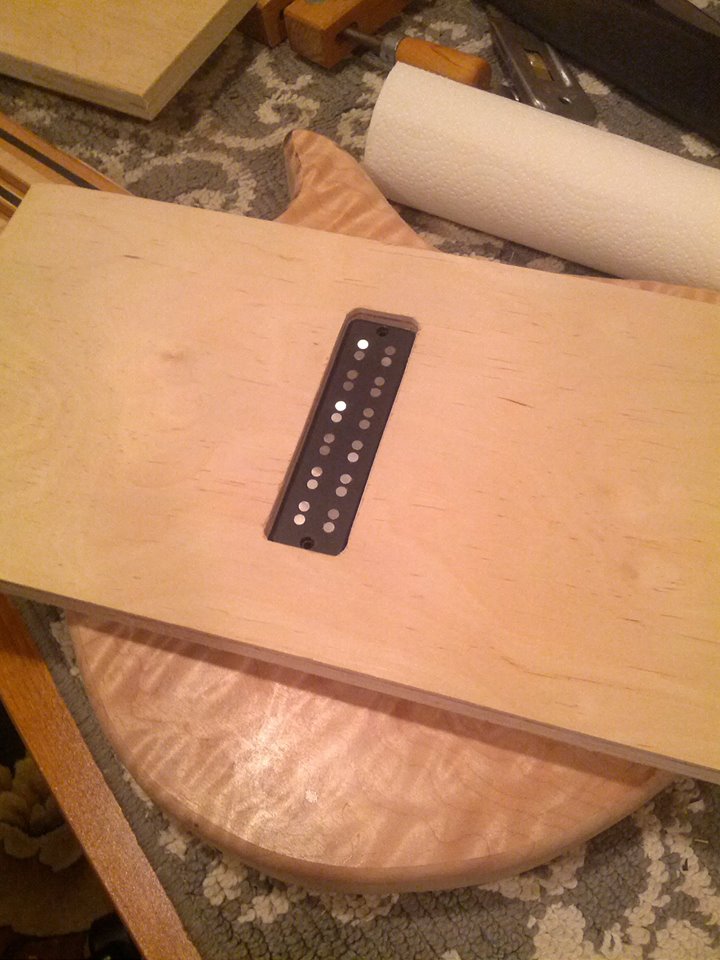

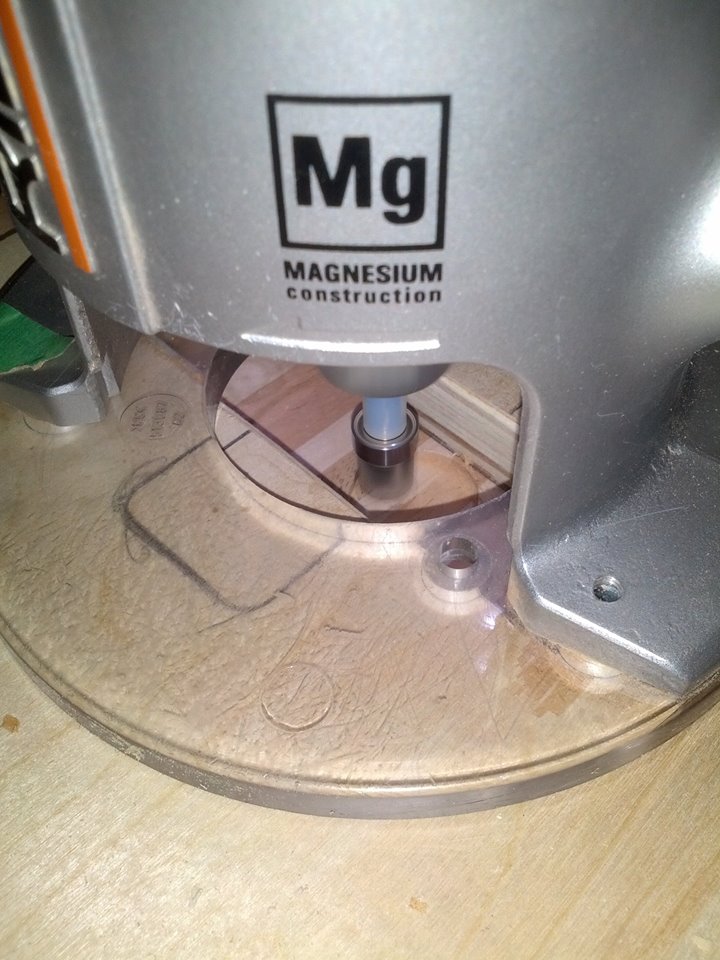

The templates have been made for the pups (they'll be routed tomorrow), holes drilled for the preamp, and a quilted maple plate found for the back cavity. Here's the template:
Here's where the controls will be:

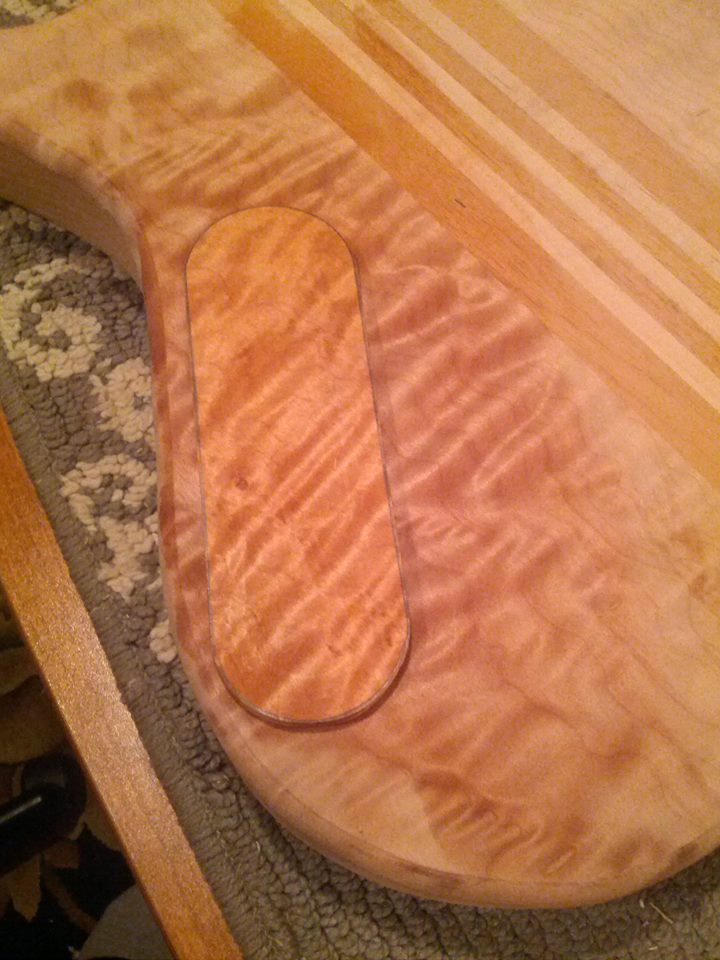

and the awesome cavity cover:
Here's where the controls will be:
and the awesome cavity cover:

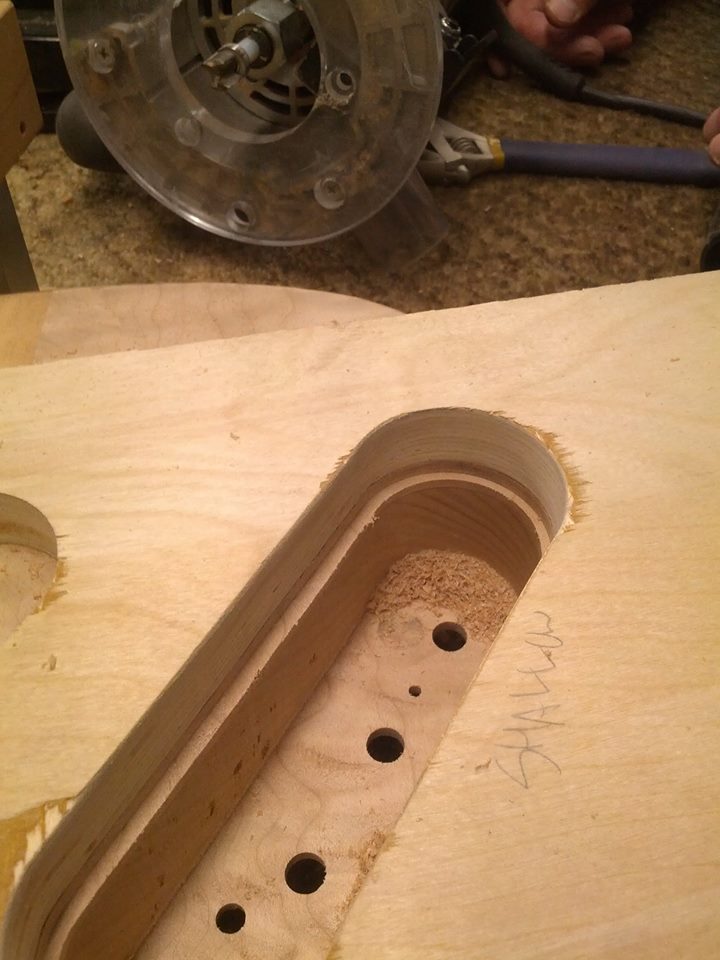

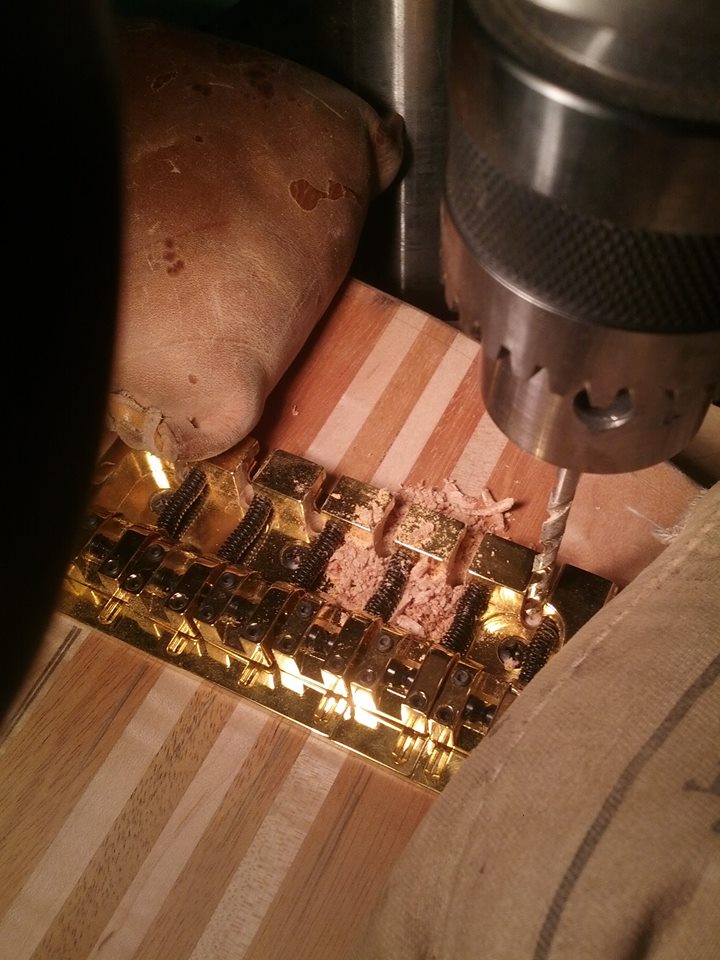

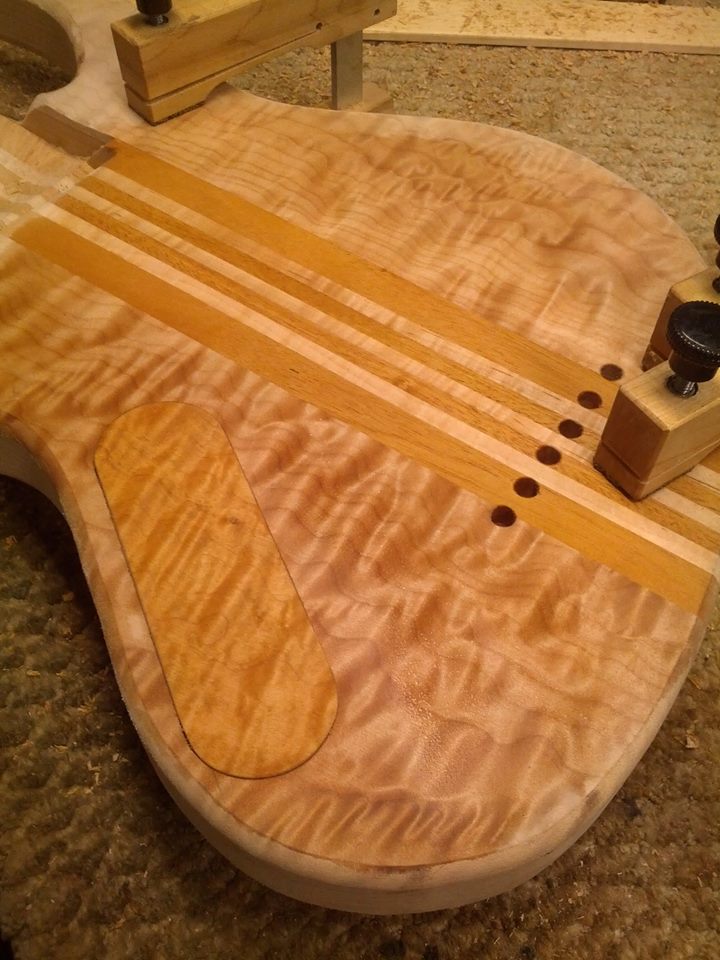

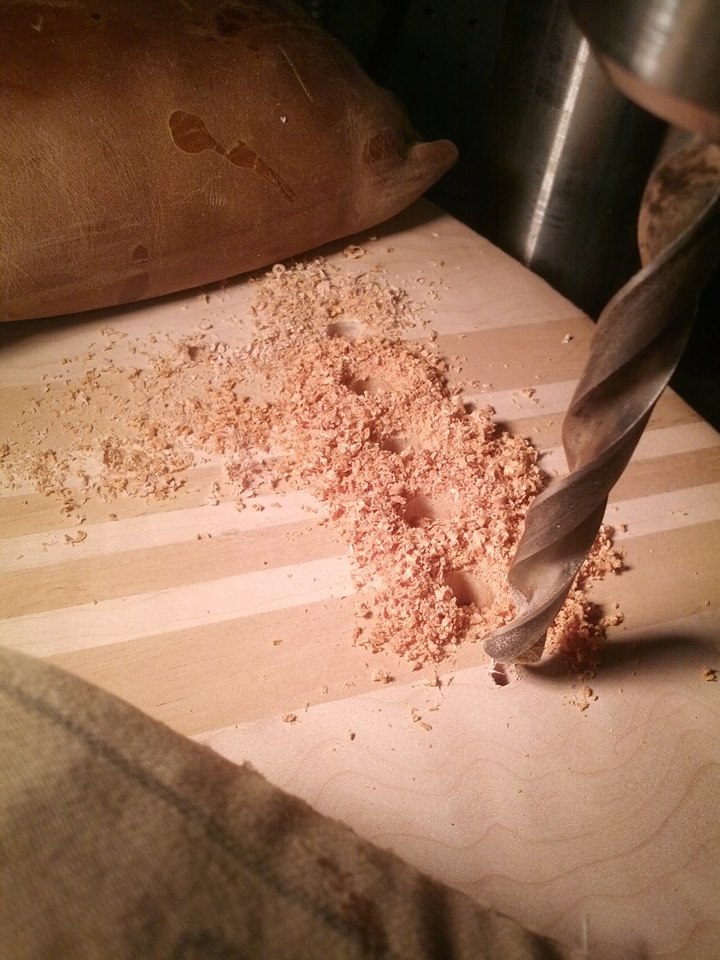

The holes to allow stringing through the body have been drilled and the control cavity has been routed:

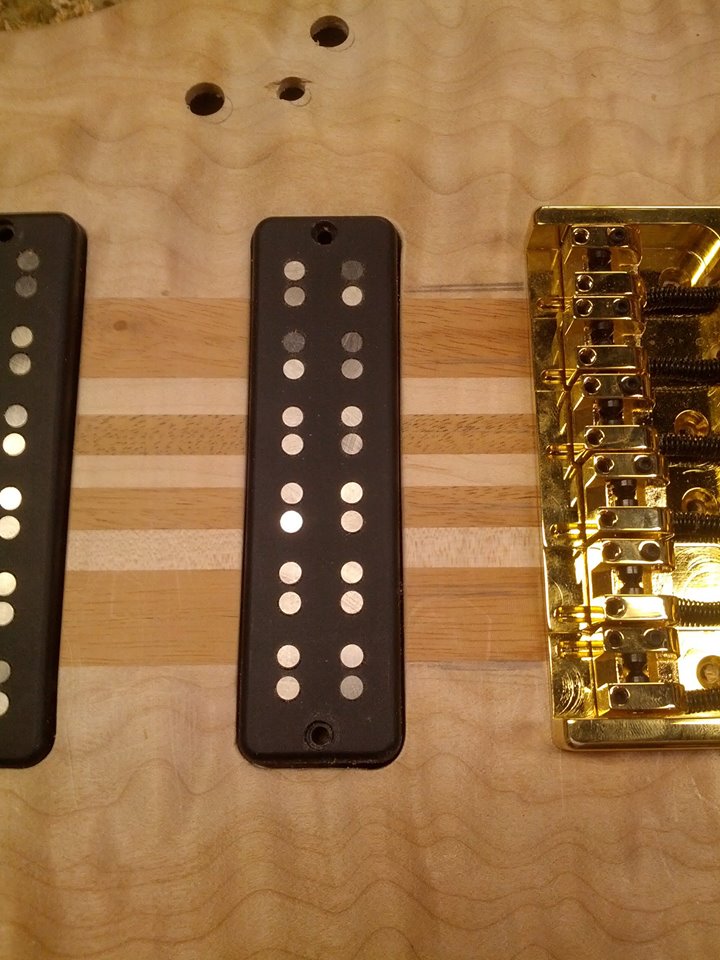

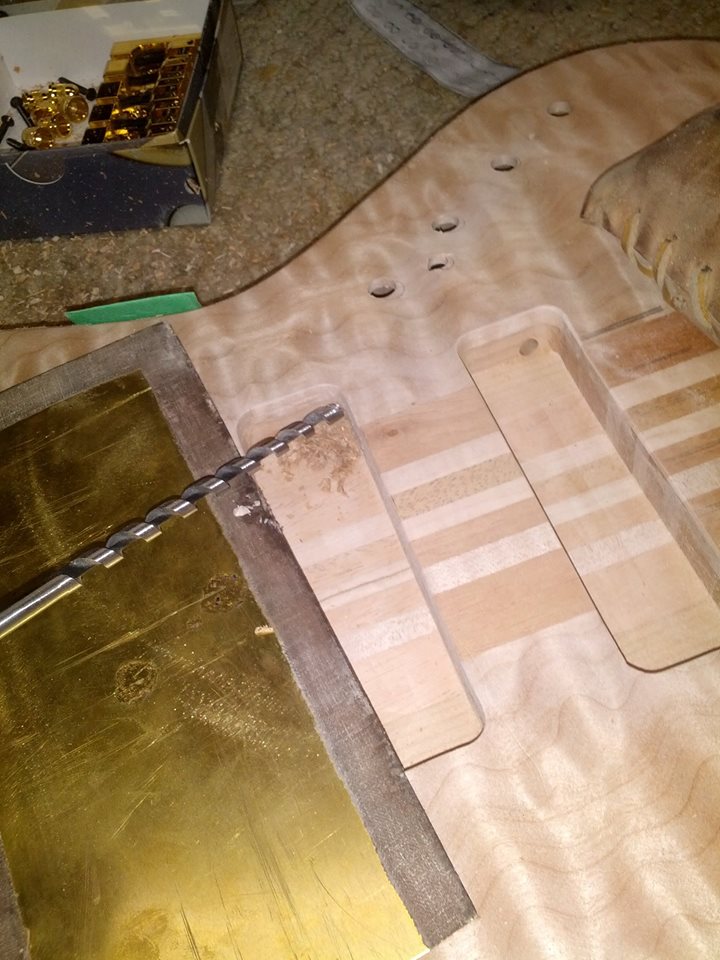

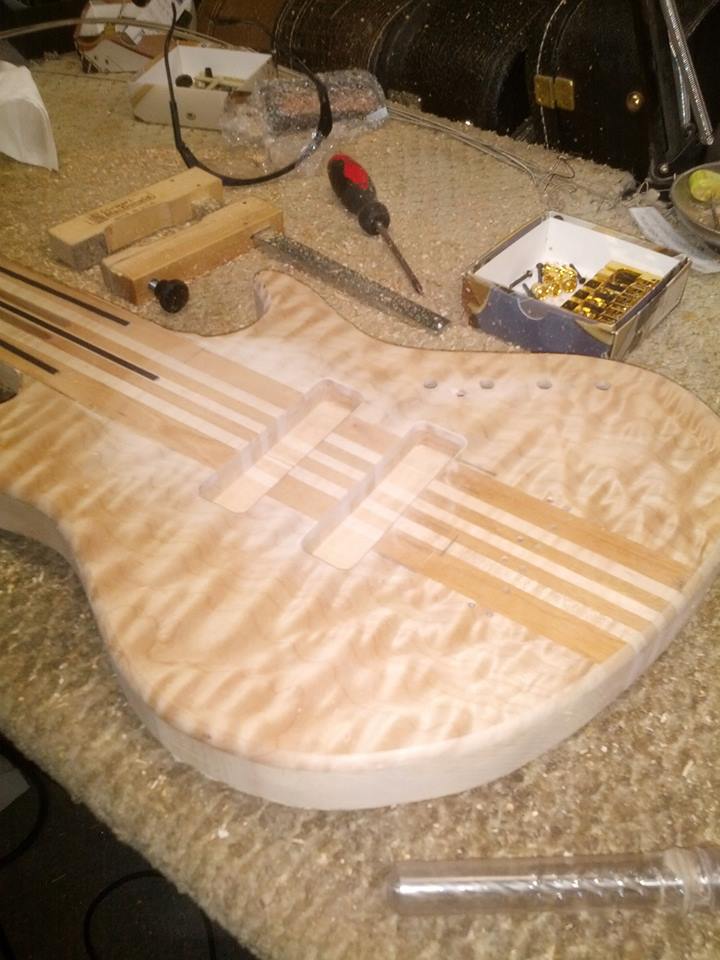

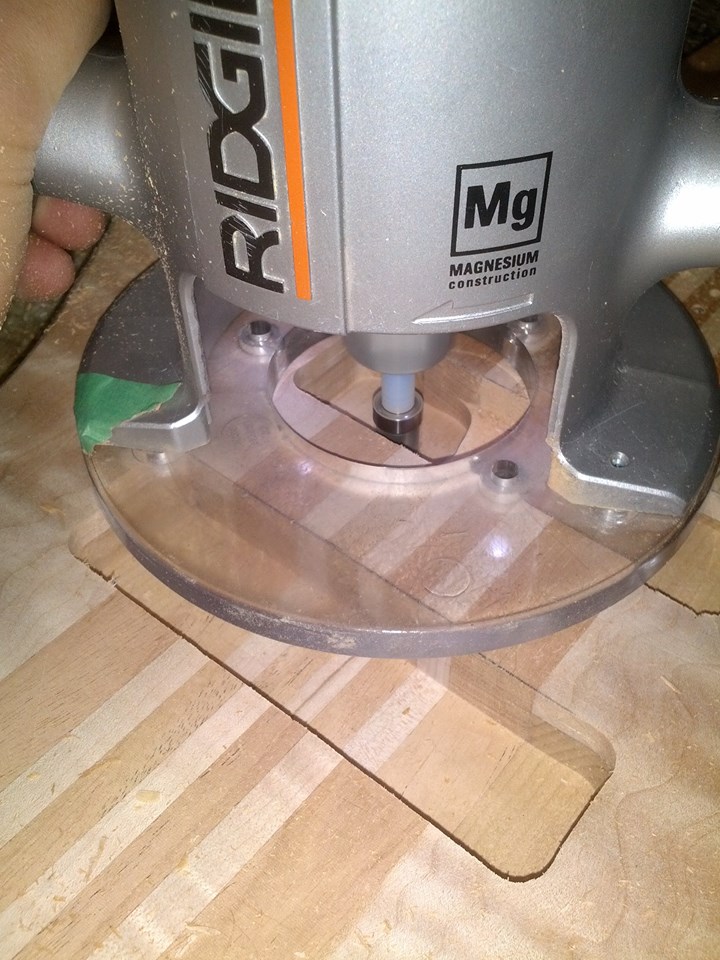

Pups were routed yesterday:
Tomorrow I'll be stopping by the shop to have the neck fitted to my hand.
Tomorrow I'll be stopping by the shop to have the neck fitted to my hand.
Neck fitted to your hand? If that isn't great service, then I don't know what is!
It's so pretty.... Drool... I'm loving watching the detailed build steps.
This is like an instructible LoL
After looking at the pics we will all be able to build exactly the same bass in only a few hours!
This is like an instructible LoL
After looking at the pics we will all be able to build exactly the same bass in only a few hours!
Actually, it IS an instructable. It'll cost you $29.95 (Cdn.) to subscribe this thread

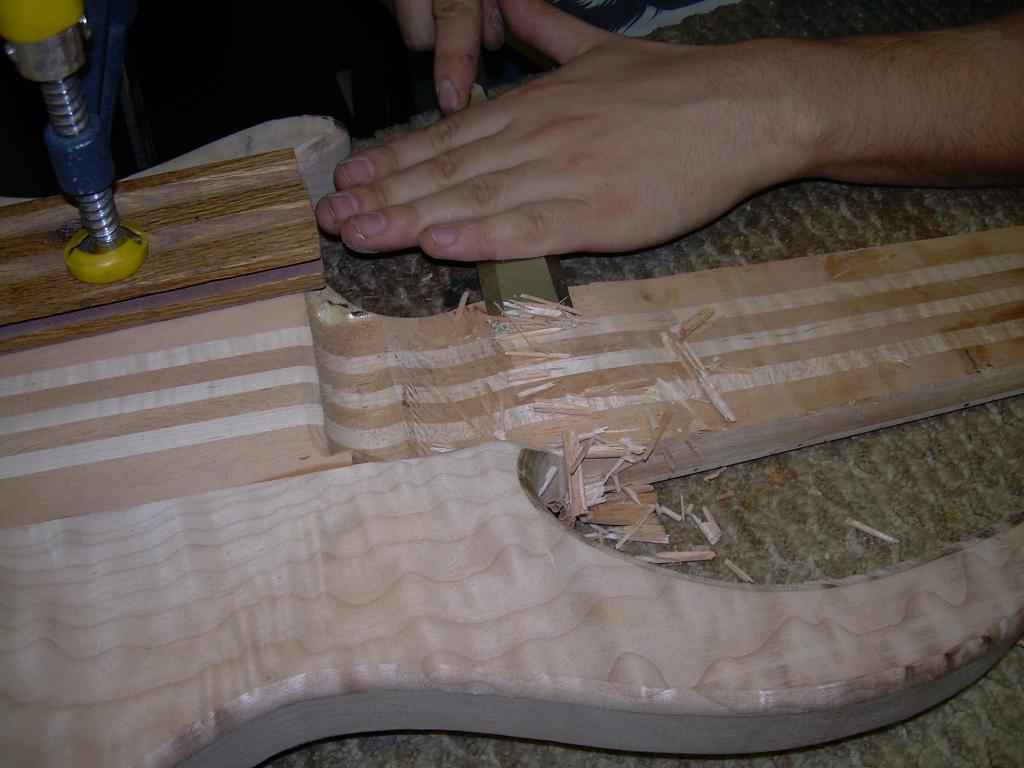

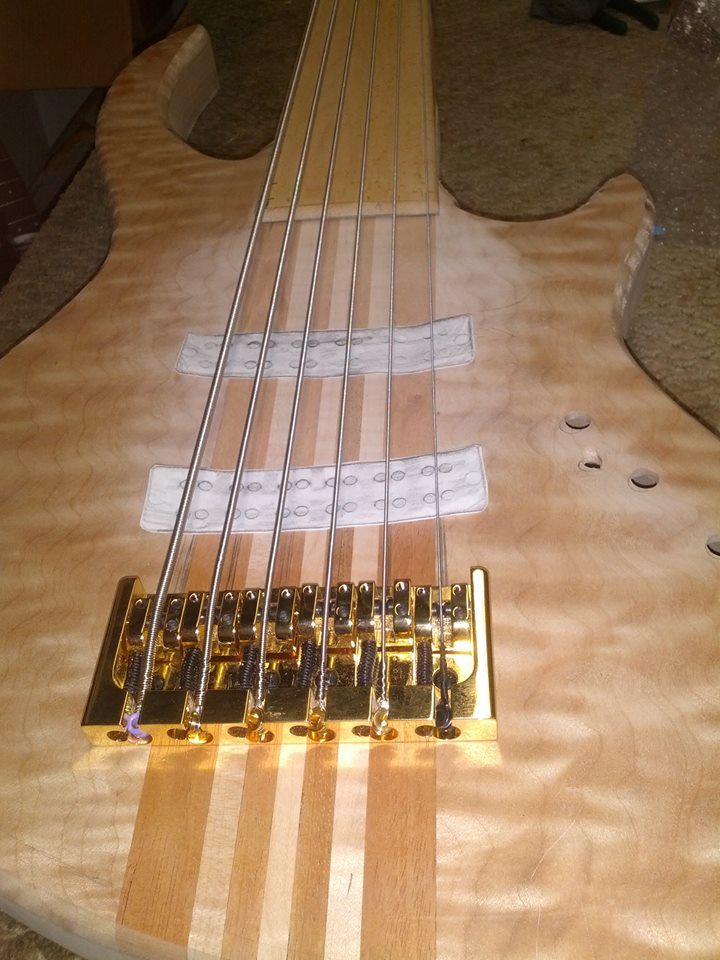

I walked into the shop yesterday and was greeted with this sight:

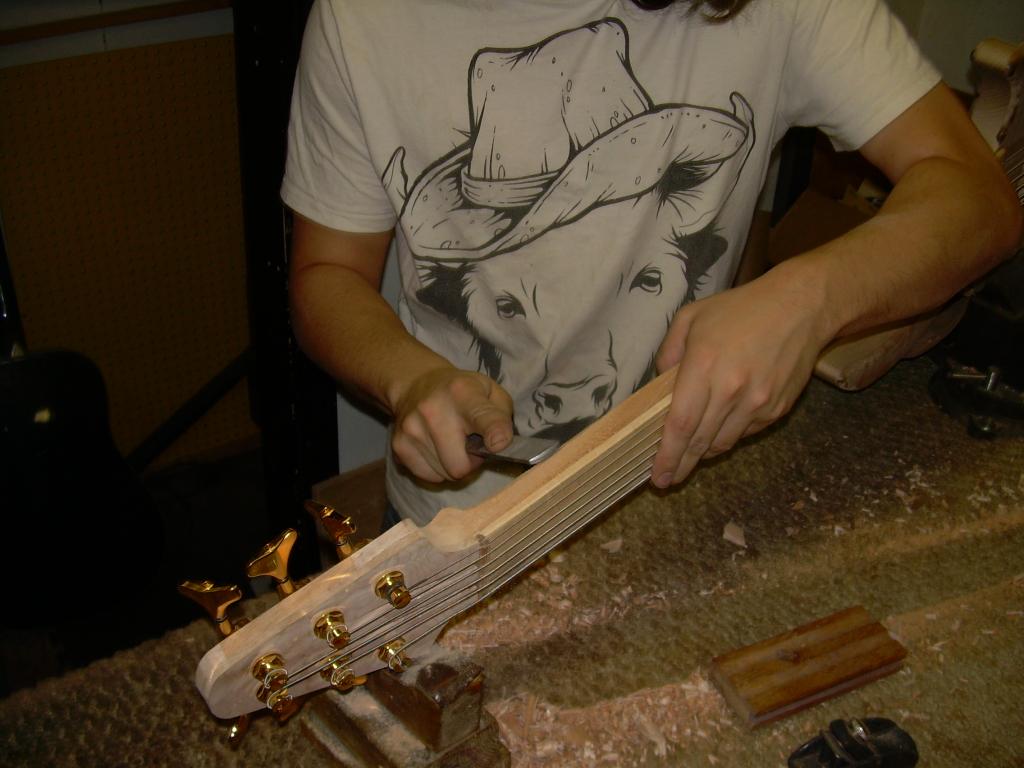

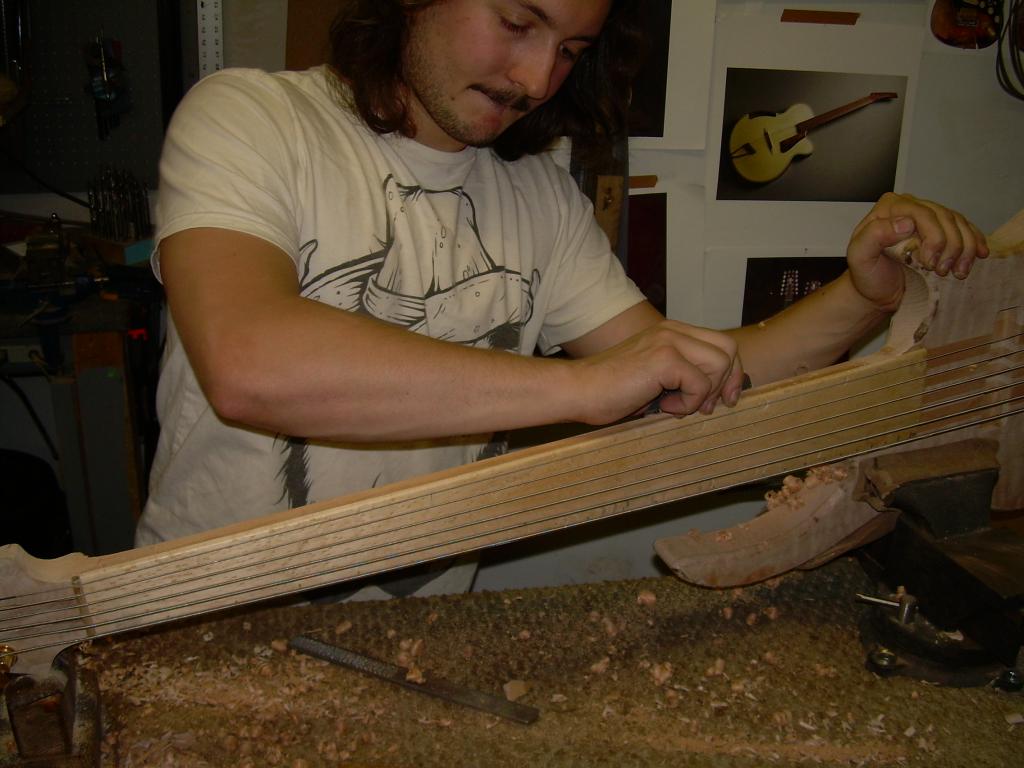

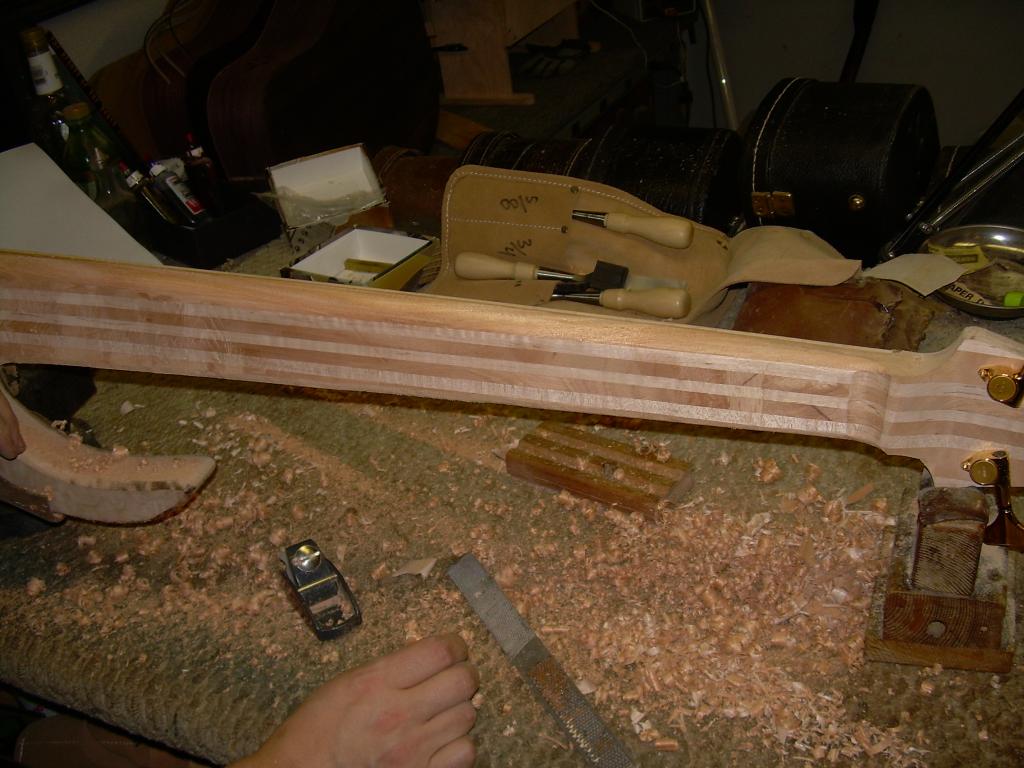

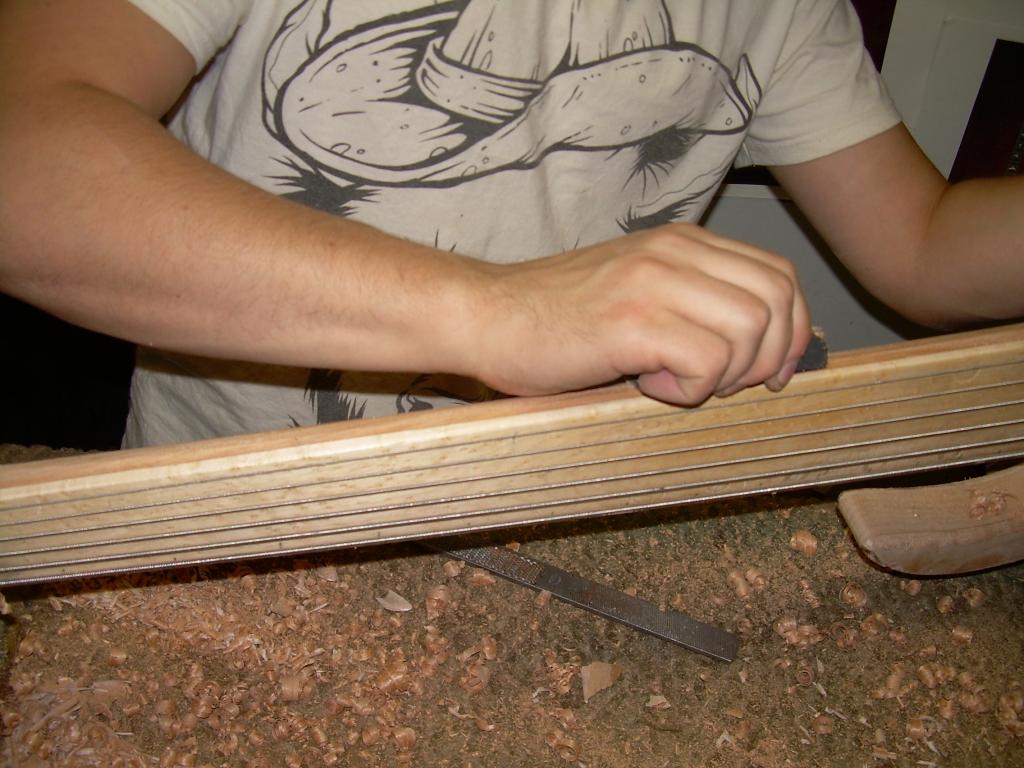

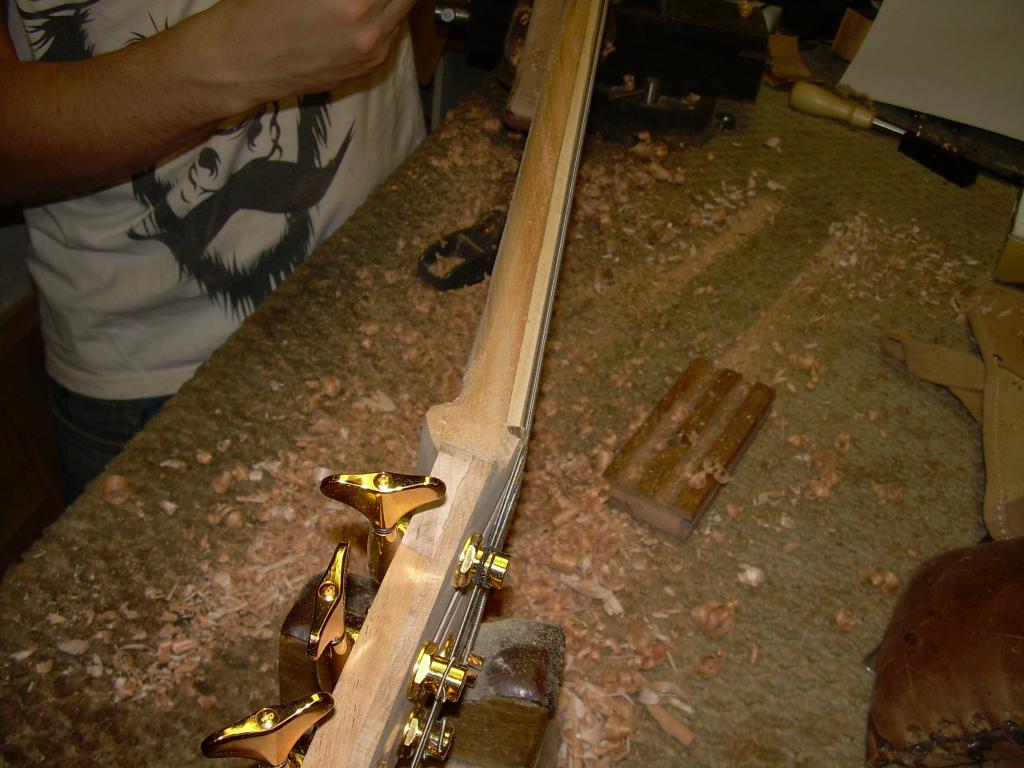

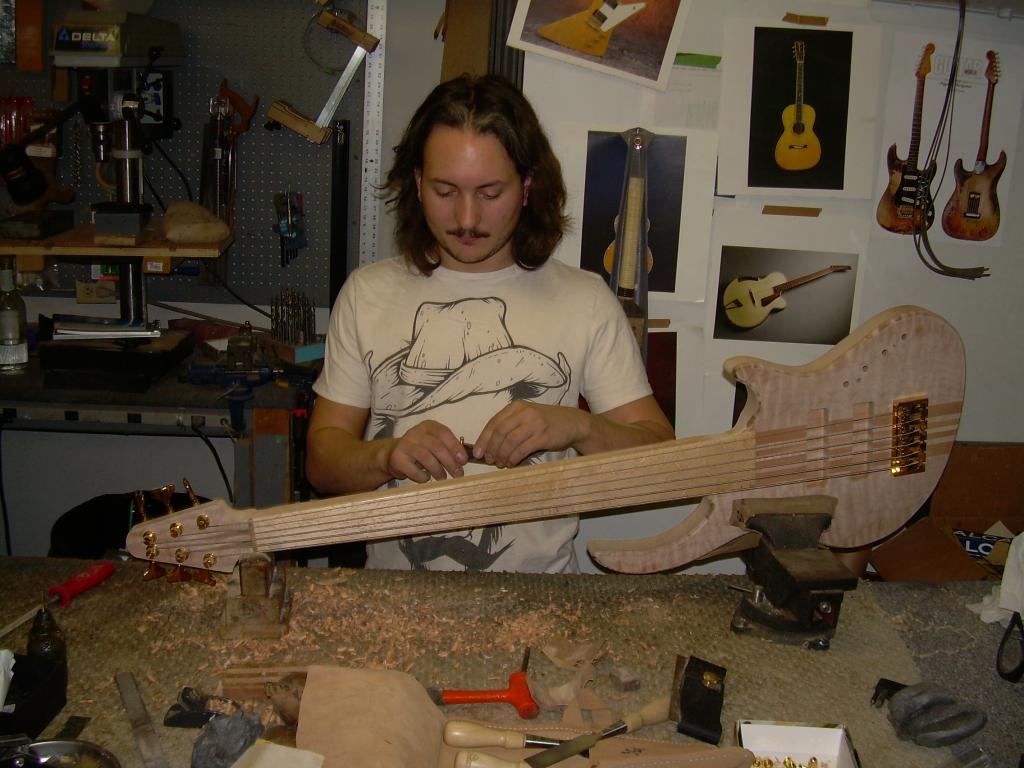

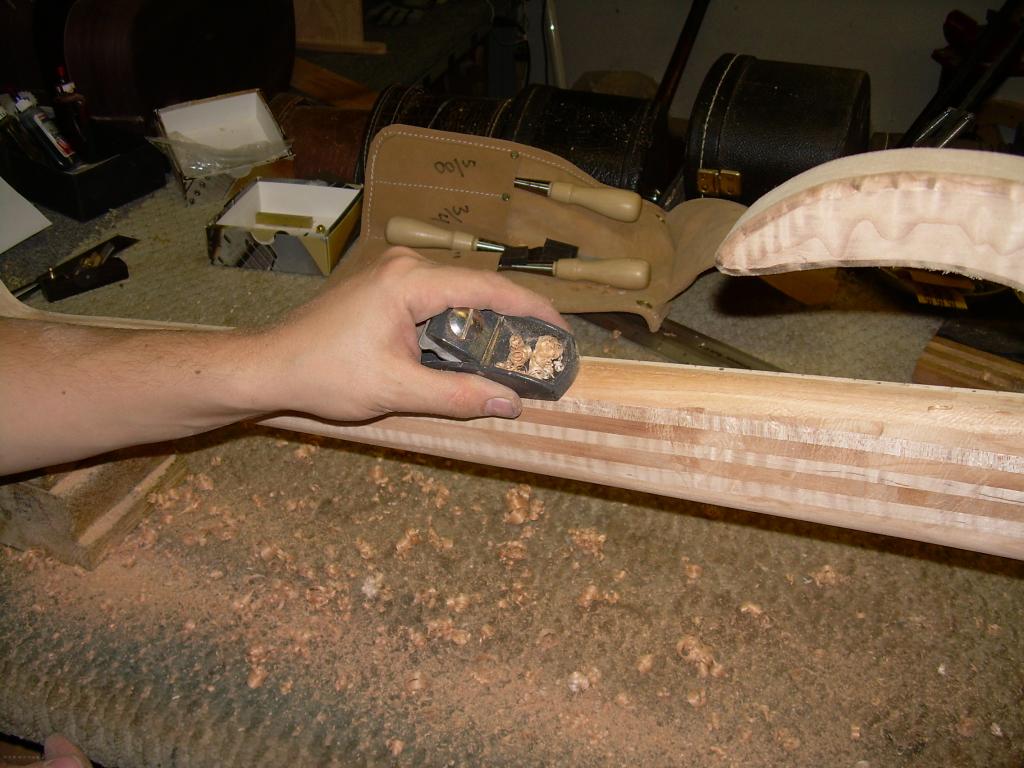

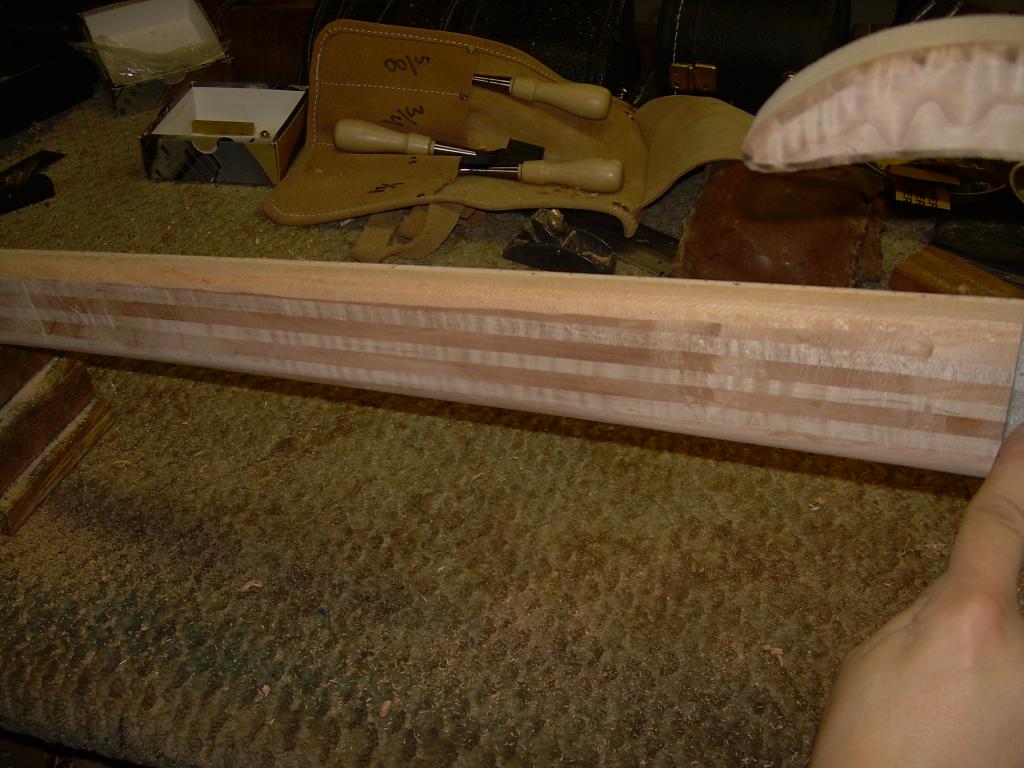

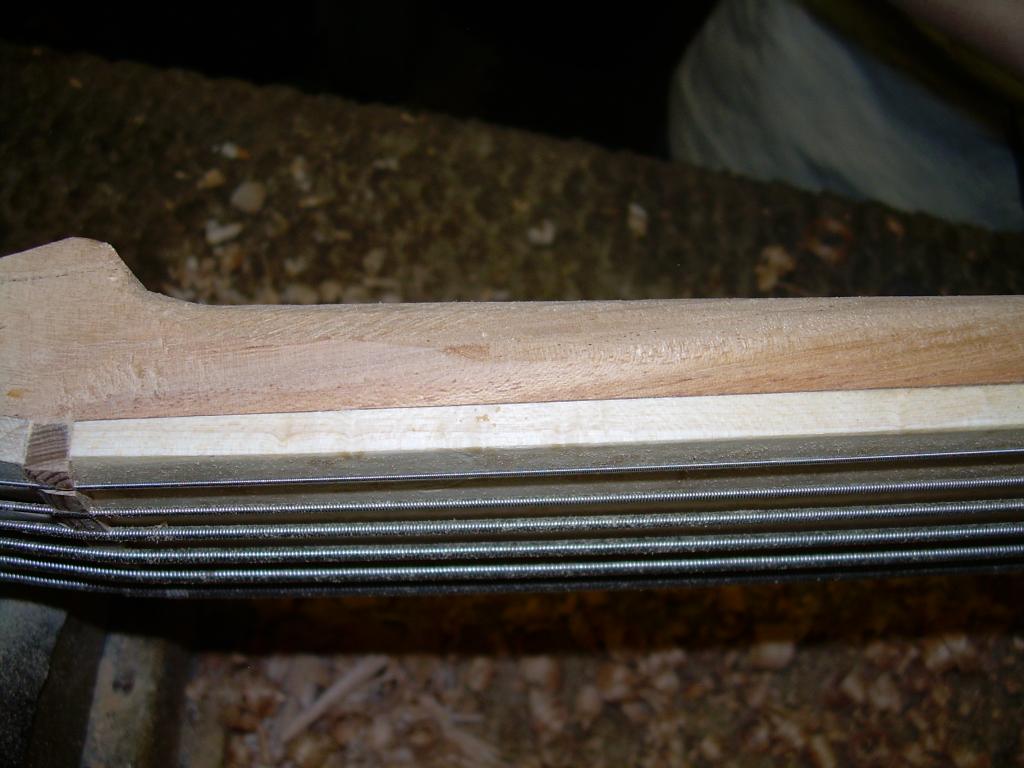

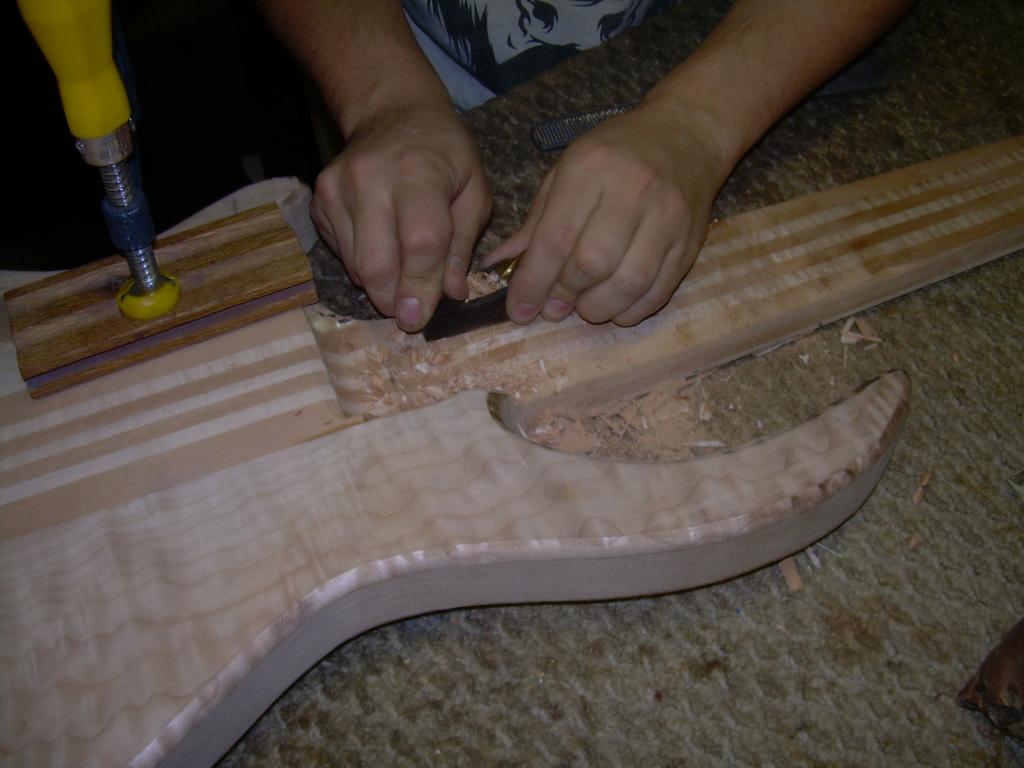

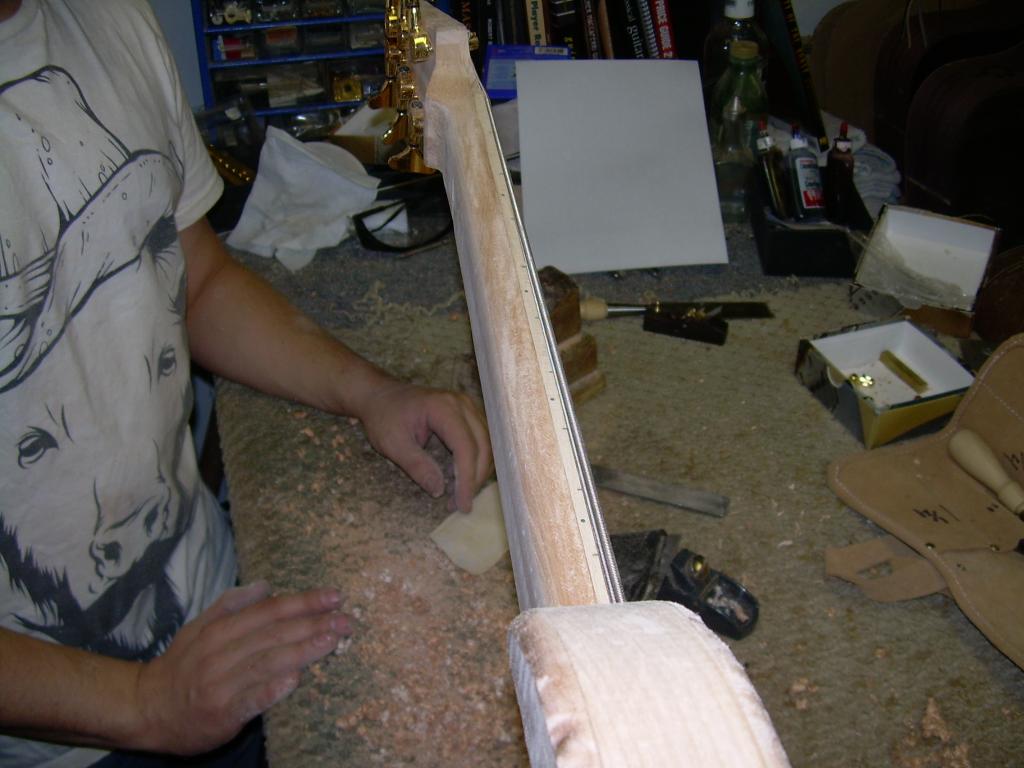

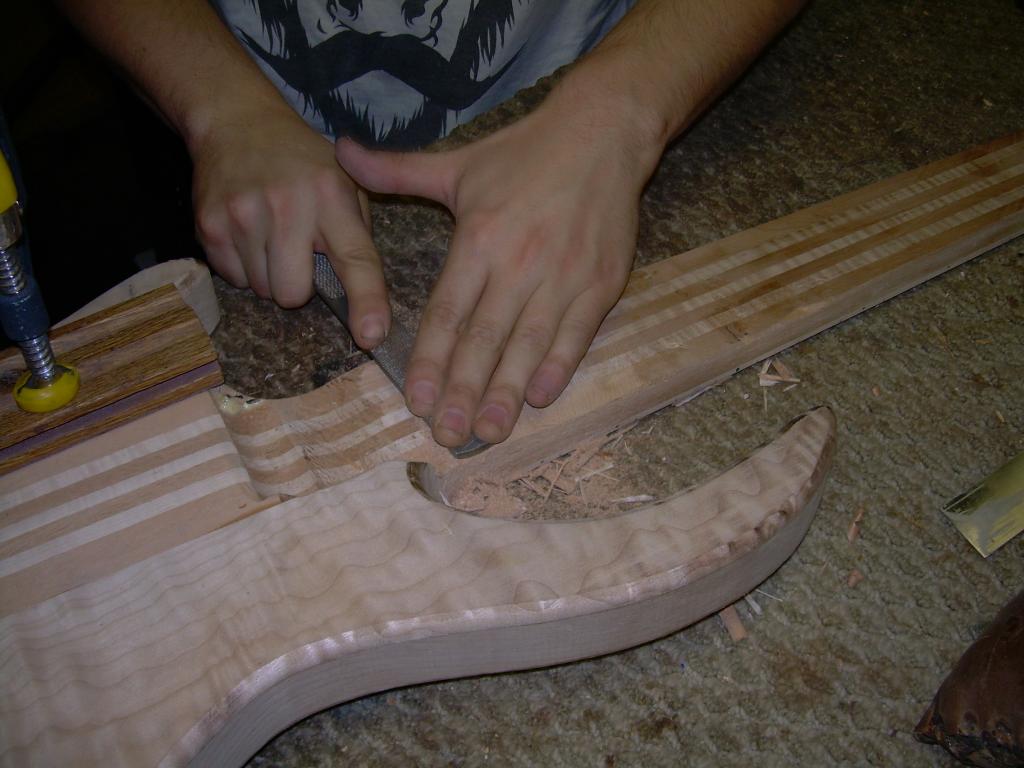

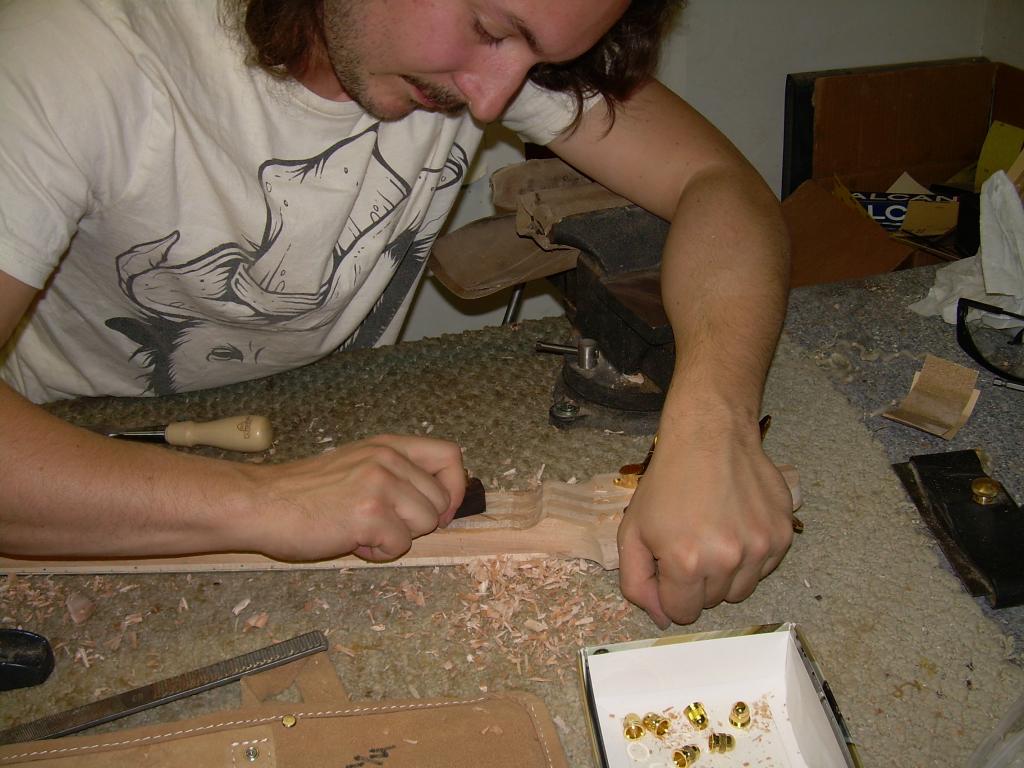

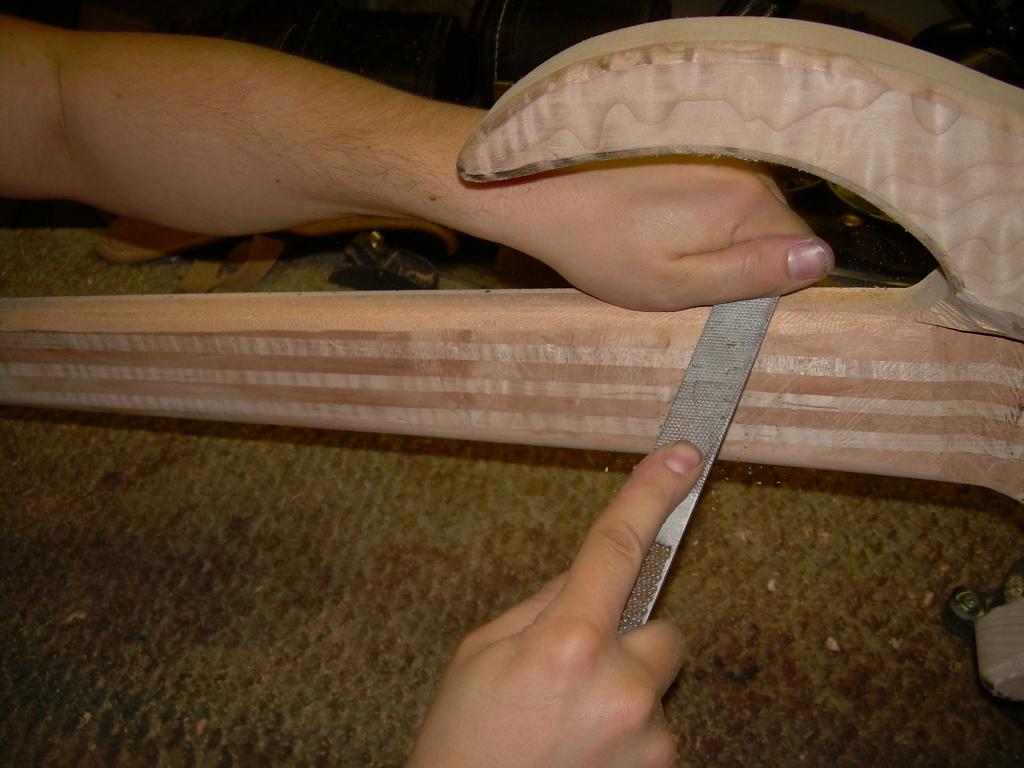

Steve handed it over and asked me to check it for weight/balance. I then got to play it! If how a bass sounds acoustically is any indication of how it'll sound with the electronics added, this is gold! Lots of "mwah" and plenty of sustain. He then got down to the business of shaping the neck to fit my hand:
This might be the 1st thread in TB history where posters complain of too many pics! To recap - we've now gone from this:
To this:
......and this:
.......to this:
Too cool for words. Steve told me yesterday that once he gets the electronics wired up, he'll throw a thin coat of shellac on it and let me take it home for a month or two to play on my rigs and see if it needs any adjustments. I'll then take it back and he'll do any adjustments that might be necessary before finishing it (stain, poly).
Steve handed it over and asked me to check it for weight/balance. I then got to play it! If how a bass sounds acoustically is any indication of how it'll sound with the electronics added, this is gold! Lots of "mwah" and plenty of sustain. He then got down to the business of shaping the neck to fit my hand:
This might be the 1st thread in TB history where posters complain of too many pics! To recap - we've now gone from this:
To this:
......and this:
.......to this:
Too cool for words. Steve told me yesterday that once he gets the electronics wired up, he'll throw a thin coat of shellac on it and let me take it home for a month or two to play on my rigs and see if it needs any adjustments. I'll then take it back and he'll do any adjustments that might be necessary before finishing it (stain, poly).
