short scale custom

Discussion in 'Luthier's Corner' started by Grant Bass, Oct 14, 2010.


  1. Grant Bass

    Grant Bass

    Oct 14, 2010
    i was quite excited about this build because the customer knew every aspect he wants done, and that made my life real easy, and she is gonna be a beaut!

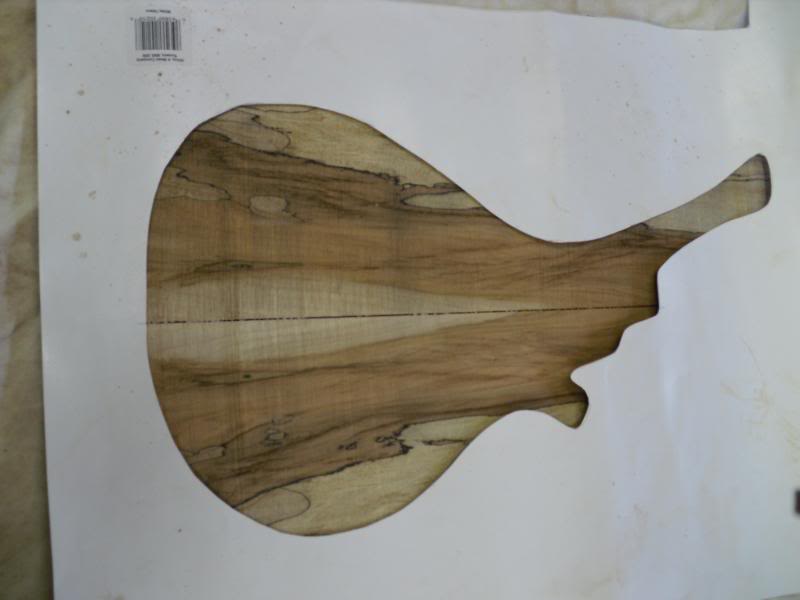

    this is the top he picked, spalted maple

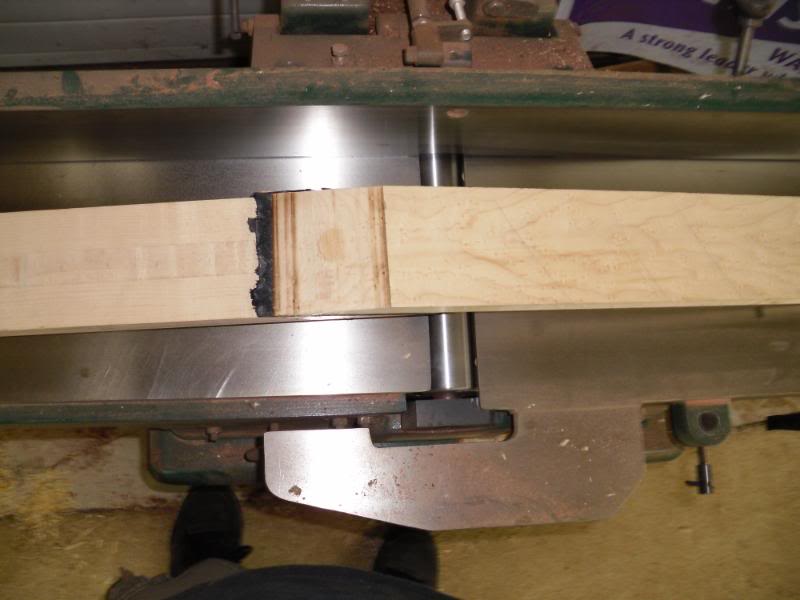

    this is the neck, 3 pc. birdseye center with hard rock outer lams, scarf joint accents of maple and black veneer, with a birdseye headstock block

  2. Grant Bass

    Grant Bass

    Oct 14, 2010
    some specs on this guy;
    gold hardware-hipshot
    a stlye bridge; ultralite tuners
    31" scale
    string thru
    audere custom pre-amp
    SGD soapbars(cant remember the exact pickups; not infront of me)
    spalted maple top
    curly spanish cedar body
    3 pc. neck w/scarf
    weight is big issue; so we're doing everything we can to make it featherlite;
    im literaly guesing a weight of 3.5lbs w/o hardware based on the weight of the rough cedar 004-1.jpg

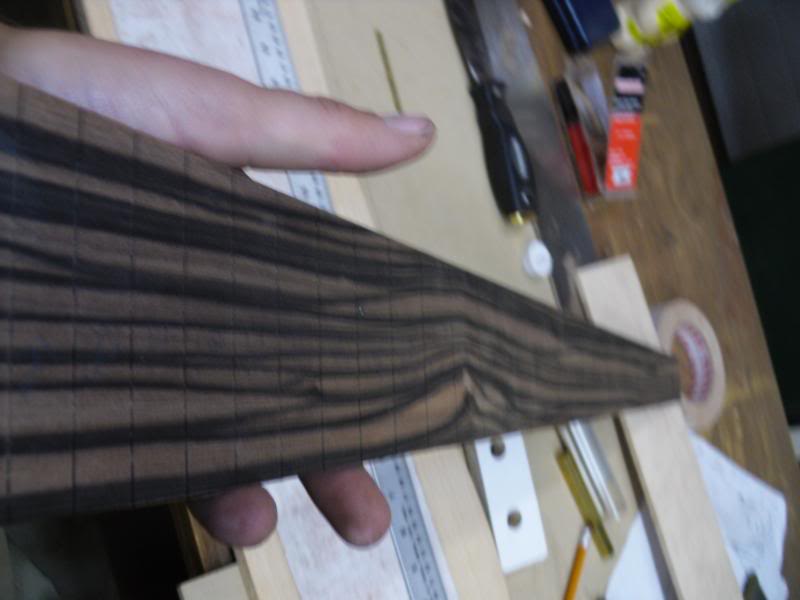

    heres a shot of the macassar board

  3. SDB Guitars

    SDB Guitars Commercial User

    Jul 2, 2007
    Coeur d'Alene, ID
    Shawn Ball - Owner, SDB Guitars
    Nice! That fingerboard is awesome!

  4. That's such a wicked body design! Funky yet ergonomic- everything a bass should be.
    Good luck with the build and I hope the customer likes it! (no doubt he will tho)

  5. Spas

    Spas

    Jul 19, 2010
    Finland, Turku
    +1, gotta love those stripes!

  6. Triad

    Triad Commercial User

    Jul 4, 2006
    Europe
    Luthier - Prometeus Guitars
    The body shape is beautiful... but it could be a bit annoying for slap when played sitting as your right hand would be right on your leg. Anyway, I LOVE small waist shapes :D

  7. Grant Bass

    Grant Bass

    Oct 14, 2010
    hey thanks!
    im sure this shape has certain aspects that would make some playing styles difficult, its the complete brain child of the client, who did a great job designing the layout himself to optomize his style.
    i havnt cut out the body yet but i beleieve it will feel like a hofner in most respects to the lower bouts contact with the player

  8. Triad

    Triad Commercial User

    Jul 4, 2006
    Europe
    Luthier - Prometeus Guitars
    As I said, I really like it. It's very close in shape to a custom bass I bought back in 2004.

  9. BassCycle

    BassCycle

    Jan 6, 2006
    Temecula, CA
    Builder: Classic Bass Works
    Subbed! Nice wood choices.

  10. Grant Bass

    Grant Bass

    Oct 14, 2010

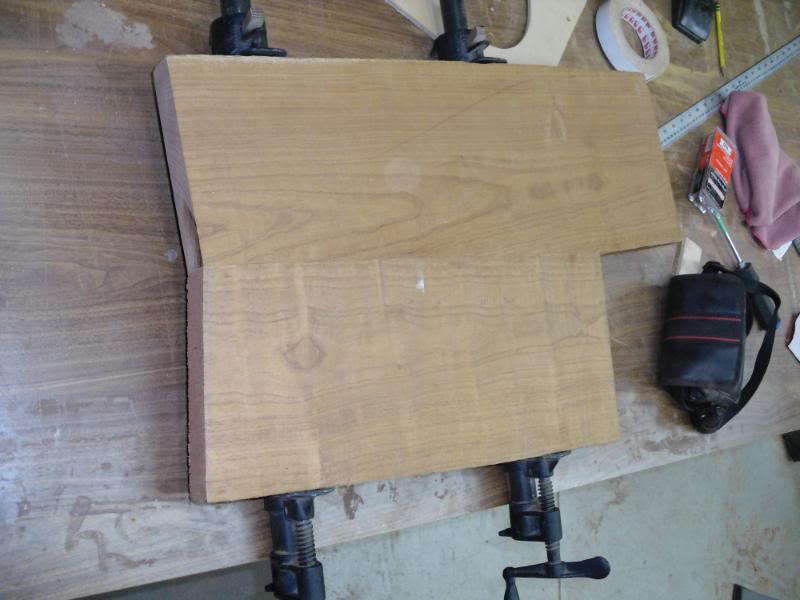

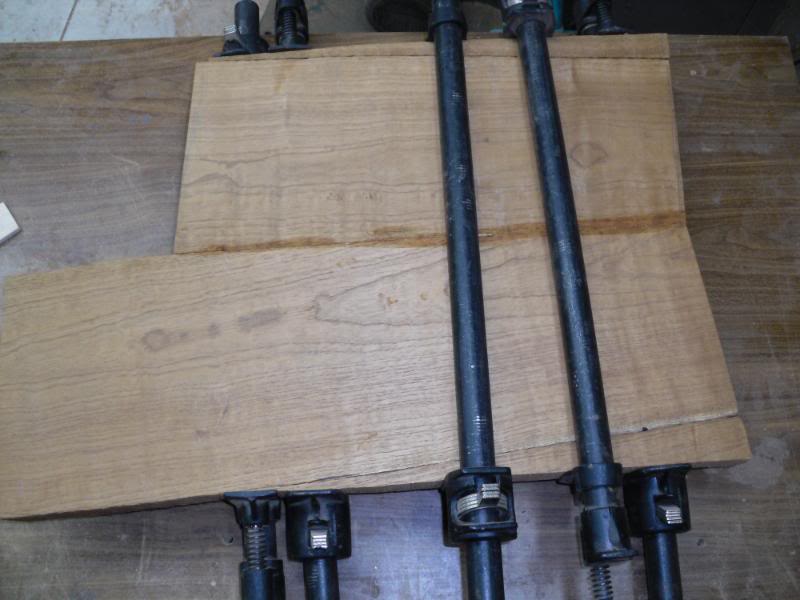

    spanish cedar (curly) body blank;
    glued with the angle for 2 reasons; the chevron effect is just a beautiful thing; and i wanted that long horn to have as straight of grain i could running length wise
    of course these are the front shots, whereas the back is what you'll actually see, but you get the point!

  11. Grant Bass

    Grant Bass

    Oct 14, 2010

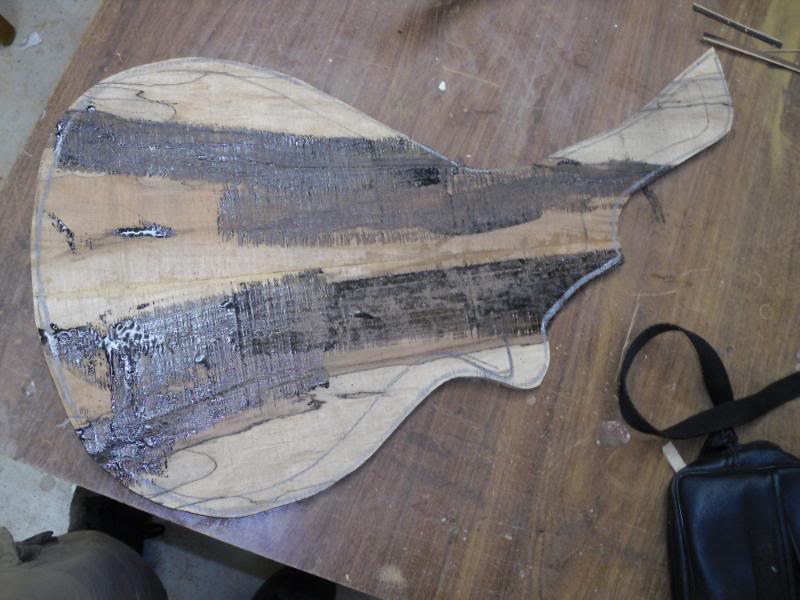

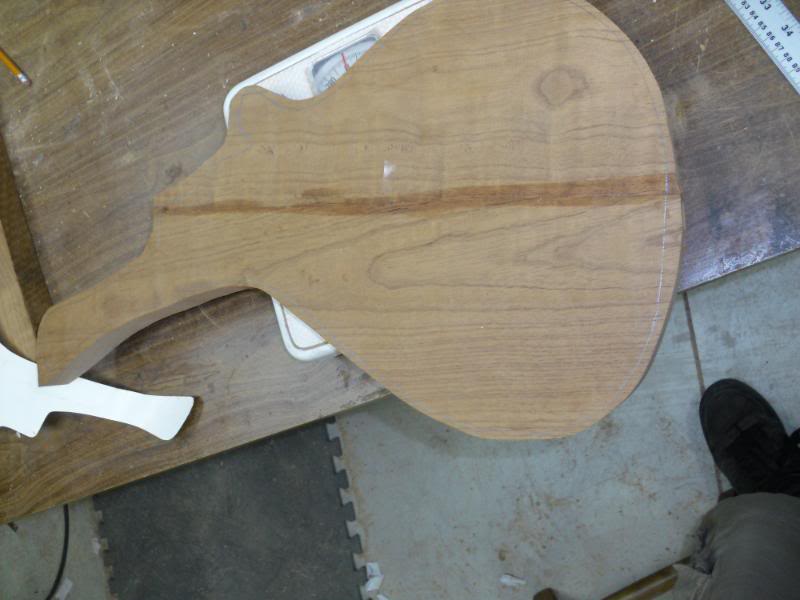

    rough cut body
    by the graces of all the gods combined this top has not exploded yet thru the process

  12. Triad

    Triad Commercial User

    Jul 4, 2006
    Europe
    Luthier - Prometeus Guitars
    Well done! :D

  13. Grant Bass

    Grant Bass

    Oct 14, 2010

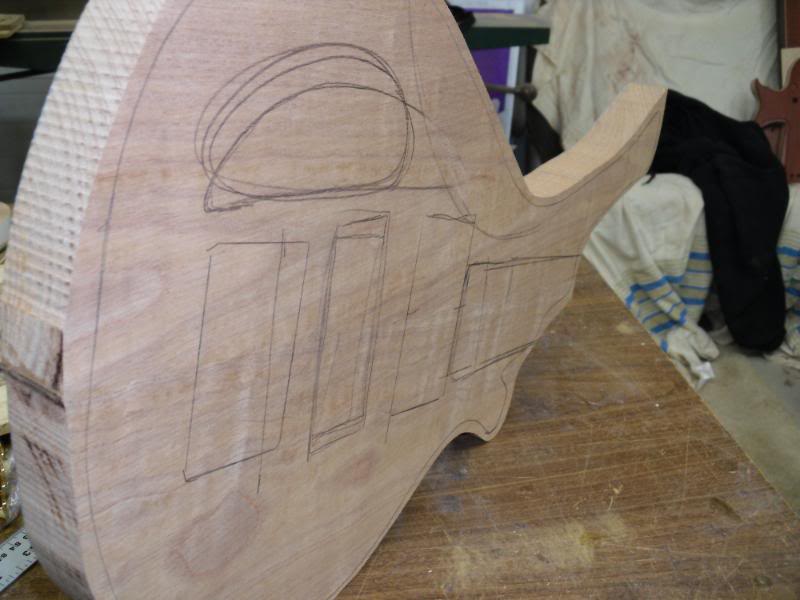

    quick mockup of wood
    it is of the utmost importance to make this bass as light as possible, it will be for the most part contoured in all the normal areas but ontop of that hogging out any solid sections of the body; this circle identifies my one window for any hollowing;due to the wrist area releif; and i can only go 1/2" deep in the area where the belly cut will go, and 3/4" further away

  14. This is looking so cool!
    I cant wait to see the finished product! :hyper:

  15. Grant Bass

    Grant Bass

    Oct 14, 2010

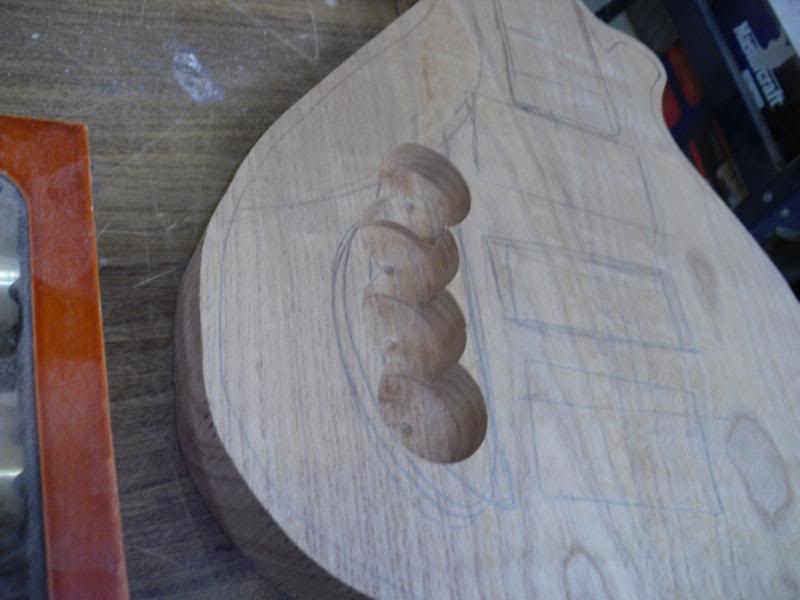

    forstner bits make a quick cavity;2 other holes were made between the bottom 3 on the outer side creating a 'D' shape; but forgot to take another photo before gluing; this combined with the electronics cavity (which will be oversized for even more material removed) should be quite light; the body now is at 3.5 lbs

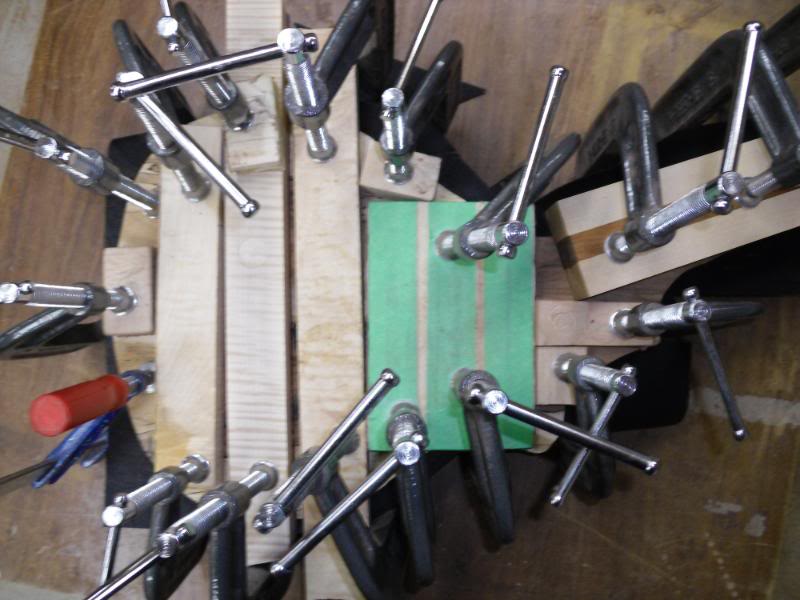

    and a clamp or two to glue the top on; black veneer has been laminated between

  16. Grant Bass

    Grant Bass

    Oct 14, 2010

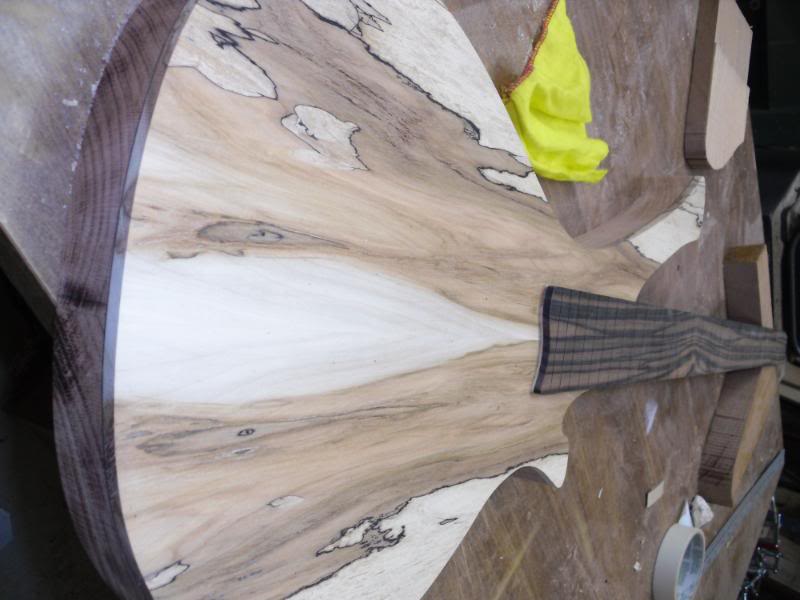

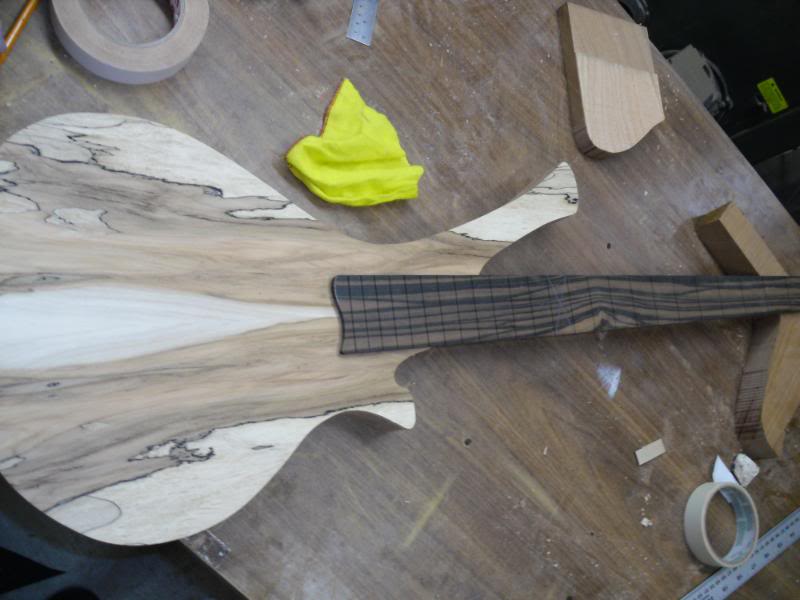

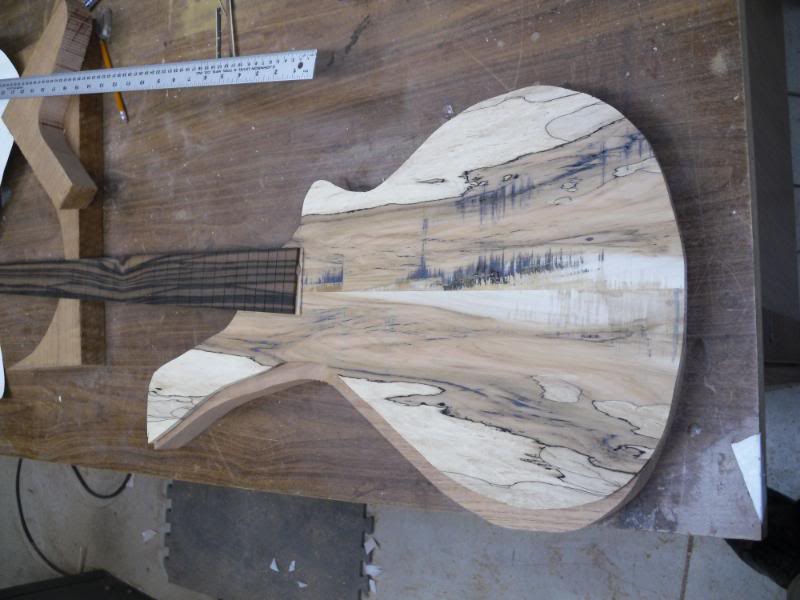

    alright; body out of the clamps,cut and given a perimeter sanding; heres a shot with the fingerboard

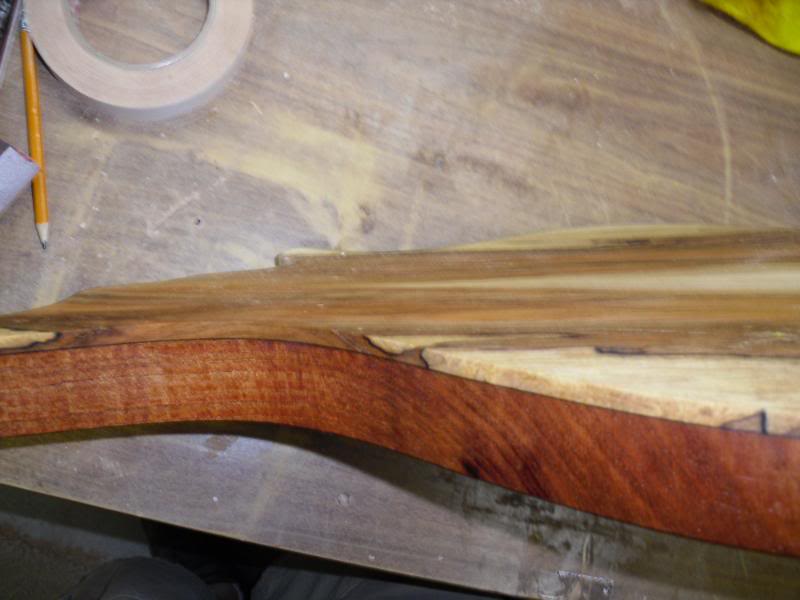

    3/4

  17. Grant Bass

    Grant Bass

    Oct 14, 2010

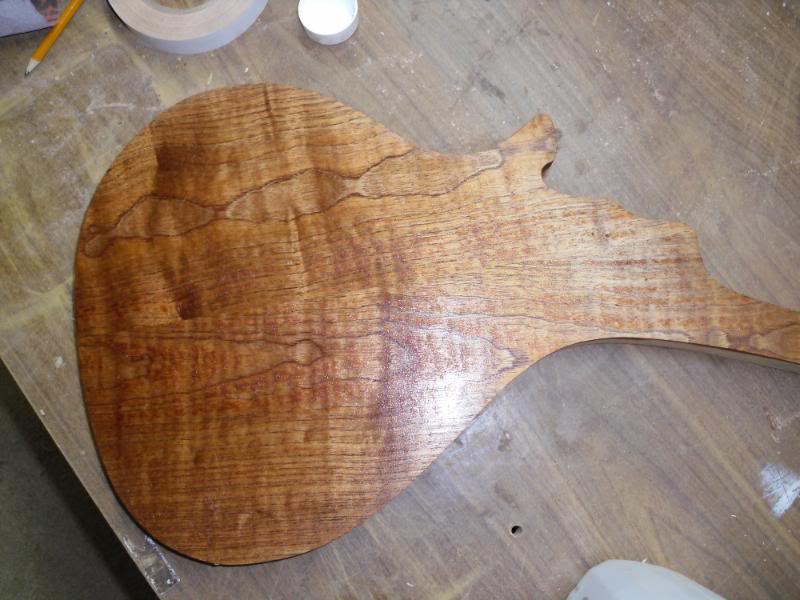

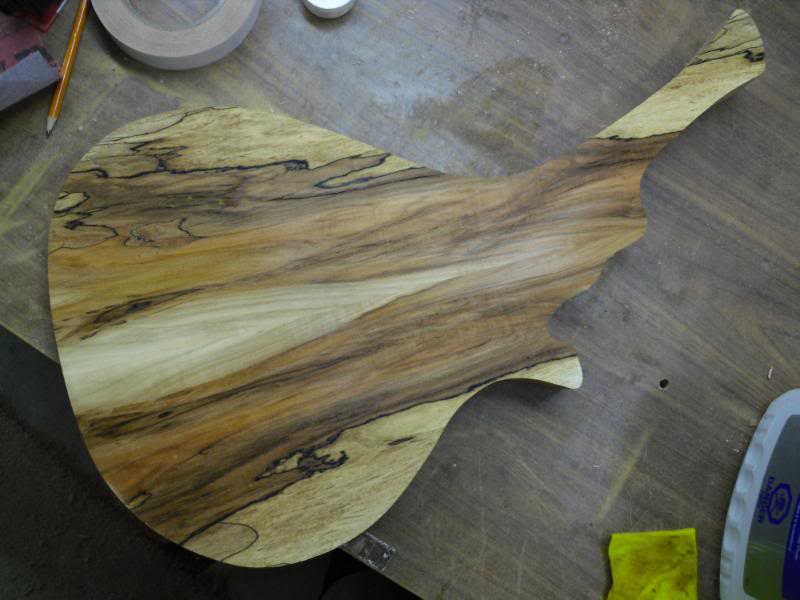

    wetted photos(mineral spirits)

  18. Darkstrike

    Darkstrike Return Of The King!

    Sep 14, 2007
    Niiiiice!

  19. BassCycle

    BassCycle

    Jan 6, 2006
    Temecula, CA
    Builder: Classic Bass Works
    I'm likin wat i'm seein!!

  20. yczi

    yczi

    Jul 1, 2010
    Boston
    CEO: Madhat®
    i LOVE the shape of that body! :eek:

    tell me youre keeping it with that nature finish and not throwing any dark stains/transparent hues over it??
