short scale custom

I guess I should chime in here ... I'm kind of a shy poster ... anyway, I'm Grant's customer and this is the bass that I imagined many years ago. I wasn't able to actualize the concept without maturing as a player and figuring out what bass features work best with my particular body and doing a lot of research--especially here on Talkbass. So, a big thank you to all the bass veterans, luthiers, builders, etc. You're contributions are truly appreciated. I did the best I can do with the design/wood selection/parts, with my limited knowledge, and now I'm relying on Grant to take care of the "real" work. :)

Grant's new to Talkbass. He was trained by Joe Lado--so I have absolute faith in his luthier skill/ability. He's a great guy and is super easy to work with. All the good stuff. Grant's gone out of his way for me with lengthy discussions on this build, taking me to his lumberyard to pick out woods, etc., etc. It's been a wonderful experience working with Grant!

I was originally going for a butternut body. But that didn't work out as the available pieces seemed to have a walnut-like density. Body option #2 was Spanish cedar ... the piece of figured Spanish cedar we found was just a knockout. I have to say it looked so nice I was tempted to do away with the spalted maple top. But ya' gotta to stay true to the vision. And, when I saw the pics of the wild spalted top that rematerialized in Grant's shop ... well there wasn't a hesitation--spalted top it is! Grant also had the Macassar ebony fingerboard in his shop. Drop dead gorgeous. Another beautiful piece. So, everything is coming together wonderfully. It's already better than what I had imagined. I'm going to sit back and enjoy the ride. Hope y'all do the same.

Grant: Your execution has been supremo and right on the money!! Good luck with the rest of the build! I hope it's both challenging and interesting for you.

yczi: It's staying natural! :)

deb

well thank you so much for the kind words; you have earned yourself an update!

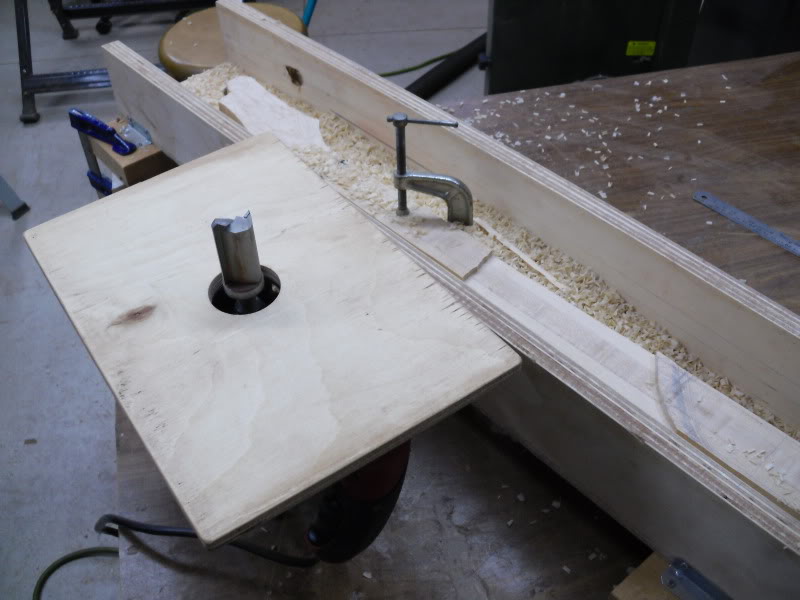

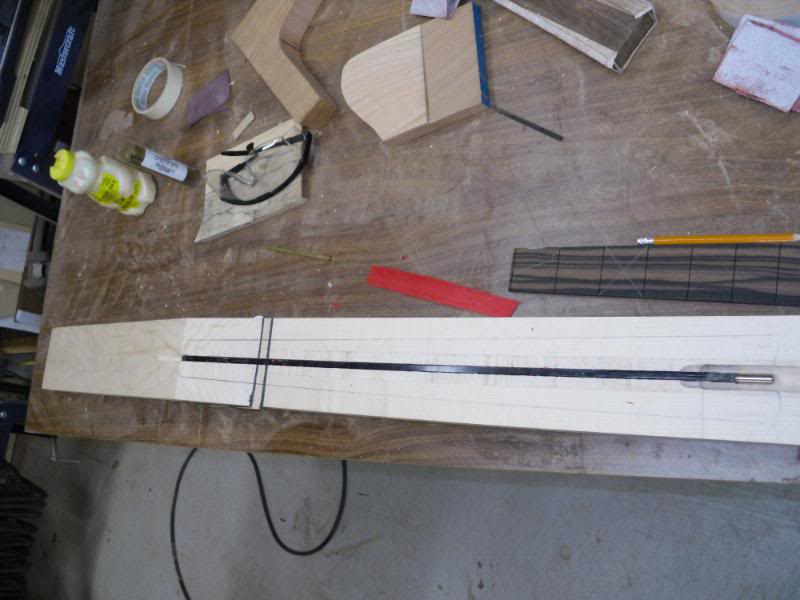

heres the truss rod routed out

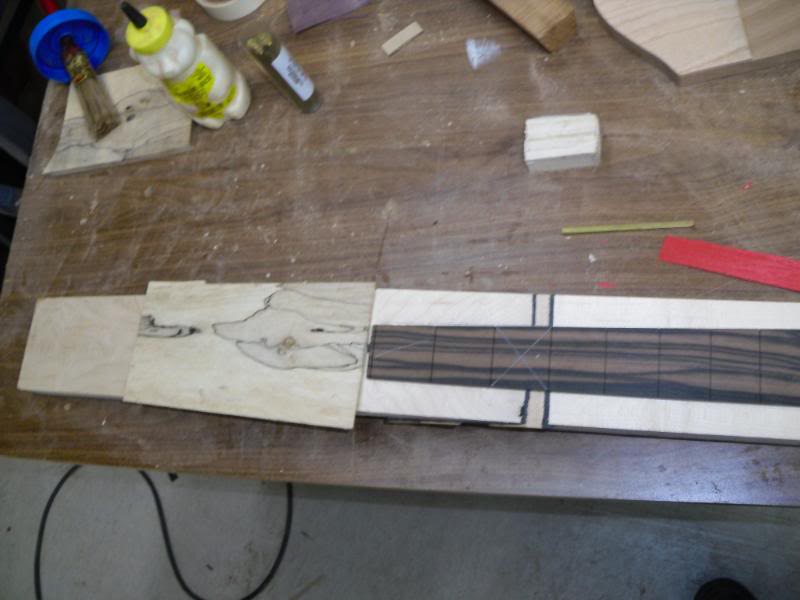

and the headplate in position w/ the fingerboard

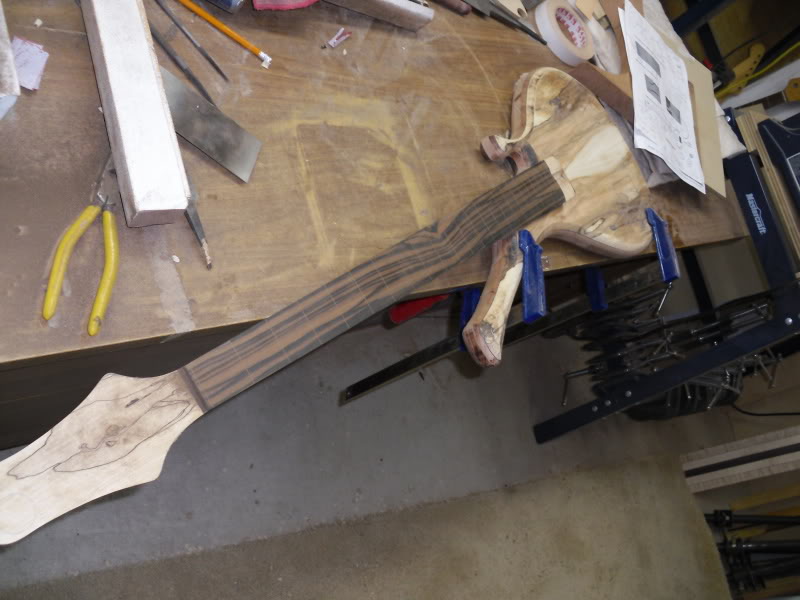

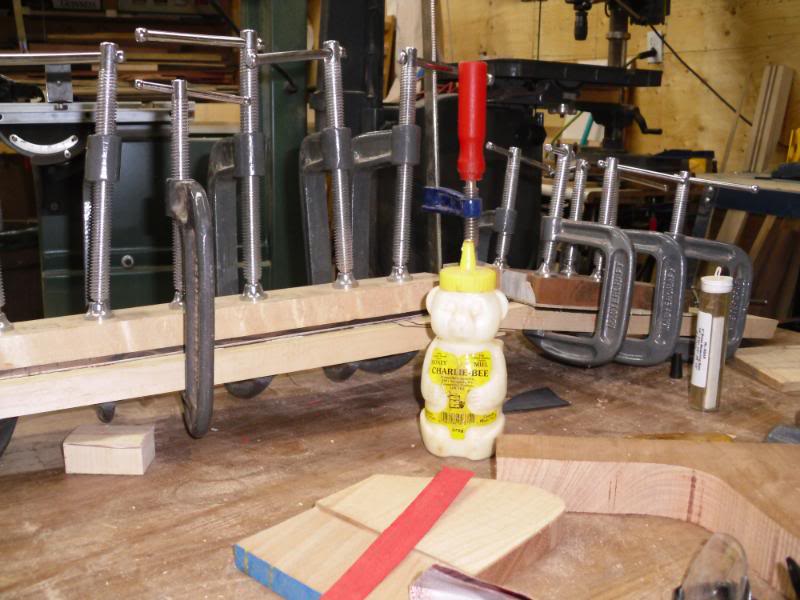

and all clamped up

i love my c clamps; the tightning rod slides from side to side; so if you go from one end to the other you dont get stuck between 2 clamps!
thanks;
Charlie Bee honey; he just died; i worked for his son as a cabinet maker, i learned some cool stuff;like how eating local honey really helps with pollen allergies; and yes i now consider myself living proof!

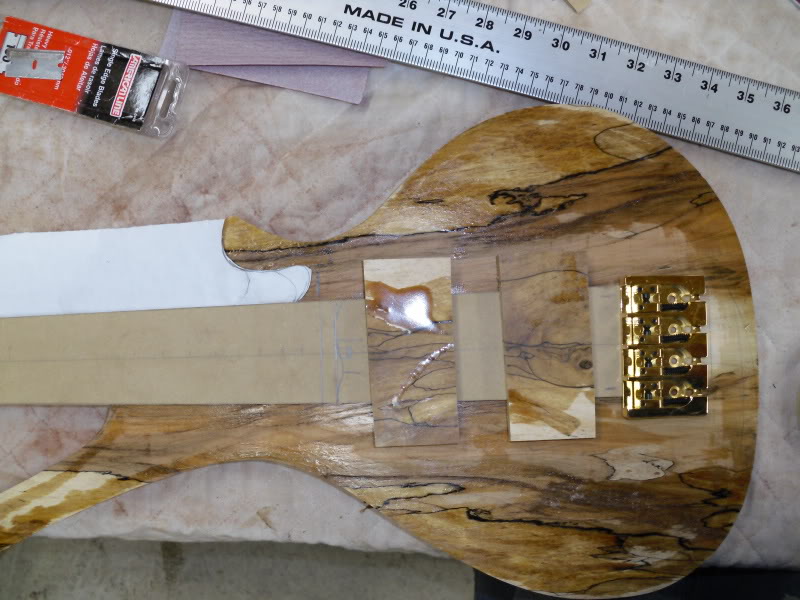

so we had some concerns about the high register frets; so i did a little mock up of what i plan to remove to make it accessable without totally changing the lower horn look; this is what i came up with

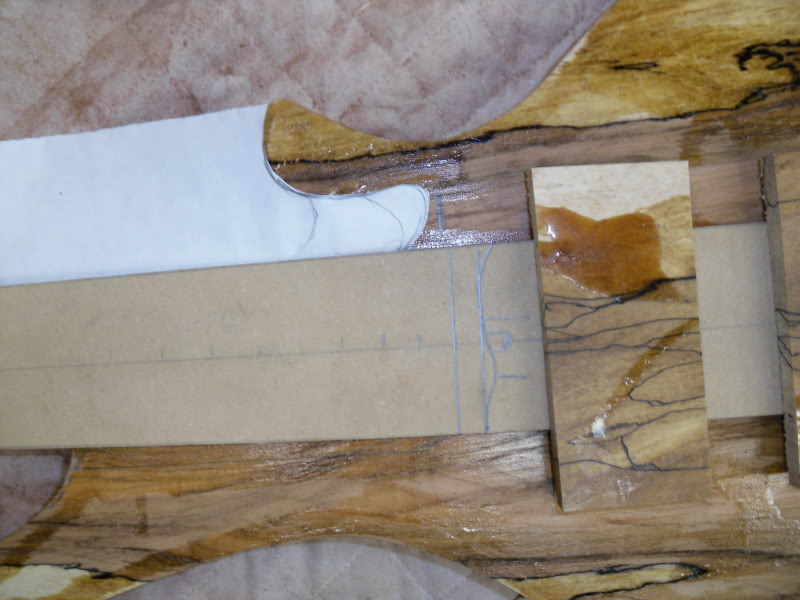

the 2 lines on the MDF represent the last fret and the end of the board; the scraps were there to give an idea of the pickups; i dont know how big they are, but i think there a bit more narrow, and final bridge placement;
the reason we didnt just move the finger board up was to keep it the overall length short and not having the bridge floating around the middle of the body

ok;
seems like forever since i had something to show;
sorry Deb i know how much you enjoy the progress shots for your own interest, but i forgot my cam on the day i did all the roundovers and some stuff on the neck; so im gonna try to make up for it with a whack of pics from today enjoy;

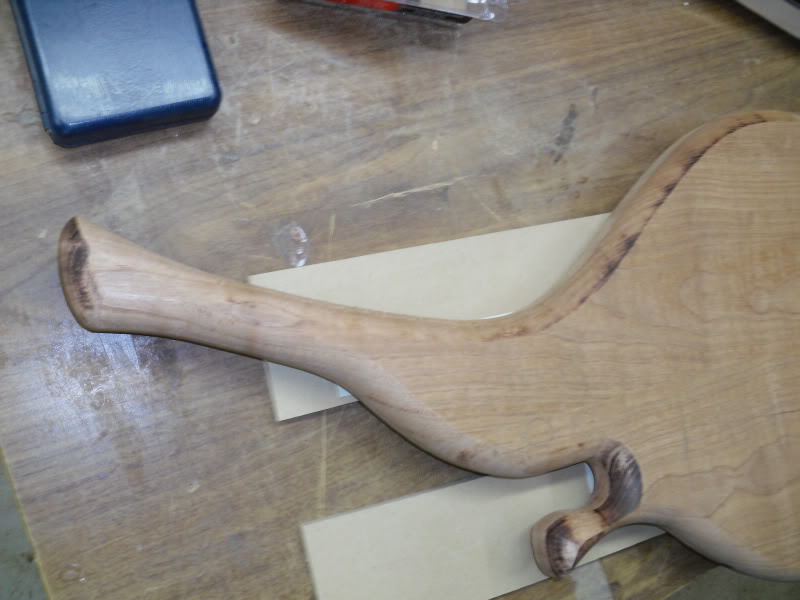

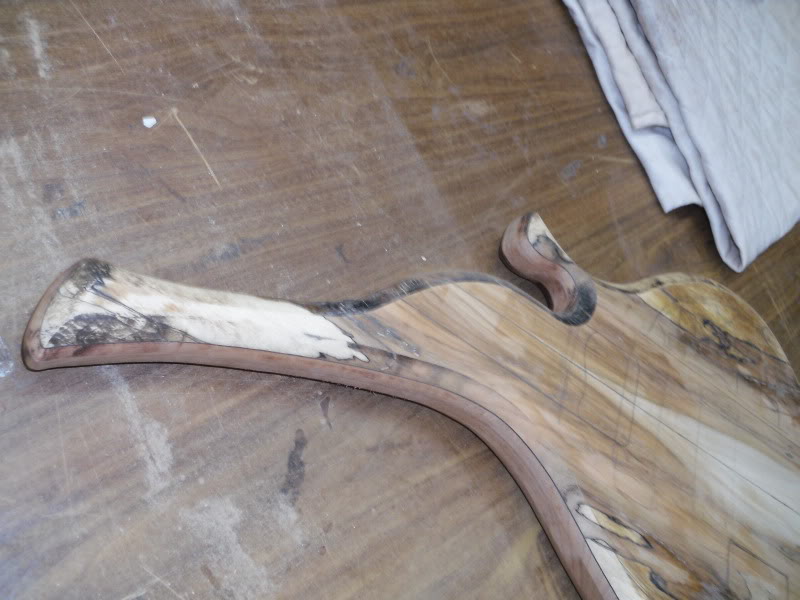

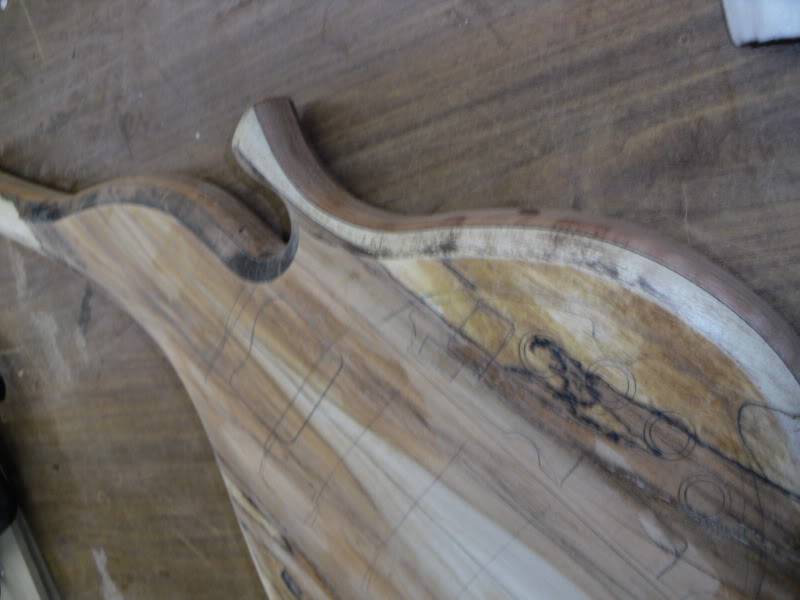

the roundover on the body...whew; the lower horn held on! top intact and everything; i gave it some pulls to make sure it wasnt a fluke, shes good...that was pretty intense to see the router doing its thang;

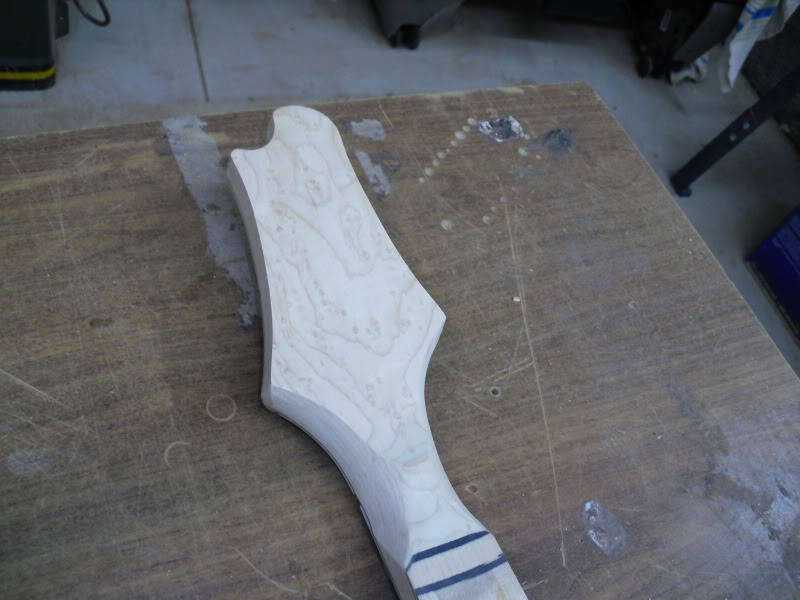

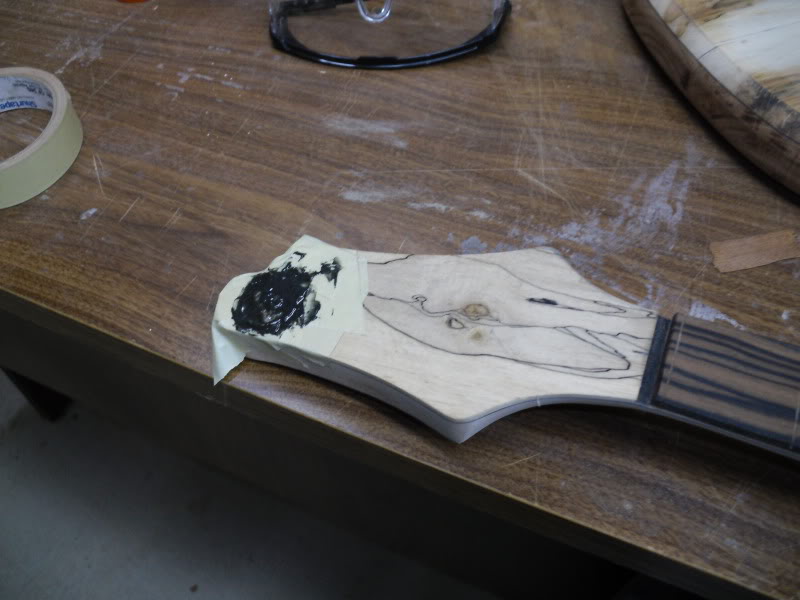

headstock

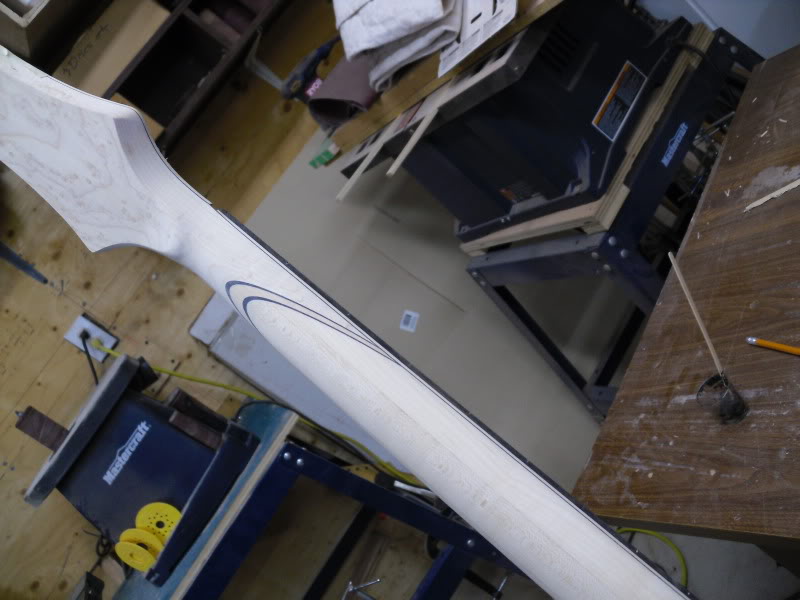

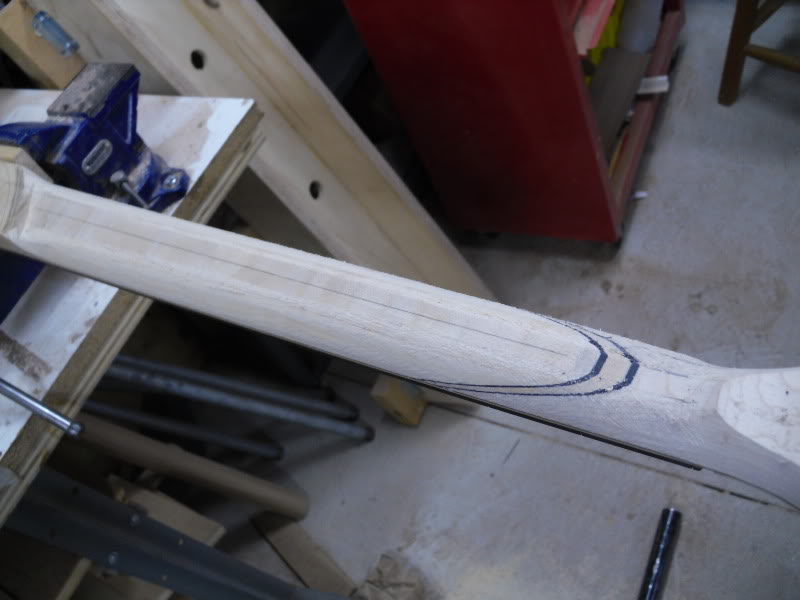

back

neck template set up (hardboard) with angle; as opose to angling the heel of the neck; little extra work, but i find the rest of the procedures easier with a flat heel

viola

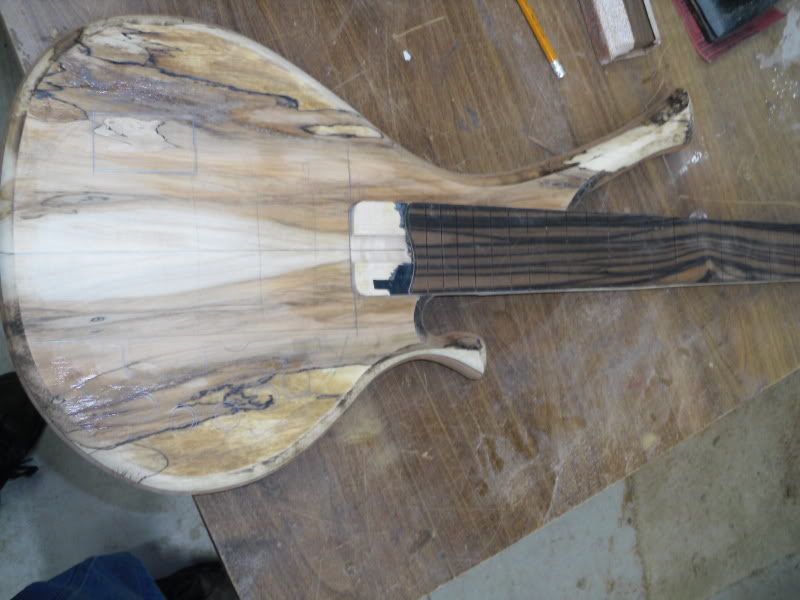

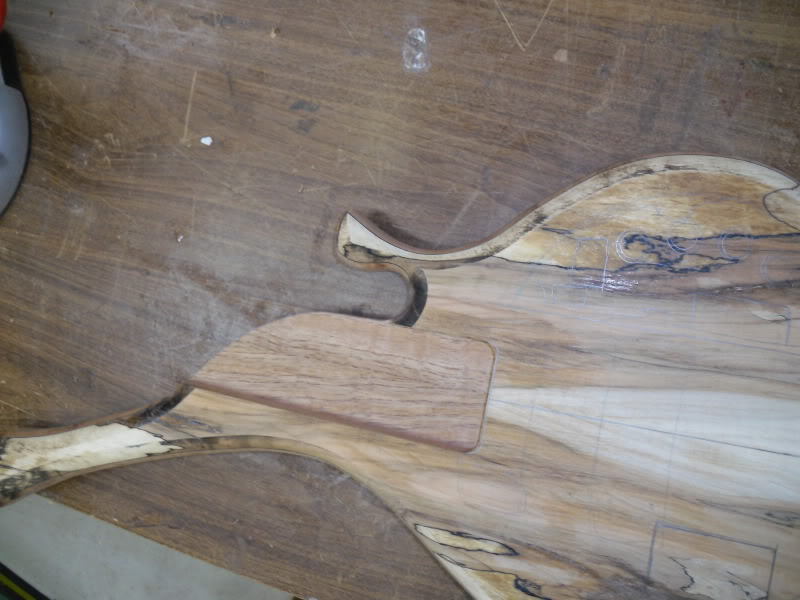

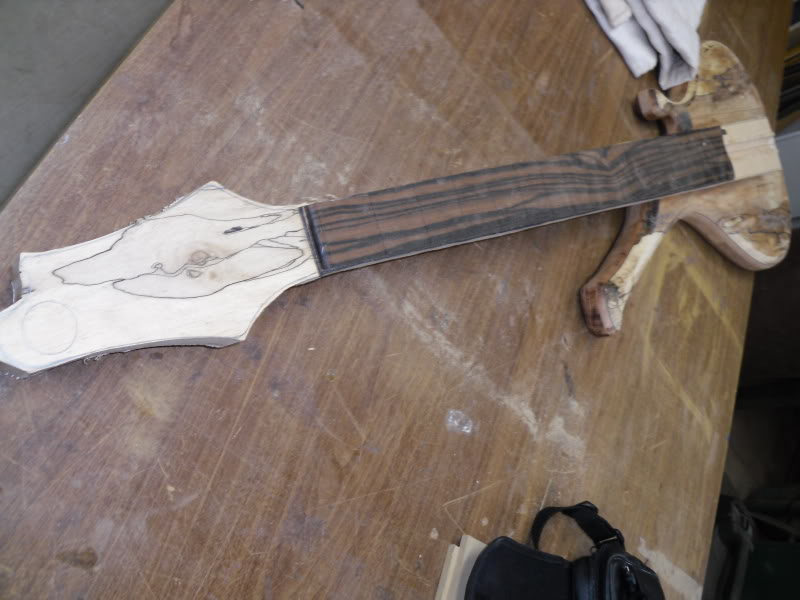

neck in place; i wish i could took a pic of me holding at arms length by the neck; man what a nice fit!

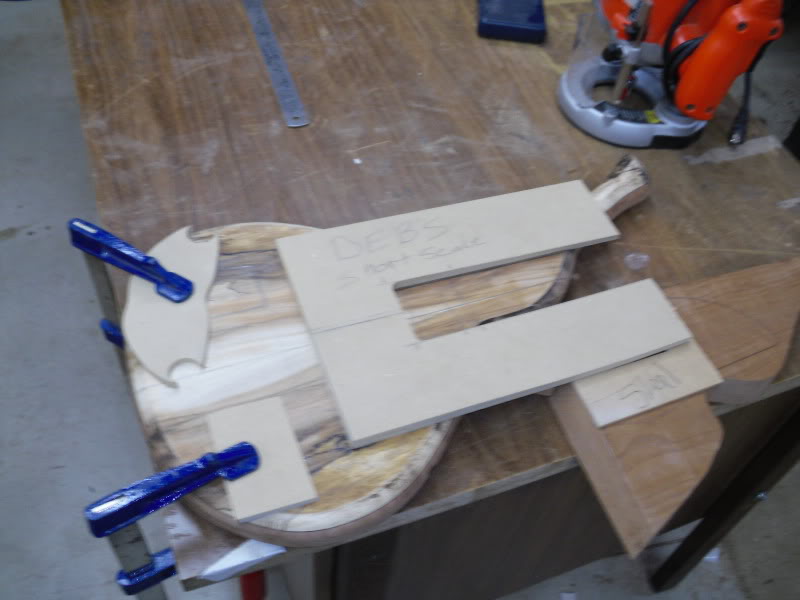

my neck jig

1st fret

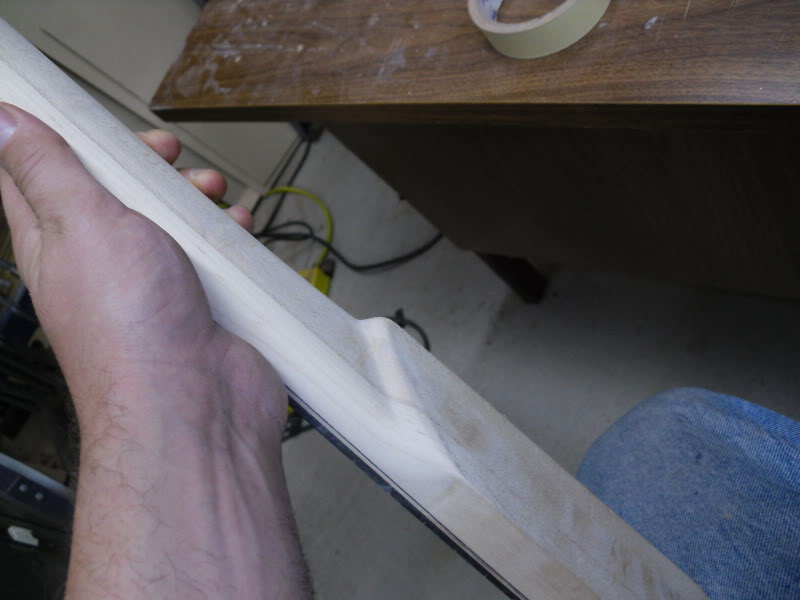

12th fret, straight from the router

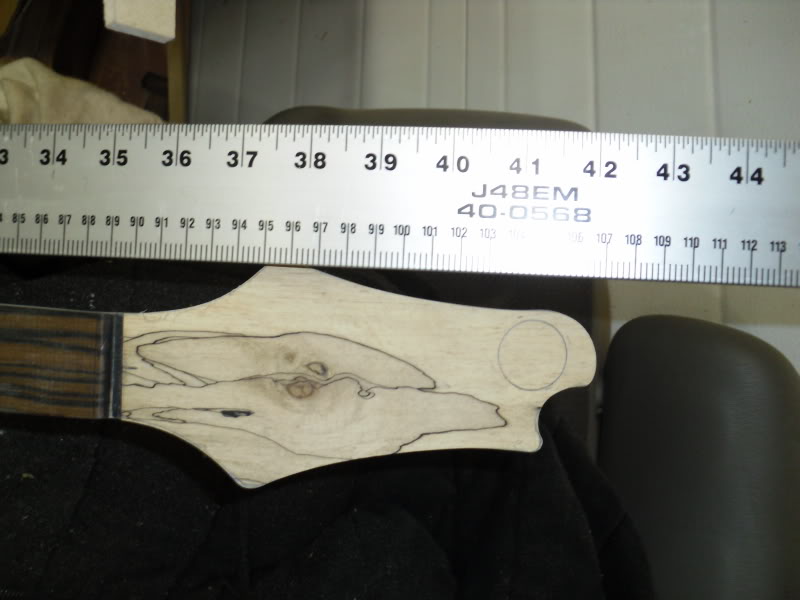

overall size

actually about 41" cause of how the ruler was standing


packin her in for tonight;
