Show me your compact pedalboard setup

[Malafaia]

Latest iteration:
View attachment 4794587

it's ridiculous that I navigate through this thread just to see these pedalboards with 2 or 3 analogic effects.

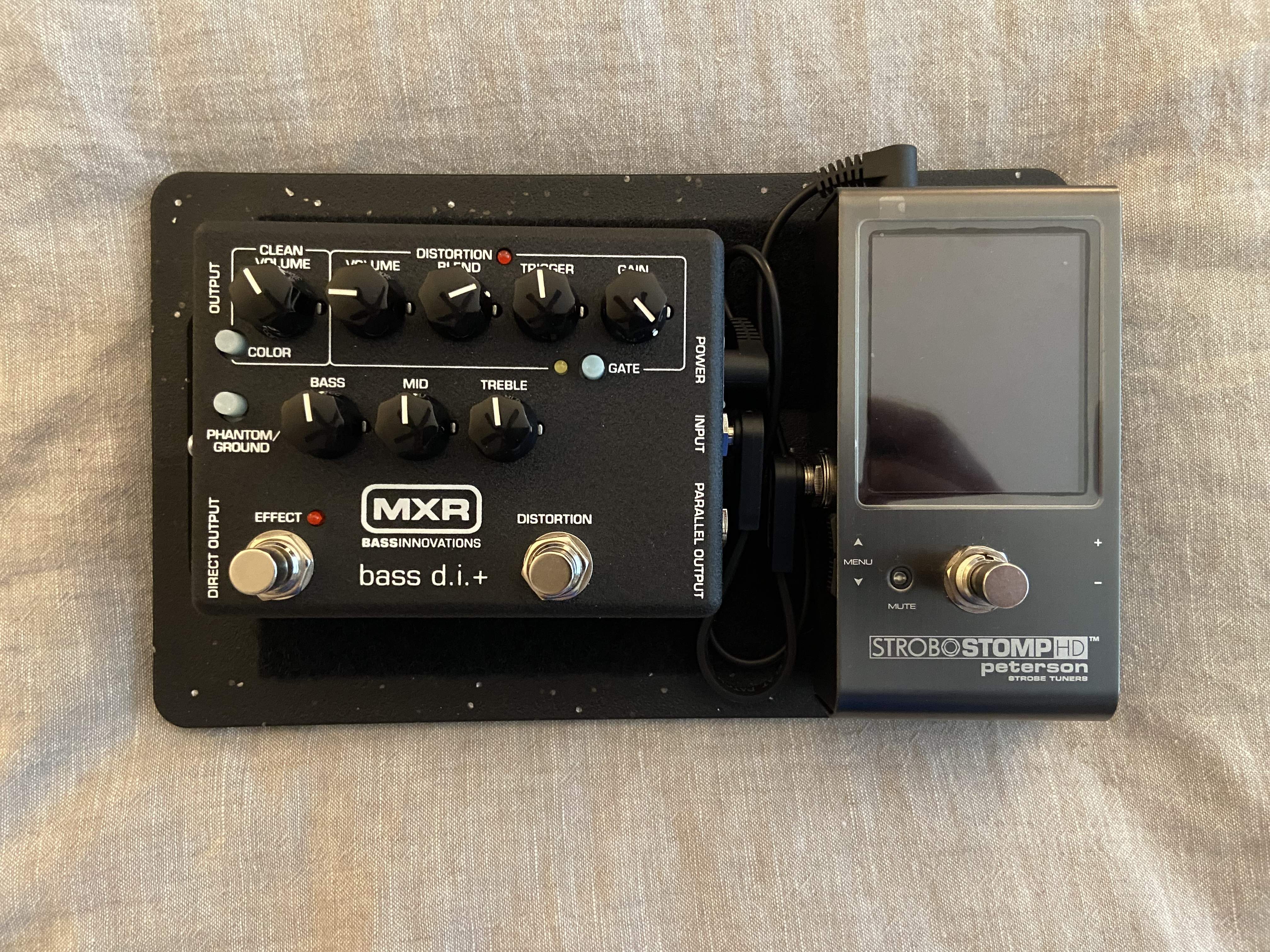

actually, yours have a mute, a tuner, an eq, distortion, gate, DI and a cabsim (the color button). I don't know if it is a buffer too, plenty of pedals.



[Malafaia]

View attachment 4794963

(AGAIN, I was typing when this one was posted)

it's ridiculous that I navigate through this thread just to see these pedalboards with 2 or 3 analogic effects.
actually, yours have a mute, a buffer, a tuner, an eq, compressor, distortion, DI and a cabsim.



[prndltech]

View attachment 4794963

Great minds…. That was my setup, but I swapped the MXR comp. Out for a keeley bassist and that’s all ya need!



[MascisMan]

(AGAIN, I was typing when this one was posted)

it's ridiculous that I navigate through this thread just to see these pedalboards with 2 or 3 analogic effects.
actually, yours have a mute, a buffer, a tuner, an eq, compressor, distortion, DI and a cabsim.

What does analogic mean? Do you mean "2 or 3 analog effects?"



[Bob_Ross]

Here's the latest incarnation, and definitely most compact, of my Compact Pedalboard:

None of the pedals are new, just re-configured for this application...and, to be completely honest, I don't think I'll ever use this pedalboard by itself; it's really designed to be used as the front end in conjunction with any number of additional pedalboards...so, in its most compact setup, there'd at least be a Soma COSMOS in the signal chain following this.



[bassbrad]

Side board of dirty sounds.



[HollowLeg13]

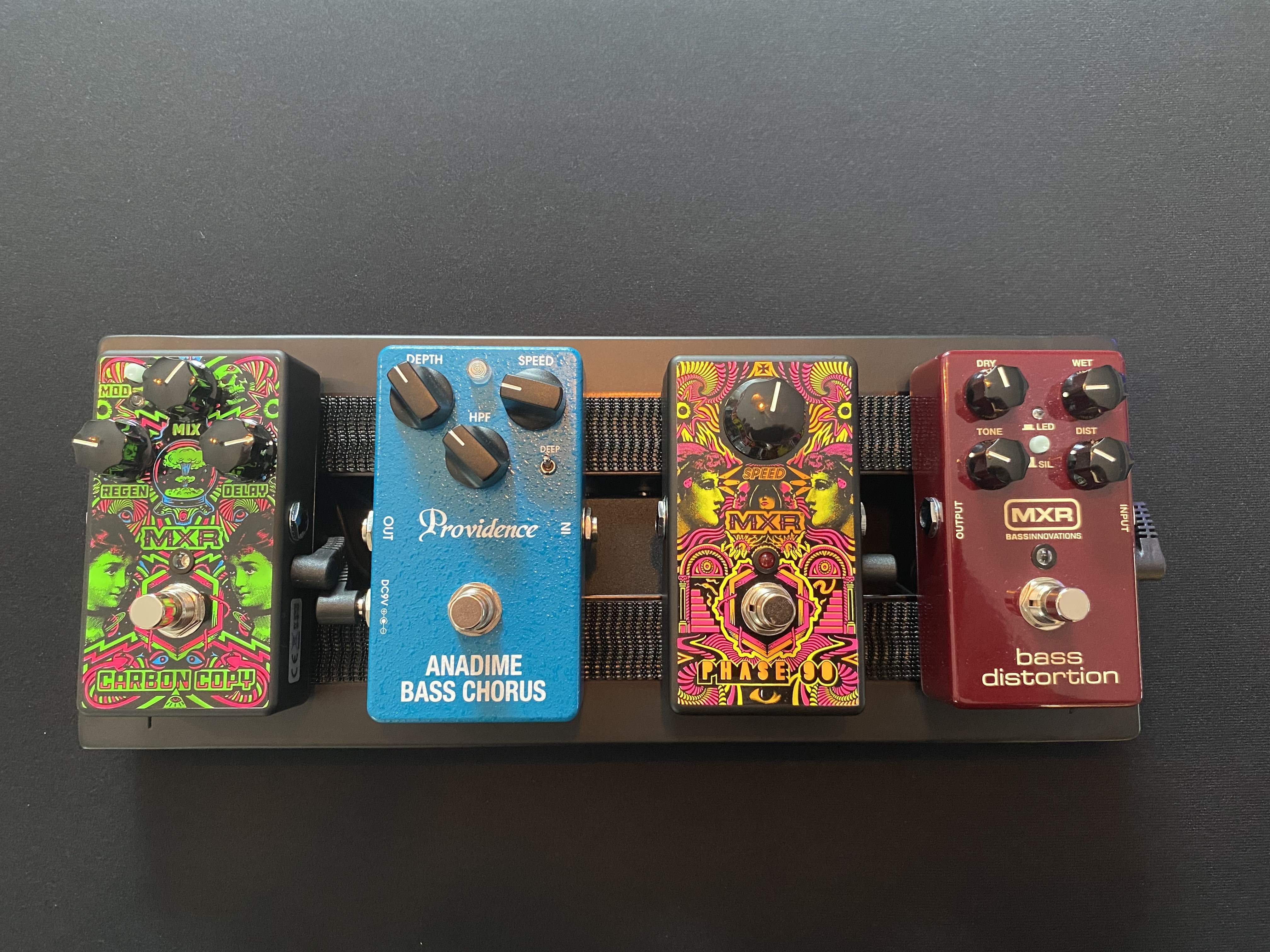

My main/drive board (nano+) and building a nano modulation board for fun (mxr distortion holding a spot for something else…)



[PhatBottomBass1]

My main/drive board (nano+) and building a nano modulation board for fun (mxr distortion holding a spot for something else…)
View attachment 4798406 View attachment 4798407 View attachment 4798408

Those Special Edition I Love Dust pedals are too cool!



[Mr. voodoobass]

Put together a minimal yet maximized board.



[GrapeBass]

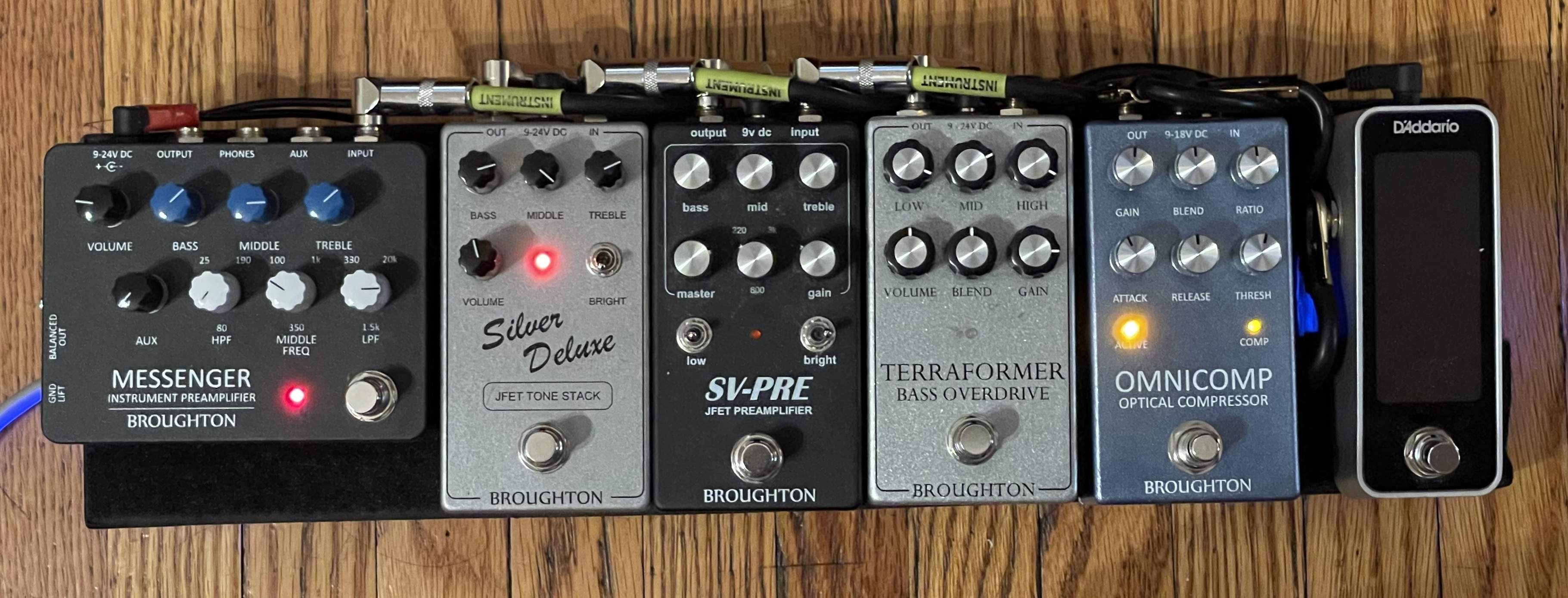

With the inclusion of my newly acquired Broughton Omnicomp, my Broughton Flavor Board is complete.



[Xandrell]

With the inclusion of my newly acquired Broughton Omnicomp, my Broughton Flavor Board is complete.

View attachment 4800982

Nice. Shows the difference it makes with the jacks on top. Broughton, good stuff.



[Gruff]

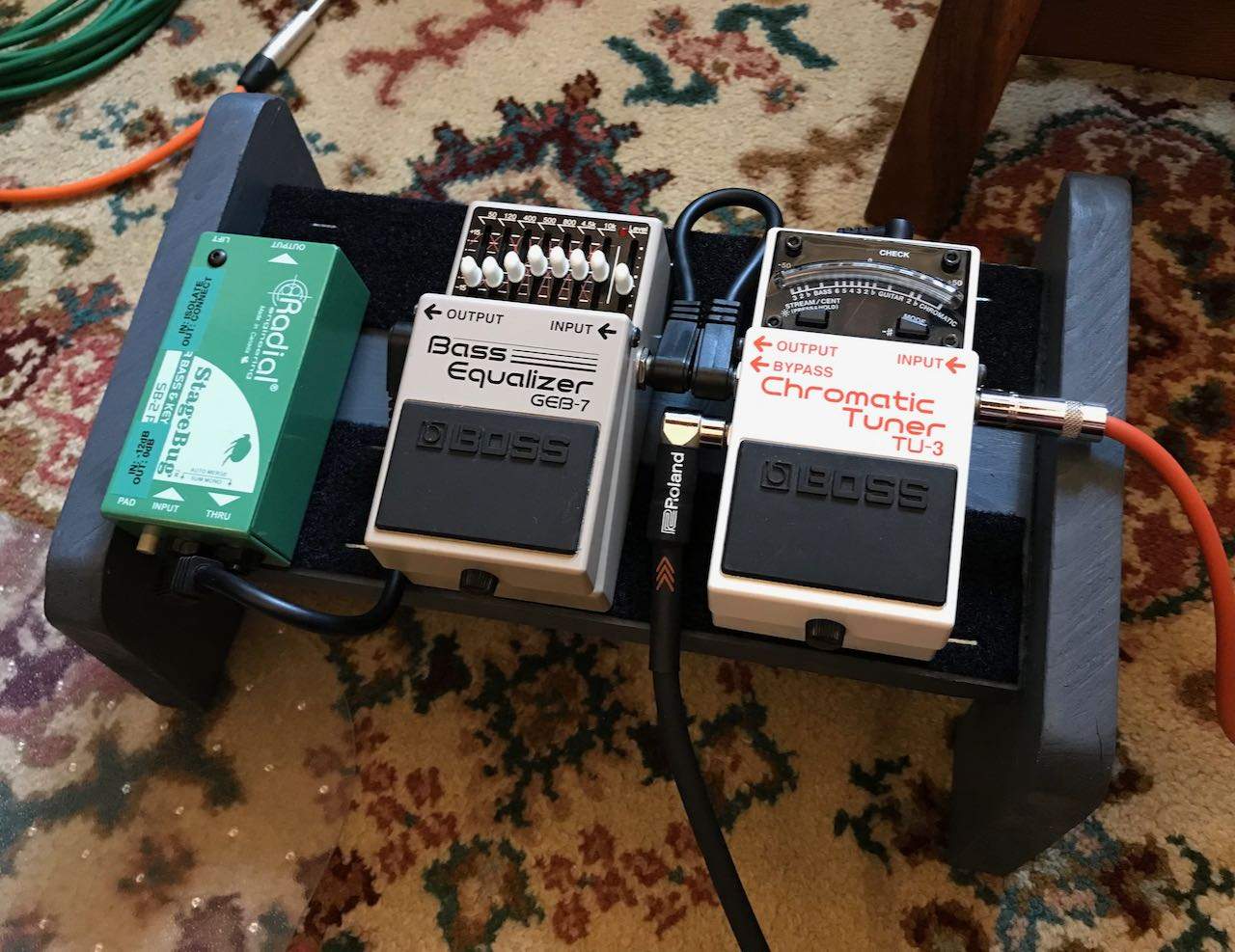

I've been meaning to post a photo of my prototype pedalboard for a while. I'm just about to pull it apart to make it a bit wider for a battery pack. I'm thinking 12mm plywood next time to shave off some weight.



[JohnSmith2]

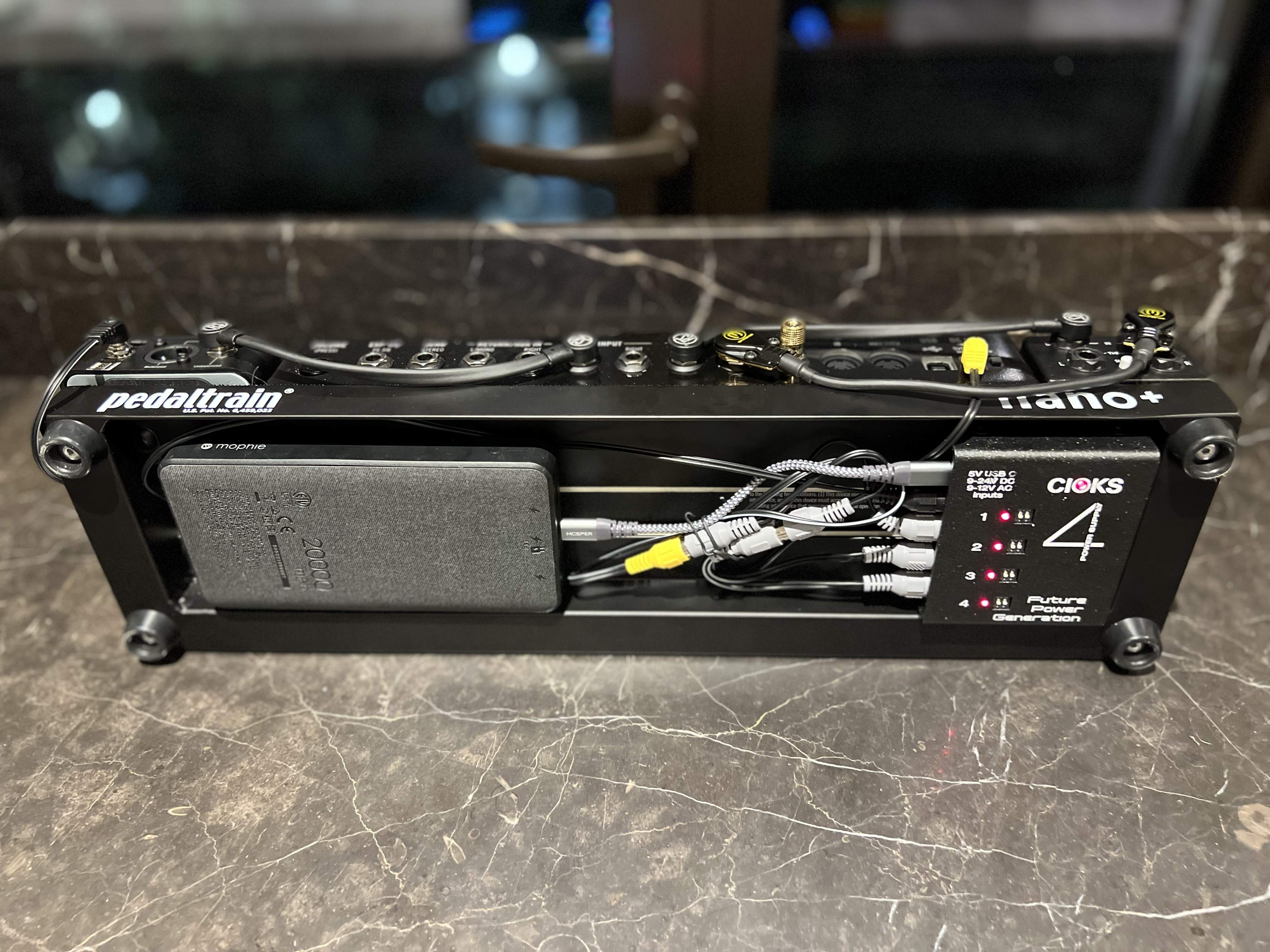

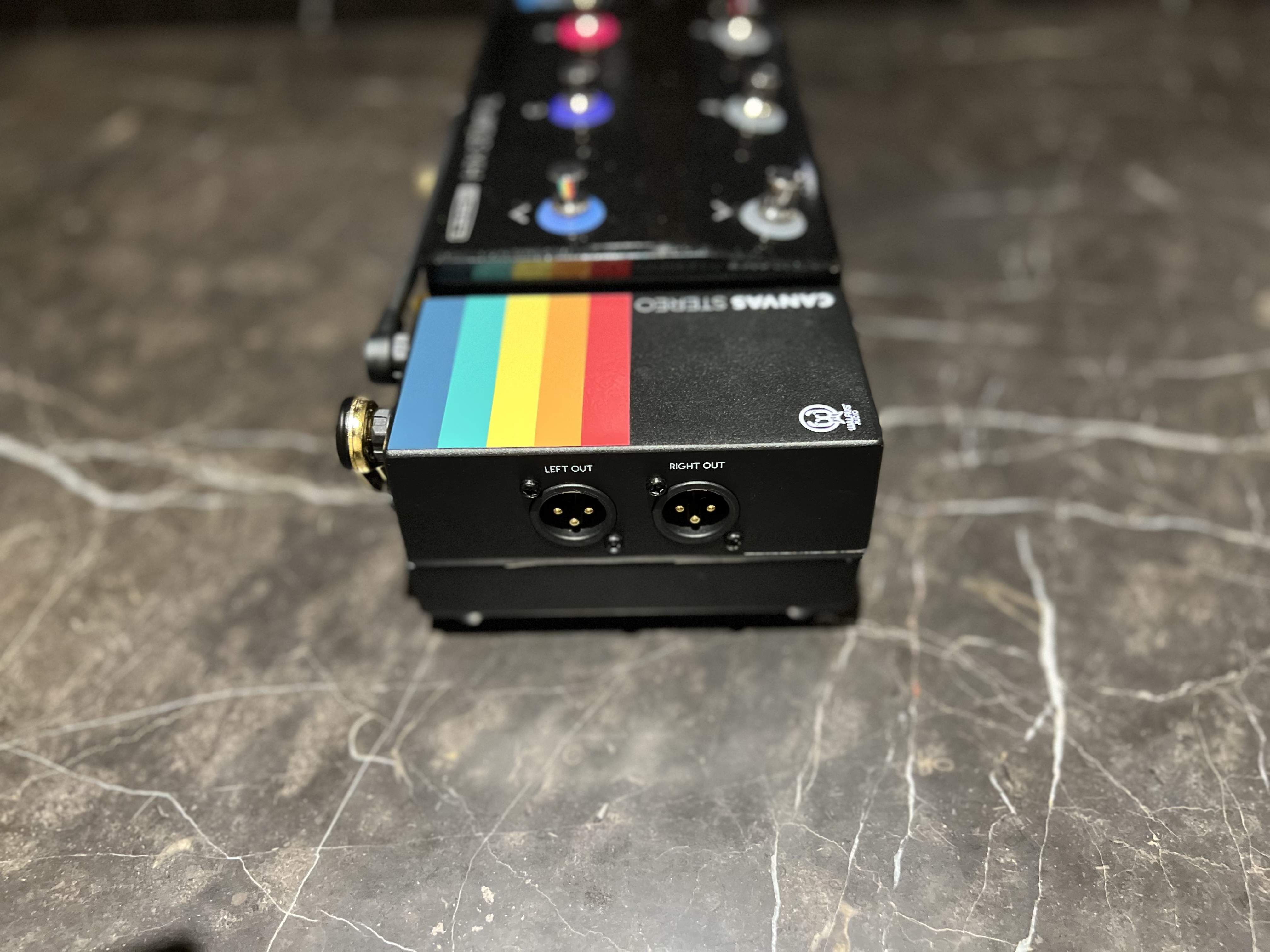

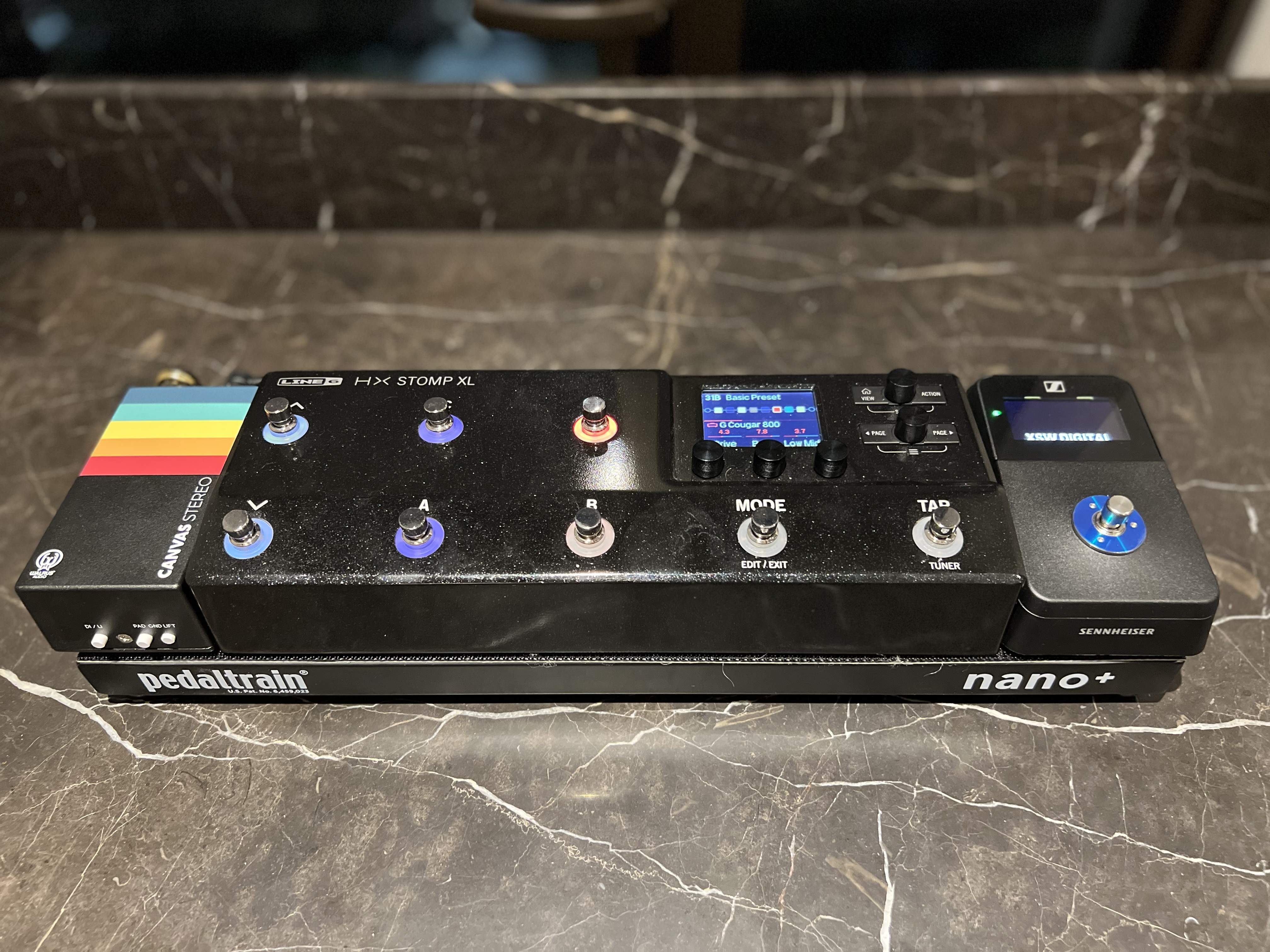

New board based on HX Stomp XL, battery powered.



[Gruff]

New board based on HX Stomp XL, battery powered.

Nice battery solution. I looked at the CIOKS4, they're relatively expensive, but get good reviews.



[laklandfan07]

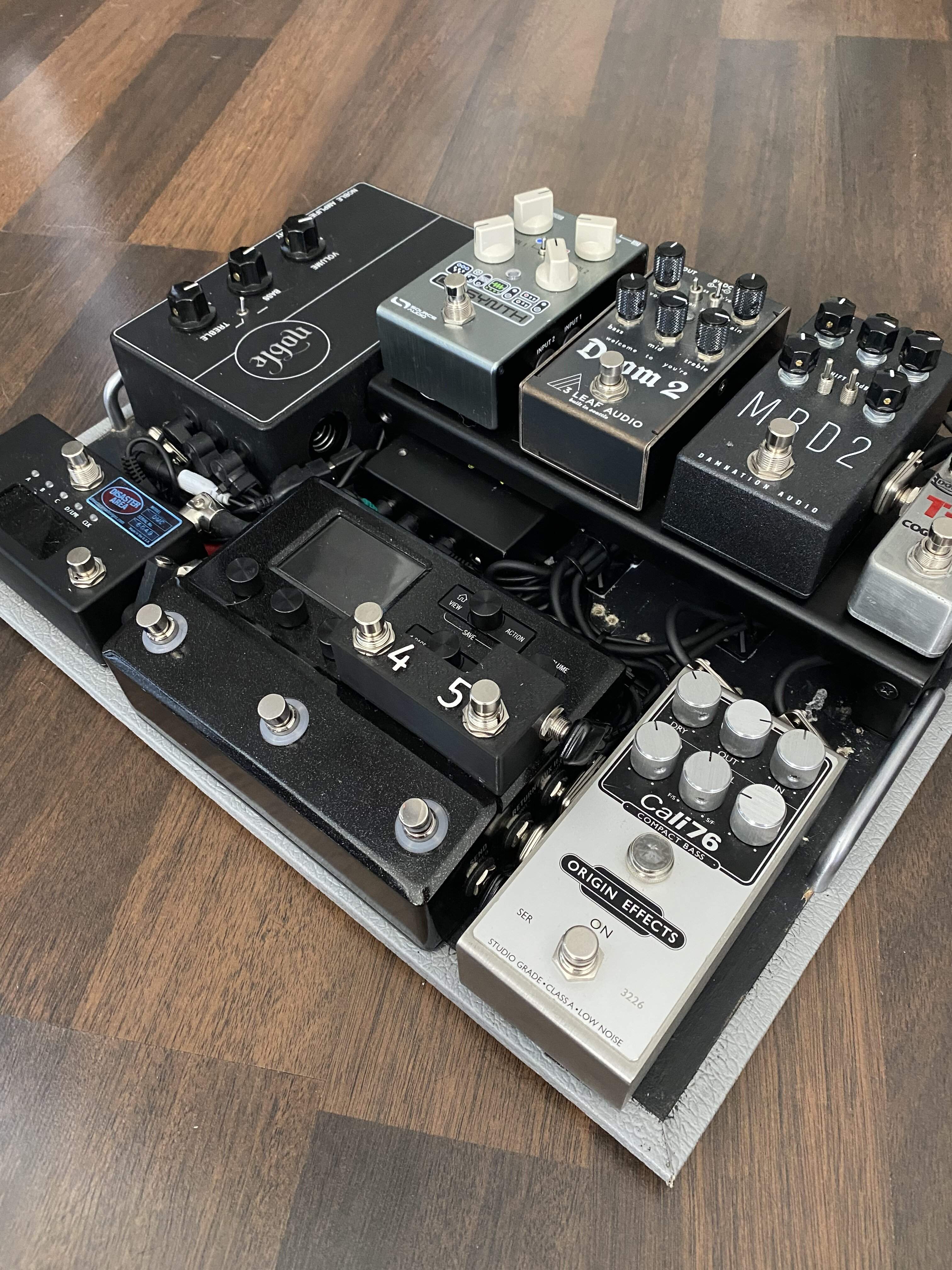

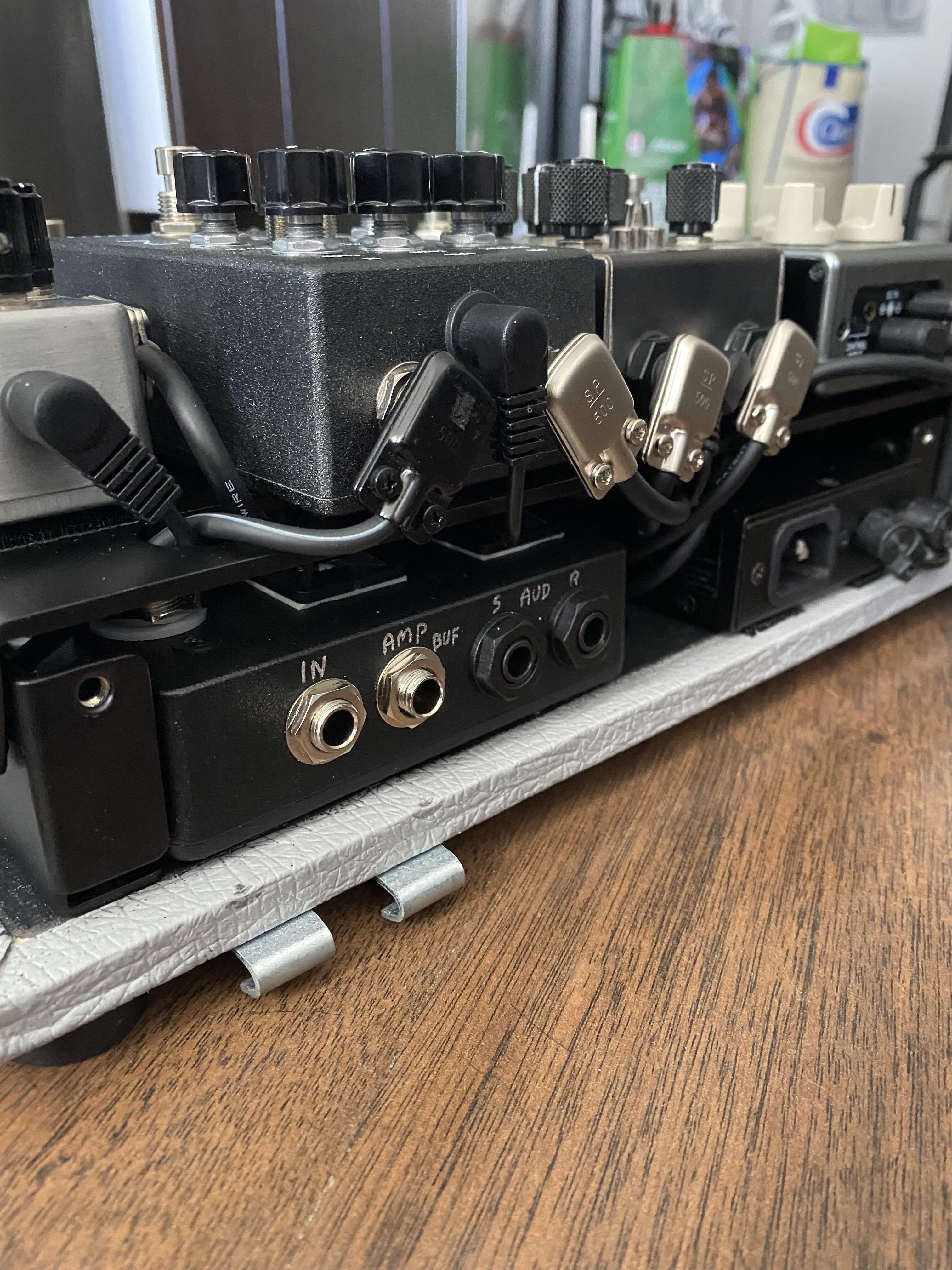

Upgraded again Did a full riser from fix pedalboards and added a new input/output buffer from American loopers. It can audition new pedals into the chain and also bypass the board entirely if theres a failure. Also have set up the Hx stomp to split my signal, all effects go to the buffer and out to my amp while the clean goes to my Noble DI.



[moorebass]

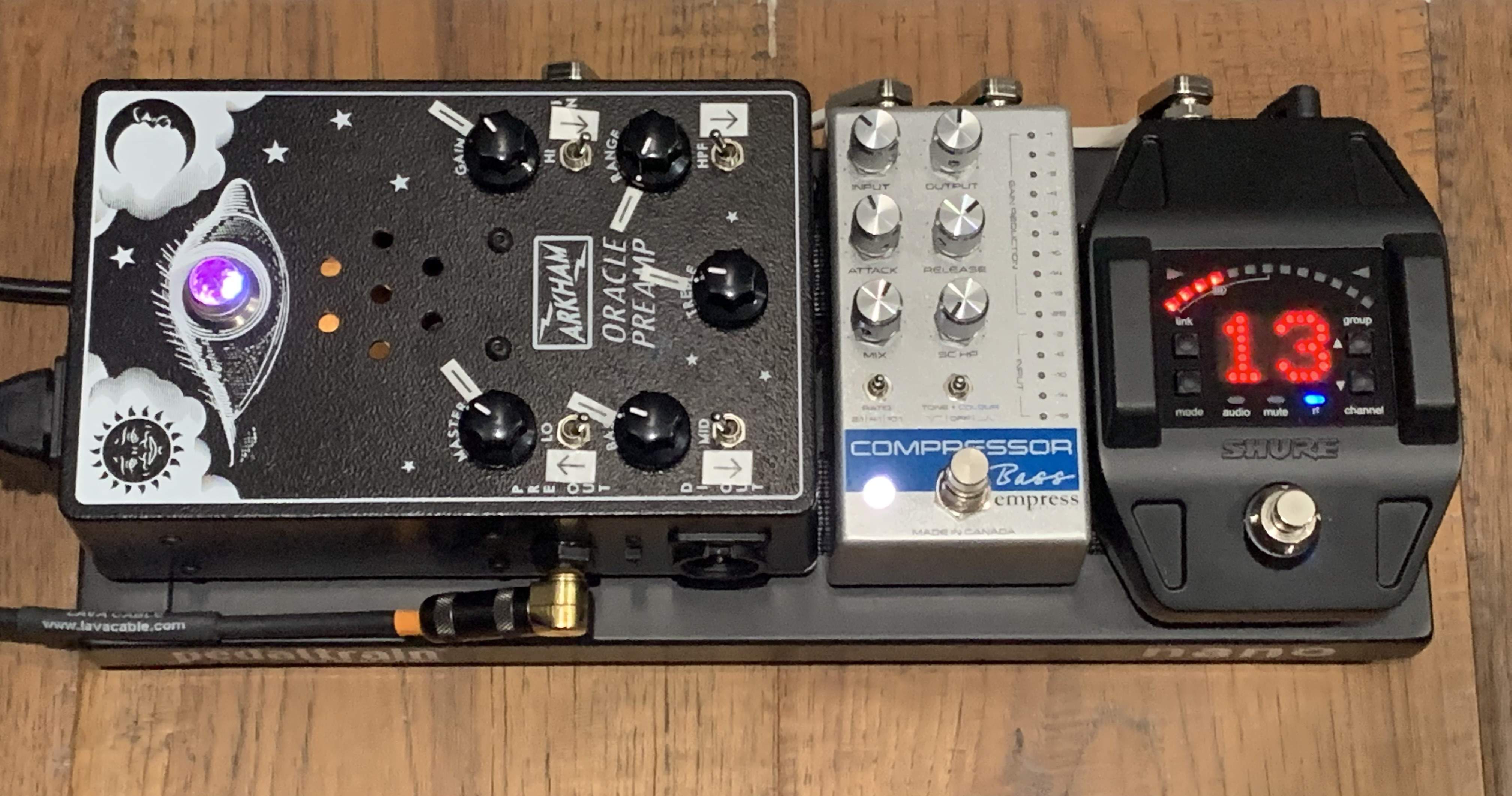

Here's my minimalist "pedalboard". I hardly used any effects so I downsized as much as possible. Settings on the Oracle mark what I use at church but it's currently set up in my office running straight into a QSC K12.2.



[MascisMan]

View attachment 4806305 Here's my minimalist "pedalboard". I hardly used any effects so I downsized as much as possible. Settings on the Oracle mark what I use at church but it's currently set up in my office running straight into a QSC K12.2.

How are you powering the compressor and wireless?



[moorebass]

How are you powering the compressor and wireless?

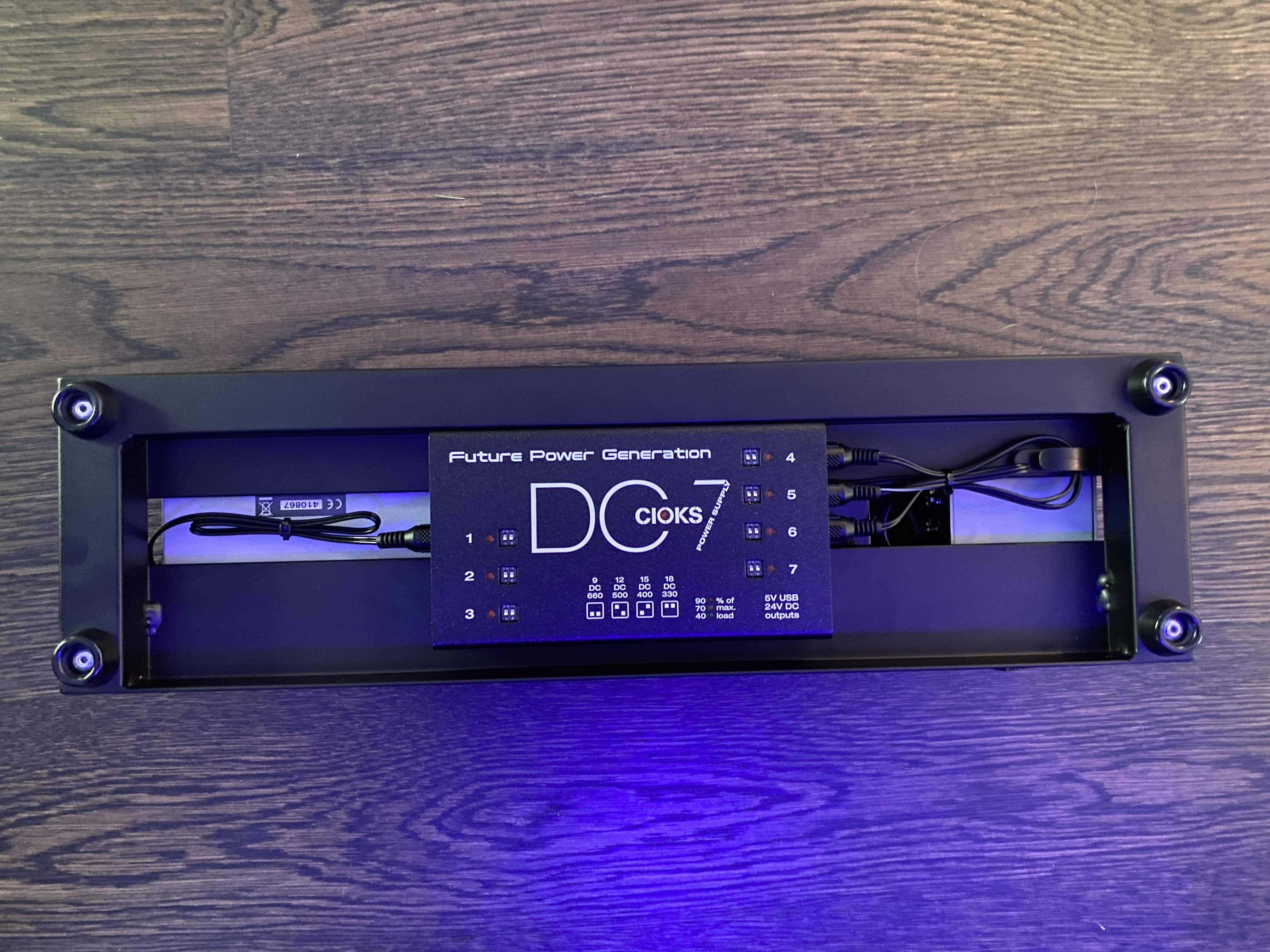

There's a CIOKS DC7 on the underside held in place with Dual-Lock. Overkill, but it's a remnant from the larger board.



[TerriblePeril]

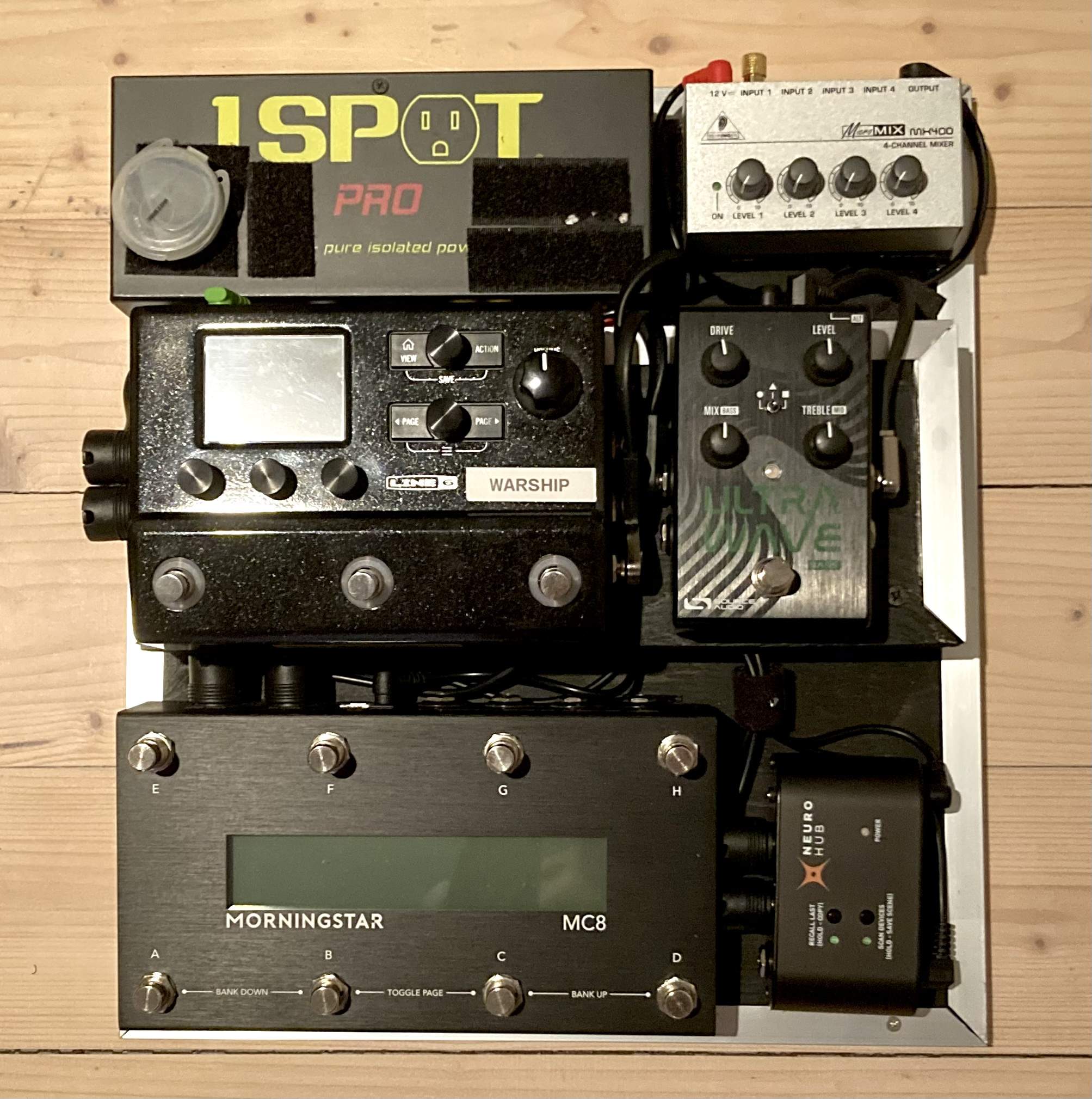

View attachment 4800855 Put together a minimal yet maximized board.

Mixer so you can run synths into it, too?



[HateTank200]

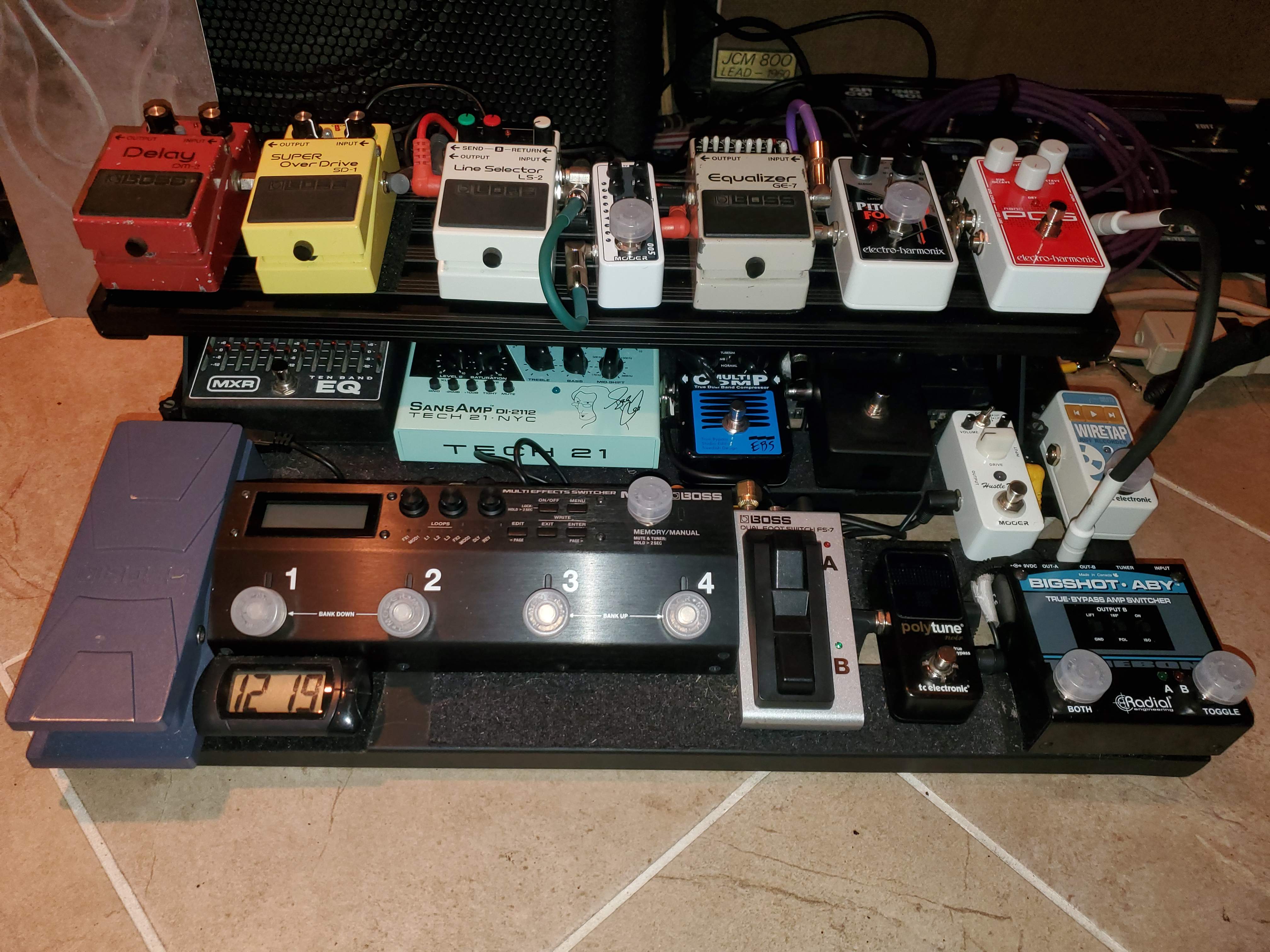

This is my Bass/Guitar hybrid rig. Running 2 signals one to Guitar amp and one to Bass amp. The top row is for guitar and the bottom board is for Bass.
