Show me your compact pedalboard setup

[MascisMan]

The mT is a fixed hpf…25hz cutoff, with a really steep -36 dB/oct slope. It cleans up the very bottom-end mud/allows my B string to remain super defined, deep/rich. Very noticeable a/b’ing.

Then I use the S1 variable cut off (-12 dB/oct) hpf only for further room dependent need. Have found I use m-u-c-h less of the S1 hpf, which is better for the bottom-end (open B on up) remaining very pure/intact…defined. Had a good friend convince me to try the mT…quickly became a believer with my ears—purchased two!

Nice! Thanks for the explanation



[Naigewron]

How old is your Midi Baby? Mine has the center switch as tall and I made a suggestion to switch that and make the outsides tall and the center shorter. Just wondering when the change happened?

Mine came that way too. I just opened it up and lowered the front switch and raised the back ones. Works better that way for me.



[furym]

Mine came that way too. I just opened it up and lowered the front switch and raised the back ones. Works better that way for me.

Seriously? It’s that easy?
I will have to take a look at mine then.



[Naigewron]

Seriously? It’s that easy?
I will have to take a look at mine then.

Yeah, super easy. The default switch heights make no sense to me either.

All the switches are the same height, the back two are just mounted deeper into the box.



[dabis]

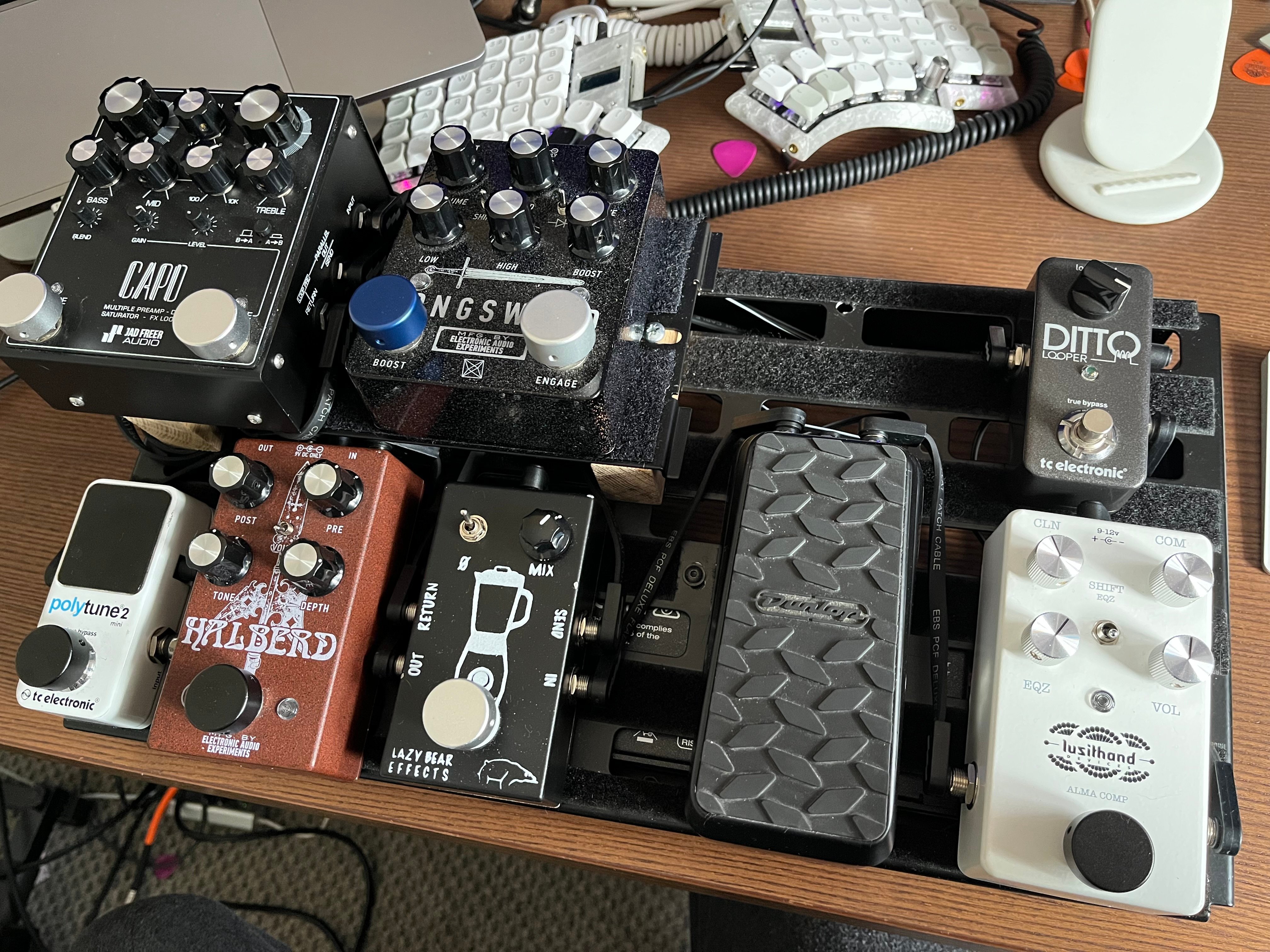

Not sure this is still compact but certainly making the most of the space on the RB tres 3.0.

I pretty much had space for the front row and anything above had to be 90 degrees to fit but now it fits great. Still got a Model FeT to get on there once fixed but then it's complete (for now).

View attachment 5170921

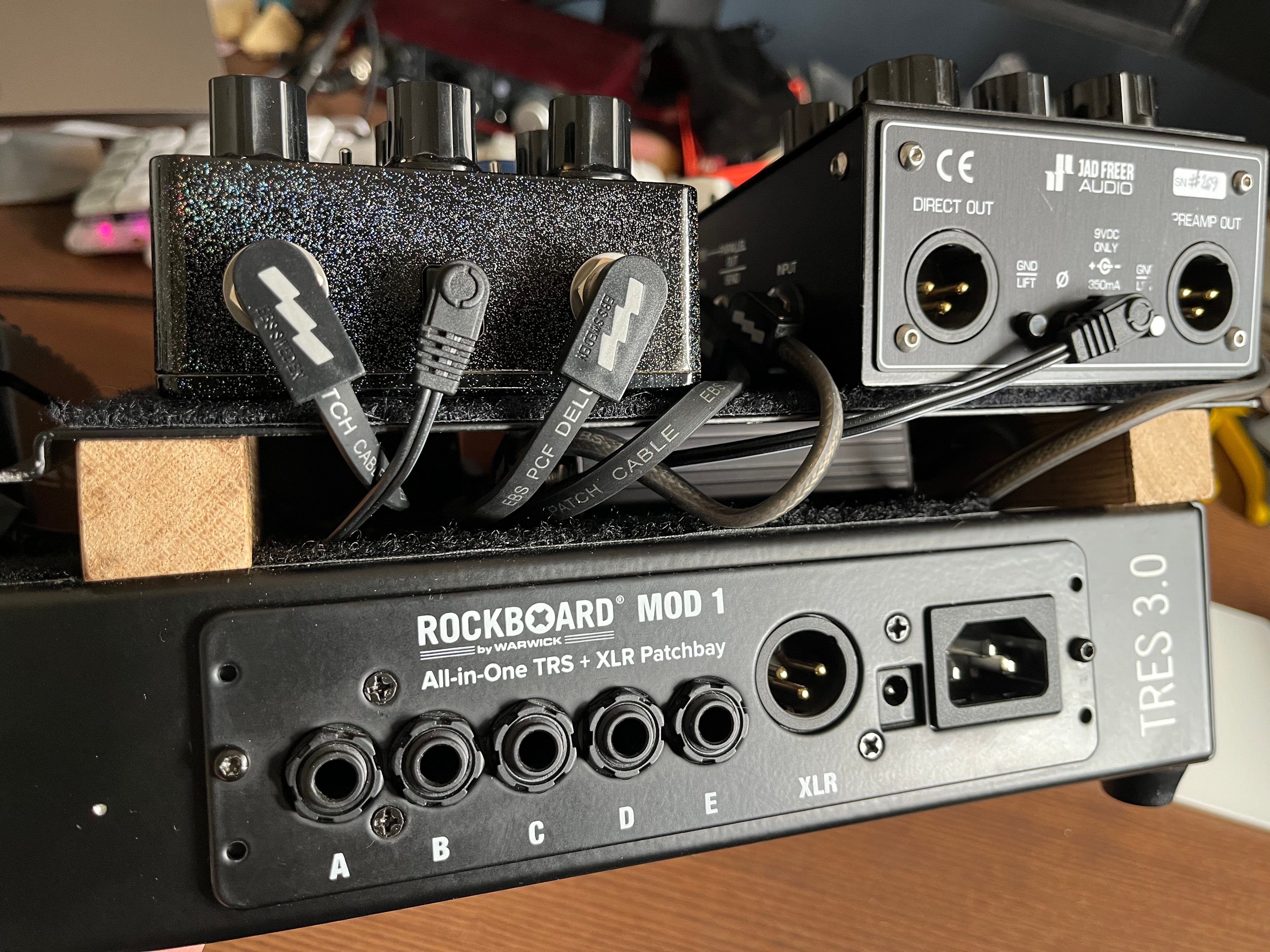

Needs some neatening up underneath:
View attachment 5170923

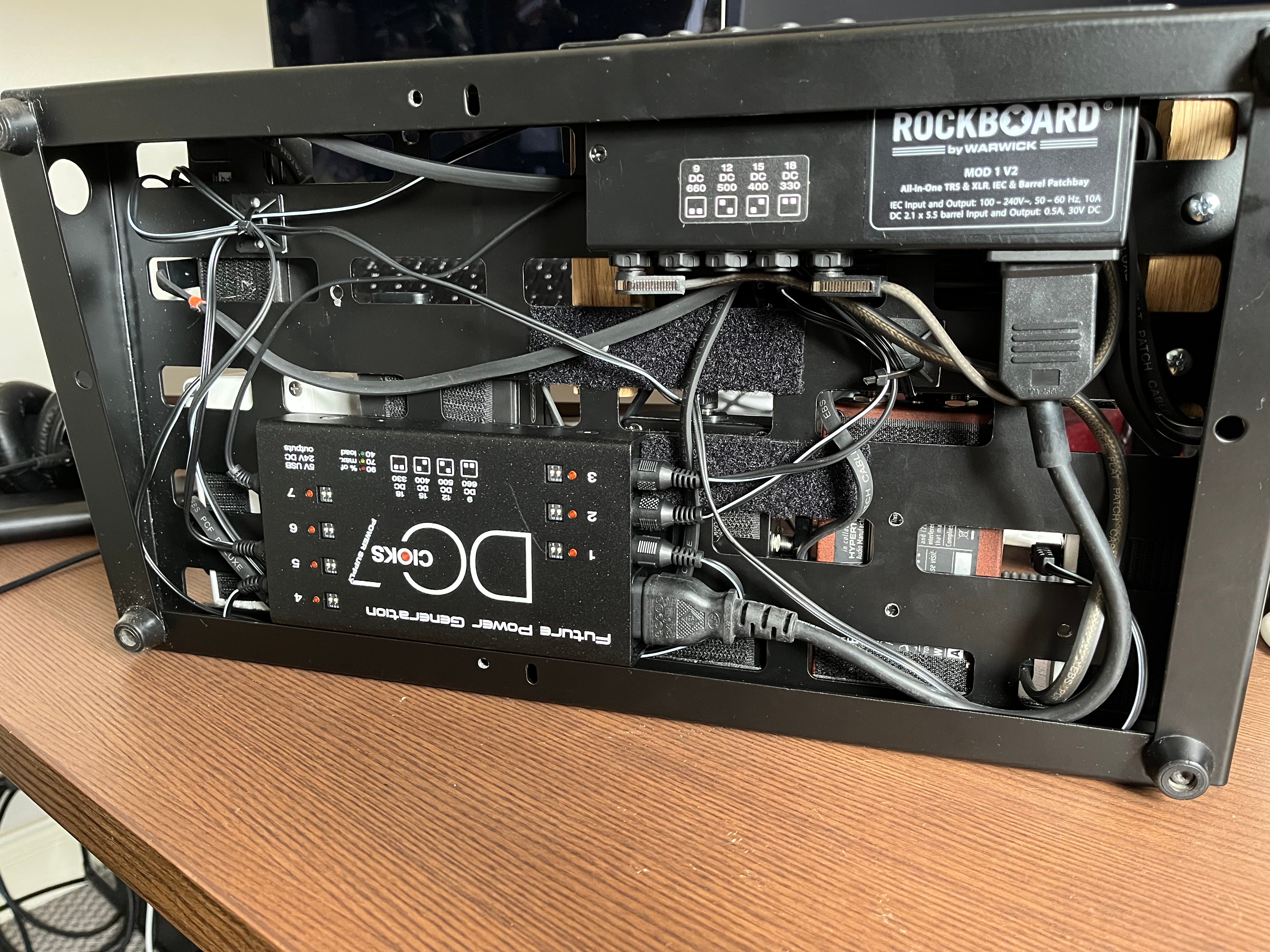

Theres also a Thumpinator v2 hidden away under the shelf:
View attachment 5170922

Wow! a coffee machine in a box! That is really a game changer!
Now, the beer tap... boutique beer.



[SemiDriven]

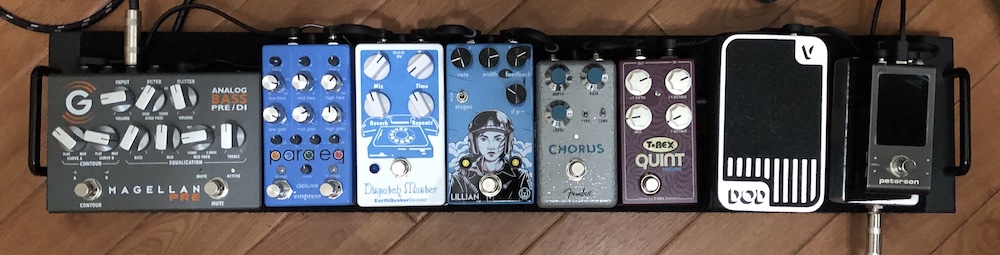

Just put this together for a Mono Tic 2.0 grab and go. Tell ya what…some freak’in fantastic clean tone! (microThumpinator currently between MORE and S1)View attachment 5171348View attachment 5171347

I'm looking to put together a small board primarily for recording purposes centered around the S1. I've got all the pieces you have (different tuner). I may bypass the microThumpinator though as it's firmly ensconced on another board. Thanks for the blueprint!



[kevk]

I'm looking to put together a small board primarily for recording purposes centered around the S1. I've got all the pieces you have (different tuner). I may bypass the microThumpinator though as it's firmly ensconced on another board. Thanks for the blueprint!

Look forward to seeing your version! As a ‘top jacks’ advocate…it’s frustrating to see the plethora of tuner choices all using side jacks…w-h-y-y-y?!



[deepestend]

Look forward to seeing your version! As a ‘top jacks’ advocate…it’s frustrating to see the plethora of tuner choices all using side jacks…w-h-y-y-y?!

Agreed. Why is a tuner with side jacks so rare?



[kevk]

Agreed. Why is a tuner with side jacks so rare?

Oh, I meant the opposite…seems most all tuners have side jacks. Be nice to have a highly accurate ‘top jacks’ tuner…



[sloppy_phil]

Agreed. Why is a tuner with side jacks so rare?

Oh, I meant the opposite…seems most all tuners have side jacks. Be nice to have a highly accurate ‘top jacks’ tuner…

Here's one option that's bound to be less triggering

Peterson StroboStomp Mini | Reverb Canada



[WillyW]



[deepestend]

Oh, I meant the opposite…seems most all tuners have side jacks. Be nice to have a highly accurate ‘top jacks’ tuner…

Meant “top jacks”



[Pedalnetics]

Meant “top jacks”

Peterson released their StroboStomp Mini, which has top jacks
Link Removed



[mapleglo]

Here's one option that's bound to be less triggering

Peterson StroboStomp Mini | Reverb Canada

Peterson released their StroboStomp Mini, which has top jacks
Link Removed

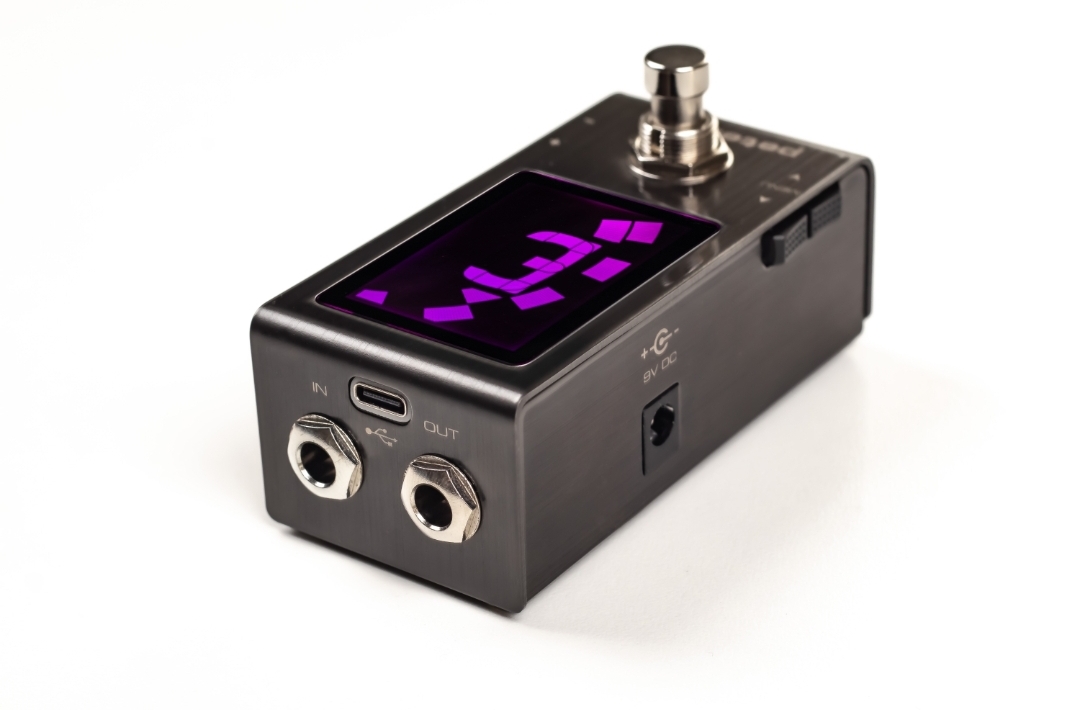

View attachment 5172604

Of course, the power jack is on the side, and the menu selector button is on the other side
I have mine powered by usb but still needed to leave a little space for the menu buttons.



[marchone]

Peterson released their StroboStomp Mini, which has top jacks
Link Removed
View attachment 5172604

Ordered. Received my full sized StroboStomp a few months ago and it is a great tuner. Love the features.



[mapleglo]

Ordered. Received my full sized StroboStomp a few months ago and it is a great tuner. Love the features.

Despite the downside, the mini is a great tuner. As fast and accurate as the full sized model.



[marchone]

Despite the downside, the mini is a great tuner. As fast and accurate as the full sized model.

I must have missed something. What is the downside to the Mini version?



[mapleglo]

I must have missed something. What is the downside to the Mini version?

Power jack and menu controls are on the sides, so I wasn't able to have the tuner pressed against the next pedal - had to leave some space between the pedals anyway.



[marchone]

Power jack and menu controls are on the sides, so I wasn't able to have the tuner pressed against the next pedal - had to leave some space between the pedals anyway.

I see it now. Still, the guitar in is on the top. Works for me.



[mapleglo]

I see it now. Still, the guitar in is on the top. Works for me.

It works for me as well, and it takes up a lot less room compared to the Korg tuner it replaced, which doesn't function nearly as well - the only other tuner I could find with top mounted jacks.
