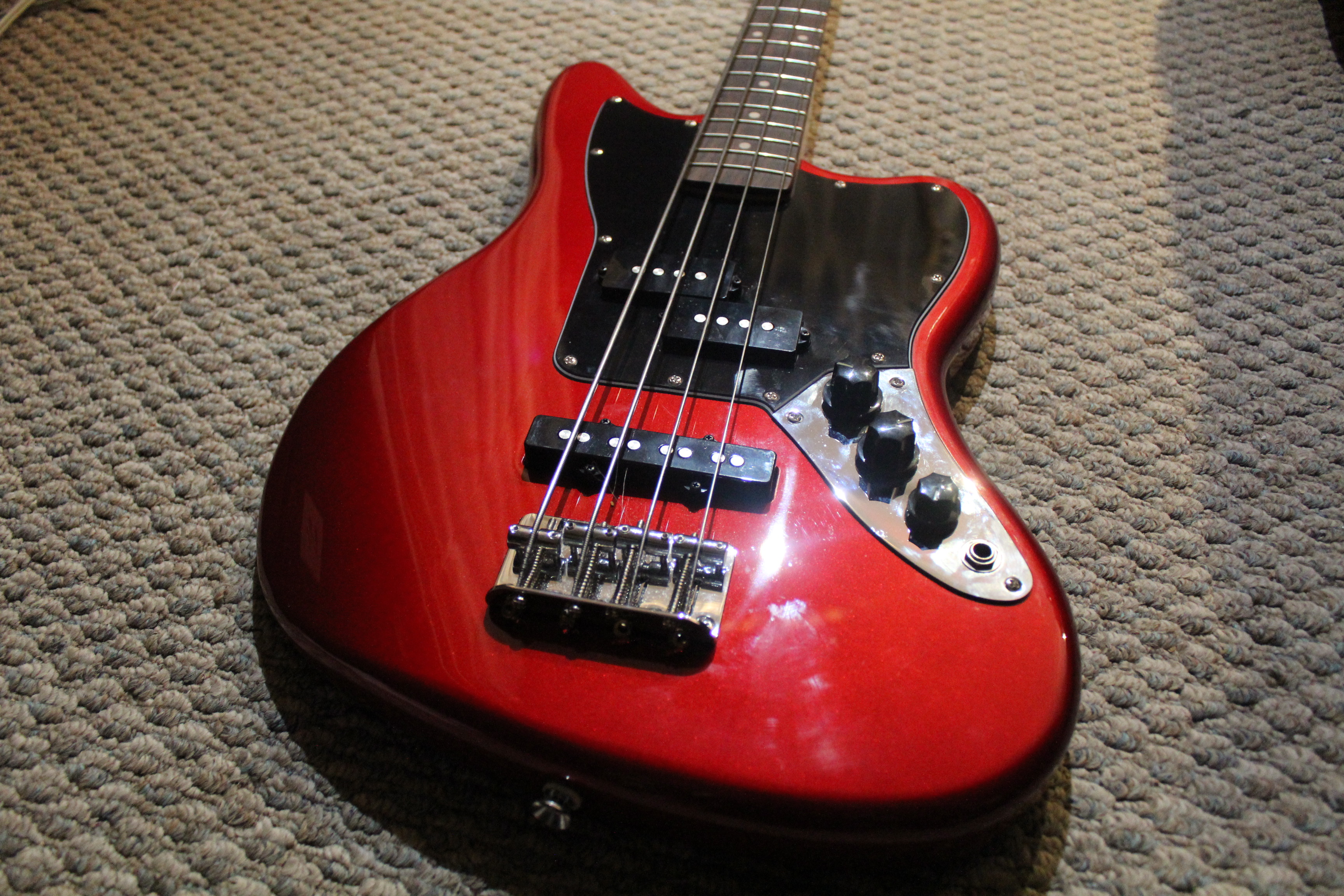

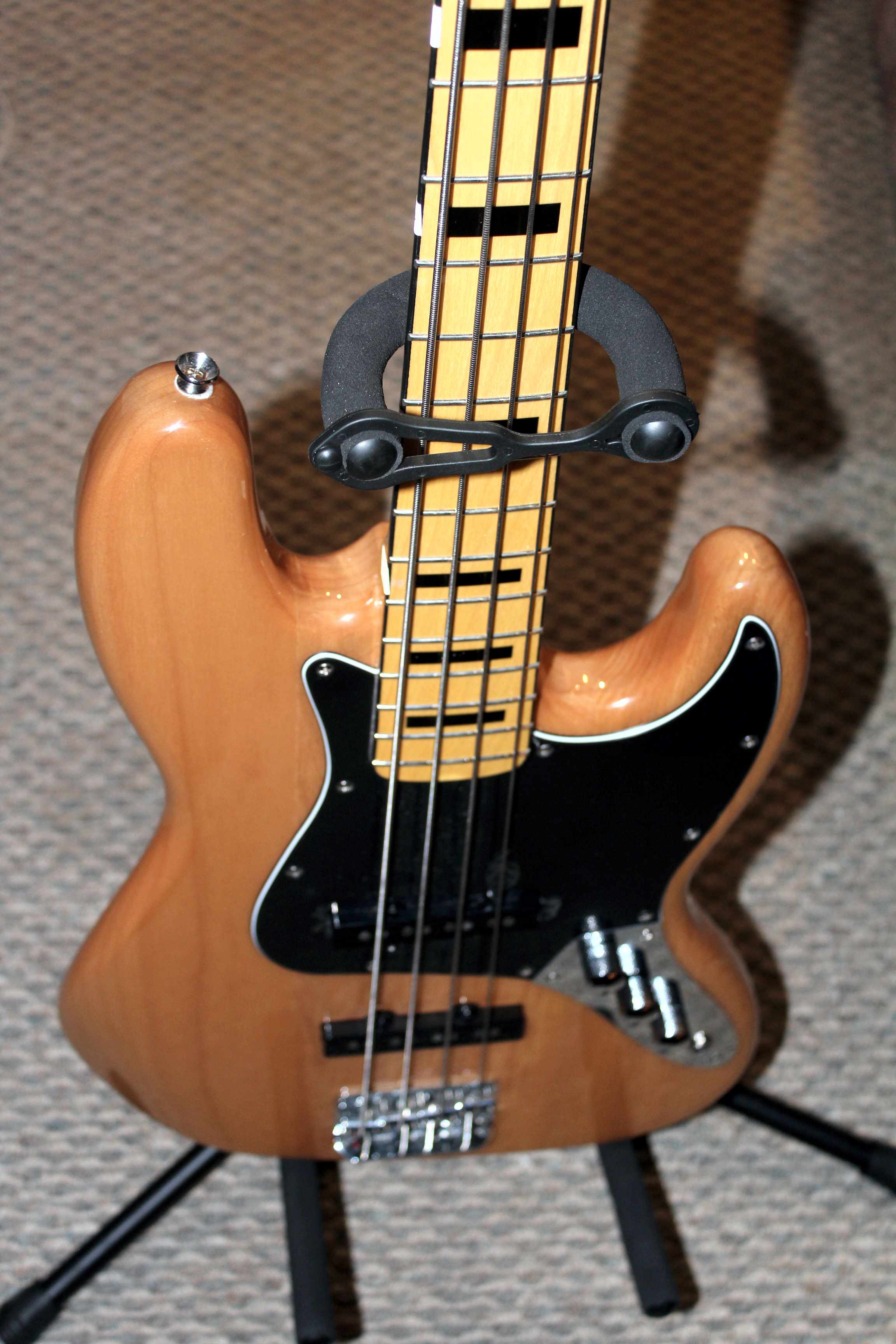

Some beautiful Squier basses and impressive mods shown recently! What a bargain these are.
I have a custom Squier dual-P bass (affinity) taken apart for re-finishing. I bought it in pieces after being custom air-brushed. I routed a cavity for a second P pick-up, up-graded pots etc. I'm using a stacked 500k vol/tone and a blend pot with a micro series/parallel switch. The pick-ups shown are Seymour Duncan SPB-2 in the normal position, SPB-3 in the bridge slot. All these parts were spares I had on hand so it didn't cost me to do the mods until I replaced the orig neck with a maple board Mighty-Mite.
I've been playing and gigging it for 2 years and have grown tired of the custom flame job which was poorly prepared and finished so it will soon be Olympic White, with the flame painted PG. Also a vintage creme DiMarzio Mod P will replace the SPB-2 in the normal position. The body is block sanded and primered now, ready for a coat of Dupli-color GM Olympic white and top coat of Deft lacquer. I re-cleared the PG with a fresh coat of minwax poly and it's looking good. The neck is vintage tinted Deft lacquer which holds up well and feels great.
I'll post more as soon as it's finished!
Update: A few weeks has past since the grey primer stage, and while I thought by now my refin would be finished, it is close.
It's taken longer due to inconsistent weather conditions, and the need to spray outdoors.
I'm giving Watco clear gloss nitro-cellulose lacquer a try over the Dupli-color acrylic lacquer this time. One more clear coat and I'll be ready to polish out the final gloss, that's the plan any way.
Each coat of lacquer has tinted the white ever so slightly, for a warmer color which is just what I hoped it would do. More yellowing is expected as the finish is exposed to the light of day.
Here is the body in it's current state.
I have a custom Squier dual-P bass (affinity) taken apart for re-finishing. I bought it in pieces after being custom air-brushed. I routed a cavity for a second P pick-up, up-graded pots etc. I'm using a stacked 500k vol/tone and a blend pot with a micro series/parallel switch. The pick-ups shown are Seymour Duncan SPB-2 in the normal position, SPB-3 in the bridge slot. All these parts were spares I had on hand so it didn't cost me to do the mods until I replaced the orig neck with a maple board Mighty-Mite.
I've been playing and gigging it for 2 years and have grown tired of the custom flame job which was poorly prepared and finished so it will soon be Olympic White, with the flame painted PG. Also a vintage creme DiMarzio Mod P will replace the SPB-2 in the normal position. The body is block sanded and primered now, ready for a coat of Dupli-color GM Olympic white and top coat of Deft lacquer. I re-cleared the PG with a fresh coat of minwax poly and it's looking good. The neck is vintage tinted Deft lacquer which holds up well and feels great.
I'll post more as soon as it's finished!
Update: A few weeks has past since the grey primer stage, and while I thought by now my refin would be finished, it is close.
It's taken longer due to inconsistent weather conditions, and the need to spray outdoors.
I'm giving Watco clear gloss nitro-cellulose lacquer a try over the Dupli-color acrylic lacquer this time. One more clear coat and I'll be ready to polish out the final gloss, that's the plan any way.
Each coat of lacquer has tinted the white ever so slightly, for a warmer color which is just what I hoped it would do. More yellowing is expected as the finish is exposed to the light of day.
Here is the body in it's current state.
