Stingray aftermarket 2 band pre

#501

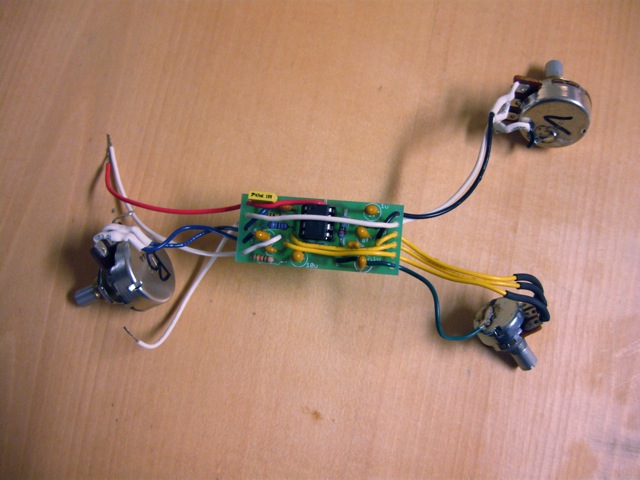

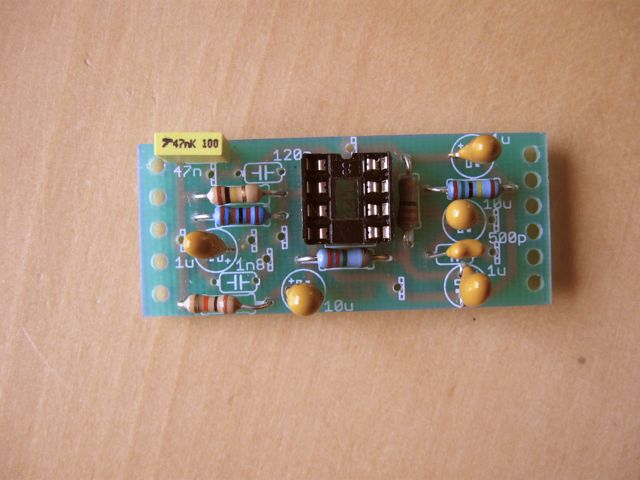

Here's mine. I'm still missing a couple of caps and the wires, etc.





If people are looking for these pre-made, I'm going to be offering them soon. :D

#502
blmeier7 said:

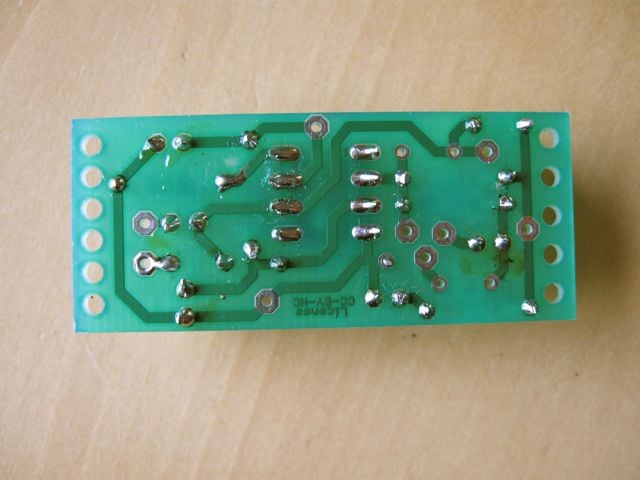

Yeah, I was a little surprised to see that the soldering wasn't done a little better than this. But also this closeup shot makes it look a lot worse.
Click to expand...

Actually not all that bad. It just has too much solder on the connections. Get a wet sponge and use it to clean all the solder off the soldering iron tip. Then reheat each connecting drawing the excess solder onto the iron. Clean the iron and repeat. Should come out looking great. Less solder helps keep close terminals from getting solder bridges and shorting out too.

#510
SGD Lutherie said:
Why would you want to? This preamp is pretty loud. Or are you trying to overdrive it?
Click to expand...

I have an ABG that has some sort of passive pickup that has a very, very low output. Even with my Electronix Submarine maxed out, it's pretty week. I have to crank it some more with another pedal to get decent volume. I don't want to start hacking into it, so I'd like to build a very hot preamp for it.

#514
Herbie Chesnutt said:
May I ask where you found those white pickup covers?

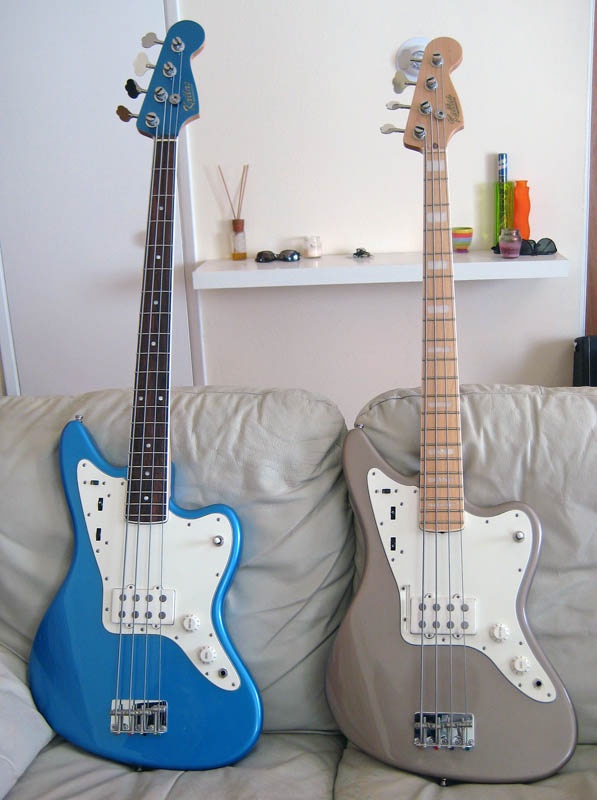

BTW, these things are so darn hot. Definite bass pr0n here.
Click to expand...

thanks!

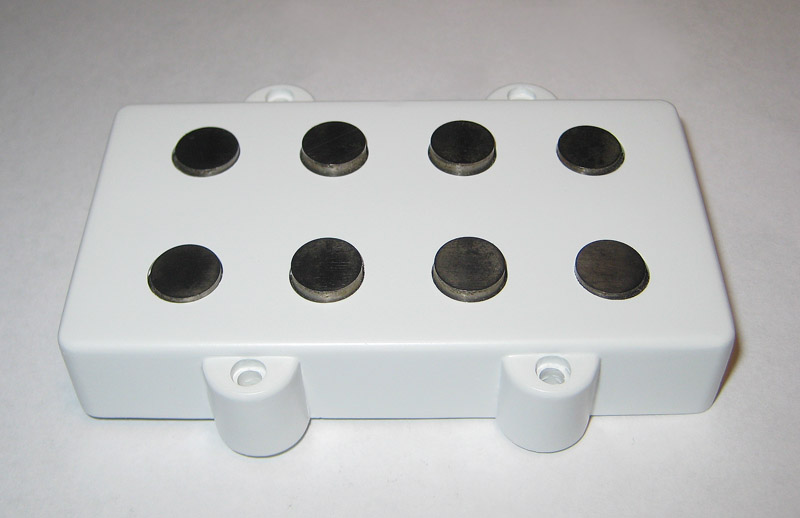

the pickup covers were made from white stingray pickup covers, only i removed their 3 side mounted tabs and added a fourth one to the top and bottom of the pickup.
here's a closeup pic of one:



the pickup is a Nordstand MM4.4 with the coils rearranged to enable a split P bass, reverse split P bass, and all coils on, in both series or parallel modes.

#517
Ingenious. I wouldn't have thought to home brew the covers.

Do those different configs on the Nordstrand sound different enough and usable enough? I was kind of thinking an HH set with those would be pretty outrageous. Could get Stingray, P and Jazz tones all in one.




johnk_10 said:
thanks!

the pickup covers were made from white stingray pickup covers, only i removed their 3 side mounted tabs and added a fourth one to the top and bottom of the pickup.
here's a closeup pic of one:



the pickup is a Nordstand MM4.4 with the coils rearranged to enable a split P bass, reverse split P bass, and all coils on, in both series or parallel modes.
Click to expand...

#518
Herbie Chesnutt said:
Do those different configs on the Nordstrand sound different enough and usable enough?
Click to expand...

i think that they do. the split p mode sounds ALOT more like a p bass than when it's just a straight, side by side coil (which sounds more like a jazz or a single coil p bass).

#520
Well I just finished my version in pedal form and it sounds really good! However, it does clip a little when I run my P/J bass through it... I'm guessing that this is caused by a different (higher?) pickup impedance than on a Ray with a single pickup. Is there something that can be done to give the circuit more headroom?
