My bass has noise issues, so I’m going to attempt to shield the cavity and upgrade the preamp. I have 2 questions:

1. When I use the copper tape, which has conductive adhesive backing, do I have to cut out the holes for the pots? I’ll remove the pots for ease of preamp installation, so can I just put the tape in/over the holes then punch a hole in the tape with the pots as I re-install them?

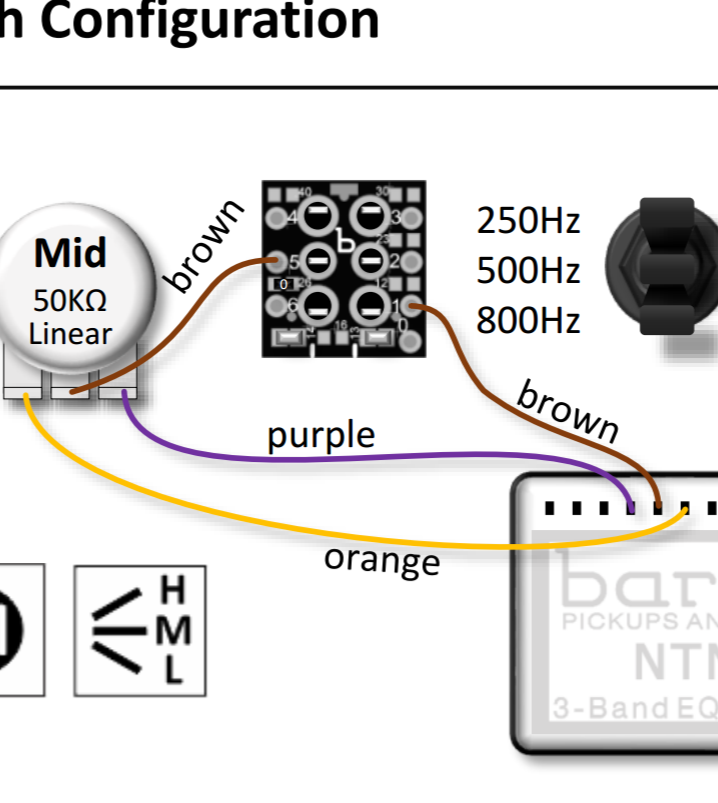

2. How do I get the mids pot to be 500hz? I’m trying to get the mids pot to be the same frequency as my current dying preamp, because I love the current pre besides its noise issues. It’s the Ibanez/Bartolini MK-1 pre, which is much maligned, though I quite like it. Here’s the sheet for my preamp, but I’m not sure what (if anything) to cut on the little board with pre-loaded capacitors.
https://bartolini.net/wp-content/uploads/Docs/NTMB_Wiring.pdf

Thanks for the help, and if there are any tips/tricks you know of for this, let me know!

2. How do I get the mids pot to be 500hz?
I think you would have to solder the brown wire on that number 2 in the board

  • Like
Reactions: oZZma
Is that yes as in “cut out the holes” or as in “push the pots through the tape to make the holes”?

I’m still trying to confirm the mids thing. Now that I look closer at the pic @ihaveaquestion shared, that shows all 3 mids as an option. I know I can’t do that right now. Is what he said accurate? Just double-checking fore I screw it all up...
I’d cut the holes with a razor knife or something of the sort. It will look cleaner.

  • Like
Reactions: kleinenenten
Is that yes as in “cut out the holes” or as in “push the pots through the tape to make the holes”?
Sorry, I should have been more specific, heh. Either or is fine, I'd suggest using a small, sharp blade (like the tip of an Xacto knife, to make your initial hole, then you can just push the shaft of the pot through, that'll help ensure good contact between the pot & the copper tape.

Well, the preamp came a day early and I wired it all up - sounds great and noise is almost entirely gone. Still have to shield the cavity when the tape arrives, so I’m not worried about that.

Unfortunately, I learned in the process of testing the new pre that my neck pup is dead... Maybe that’s why my bass suddenly seemed brighter a few months ago than the 6 string version I have...

I performed the screwdriver test on the pups after I noticed turning blend all the way to the neck side just muted my bass. Can’t catch a break!

Guess this is going to be my project bass!

Even if it was $5, I'd never see a cent of it. He's one of those perpetually unemployed types, I'm just glad he didn't steal anything. I didn't even want him in my house but I was being civil and figured the other adults could keep an eye on him for 15 minutes. Guess not.
I have the solution for what ails you my friend. Based on the description of your sister, uncle, and cousins, I feel like you could benefit from my experience. I too have not so great family members in my life. In my case the family unit consists of several combinations of the following: closed minded, irresponsible, dishonest, perpetually broke, addicts, and last, but not least, bigotry. They were an emotional burden for sometime, most of my life come to think of it, and were becoming a financial one as well. What'd I do, you ask? I interviewed for a job, hoped in my Jeep, and I moved just over 1000 miles away. Life has been good ever since. That distance is too long for most to drive, but close enough you can get a cheap flight if you need to go home. Also, because I'm out here and everyone else is back there, at most i get exposed to one or two members at a time. When I'm back home I get to control who I see. Hell, more than half the time, I don't even tell anyone I'm in the city and I just stay in a hotel, visit friends, and go to a few ballgames. I'm too far away for them to borrow money because they cant actively observe my financial situation. Its brilliant. I suggest you try it... just don't come to Denver, we're beyond full ;)

Last edited:
Did you manage to wire the mids as 500hz?
I did not. The little board that the directions show didn’t come with the preamp! I quite like it how it is right now, so we’ll see. If I change my mind I can go to the local electronics shop and get a cap to wire in. I’m just proud I did it all myself! Especially since I now have to find a new pickup... There goes my money saved on not using a tech!
