The Sushi Box FX Secret Society

#3,741
psychovox said:
Can this mod be requested for the upcoming builds? I have a Dr. W coming (I think its a Feb build.) Save on shipping! I know I am not actually going to use this in a traditional preamp way, but as a flavor to an existing chain.
Click to expand...
Yup, I'm planning to find a good value that will drop the output to around PA level and start doing that for all Dr. Wattsons starting this month.

  • Like
Reactions: psychovox, 1983L2000 and letsgethandsome
#3,742

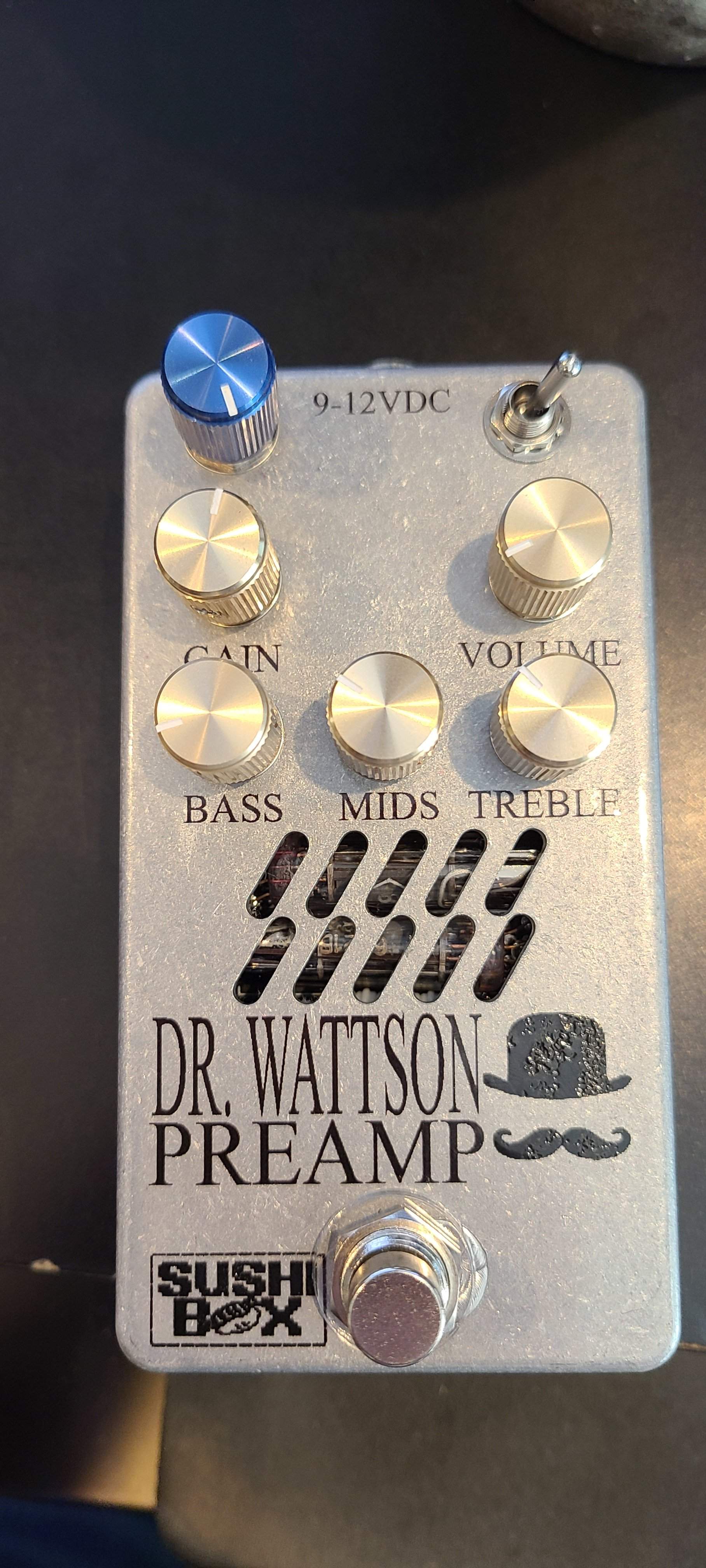

There's so much room in there, I did two mods :D
SPDT switch to switch between a 22k and a 300k resistor in-front of the pot, then a 250k pot.

Stock = 22k switched with pot turned 'off'
Max= 300k switched with pot full bore (so ~550k)



  • Like
Reactions: NKBassman, TodaysTomSawyer, 1983L2000 and 6 others
#3,743
Pedalnetics said:
There's so much room in there, I did two mods :D
SPDT switch to switch between a 22k and a 300k resistor in-front of the pot, then a 250k pot.

Stock = 22k switched with pot turned 'off'
Max= 300k switched with pot full bore (so ~550k)


View attachment 4162846
Click to expand...
Do you essentially have 2 volumes now, if you switched out the actual volume pot for something different would this be the same result?

#3,745
1983L2000 said:
So with the 300k resistor and pot at 0, is unity gain in the standard volume knob range?
Click to expand...
I'm talking to @Sushi Box FX about my wiring/setup. I'm seeing ~ a 10db drop at full-bore, but that's still ~10db louder than PA at the same place. Sounds like maybe >500k is going to be the goal if you want it down to PA level, and even a bit more for Unity. But, I'd love to hear what other's are seeing who've done the mod (if anyone)

As for Unity, it's possible even without the mod; you just only turn the Volume knob up ~10% with Gain at noon. With the mod I've done, I can get to ~25-30% before it hits Unity with full-resistance

For what it's worth, PA isn't Unity unless you turn vol way down as well. Gain+Vol at noon is ~+10db

When I 'standardize' where my signals started/are compensating to make unity == 0db on my meter, Full-mod DrW is ~+24db at noons, PA is ~+10b at noons

Last edited:
#3,747
Pedalnetics said:
I have zero idea :roflmao: I'd have to defer to @Sushi Box FX on that one, not sure where this mod is in the signal chain compared to the volume knob.
Click to expand...
My head is saying it is, but ma head been wrong plenty of times before. I was just thinking, already tapping into the volume, wondered if another value volume pot would fix it, harder though. Taking these things apart is pretty tedious

#3,748
Pedalnetics said:
I have zero idea :roflmao: I'd have to defer to @Sushi Box FX on that one, not sure where this mod is in the signal chain compared to the volume knob.
Click to expand...

labeledbass said:
My head is saying it is, but ma head been wrong plenty of times before. I was just thinking, already tapping into the volume, wondered if another value volume pot would fix it, harder though. Taking these things apart is pretty tedious
Click to expand...

Yup, using a pot in front of the Volume (just found out today that the laser engraved ones say Master, UV printed say Volume) is essentially like having two volume knobs one after the other.

#3,749
Pedalnetics said:
I'm talking to @Sushi Box FX about my wiring/setup. I'm seeing ~ a 10db drop at full-bore, but that's still ~10db louder than PA at the same place. Sounds like maybe >500k is going to be the goal if you want it down to PA level, and even a bit more for Unity. But, I'd love to hear what other's are seeing who've done the mod (if anyone)

As for Unity, it's possible even without the mod; you just only turn the Volume knob up ~10% with Gain at noon. With the mod I've done, I can get to ~25-30% before it hits Unity with full-resistance

For what it's worth, PA isn't Unity unless you turn vol way down as well. Gain+Vol at noon is ~+10db

When I 'standardize' where my signals started/are compensating to make unity == 0db on my meter, Full-mod DrW is ~+24db at noons, PA is ~+10b at noons
Click to expand...

Thank you for the details. I see that you can achieve unity on yours without the mod - I absolutely cannot on mine. Even with minimal gain and minimum volume, the latter basically jumps instantly from "barely audible muffled sound" to 50% perceived volume above unity. If a 220k or 300k resistor gives me unity somewhere within the second third of the volume knob range (to allow for both clean and breakup gain levels) that would be perfect. From what you're saying it looks like I should go to 300k.

Cheers

  • Like
Reactions: BunchyMutt
#3,750
Hey Sushi pros.... I was reading back through pages of this thread, remembered seeing something about it but can’t find it ..... was wondering if anyone could direct me to or tell me how the Slampegg is comparing to other pedals on the market for the B15 vibe. Thought I’m still digging the Dr Wattson... I’m open at this point! Thanks!

#3,752
NKBassman said:
@bassjam I haven’t tried the Slampegg (yet), but I remember reading here that it compares very well against some other currently popular Ampeg-voiced preamp pedals. I’ll let actual Slampegg owners provide the details.
Click to expand...

Thanks- that’s what I recall reading as well. I’m still digging for it. I’m thinking for me, I’d like a base preamp as a starting point to build off of.... I dig the B15 for that.

  • Like
Reactions: NKBassman and Sonicblaze
#3,757
kranahan said:
Will it have an uneffected out, effected out and XLR out?
Click to expand...
I have no idea. I'm definitely planning on doing an XLR out with whatever DI transformer I decide I like, haven't really nailed down any other details yet.

  • Like
Reactions: macmanlou, fenjazz, NKBassman and 2 others
#3,759
Sushi Box FX said:
I have no idea. I'm definitely planning on doing an XLR out with whatever DI transformer I decide I like, haven't really nailed down any other details yet.
Click to expand...
The only deal breaker for me is not having an uneffected/thru out. Hence, why I do not own a Two Notes Torpedo Cab M.

  • Like
Reactions: letsgethandsome
