The Sushi Box FX Secret Society

#18,761
DigMe said:

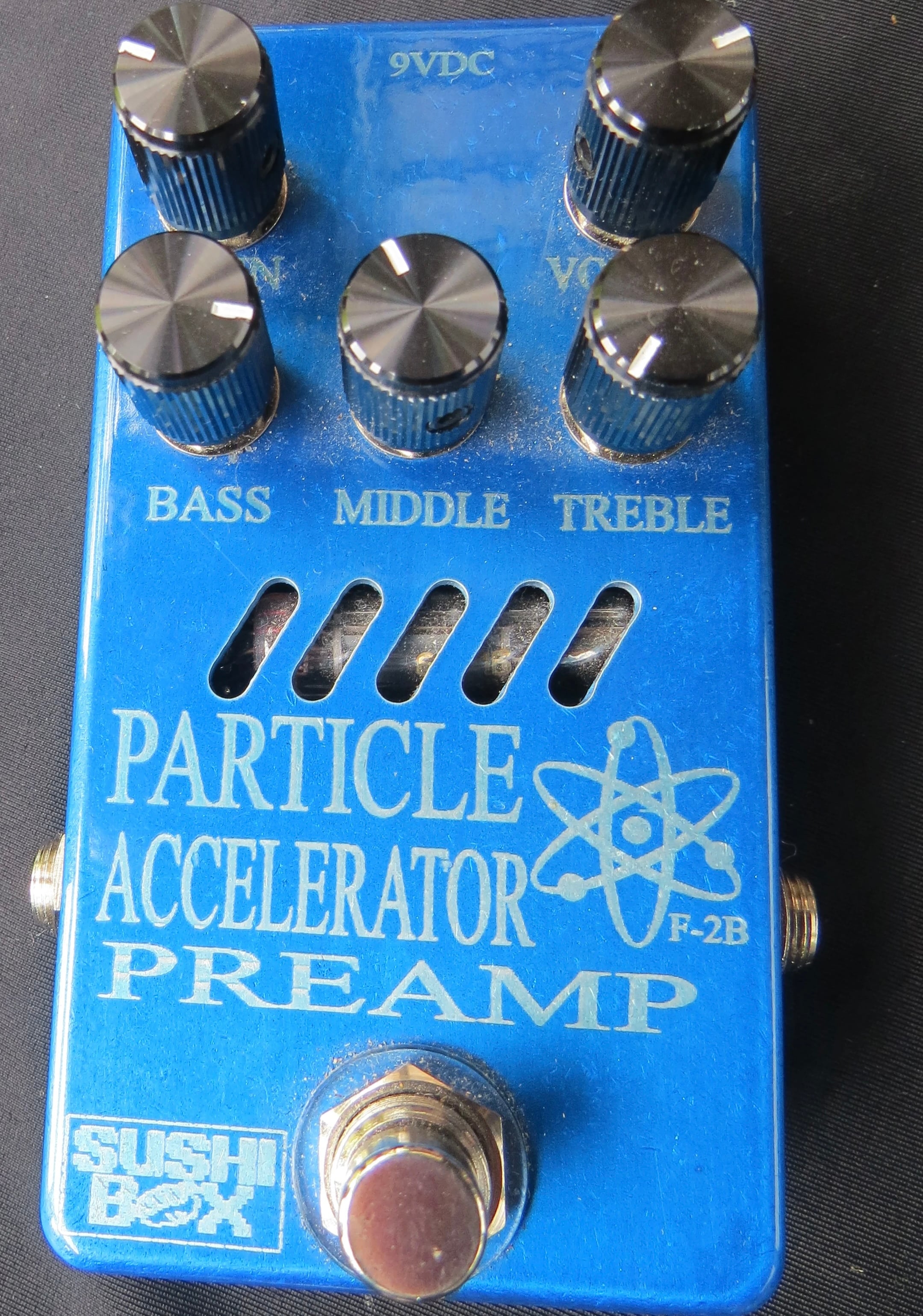

Hey, y’all! I recently acquired this PA here at TB and I have a couple of questions:

View attachment 5278991

why is this one blue instead of space-looking? Is it a first gen or something? Anything I should know about this gen?

more importantly - what power supply do you use and how many max milliamps of current do you have this pedal plugged into? I have plugged it into a 300ma slot on a rechargeable power supply and last time it went silent after a while. Then I switched to a separate 9v 500ma wall wart and it started working again. Not sure if it’s the load on the PS or just poor quality PS.
Click to expand...
That's one of the very earliest units, most likely mid to late 2020. 300mA is not enough for the pedal to operate, it will need at least 500mA.

All that said some people still prefer the sound of the original "mini-tube" Particle Accelerator over the later 12AX7 version. Hope you enjoy it, and I'm happy to answer any other questions you have.

  • Like
Reactions: FourStringMF, WRM, macmanlou and 3 others
#18,762
Sushi Box FX said:
That's one of the very earliest units, most likely mid to late 2020. 300mA is not enough for the pedal to operate, it will need at least 500mA.

All that said some people still prefer the sound of the original "mini-tube" Particle Accelerator over the later 12AX7 version. Hope you enjoy it, and I'm happy to answer any other questions you have.
Click to expand...
Sushi Box FX said:
That's one of the very earliest units, most likely mid to late 2020. 300mA is not enough for the pedal to operate, it will need at least 500mA.

All that said some people still prefer the sound of the original "mini-tube" Particle Accelerator over the later 12AX7 version. Hope you enjoy it, and I'm happy to answer any other questions you have.
Click to expand...

Thanks. What is the stock tube?

and for everyone else - is anyone using a power supply with a 500ma slot and if so what is the model?

#18,767
bassbrad said:
@DigMe lucky find on that PA, those early boxes had finishes no longer available and I'm one that prefers the mini tube PA and Slampegg Bee over the 12ax7 version. The UA is perfection for an all around performer. I use a 1Spot and daisy chain to power several pedals with no issue.
Click to expand...

Thanks for the feedback. Oh! You use a 1spot for 500ma pedal? Plus how many other pedals? My final board (for now) will have 6 pedals. I think all can be run off 100ma except for the PA and I plan on soon acquiring the final piece - a Darkglass Element for cab sim, which has a 250ma draw. I feel like that would be pushing a 1Spot. I was just eyeing a Joyo isolated power supply on Amazon that has two 500ma outputs and 4 low-current, which would be great. Joyo seems to typically have good performance for the buck.

  • Like
Reactions: FourStringMF
#18,768
DigMe said:
Thanks for the feedback. Oh! You use a 1spot for 500ma pedal? Plus how many other pedals? My final board (for now) will have 6 pedals. I think all can be run off 100ma except for the PA and I plan on soon acquiring the final piece - a Darkglass Element for cab sim, which has a 250ma draw. I feel like that would be pushing a 1Spot. I was just eyeing a Joyo isolated power supply on Amazon that has two 500ma outputs and 4 low-current, which would be great. Joyo seems to typically have good performance for the buck.
Click to expand...
Your description is for 1350ma. One spot is good for 1.5A or 1500ma.

Last edited:
  • Like
Reactions: FourStringMF and DigMe
#18,769
furym said:
Your description is for 850ma. One spot is good for 1.5A or 1500ma.
Click to expand...

i meant to say the remaining 4 could be run off of 100ma each. So it would be 1150ma total but it would still be less than 1.5A.

EDIT: actually I guess actual current draw for the low current pedals probably would be less than 100. I was just thinking that I plug each one into a 100ma slot but their draw is prob less than 25ma each so nevermind. Maybe I’ll give the 1spot a try.

Last edited:
  • Like
Reactions: furym
#18,771
@DigMe on my studio desk I run as many as 8 pedals including mini tube PA, SB, Finally, Ictineo along with 2 or three more.


On my pedal board I run off a 1spot

  • Like
Reactions: Bleeds Horchata and DigMe
#18,772
DigMe said:
Thanks for the feedback. Oh! You use a 1spot for 500ma pedal? Plus how many other pedals? My final board (for now) will have 6 pedals. I think all can be run off 100ma except for the PA and I plan on soon acquiring the final piece - a Darkglass Element for cab sim, which has a 250ma draw. I feel like that would be pushing a 1Spot. I was just eyeing a Joyo isolated power supply on Amazon that has two 500ma outputs and 4 low-current, which would be great. Joyo seems to typically have good performance for the buck.
Click to expand...
You just have to try it. I tried daisy chaining my Slampegg when I first got it and it felt if I lost a little bit of low end and sounded a little thin. I was running 5 pedals before it and the one spot had plenty of power left over.

  • Like
Reactions: DigMe
#18,774
DigMe said:
i meant to say the remaining 4 could be run off of 100ma each. So it would be 1150ma total but it would still be less than 1.5A.

EDIT: actually I guess actual current draw for the low current pedals probably would be less than 100. I was just thinking that I plug each one into a 100ma slot but their draw is prob less than 25ma each so nevermind. Maybe I’ll give the 1spot a try.
Click to expand...
Daisy chains are awesome, a great way to power a board, until you introduce that one pedal that screws the pooch. Always worth a shot.

  • Like
Reactions: walking_line
#18,775
What are the differences between the UA and the Elementary exactly tone-wise (not circuit-wise)? Does anyone have a side-by-side comparison of the two (or a previous post ITT that explores the differences)? Are they each respectively more designed for certain styles?

#18,776
  • Like
Reactions: macmanlou, gonzkal, One Way and 4 others
#18,778
wolffire99 said:
How can you tell when/if your sushi pedal is “warming up?” What’s a normal amount of expected time? As far as I can tell mine are ready to go seconds after turning them on but maybe I’m missing something.
Click to expand...
Depending on the power supply, it should be seconds. If it's not warmed up, you'll either hear nothing or the output will be low and distorted.

When I test a pedal I plug it in, then by the time I pick up my bass and take my amp off standby, the pedal is warmed up and ready to go. My typical benchtop test supply is a 1700mA OneSpot.

  • Like
Reactions: FourStringMF and One Way
#18,779
Sushi Box FX said:
Depending on the power supply, it should be seconds. If it's not warmed up, you'll either hear nothing or the output will be low and distorted.

When I test a pedal I plug it in, then by the time I pick up my bass and take my amp off standby, the pedal is warmed up and ready to go. My typical benchtop test supply is a 1700mA OneSpot.
Click to expand...
Thanks for confirming that. I’m using one spot pro that is 500ma single 1600ma total.

  • Like
Reactions: Sushi Box FX
#18,780
wolffire99 said:
How can you tell when/if your sushi pedal is “warming up?” What’s a normal amount of expected time? As far as I can tell mine are ready to go seconds after turning them on but maybe I’m missing something.
Click to expand...

I'm powering a UA and/or LU with an 800mA tap on my power supply, and it's warmed up faster than the time it takes to turn my amp on.

Not surprised yours is doing similarly, given the power rating of your supply!

  • Like
Reactions: Sushi Box FX
